Sylvania TVK131

Matt Ross
December 2, 2024, 3:17 pm
December 3, 2024, 2:02 am

Summary

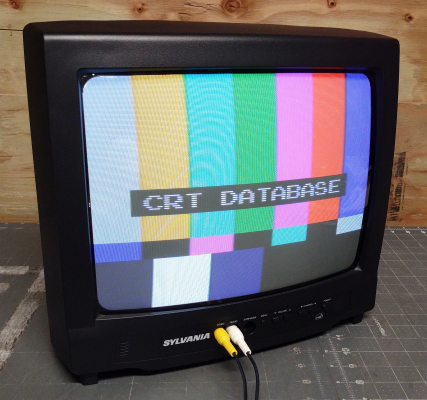

Budget model 13" curved TV, made by Funai and sold under the Sylvania brand. These TVs were extremely common in the early 2000s. Features a single mono AV input on the front.

Literature

Notes

Similar Funai TVs were also sold under the Emerson, Symphonic, and Magnavox brands.

Gallery

Sylvania TVK131 Sylvania TVK131 Sylvania TVK131 Sylvania TVK131 Sylvania TVK131 Sylvania TVK131 Sylvania TVK131
Specifications
Brand: Sylvania
Manufacturer: Funai
Model: TVK131
Series: Sylvania
Viewable Size: 13"
Inputs: Composite, RF
Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: OSD Customer Controls, OSD Service Menu
Vertical Output IC: LA78040A
Comb Filtering: None
Flyback: LTF00CPXB020
Tube: A34AGT13X , Funai
Heater Voltage: 6.3v
Deflection: 90°
Mask: Slot
Tint: Dark
Removable Glare Film: No
Yoke: LLBY00ZS005
Speakers: Mono
Remote: N0108UD, N0132UD
Weight: 18.2 lbs (8 kg)
Application: Consumer
Cabinet Material: Plastic
Launched: 2001
Country of Manufacture: China
Degaussing: Automatic on Power-on
