Sylvania TVK131A
Eli Krause
August 31, 2025, 3:17 pm
August 31, 2025, 6:36 pm
August 31, 2025, 3:17 pm
August 31, 2025, 6:36 pm
Summary

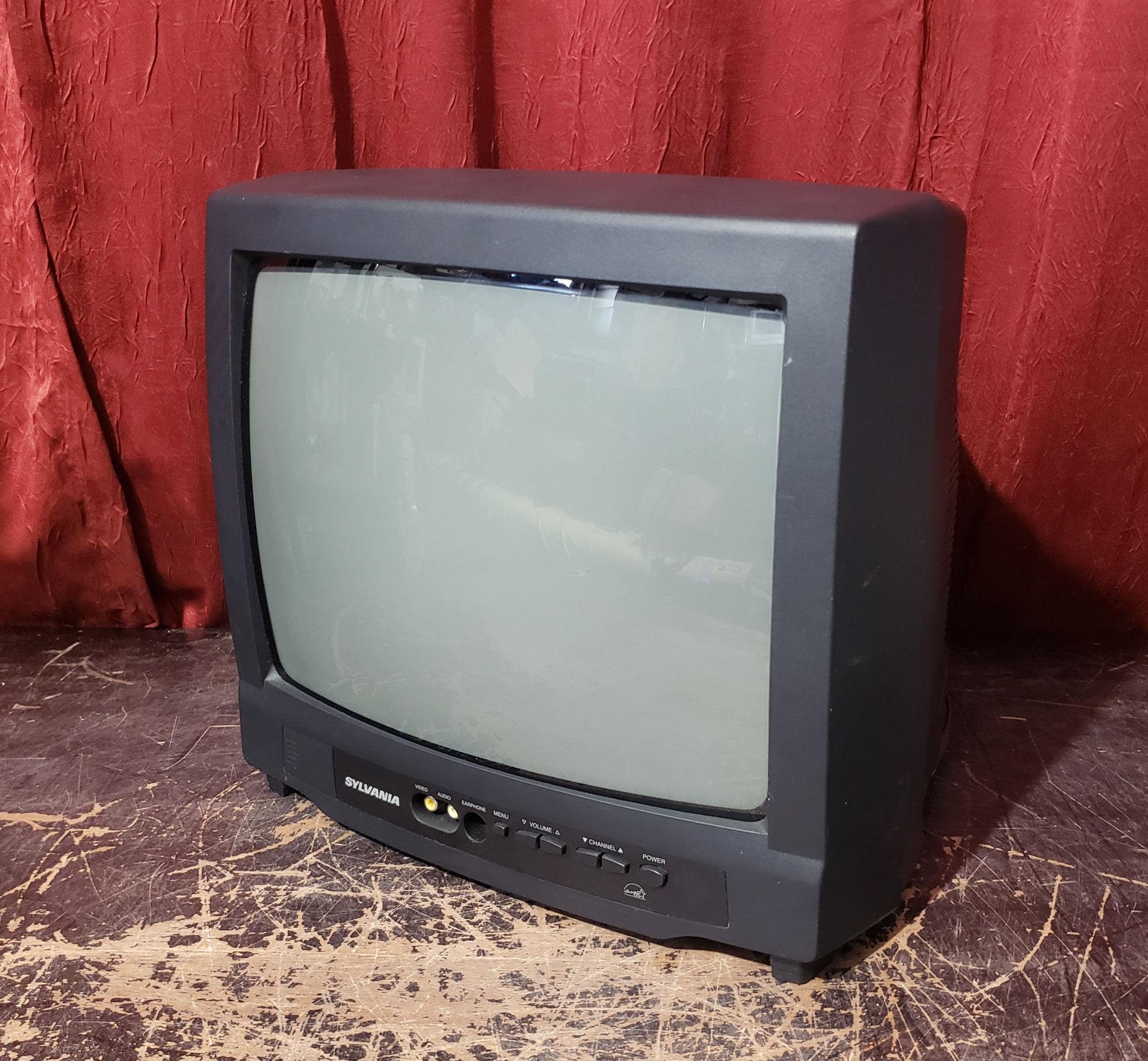

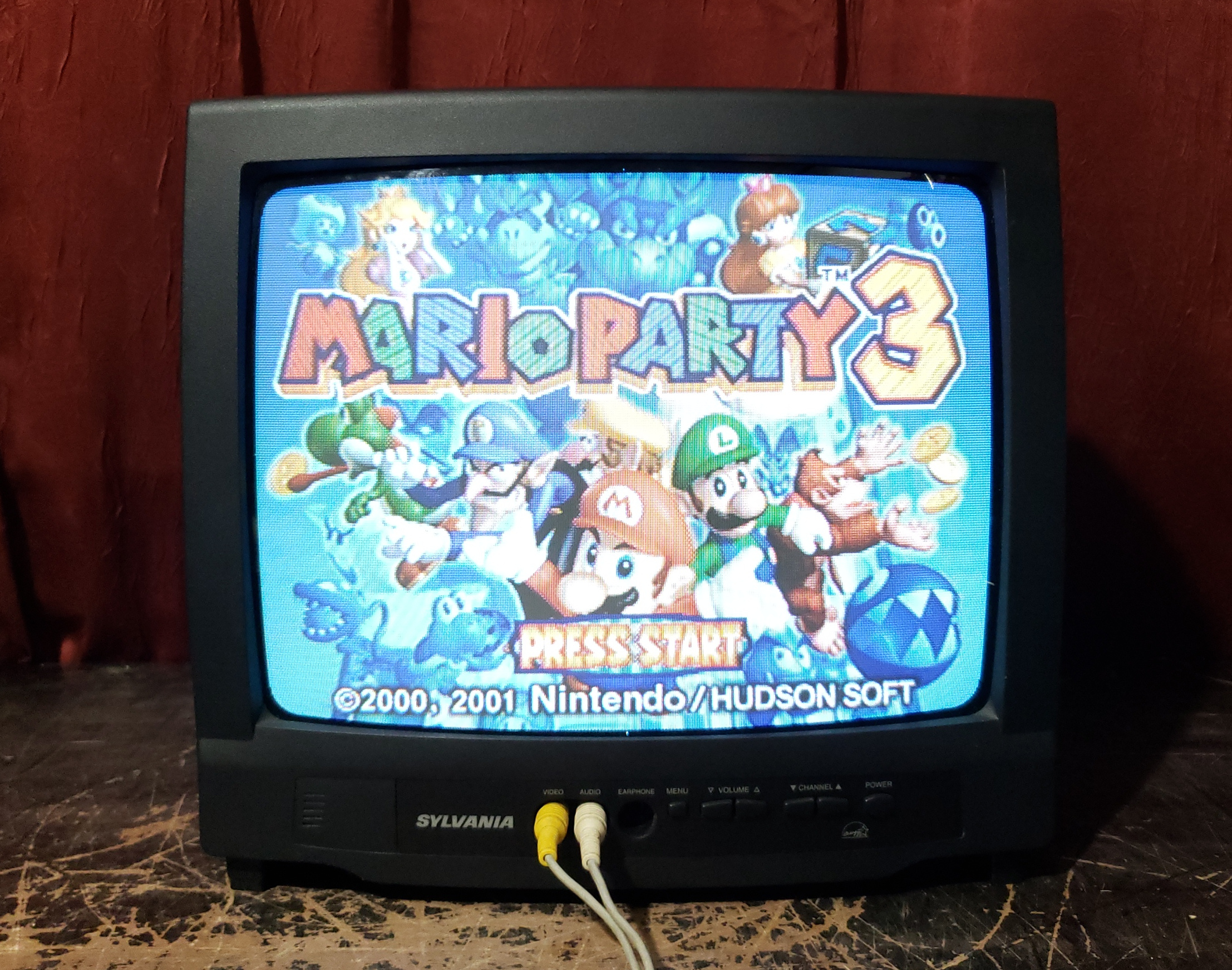

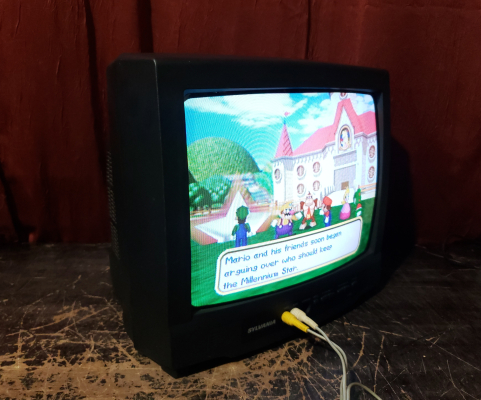

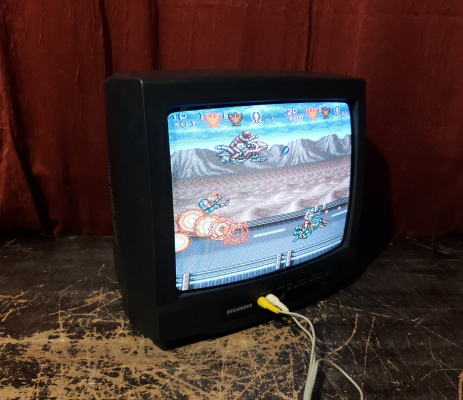

Budget model 13" curved TV, made by Funai and sold under the Sylvania brand. Features a single mono AV input on the front.
Manuals
- User Manual
- Service Manual for similar model
Notes
If the set is not already on the AV input, then a remote is needed to switch from the antenna to the front composite jack.
Gallery











Specifications | |
---|---|
Brand: | Sylvania |
Manufacturer: | Funai |
Model: | TVK131A |
Series: | Sylvania |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | M61210FP |
Comb Filtering: | None |

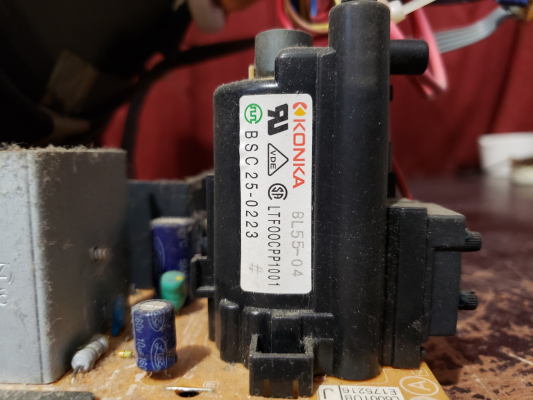

Flyback: | LTF00CPP1001 |
Focus Type: | Single |

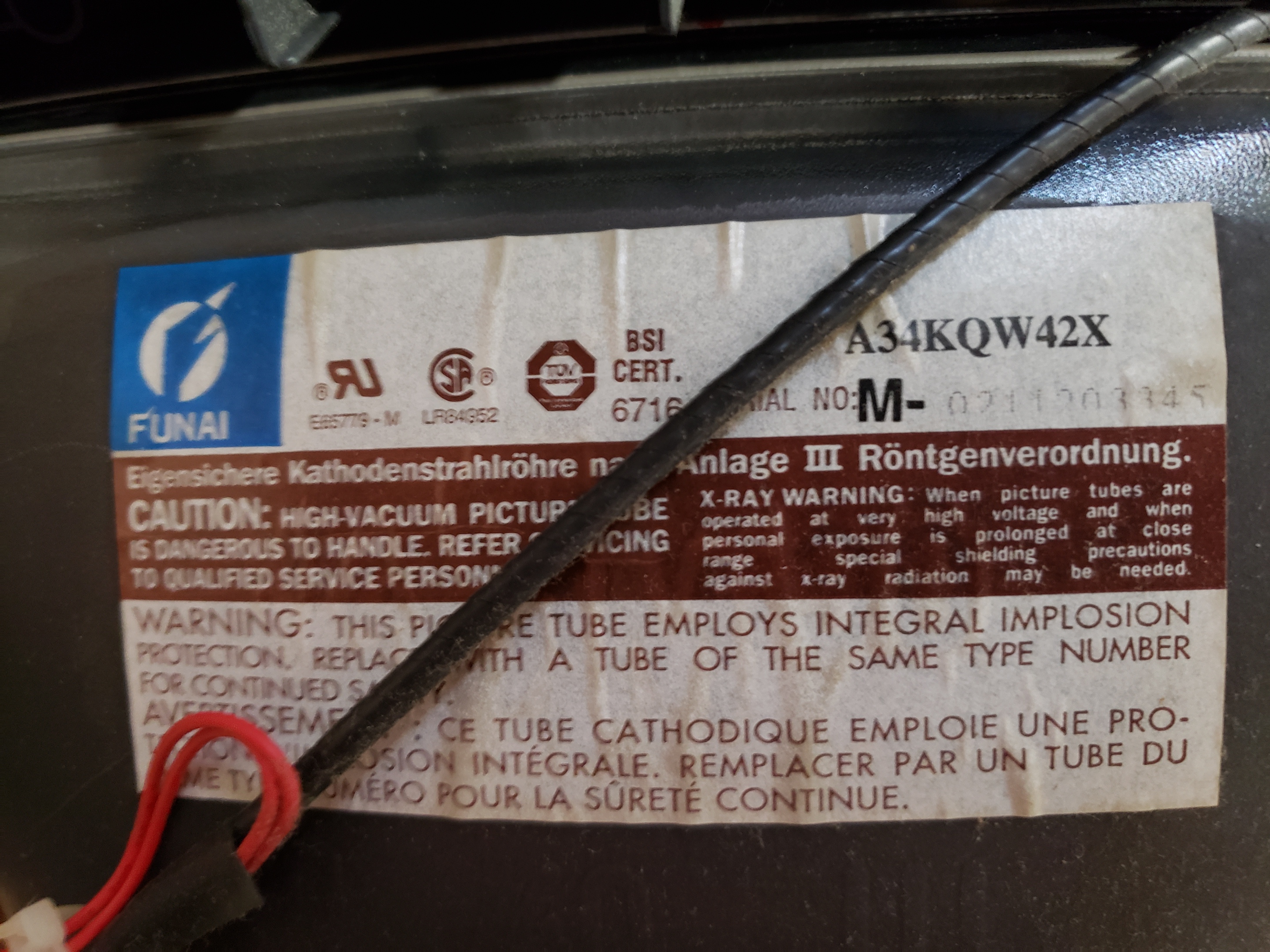

Tube: | A34KQW42X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |

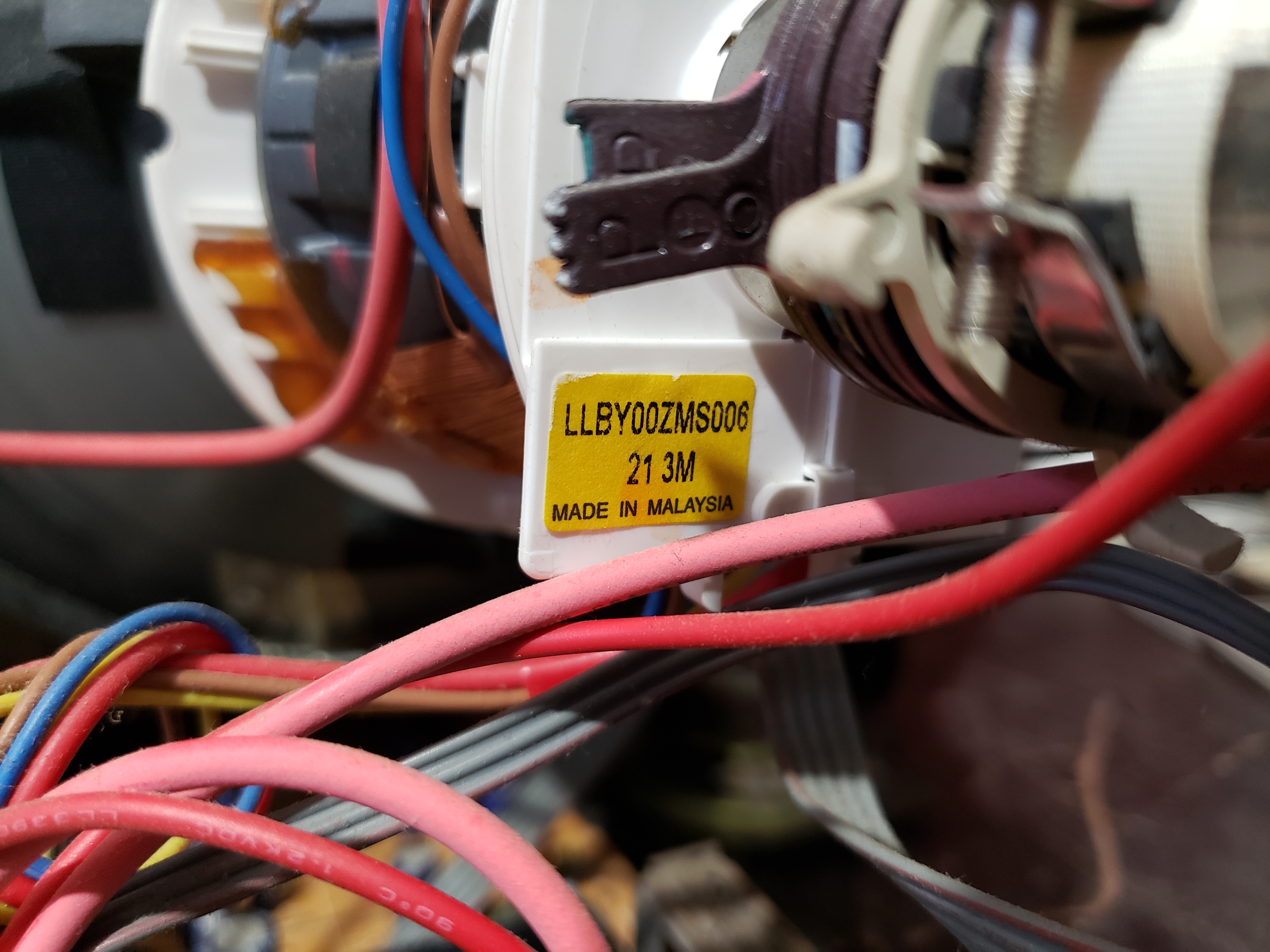

Yoke: | LLBY00ZMS006 |
Yoke Horz. Inductance: | 2.721 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 29.35 mH (@ 100 Hz) |
Speakers: | Mono |
Remote: | N0132UD |
Weight: | 19 lbs (8.6 kg) |
Dimensions (W/H/D): |
358 x 323 x 367 mm
(14.1 x 12.7 x 14.4") |
Application: | Consumer |
Cabinet Material: | Plastic |

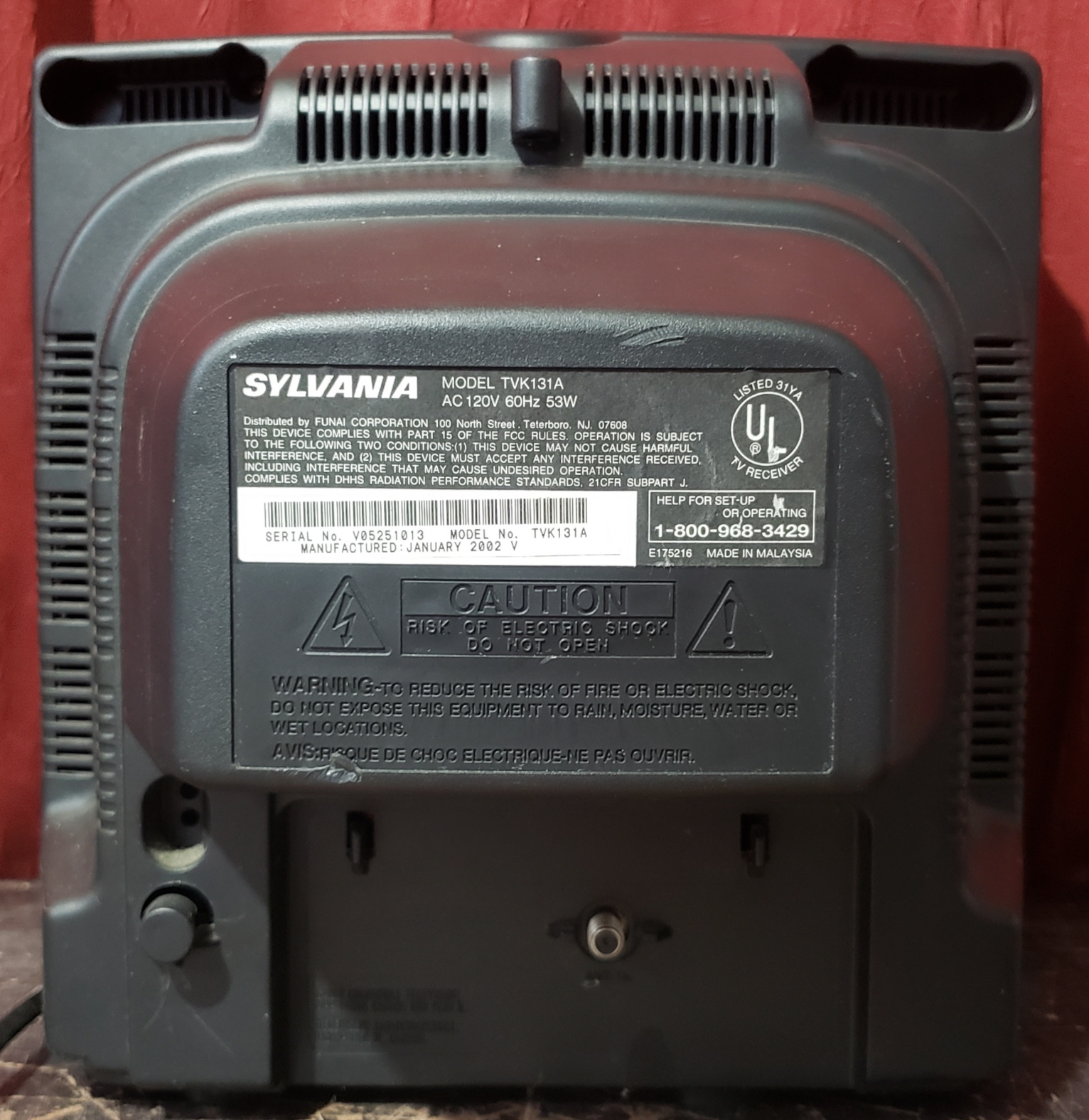

Launched: | 2002 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
