Symphonic WF0213C
Eli Krause
April 16, 2025, 8:22 am
April 16, 2025, 5:43 pm
April 16, 2025, 8:22 am
April 16, 2025, 5:43 pm
Summary
TV/VCR combo made by Funai.
Manuals
Notes

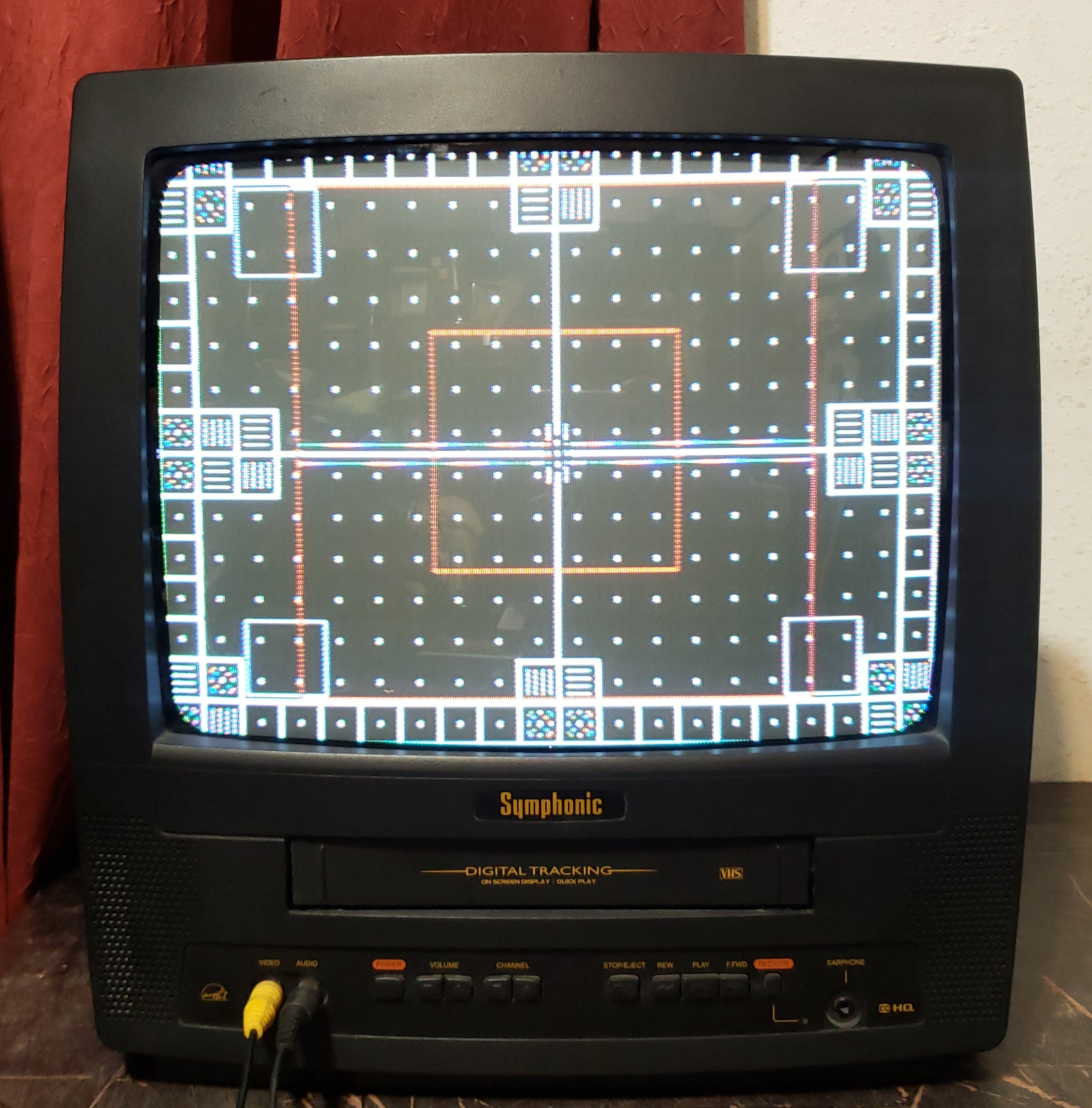

The channel buttons can be used to change inputs, as well as to access the menu. Navigating the user menu can be done with the VCR buttons on the set. As with most sets the default sharpness level was so high as to create significant ringing; even when sharpness was lowered all the way some slight ringing lingered.

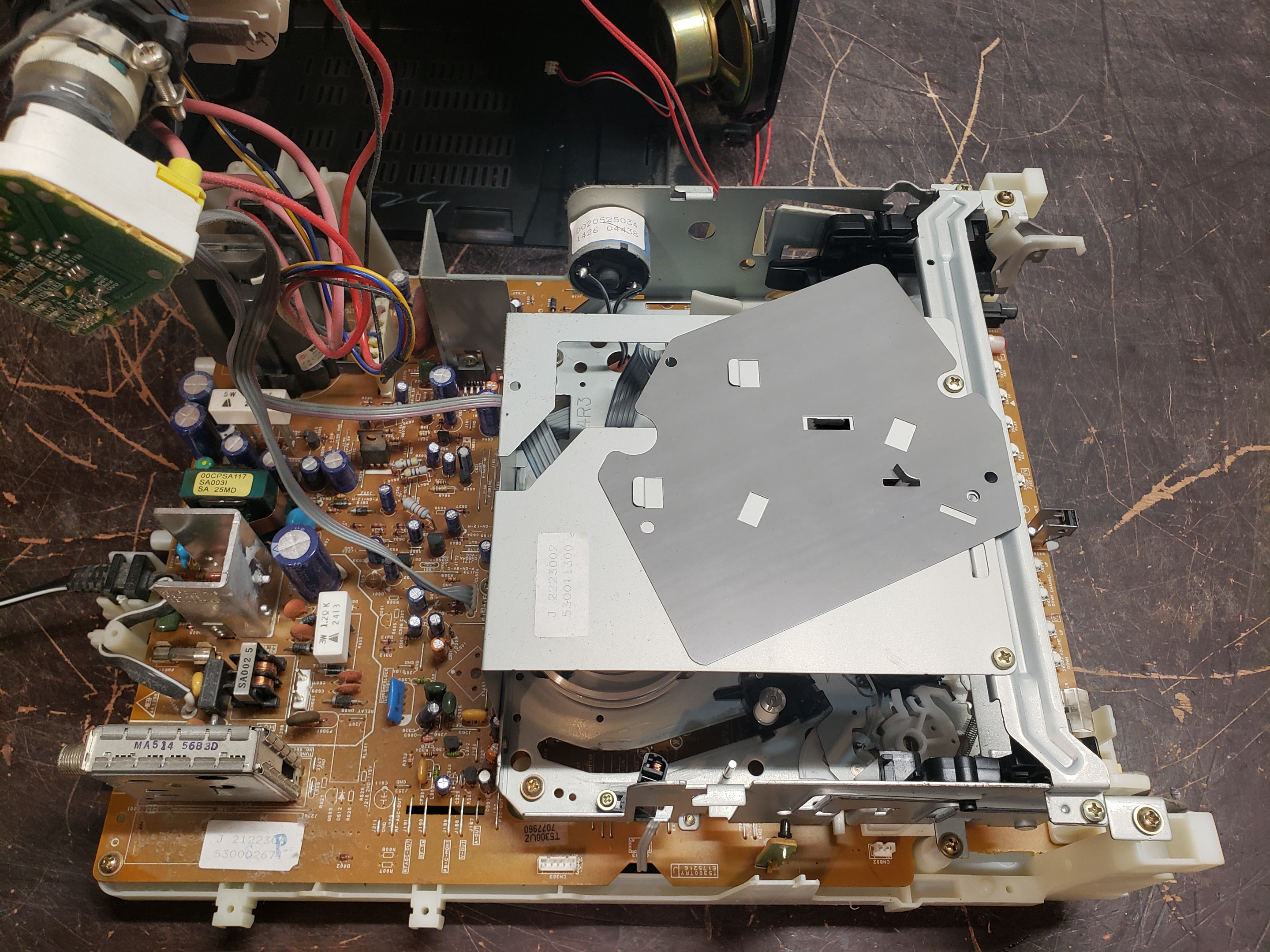

Unit pictured would not play back VHS tapes, immediately spitting the tape back out after it was inserted.
Gallery












Specifications | |
---|---|
Brand: | Symphonic |
Manufacturer: | Funai |
Model: | 6513DF |
Series: | TV/VCR Combo |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2627 |
Vertical Output IC: | AN5522 |

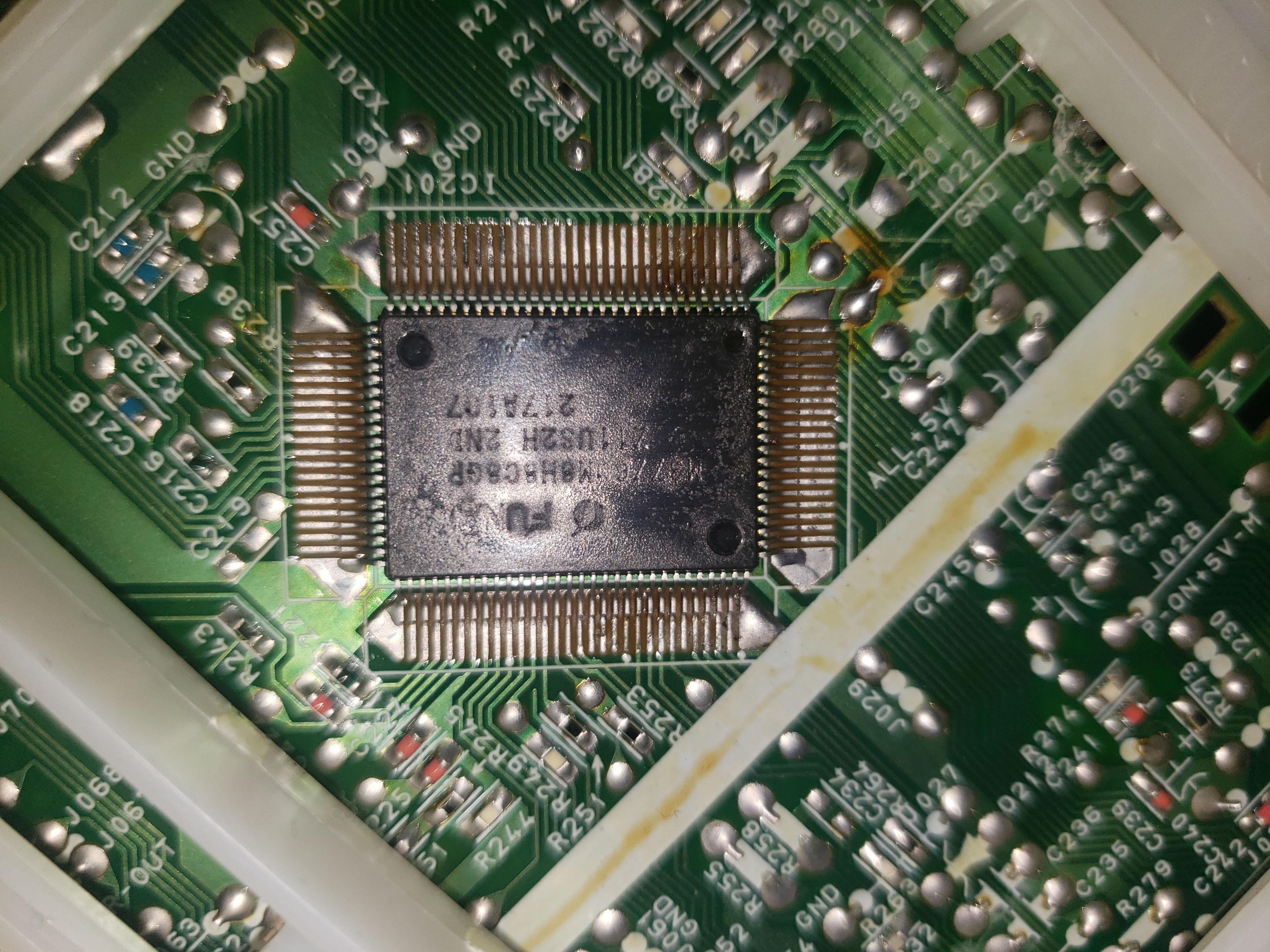

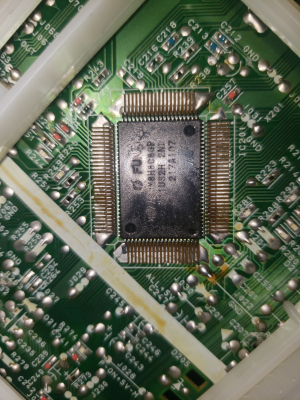

Jungle: | M37760M8H8C8GP |

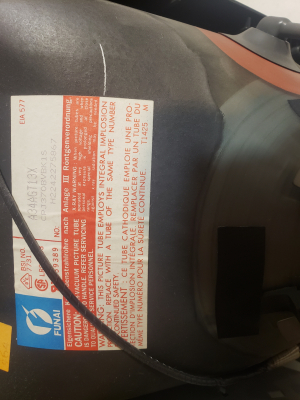

Tube: | A34AGT13X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Yoke: | LLBY00ZSY005 |
Yoke Horz. Resistance: | 4.2 ohm |
Yoke Vert. Resistance: | 16.1 ohm |
Speakers: | Mono |
Remote: | N0150UD |
Chassis: | T5300UZ |
Weight: | 23.1 lbs (10.5 kg) |
Dimensions (W/H/D): |
367 x 389 x 377 mm
(14.4 x 15.3 x 14.8") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Mounting: | Carrying Handle |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
