Summary

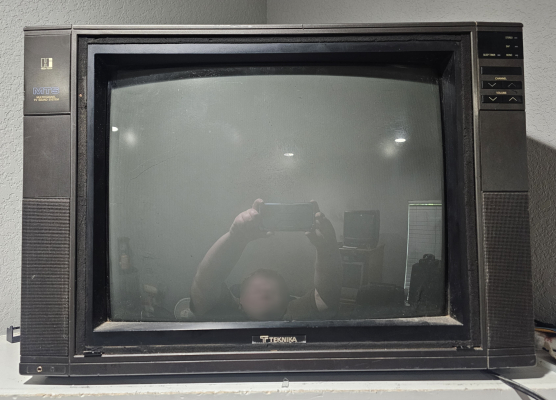

Higher-end 20" CRT by Teknika. Made by Fujitsu in Japan in 1986. Has RF and composite video inputs and outputs with stereo sound. One of the very last CRTs Fujitsu would make in their partnership with Wells Gardner before their contract ended in 1987.
(Special thanks to Bryce W. for the pics!)
Manuals
(None at this time.)
Gallery
| Specifications | |
|---|---|

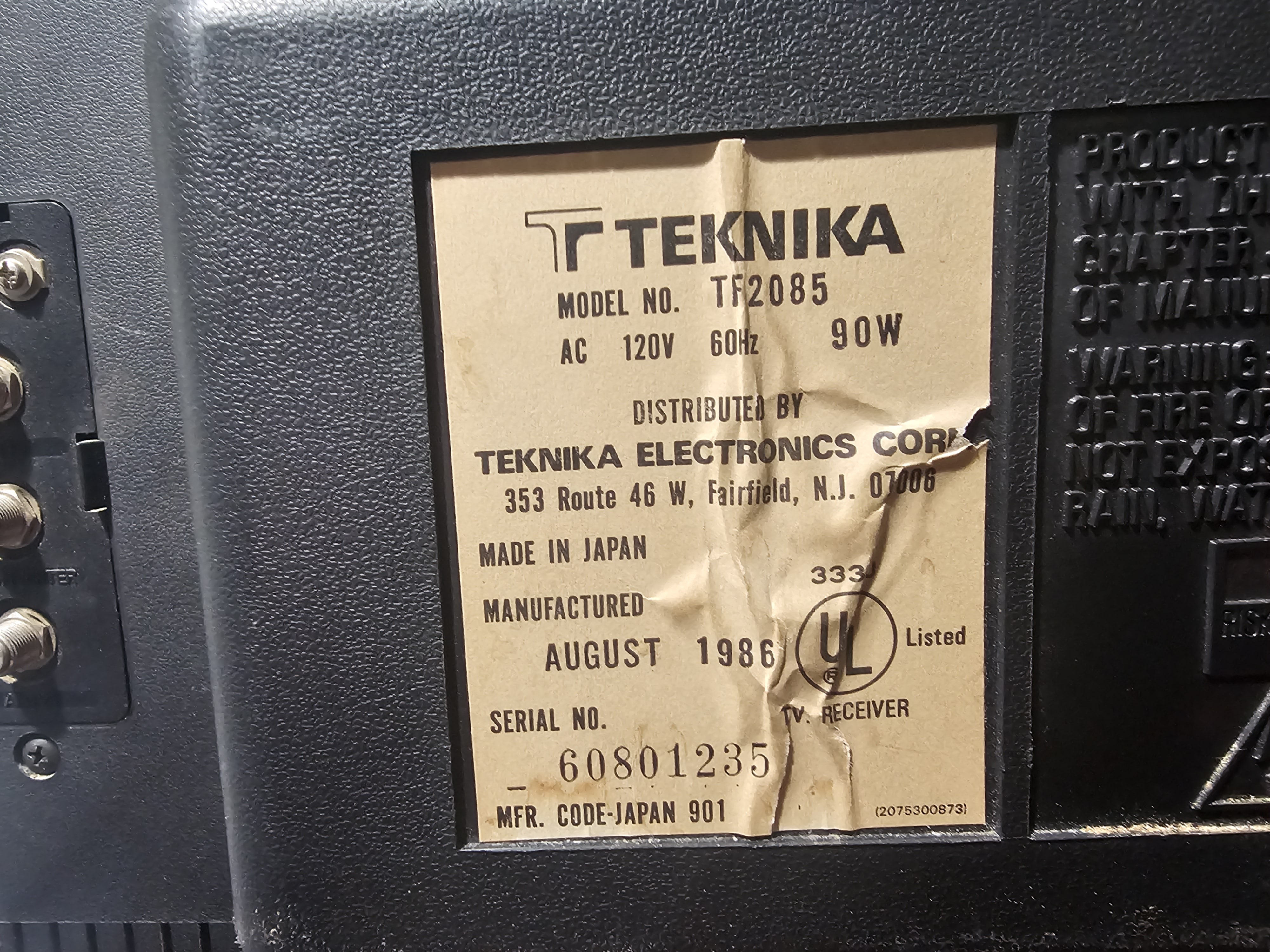

| Brand: | Teknika |
| Manufacturer: | Fujitsu |
| Model: | TP2085 |
| Series: | TF |
| Viewable Size: | 20" |

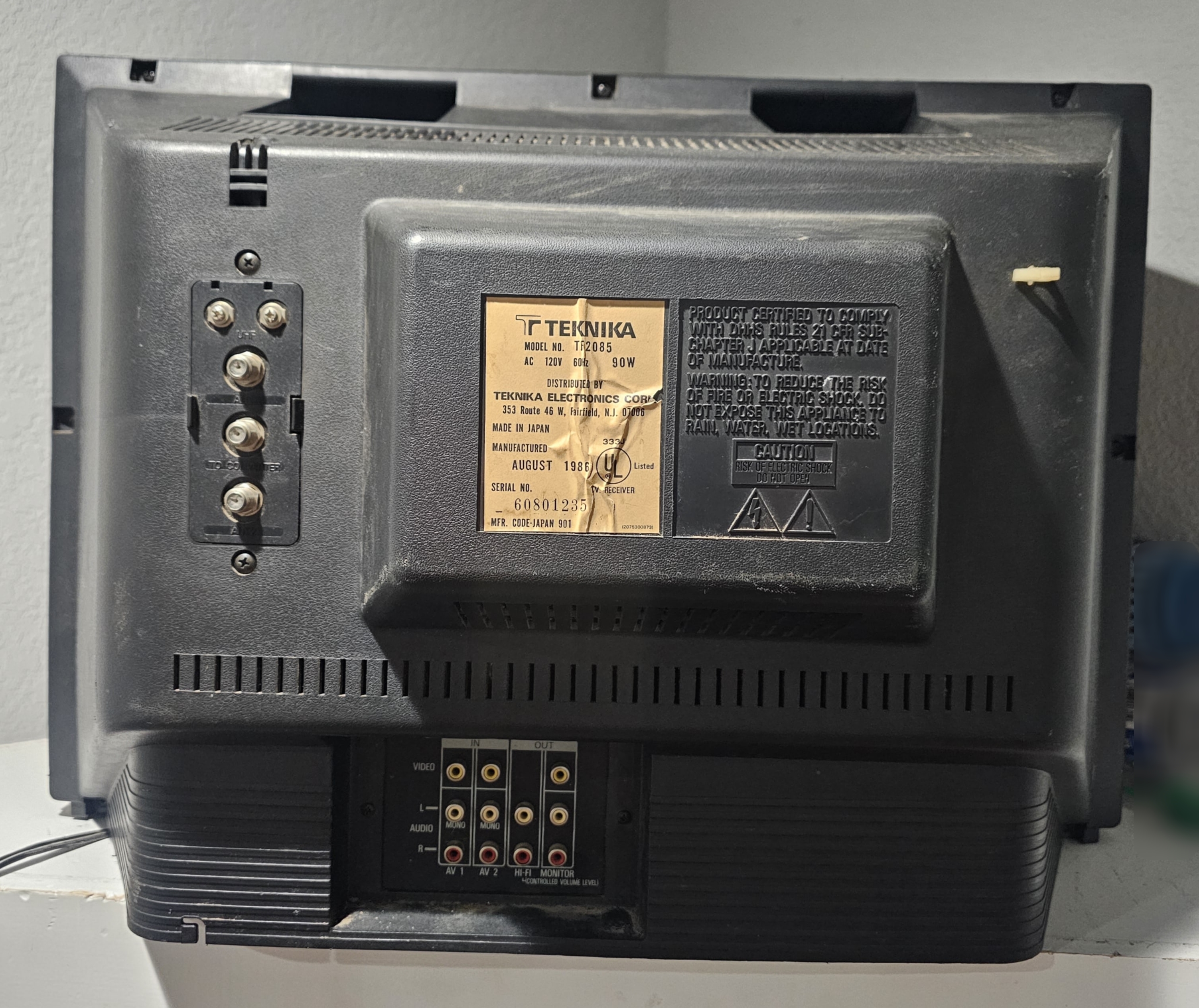

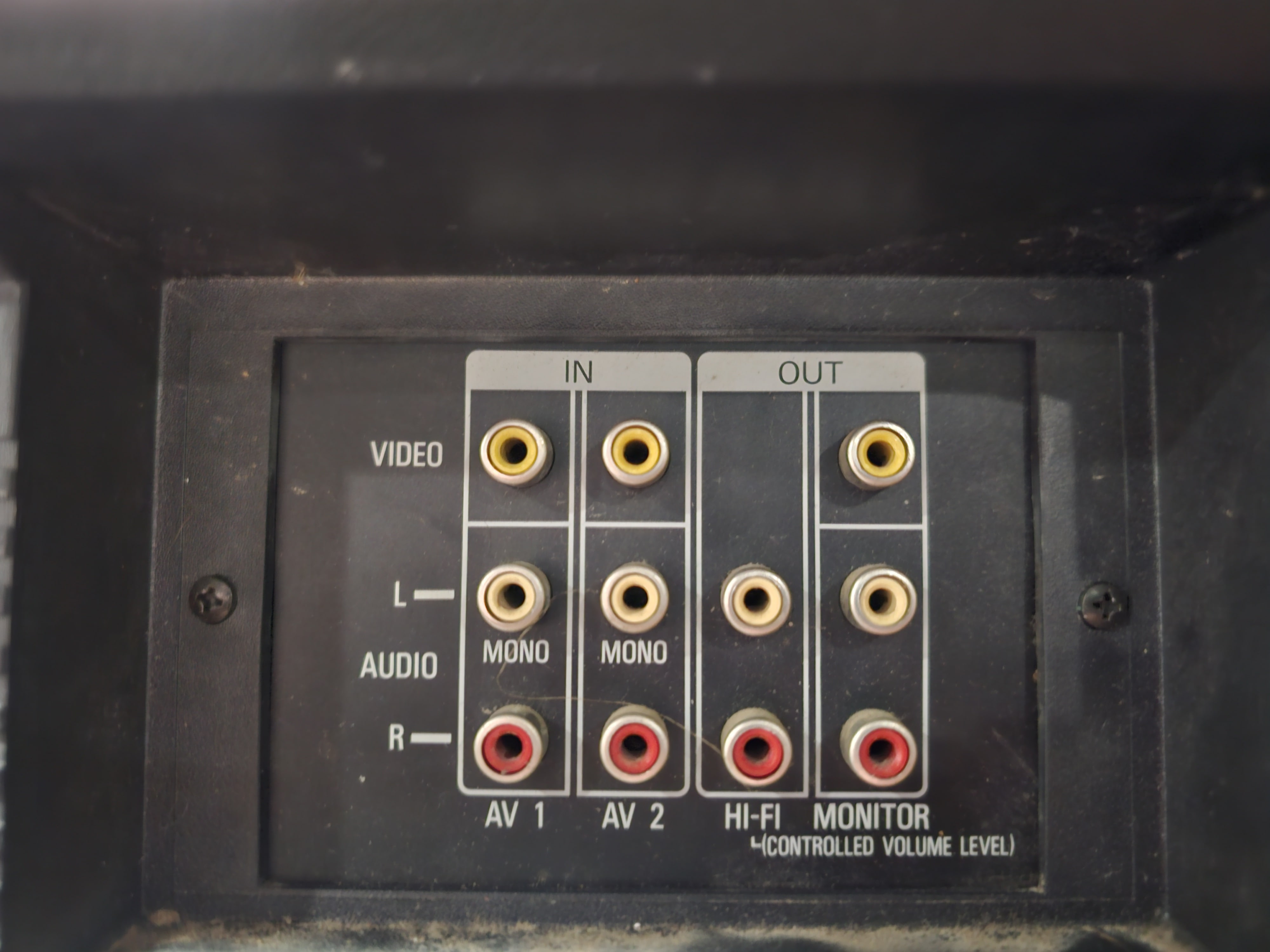

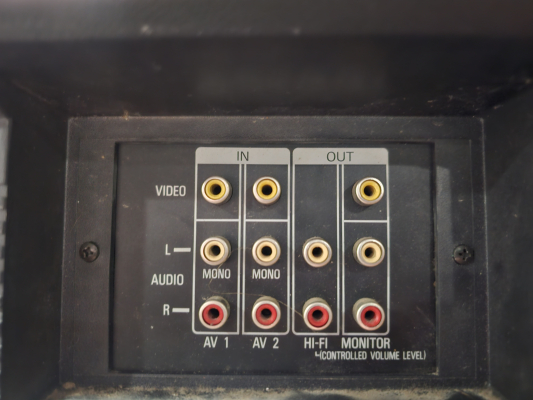

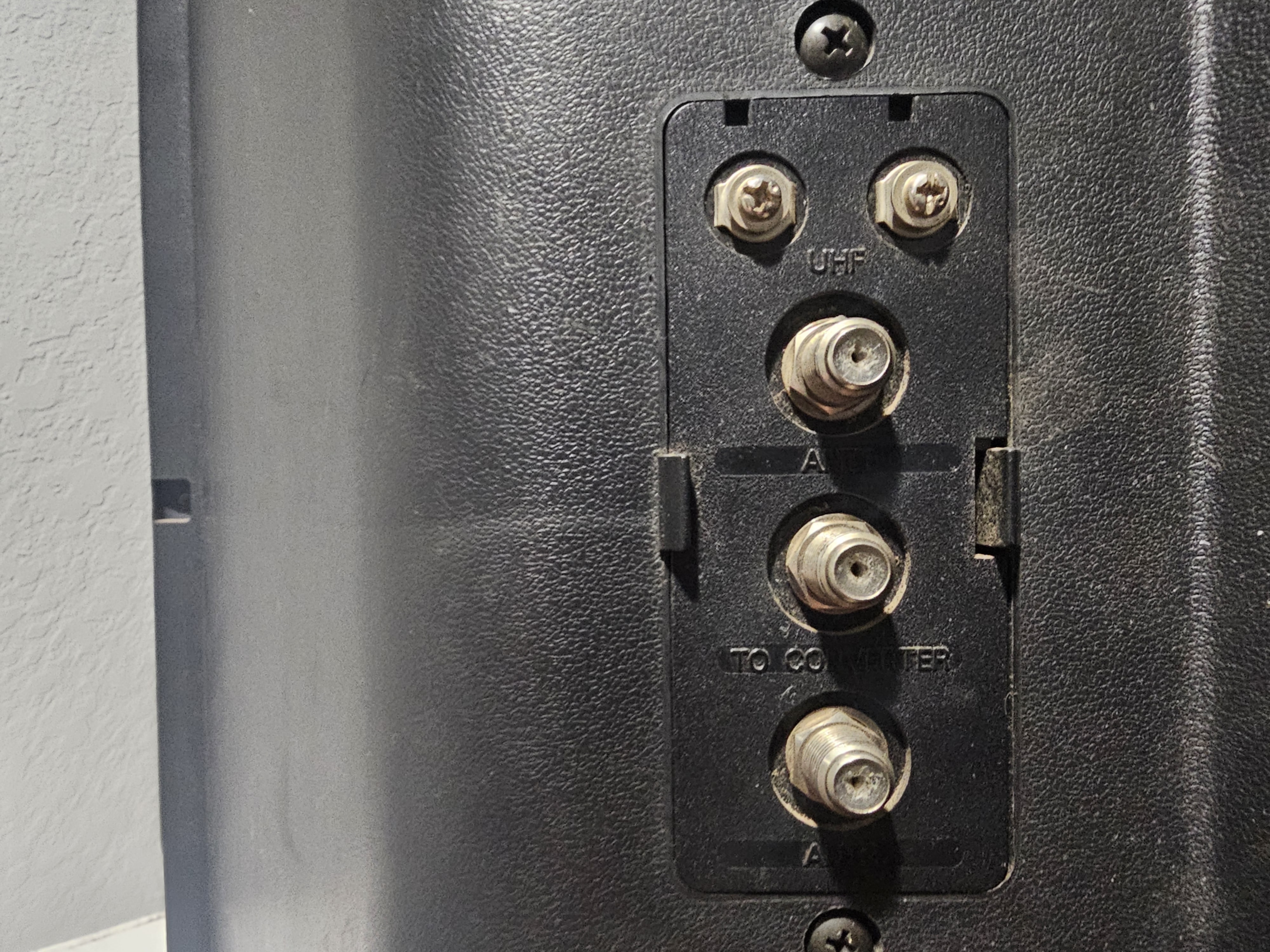

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |

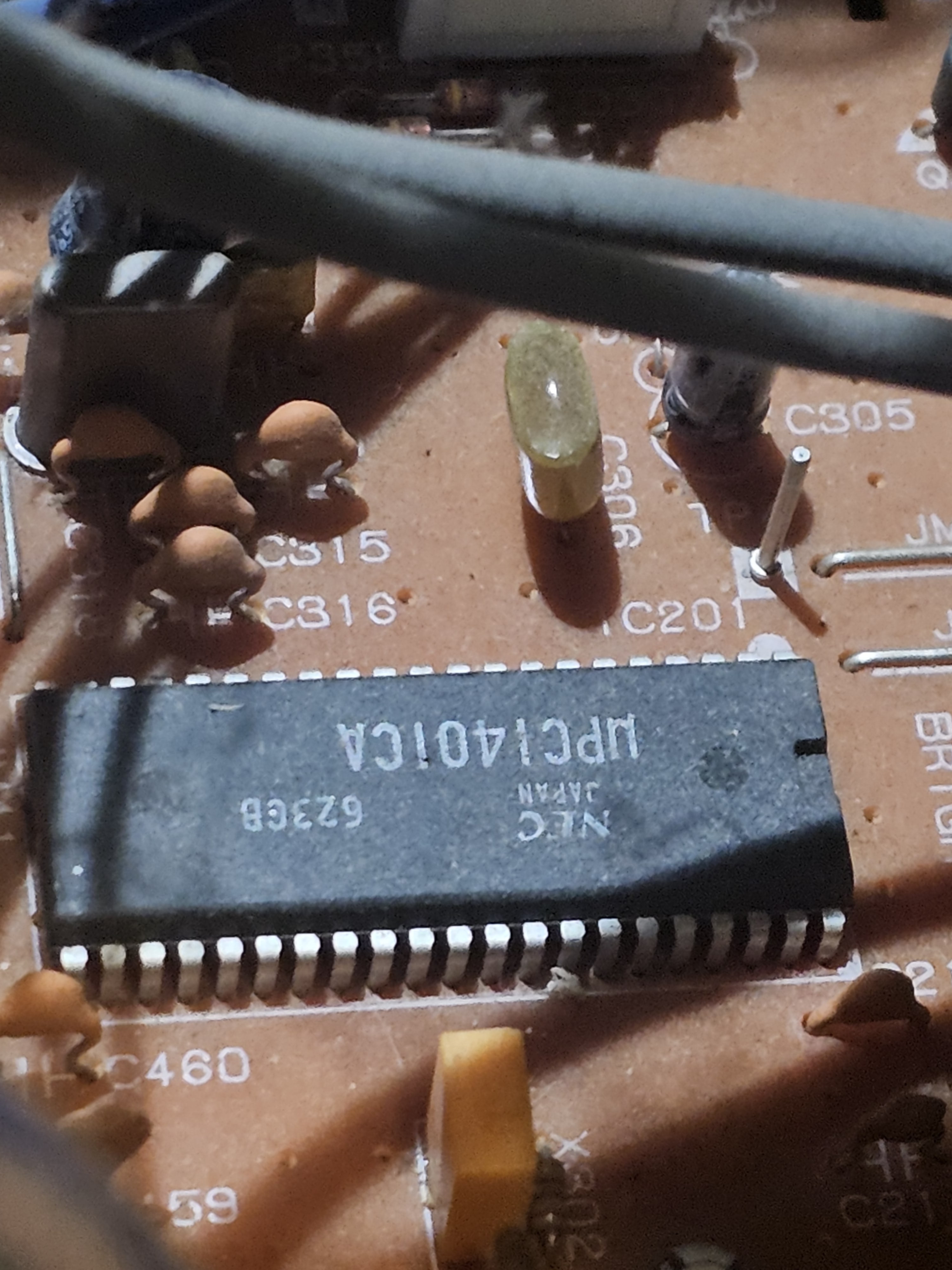

| Jungle: | NEC, UPC1401CA |

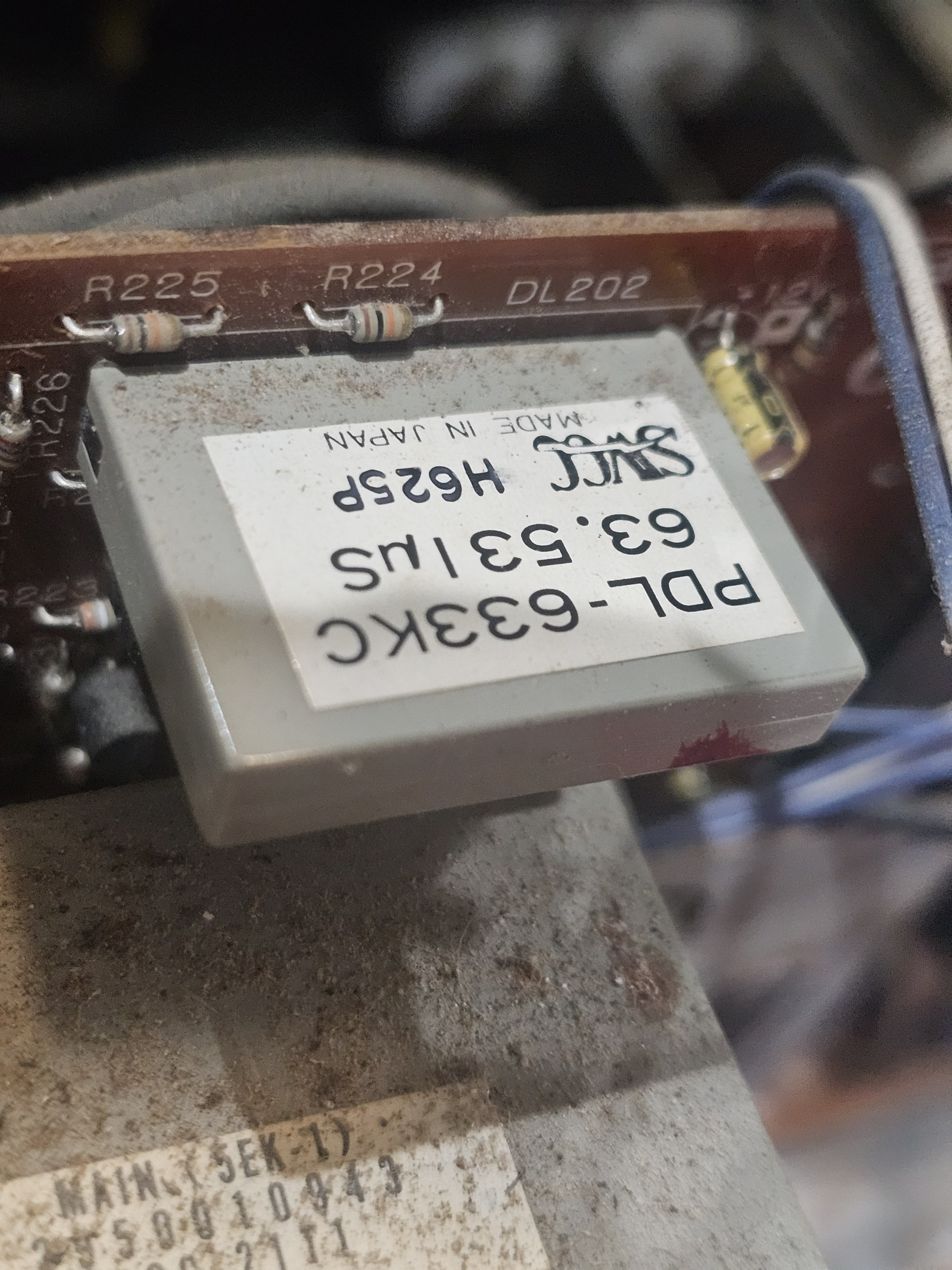

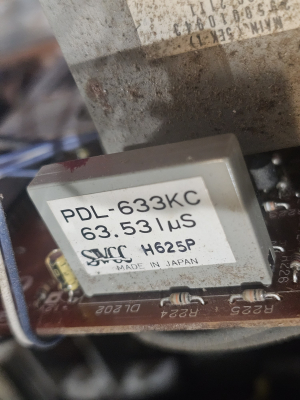

| Comb Filtering: | Glass |
| Focus Type: | Single |

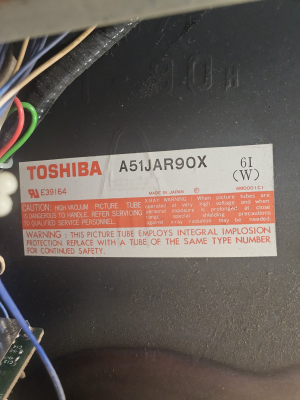

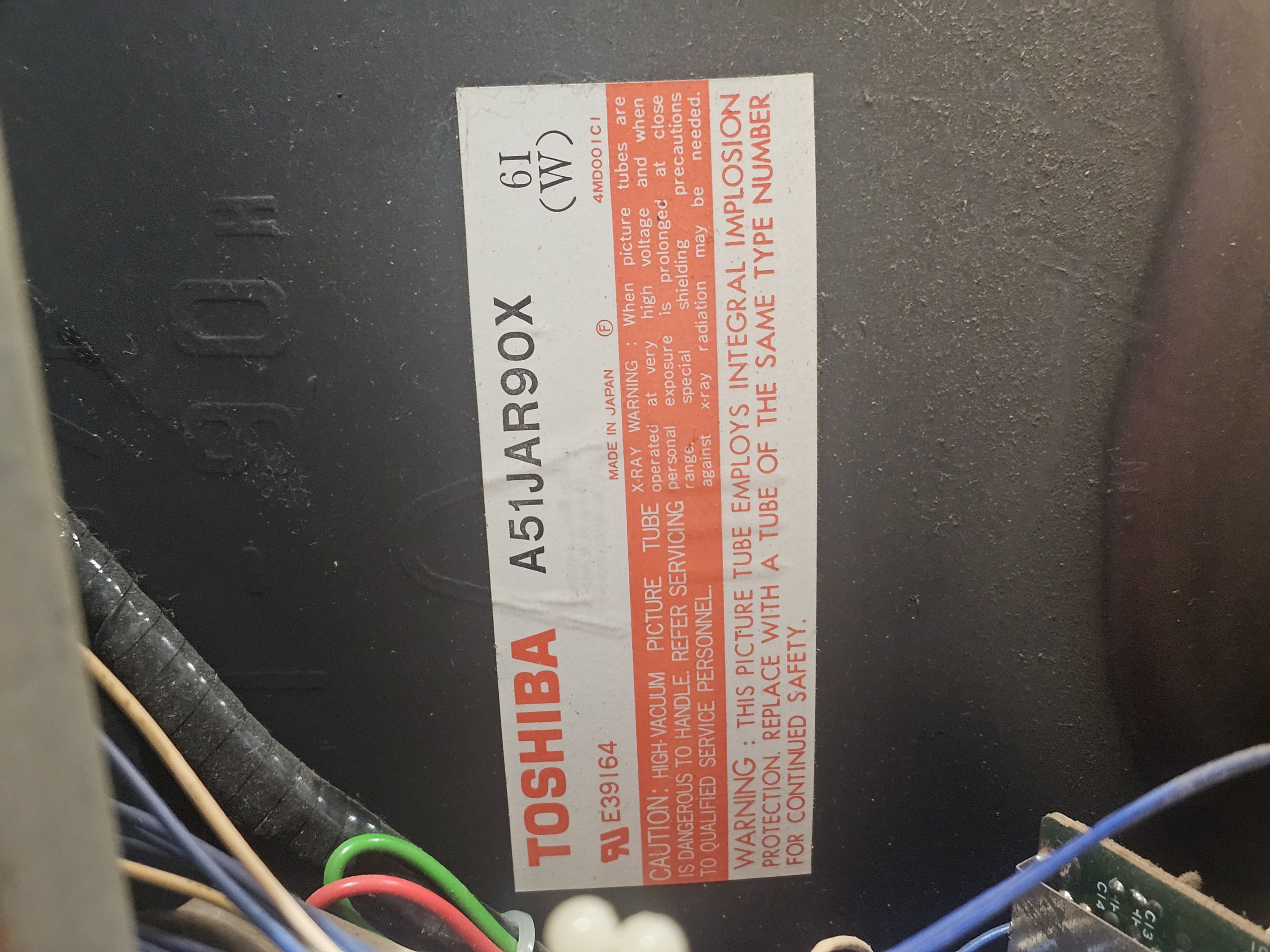

| Tube: | Toshiba , A51JAR90X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

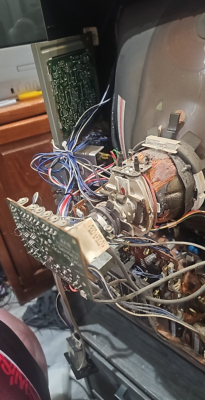

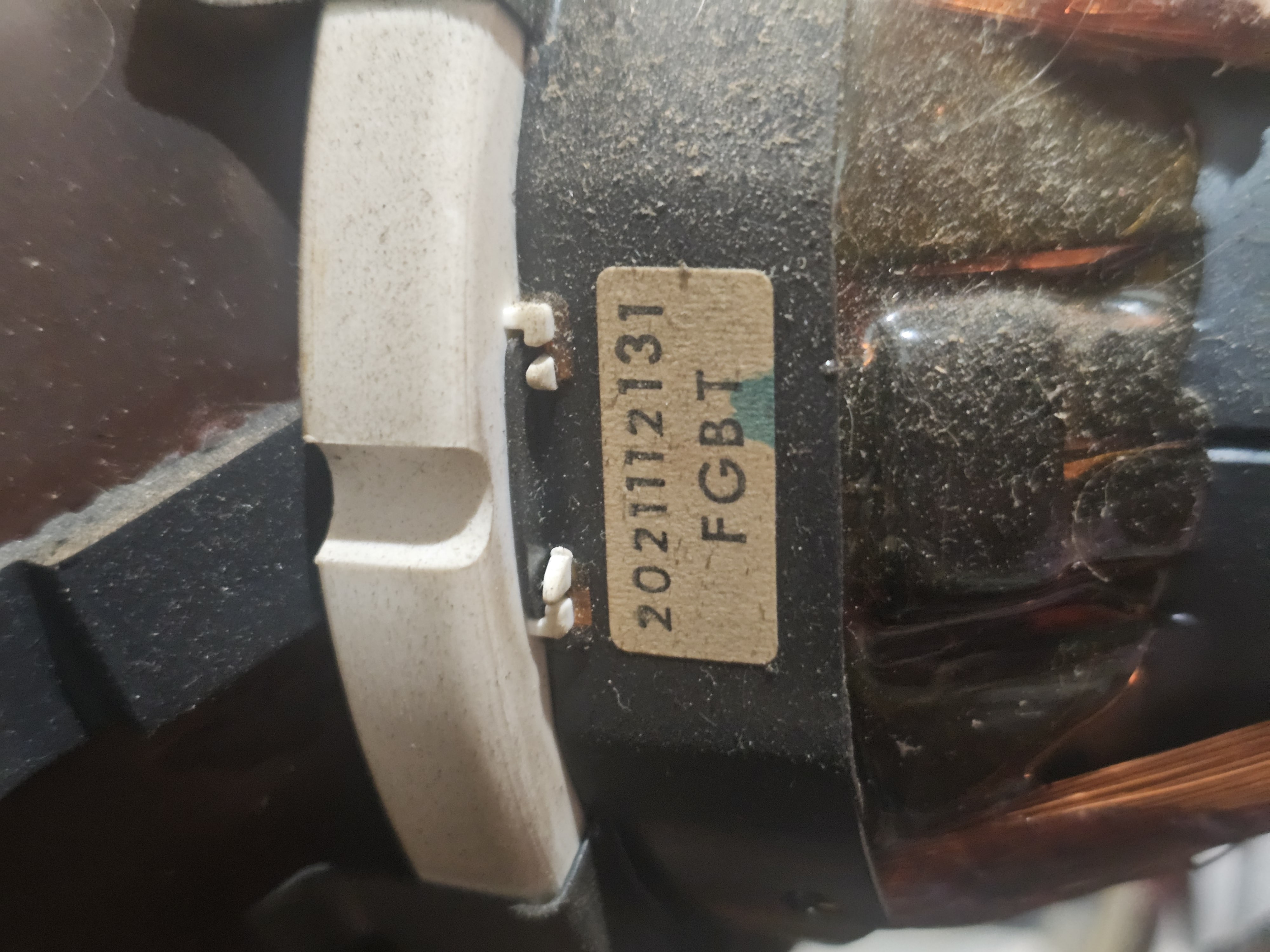

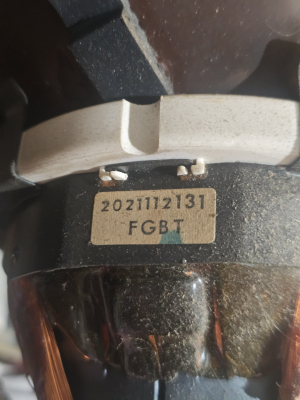

| Yoke: | 2021112131 |

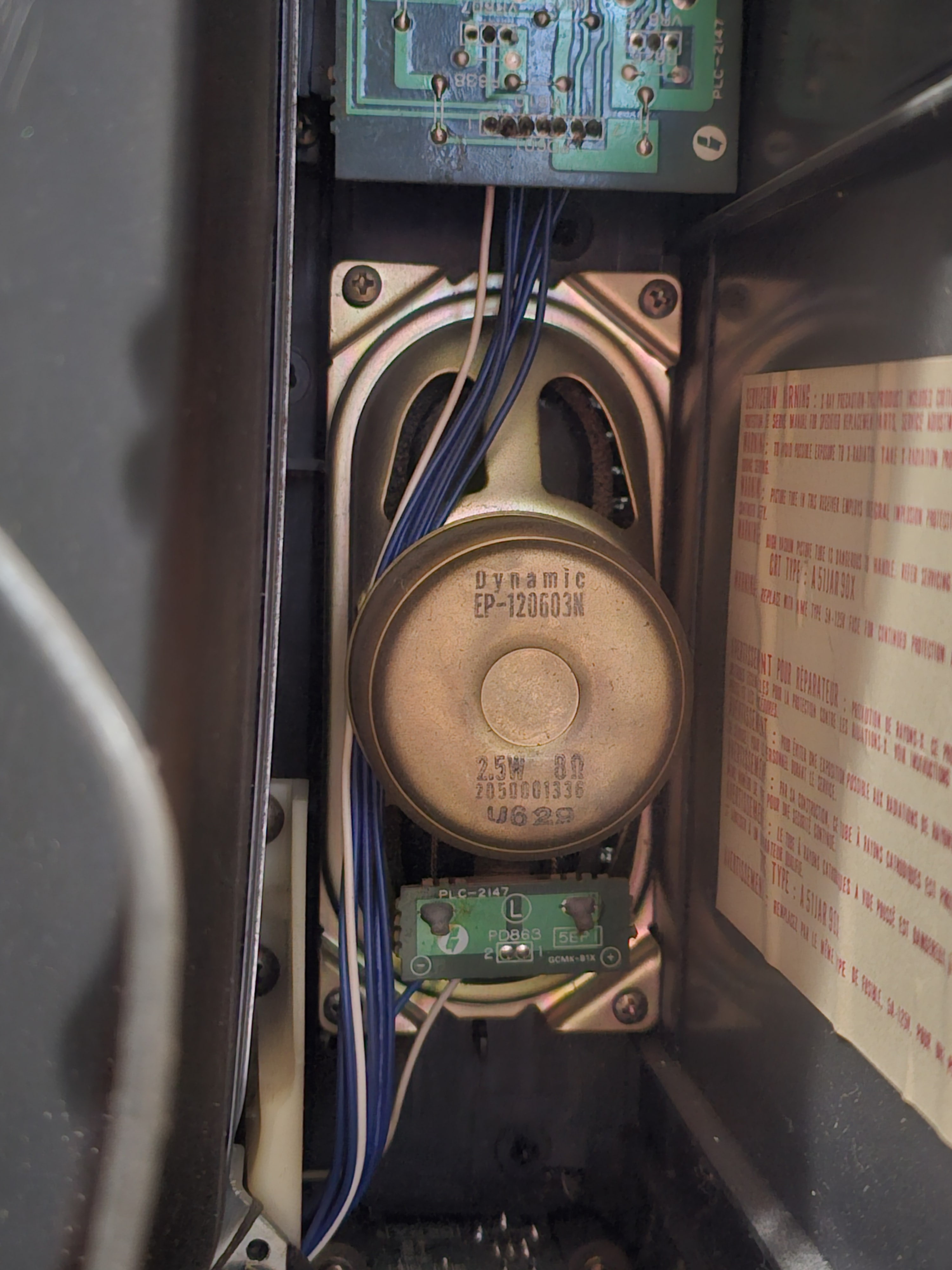

| Speakers: | Stereo, 2.5W x 2 |

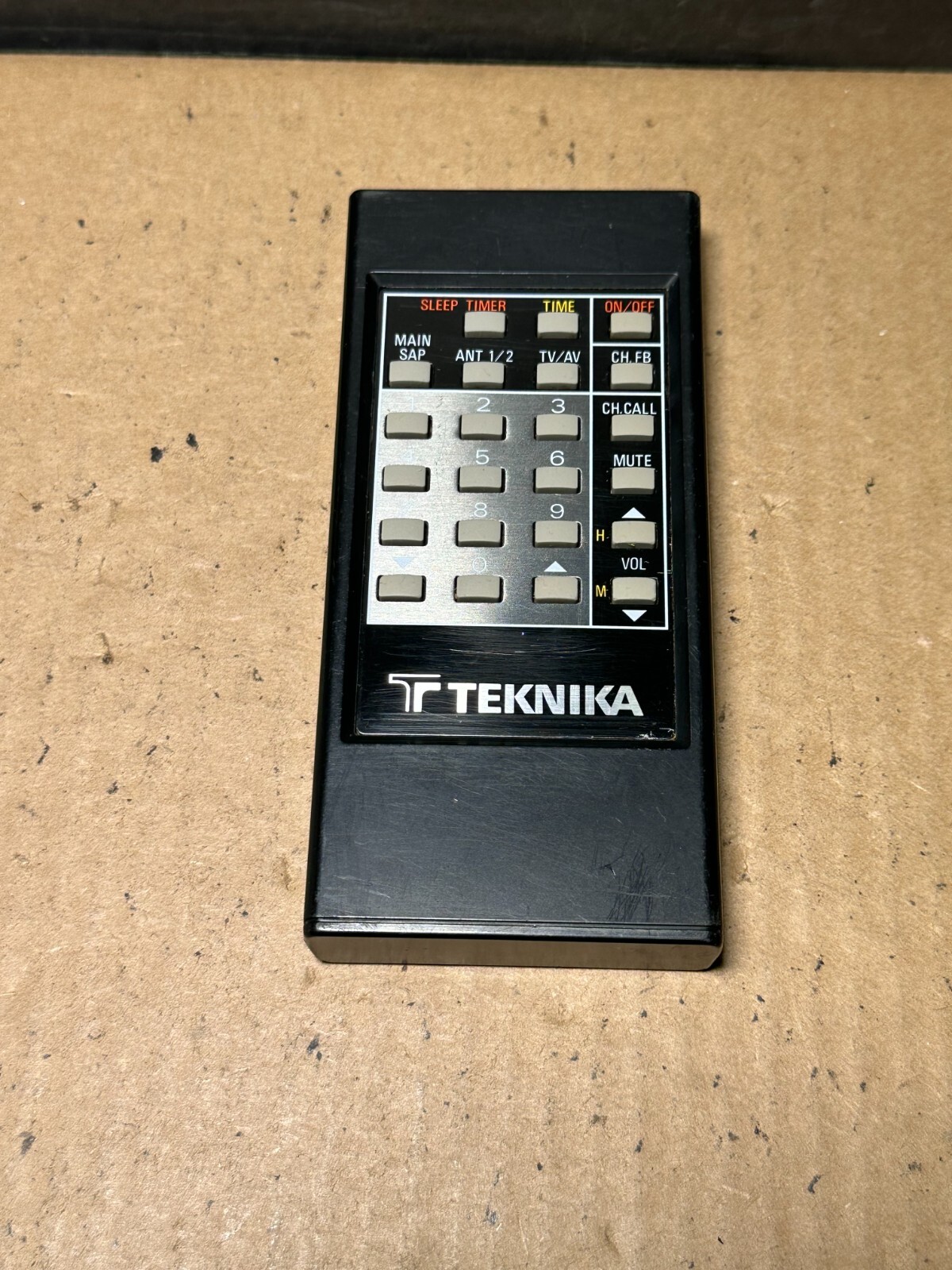

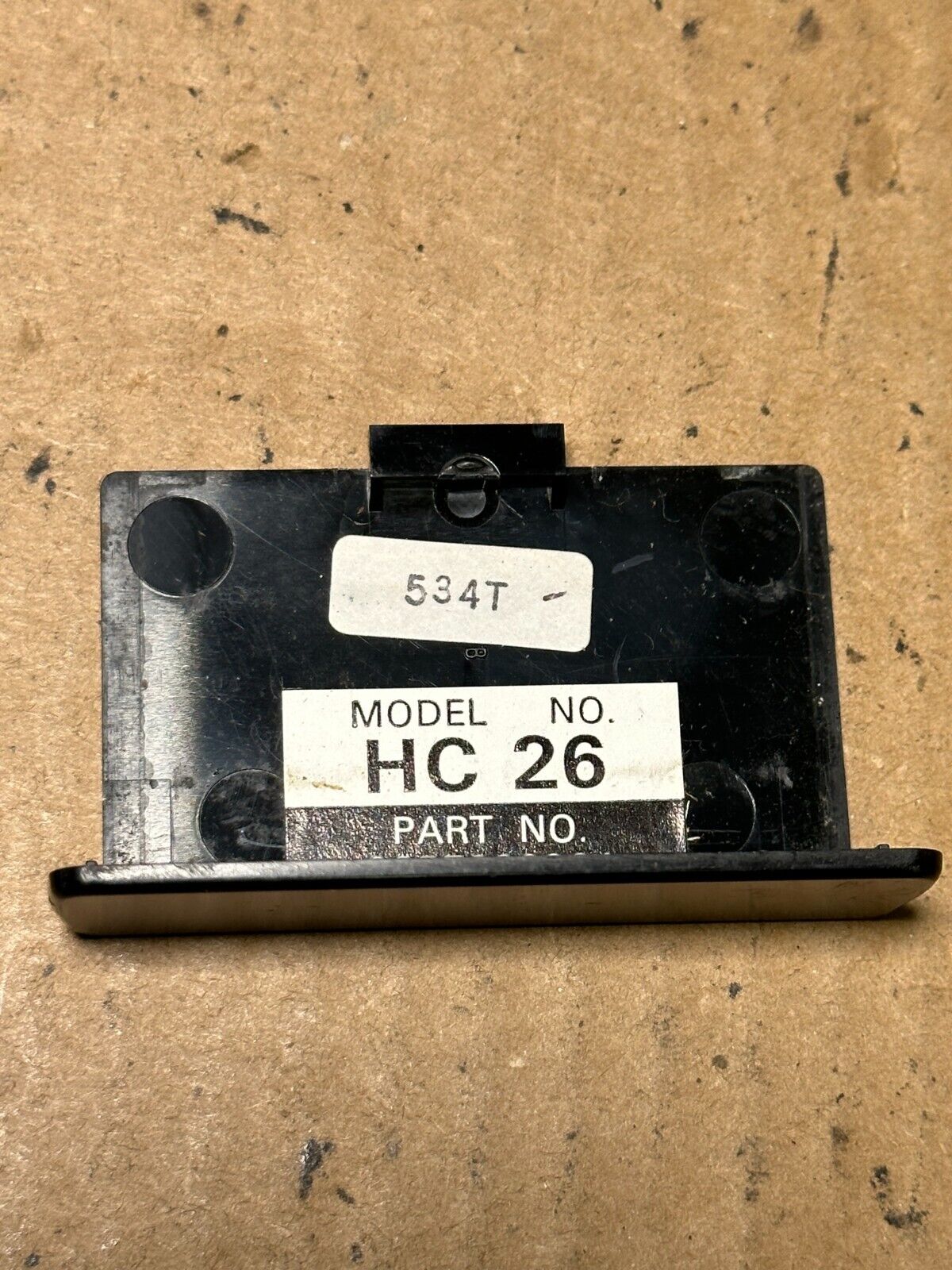

| Remote: | HC 26 |
| Chassis: | ECC2111 |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1986 |
| MSRP: | 449 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
