Toshiba 13A24
Eli Krause
October 21, 2025, 10:48 am
October 21, 2025, 11:37 pm
October 21, 2025, 10:48 am
October 21, 2025, 11:37 pm
Summary
Front A/V Inputs provide maximum versatility and convenience, allowing you to plug in without moving the unit away from the wall. Blackstripe IIâ„¢ Picture Tubes utilize a special compound in the shadow mask to absorb unnecessary light emissions. And to reduce reflection, tinting is built into the glass when the cathode ray tube is being created. Together, these improvements provide increased contrast and an 18% increase in brightness over standard tubes.
Manuals
Media & Promo Materials
Gallery









Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |
Model: | 13A24 |
Series: | A |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

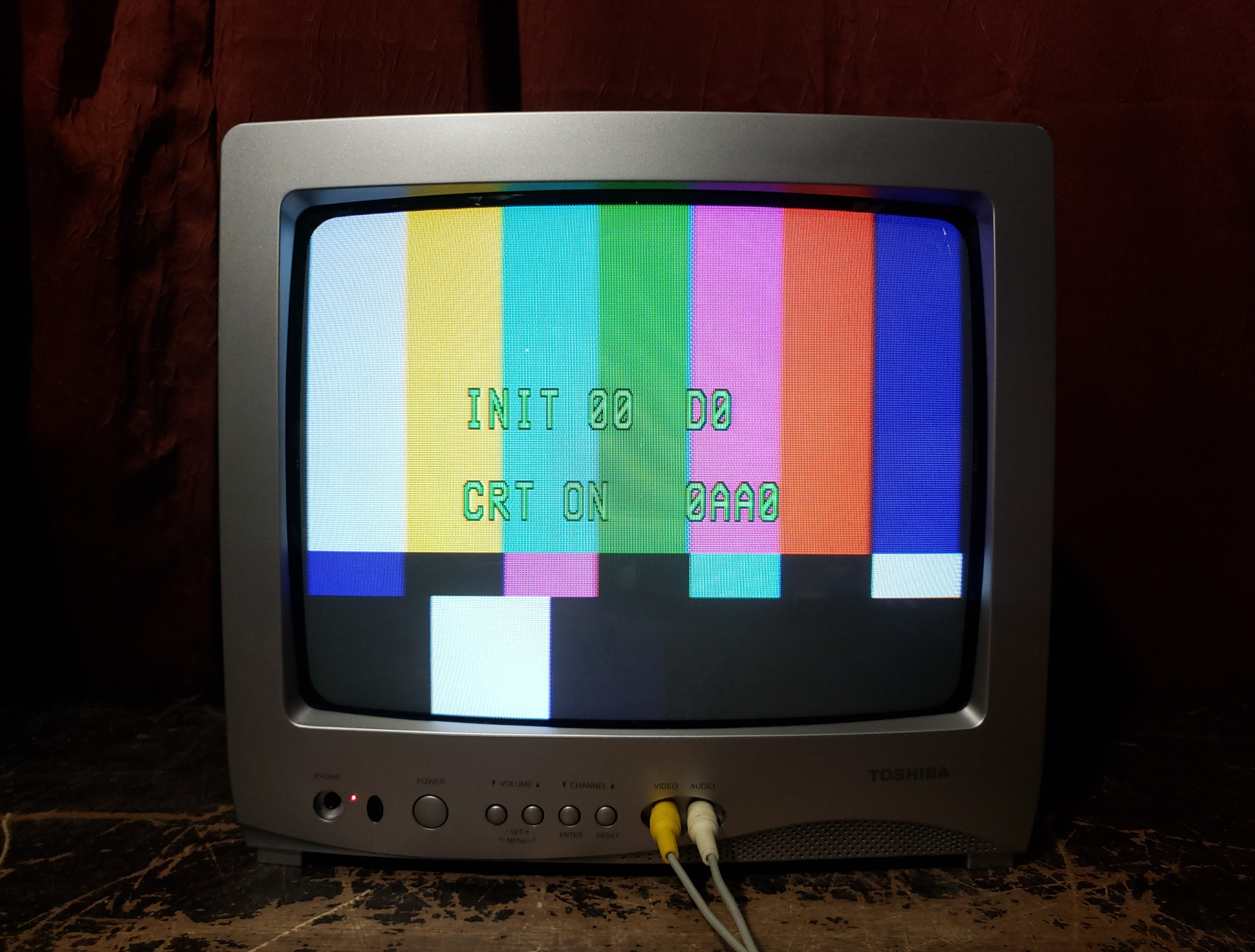

Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | TT2140LS-YBC11 |
Vertical Output IC: | LA78040N-E |
Jungle IC: | OEC7091B |
Comb Filtering: | None |
Flyback: | FNI14B002_M |
Focus Type: | Single |
Tube: | BlackStripe II , A34AGTX98 , A34AGTX |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Speakers: | Mono |
Remote: | RC-EH |
Chassis: | M3M18 |
Weight: | 21 lbs (9.5 kg) |
Dimensions (W/H/D): |
440 x 408 x 380 mm
(17.3 x 16 x 14.9") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2004 |
MSRP: | 79 USD |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Degaussing: | Automatic on Power-on |
Tag: | Needs Yoke Info |
