Summary

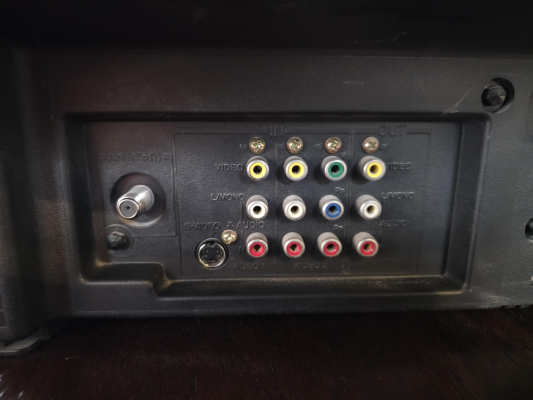

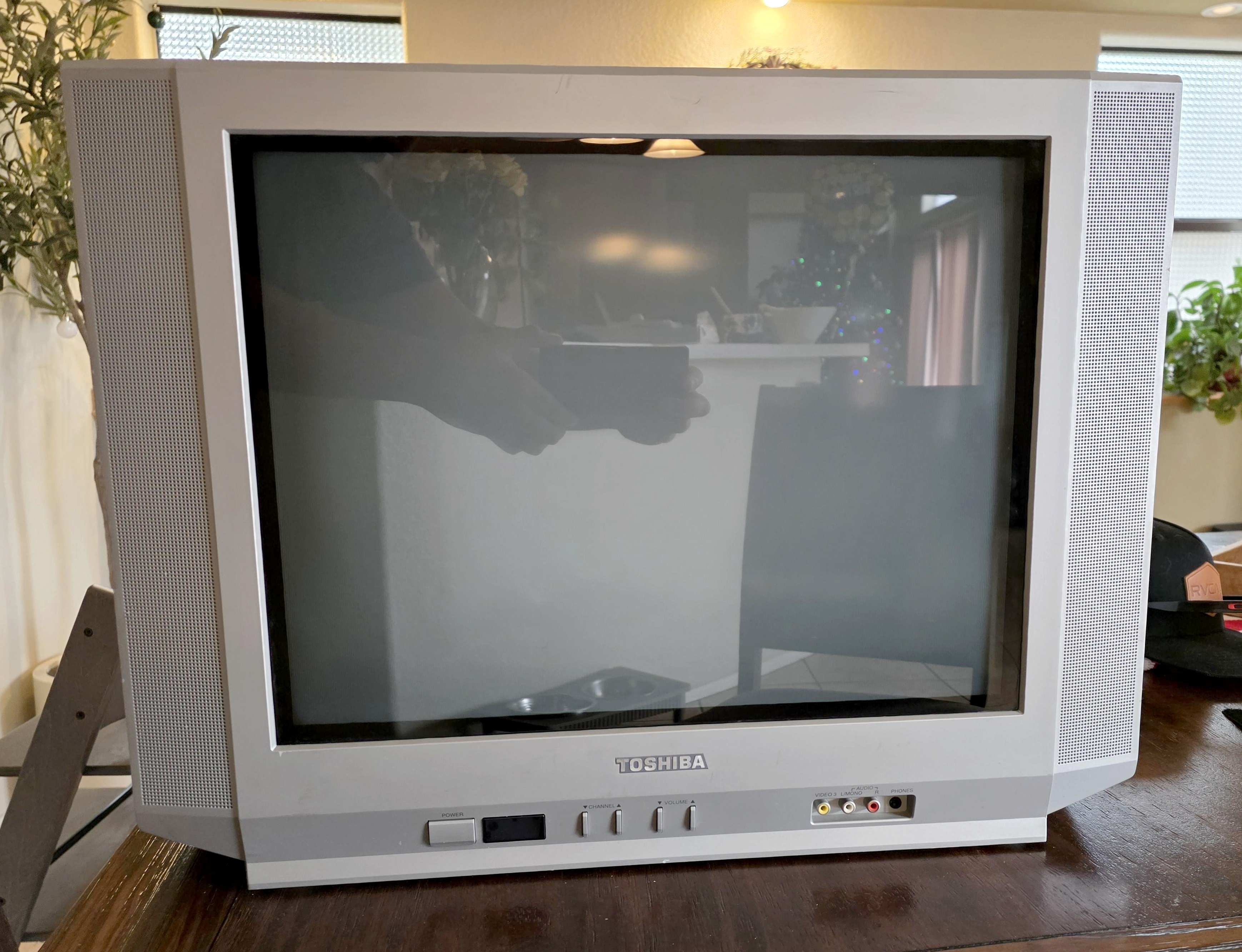

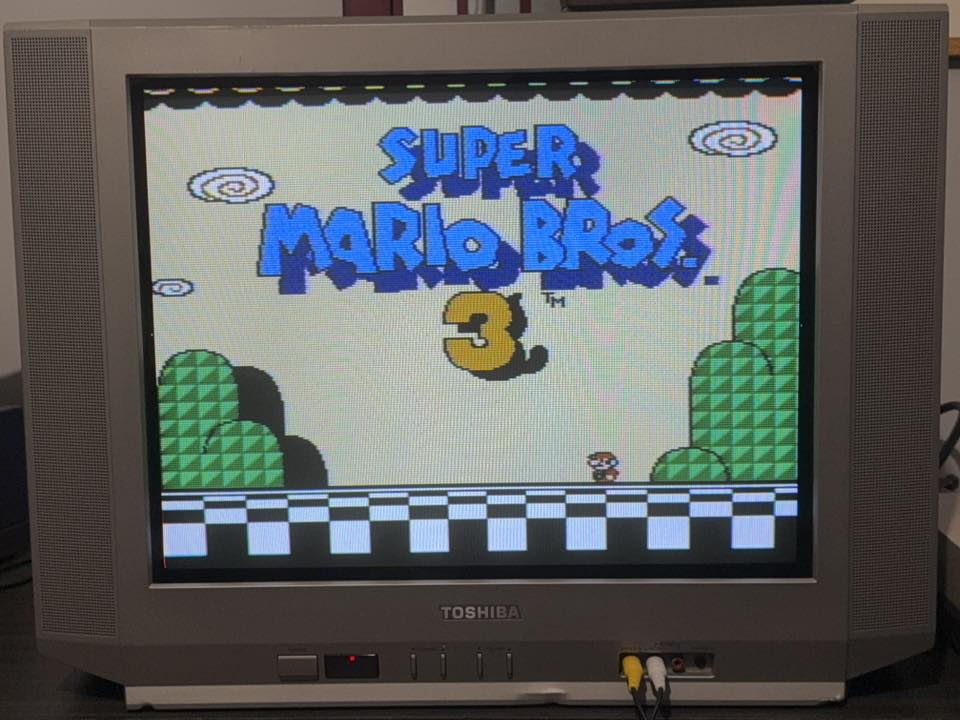

20" flat-tube CRT by Toshiba. This was among the very first AF models manufactured by Orion in 2001. Has RF, composite, s-video, and component inputs with stereo sound.
(Special thanks to Chuong Pham for the pics!)
Manuals
Promo Material
Notes
The jungle chip inside this set accepts 50hz and other oddball frequencies within a 15khz range. However, only over component will it be in color.

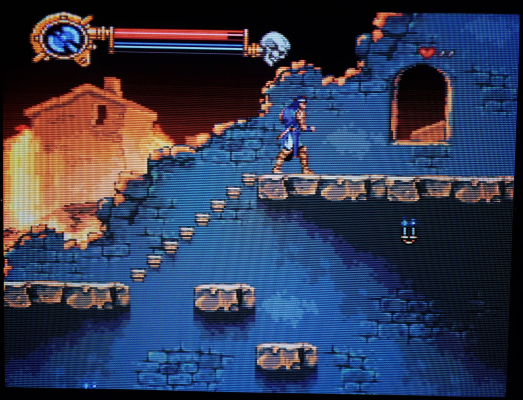

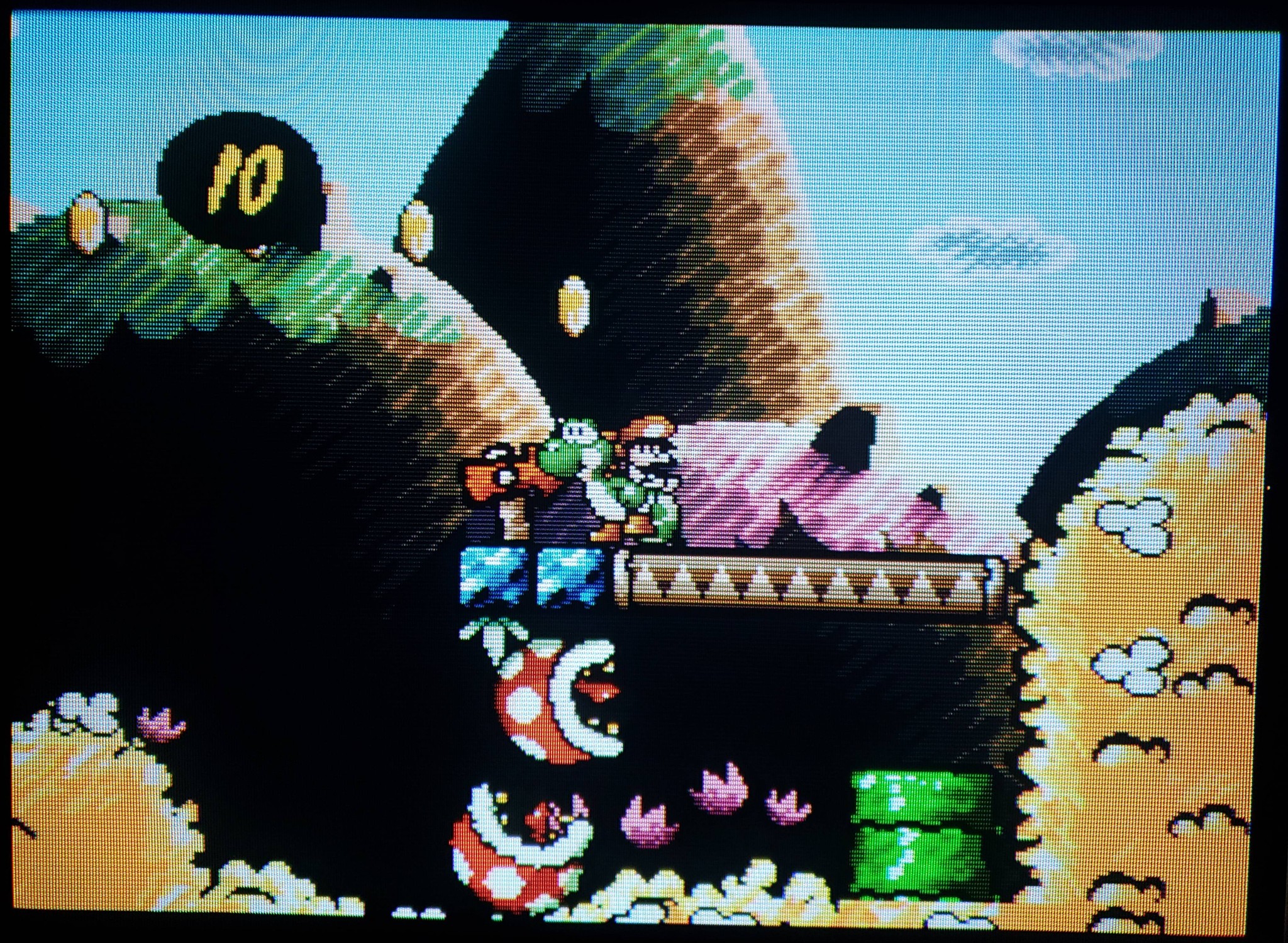

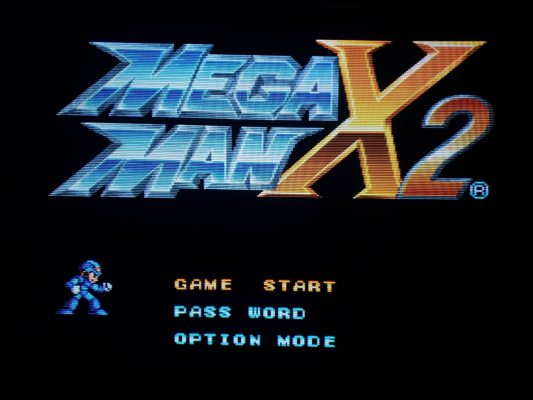

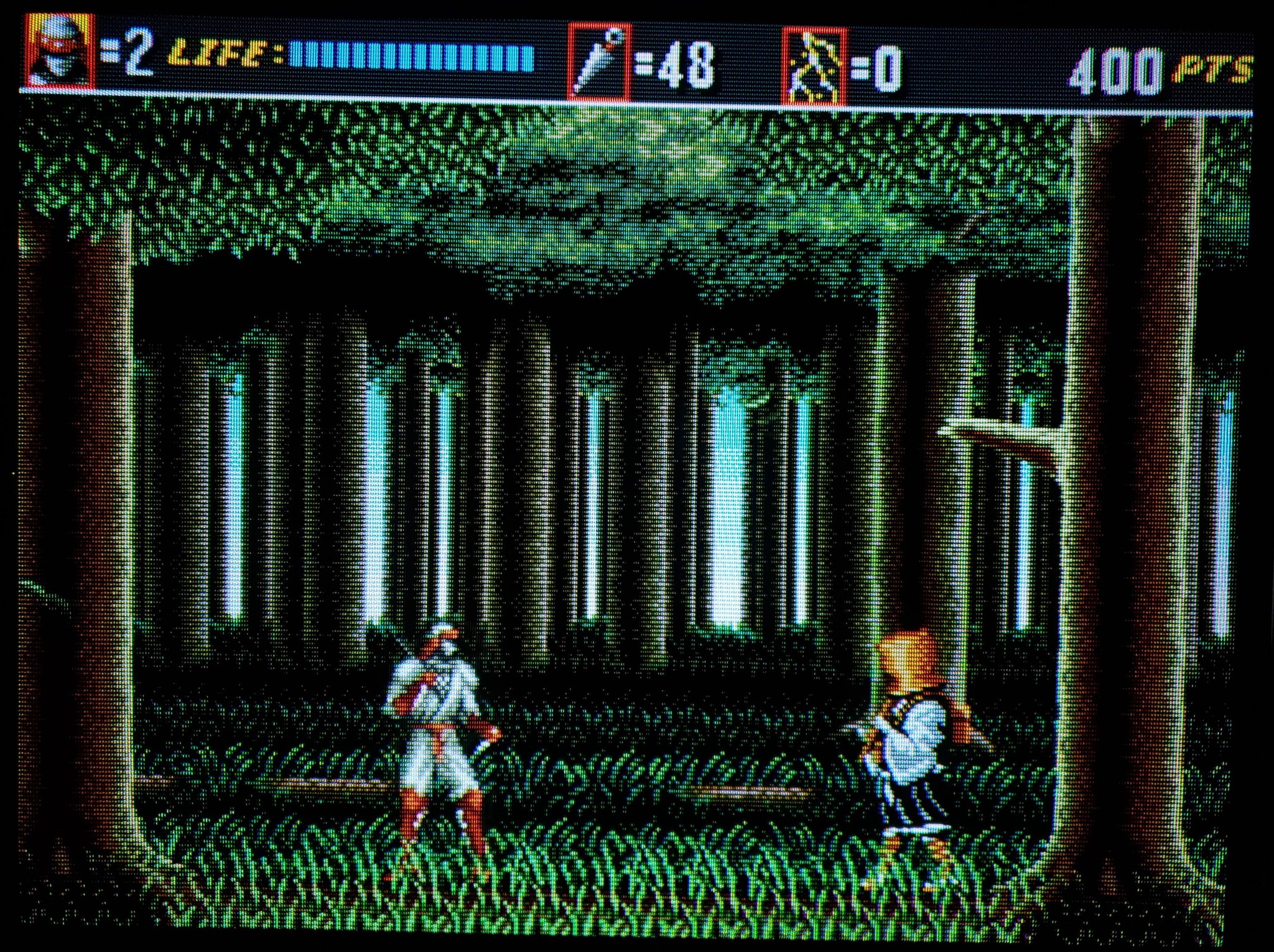

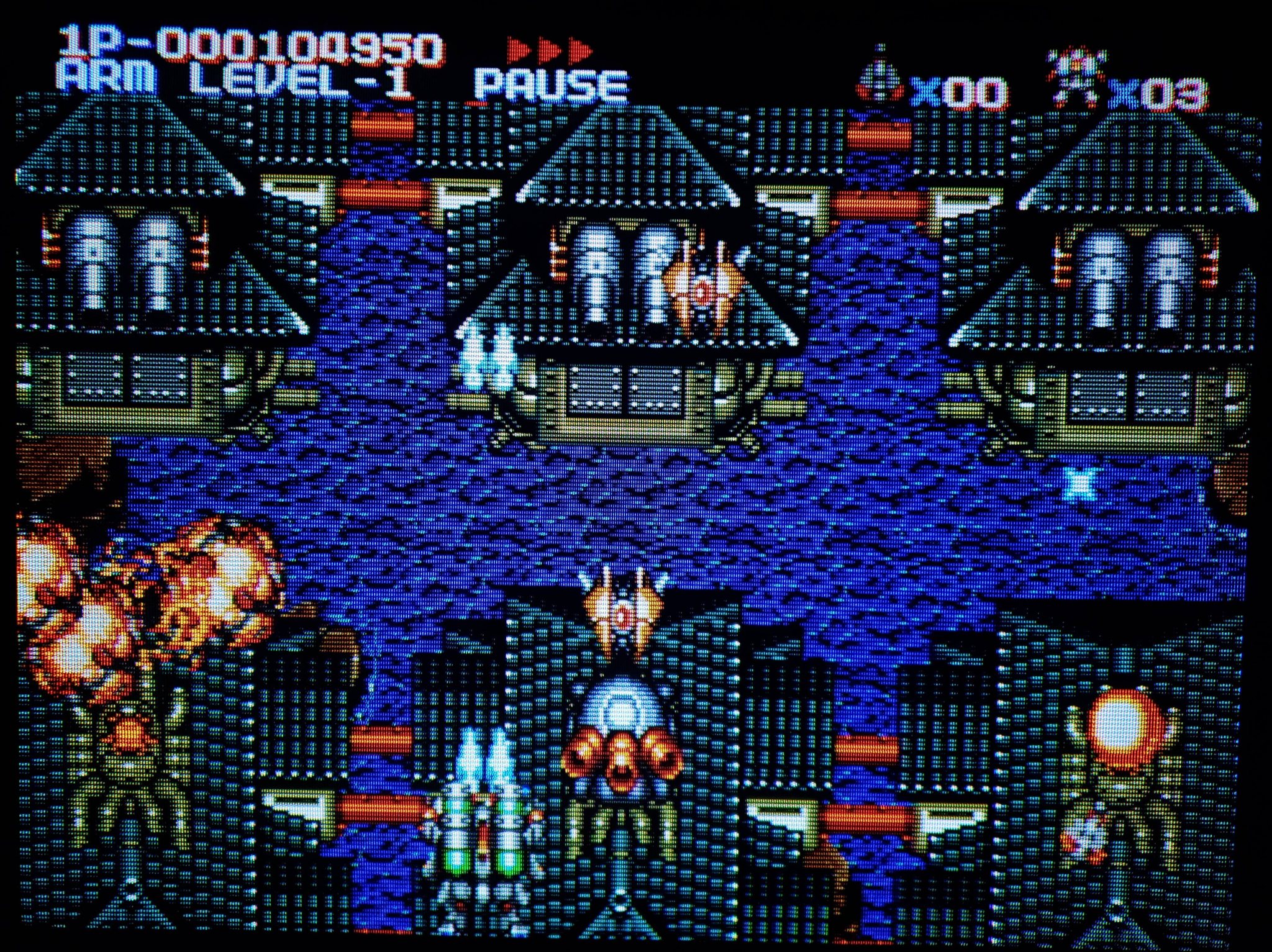

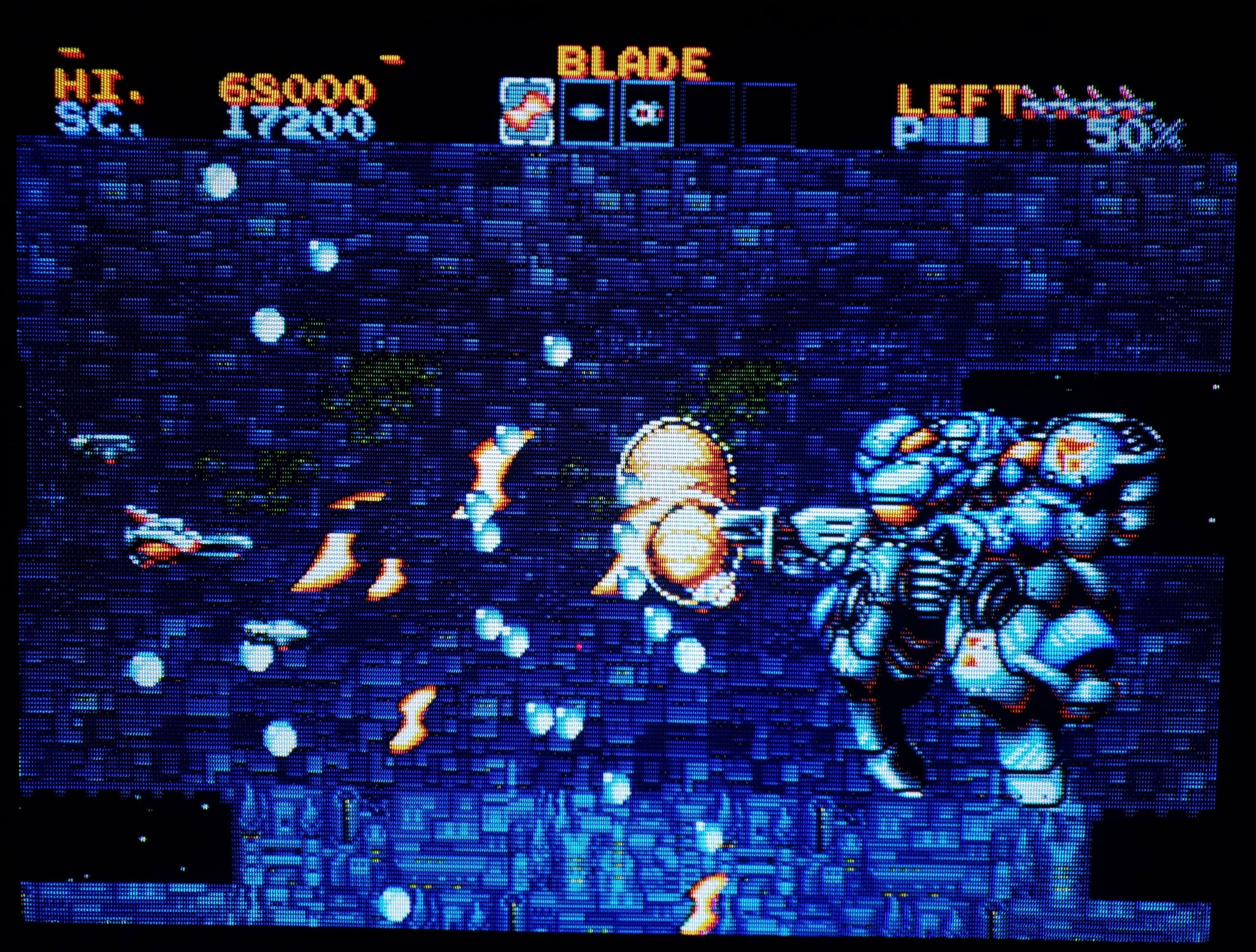

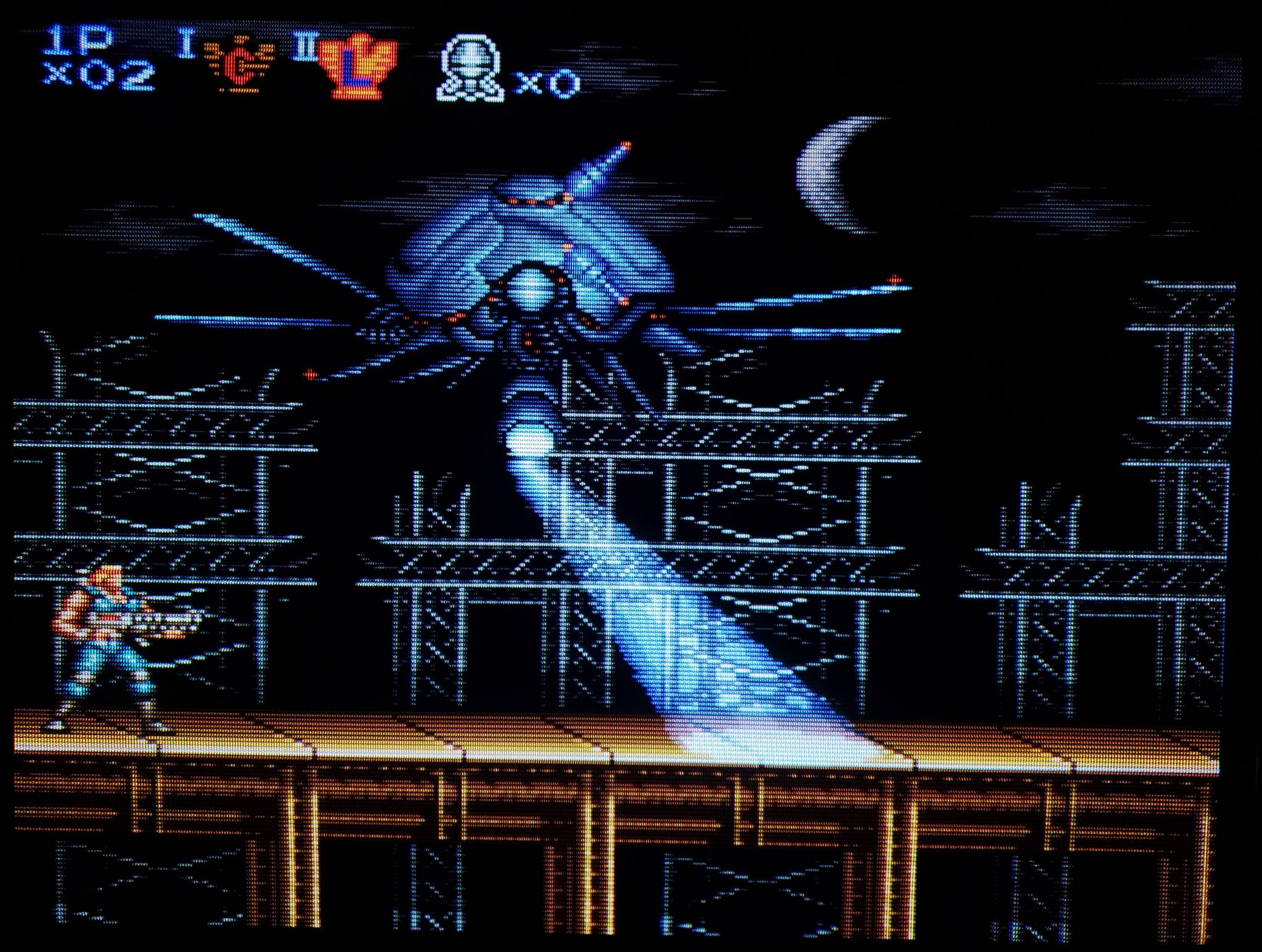

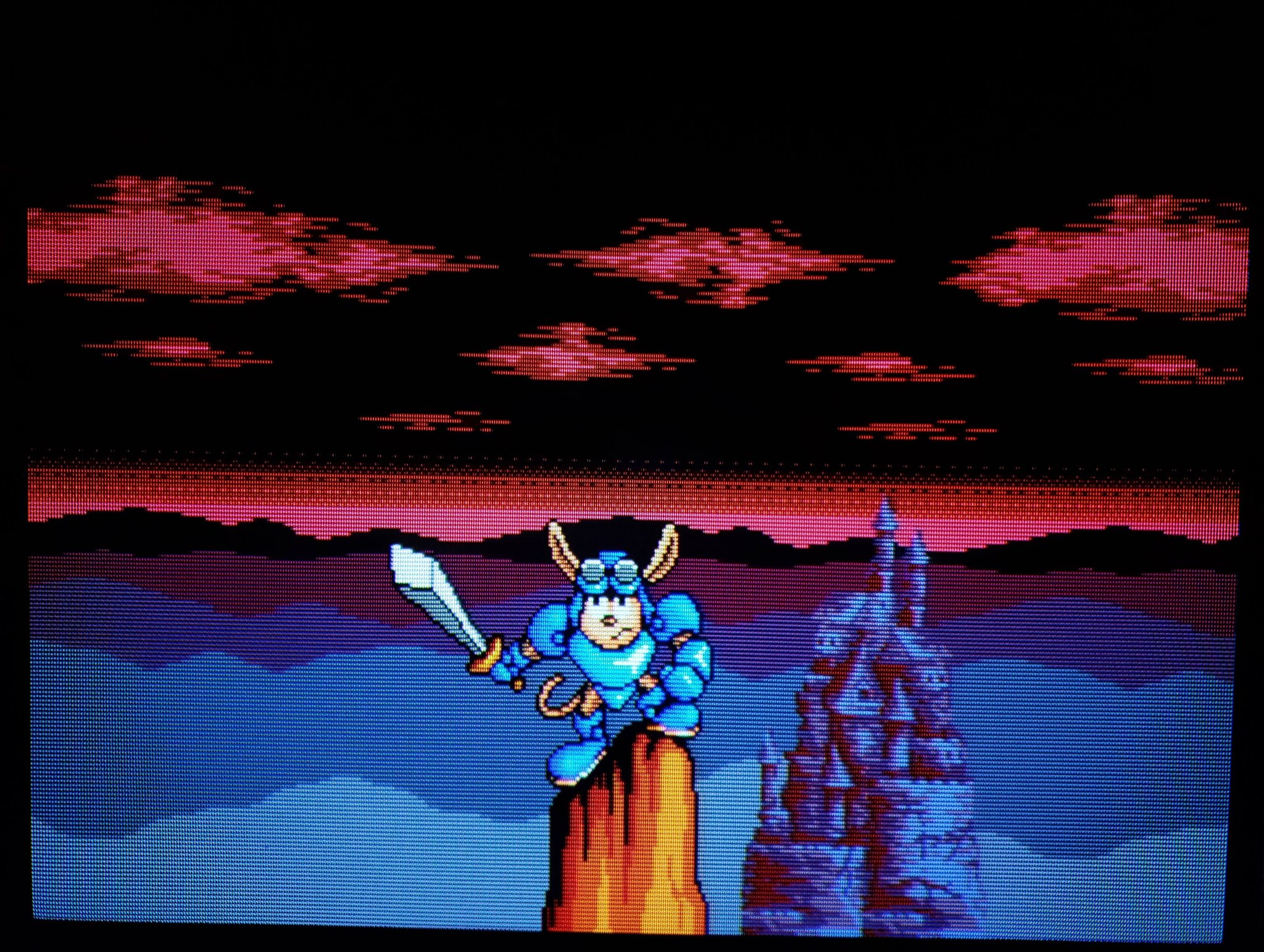

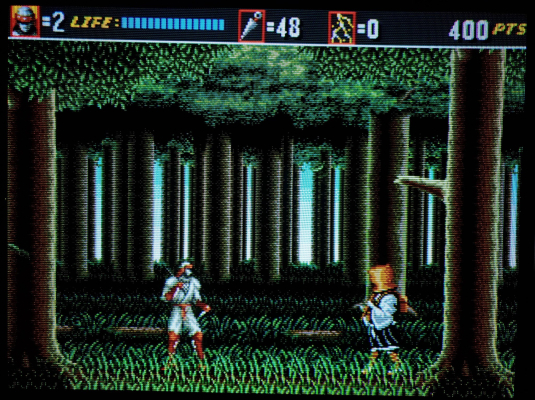

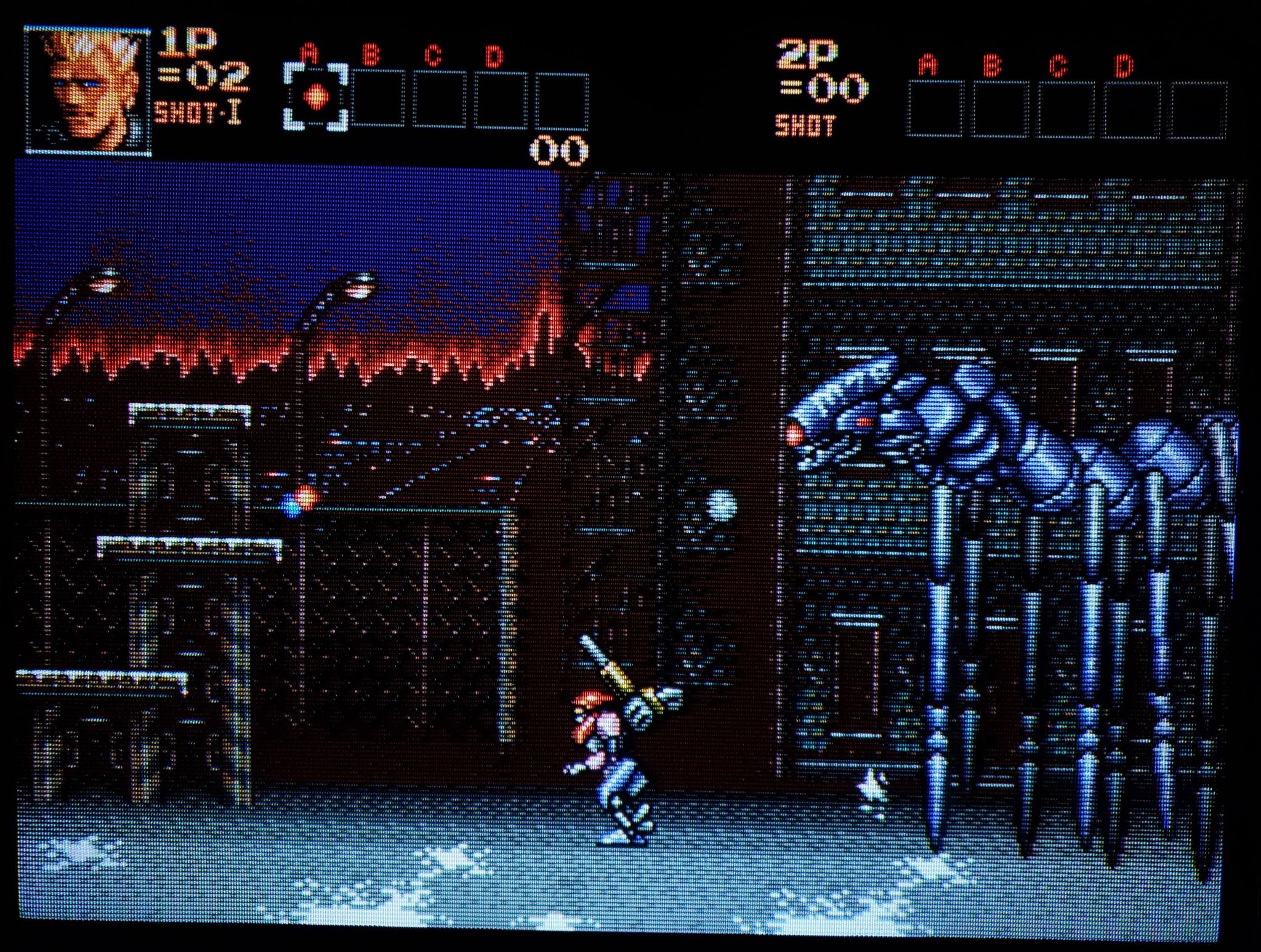

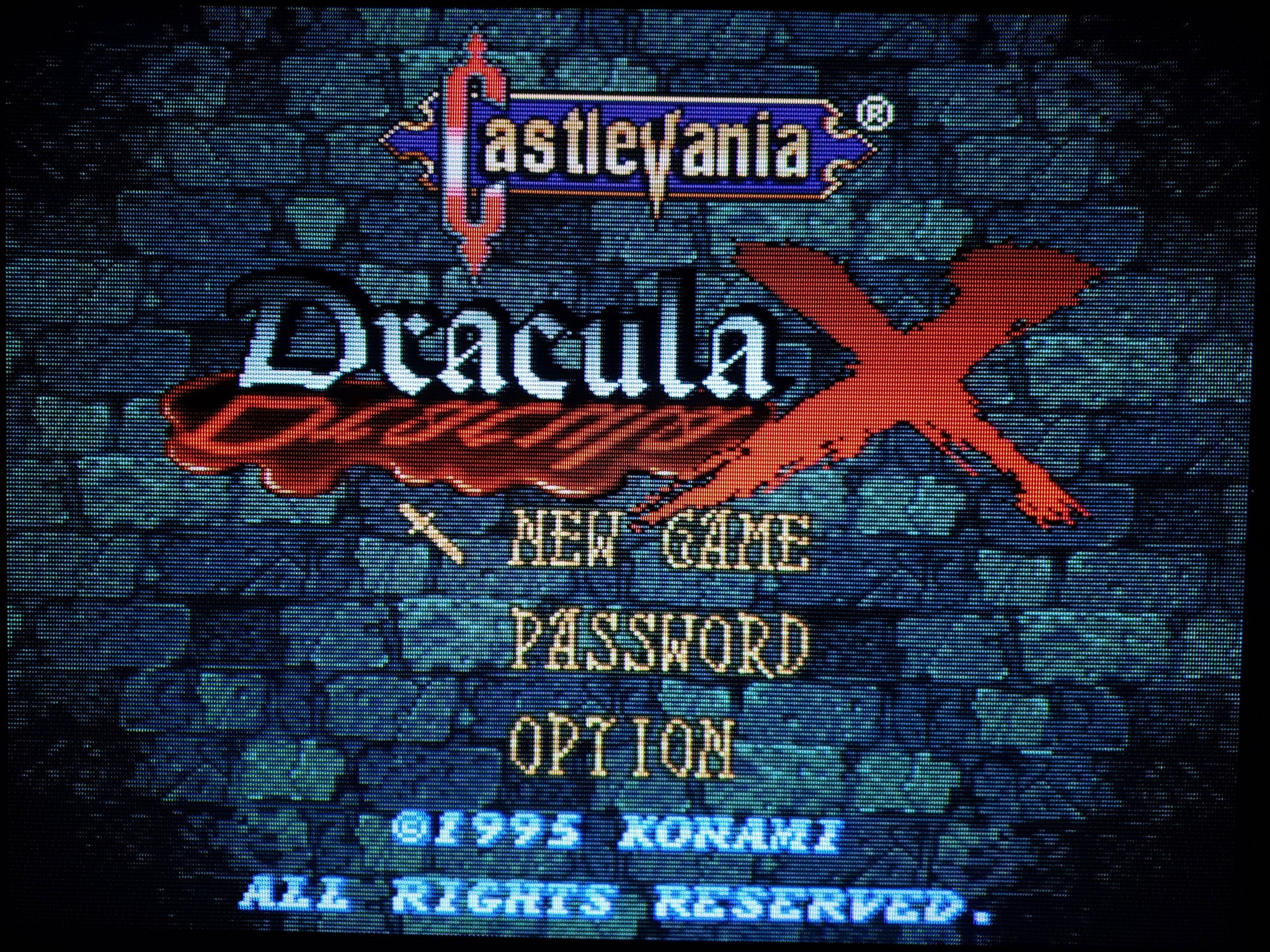

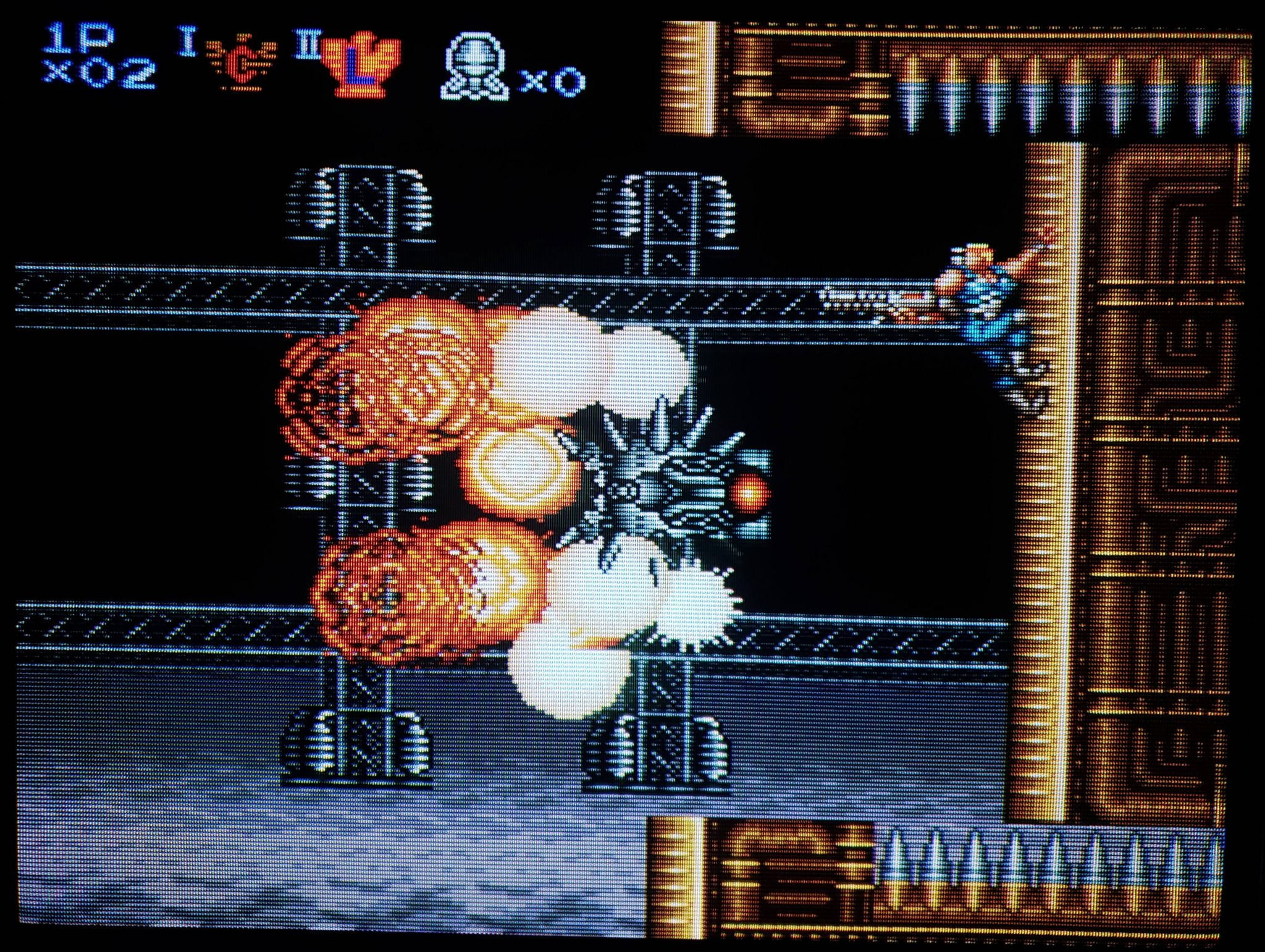

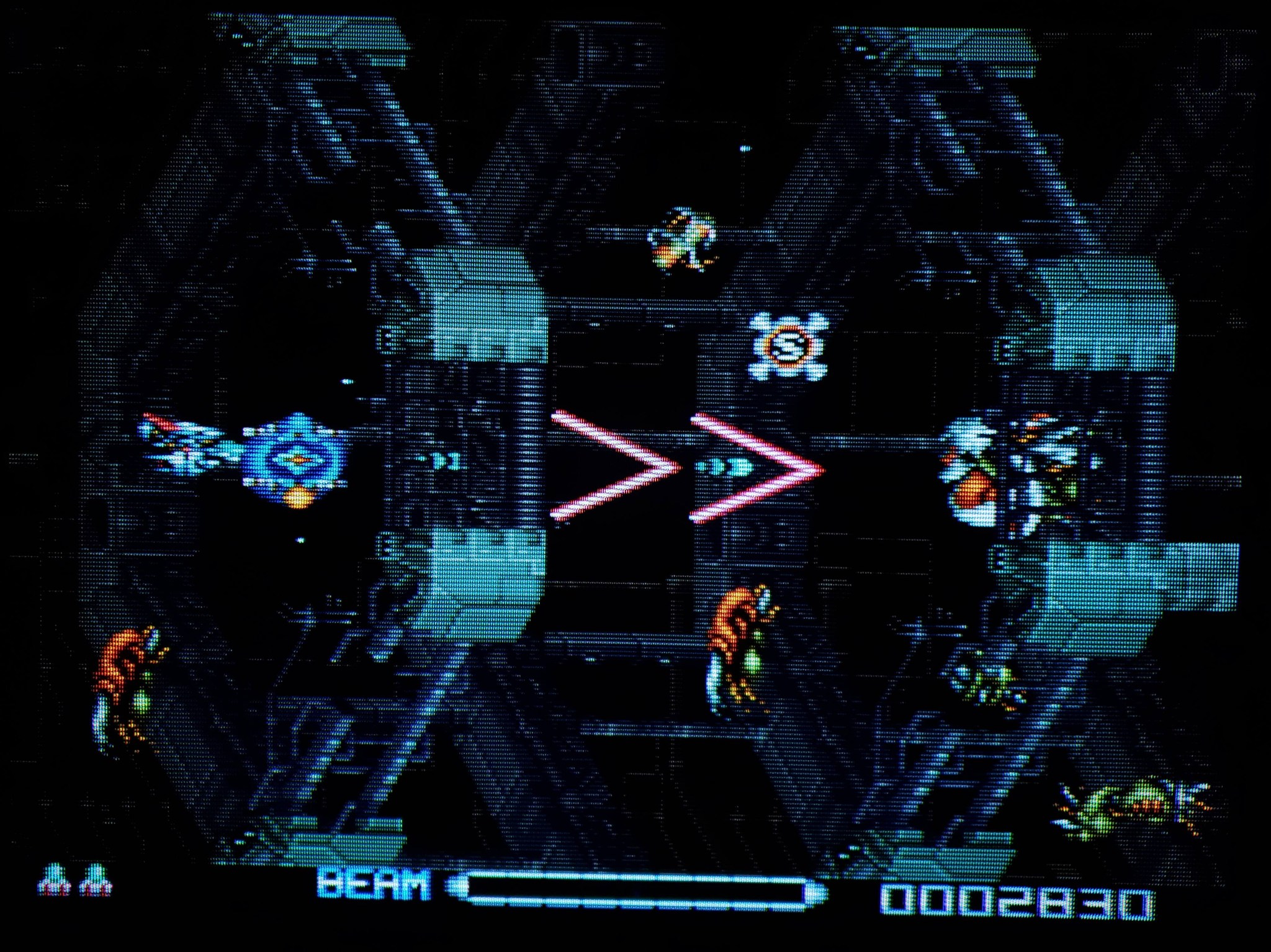

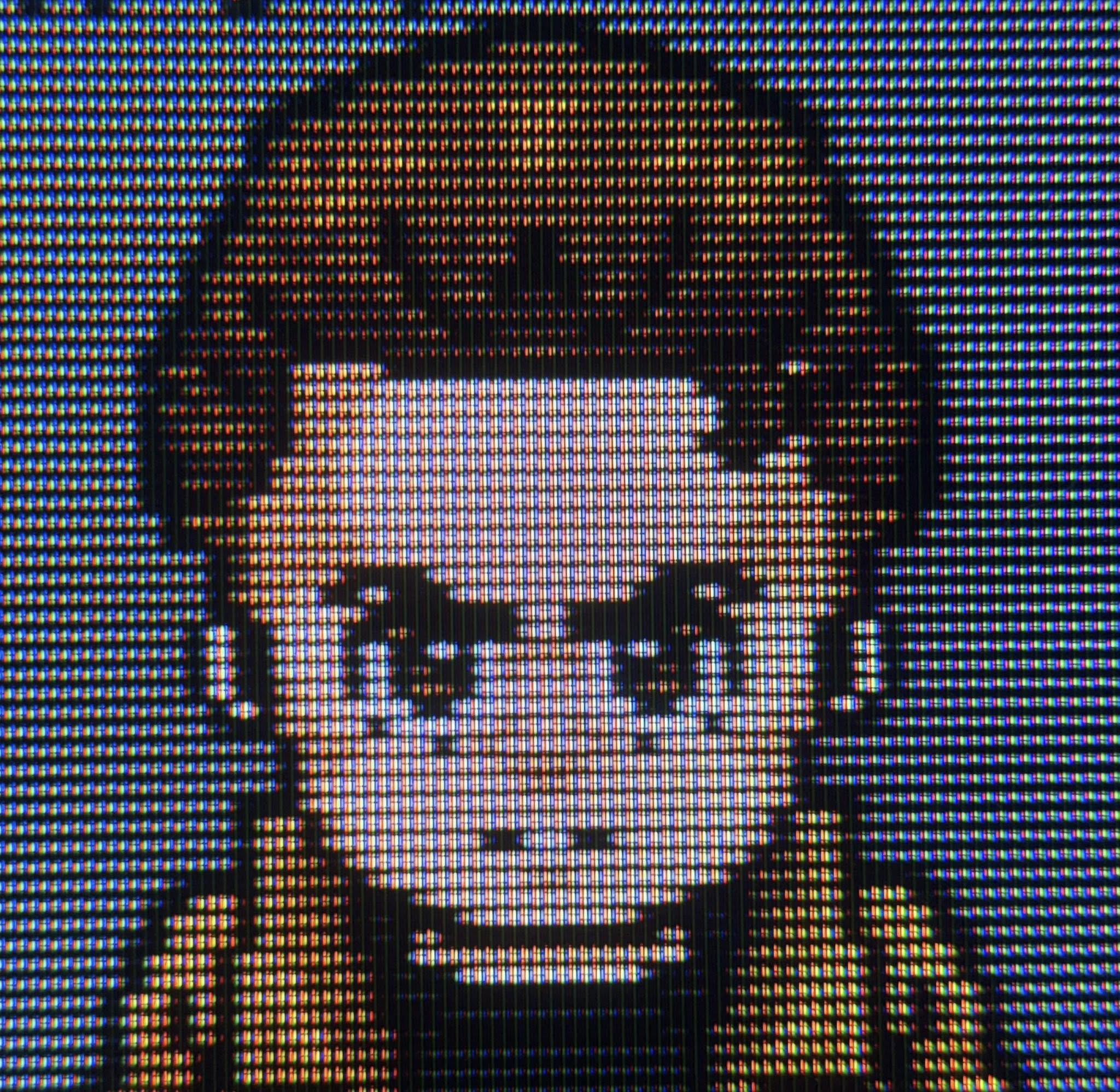

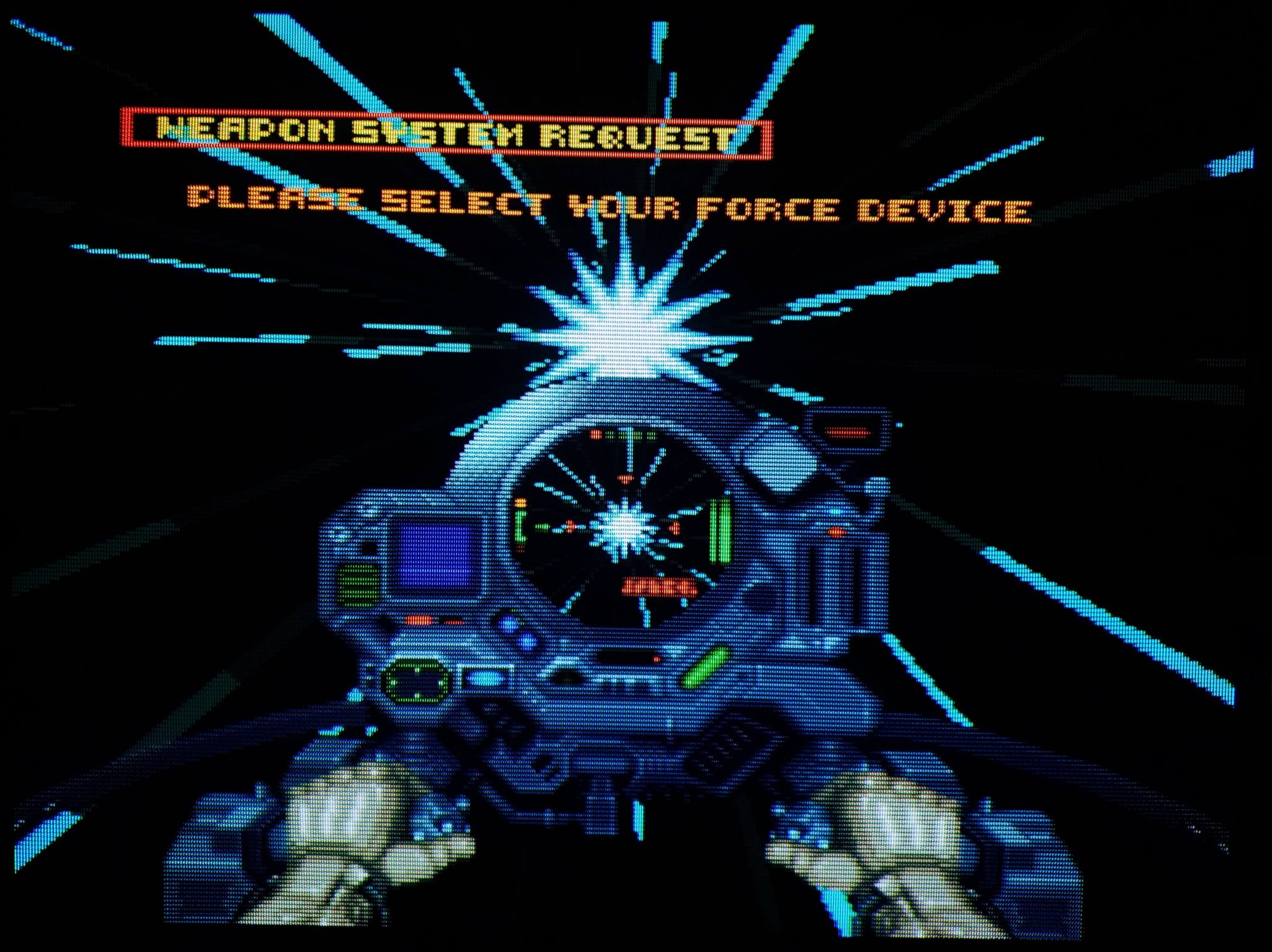

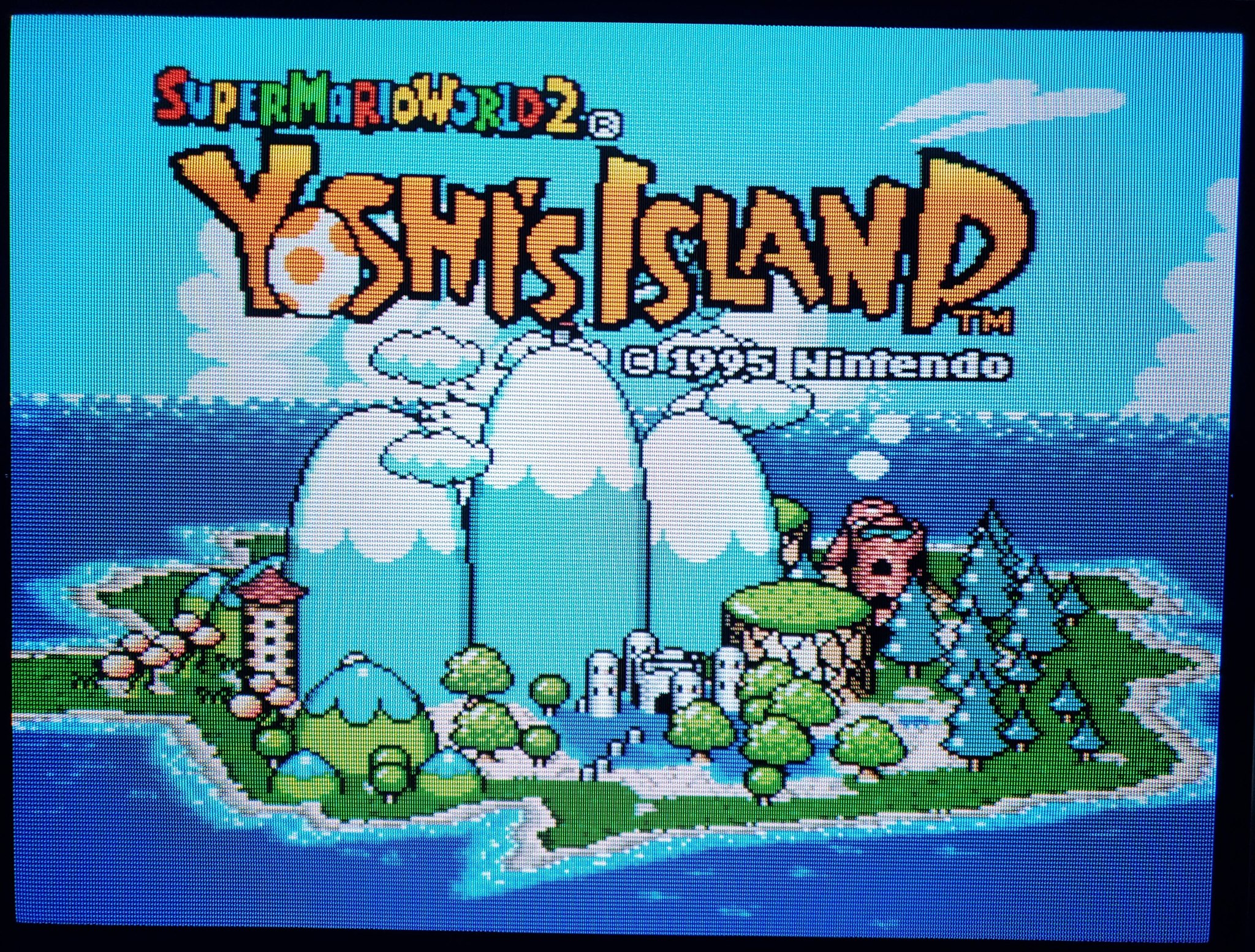

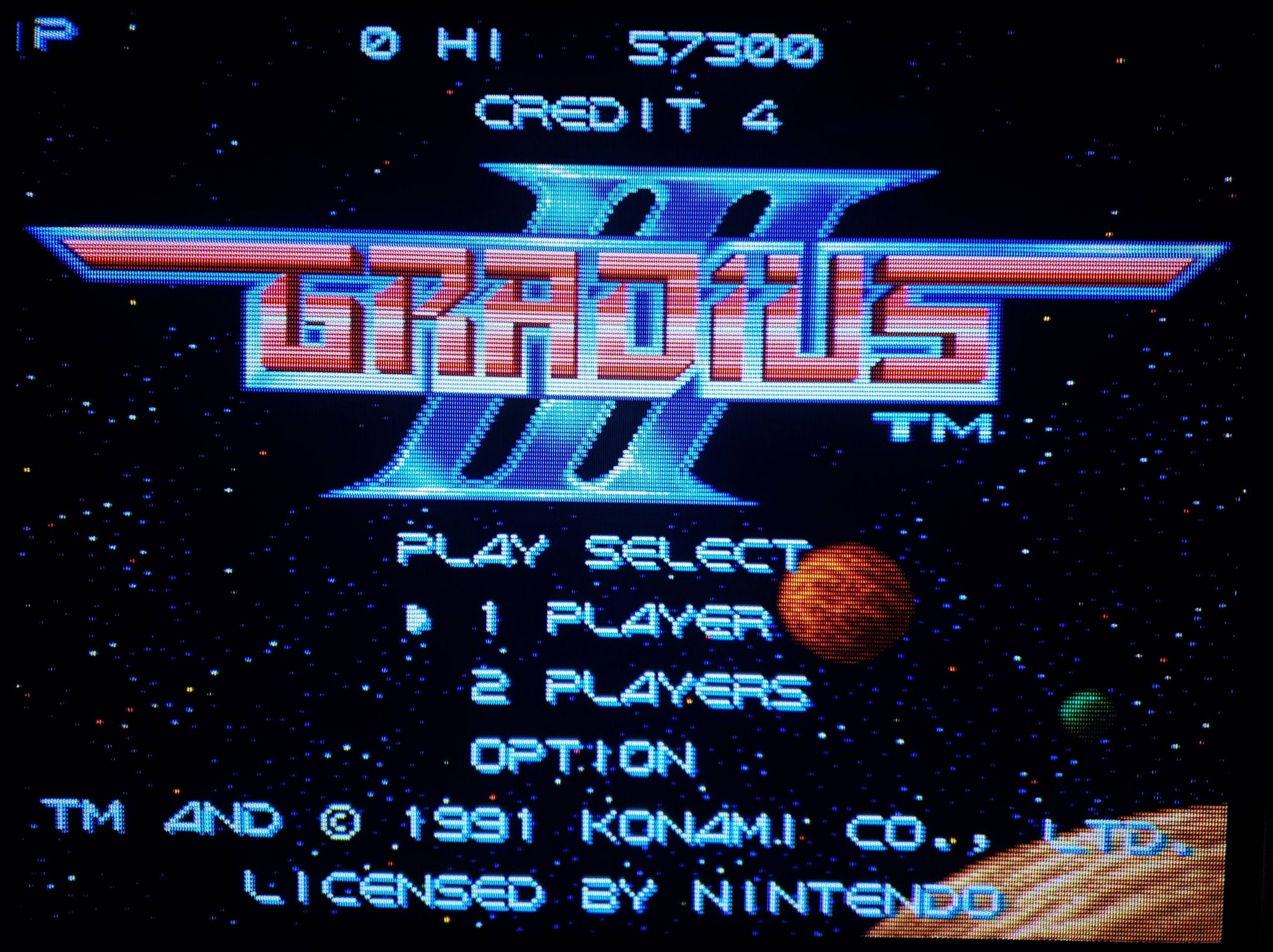

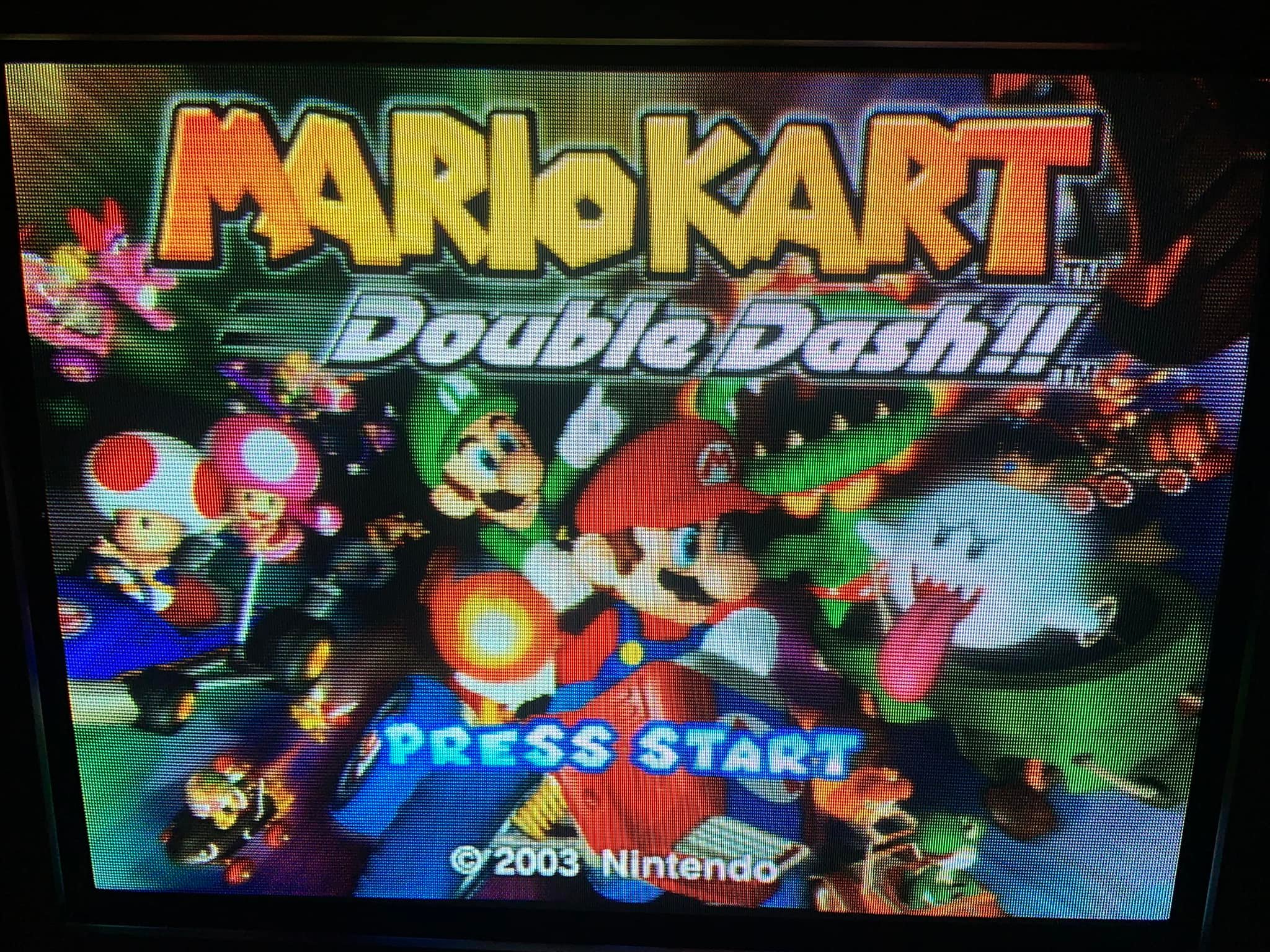

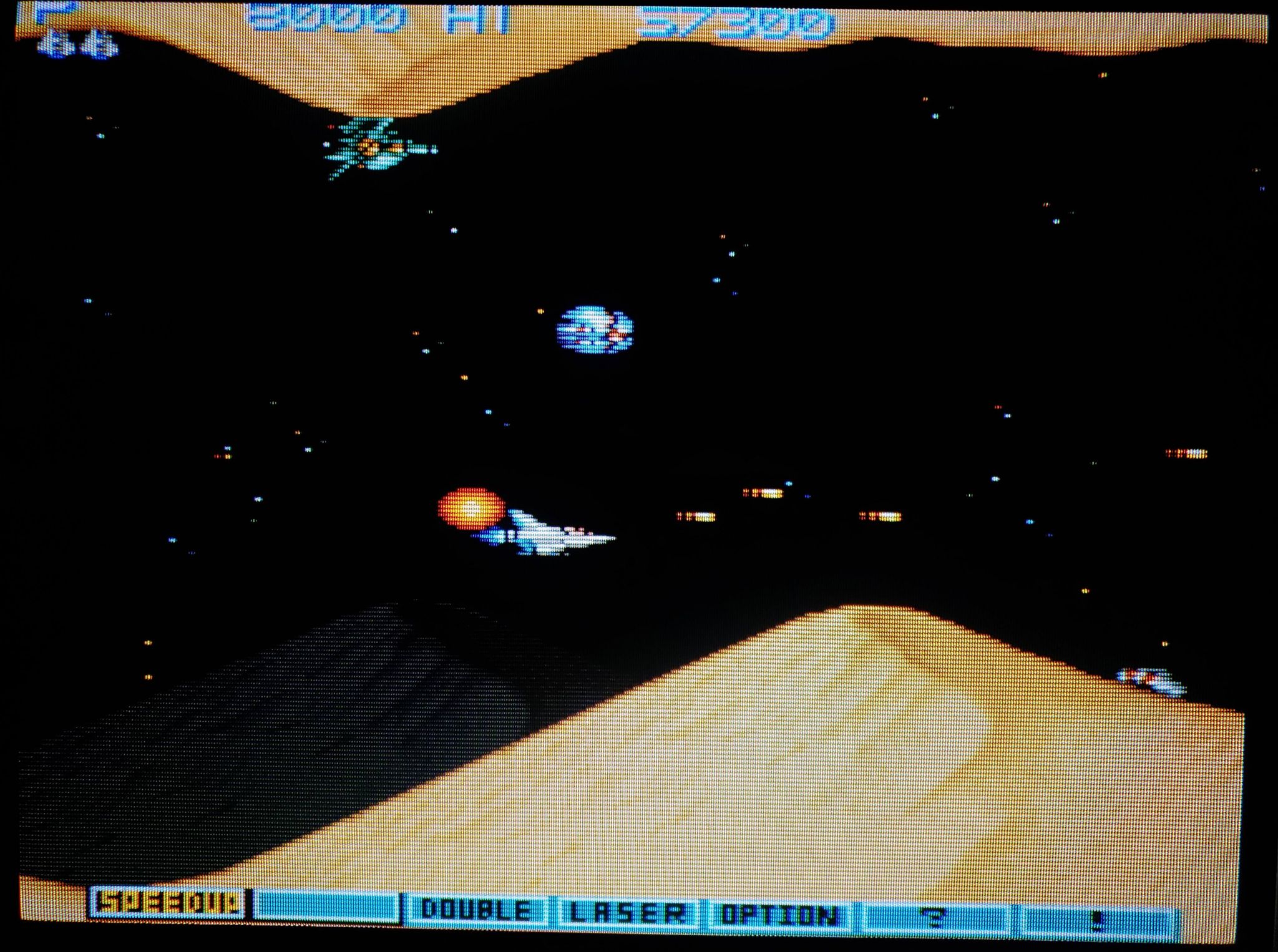

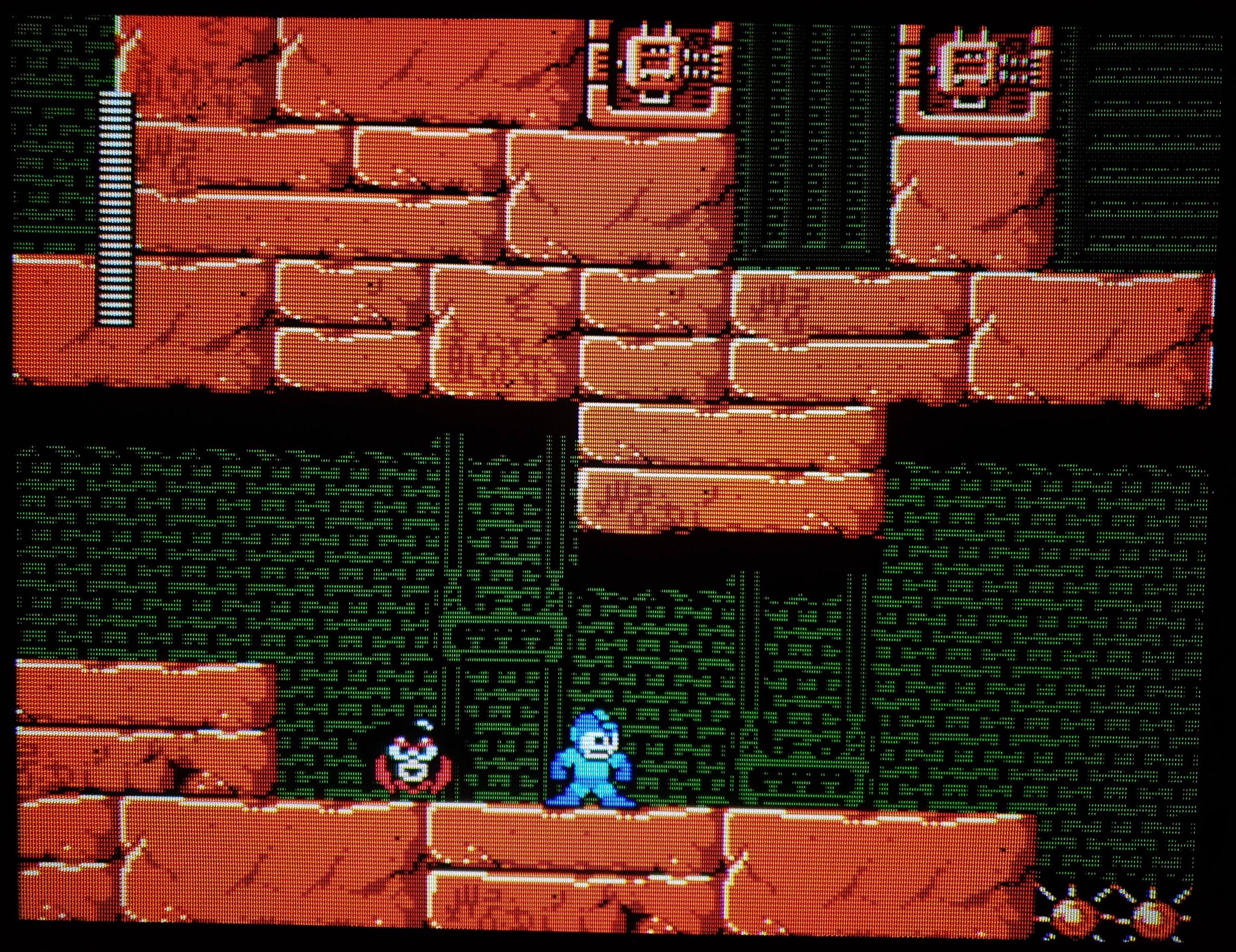

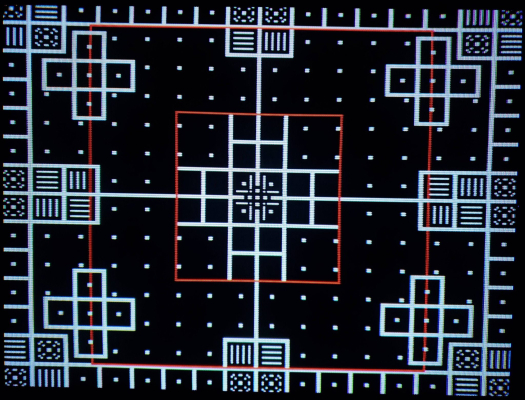

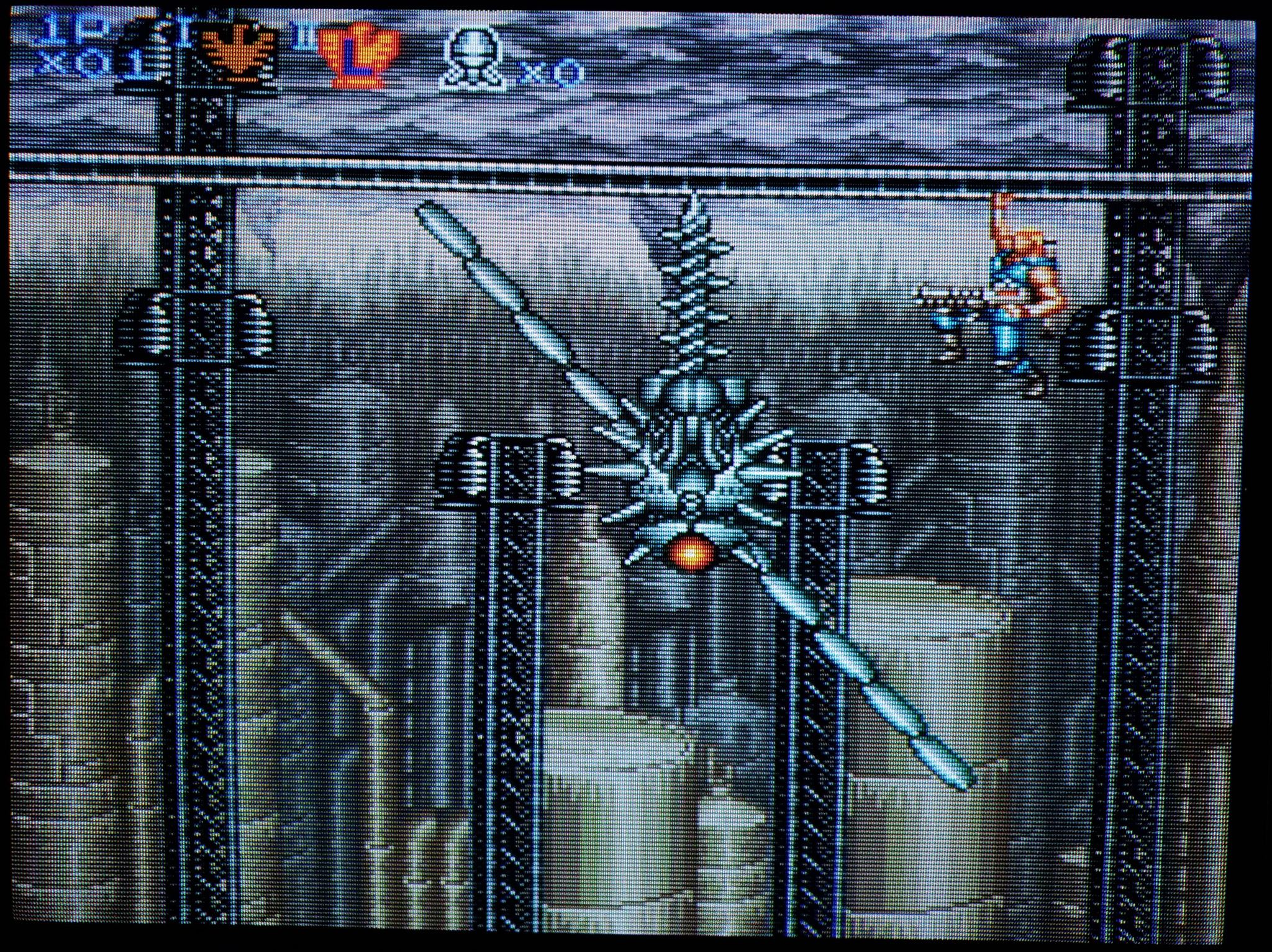

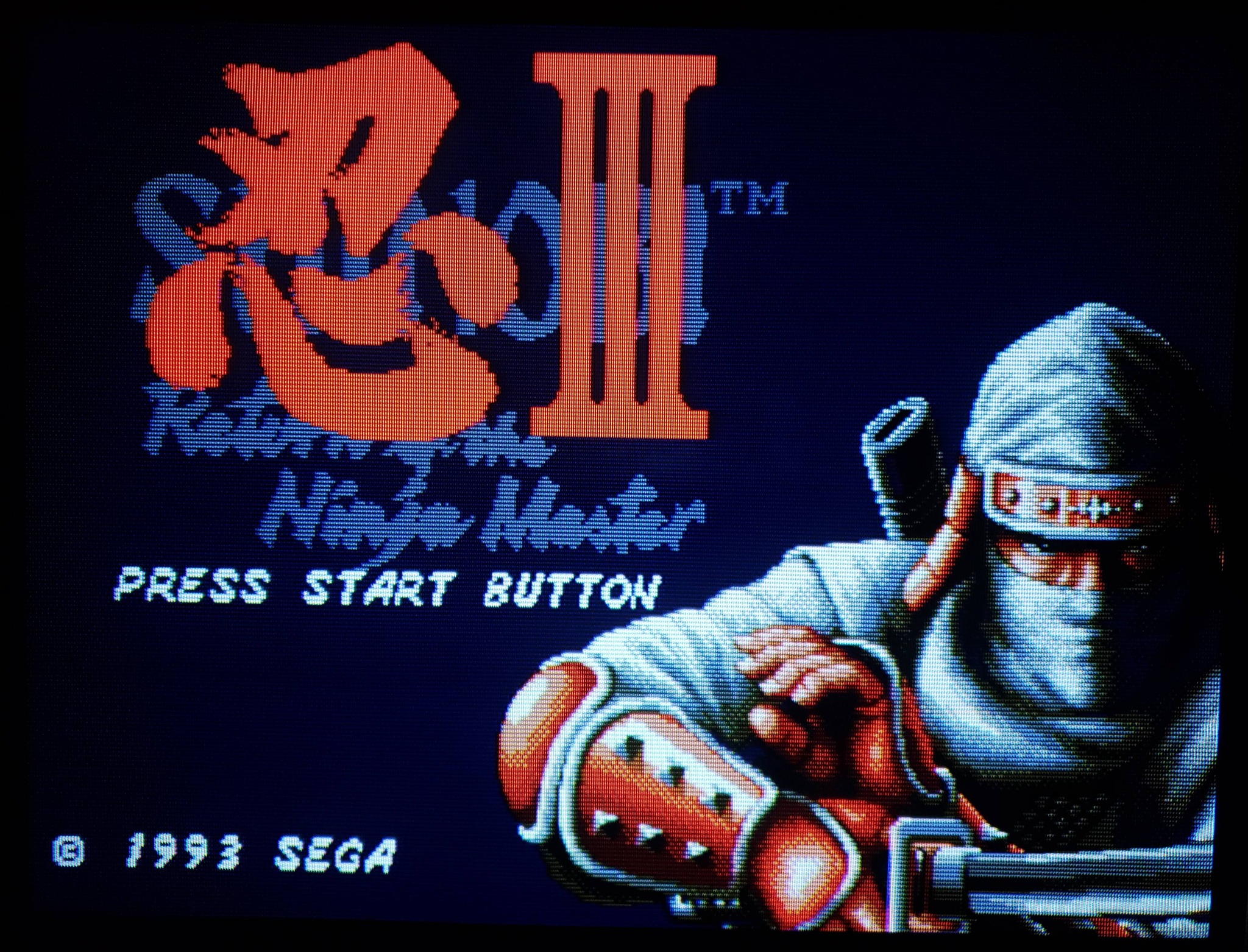

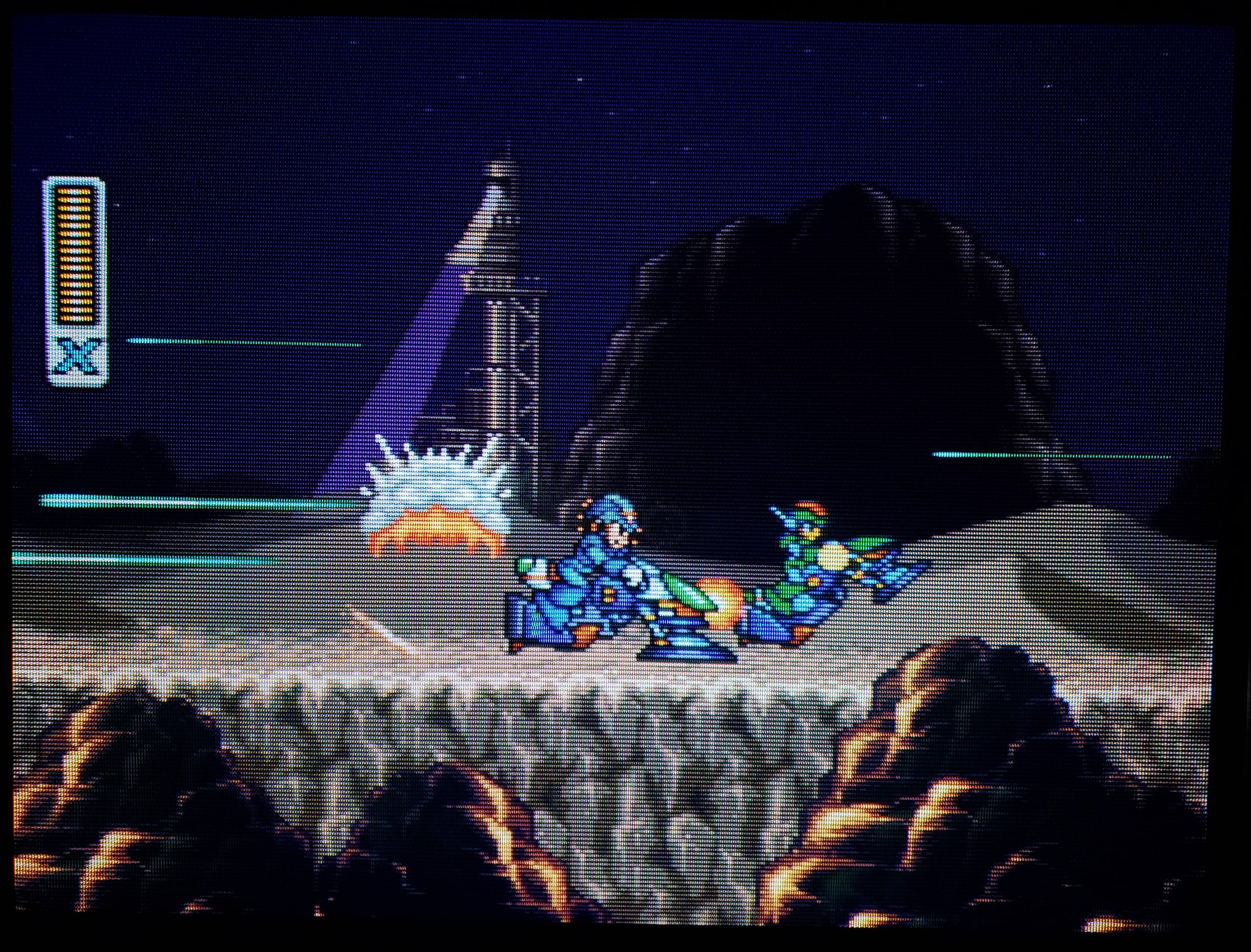

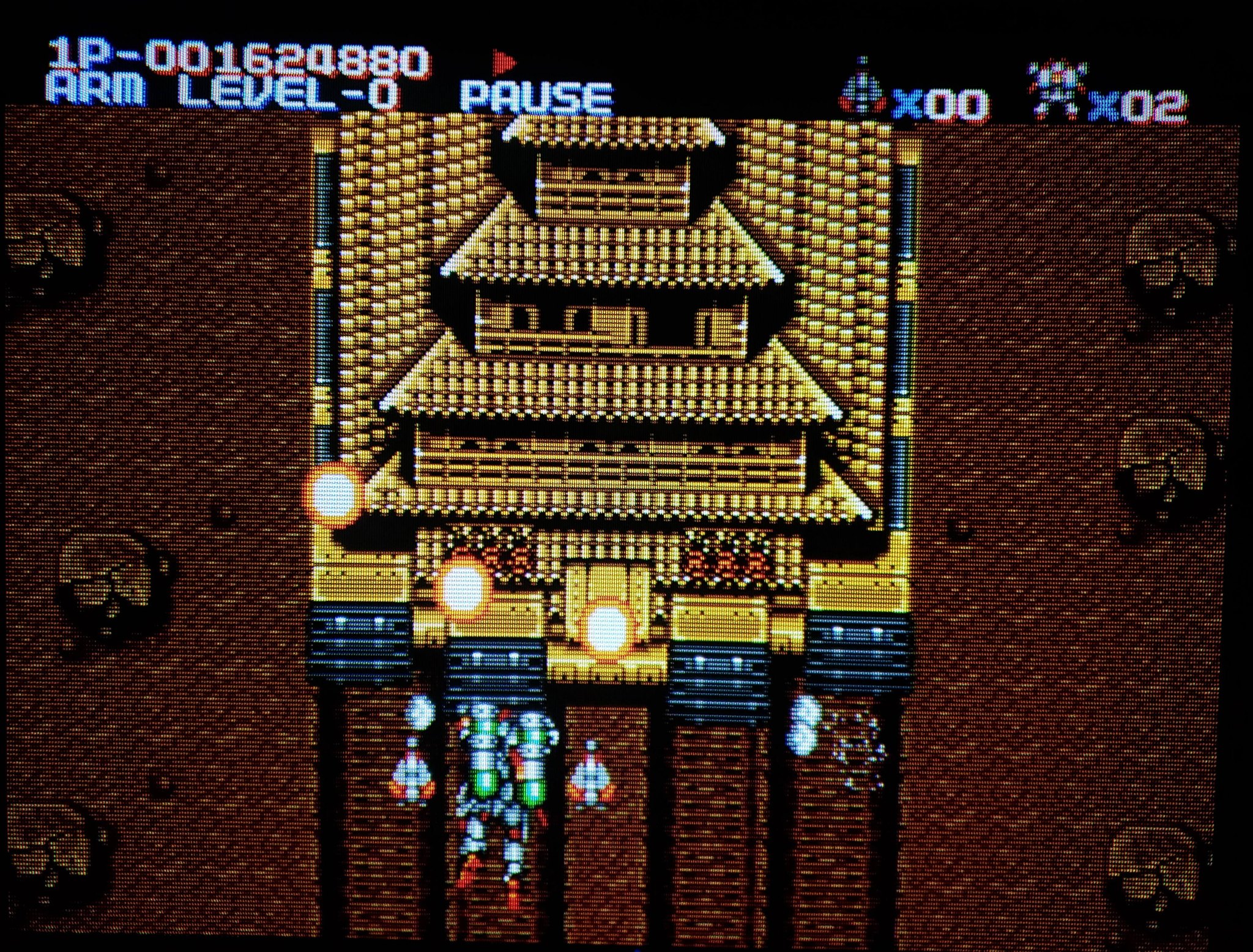

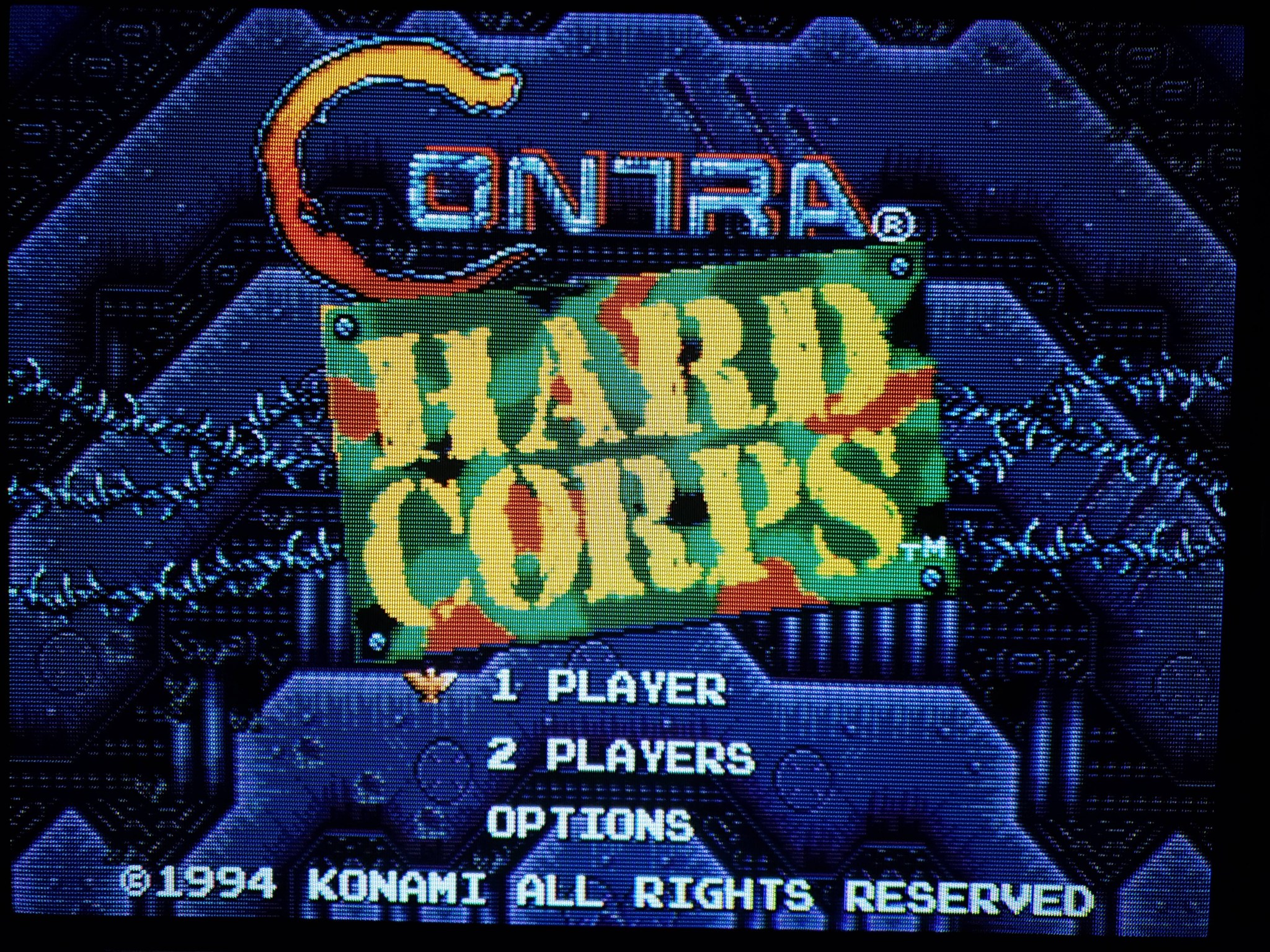

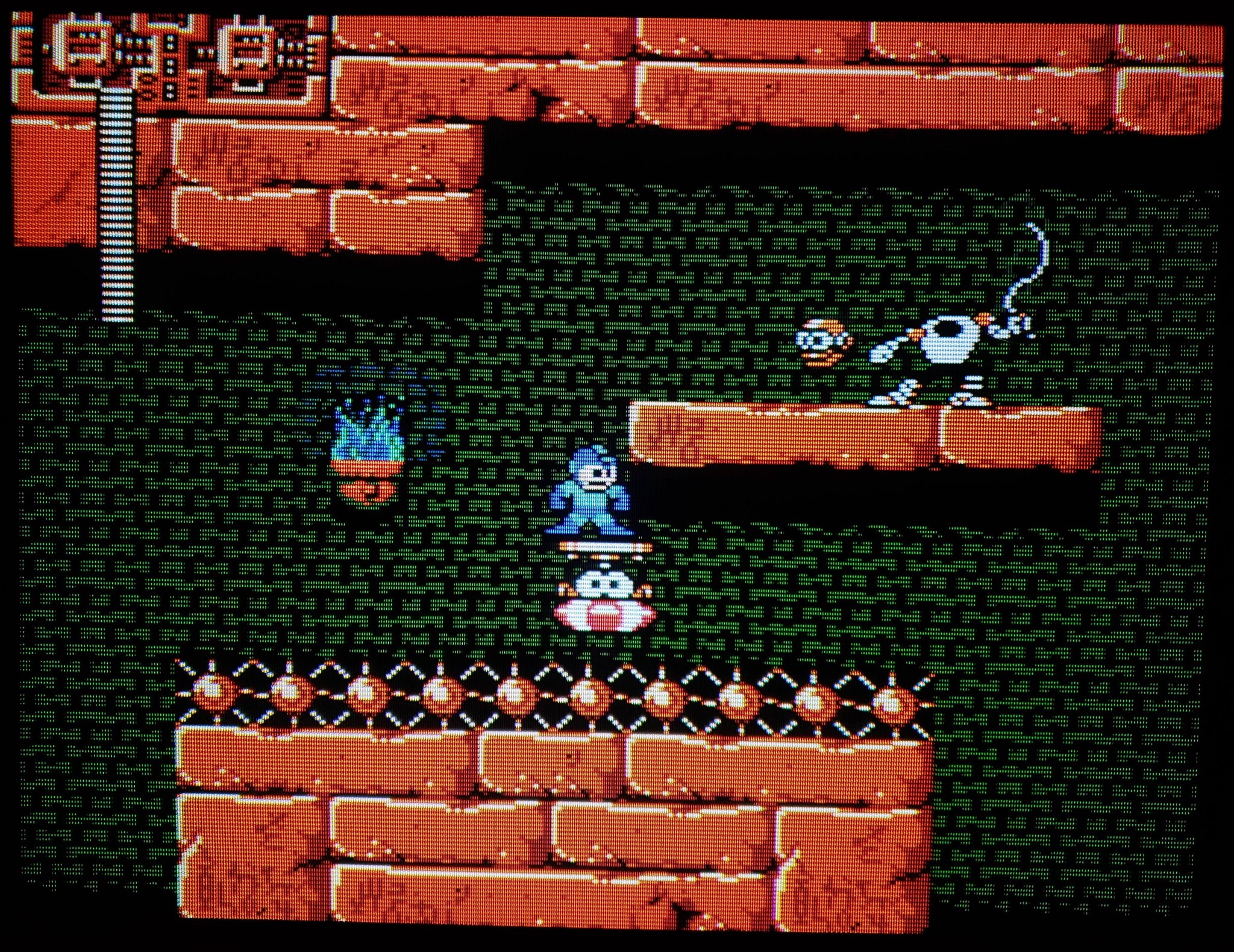

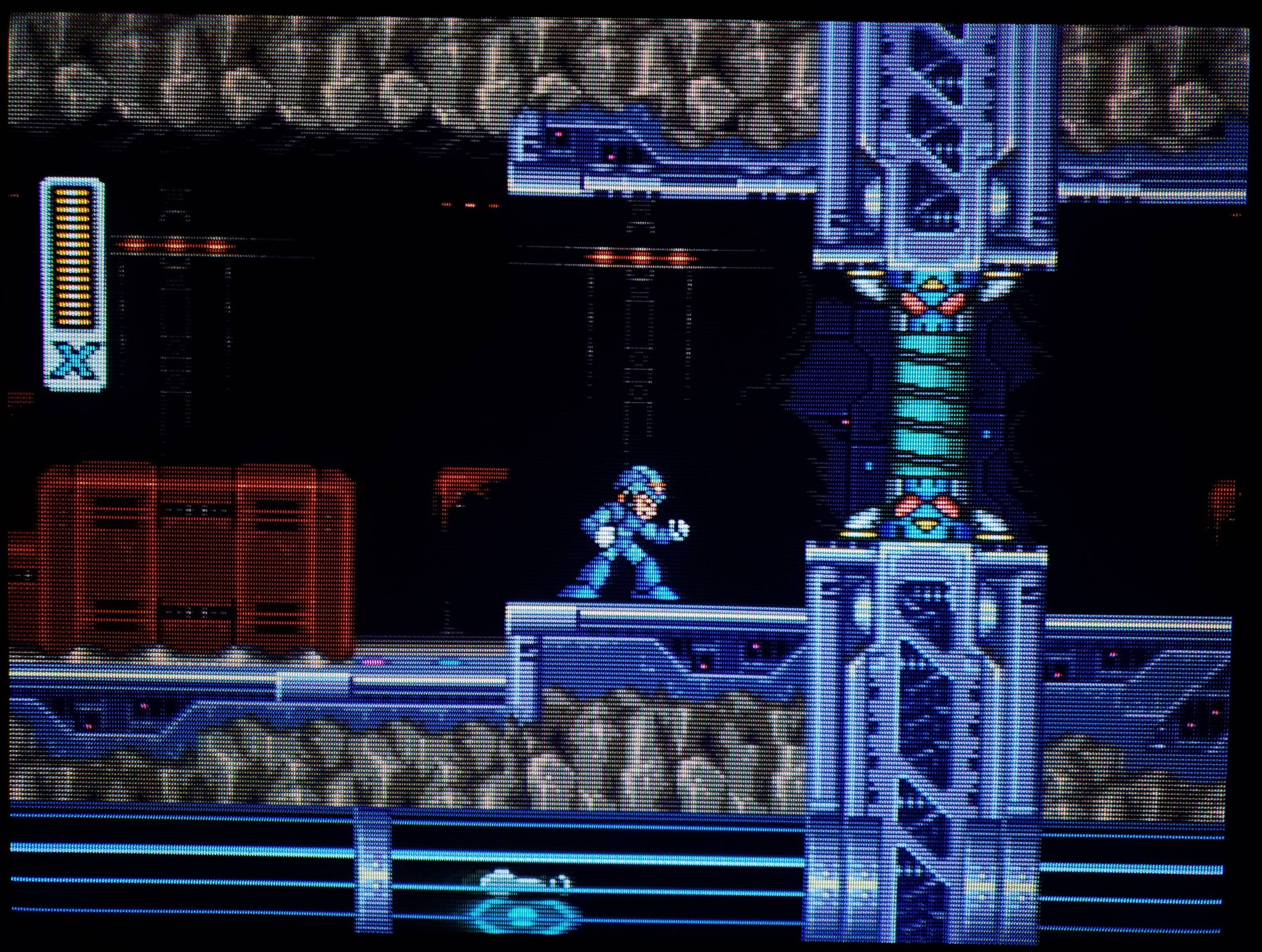

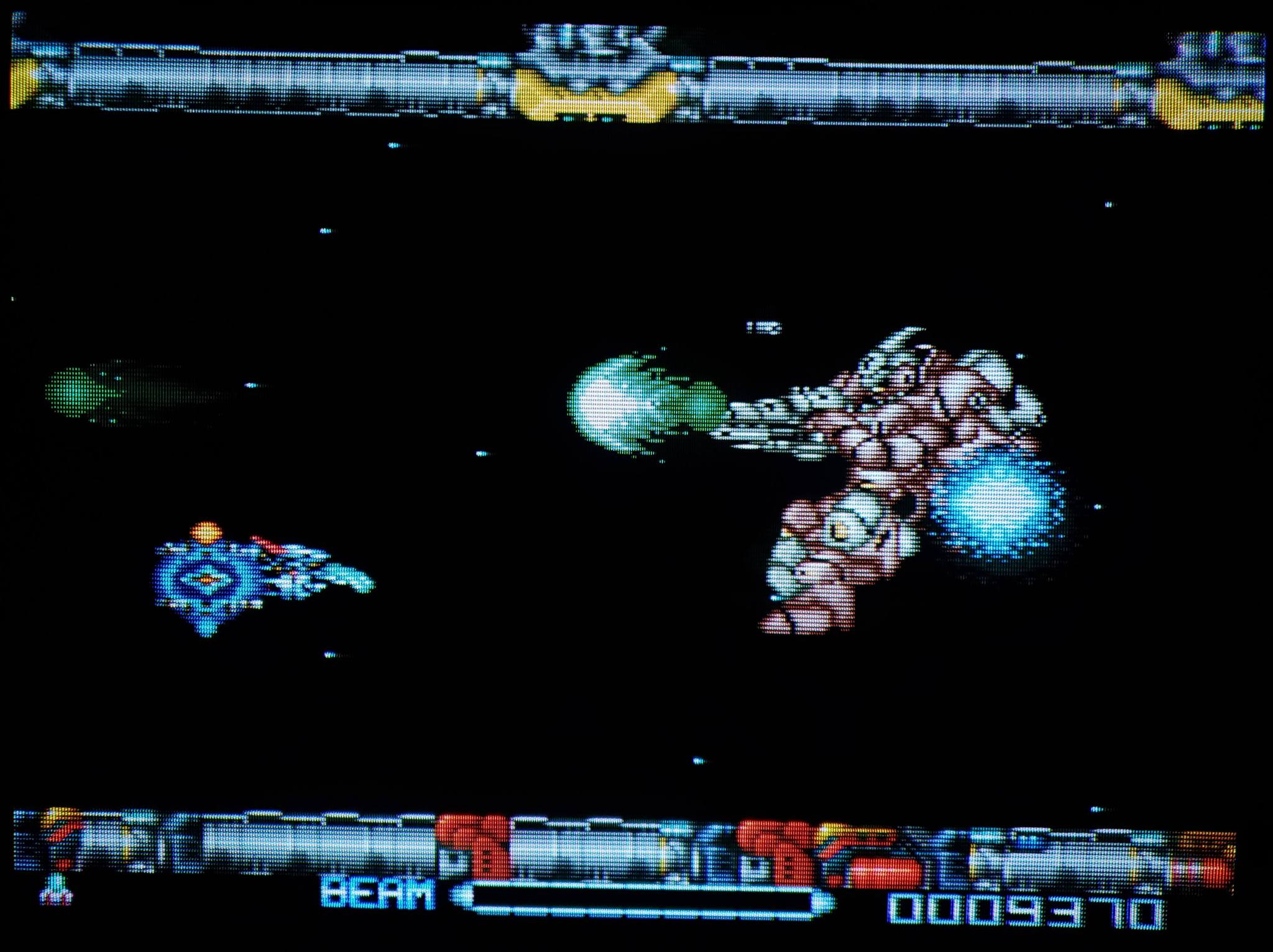

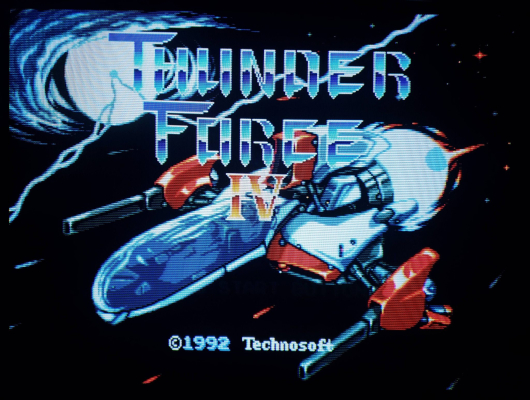

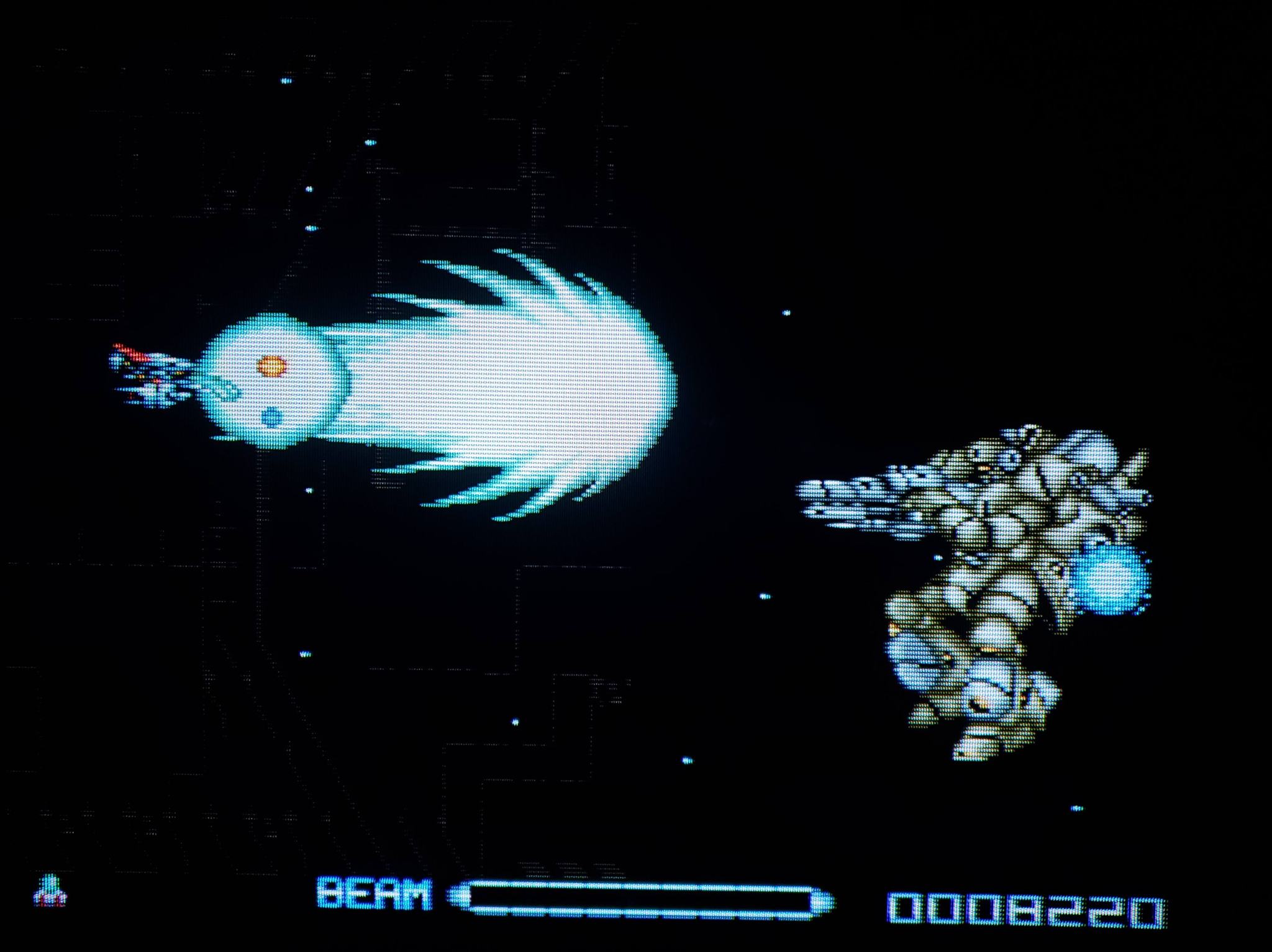

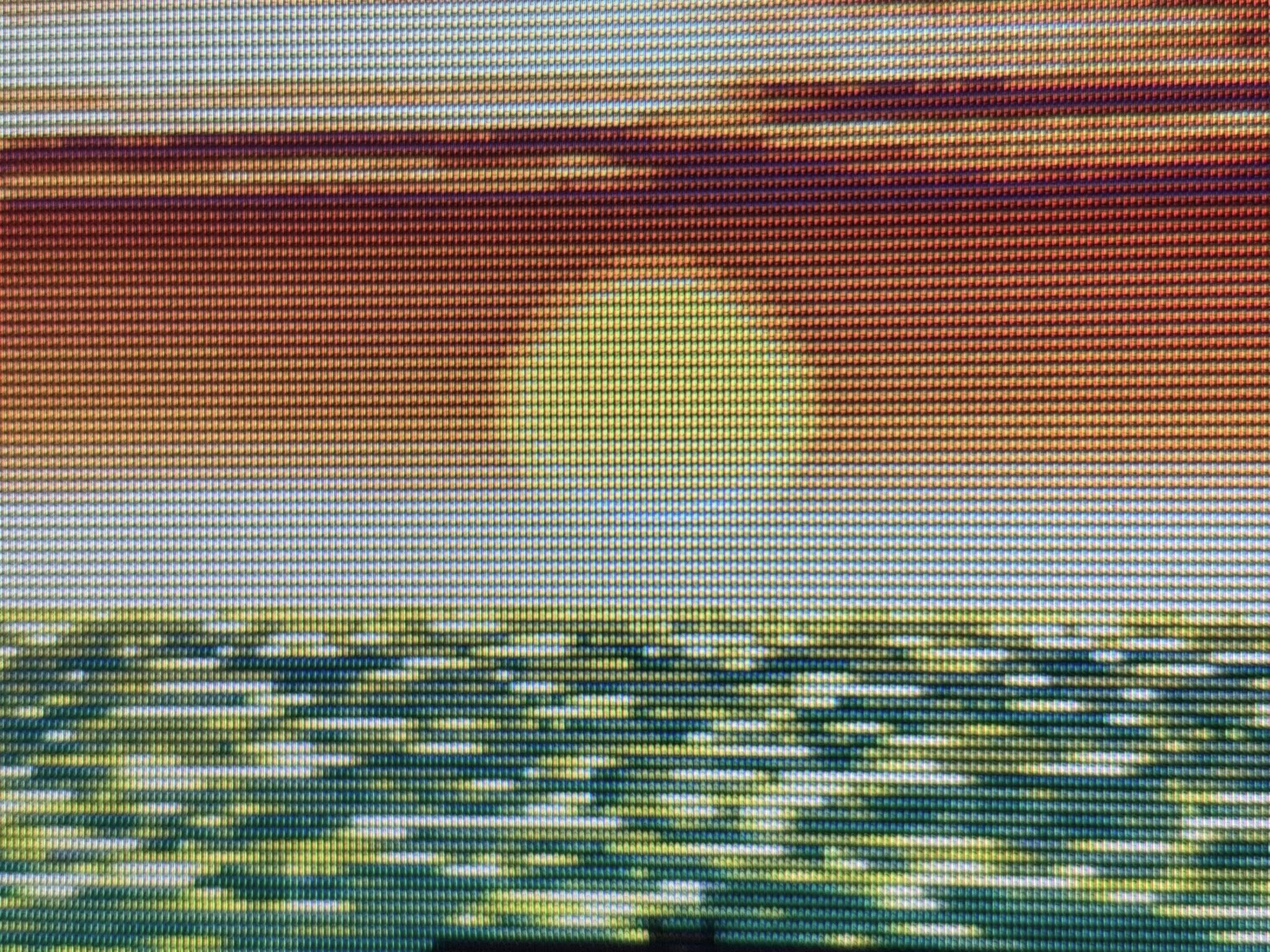

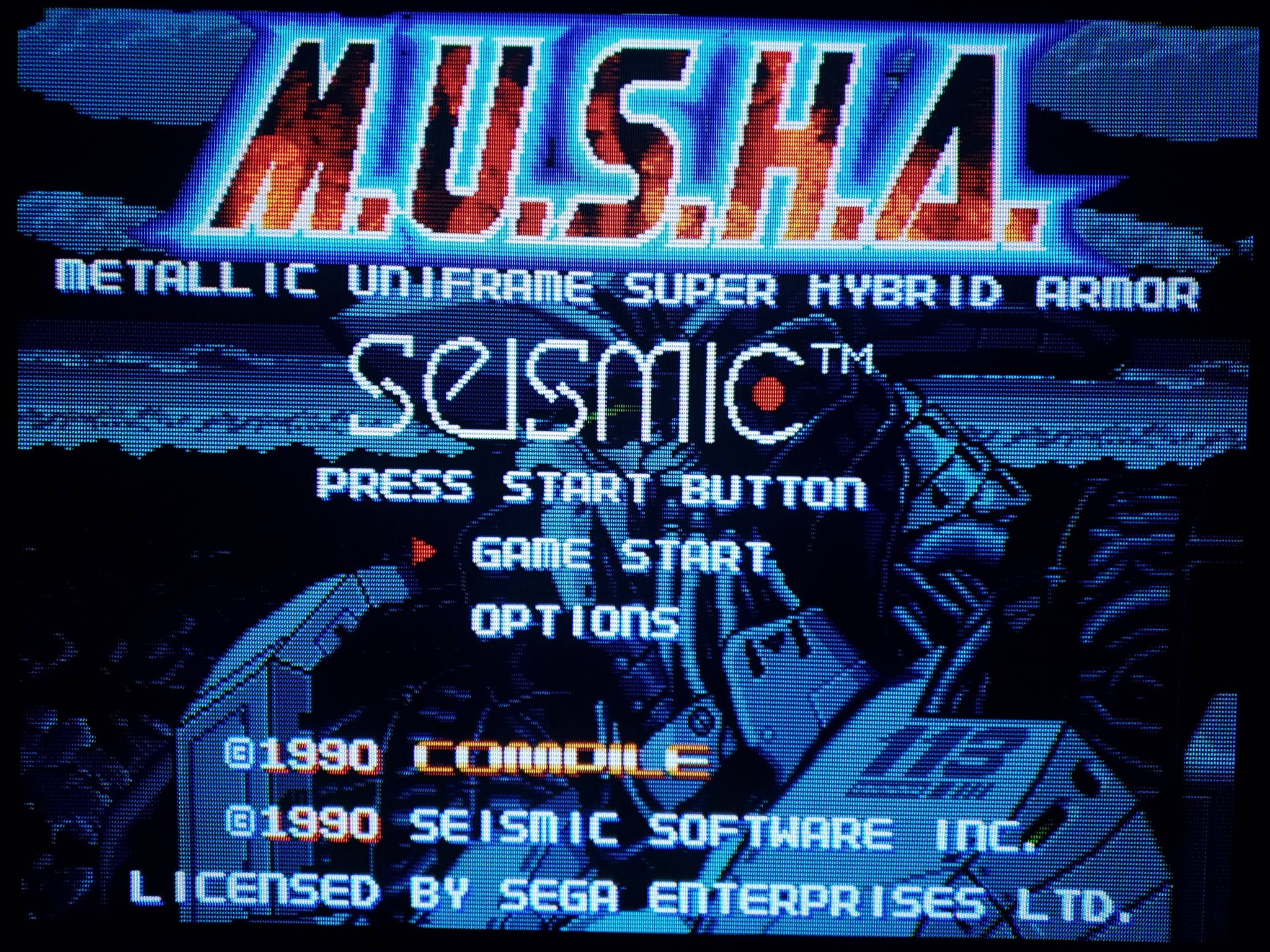

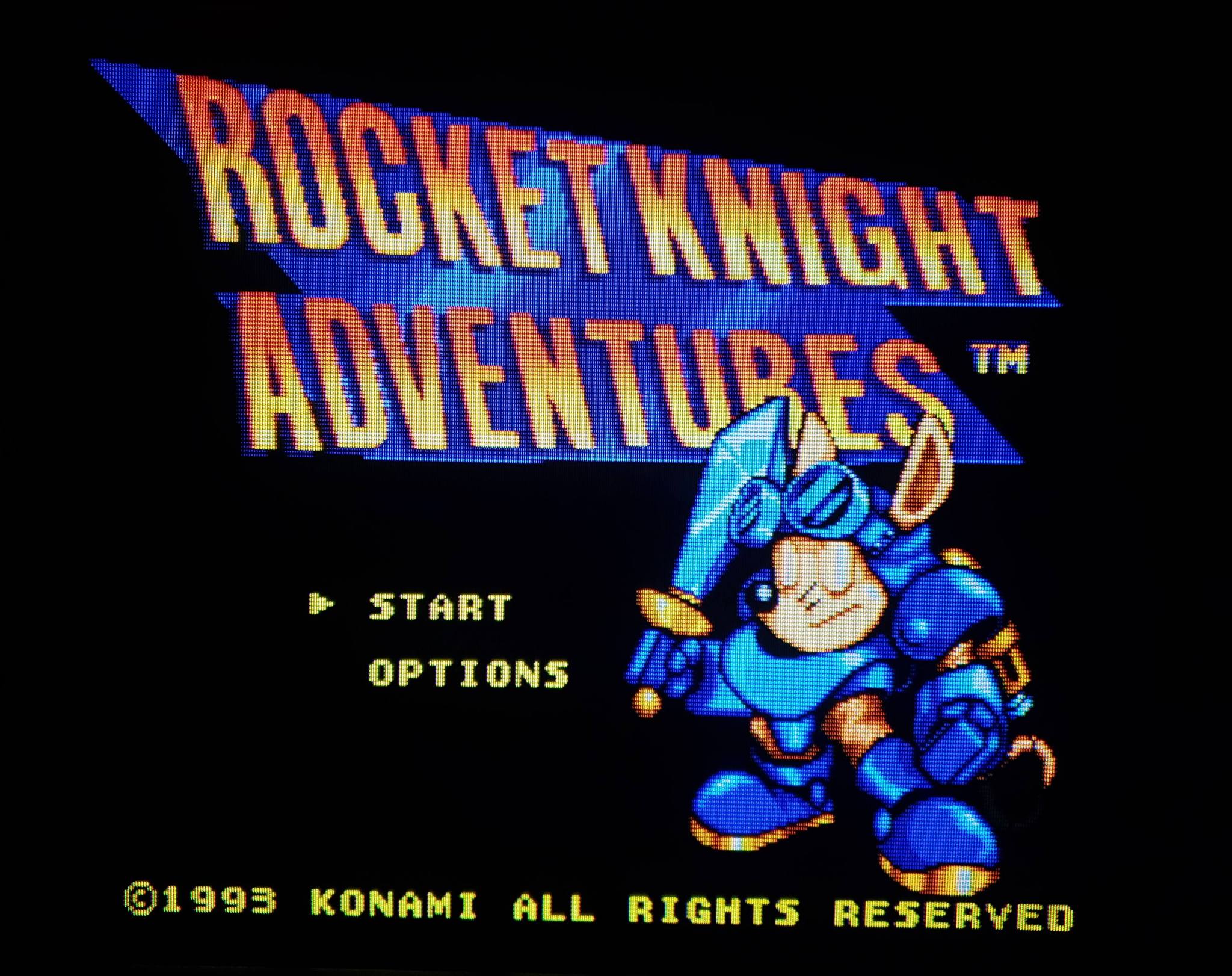

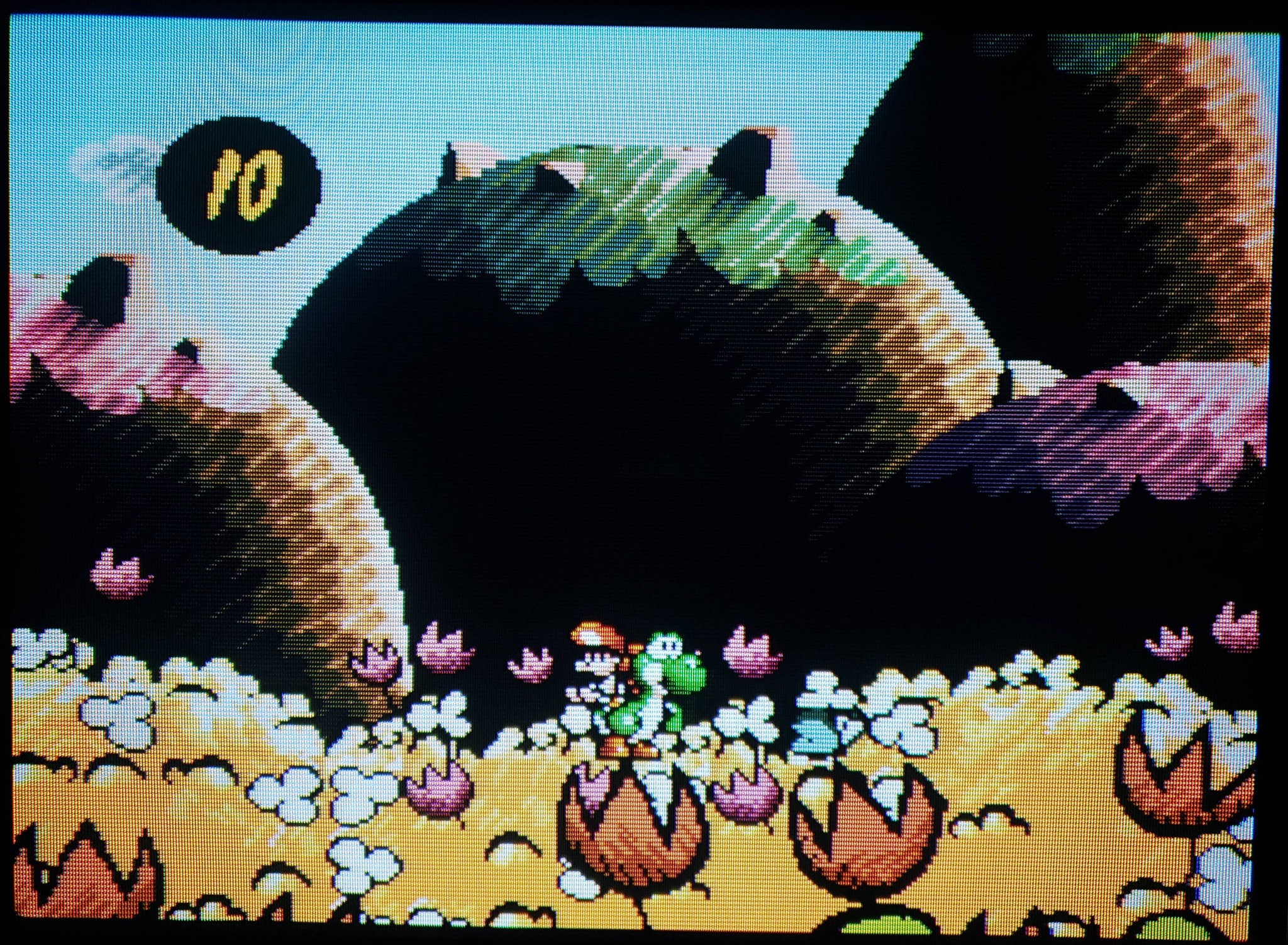

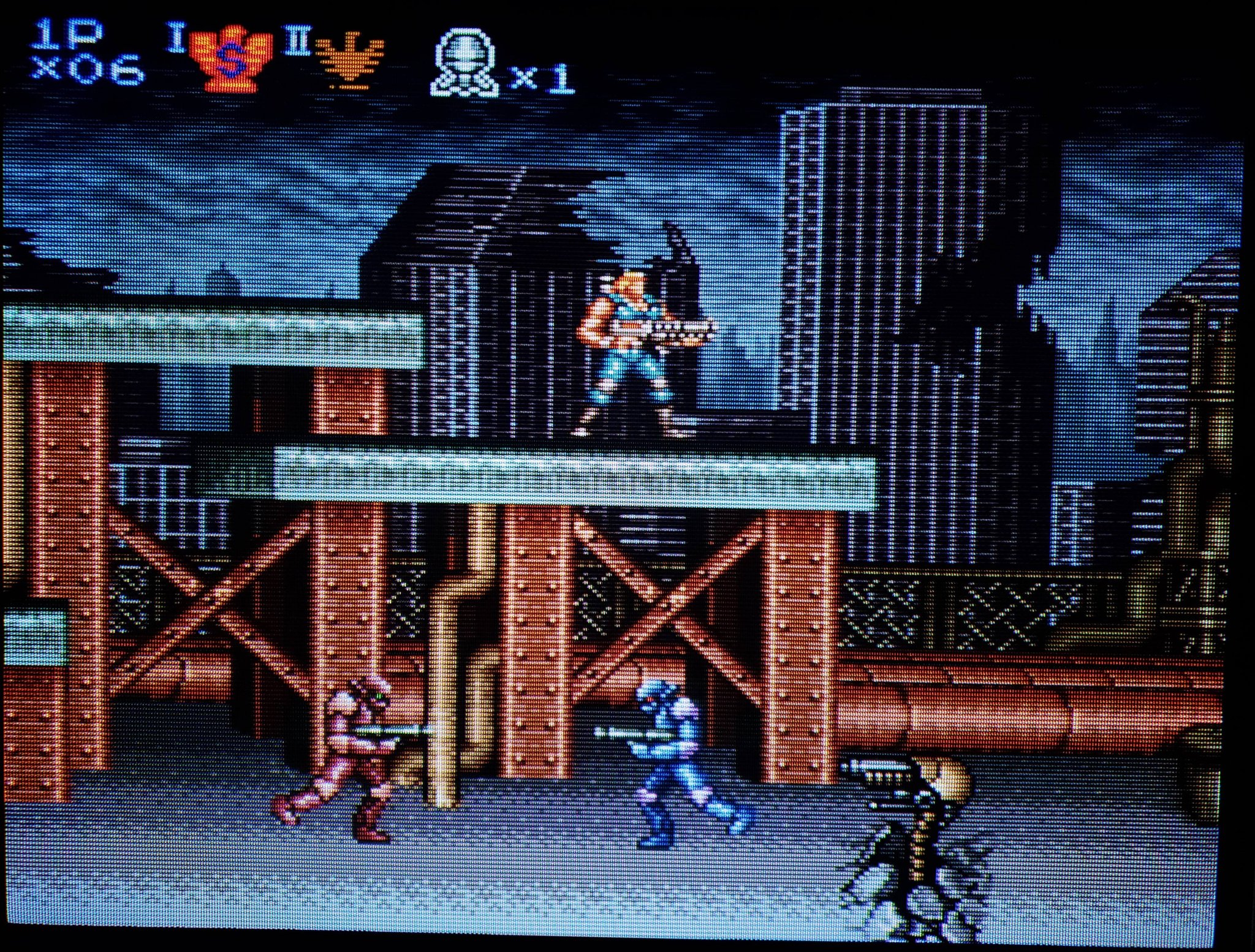

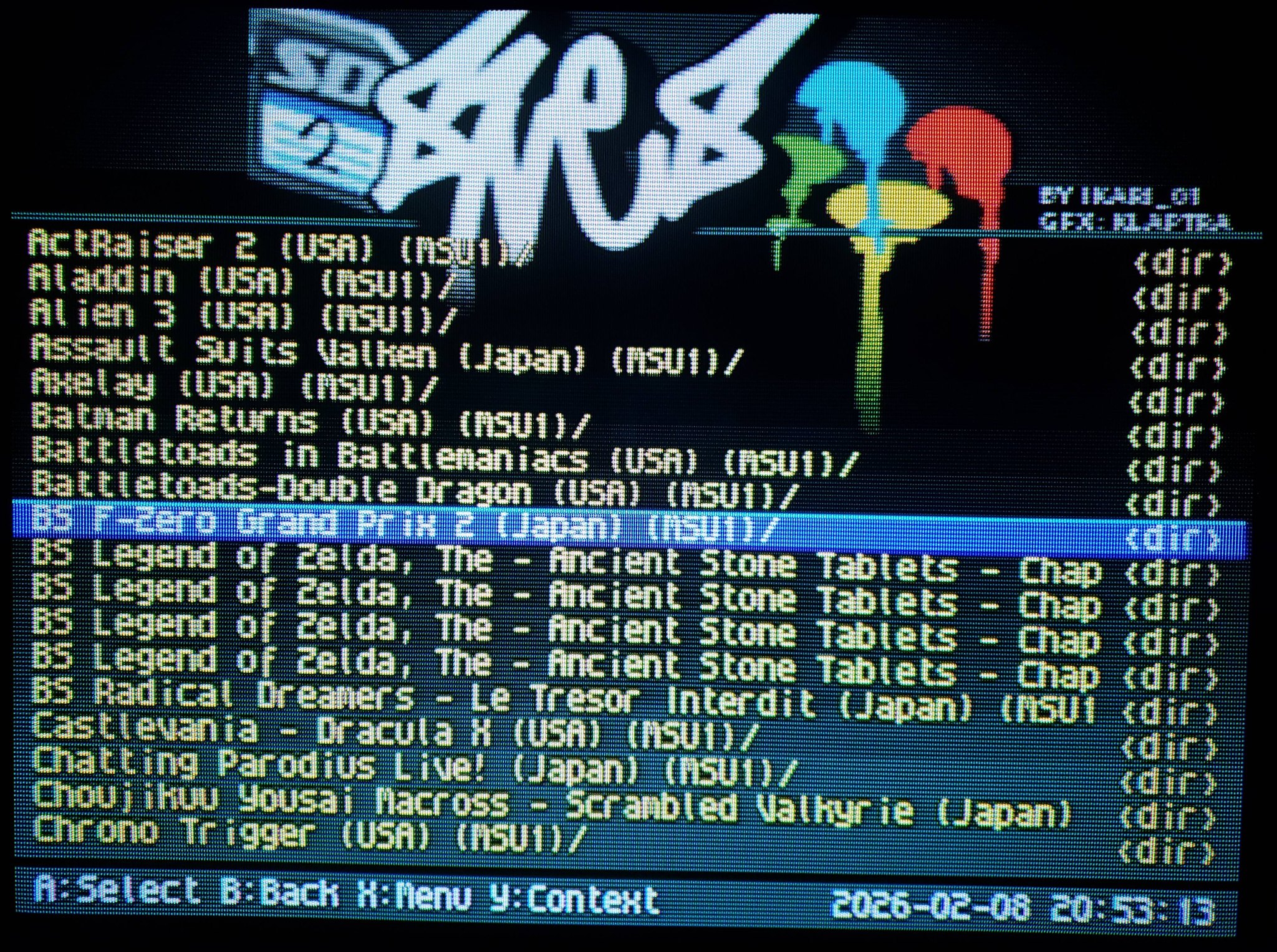

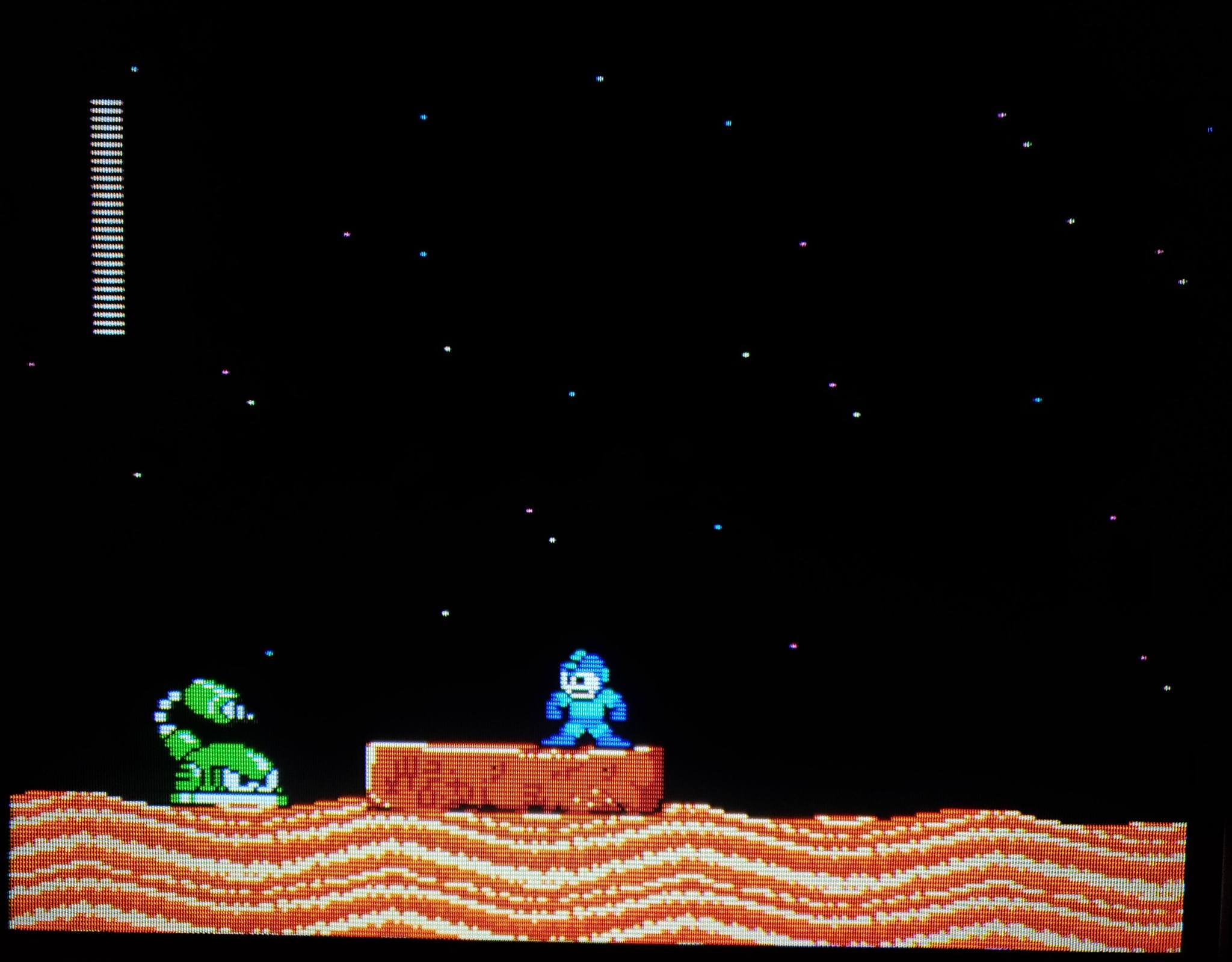

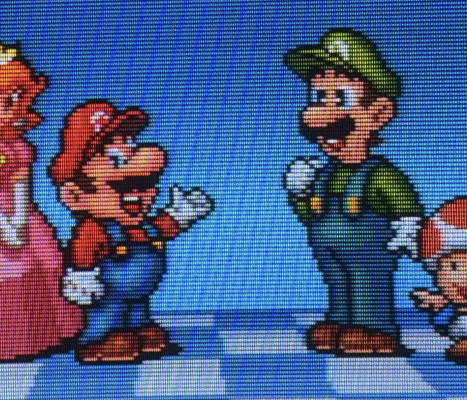

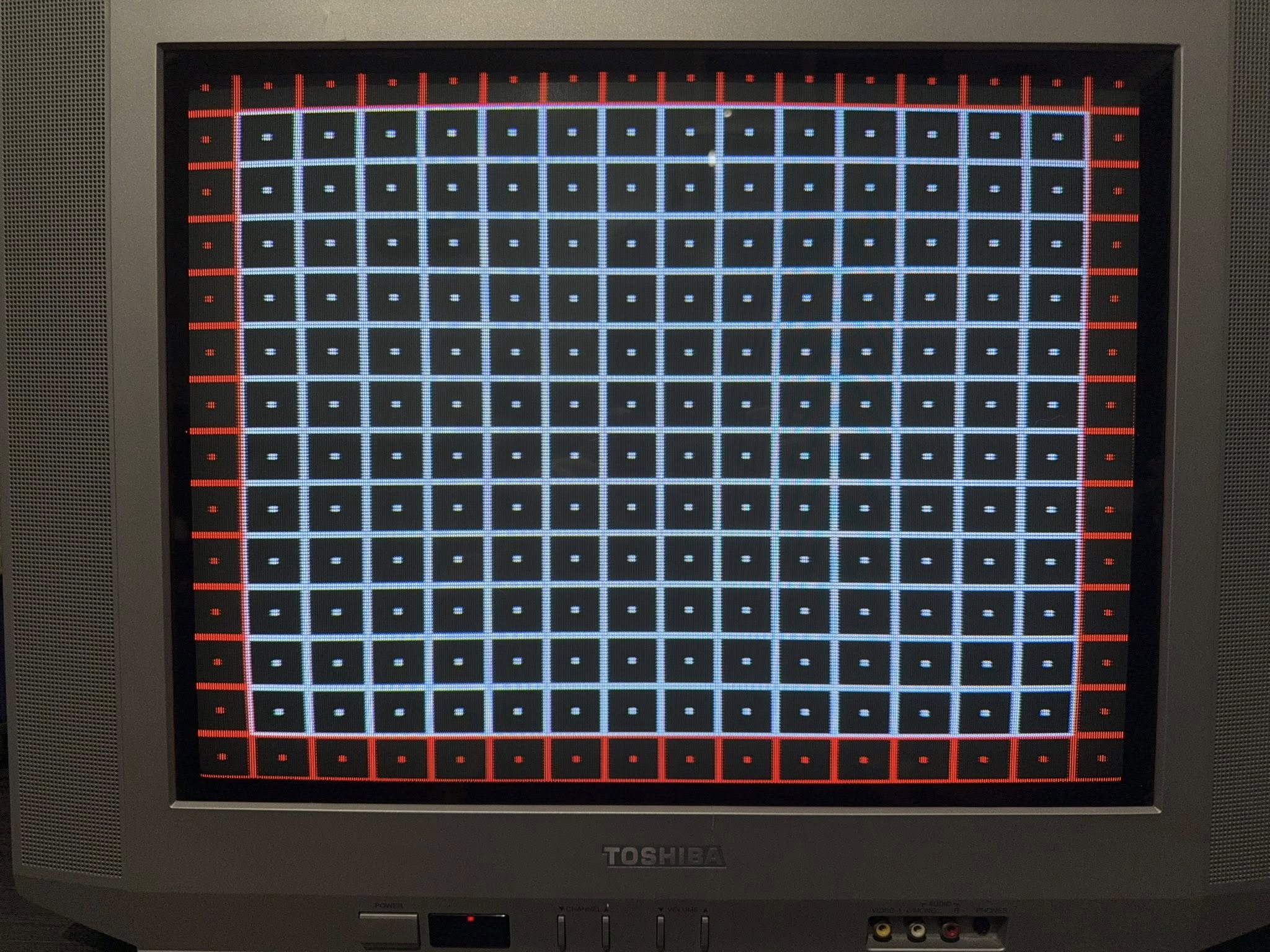

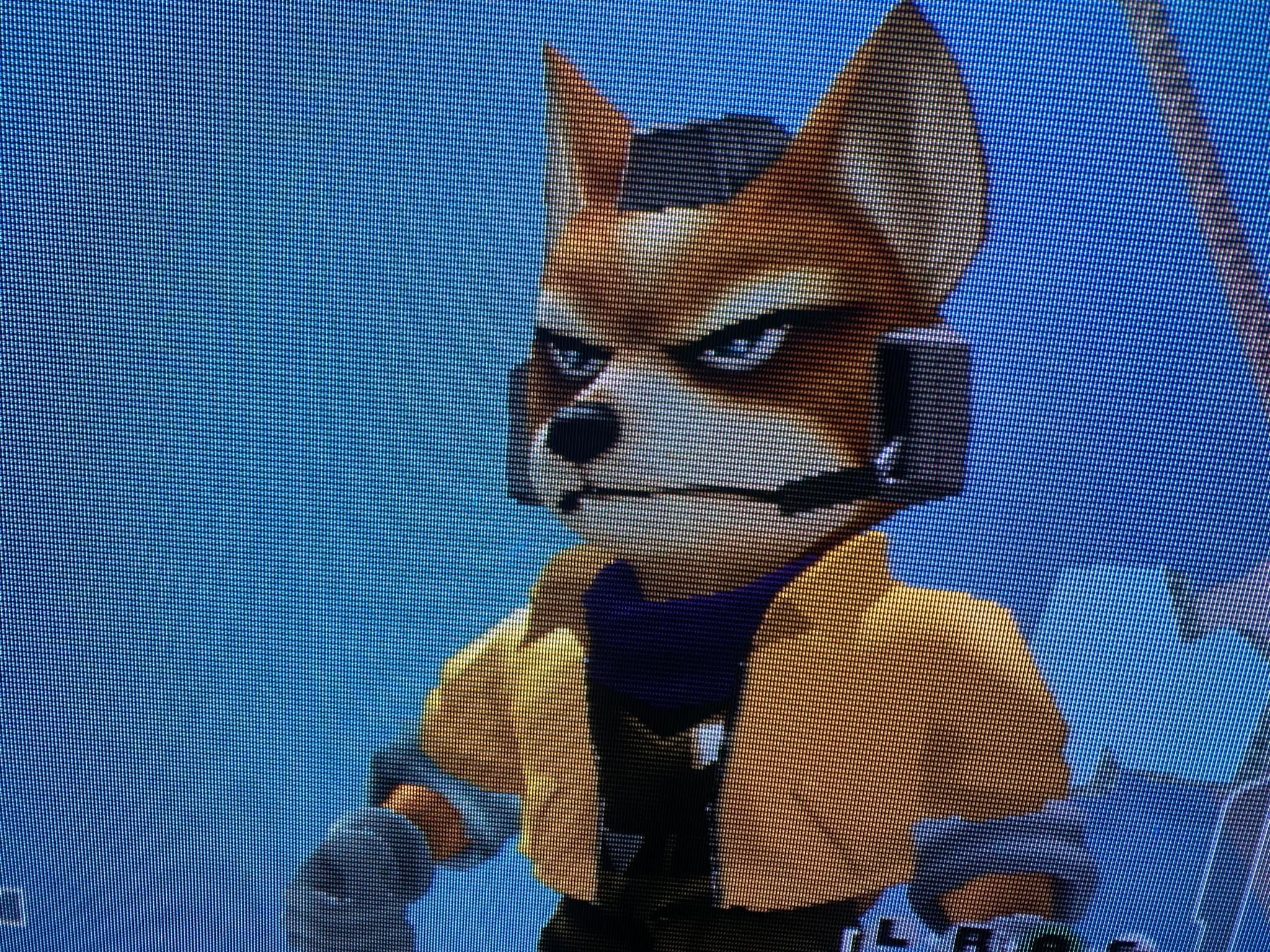

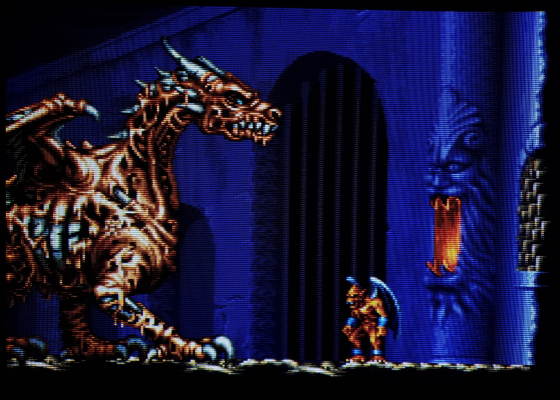

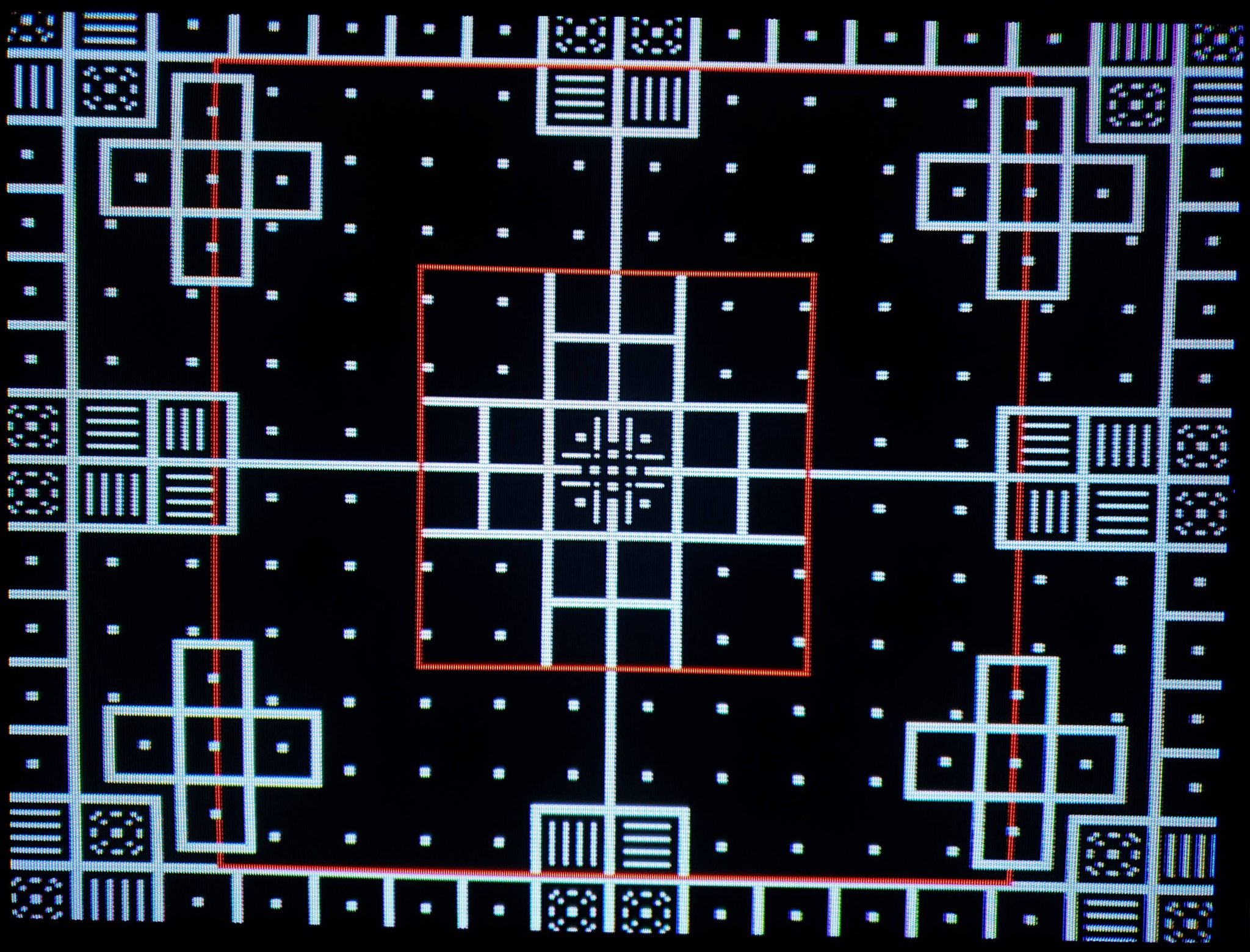

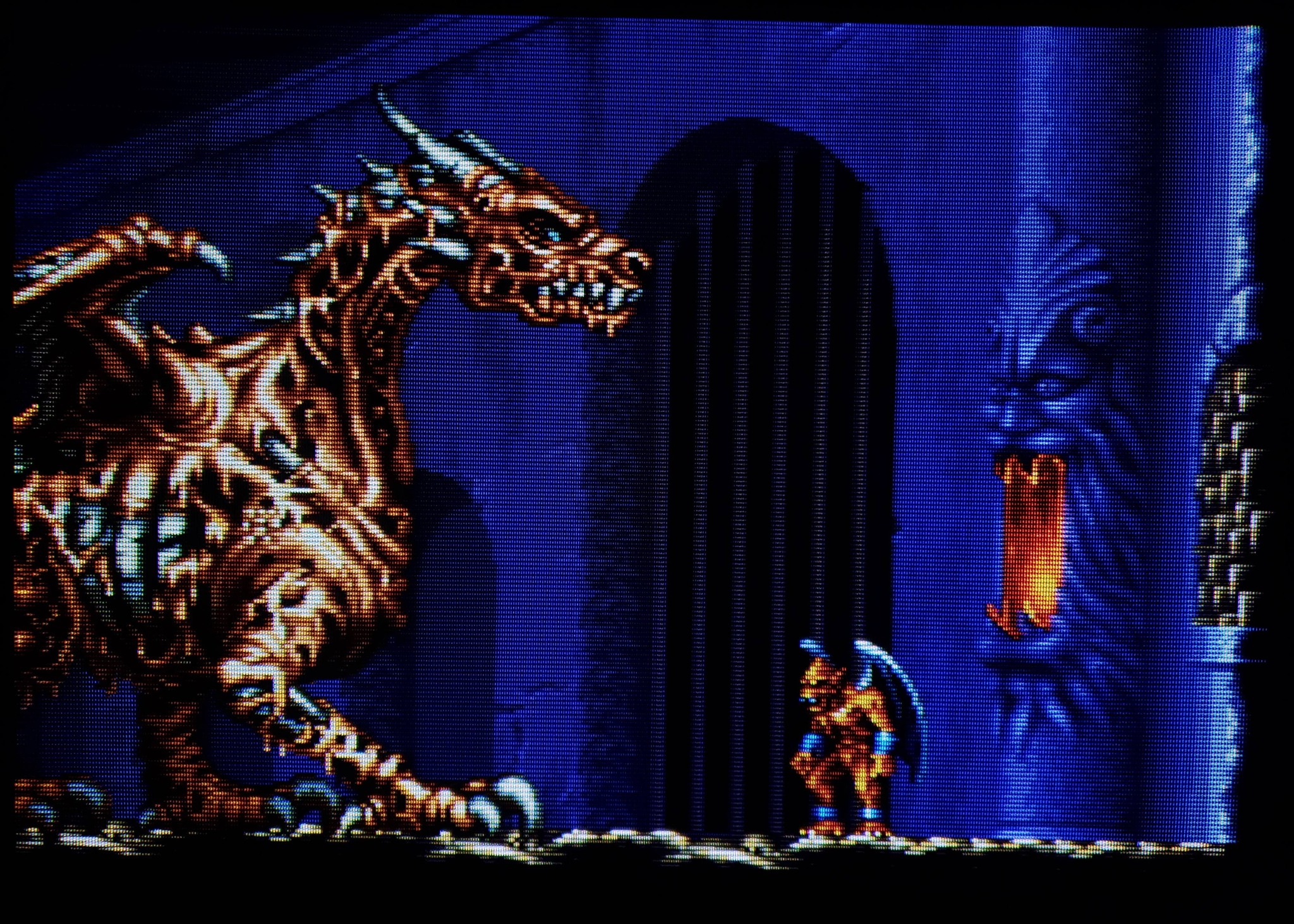

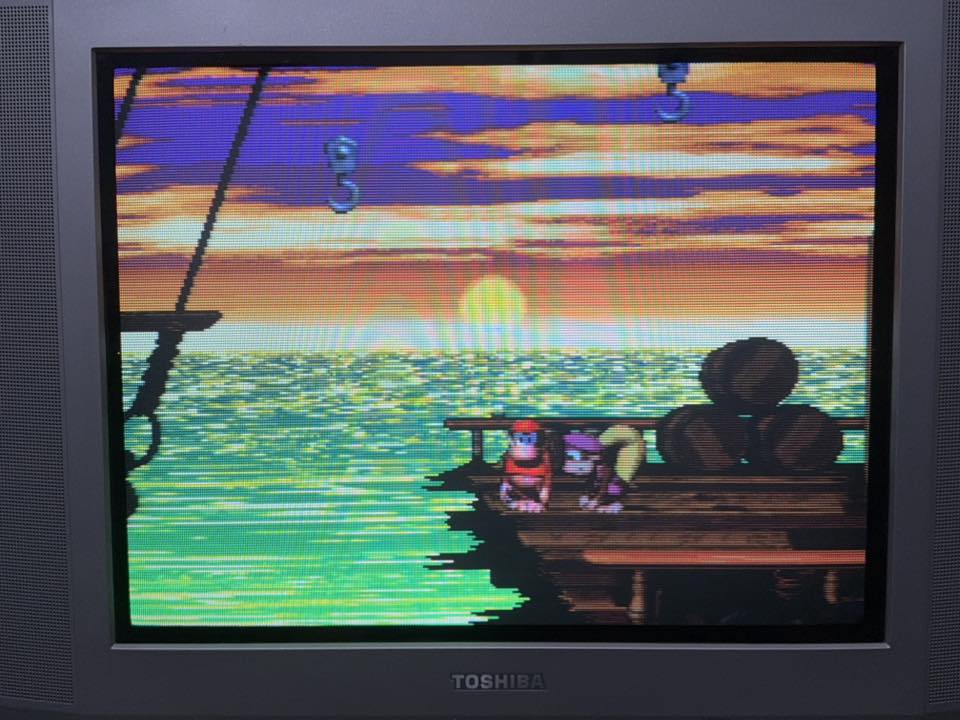

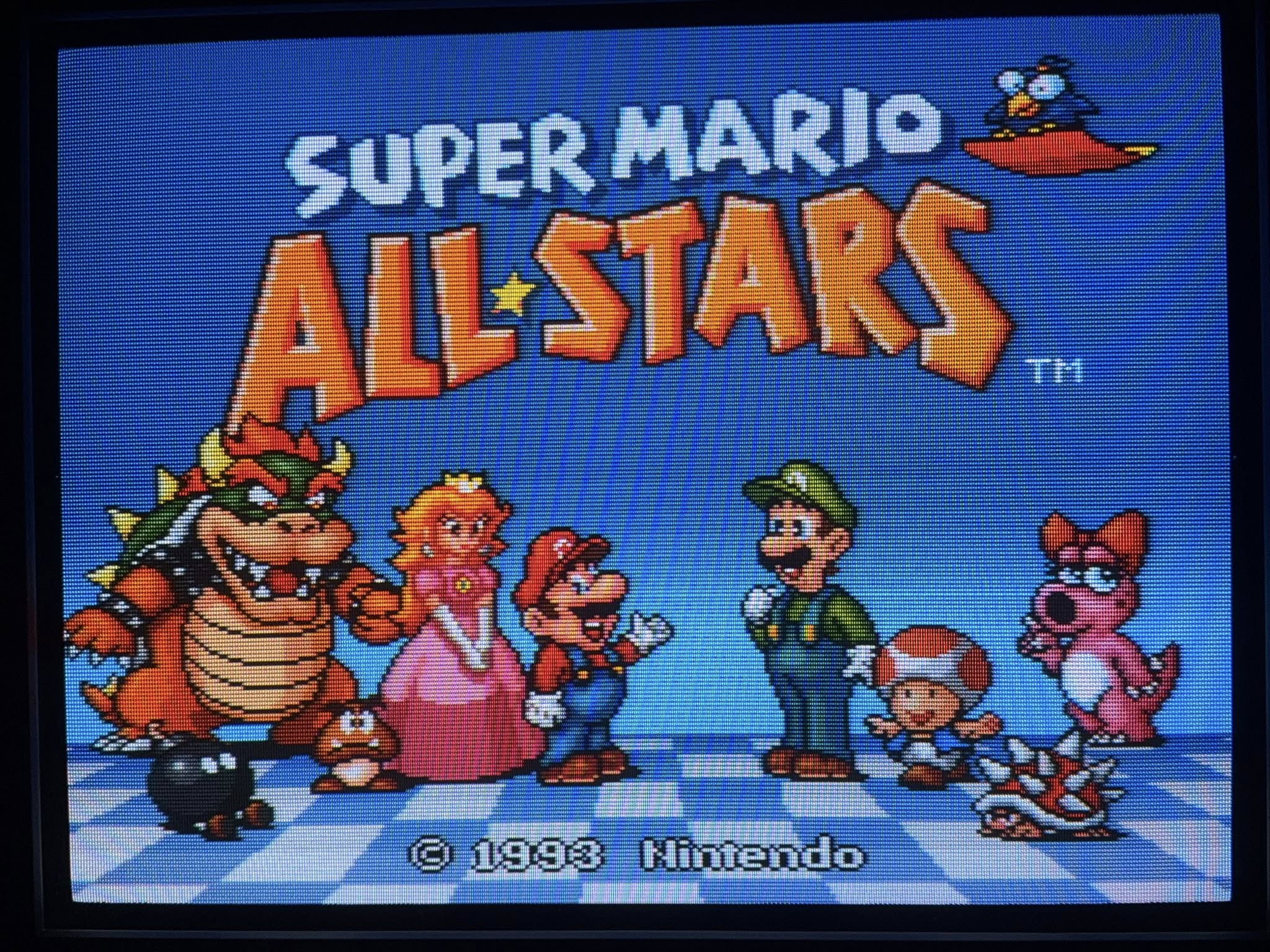

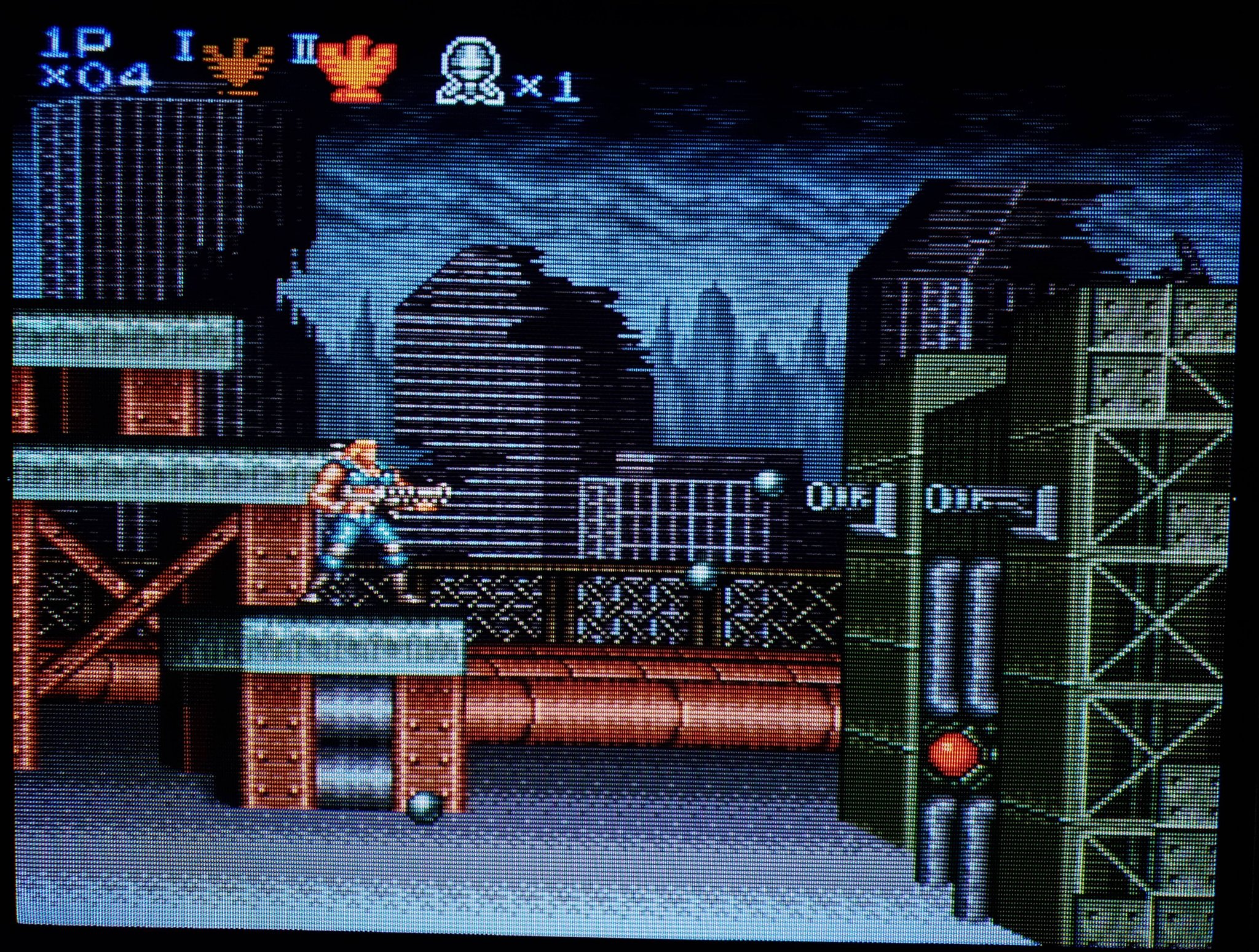

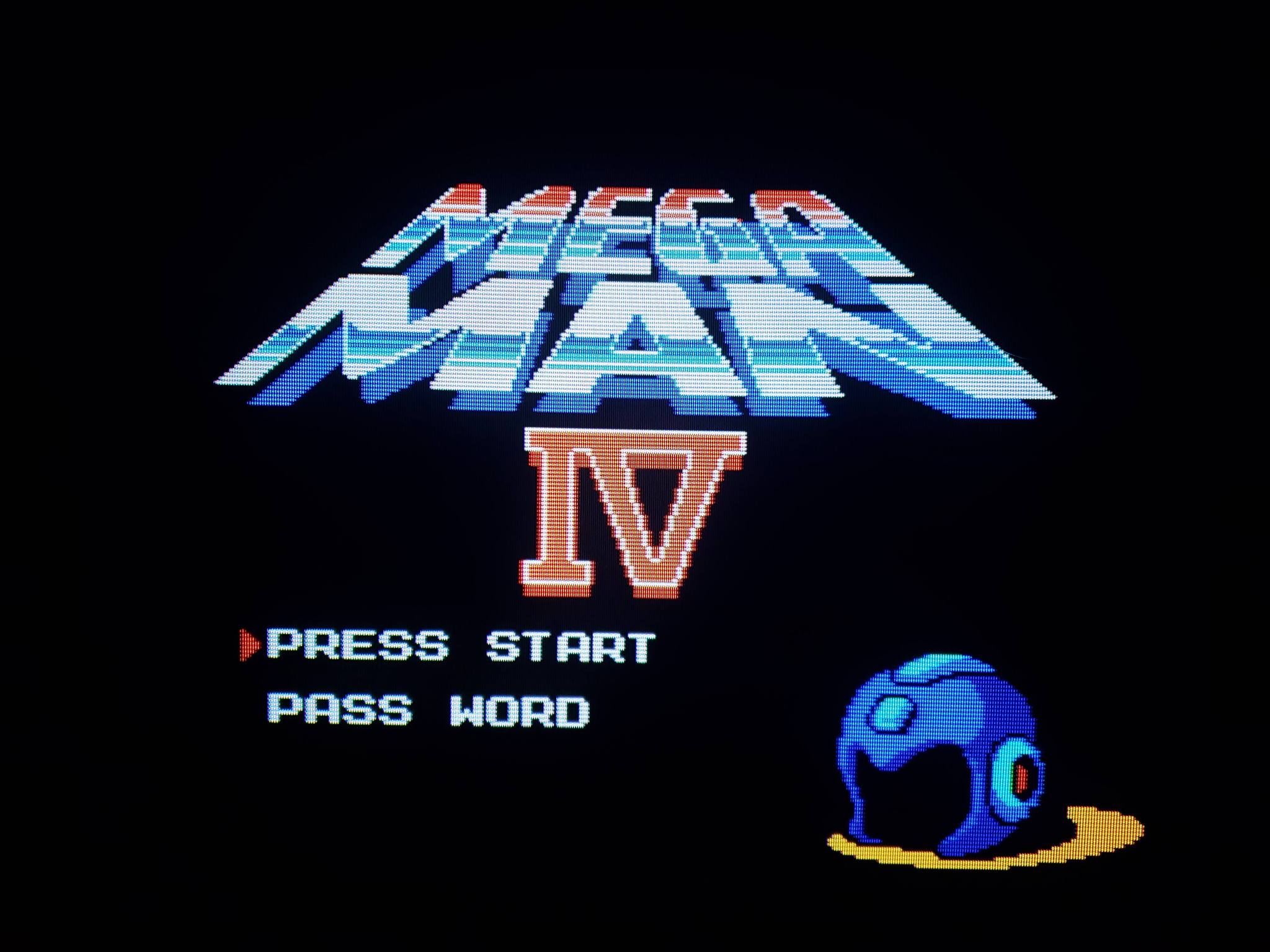

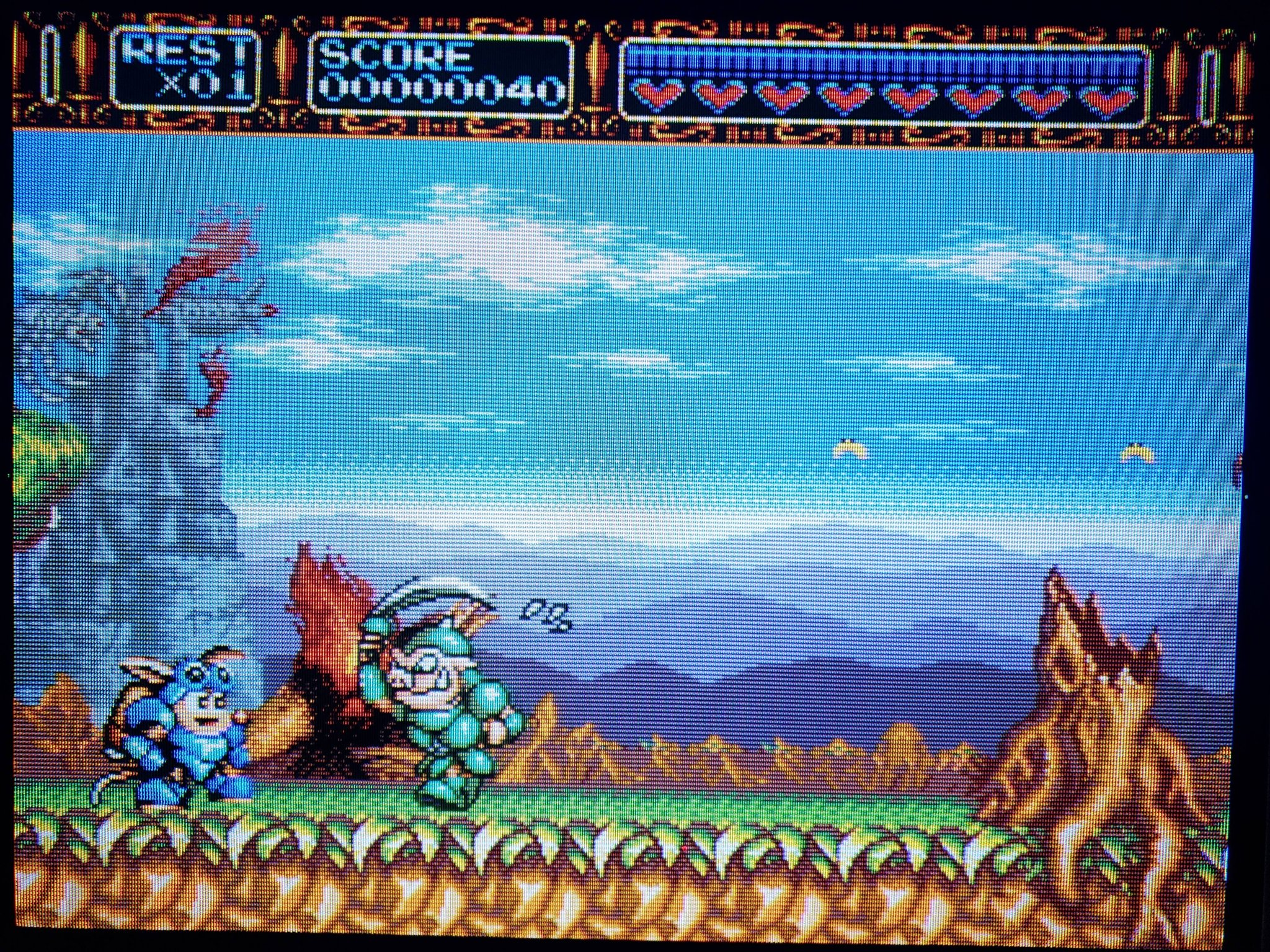

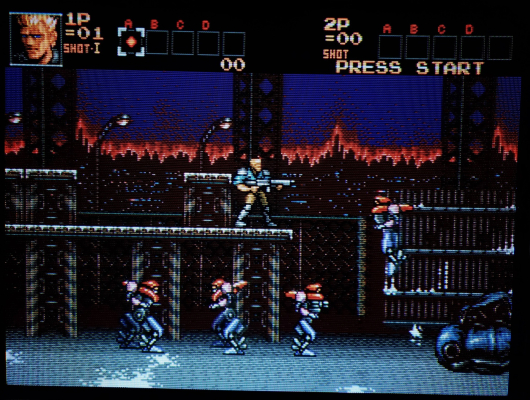

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |

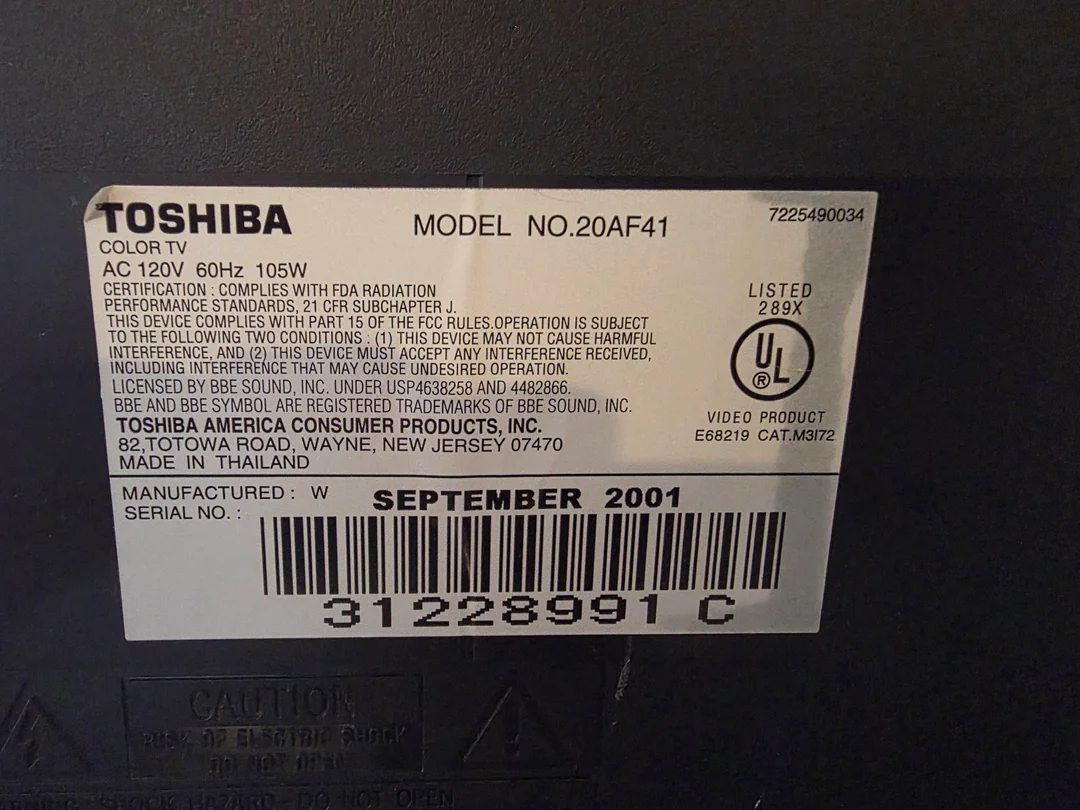

| Model: | 20AF41 |
| Series: | AF |
| Viewable Size: | 20" |

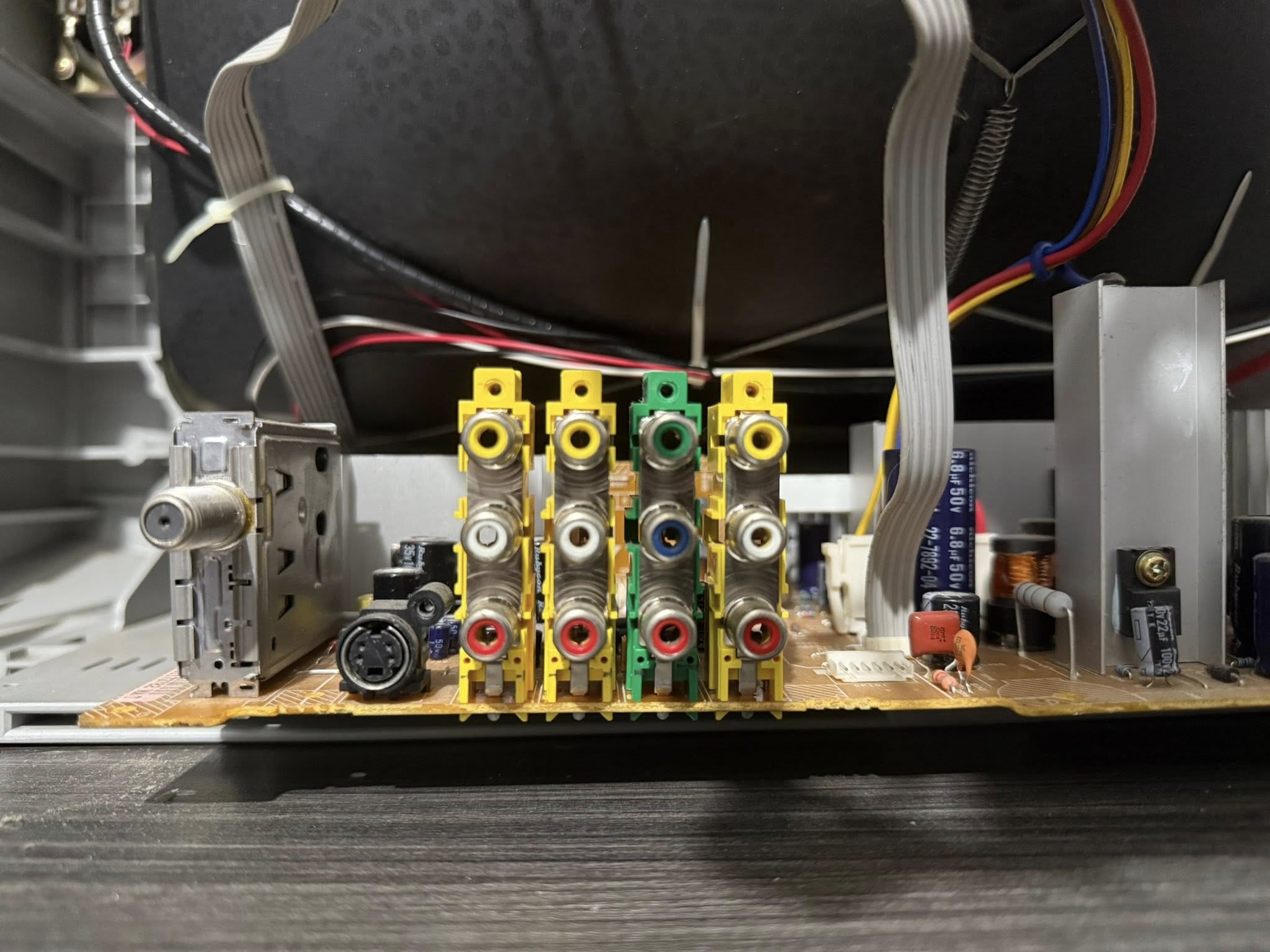

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | LA78040, Sanyo |
| Jungle IC: | Toshiba, TB1253N, TB1253 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A53F |
| Flyback: | AD300116 |
| Focus Type: | Single |

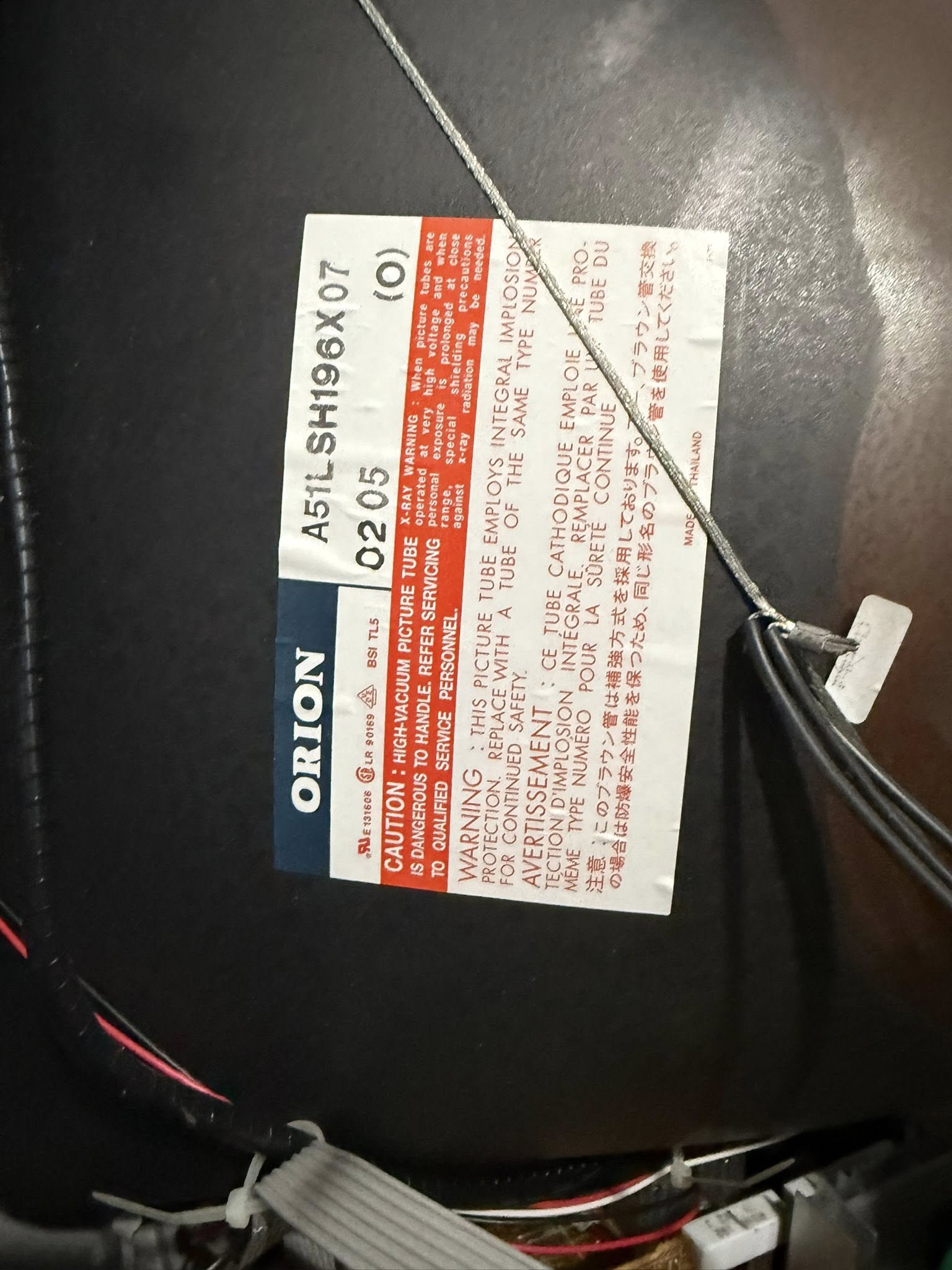

| Tube: | Toshiba , A51LSH196X , A51LSH196X07 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

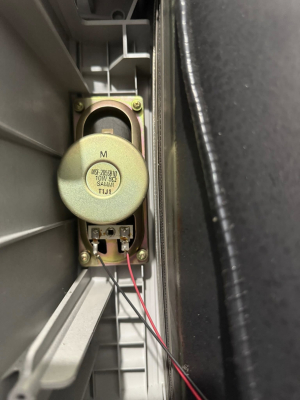

| Speakers: | Stereo, 10W x 2 |
| Remote: | CT-820 |
| Chassis: | M3I72 |
| Weight: | 50.6 lbs (23 kg) |
| Dimensions (W/H/D): |
590 x 444 x 488 mm
(23.2 x 17.4 x 19.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 349 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
