Summary

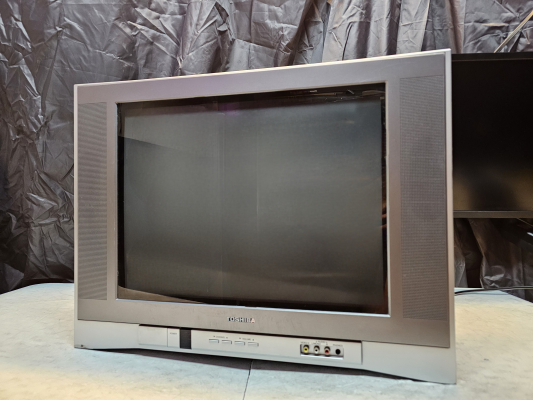

20" flat color TV manufactured by Orion and sold by Toshiba. Features a full set of inputs including RF, composite, S-Video, and component.
Notes
Like other Orion TVs, this model lacks an input select button on the front panel and cannot change video sources without the remote control. These TV's contain an hour counter; to access it, hold down the volume down button on the tv while holding 6 on the remote.
Gallery





Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |
Model: | 20AF46 |
Series: | AF |
Viewable Size: | 20" |

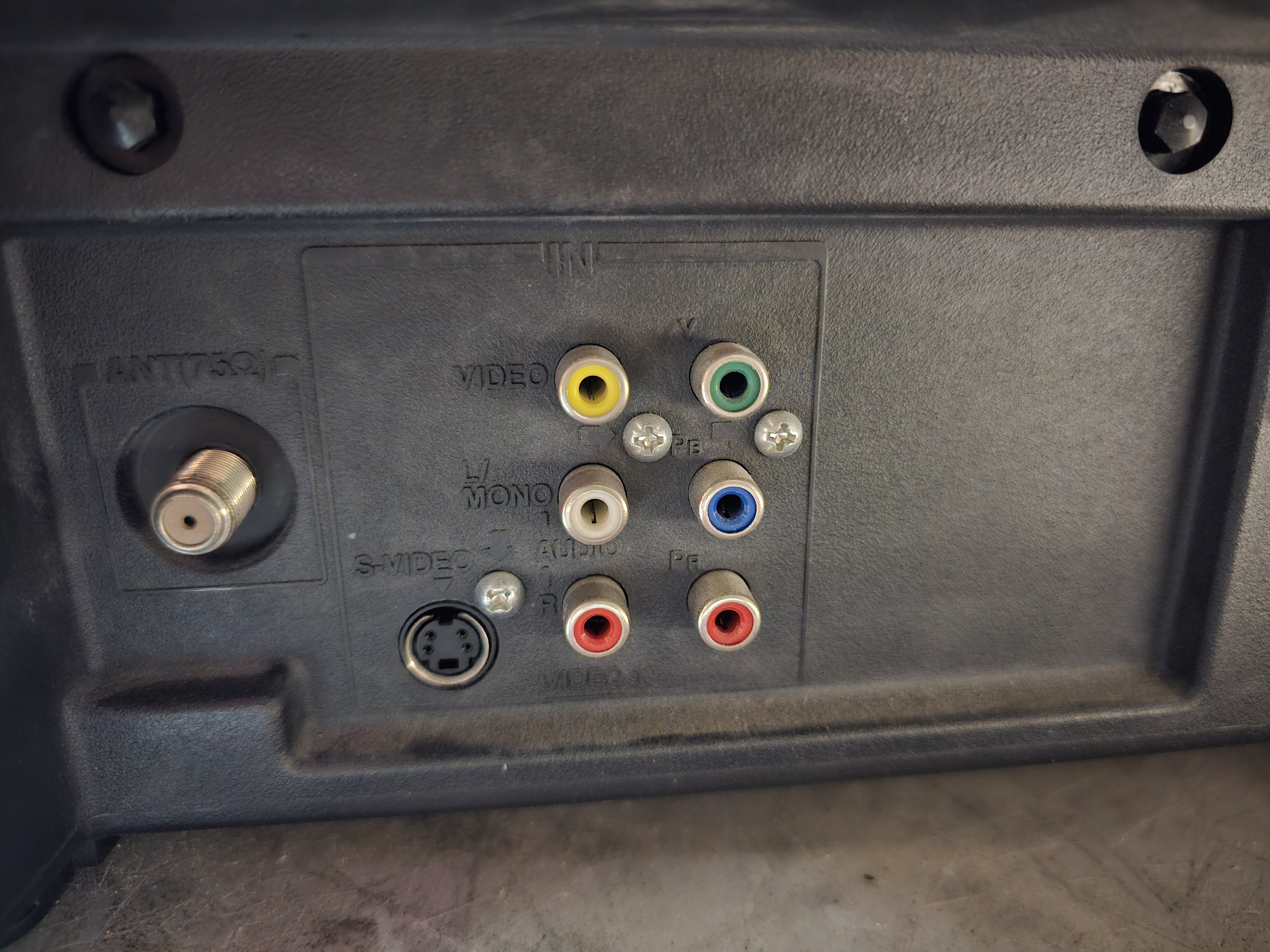

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |

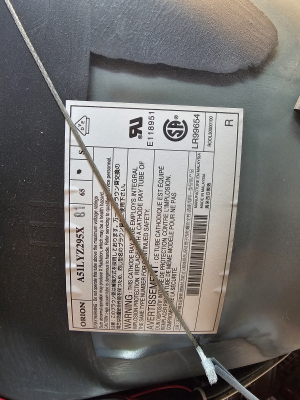

Tube: | A51LYZ295X |
Mask: |
Slot
![]() |
Tint: | Dark |
Speakers: | Stereo, 2.5W x 2 |
Remote: | CT-878 |
Weight: | 50.6 lbs (23 kg) |
Dimensions (W/H/D): |
432 x 344.5 x 386 mm
(17 x 13.5 x 15.2") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2006 |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
