Summary

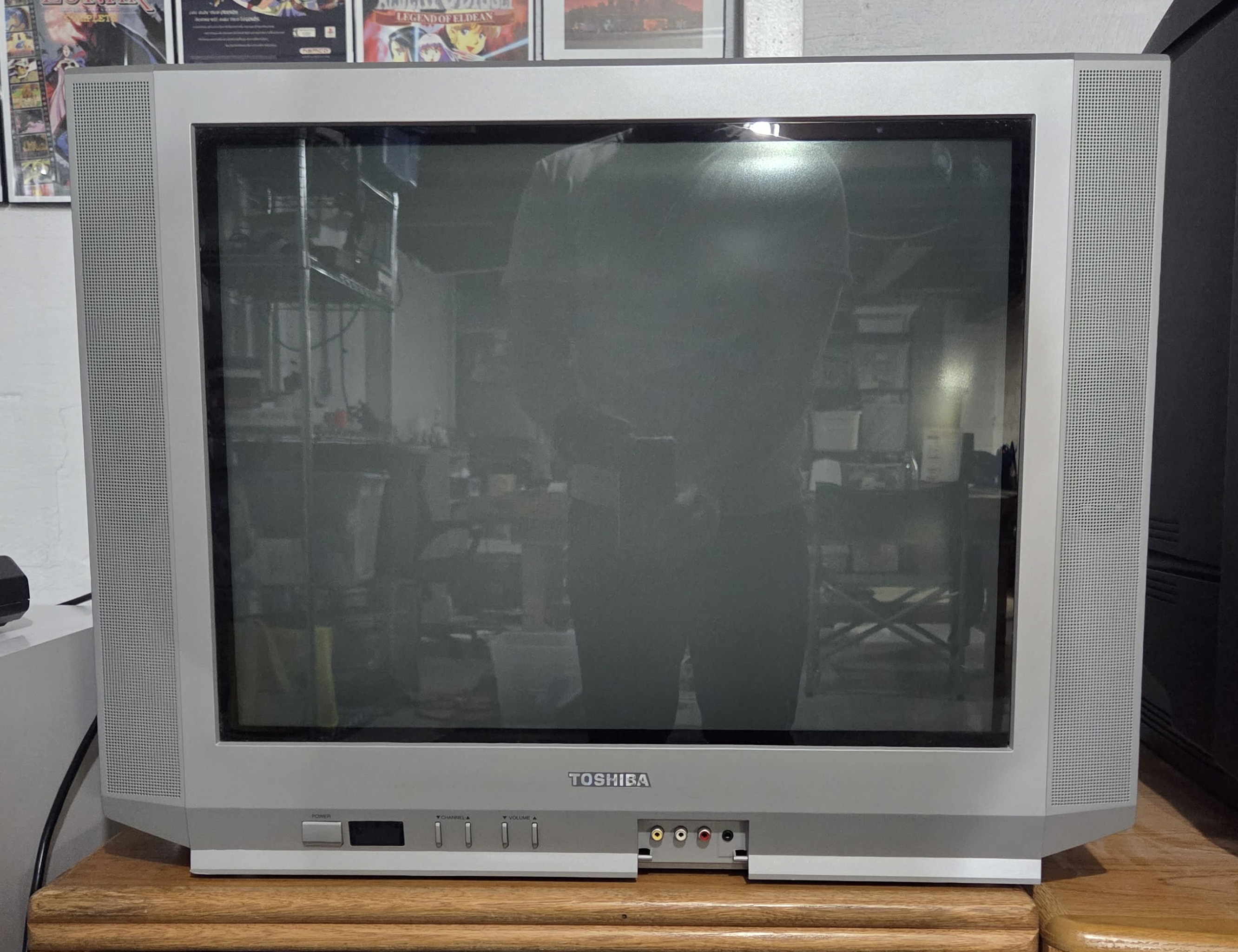

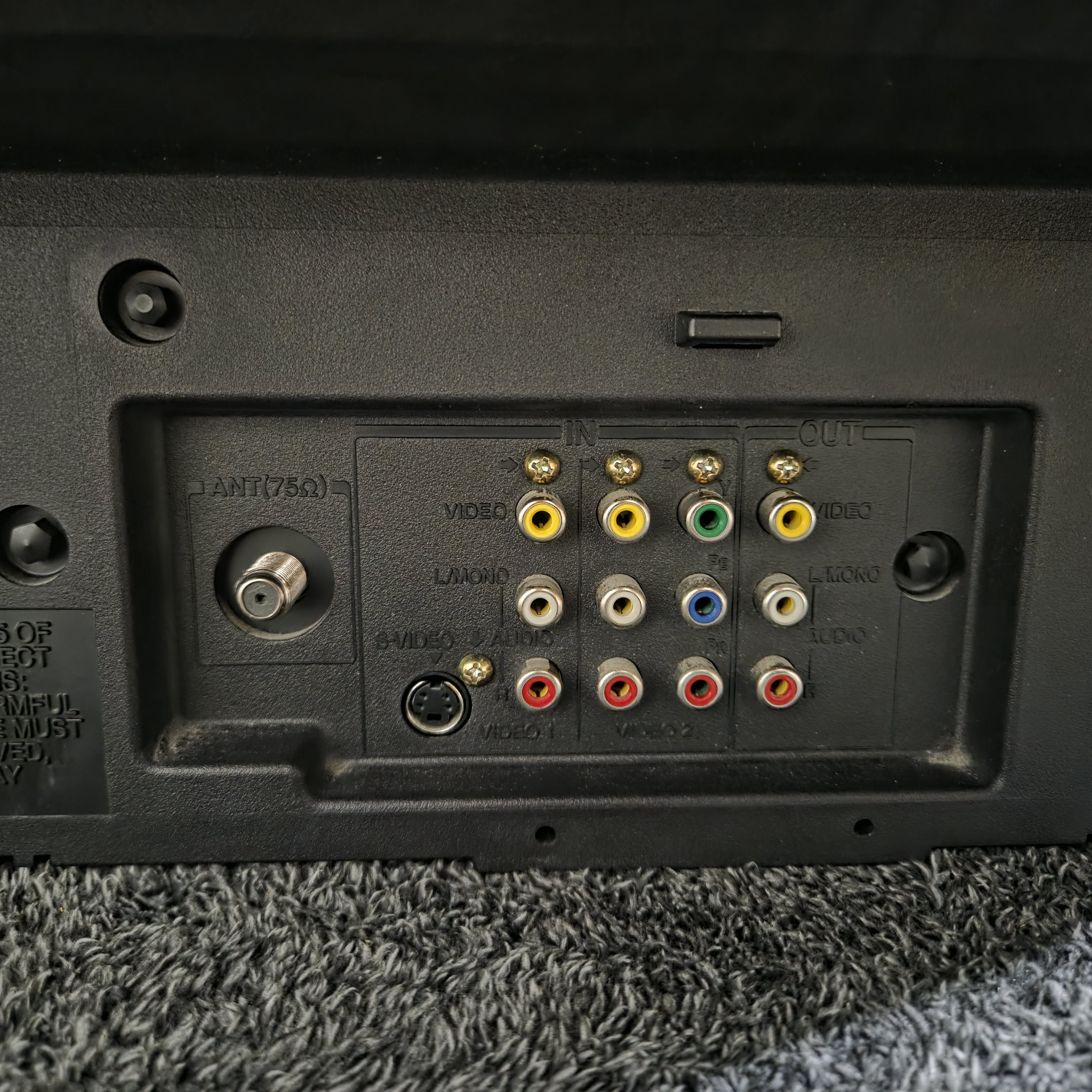

24" flatscreen CRT by Toshiba, launched in 2001, their very first flat model of its size. Has RF, composite, s-video, and component inputs with stereo sound. Originally manufactured by Orion in Thailand.
(Special thanks to Matt K. for the pics!)
Manuals
Media & Promo Materials
Notes
Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.

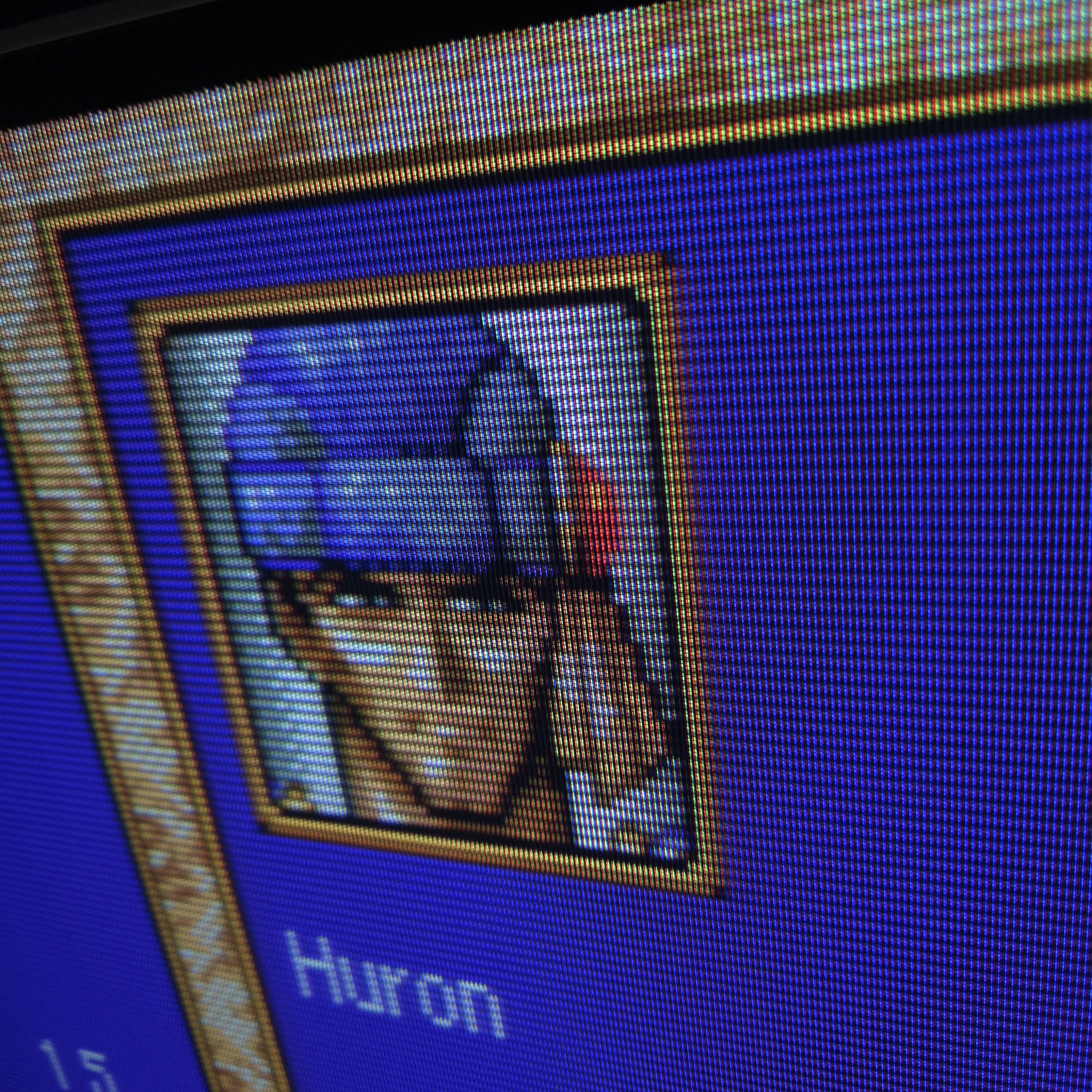

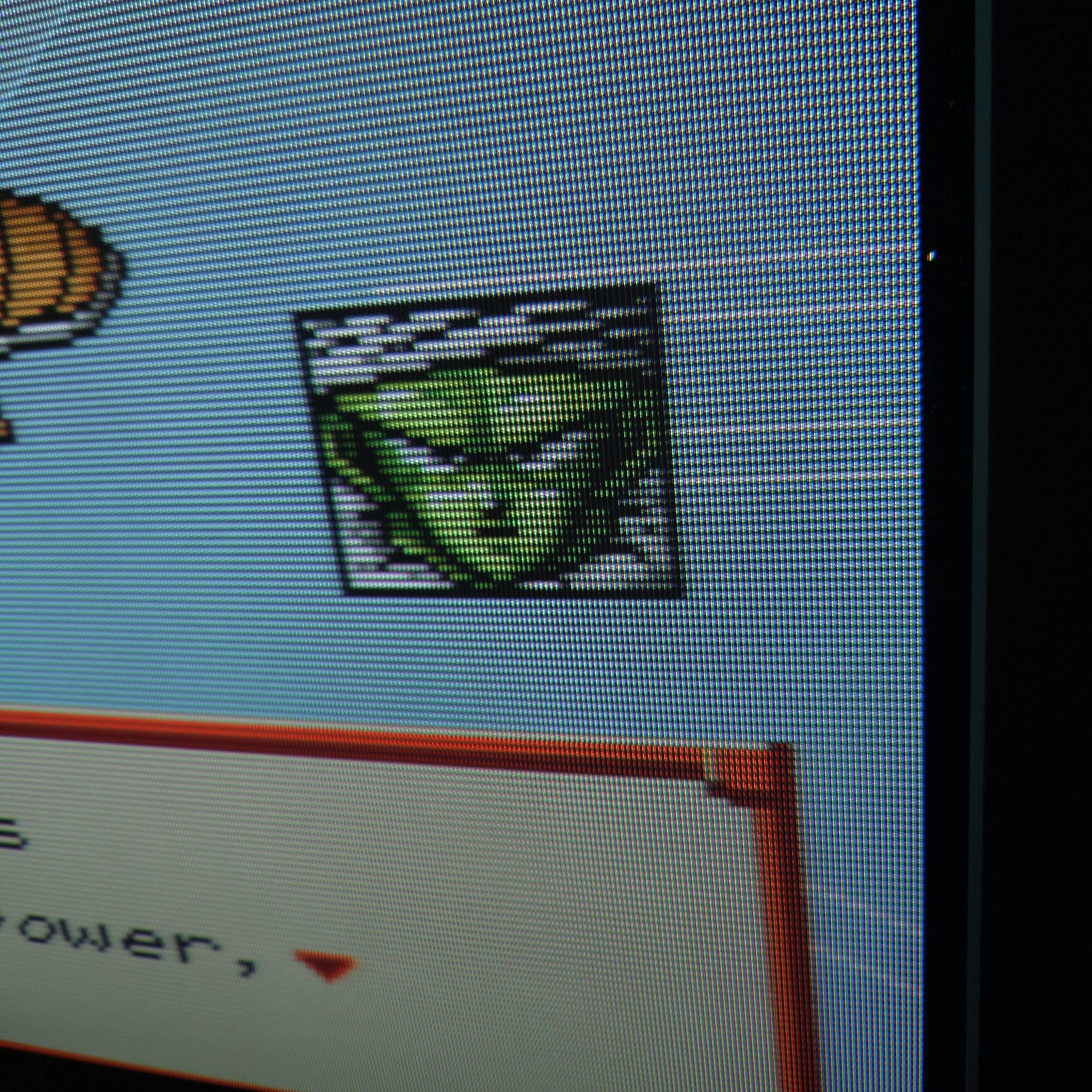

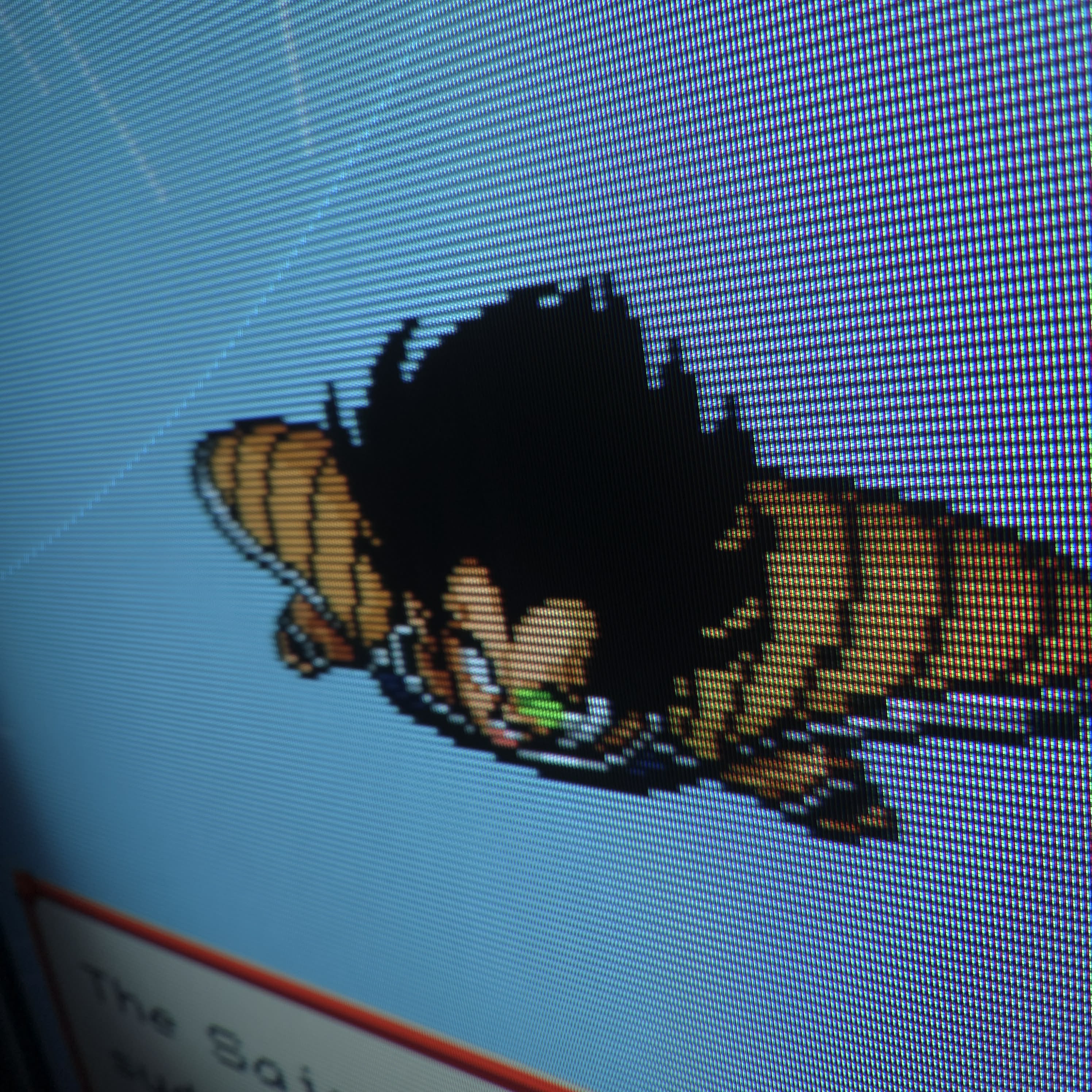

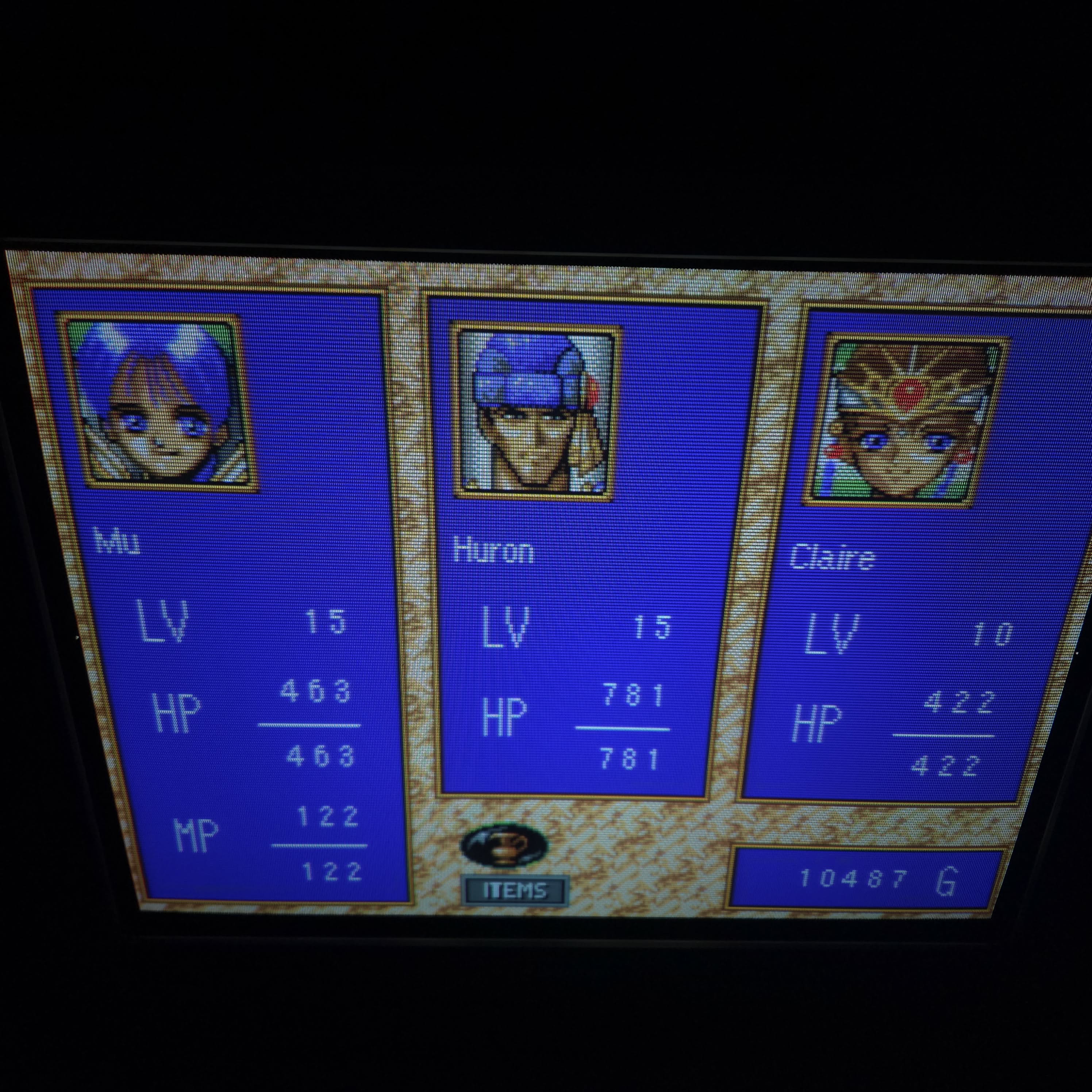

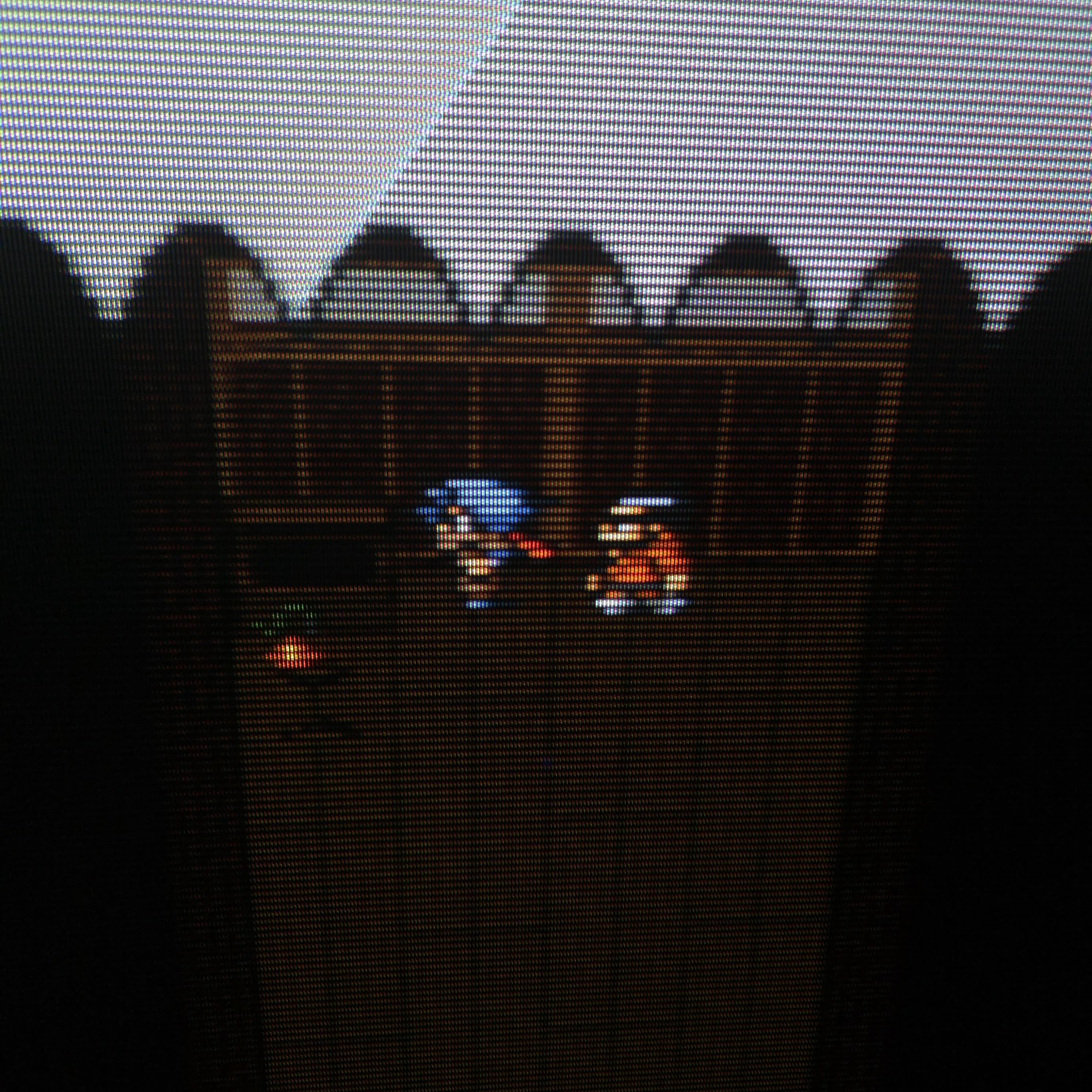

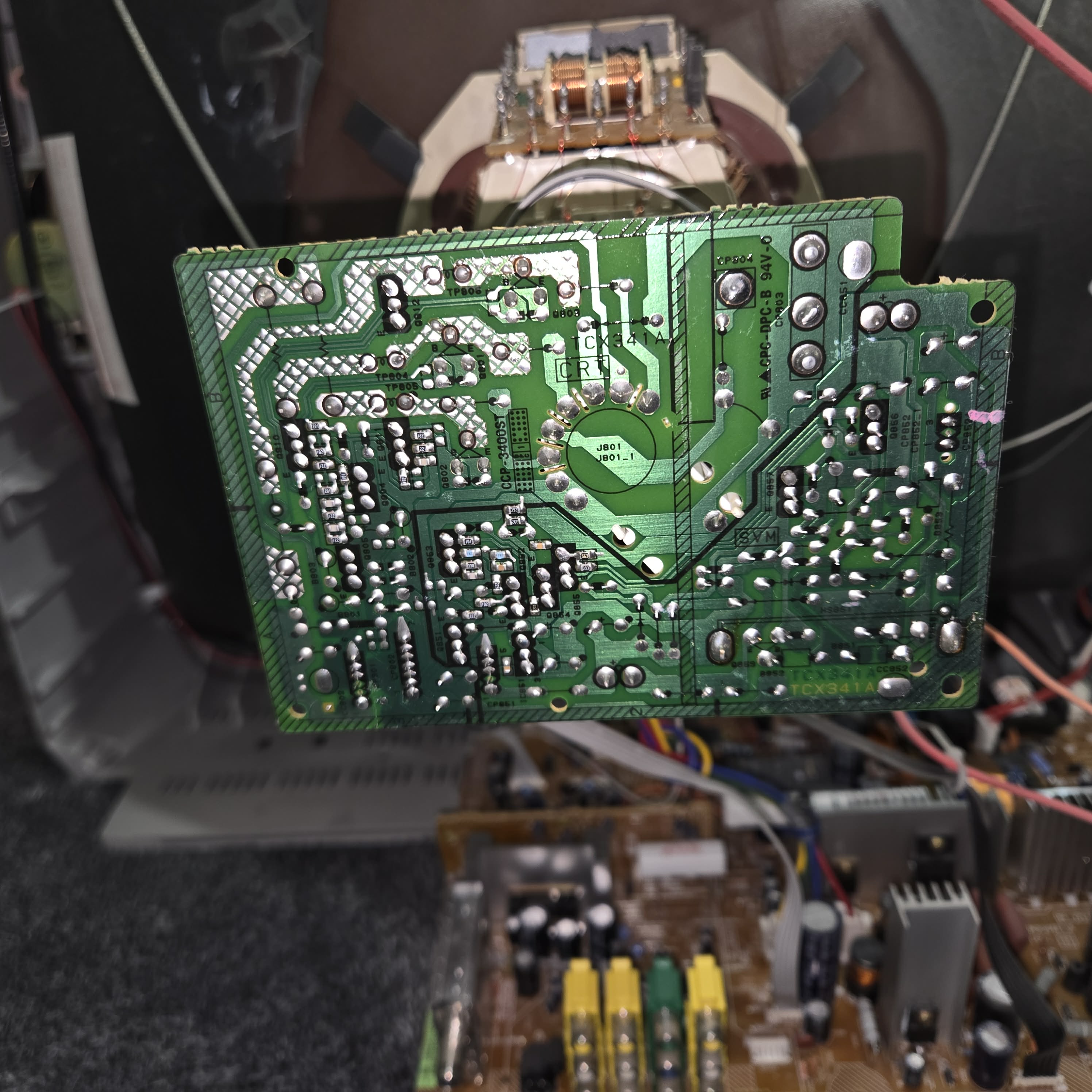

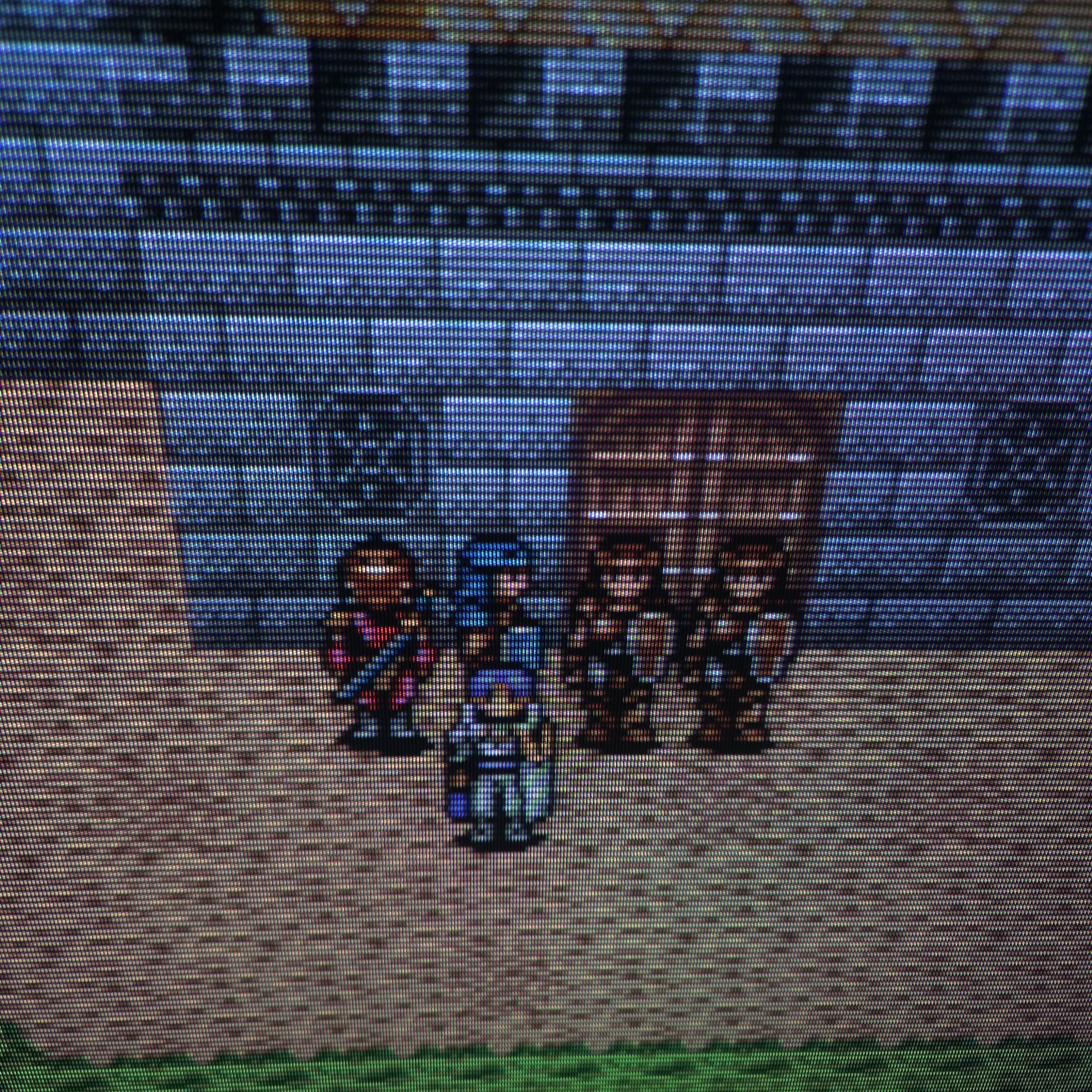

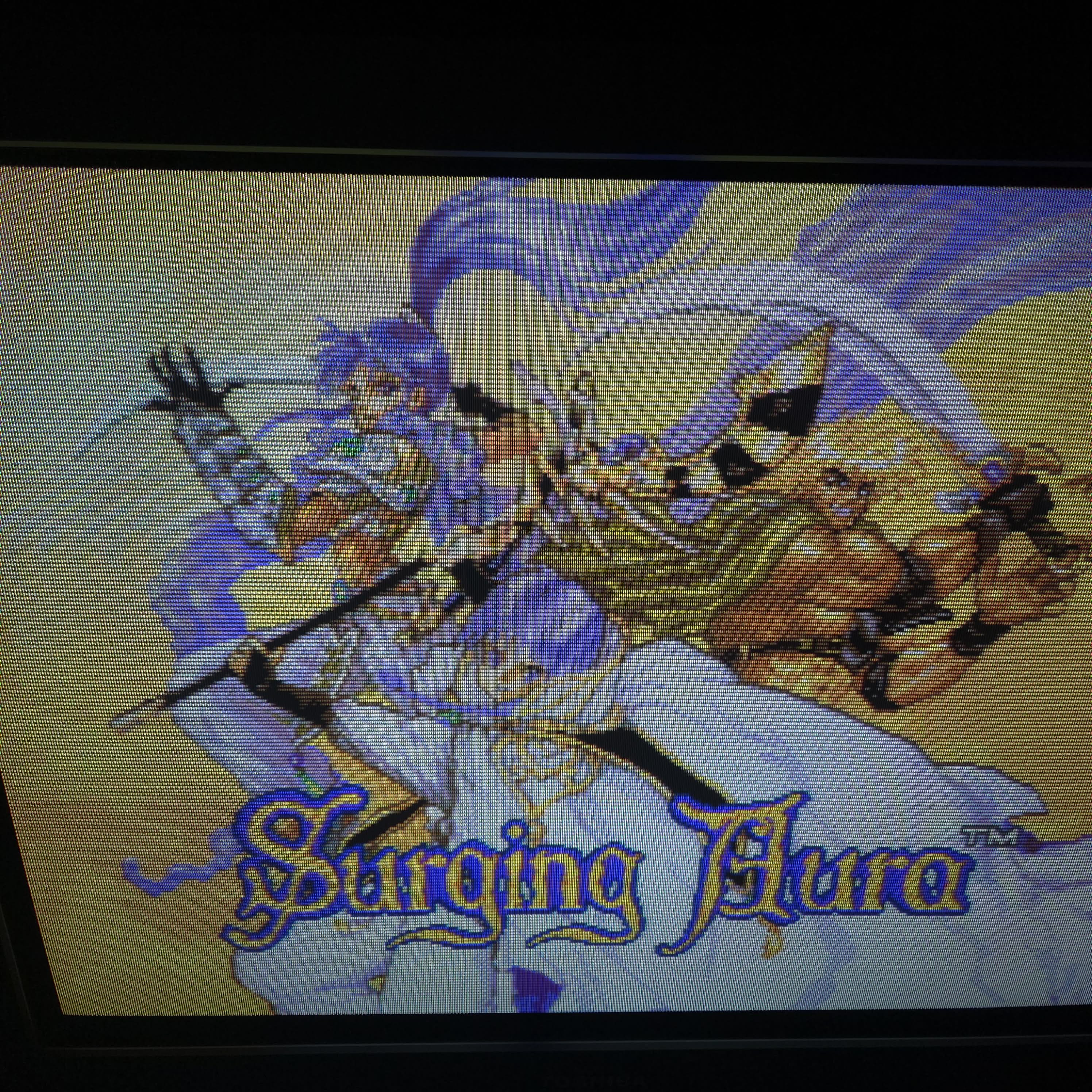

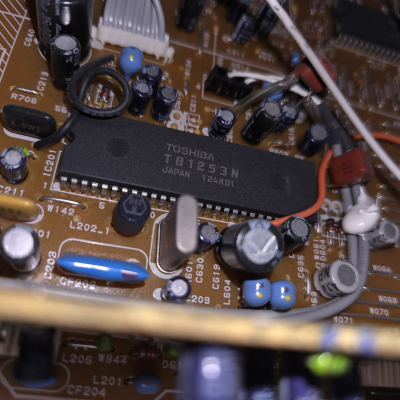

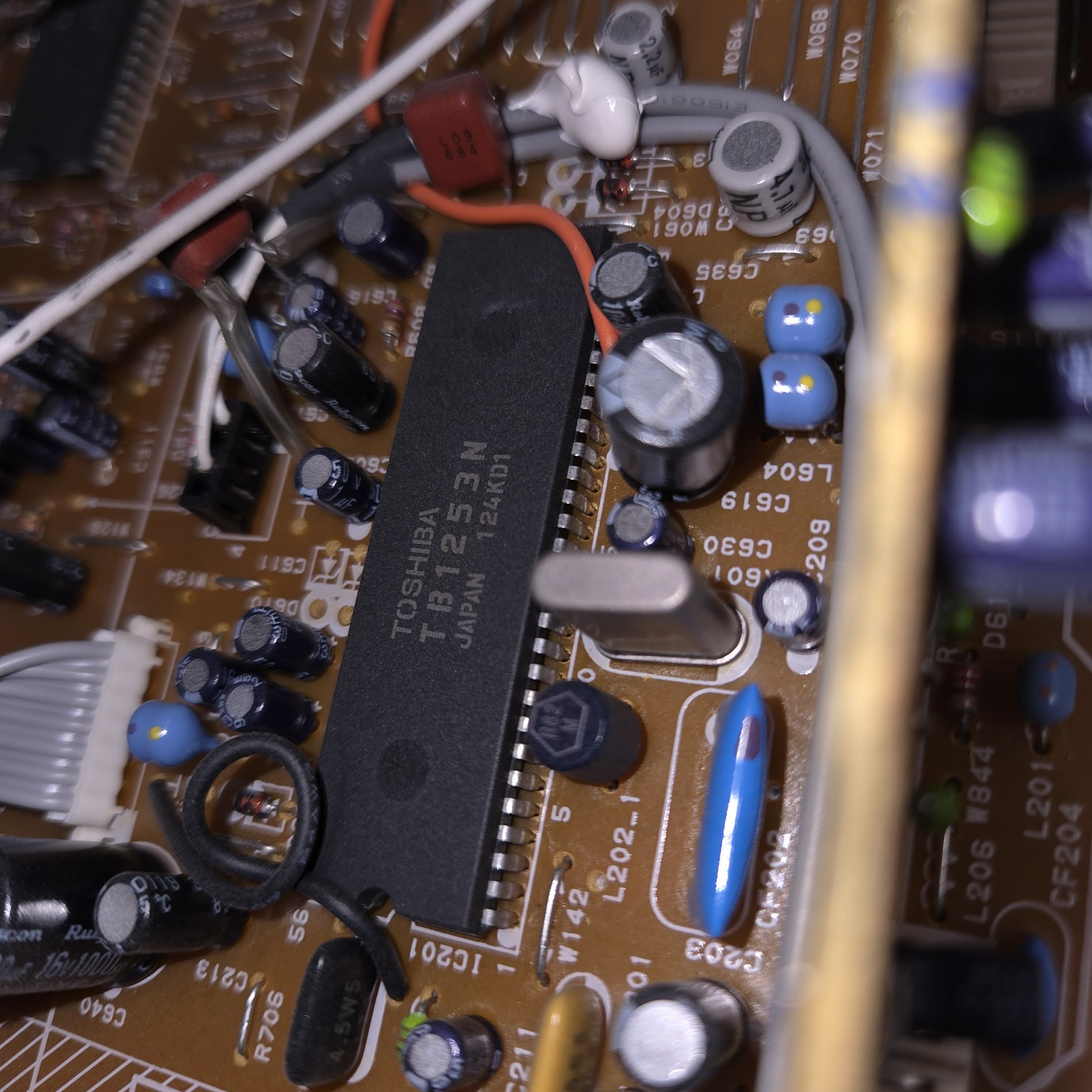

Picture quality over component is excellent thanks to the Toshiba jungle chip used in these early Orion-shibas. Better yet, the jungle chip supports 50hz and other oddball frequencies too.

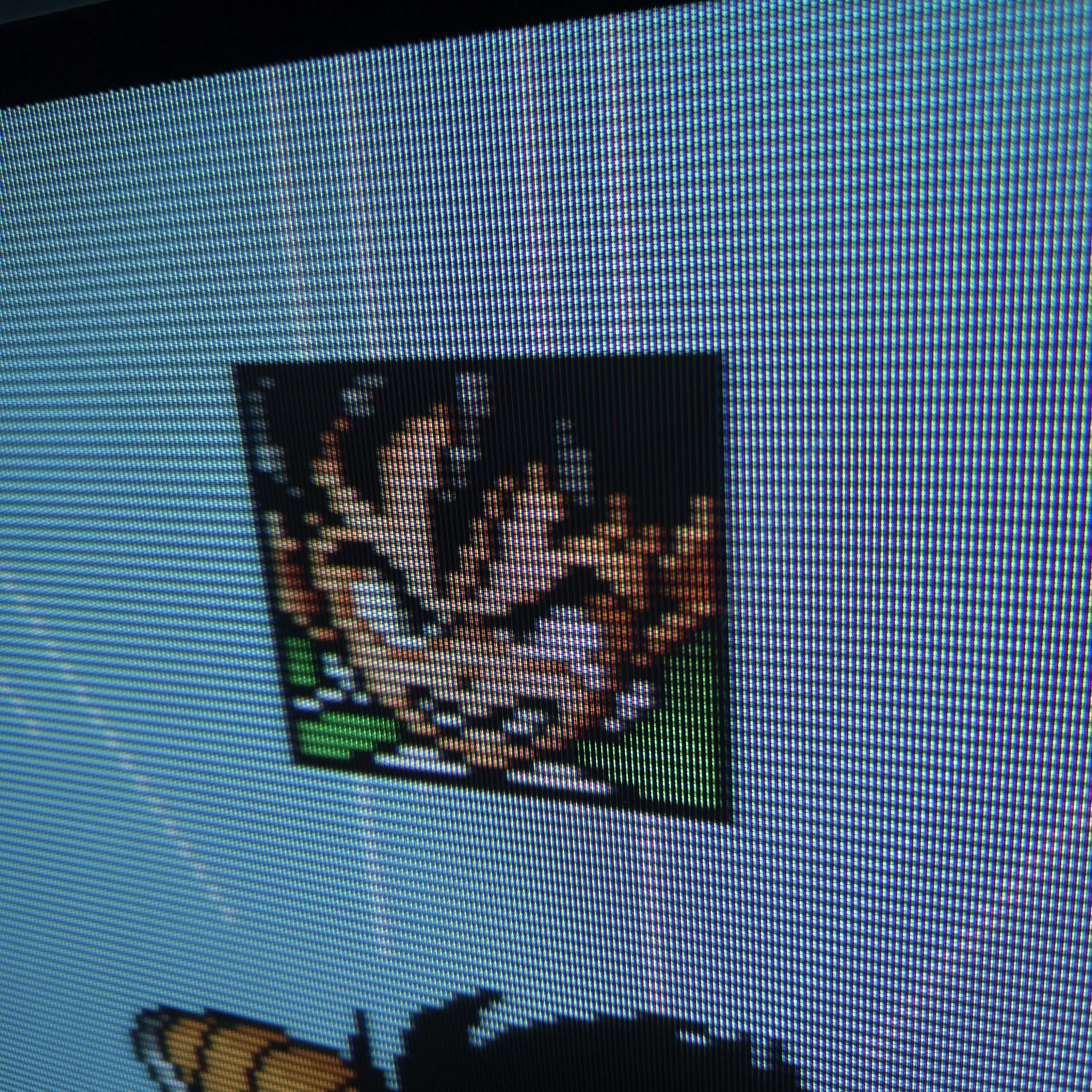

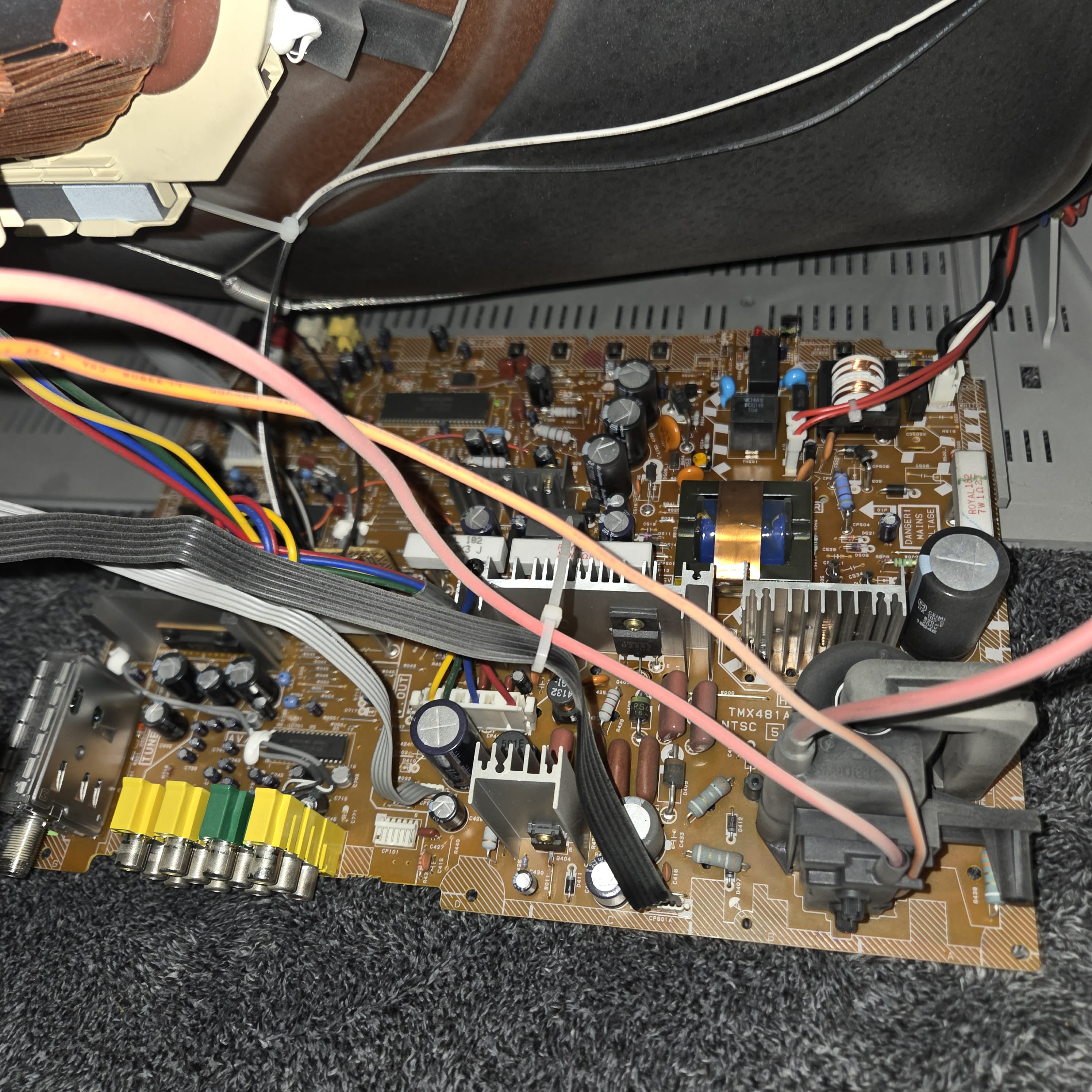

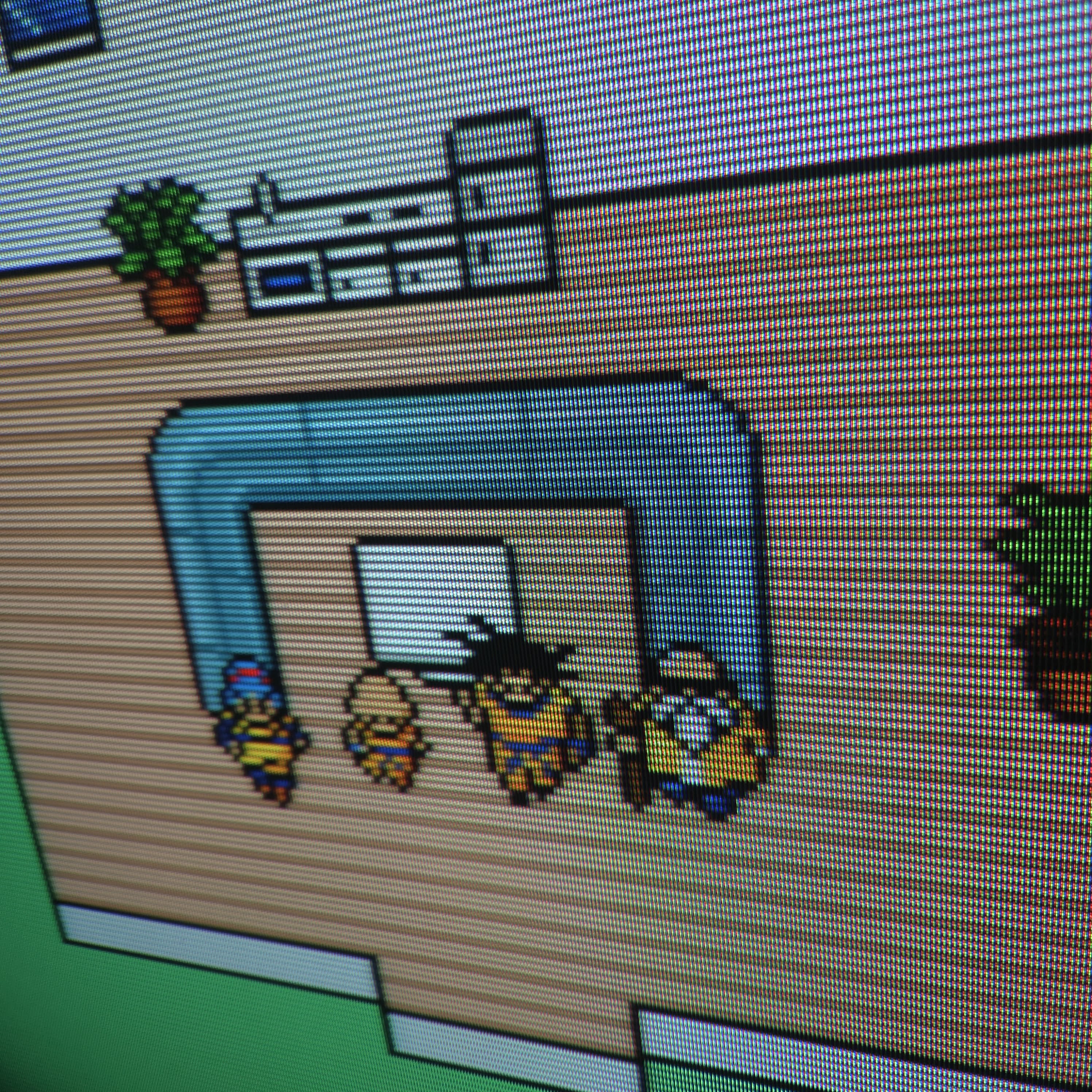

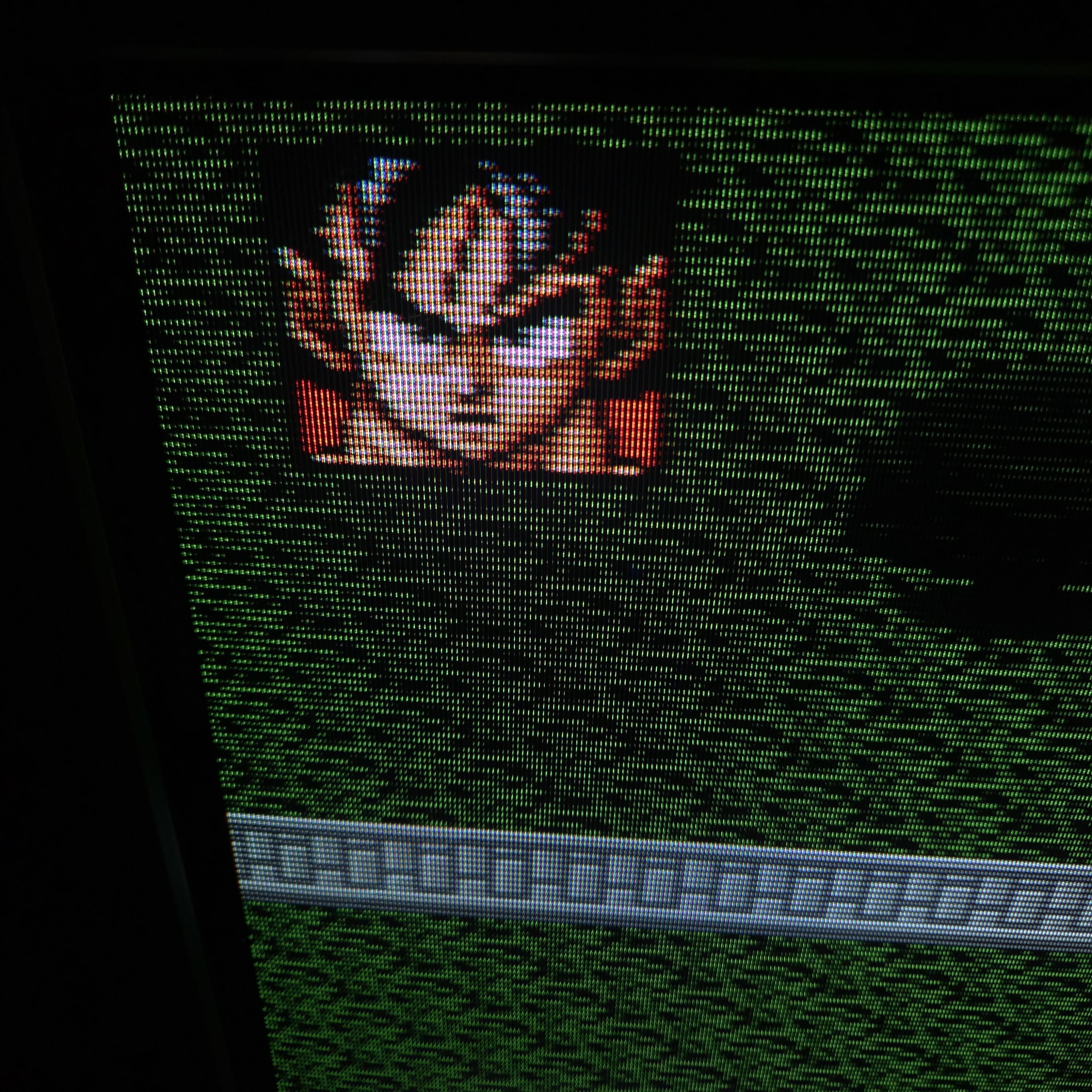

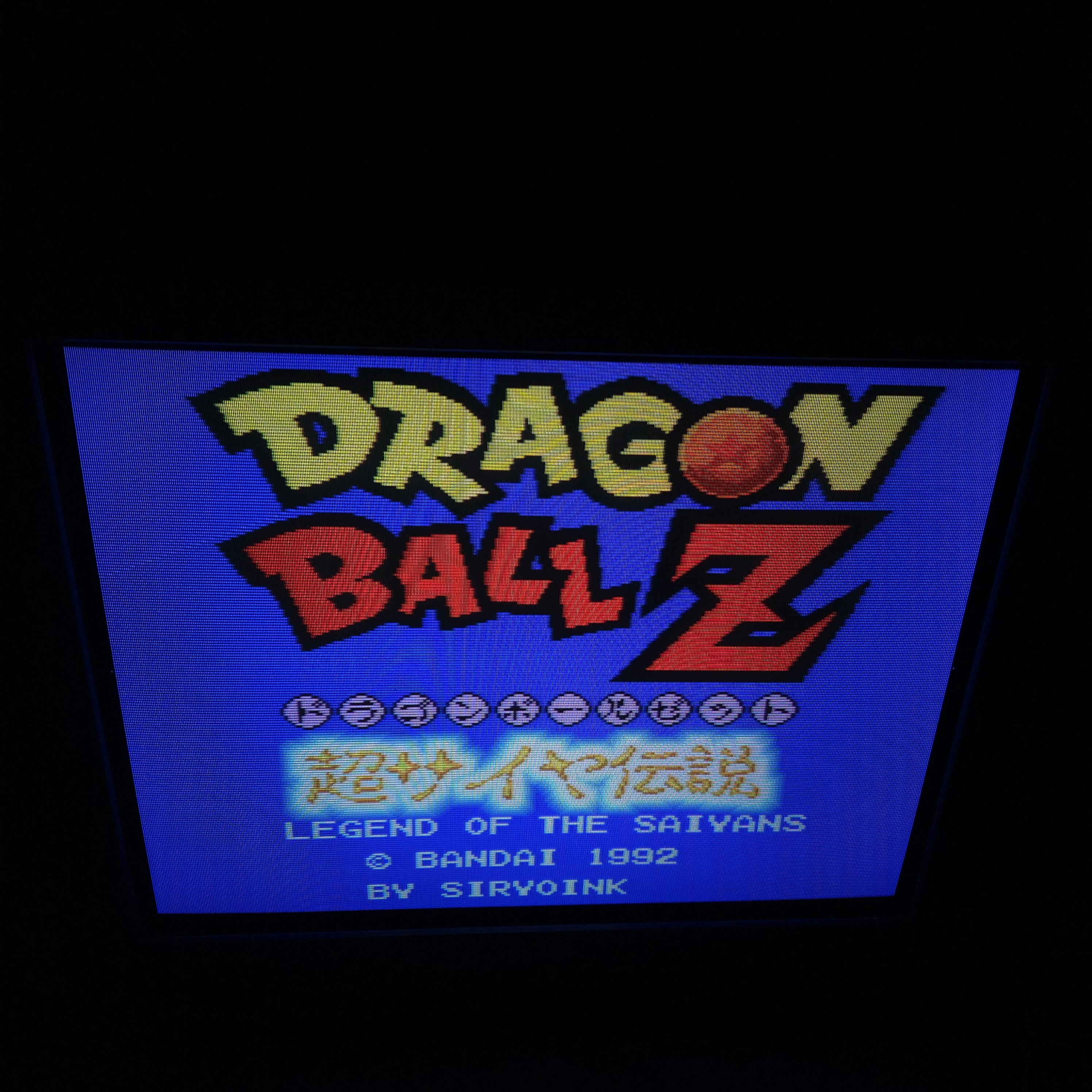

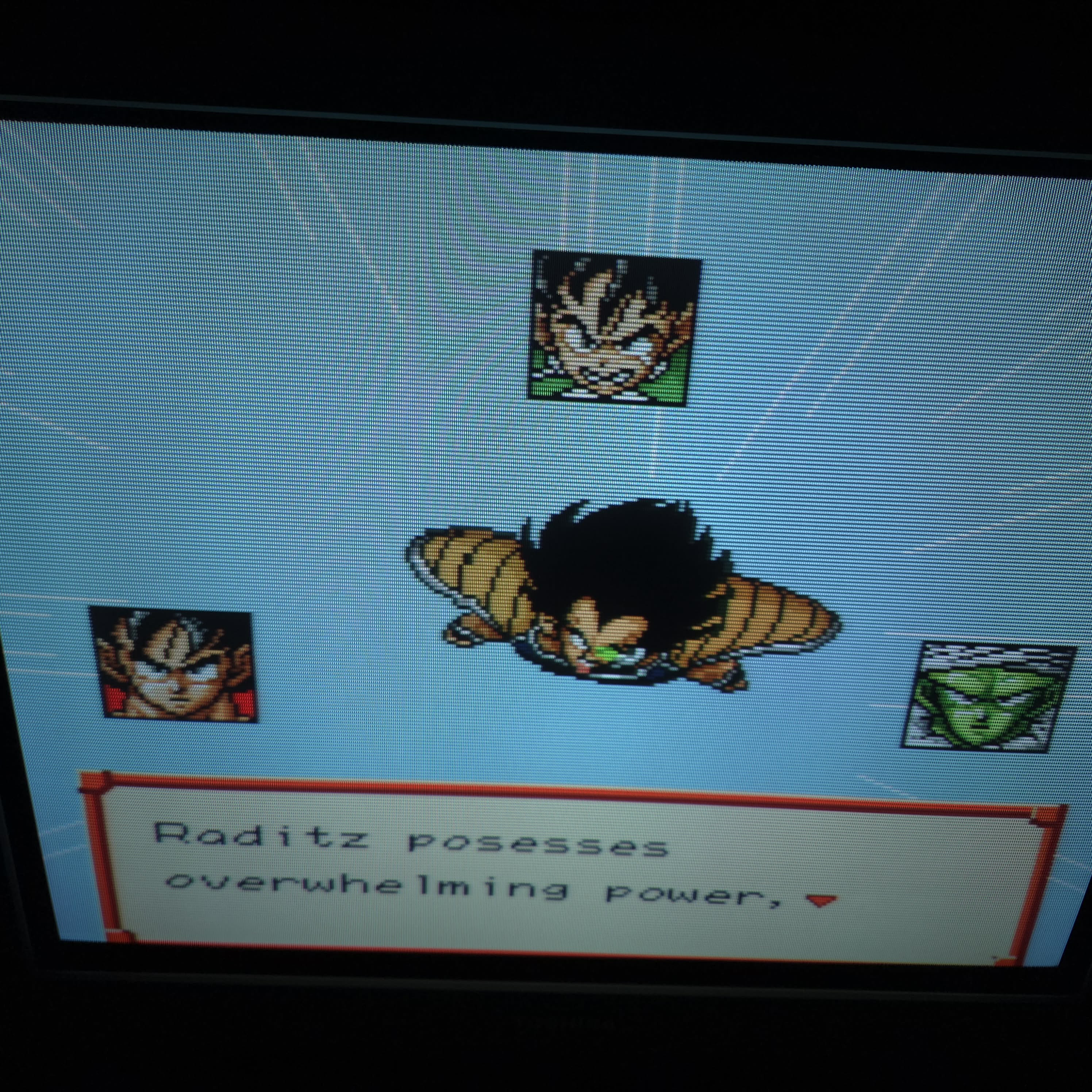

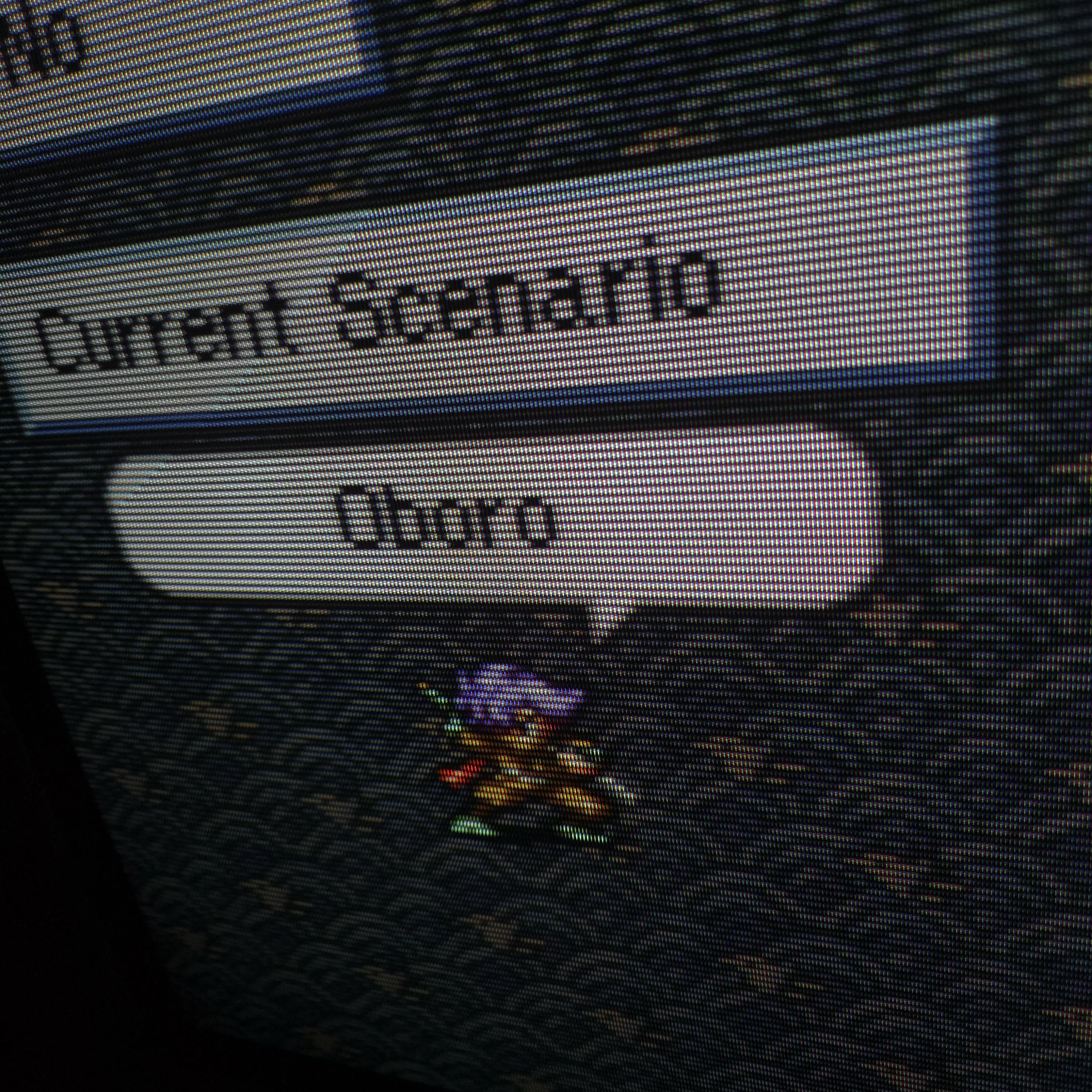

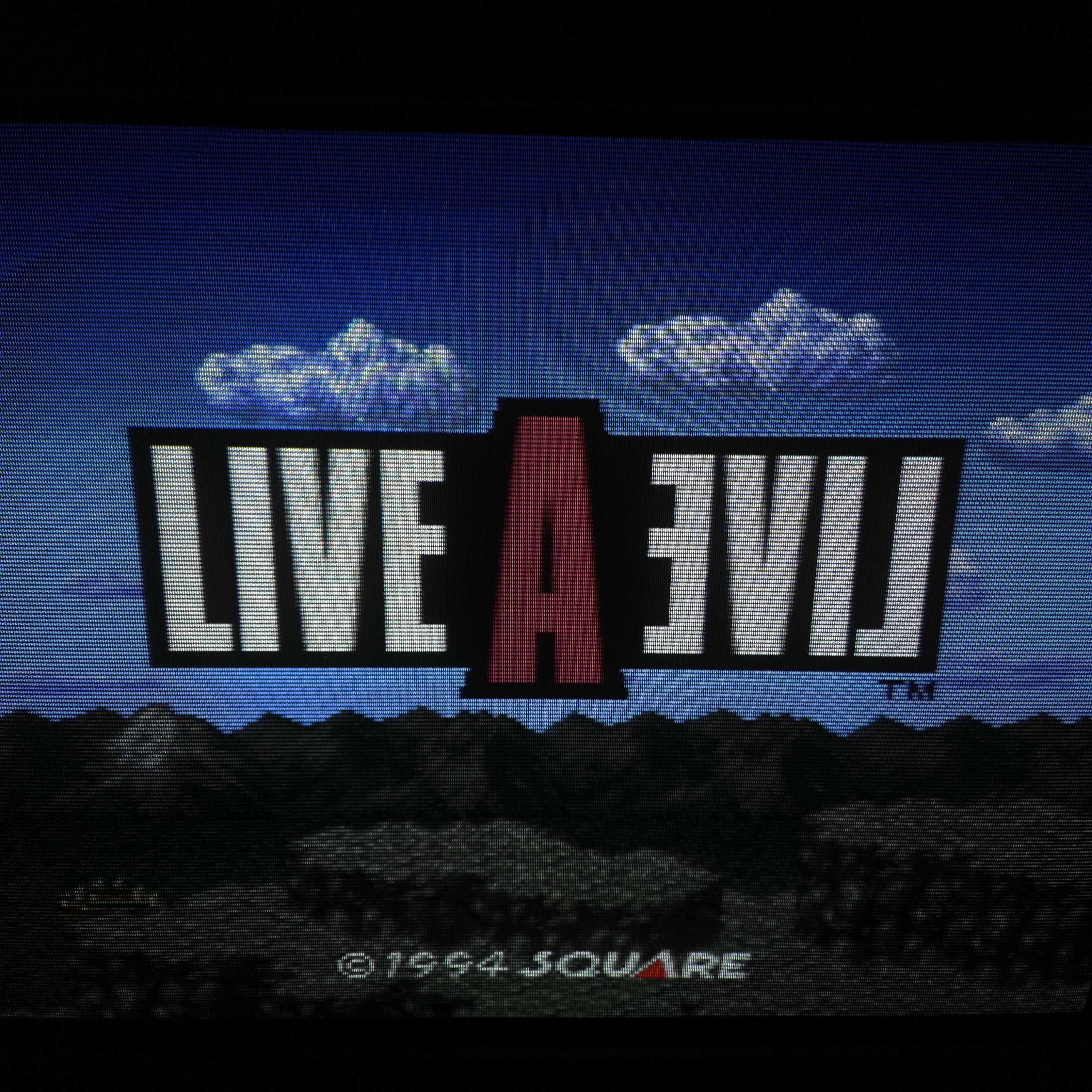

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | 24AF41 |
| Series: | AF |
| Viewable Size: | 24" |
| Input Signals: | Composite, RF, S-Video, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Single |

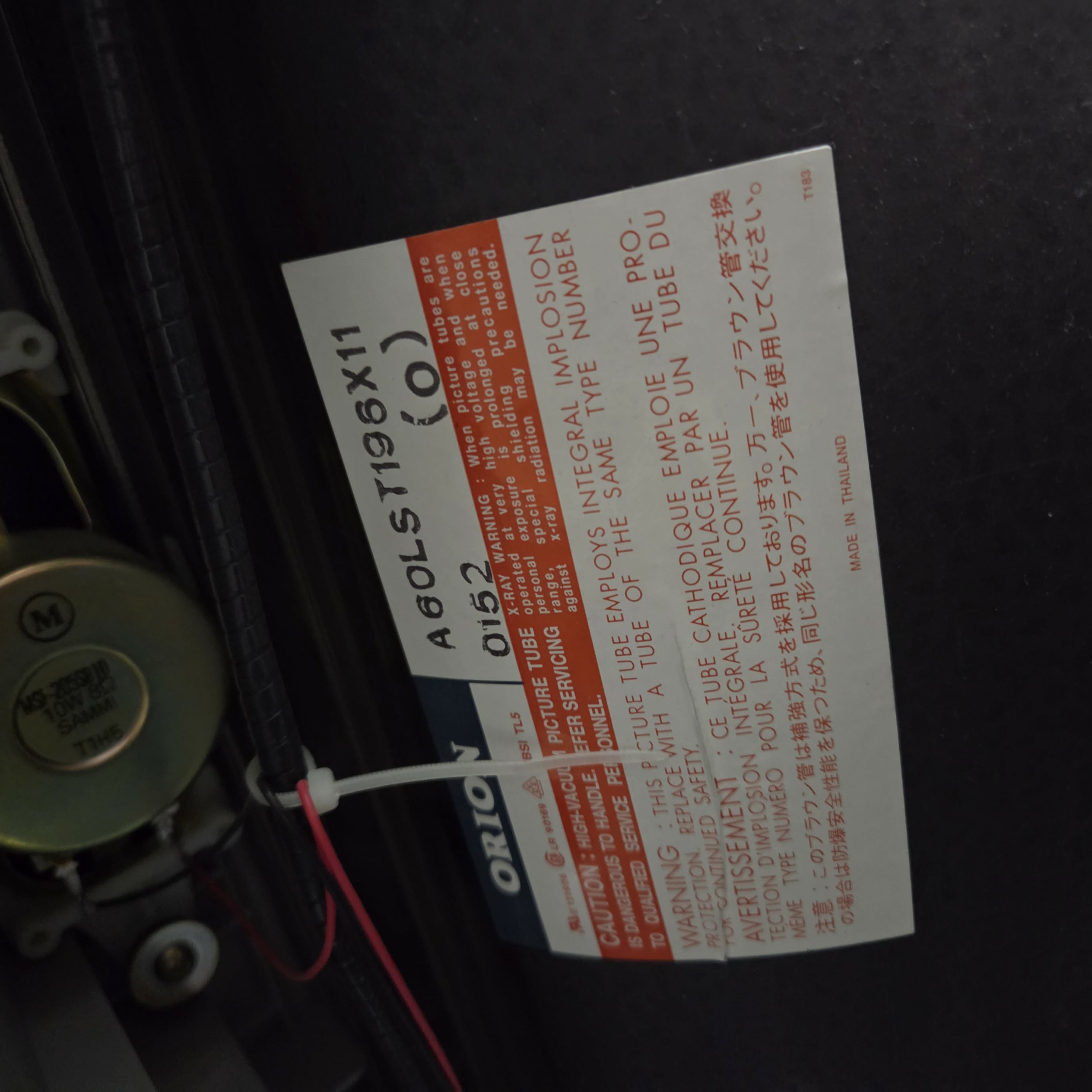

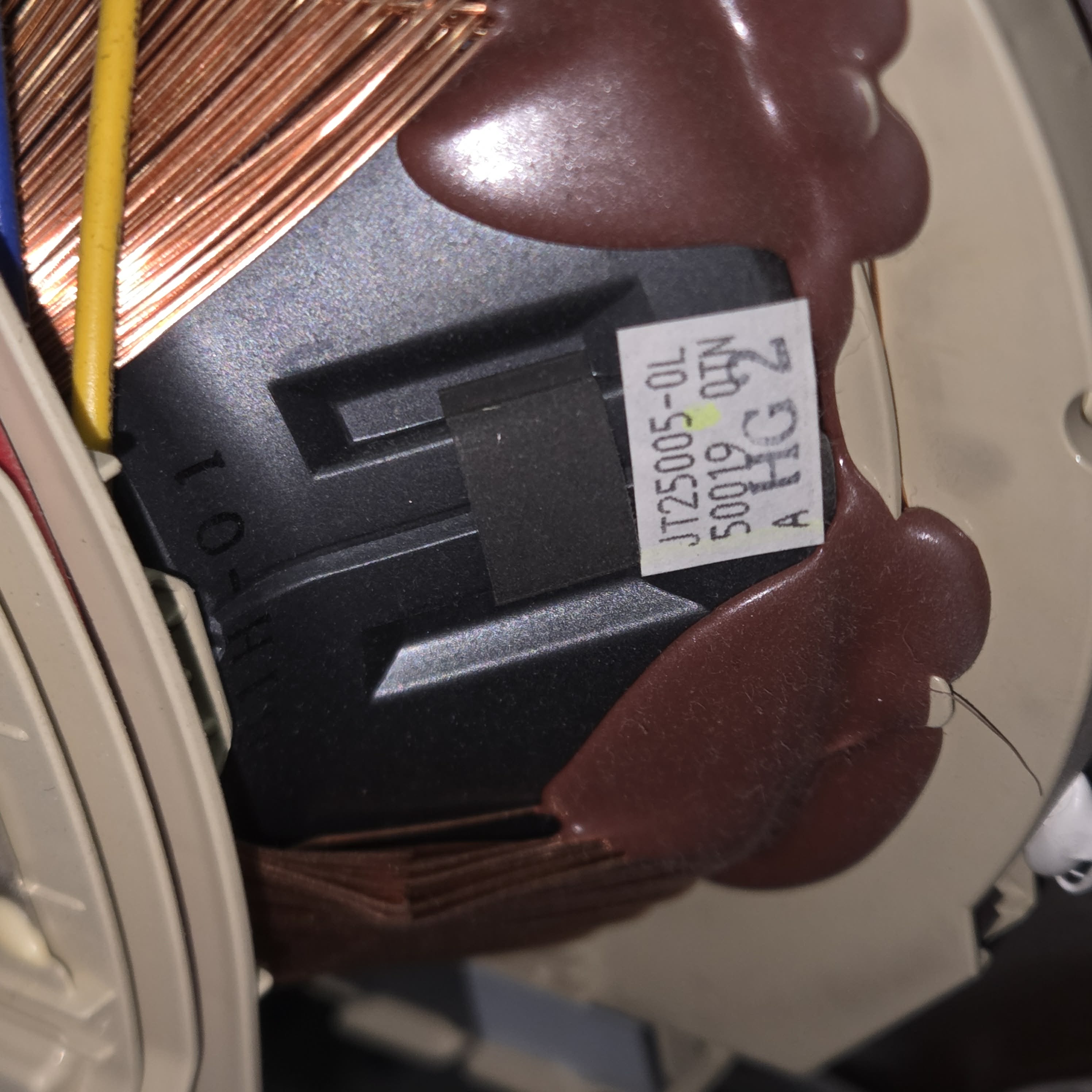

| Tube: | Toshiba |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |

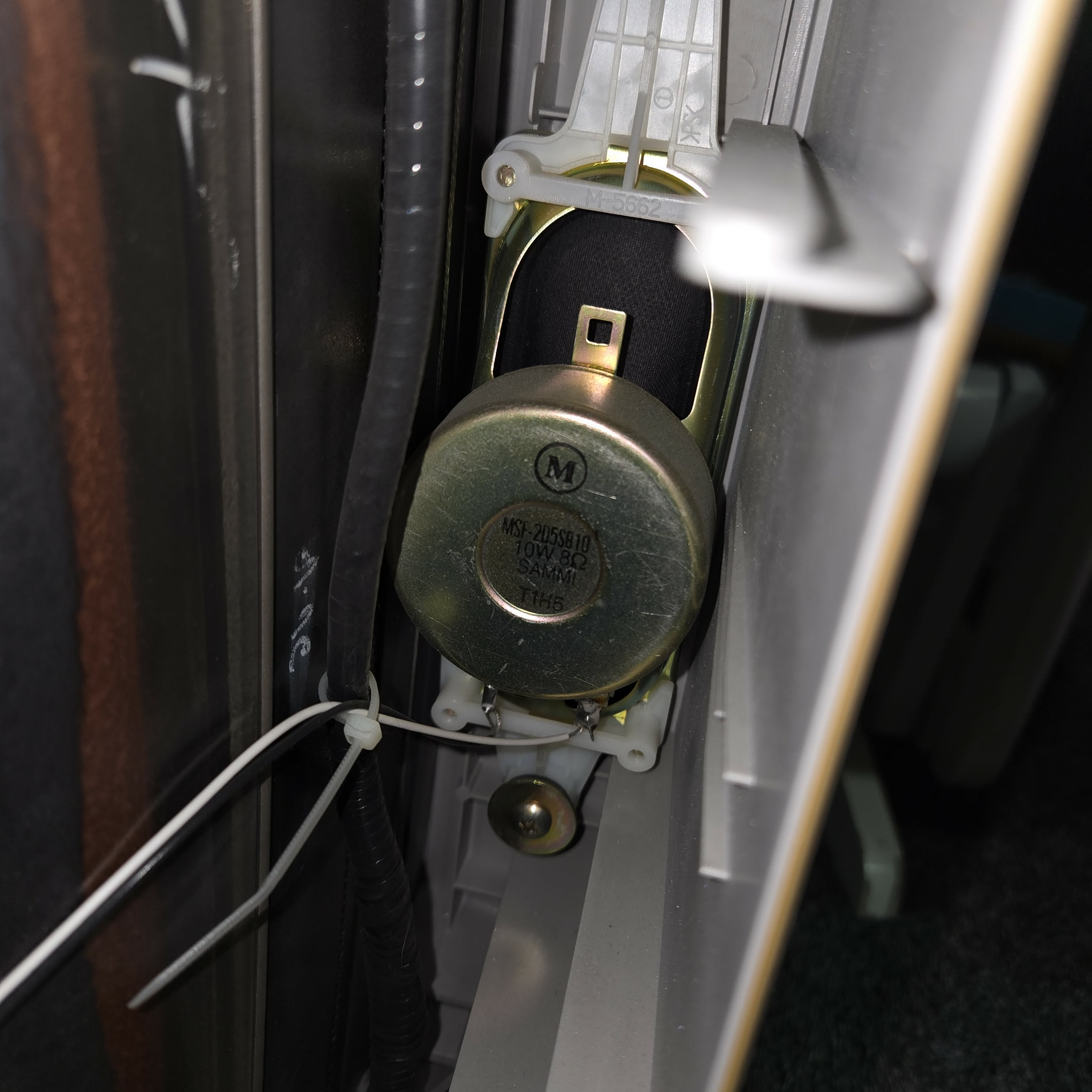

| Speakers: | Stereo |
| Weight: | 72.7 lbs (33 kg) |
| Dimensions (W/H/D): |
670 x 509 x 472 mm
(26.3 x 20 x 18.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
