Toshiba 27A62
John S
August 7, 2025, 11:39 am
August 7, 2025, 3:39 pm
August 7, 2025, 11:39 am
August 7, 2025, 3:39 pm
Summary

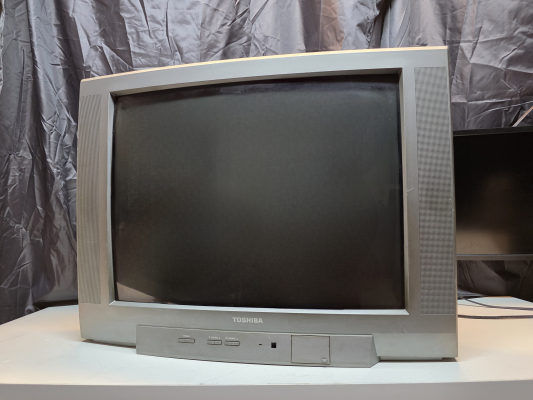

Higher end 27" curved screen CRT TV.. Features a full set of inputs including RF, composite, s-video, and component. This set is very different from the 32A62 as that model was manufactured by Toshiba themselves as apposed to Orion.
Manuals
Notes
Like other Orion TVs, this model lacks input select and menu buttons on the front panel. Changing video sources or accessing the menu requires a remote control. Most universal remotes will work well with this model. Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv. This TV has no VM circuit.
Gallery







Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |

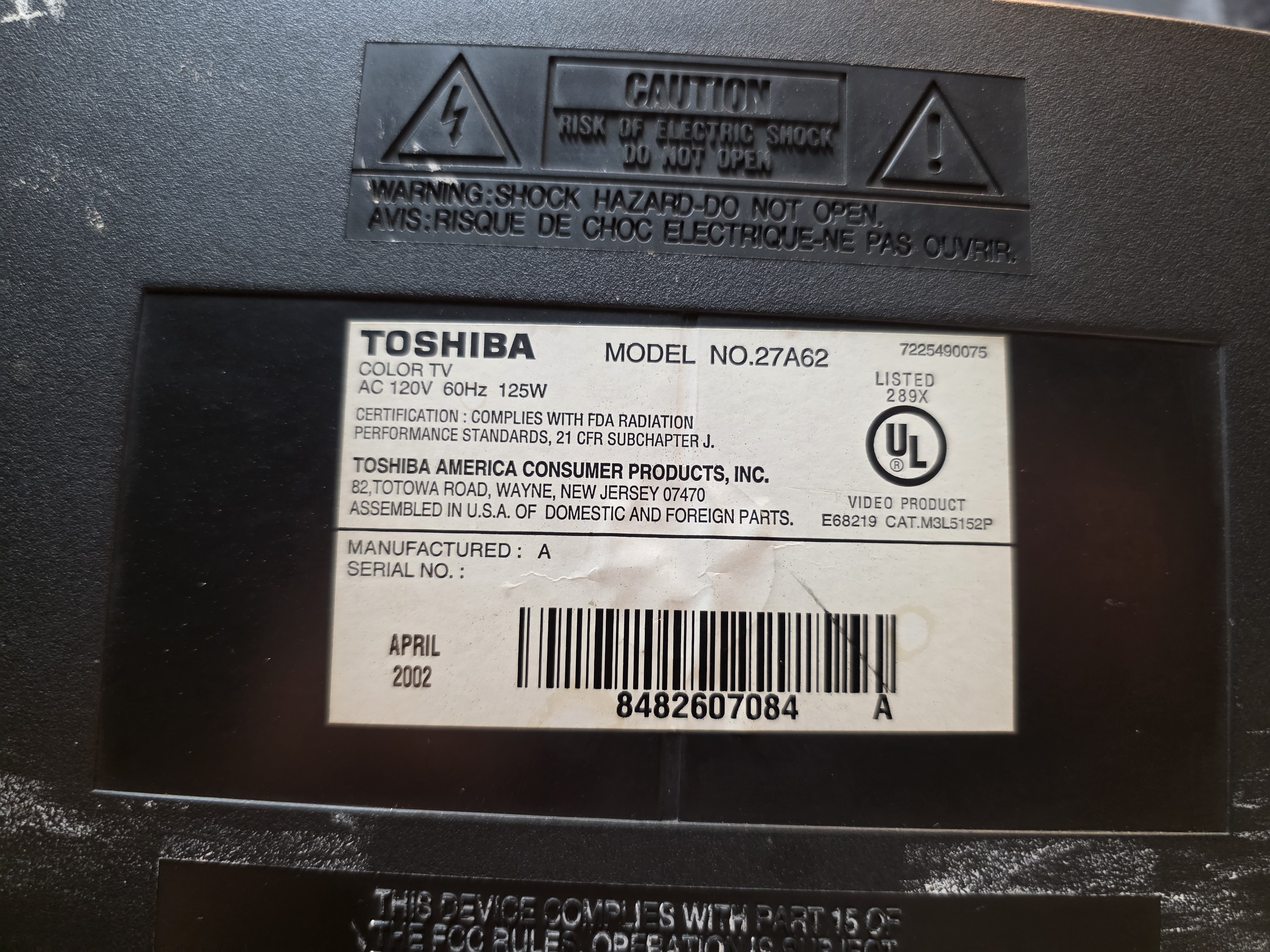

Model: | 27A62 |
Series: | A |
Viewable Size: | 27" |

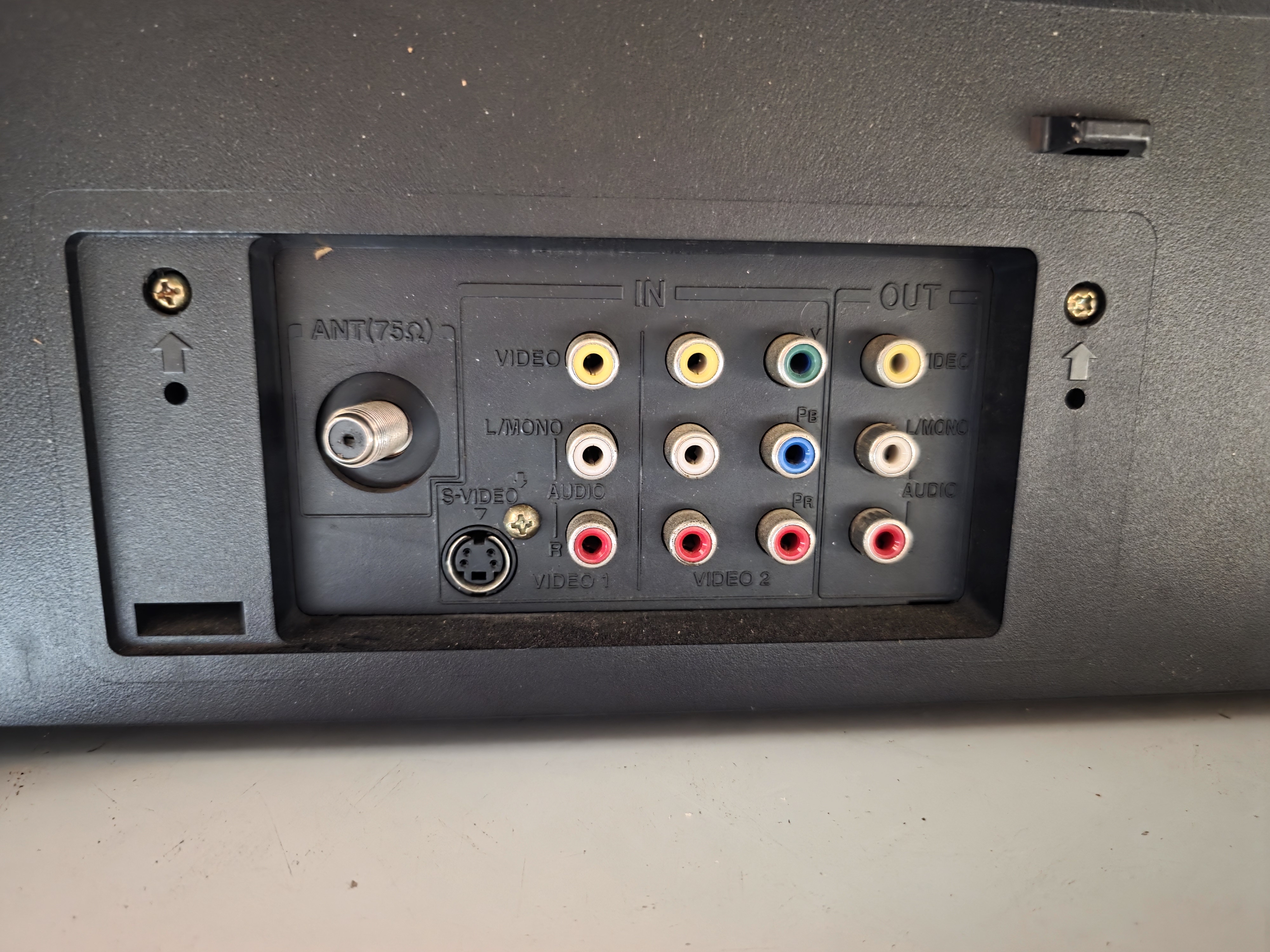

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | LA78041 |
Jungle: | TB1253N |
Comb Filtering: | 3-Line Digital |
Flyback: | 0432227009R |
Focus Type: | Single |

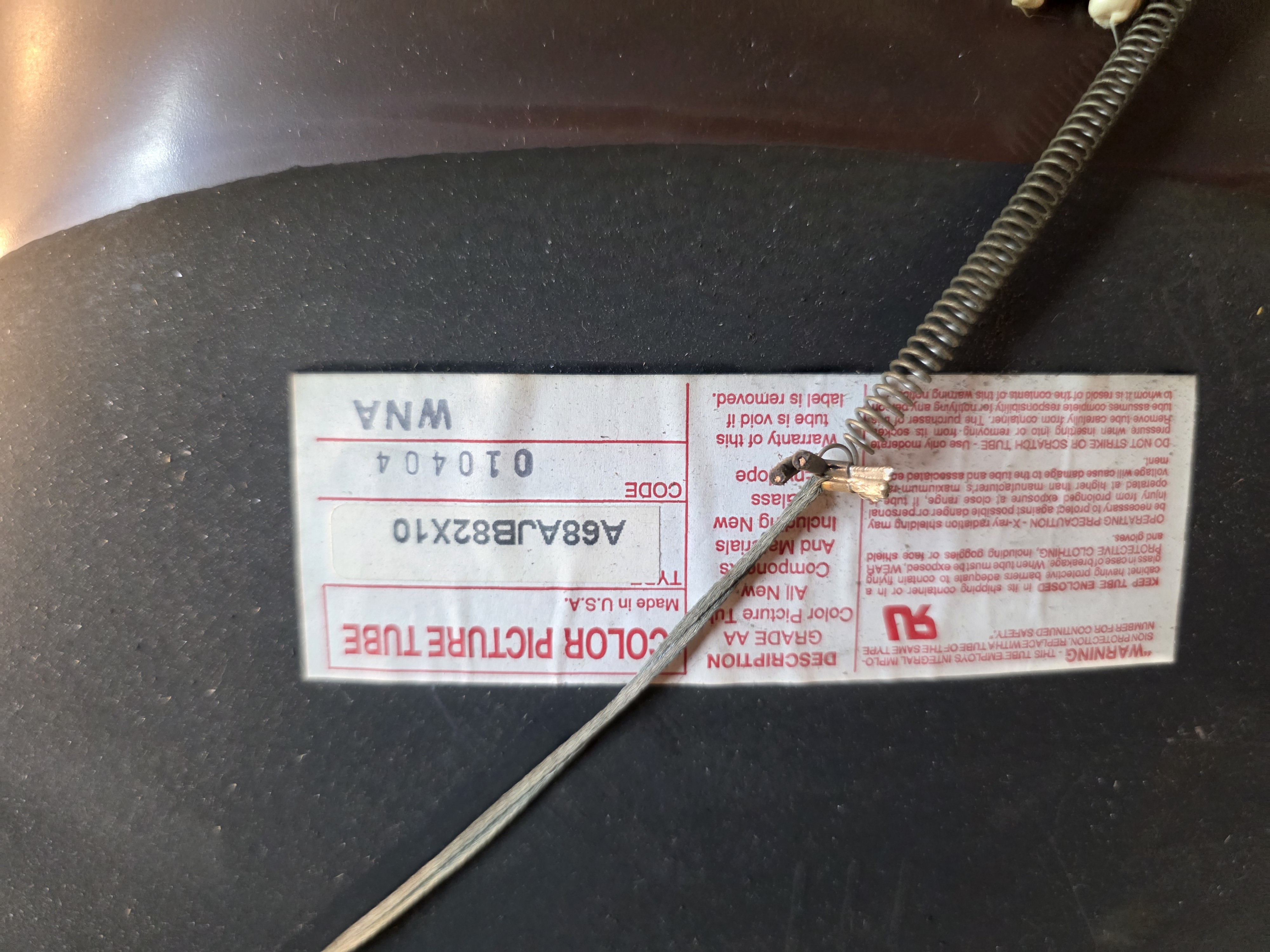

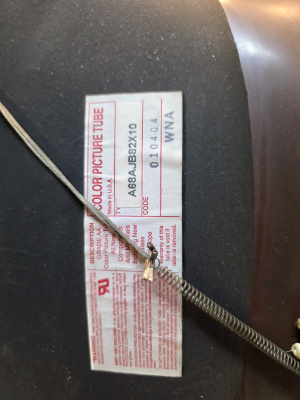

Tube: | A68AJB82X10 |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

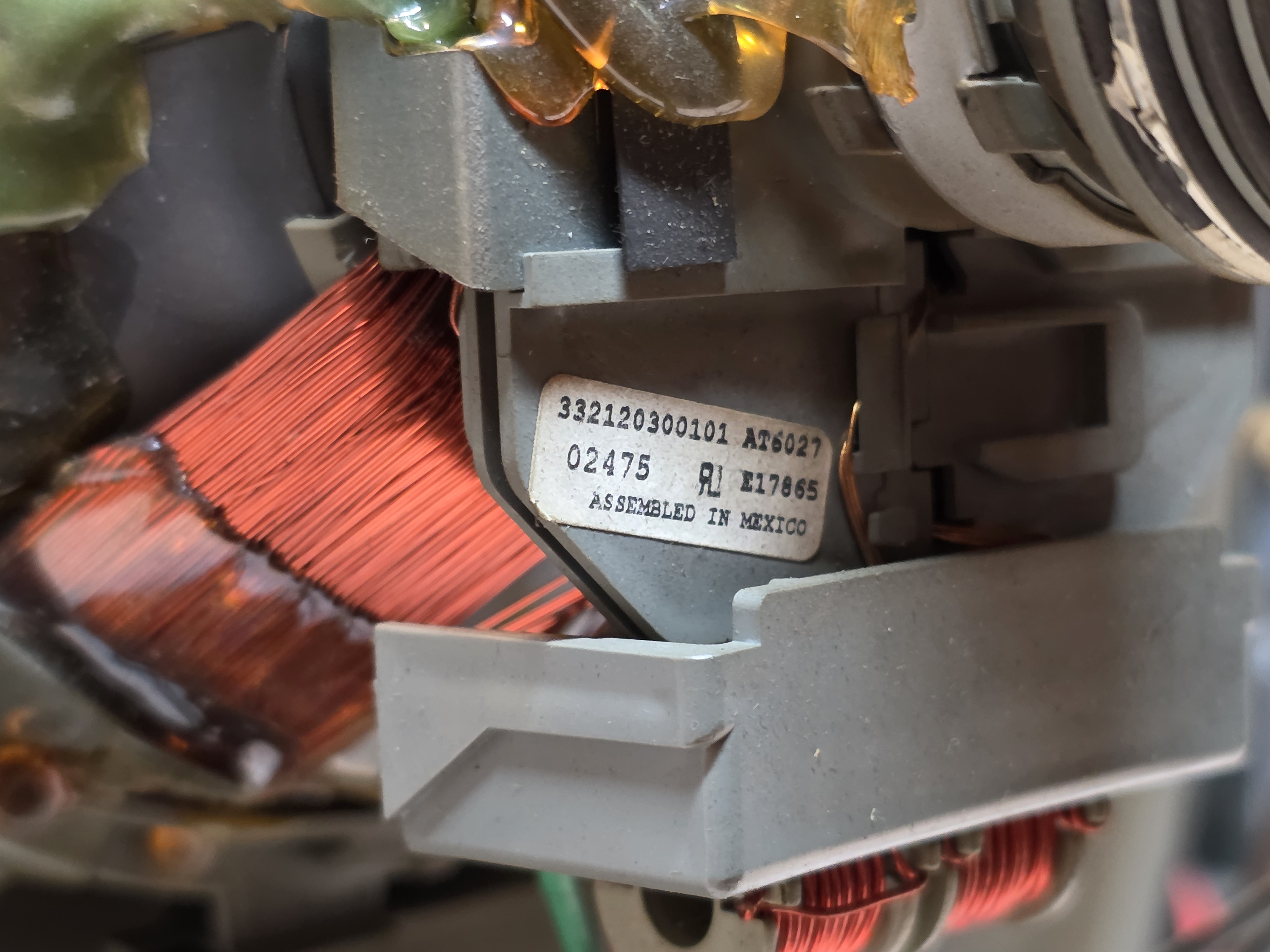

Yoke: | AT6027 |
Speakers: | Stereo, 2.5W x 2 |
Weight: | 77.1 lbs (35 kg) |
Dimensions (W/H/D): |
740 x 560 x 500.5 mm
(29.1 x 22 x 19.7") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
