Toshiba 27AF45
Mike Morisette
November 4, 2023, 12:00 am
November 15, 2024, 7:55 pm
November 4, 2023, 12:00 am
November 15, 2024, 7:55 pm
Summary

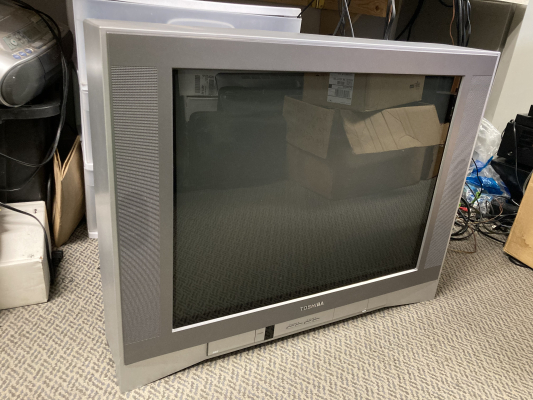

27" flat screen CRT TV, manufactured by Orion and sold by Toshiba. Features a full set of inputs including RF, composite, s-video, and component
Literature
Notes
Like other Orion TVs, this model lacks input select and menu buttons on the front panel. Changing video sources or accessing the menu requires a remote control. Most universal remotes will work well with this model.
Gallery
Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |
Model: | 27AF45 |
Series: | AF |
Viewable Size: | 27" |

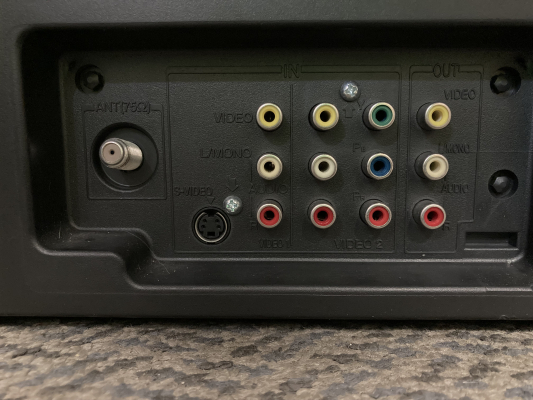

Inputs: | Composite, S-Video, RF, Component YPbPr |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2638 |
Vertical Output IC: | LA78041 |
Comb Filter IC: | LA76605M-TLM, Sanyo |
Flyback: | FSU27A004 |
Tube: | A68QCU770X66 , A68QCU770X , LG.Philips |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo |
Remote: | CT-847 |
Weight: | 88.2 lbs (40 kg) |
Application: | Consumer |
Launched: | 2005 |
Country of Manufacture: | USA |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
