Summary

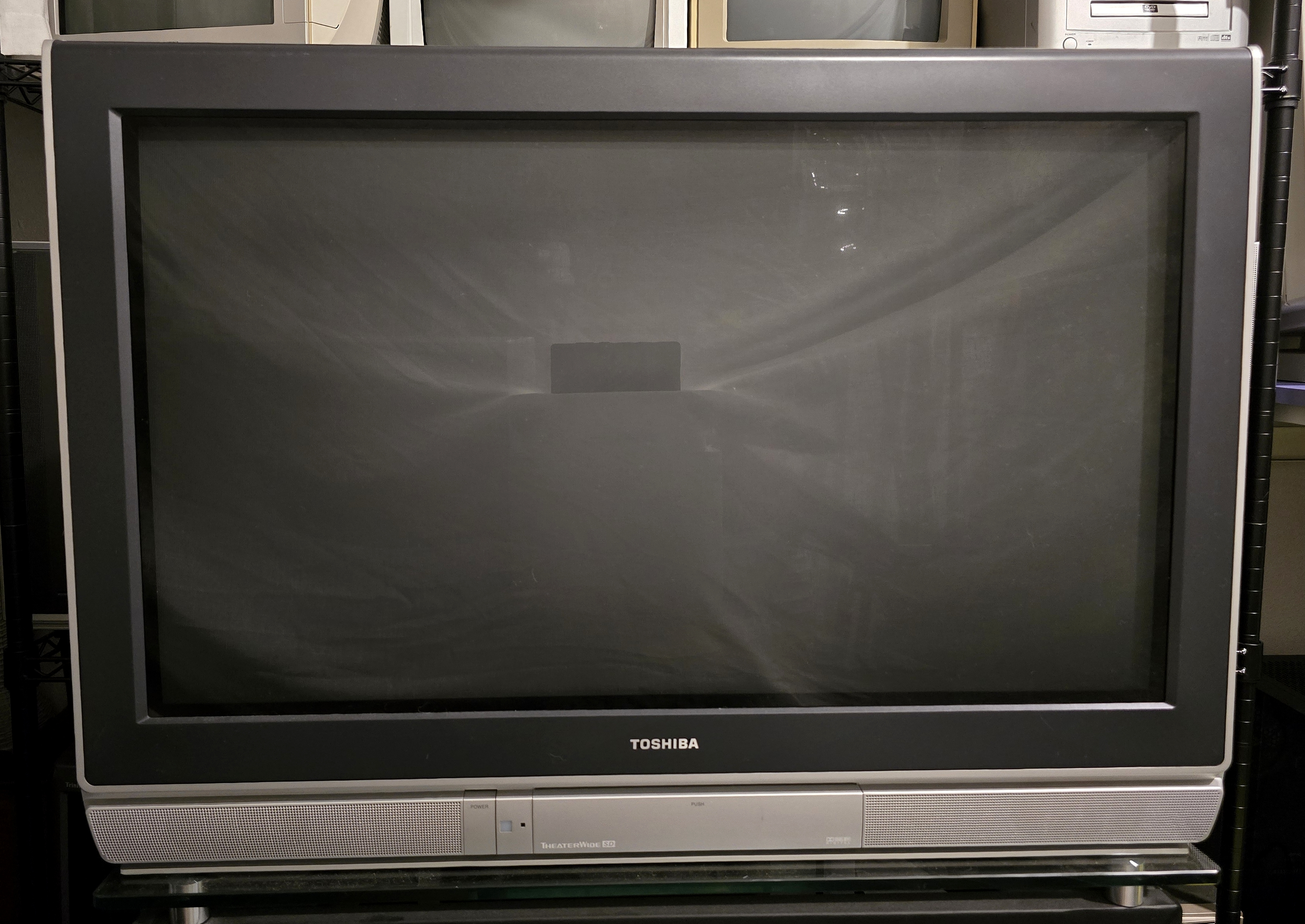

30" flat widescreen standard-definition CRT by Toshiba, one of the few of its kind released in North America. Has RF, composite, s-video and component input with analog and digital stereo sound. Features an ATSC tuner. Originally manufactured by Orion in Thailand.

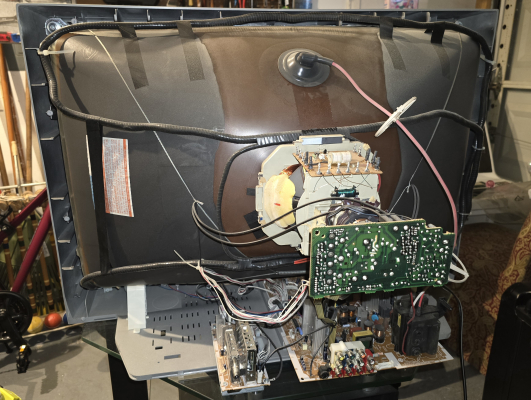

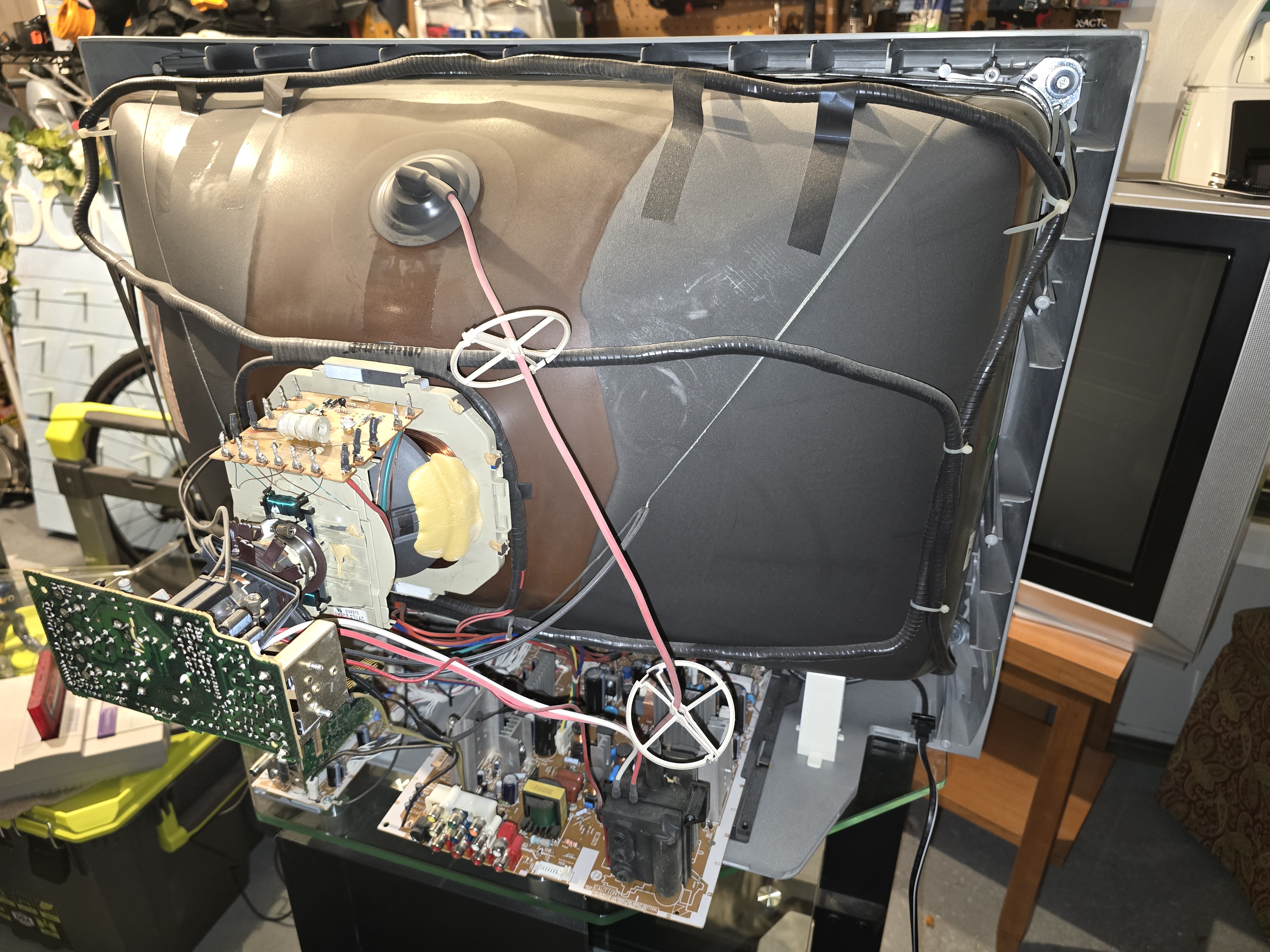

(Special thanks to Kurt Effinger for the pics!)
Manuals
Media & Promo Materials
Notes

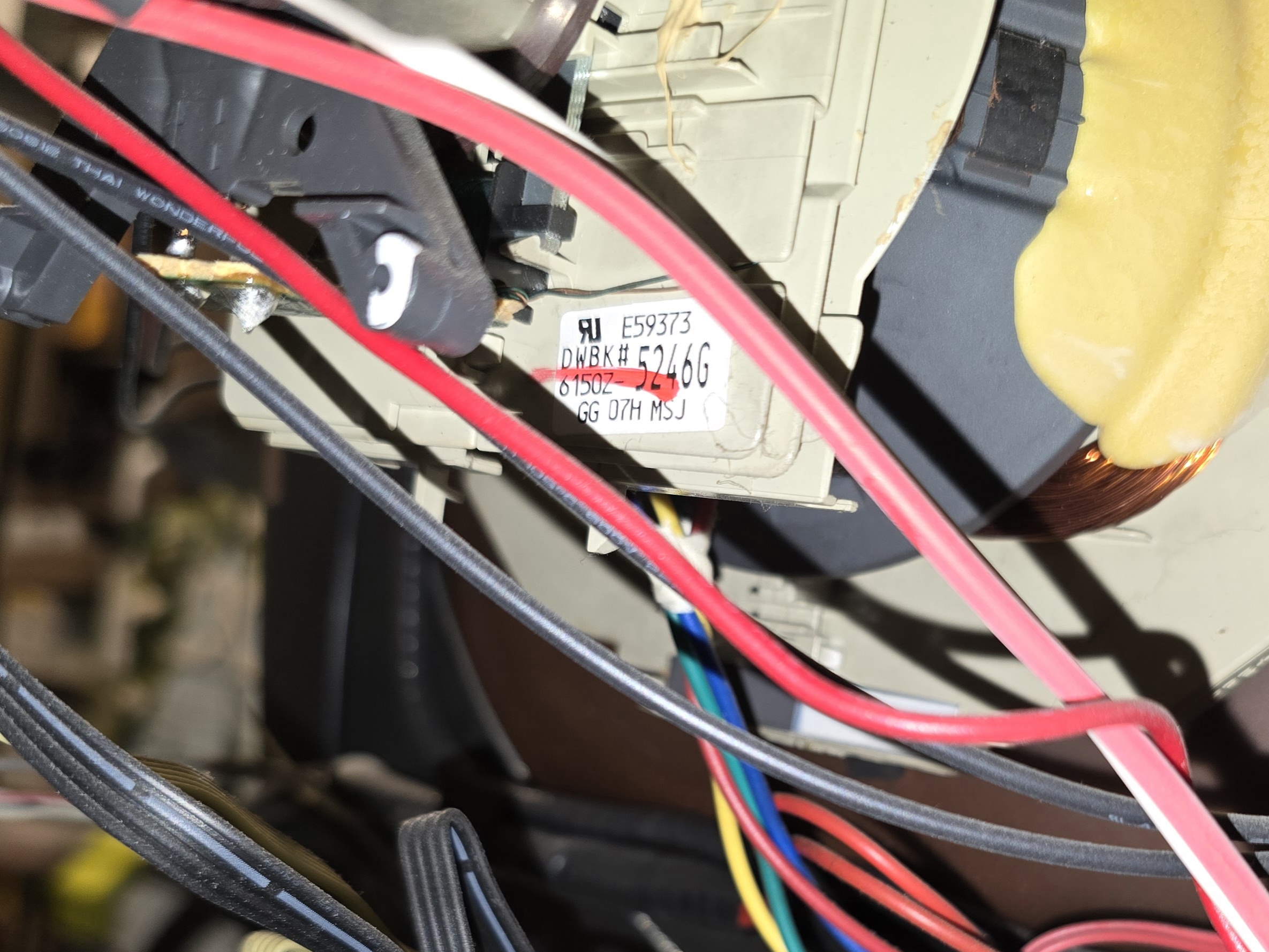

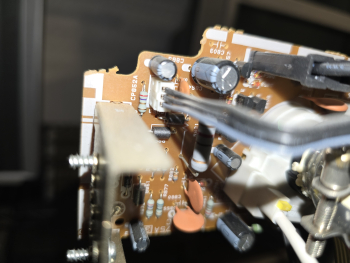

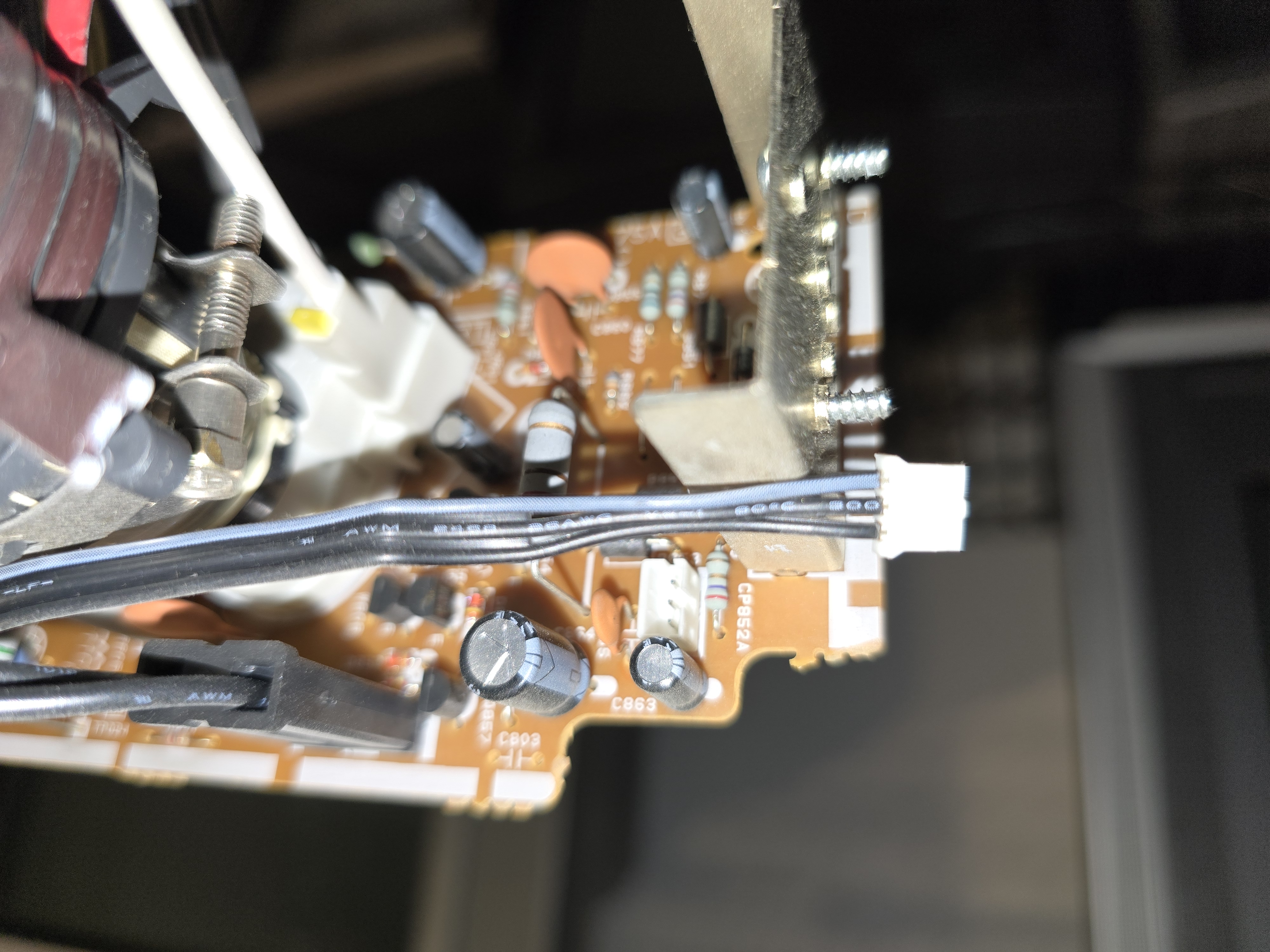

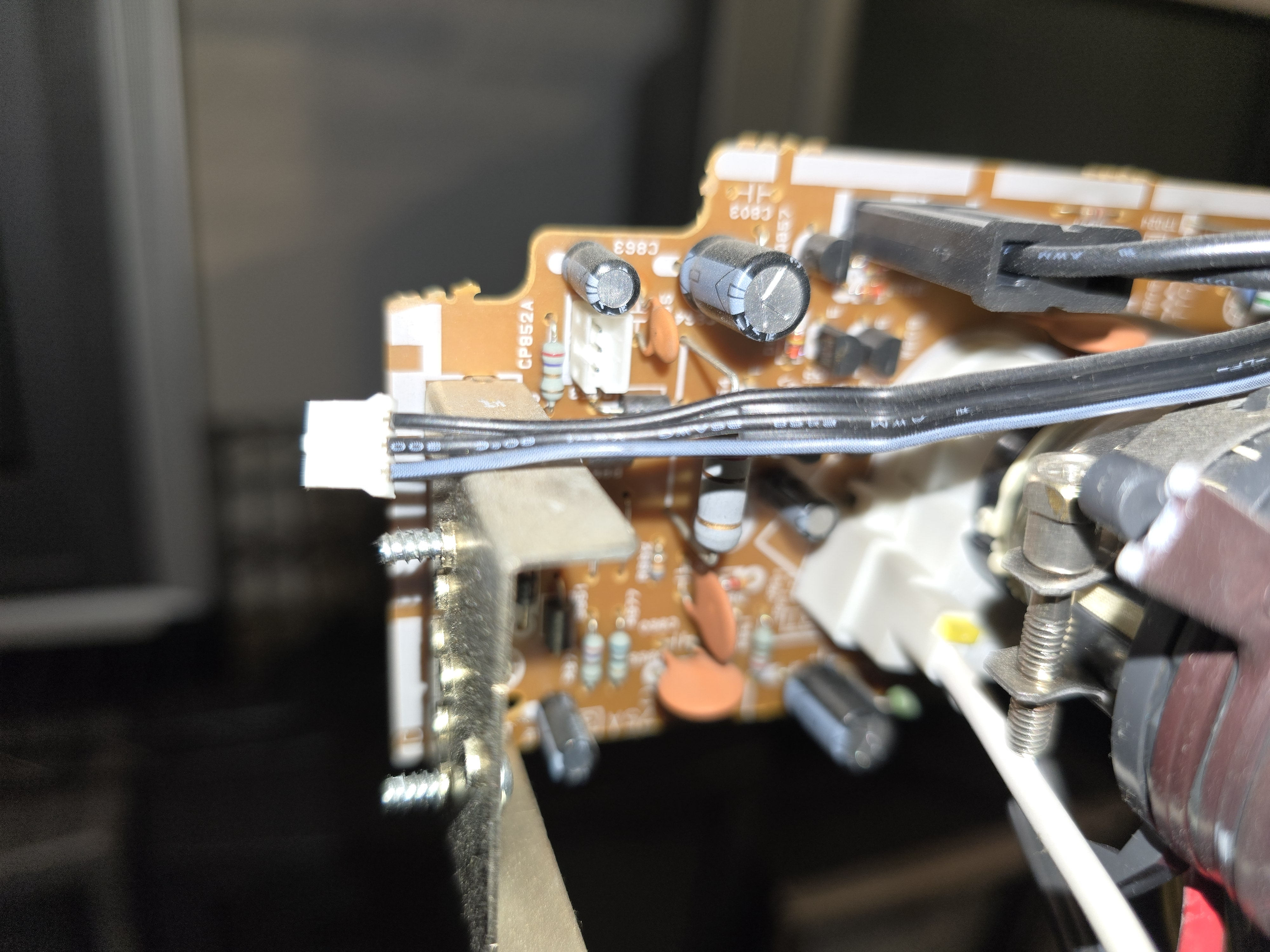

This model has velocity modulation. To disable it, unplug the jumper connecting the board near the yoke to the neckboard:

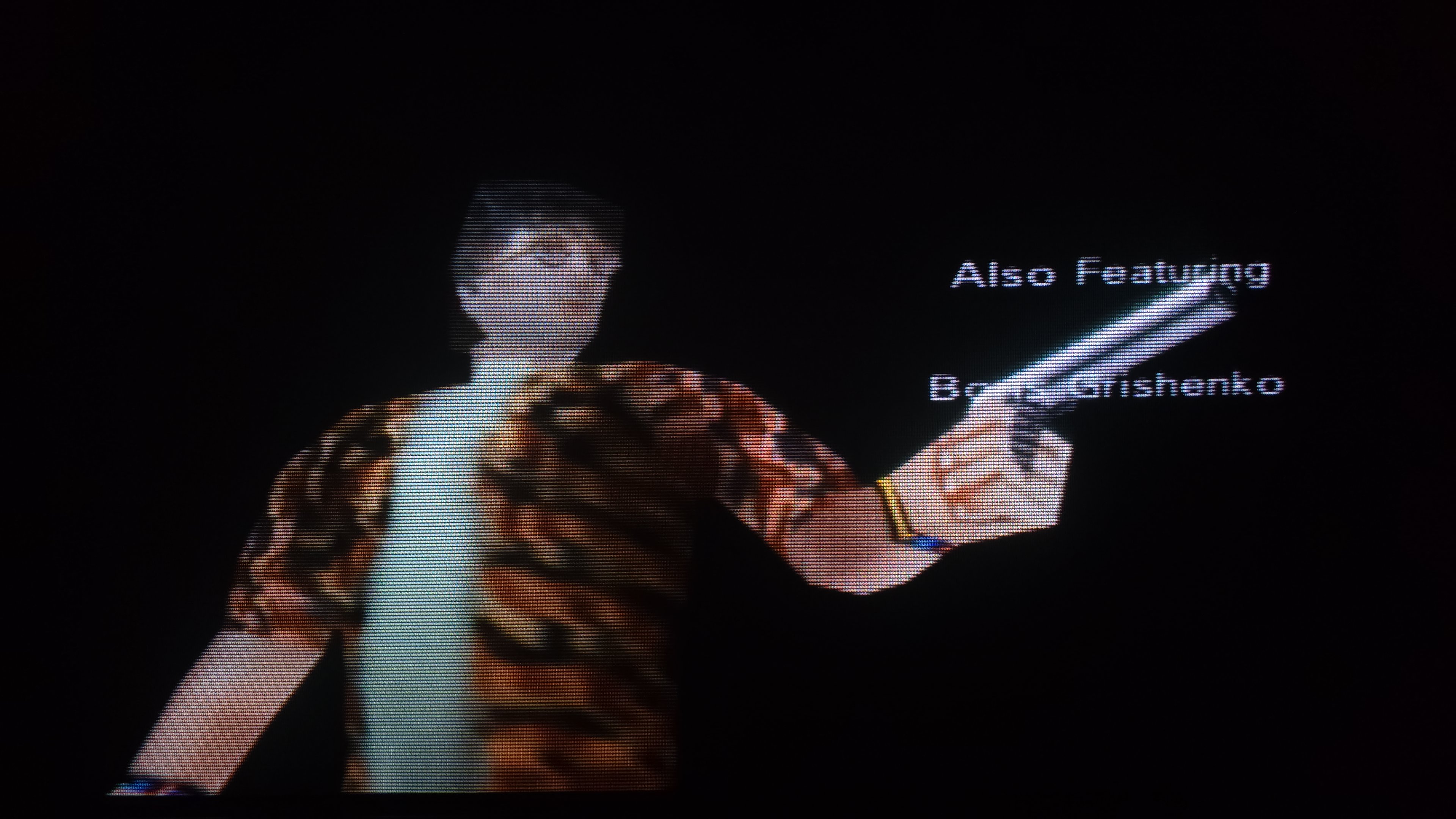

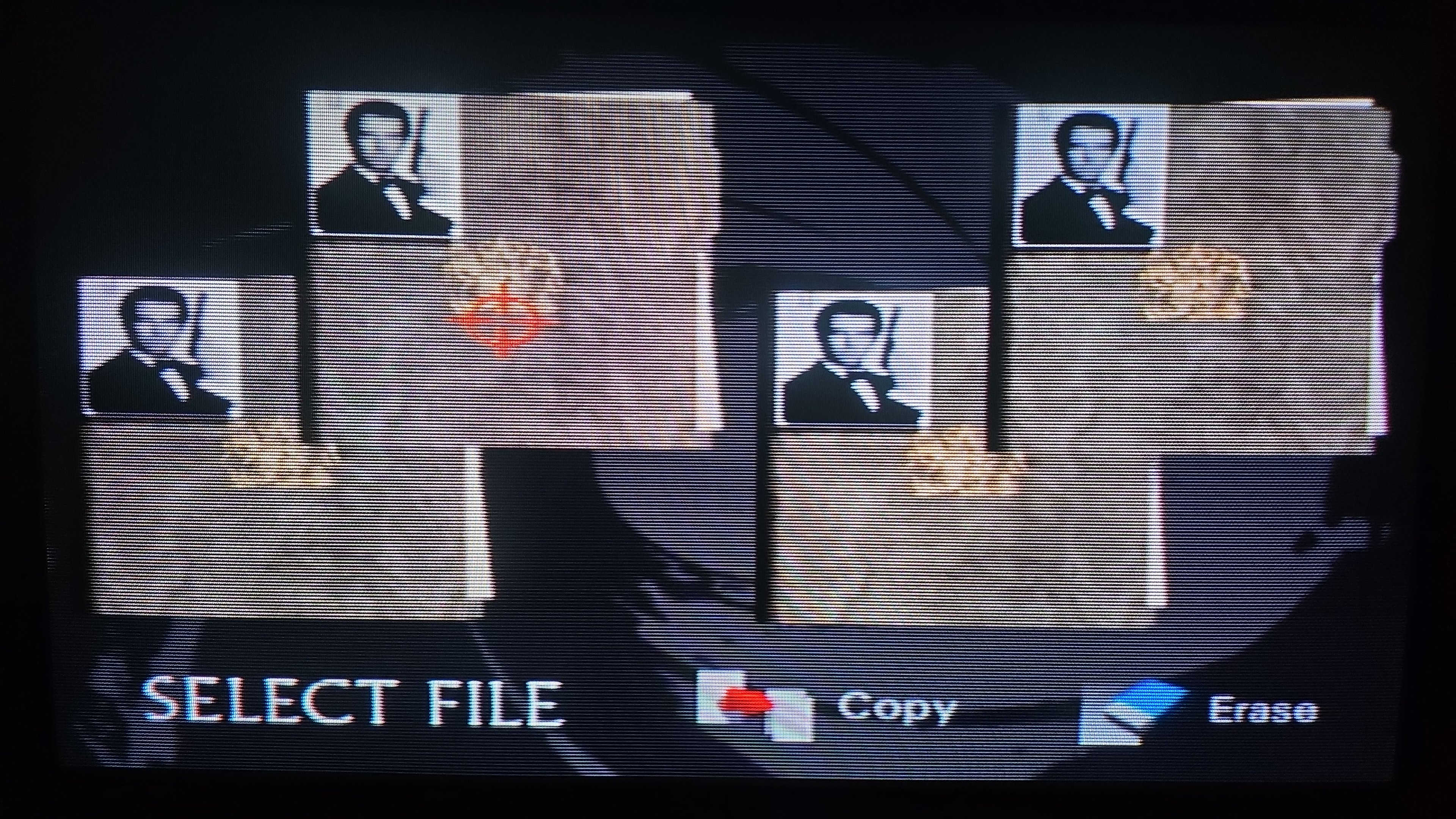

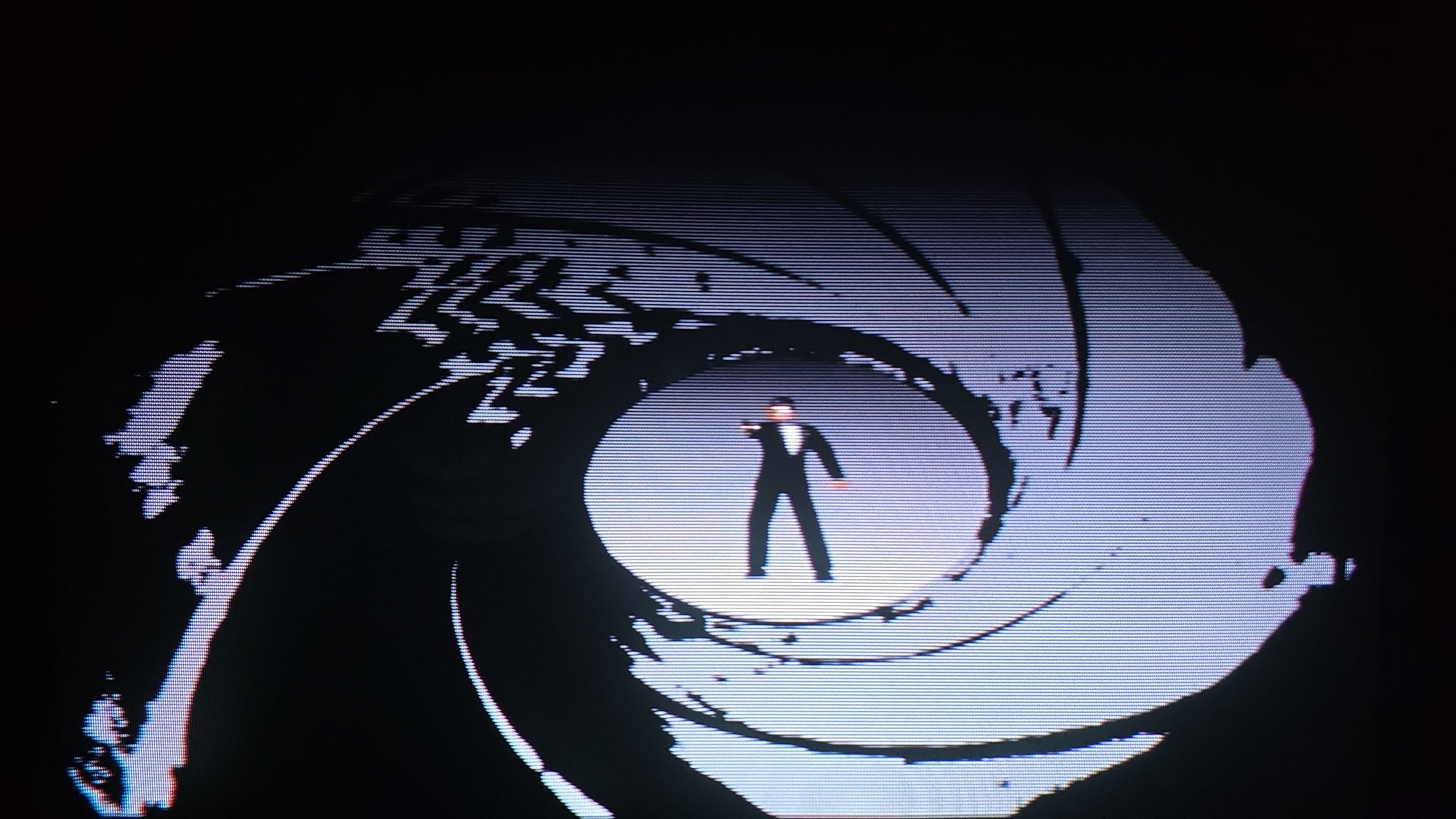

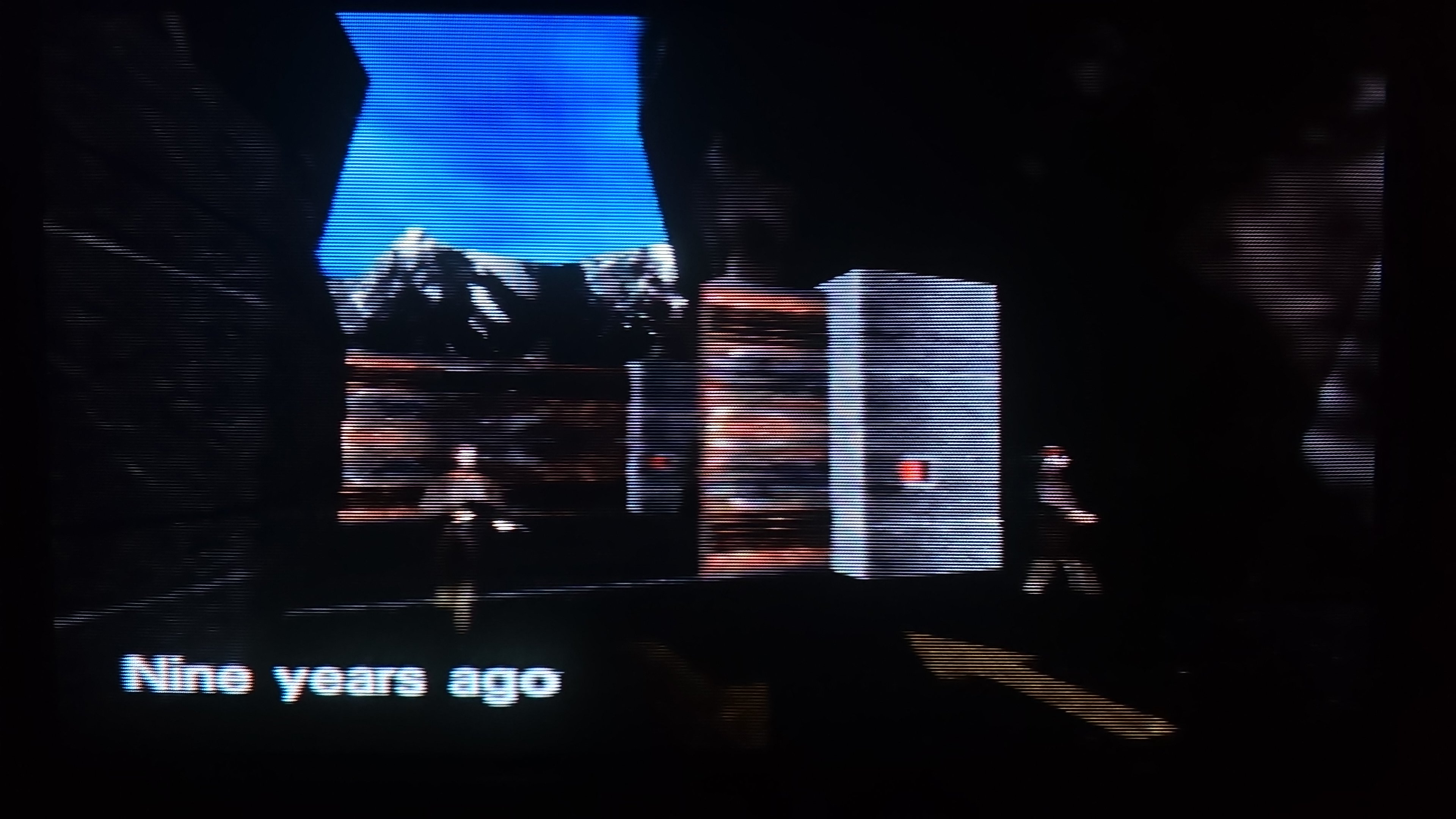

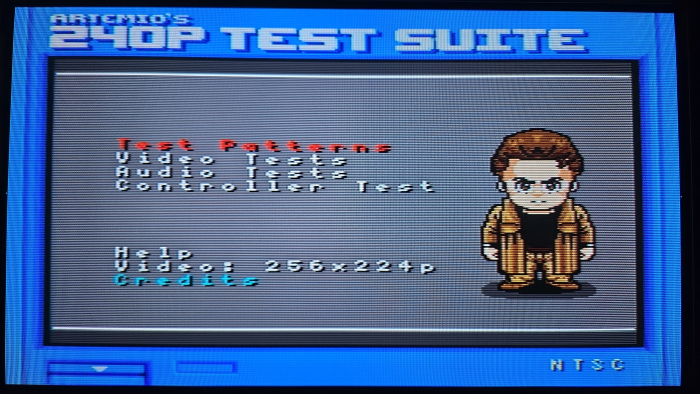

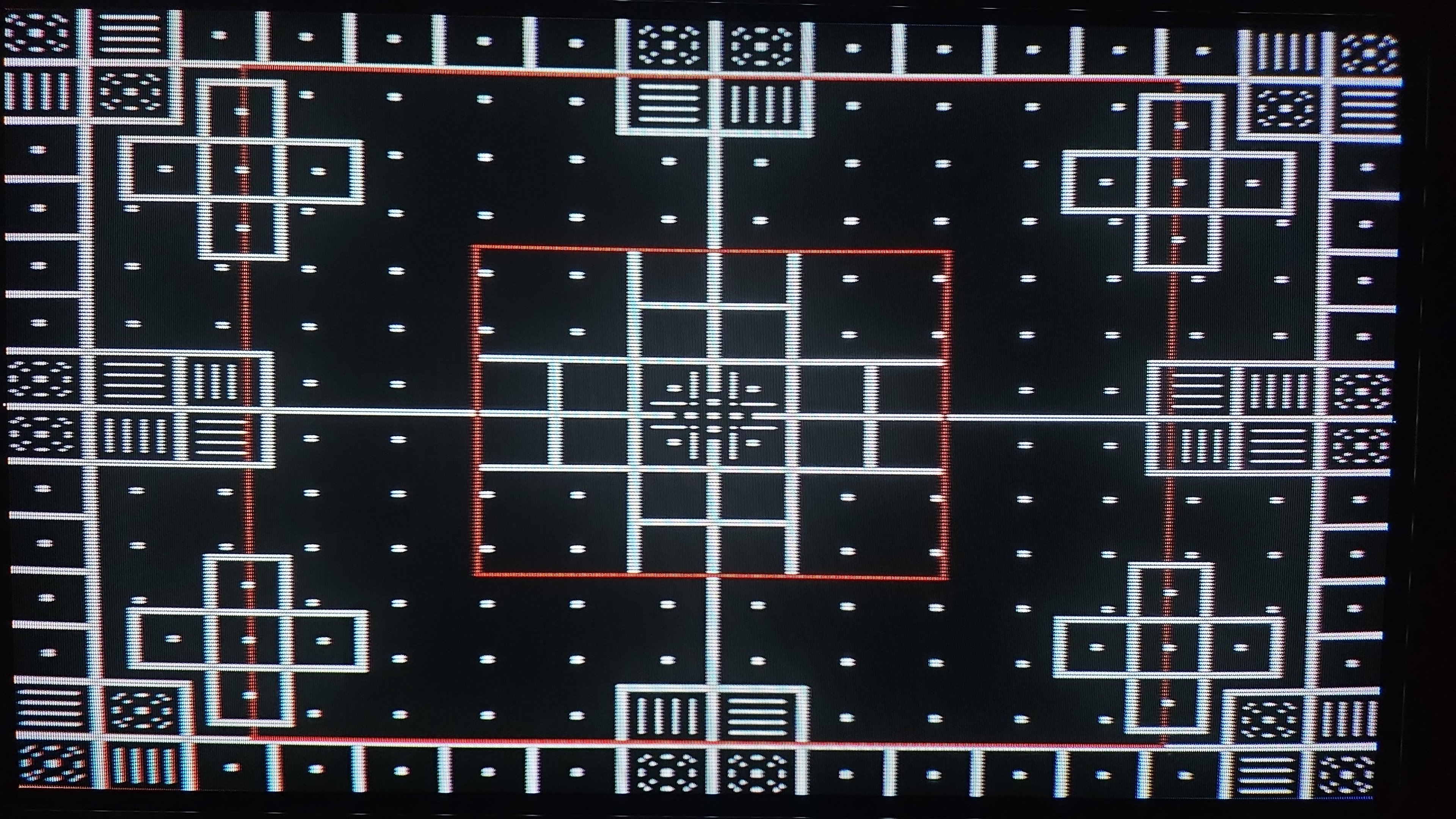

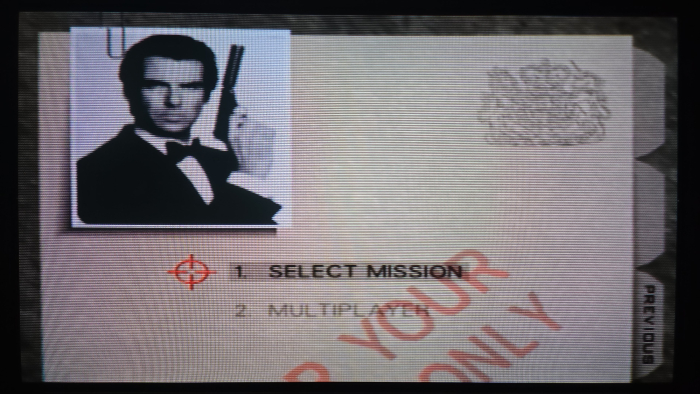

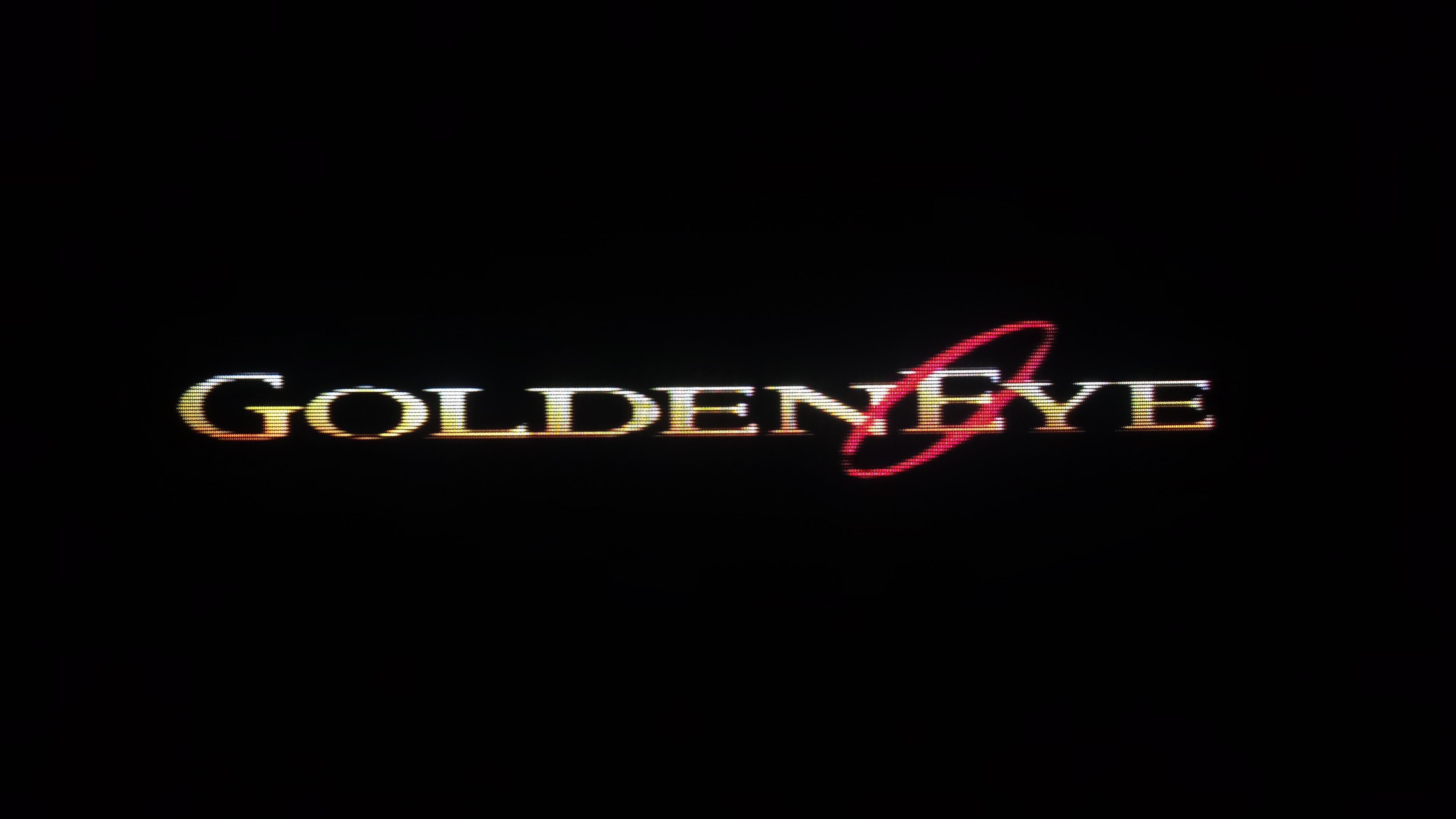

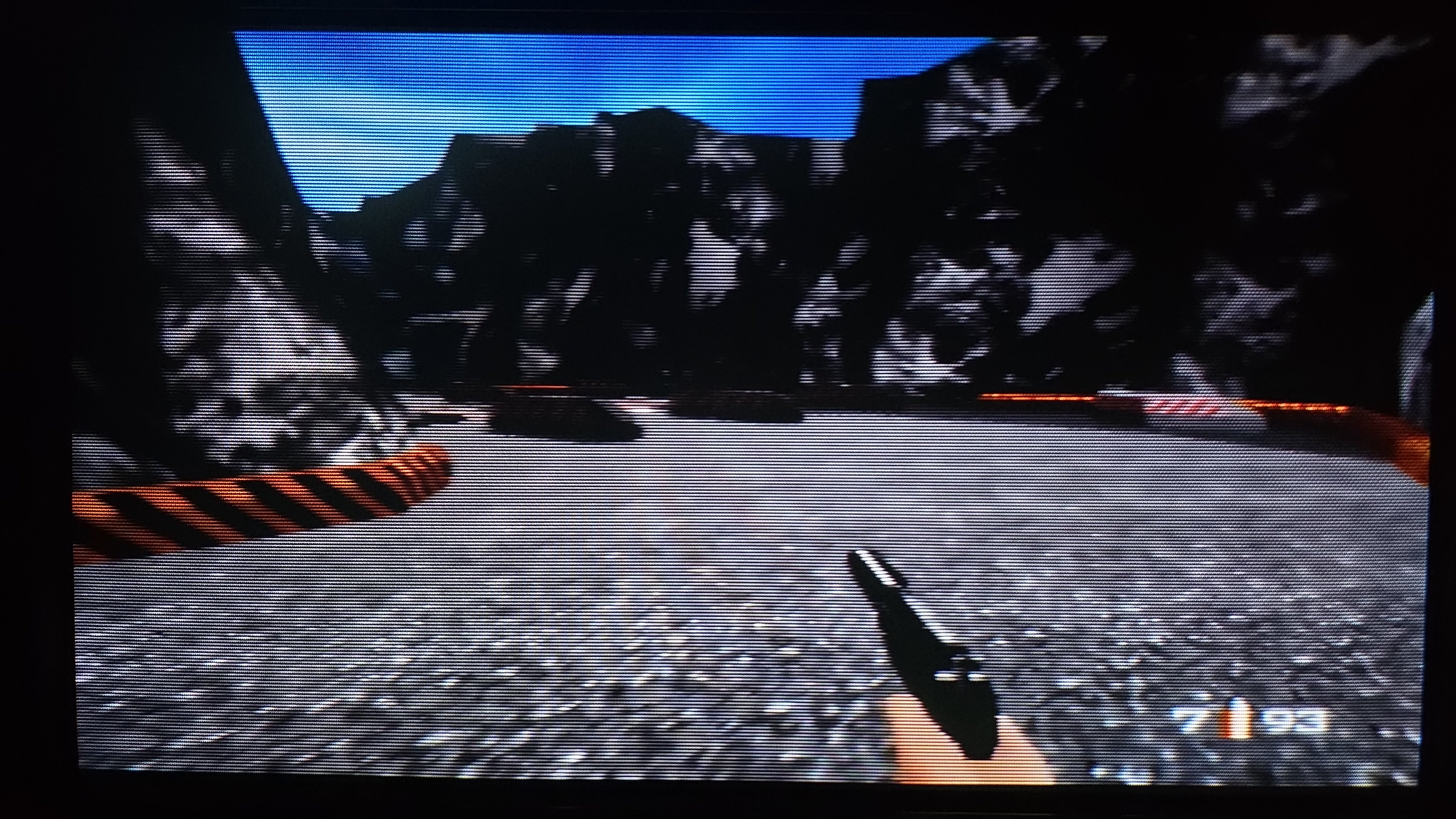

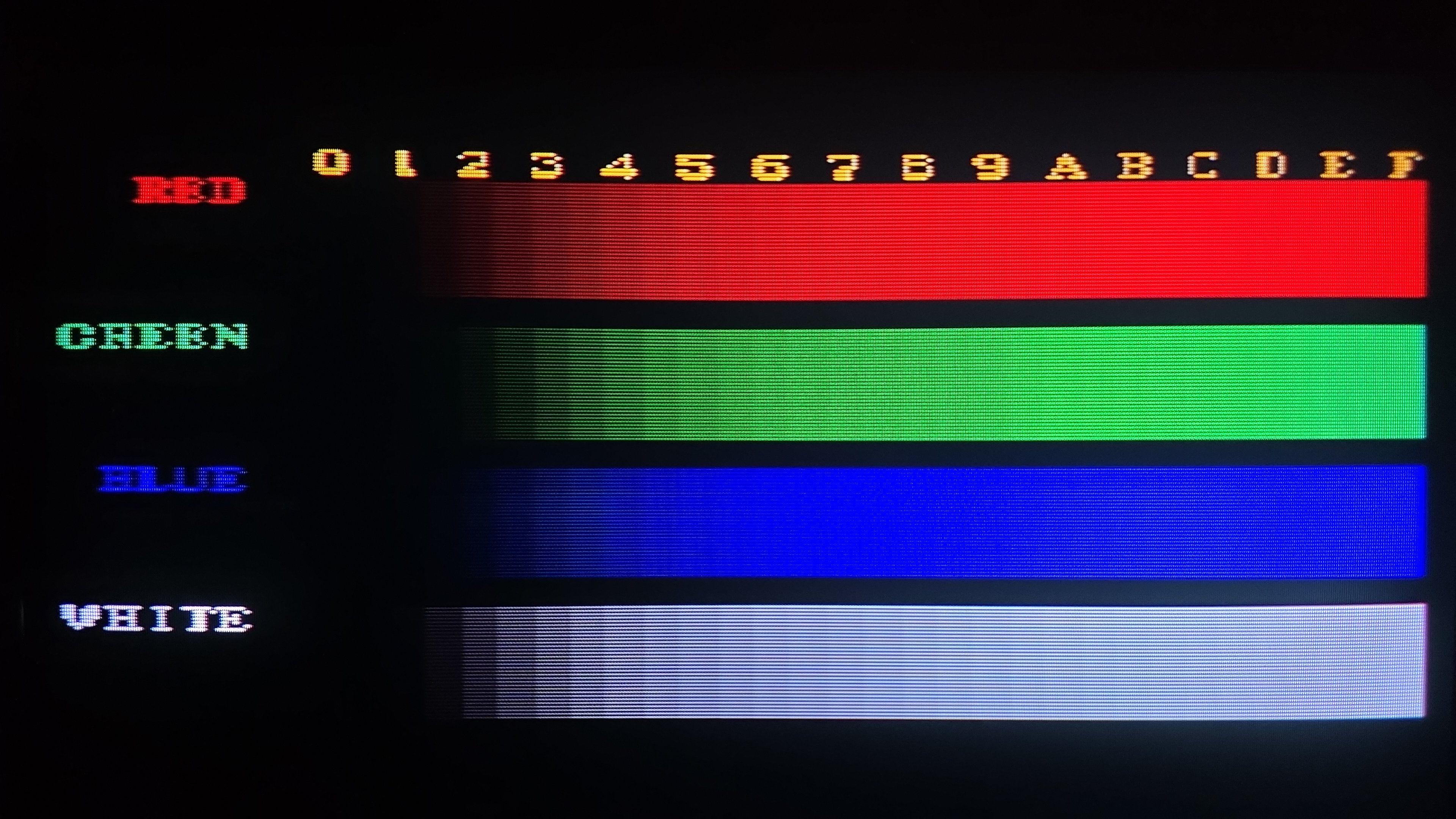

Gameplay pics are displaying an s-video signal.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | 30DF56 |
| Series: | DF |
| Viewable Size: | 30" |

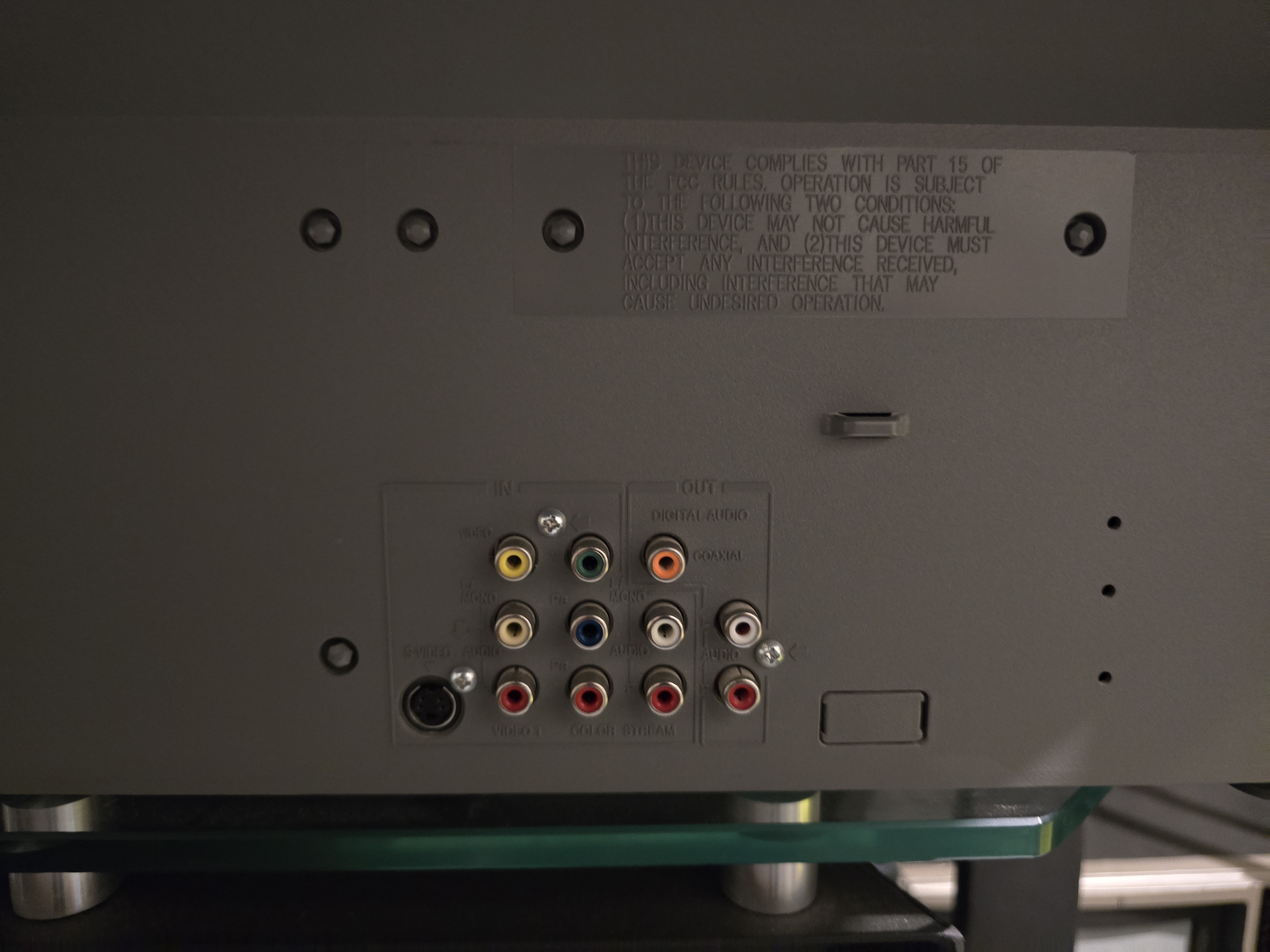

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 16:9 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA78041 |
| Jungle IC: | Sanyo, LA76327M-B-MPB-E, LA76327M |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | LA76605M-TLM |

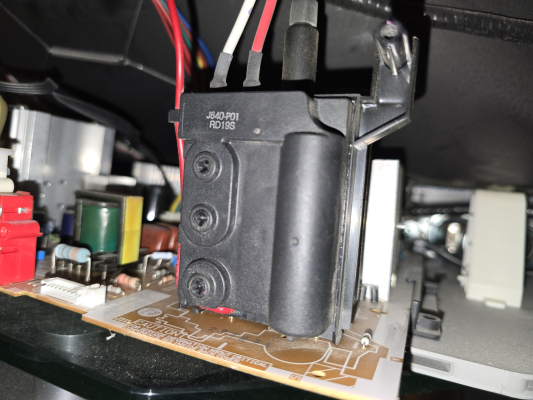

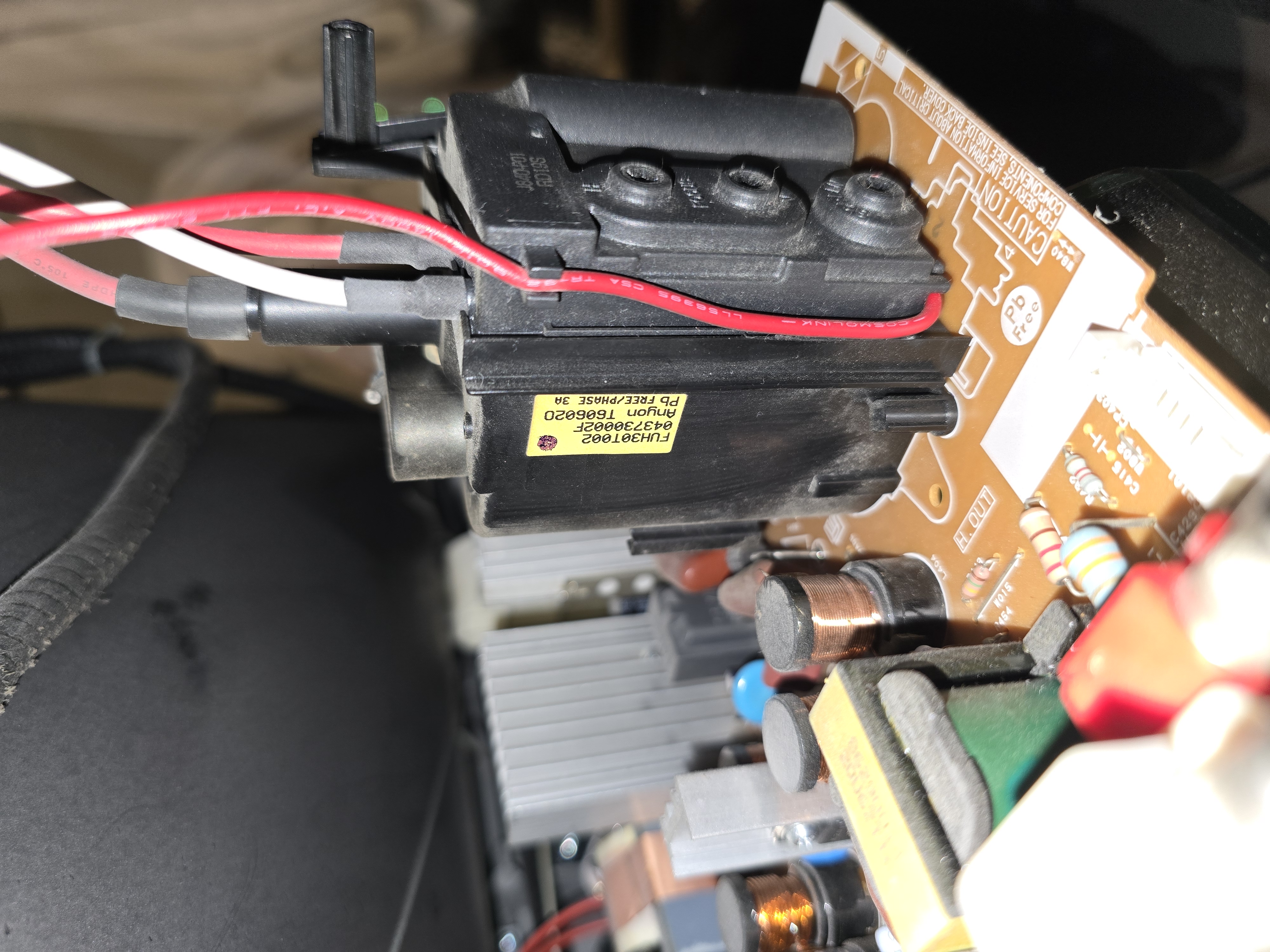

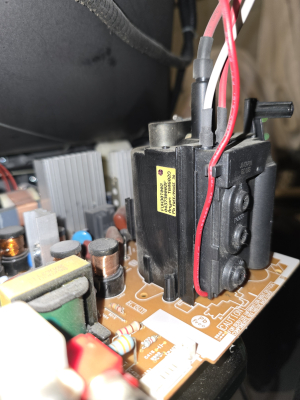

| Flyback: | FUH30T002 |
| Focus Type: | Dual |

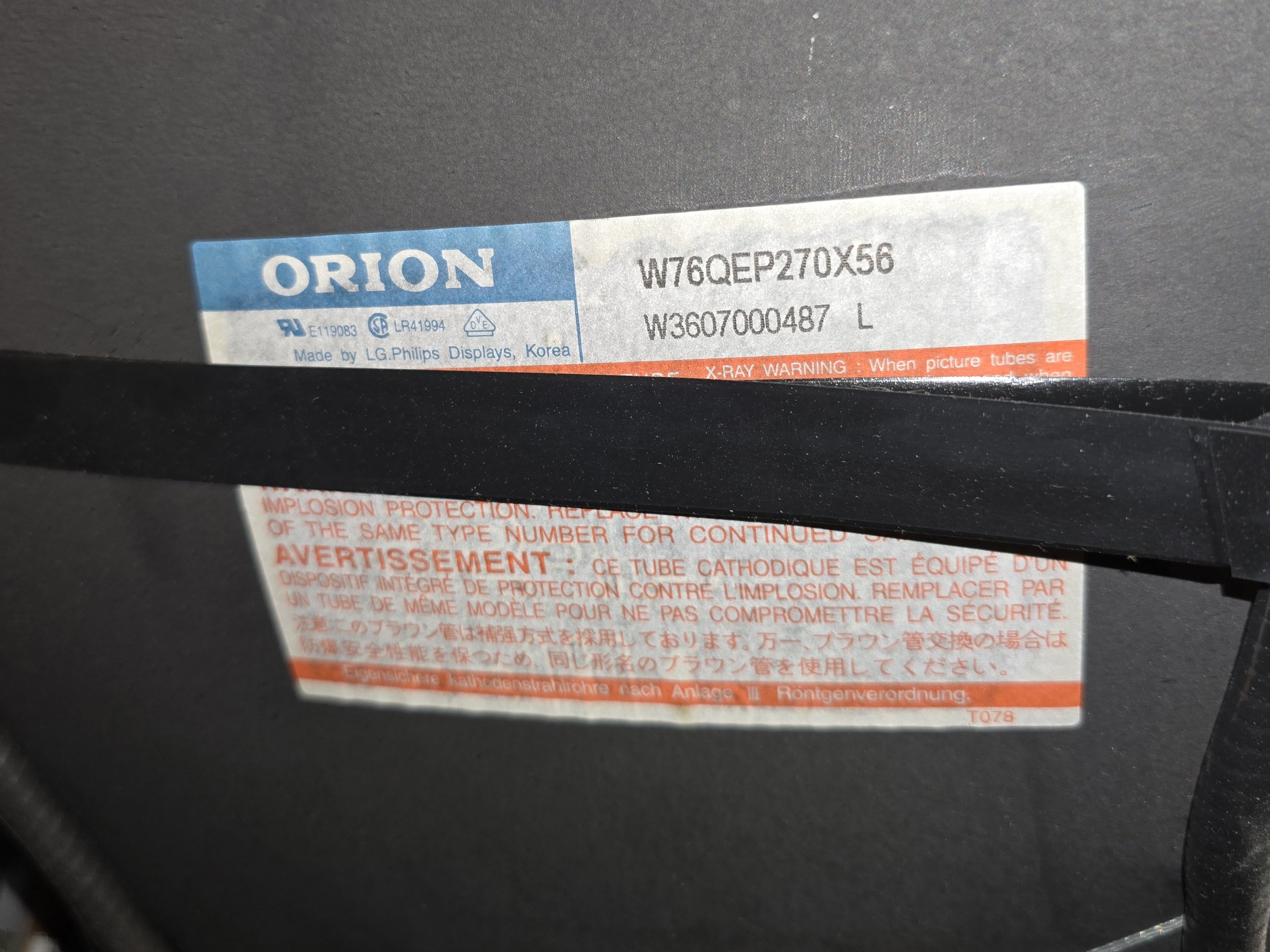

| Tube: | LG.Philips , W76QEP270X56 , W76QEP270X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

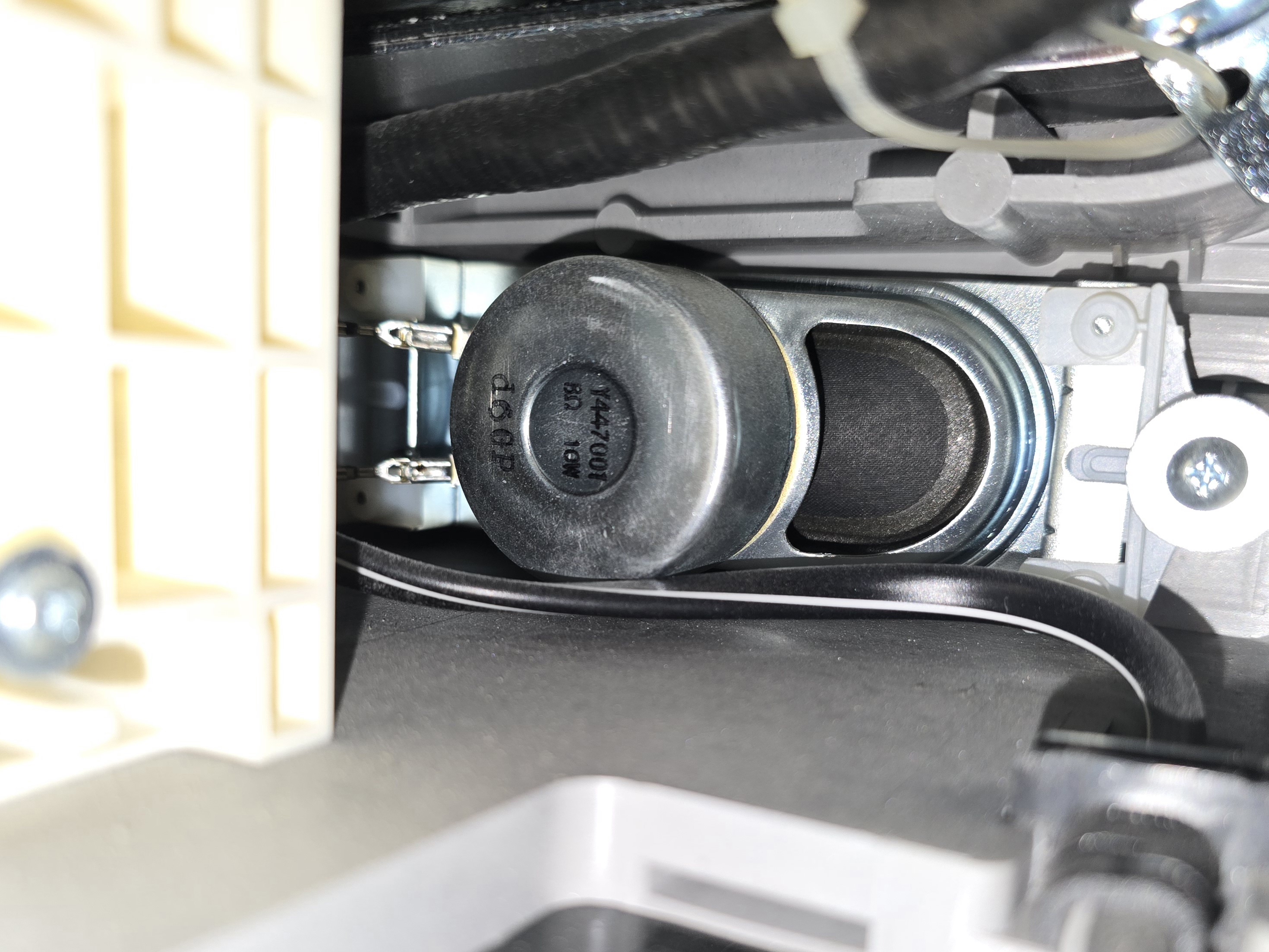

| Speakers: | Stereo |
| Remote: | CT-877 |
| Chassis: | M3Z0 |
| Weight: | 112.5 lbs (51 kg) |
| Dimensions (W/H/D): |
796 x 549 x 563 mm
(31.3 x 21.6 x 22.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| MSRP: | 599 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
