Summary

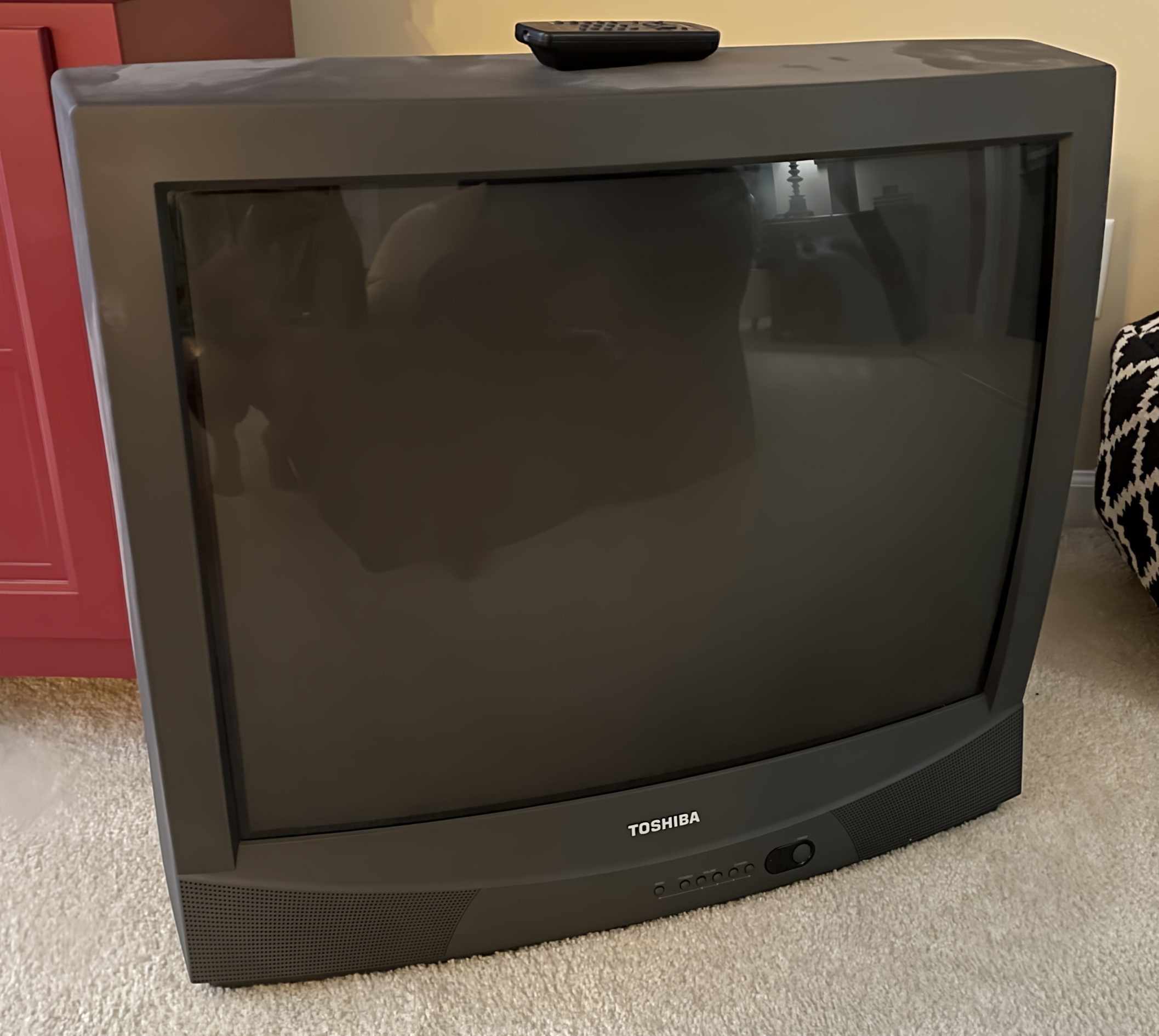

Basic 32" CRT by Toshiba. Has RF and composite input. Made in the USA in 2000.
Manuals
Notes
Set can be modded for RGB. Link to modded example of the 27" model HERE.

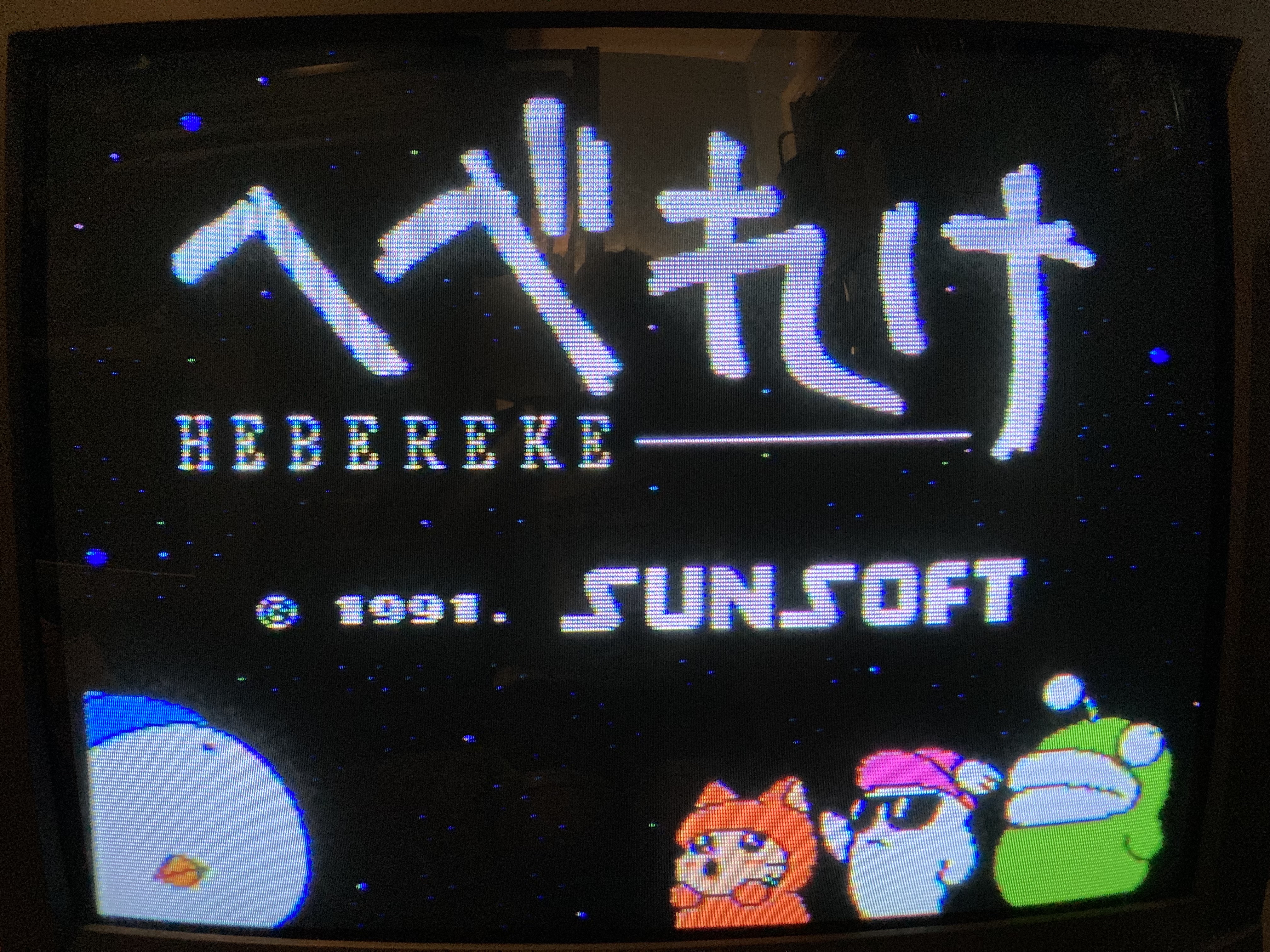

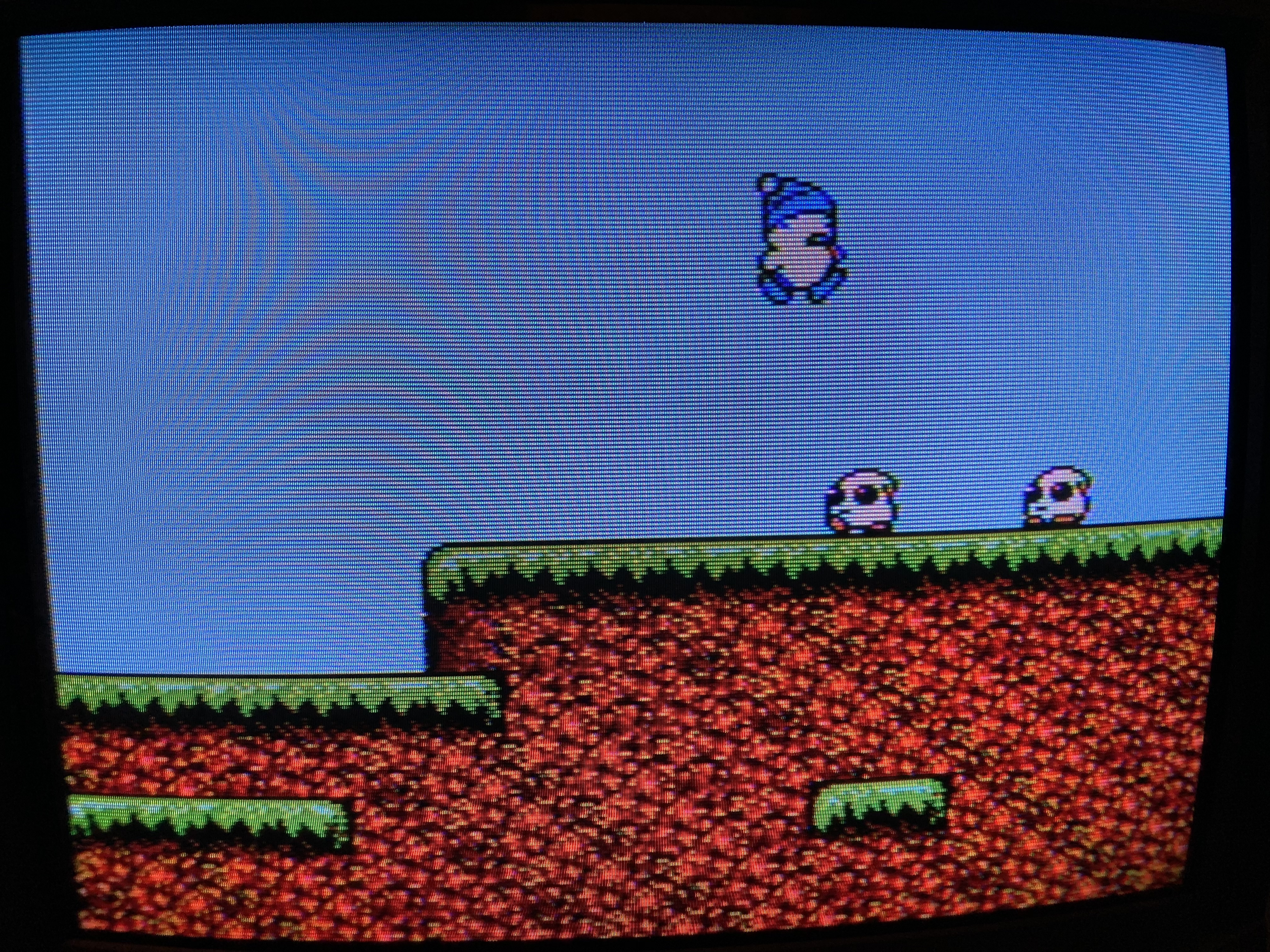

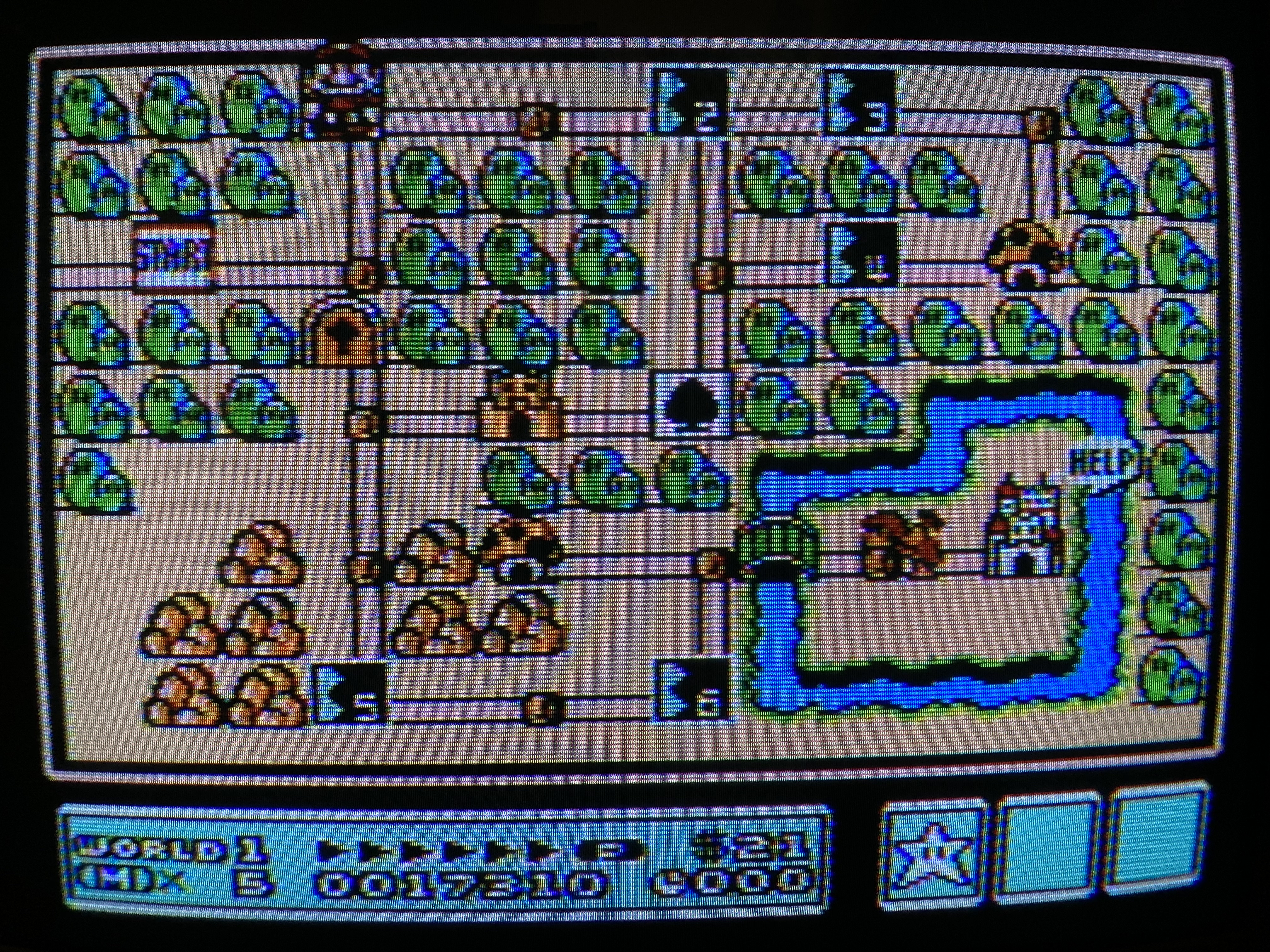

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | 32A30 |
| Series: | A |
| Viewable Size: | 32" |

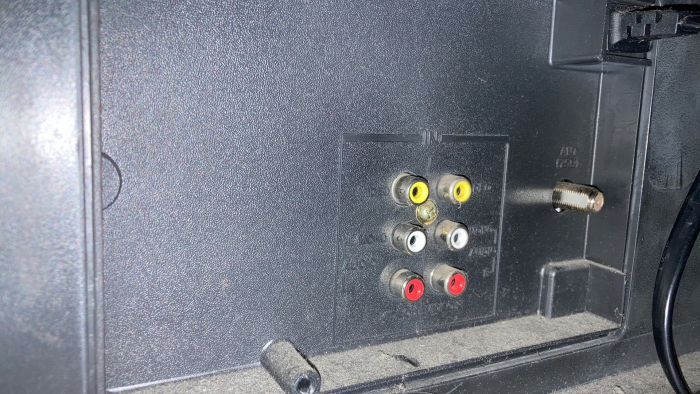

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Toshiba, TA1310AN |
| Comb Filtering: | 2-Line Digital |
| Flyback: | TFB4132DH |
| Focus Type: | Single |
| Tube: | Toshiba , A81AGZ50X , A81AGZ50X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |

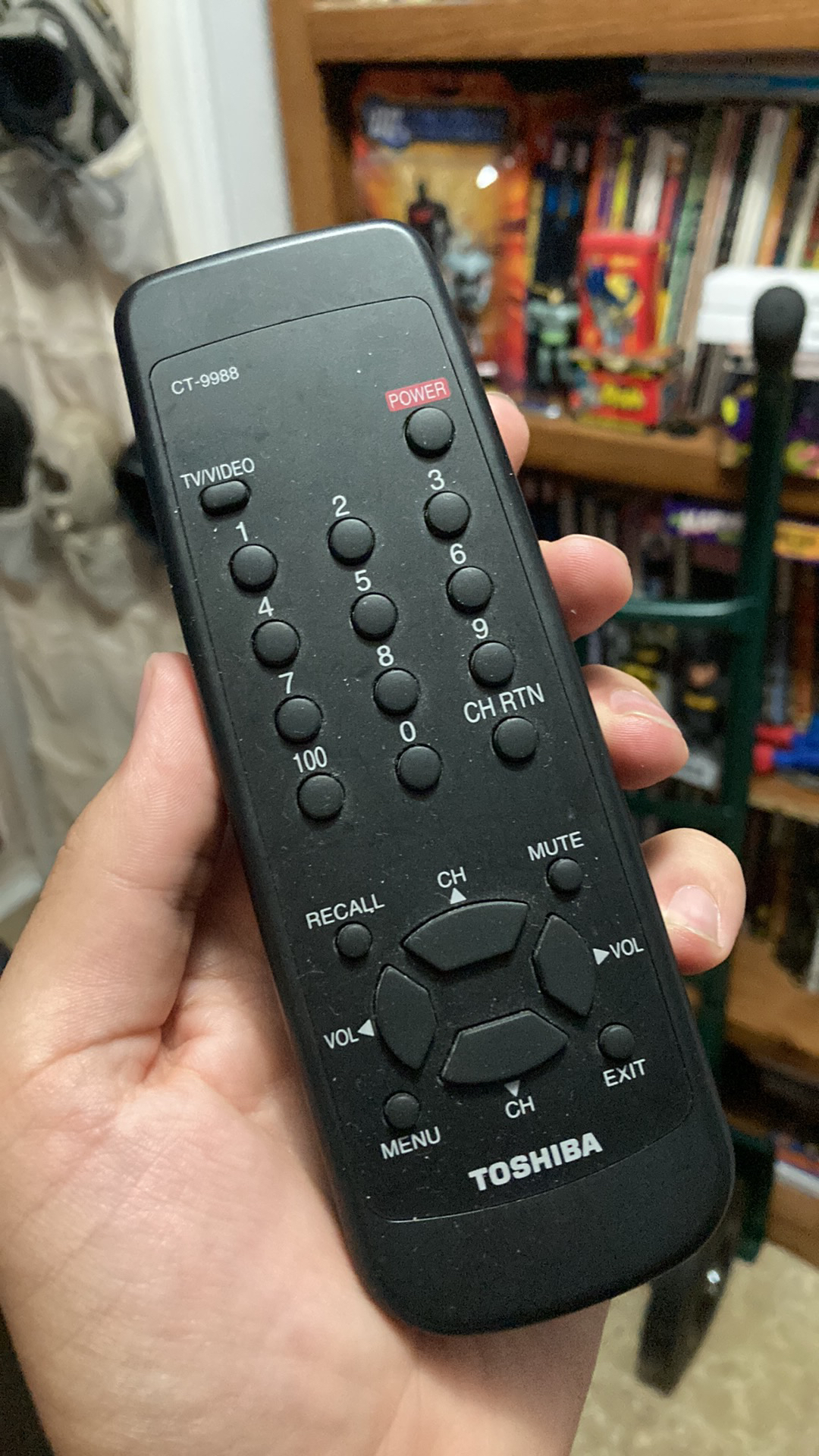

| Remote: | CT-9988 |

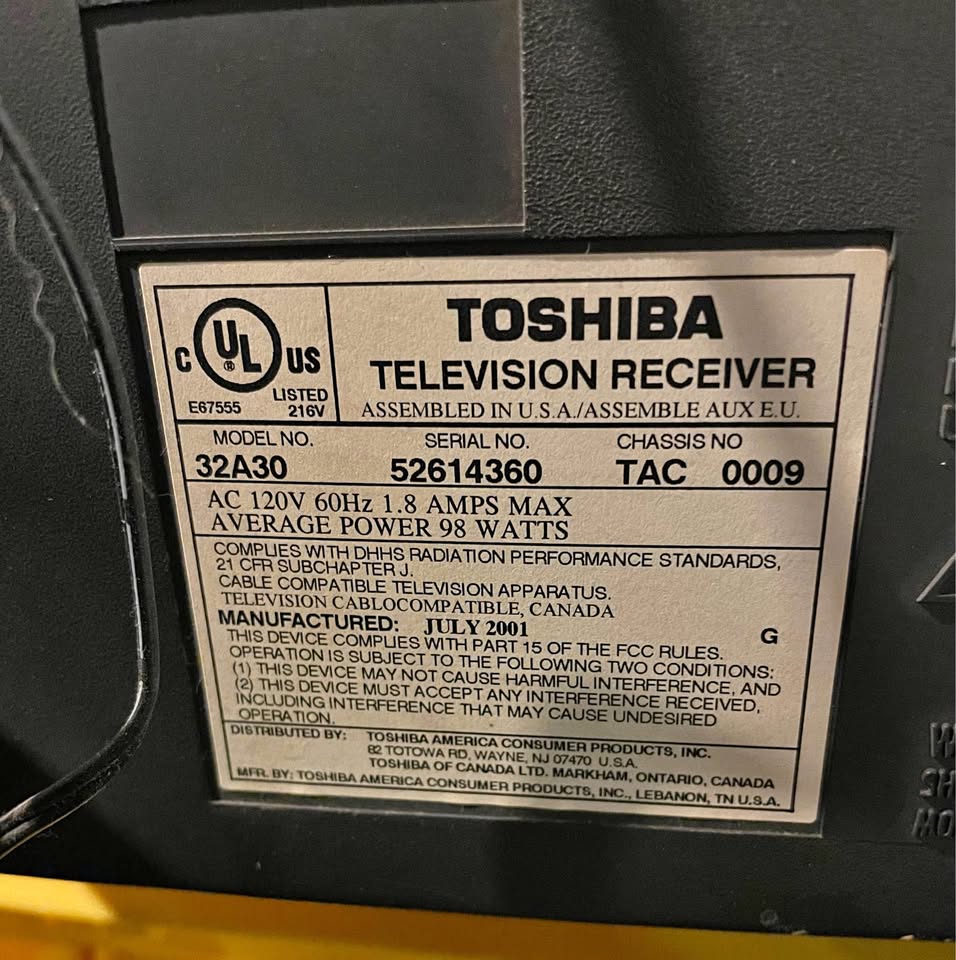

| Chassis: | TAC0009, N0ES |
| Weight: | 121.7 lbs (55.2 kg) |
| Dimensions (W/H/D): |
778 x 693 x 575 mm
(30.6 x 27.2 x 22.6") |
| Application: | Consumer |

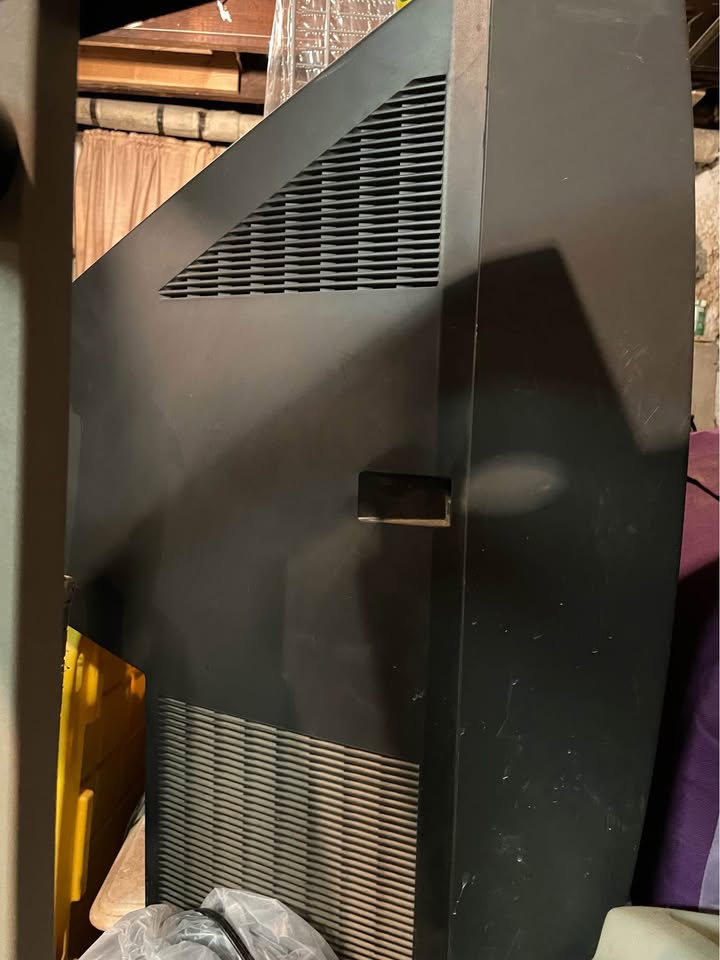

| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 579 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
