Summary

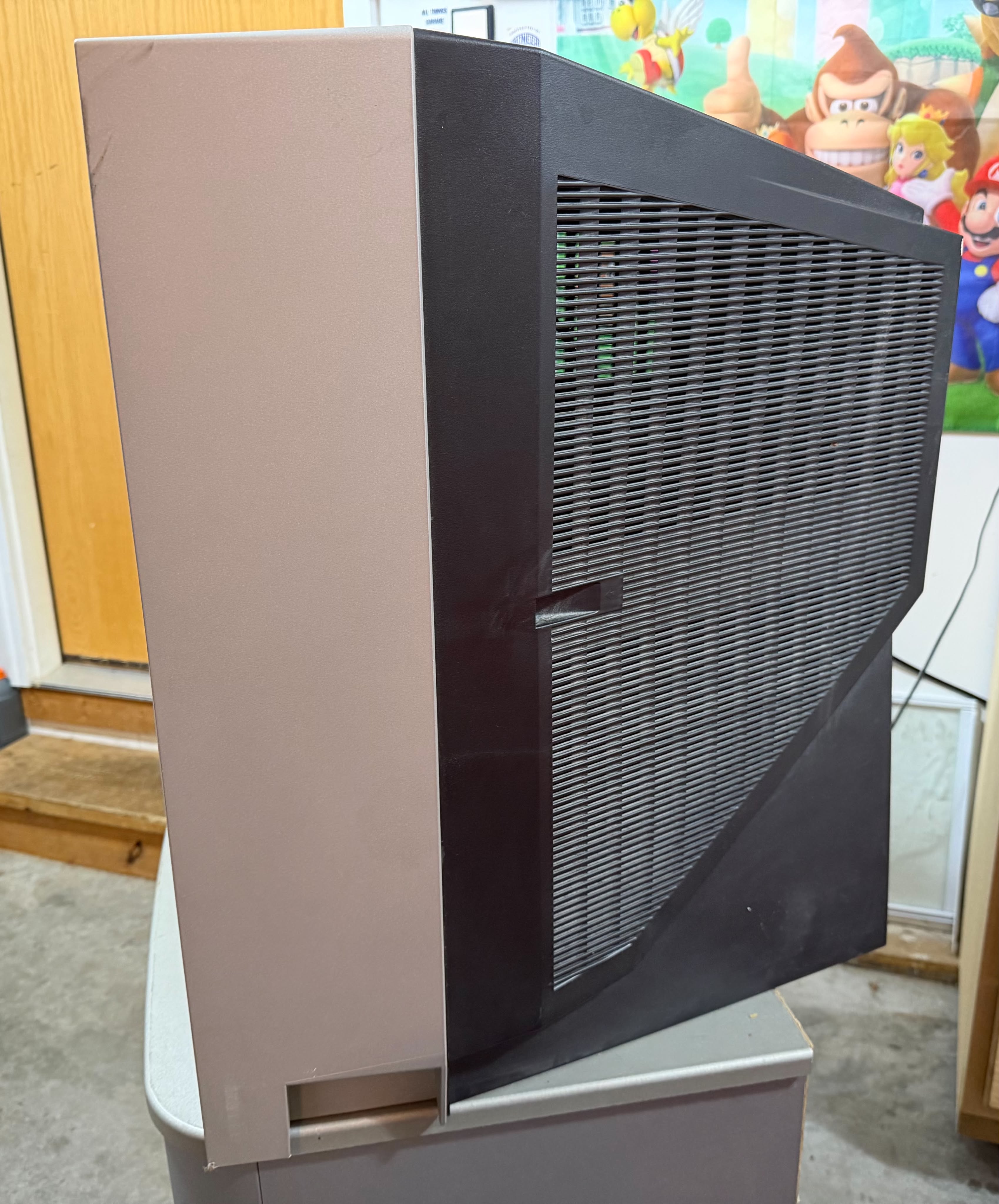

32" flatscreen CRT by Toshiba, originally manufactured by Toshiba in the USA. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to Brian Bovee for the pics!)
Manuals
Media & Promo Materials
Notes
This set has VM. To disable it, unplug the jumper connecting the yoke to the neckboard.

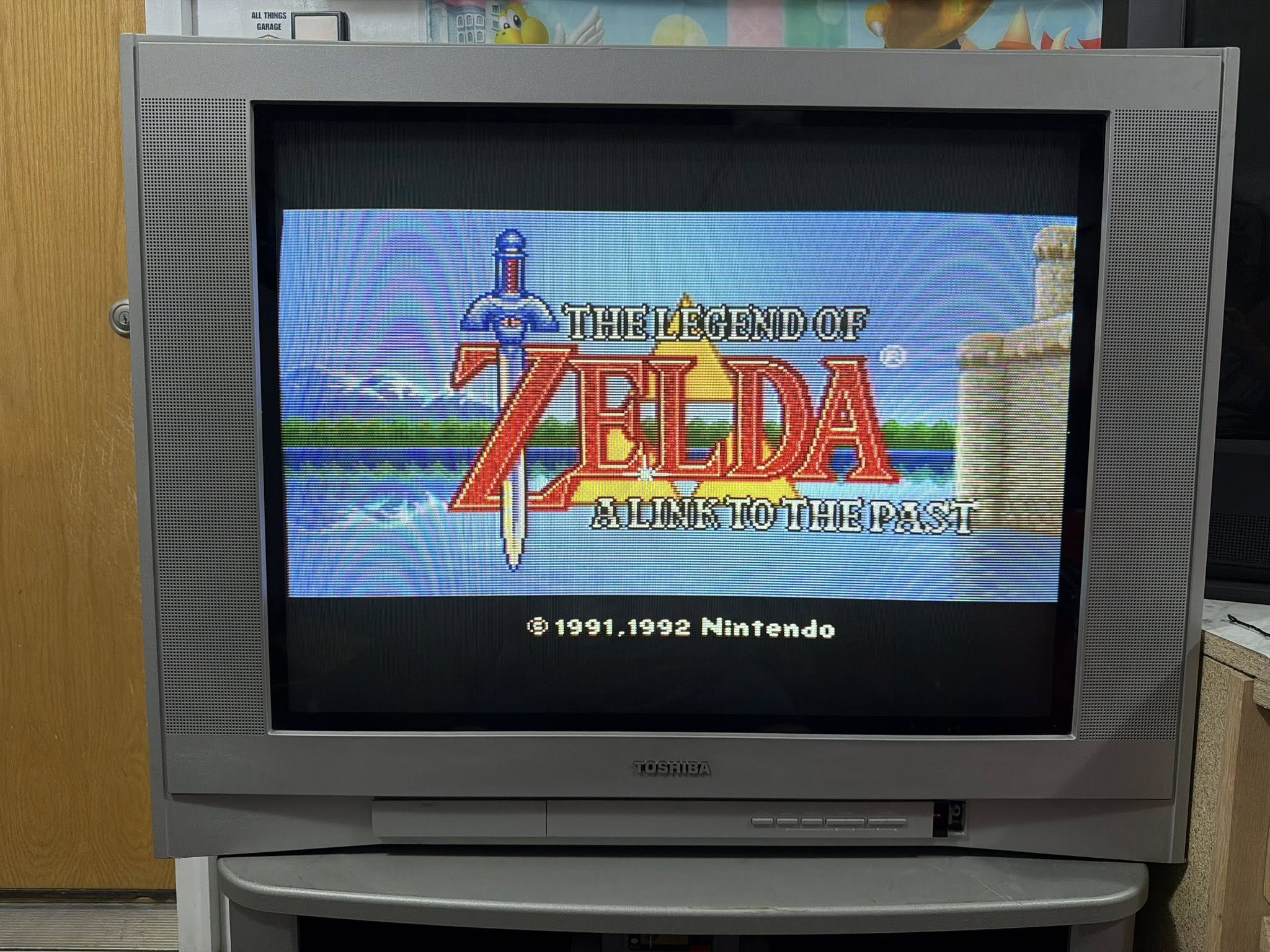

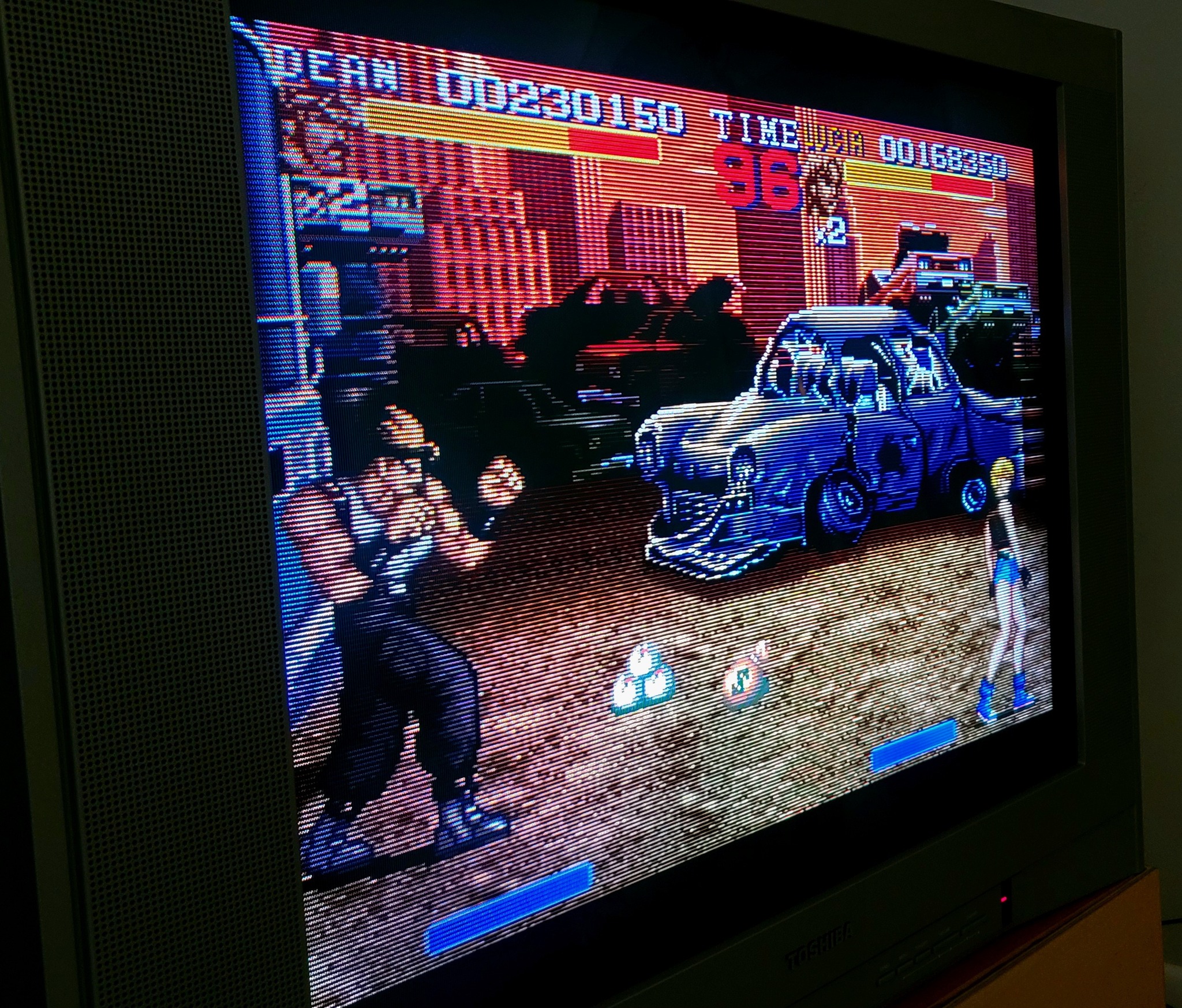

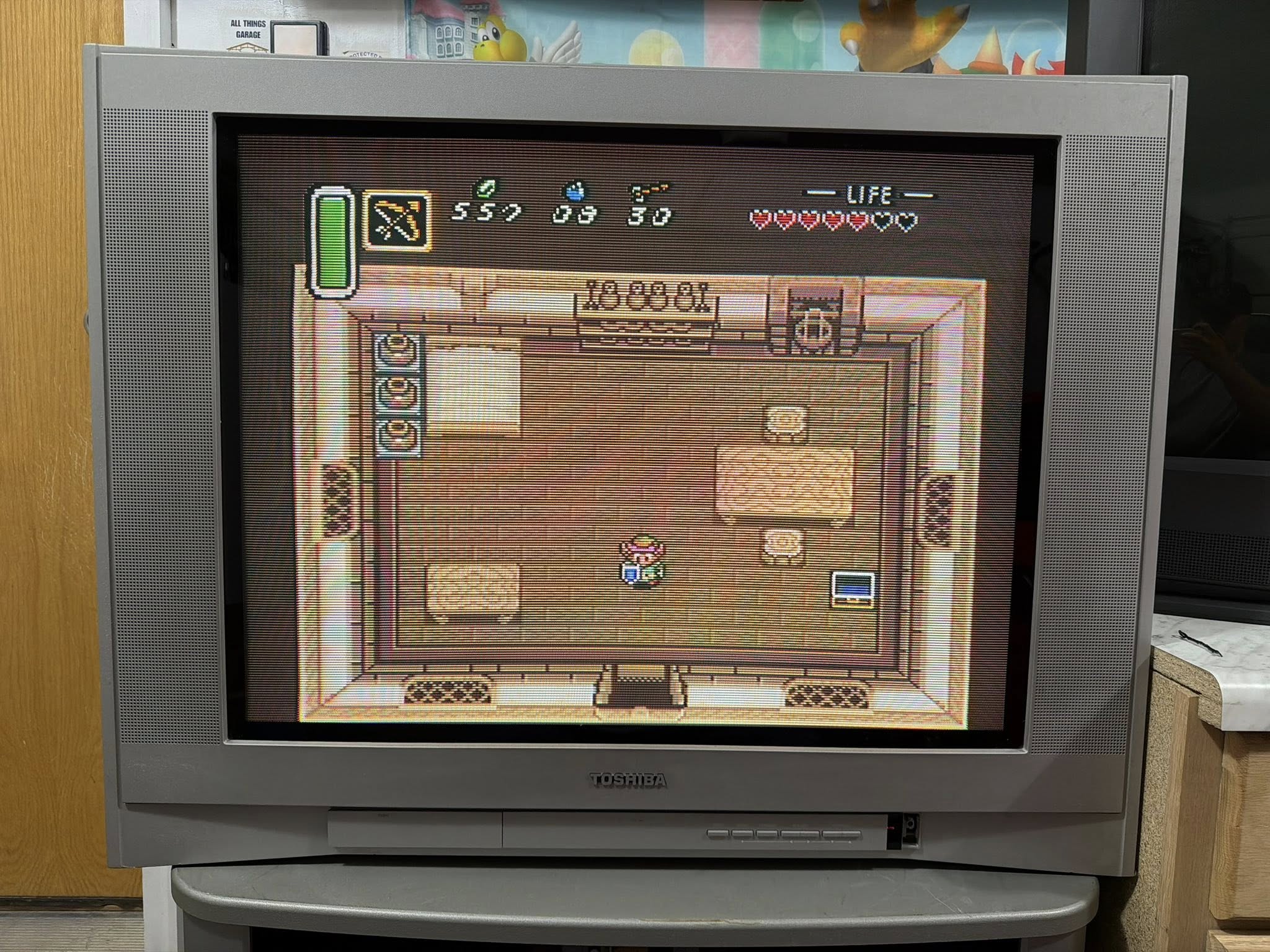

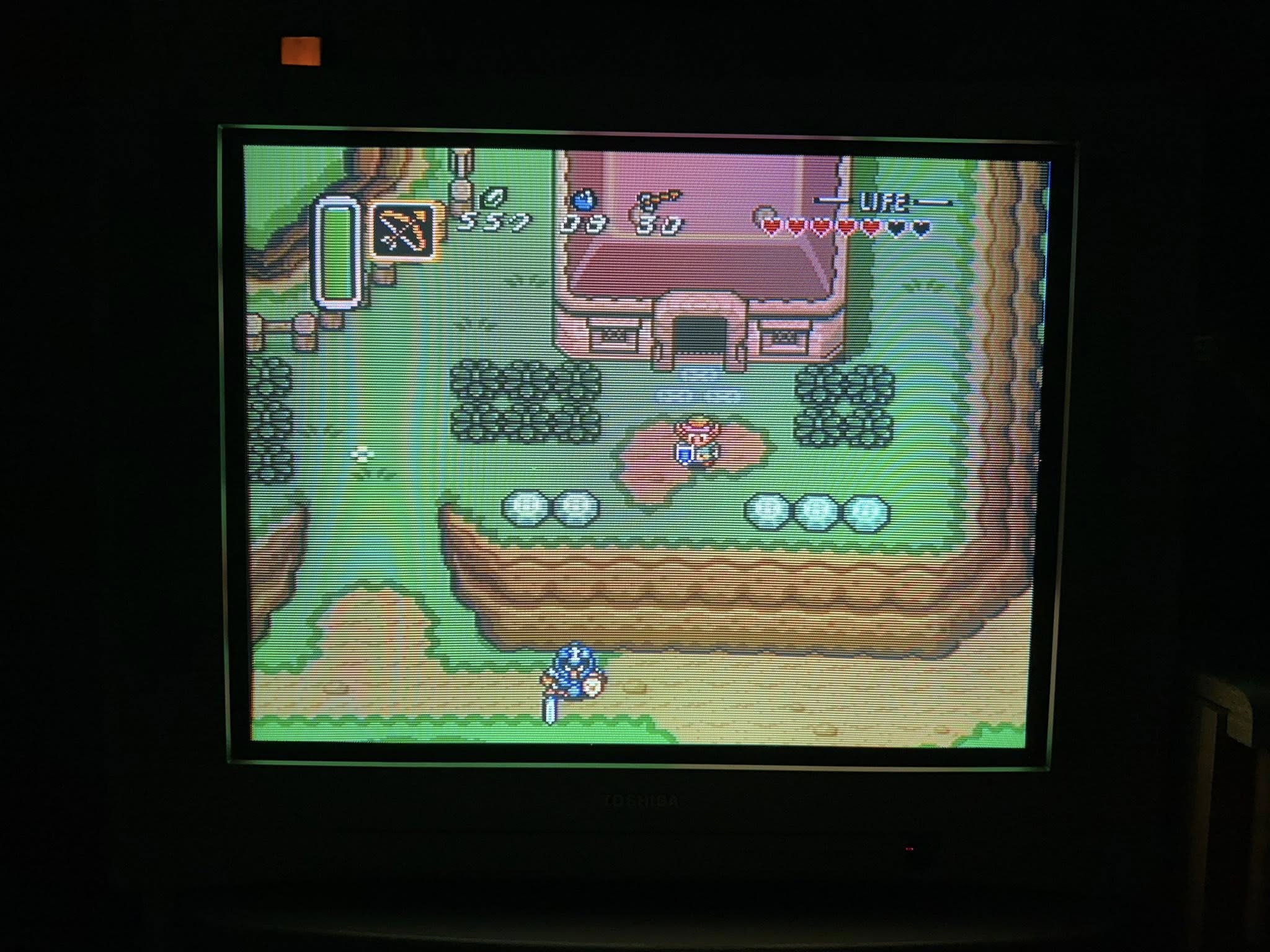

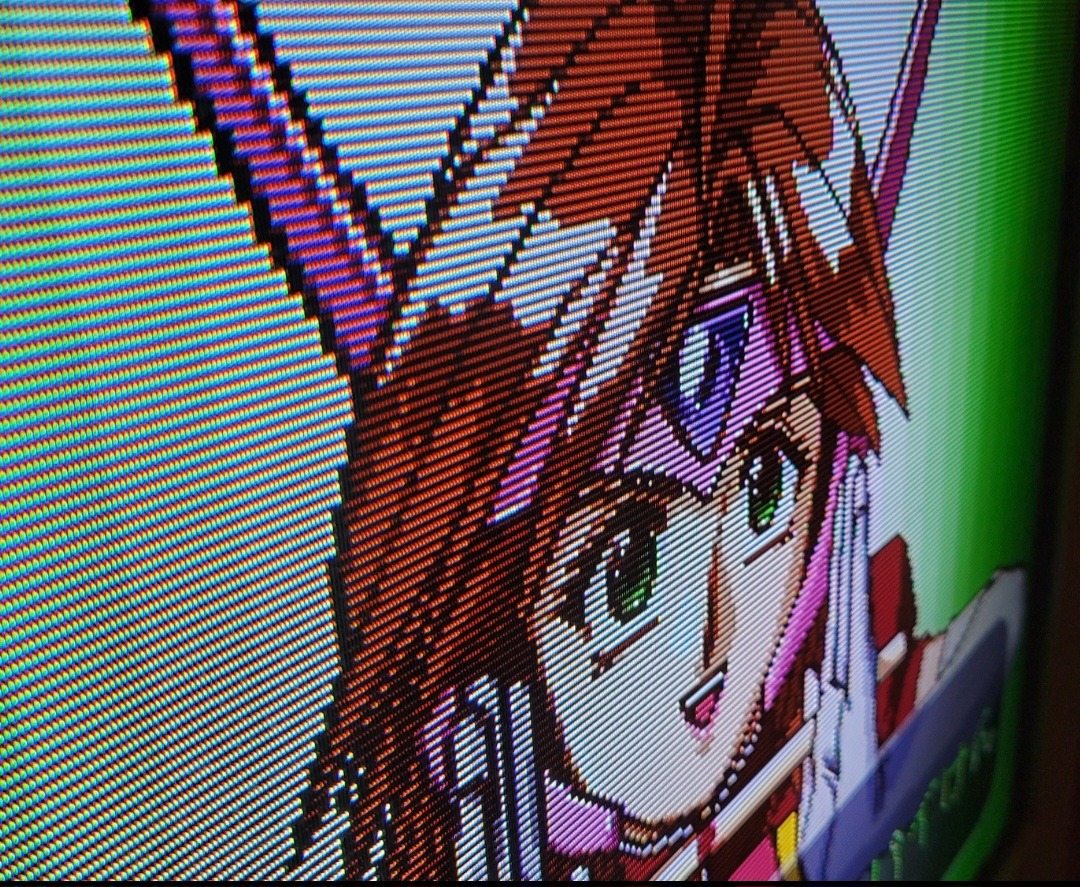

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | 32AF62 |
| Series: | AF |
| Viewable Size: | 32" |

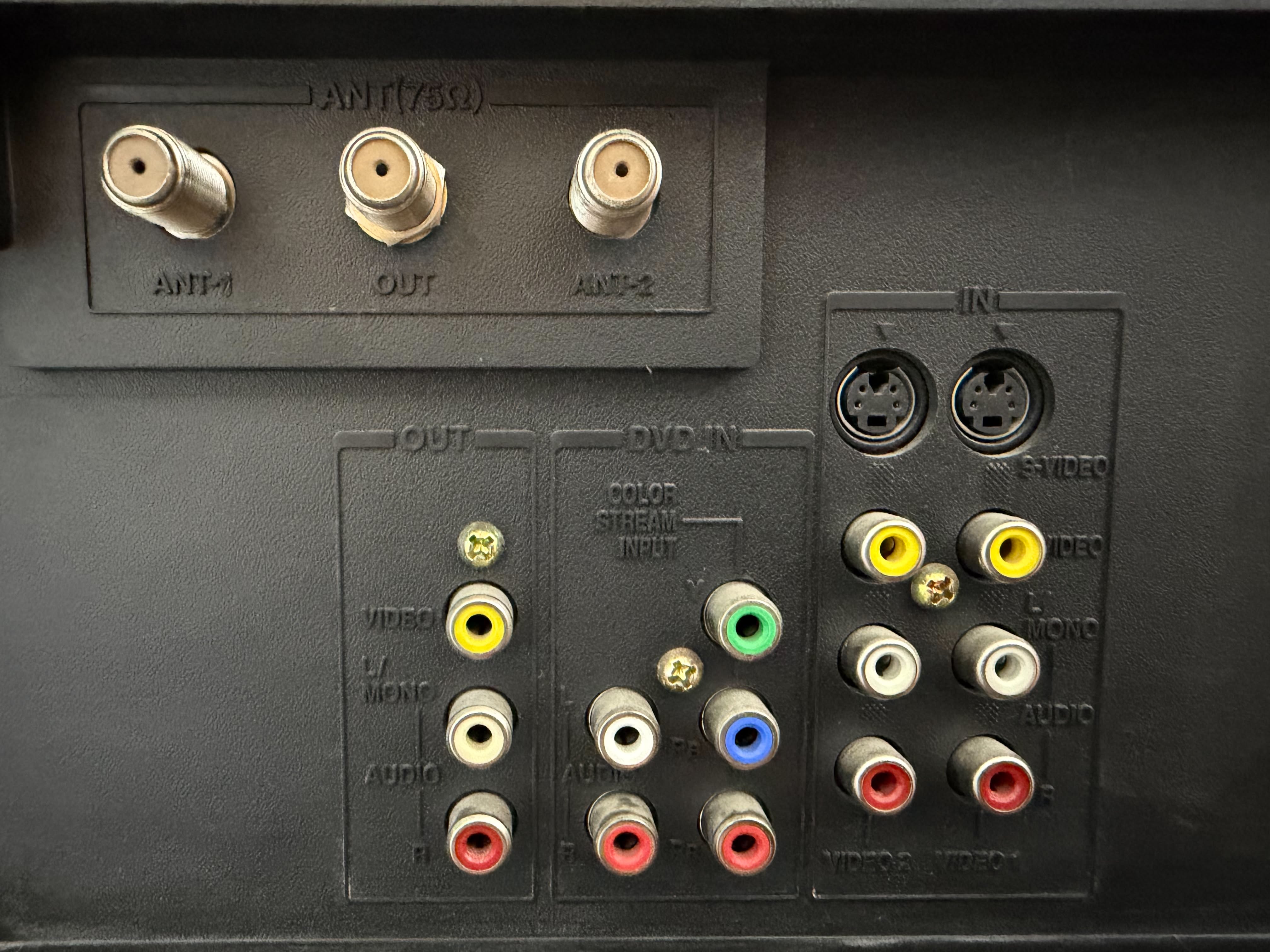

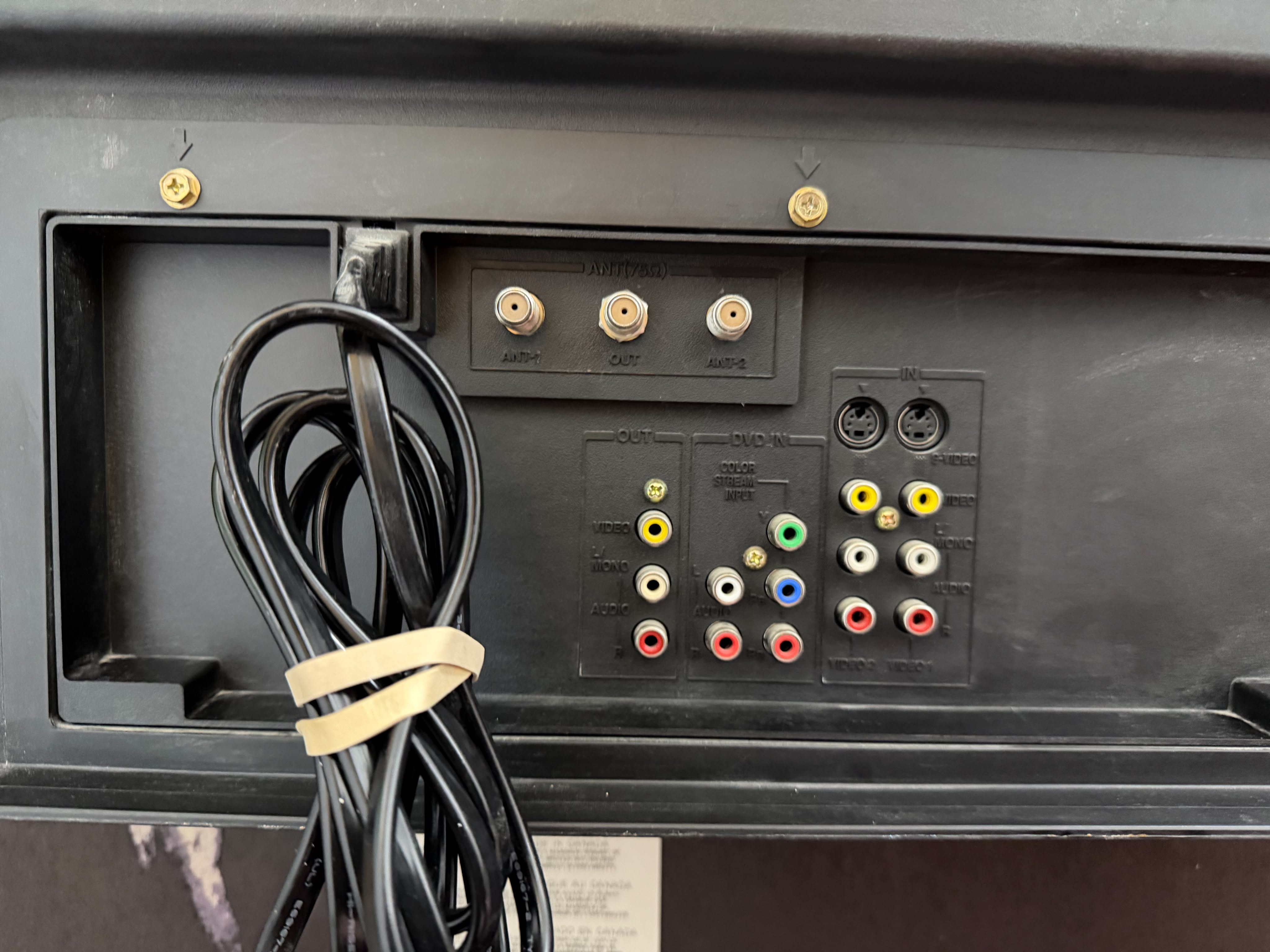

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7833S |
| Jungle IC: | Toshiba, TA1310, TA1310N |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A49P |
| Flyback: | TFB4172ZD |
| Focus Type: | Dual |
| Tube: | Toshiba , A80AJZ90X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Remote: | CT-9946 |

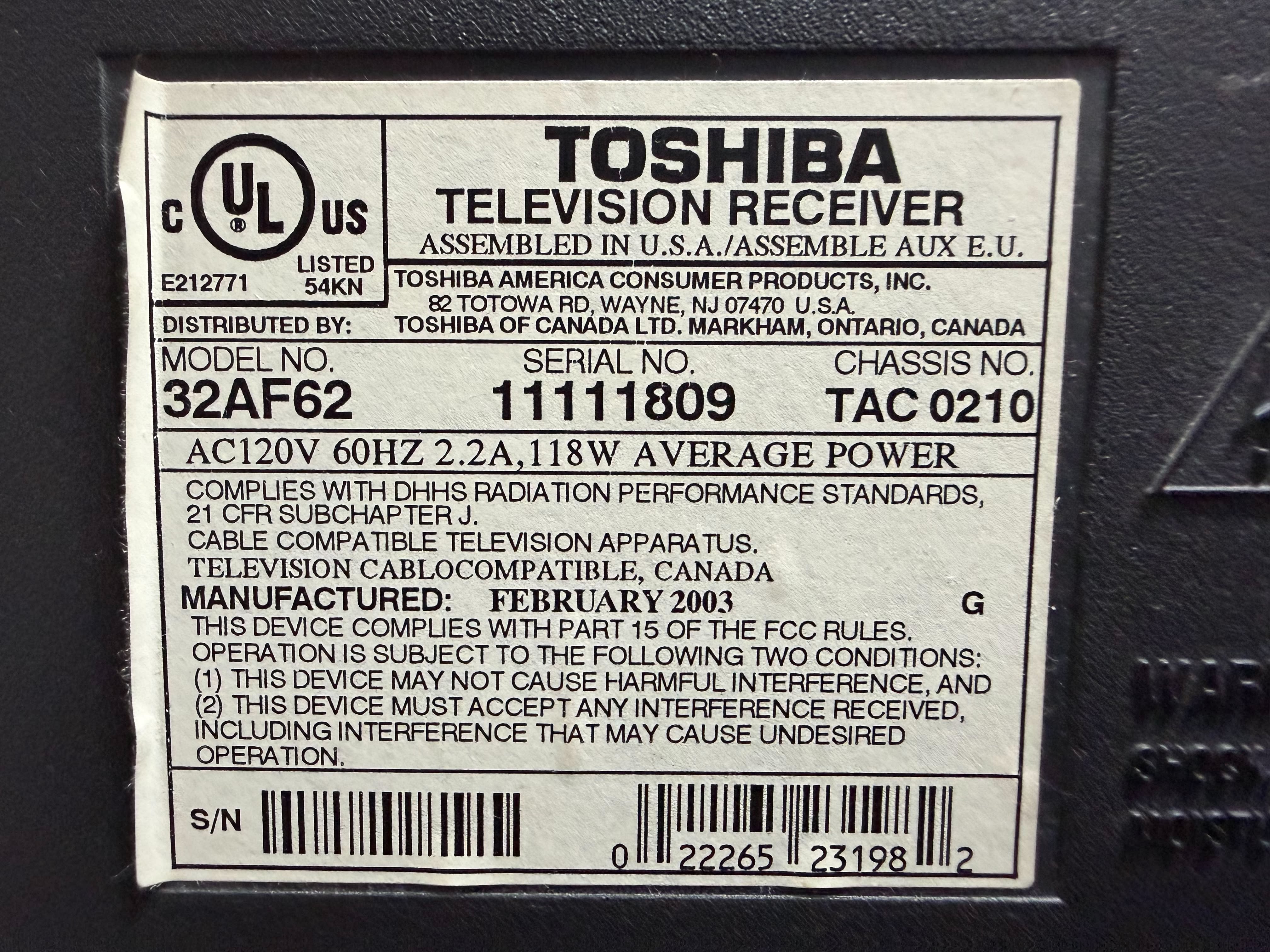

| Chassis: | N2F, TAC0210 |
| Weight: | 147 lbs (66.7 kg) |
| Dimensions (W/H/D): |
876 x 673 x 575 mm
(34.4 x 26.4 x 22.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 949 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, ST3262 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
