Summary

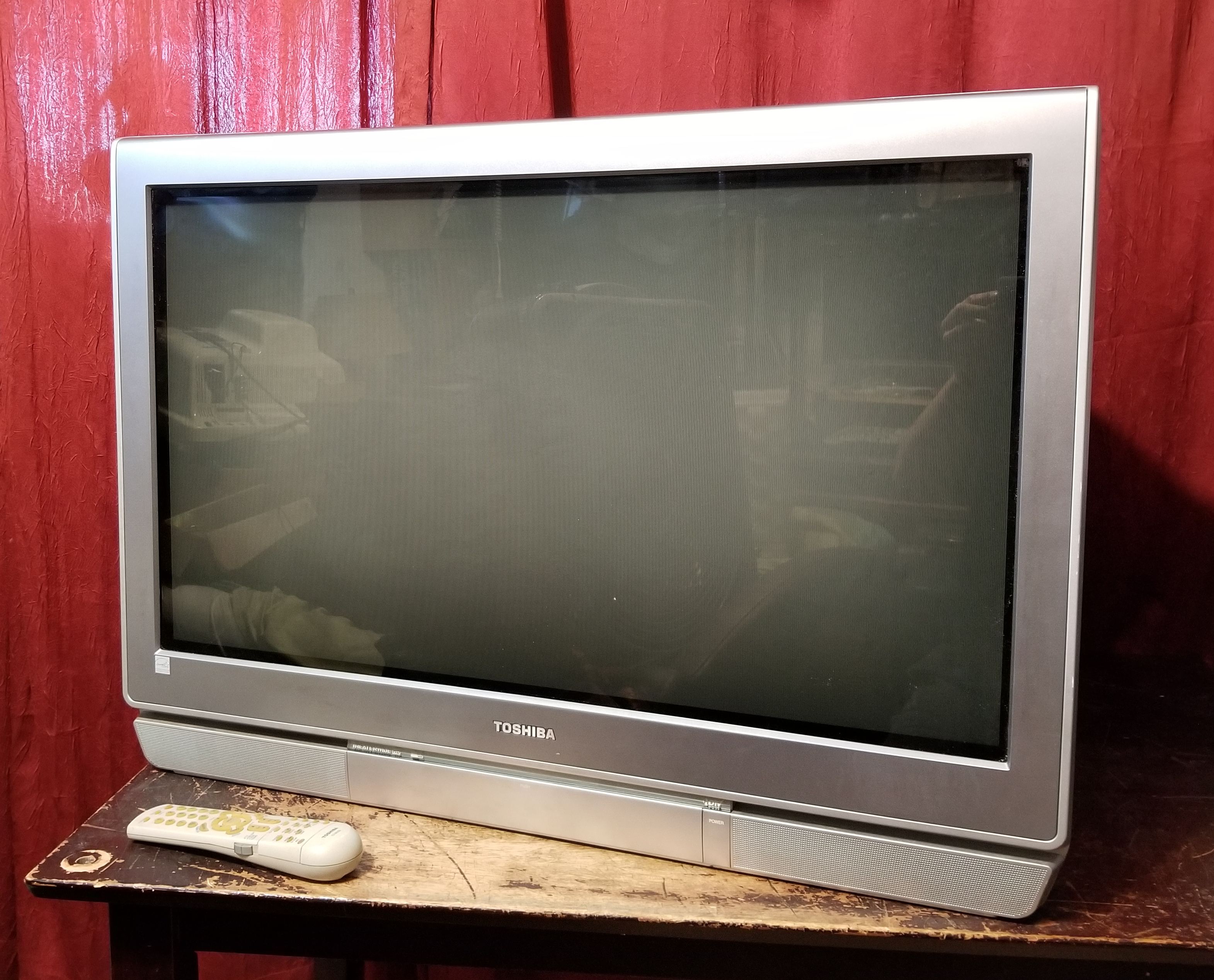

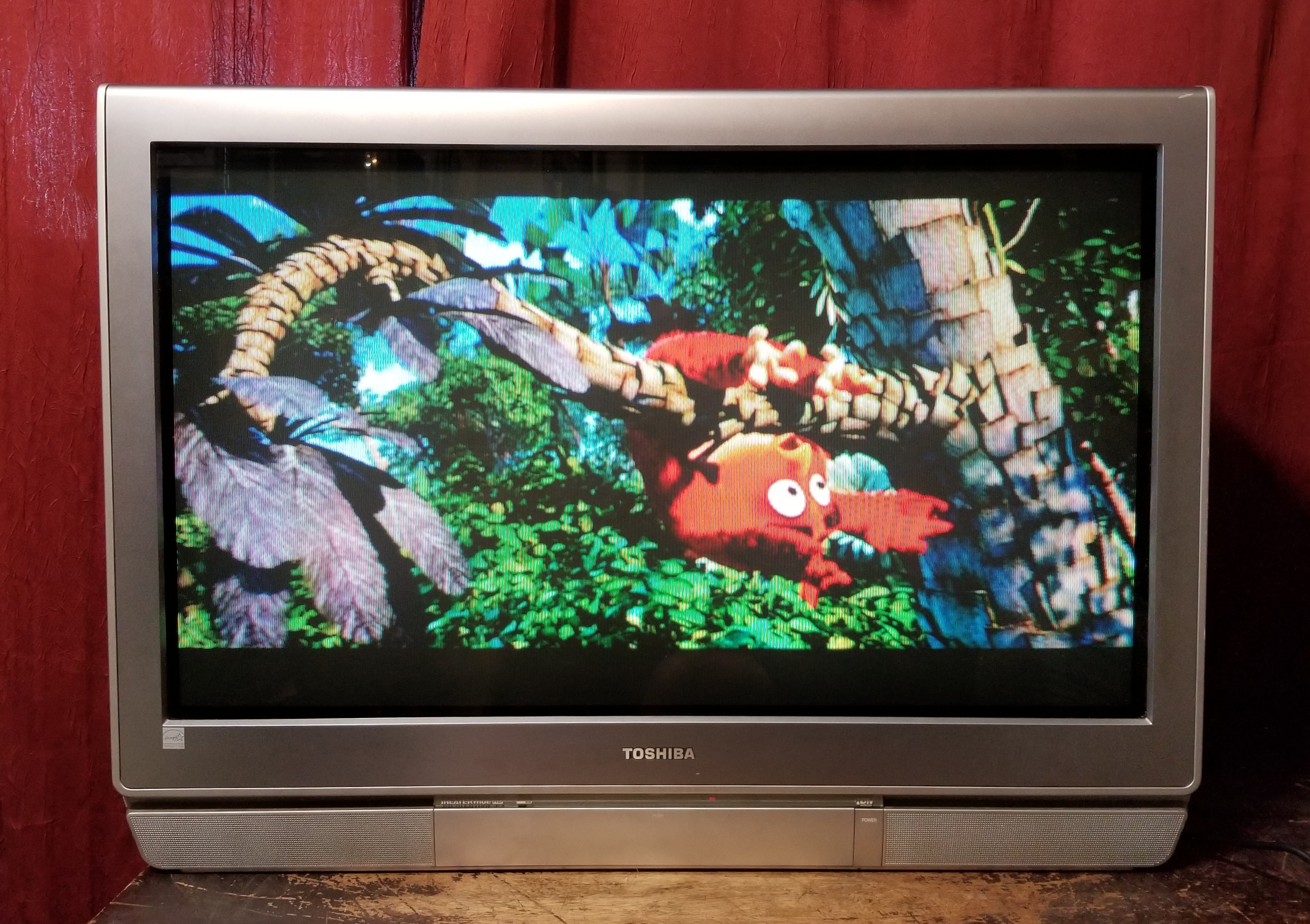

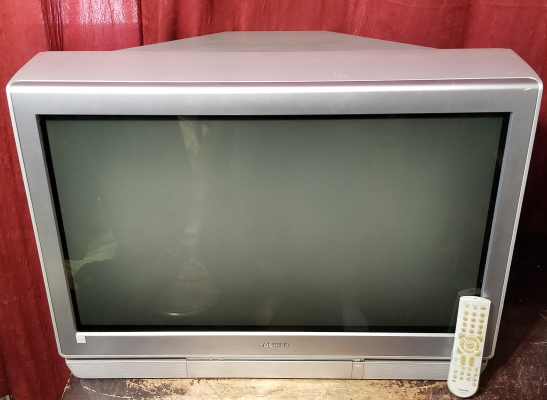

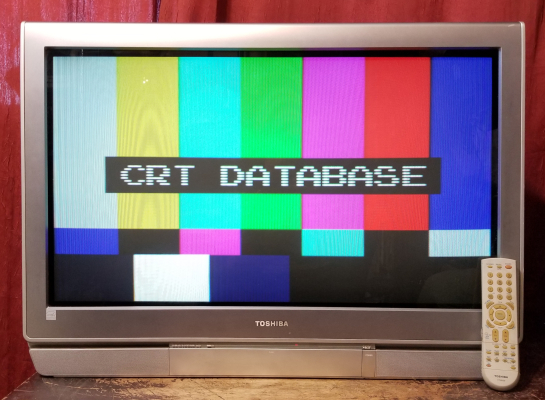

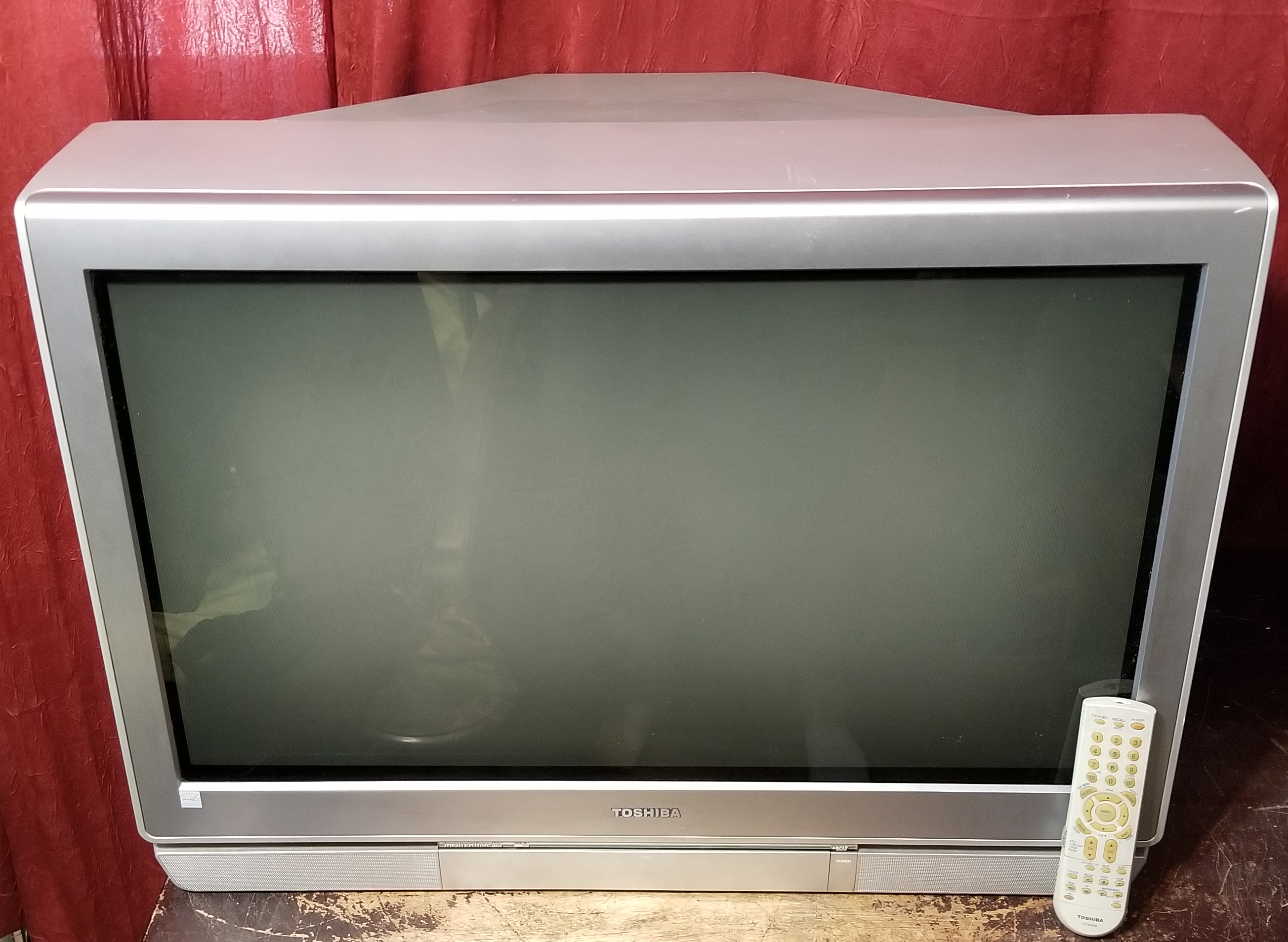

The 34" 34HF84 is truly a 21st-century display, able to produce crisp, clear, punchy images from a variety of video sources. This sleek model houses a 16:9 version of the FST PURE® flat picture tube — Toshiba's best. It's designed for optimum viewing of DVDs and High-Definition TV.

Manuals

• User Manual
• Service Manual
• Spec Sheet

Media & Promo Materials

• Toshiba Product Page
• Consumer Reports, March 2005
• Crutchfield Product Page
• Sears Canada Wish Book 2004
• Mentioned in PC World December 2004, p. 149

Notes

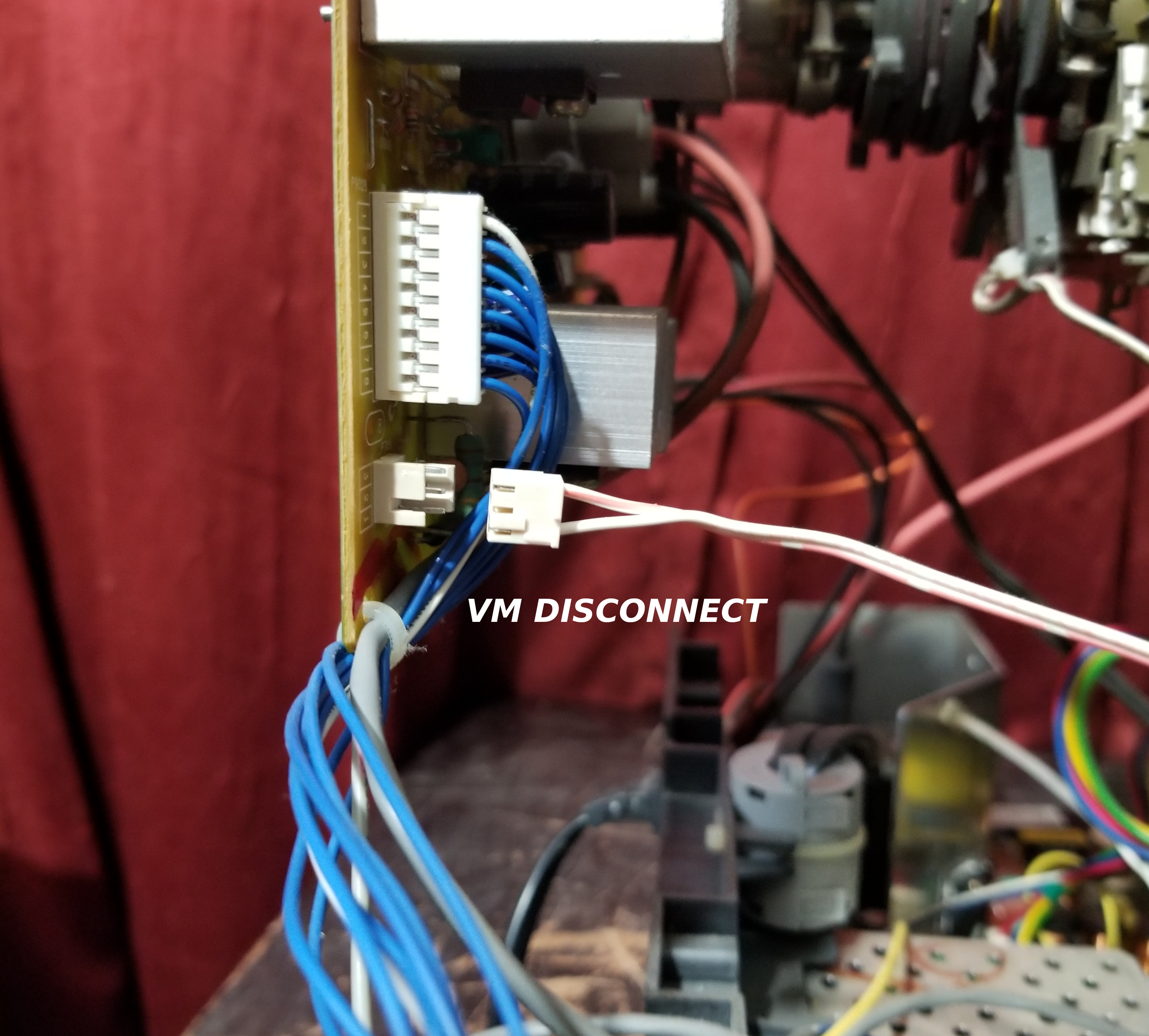

To disable velocity modulation, unplug the three-prong two-wire connector from the neckboard, P705. See gallery for detail picture of connector.

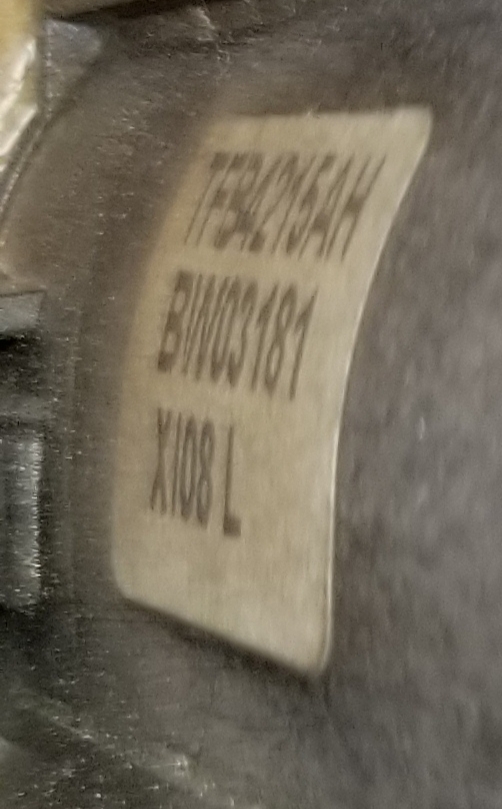

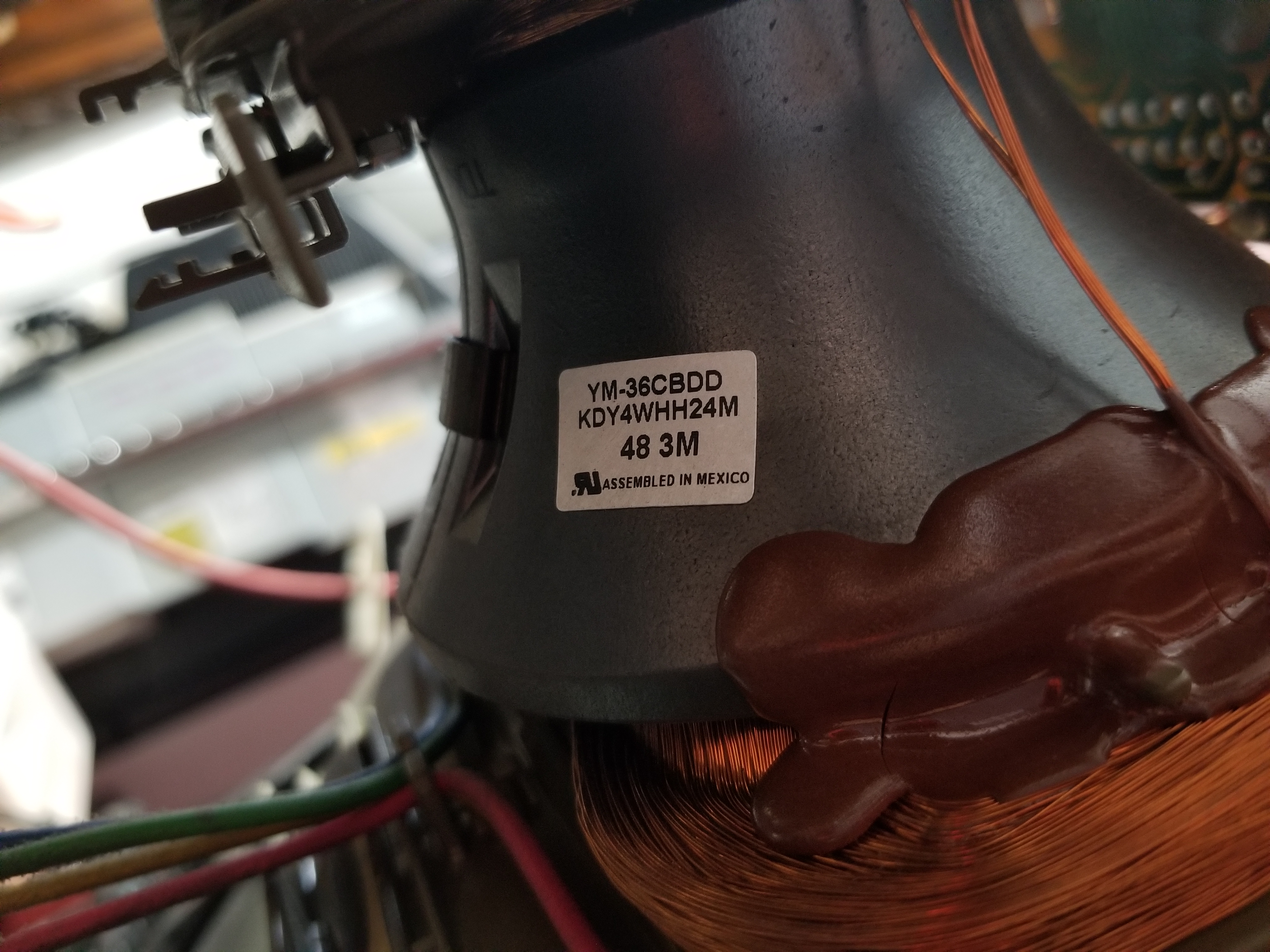

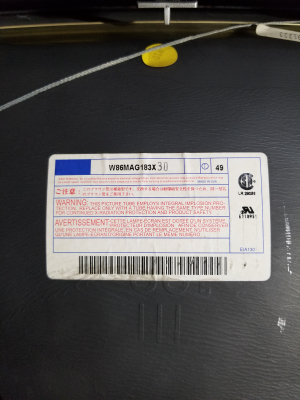

The same tube/toke is used in the 34HFX84.

Repair Notes

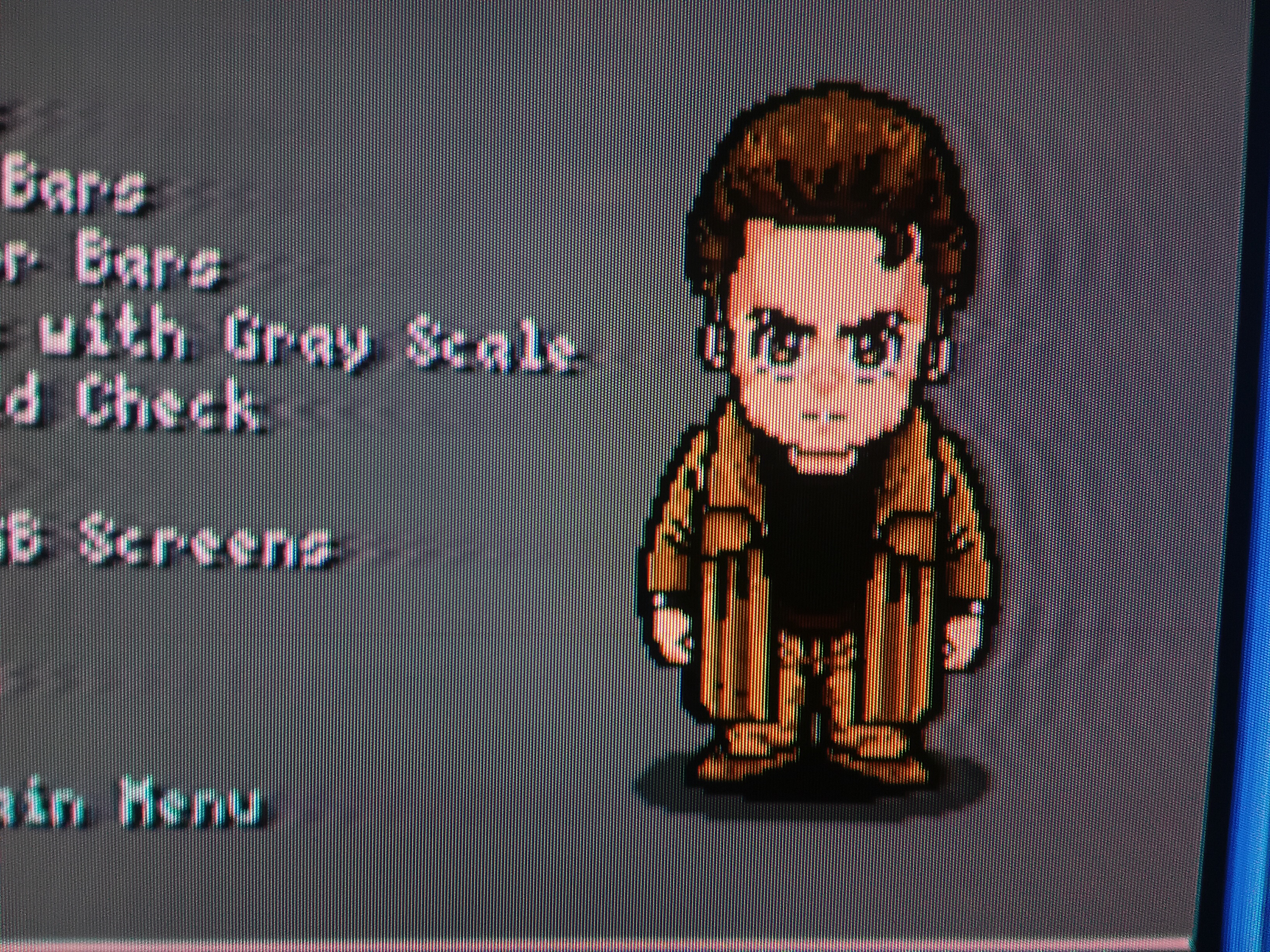

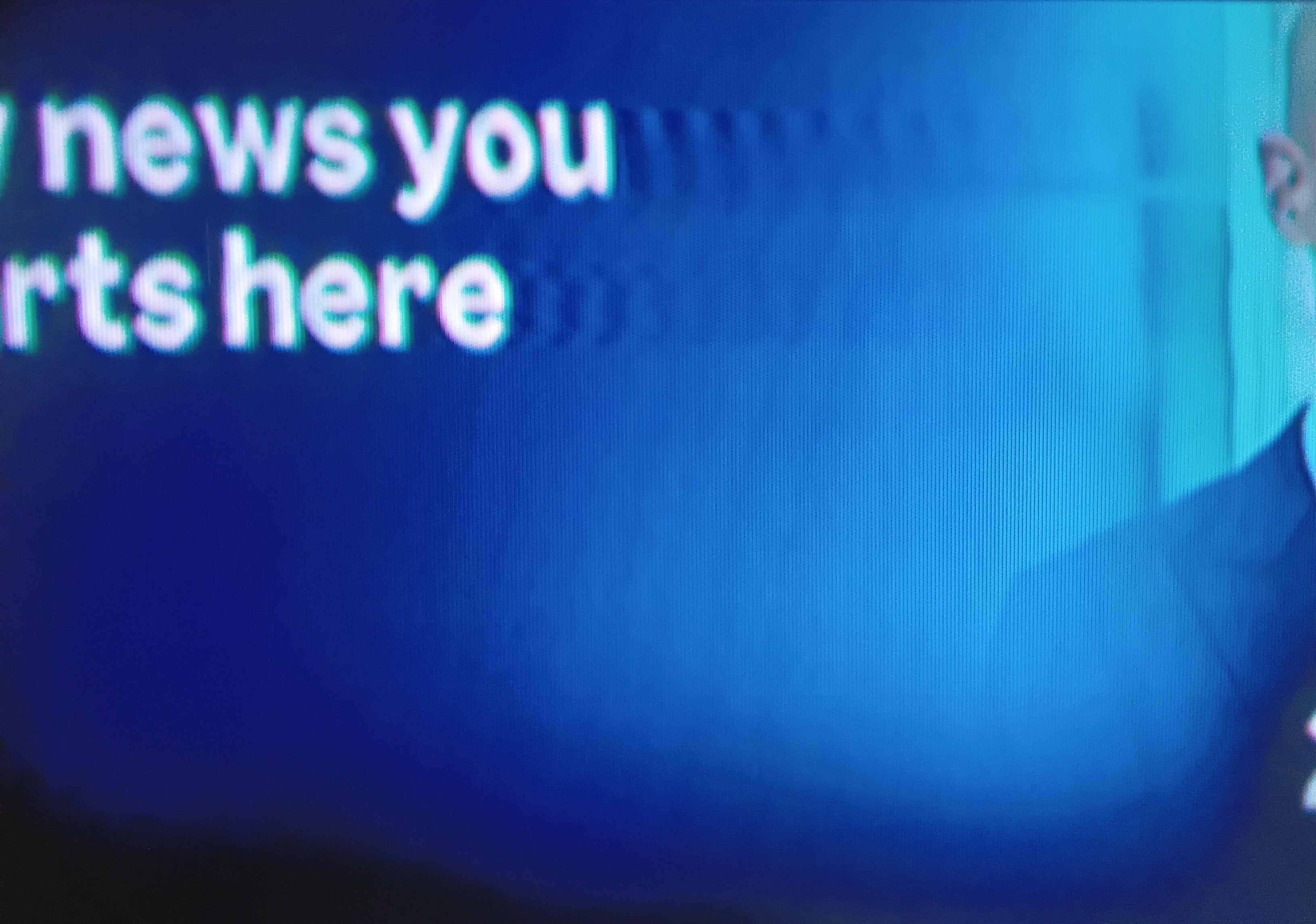

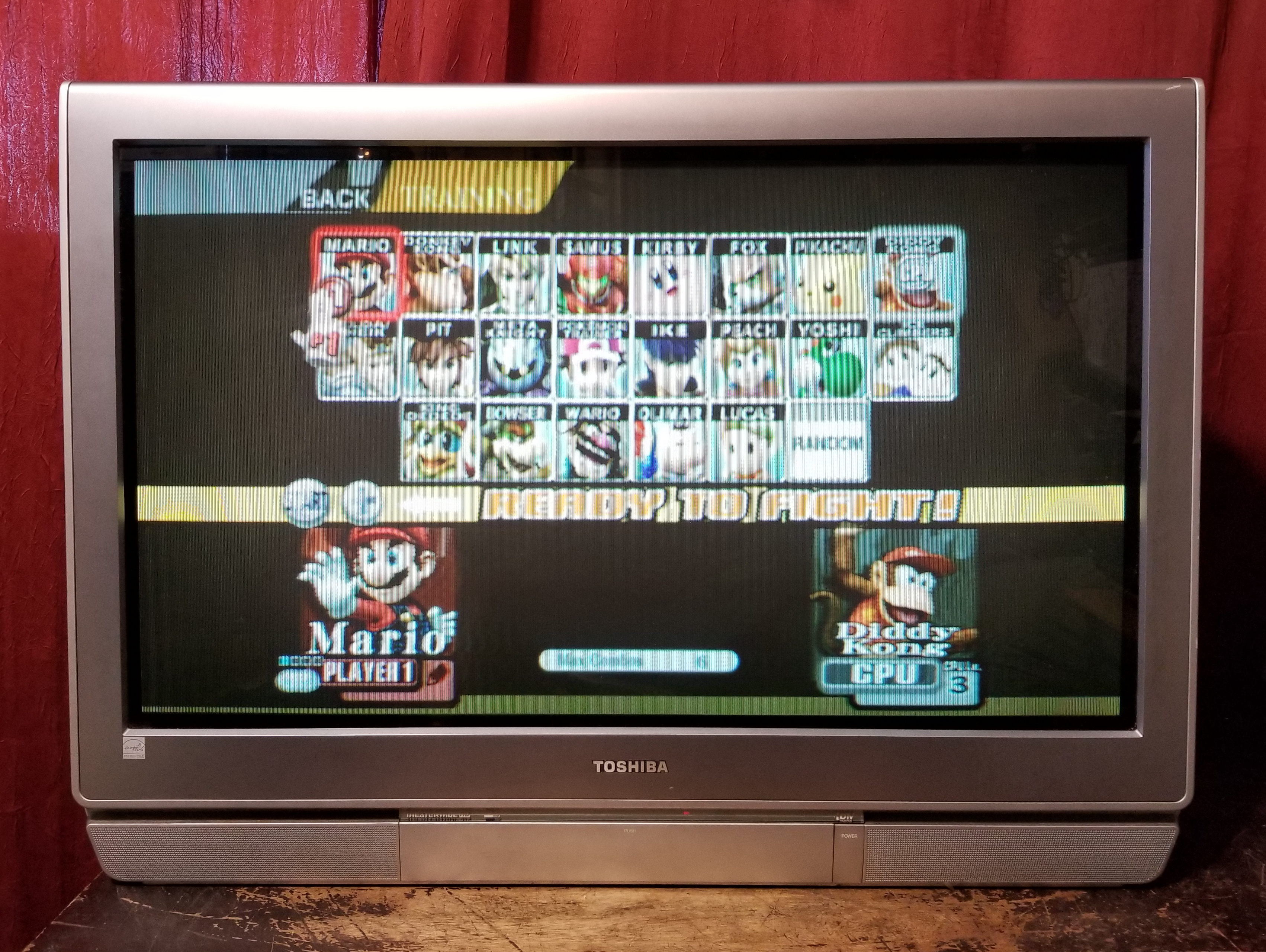

One unit had egregious visual ringing on all inputs as well as the OSD, appearing like a repeating shadow to the right of high contrast edges (see pictures at the end of the gallery), and some other visual noise.

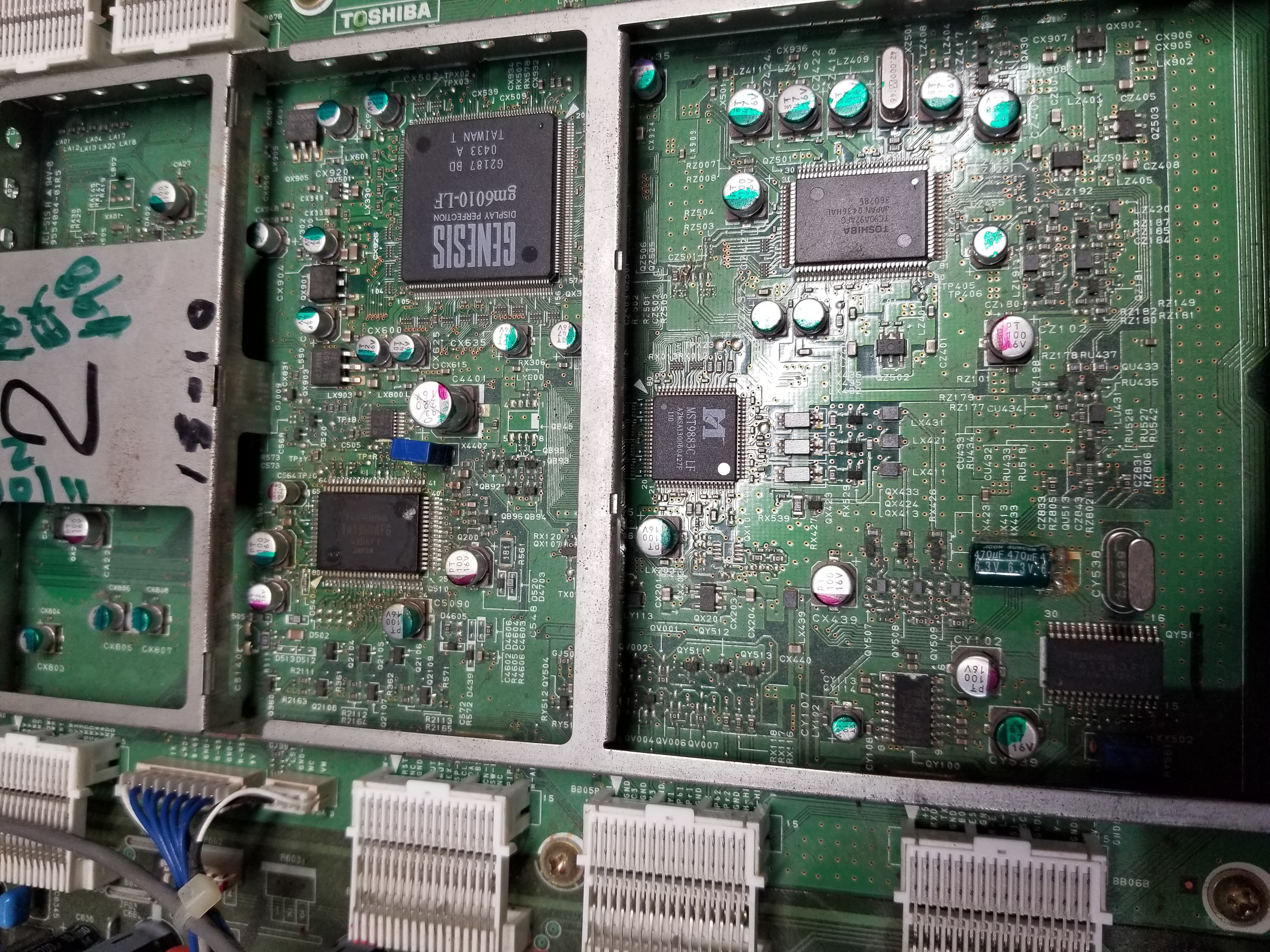

Having ESR-checked all of the electrolytics on the power/deflection board and neck board, none of them tested bad. Seven polymer caps were open or very high ESR on the color decoding board (which has the jungle chip and the Genesis chip). Replacing these seven polymer caps had no effect on the ringing issue. See picture in gallery of polymer caps marked pink for bad and green for good (one is marked with both colors for being questionable).
