Summary
Oddball-sized 35" flat CRT by Toshiba. Has a full set of inputs: RF, composite, s-video, and component. Made in the USA in 2004, one of the very last true Toshiba-made sets.
(Special thanks to Michael Turney for some of the pics!)
Manuals
- User Manual
- Brochure / Spec Sheet
- Service Manual (32" model)
- Service Manual Addendum (Parts Differences)
Notes
To disable VM, disconnect the jumper connecting the yoke to the neckboard inside the set.
This set uses an oddball size for a flat tube, being 89cm. The only other set that I know of that uses this tube is a Sharp 35UF6.

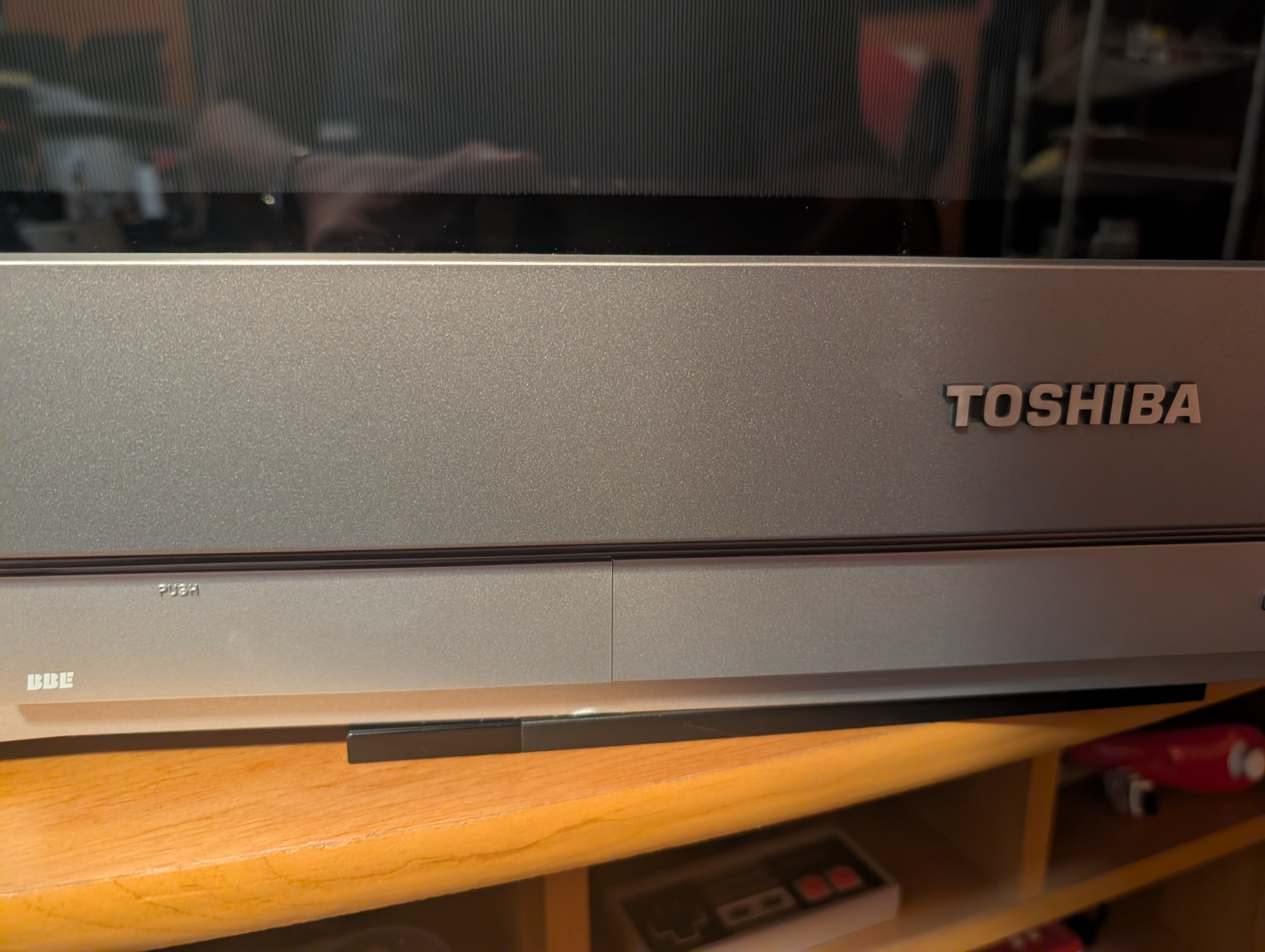

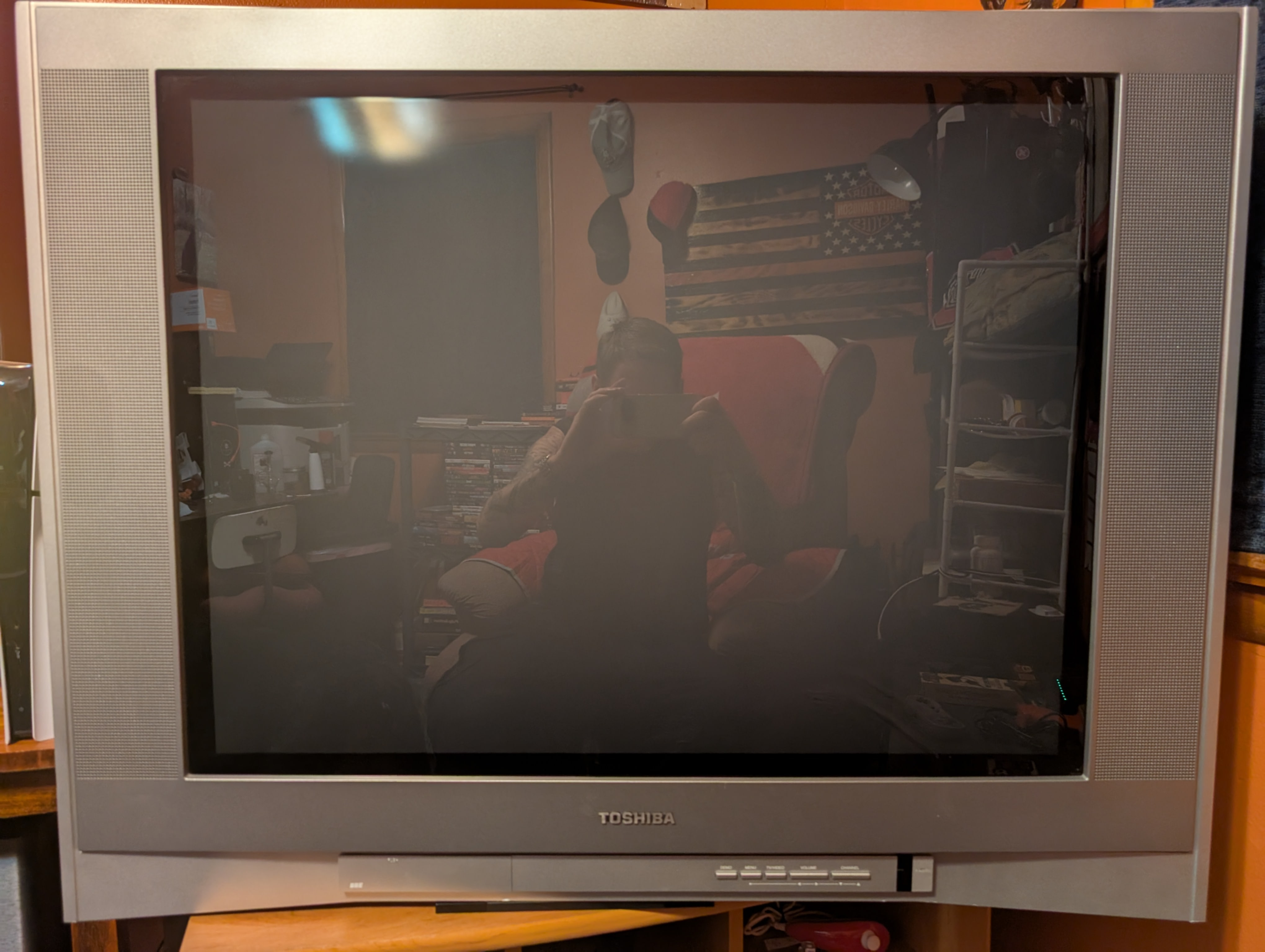

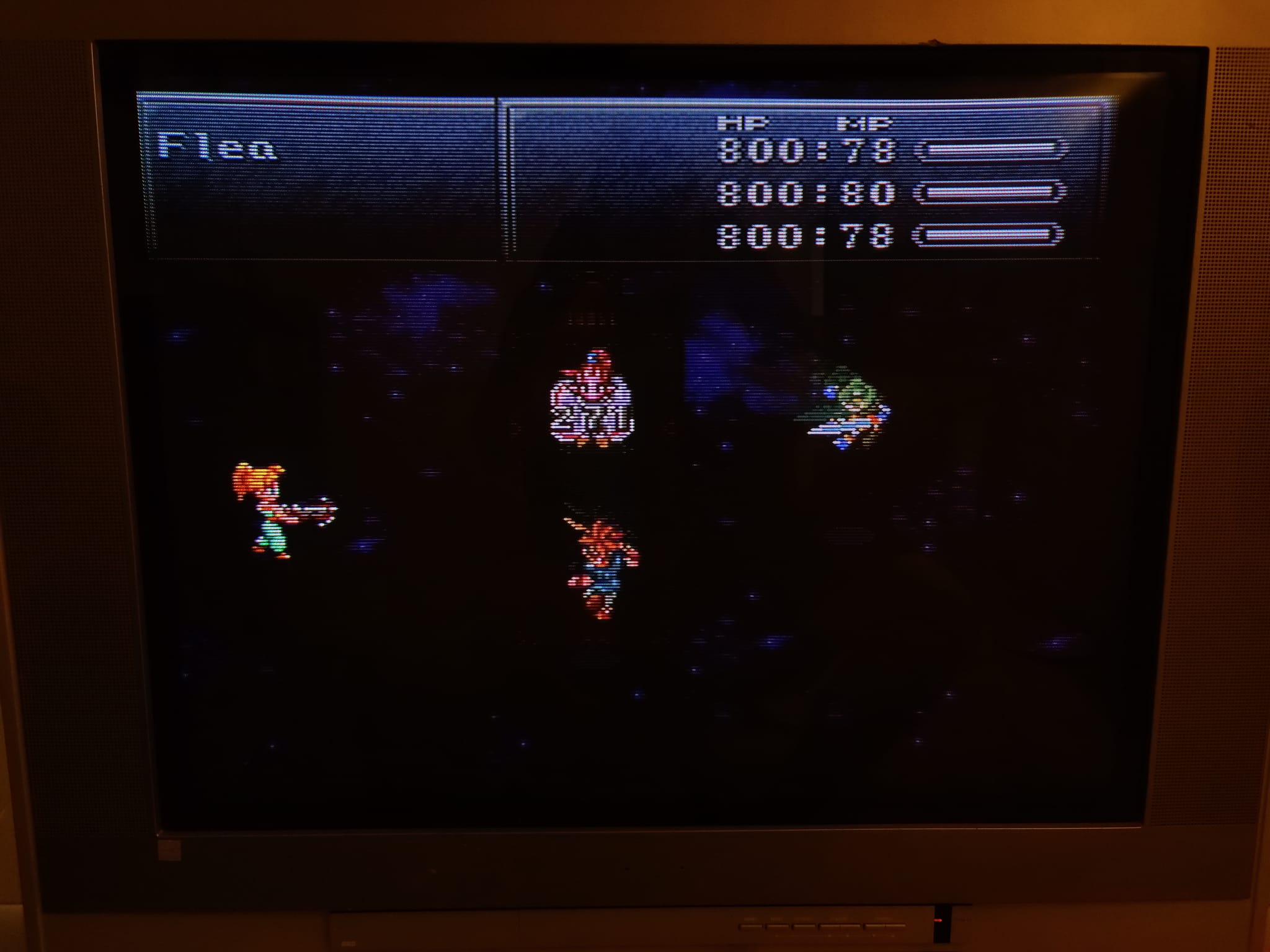

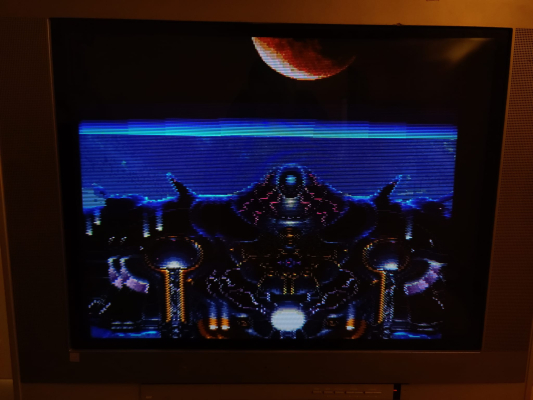

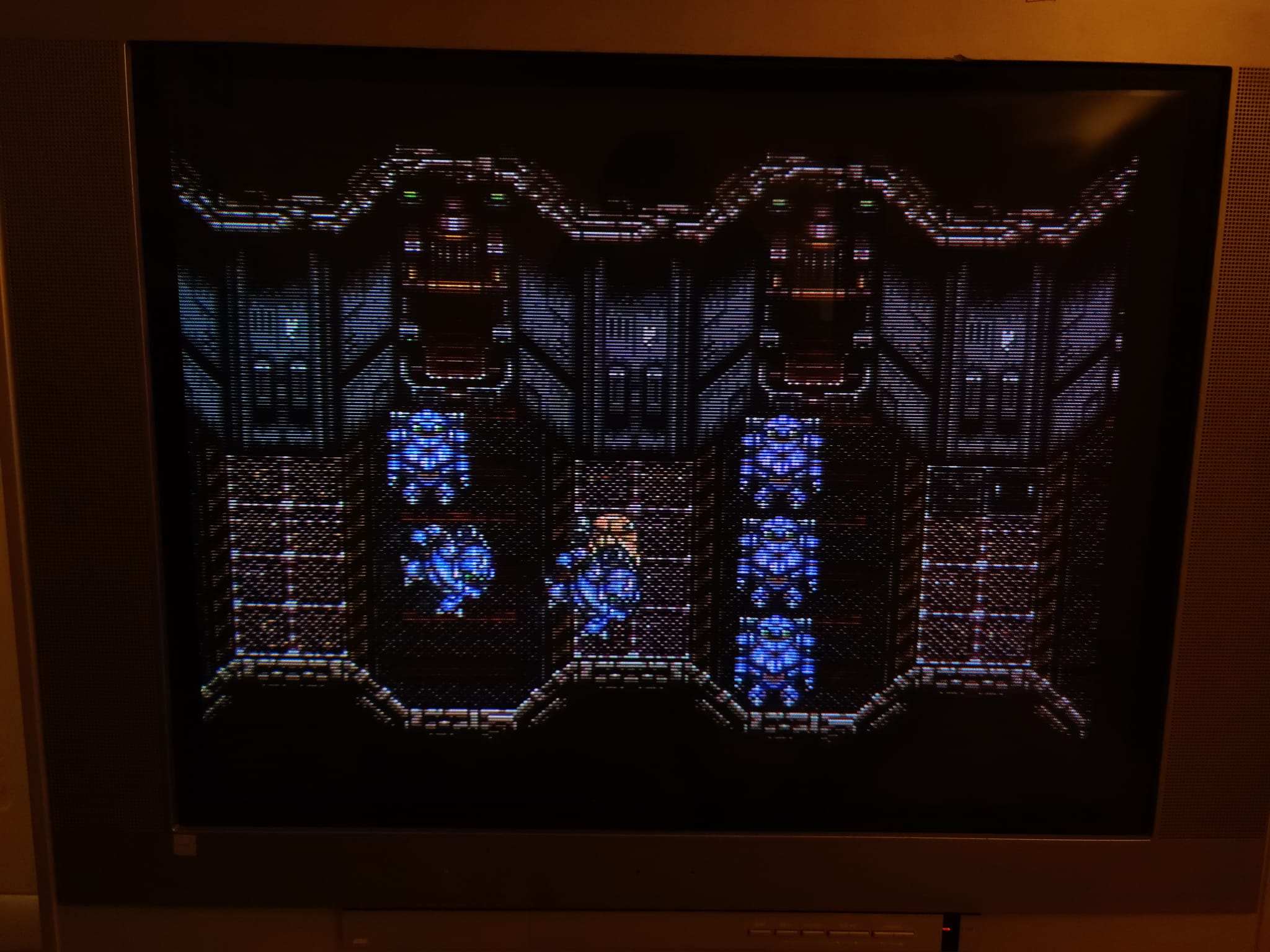

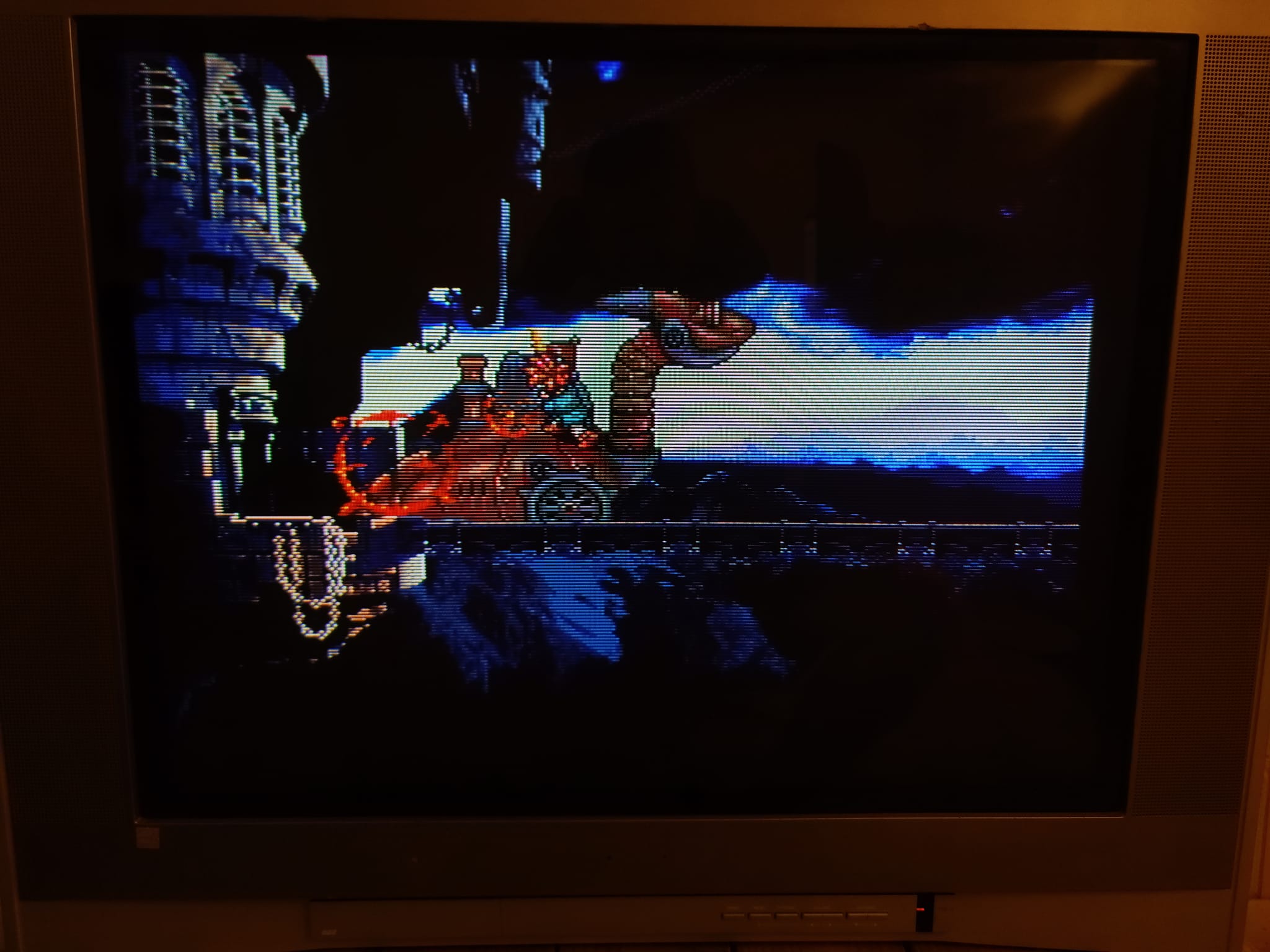

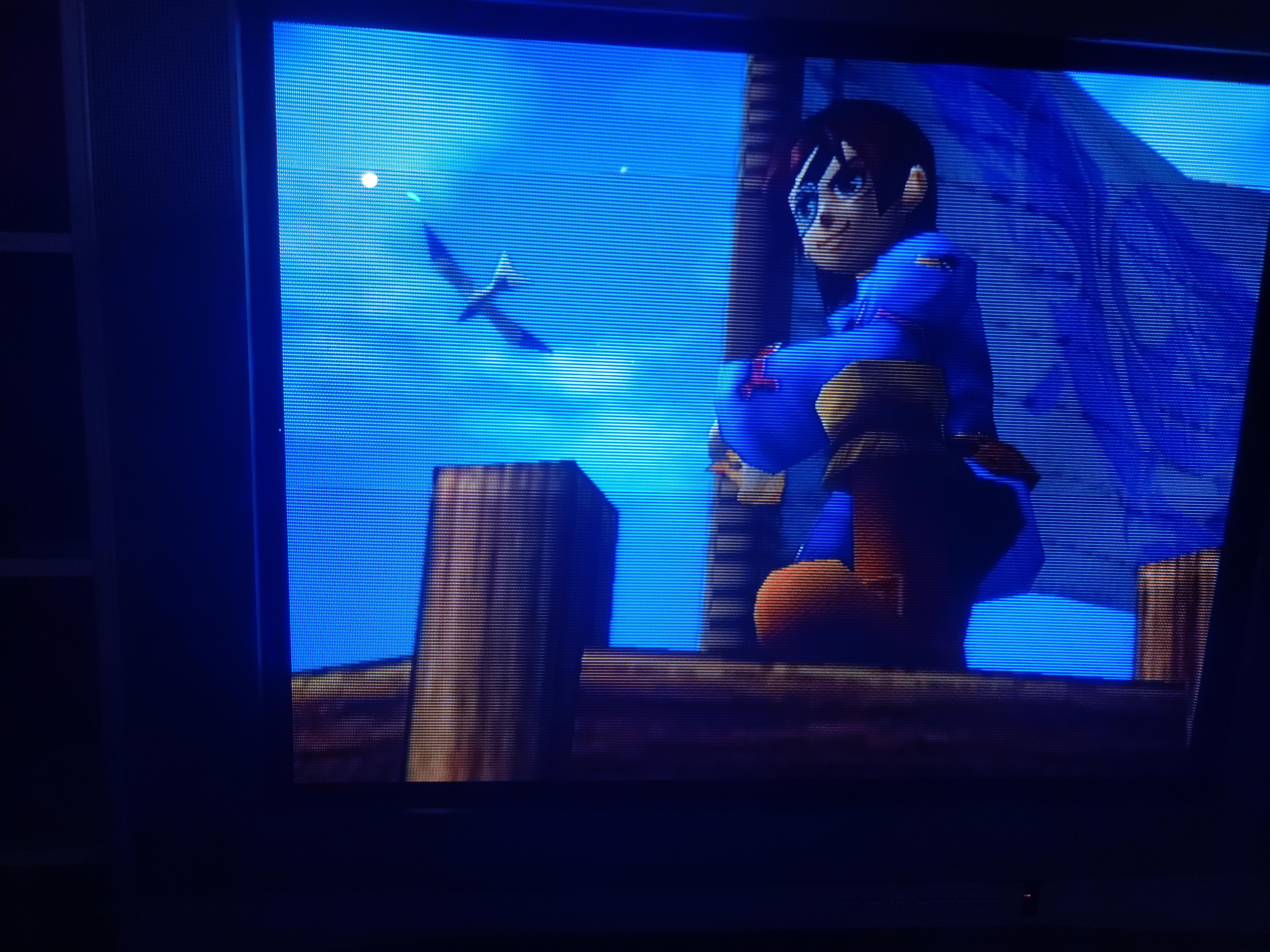

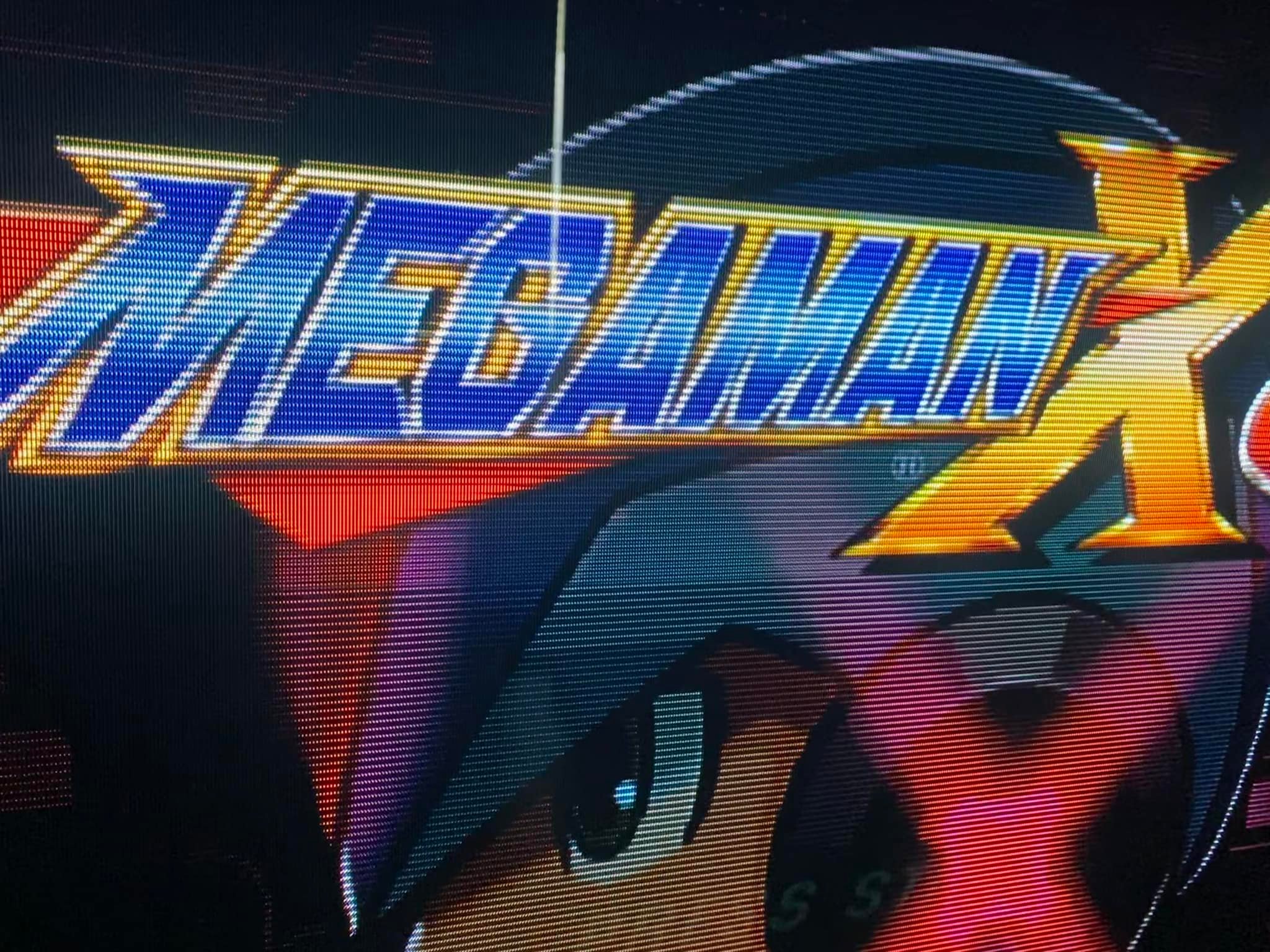

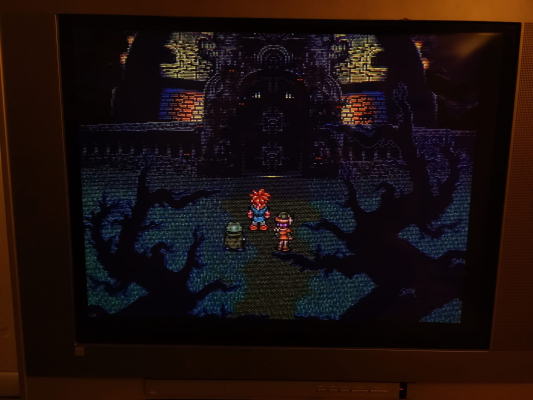

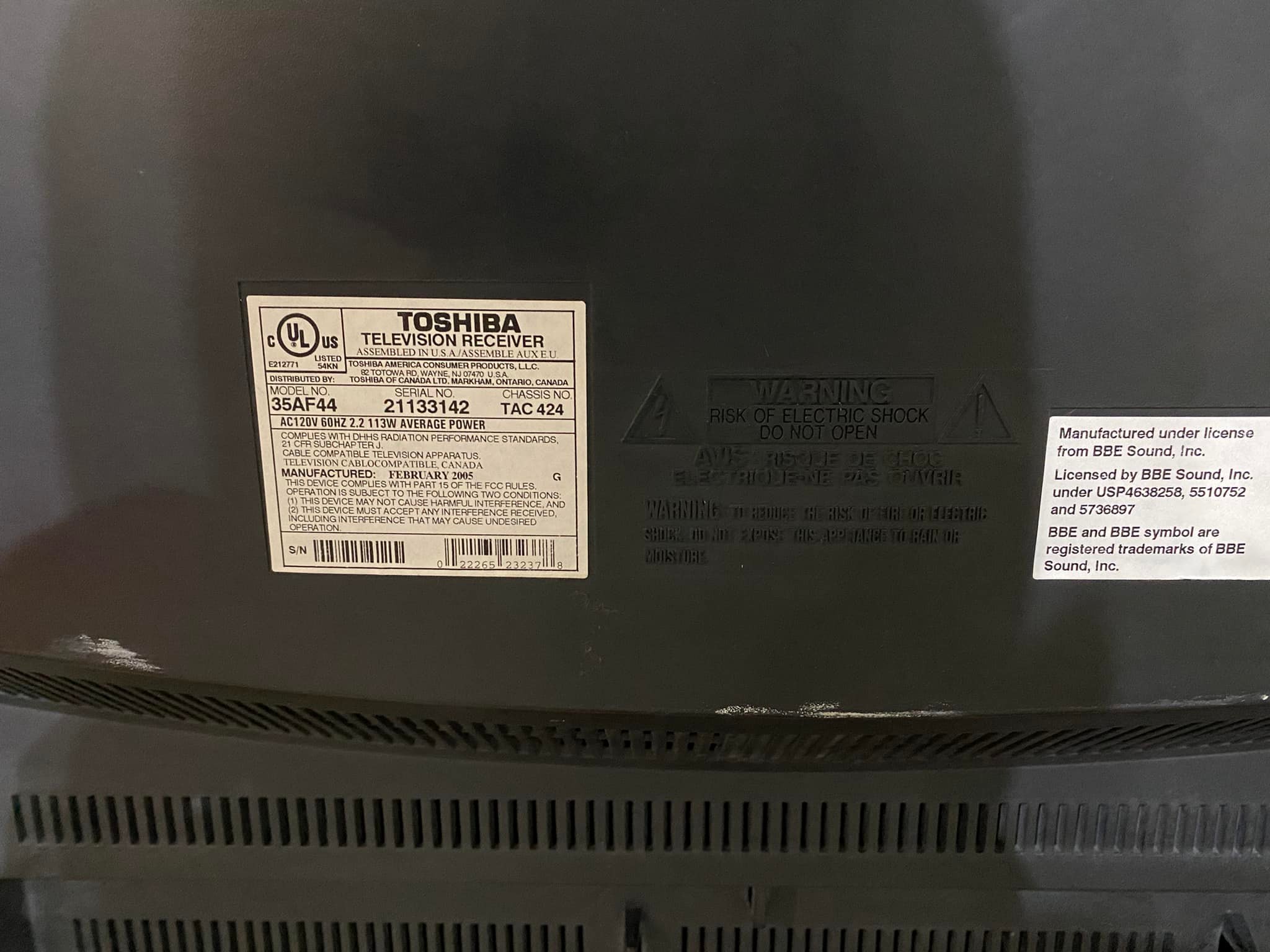

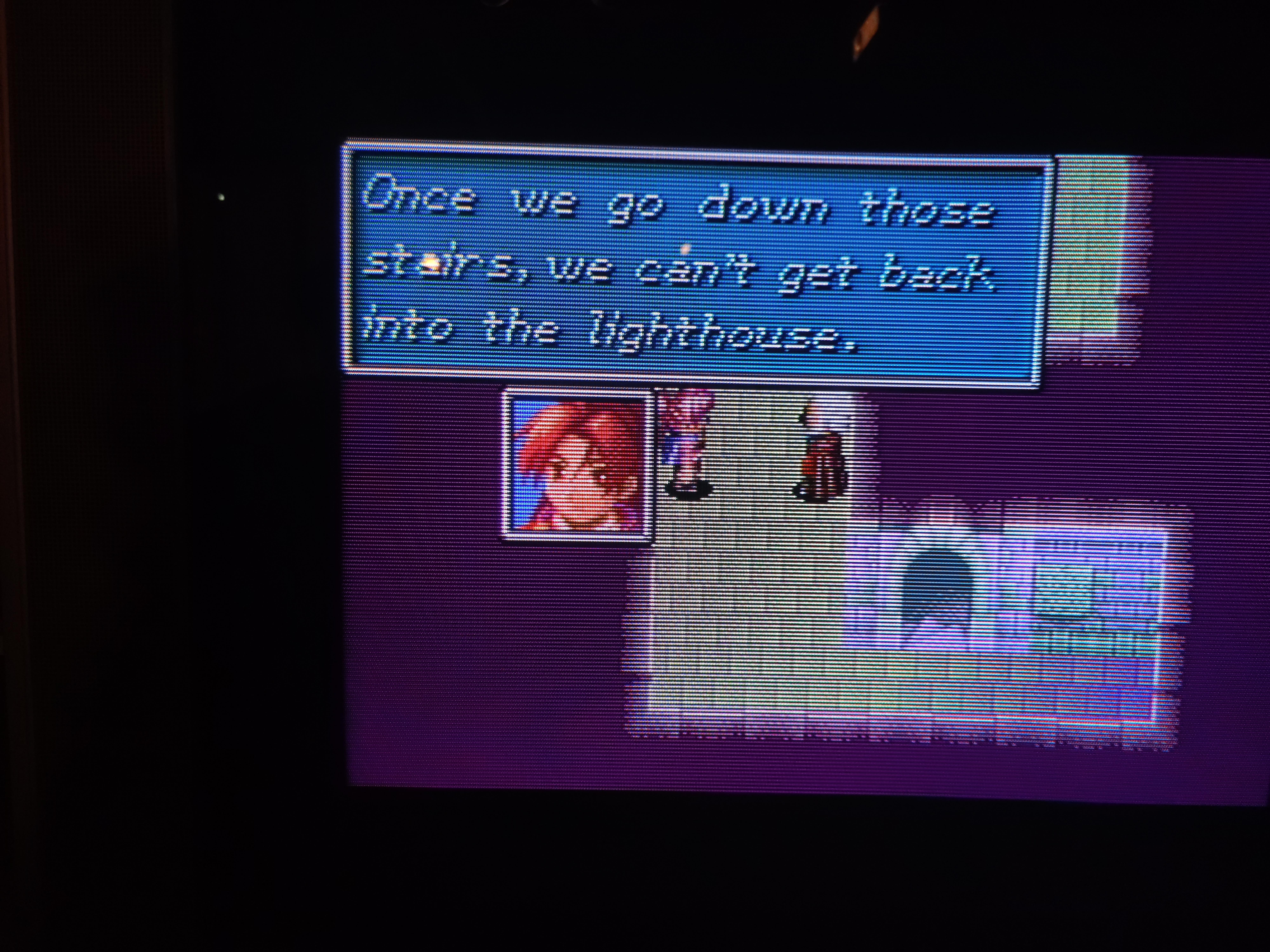

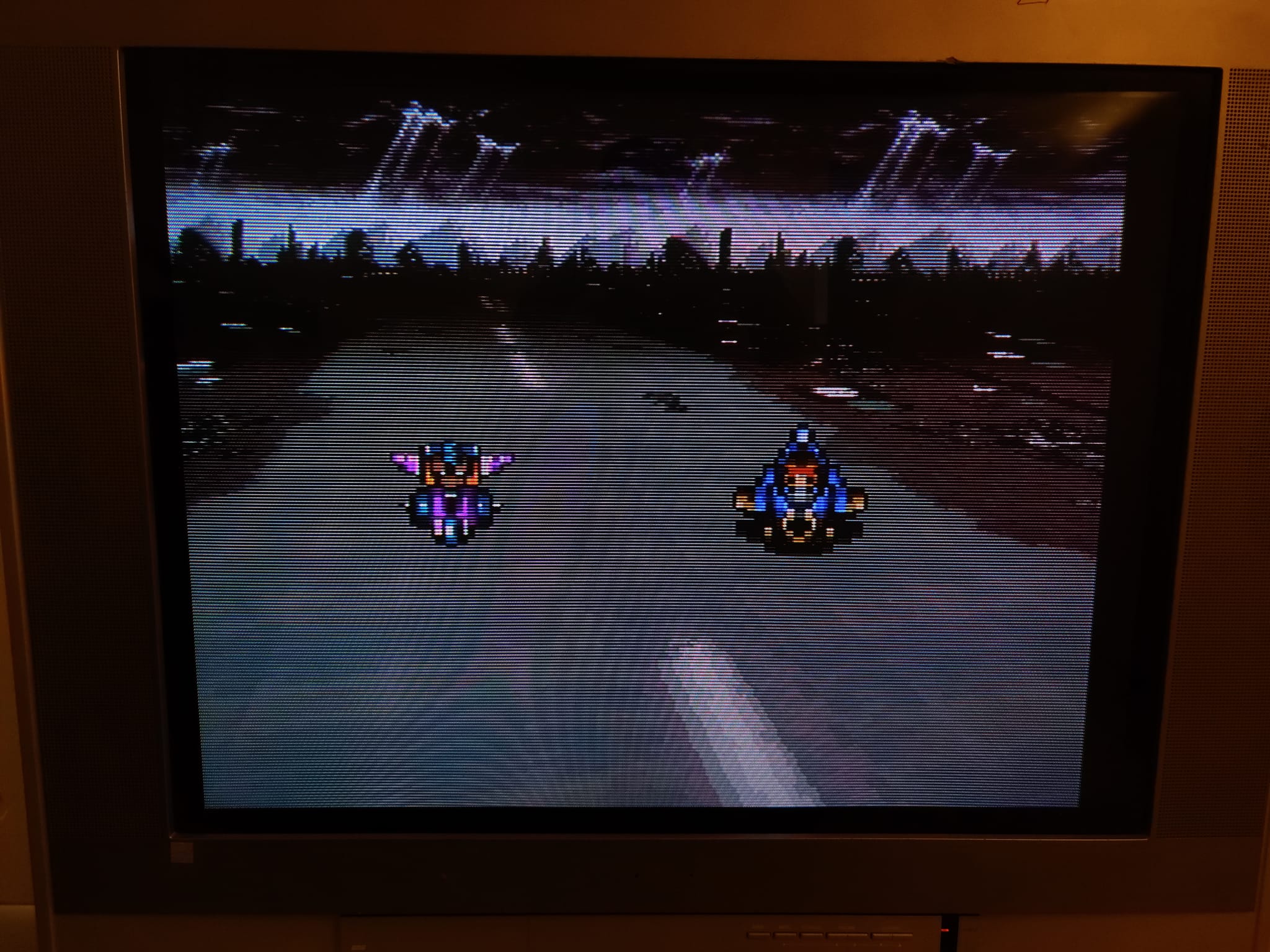

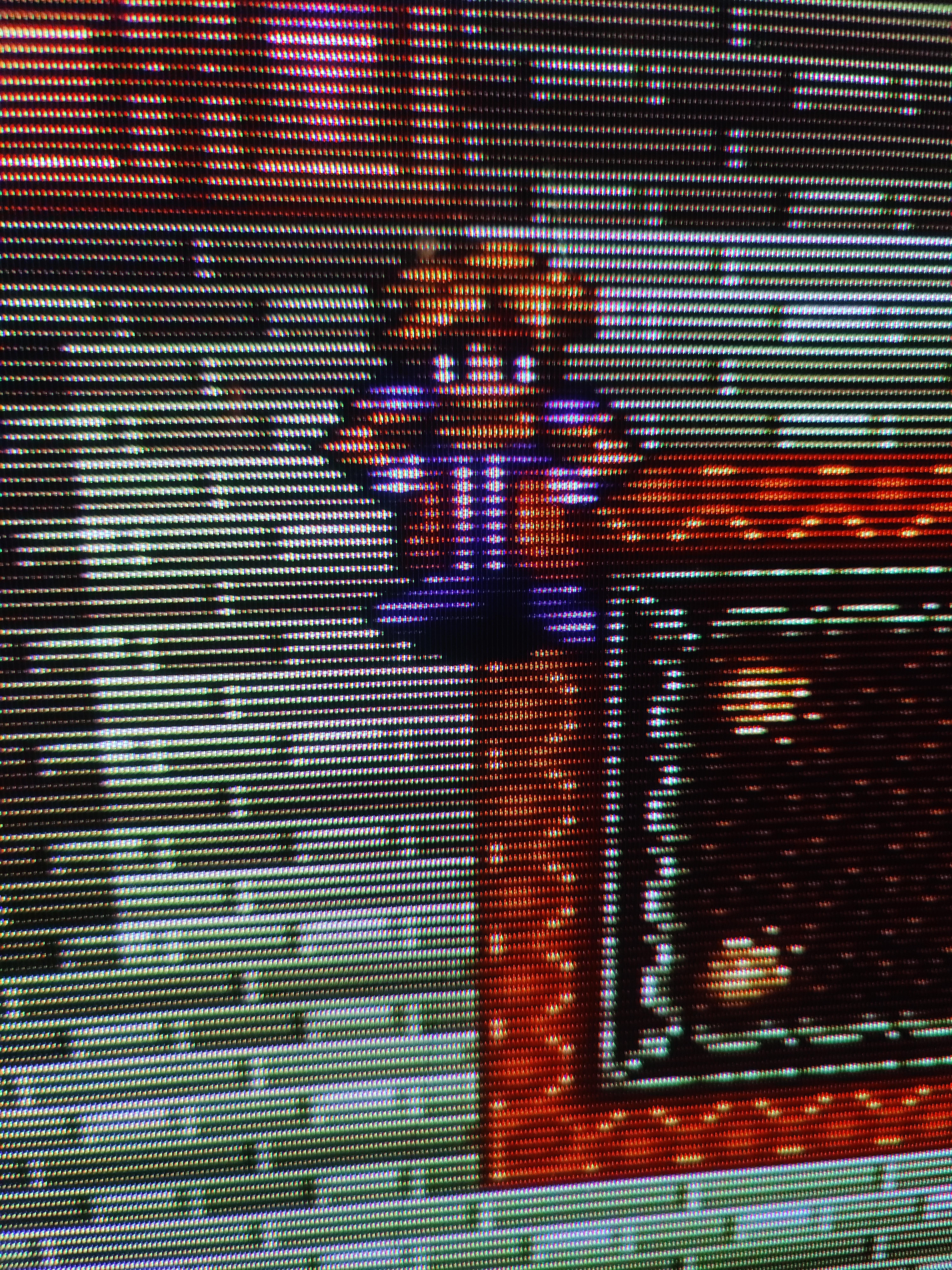

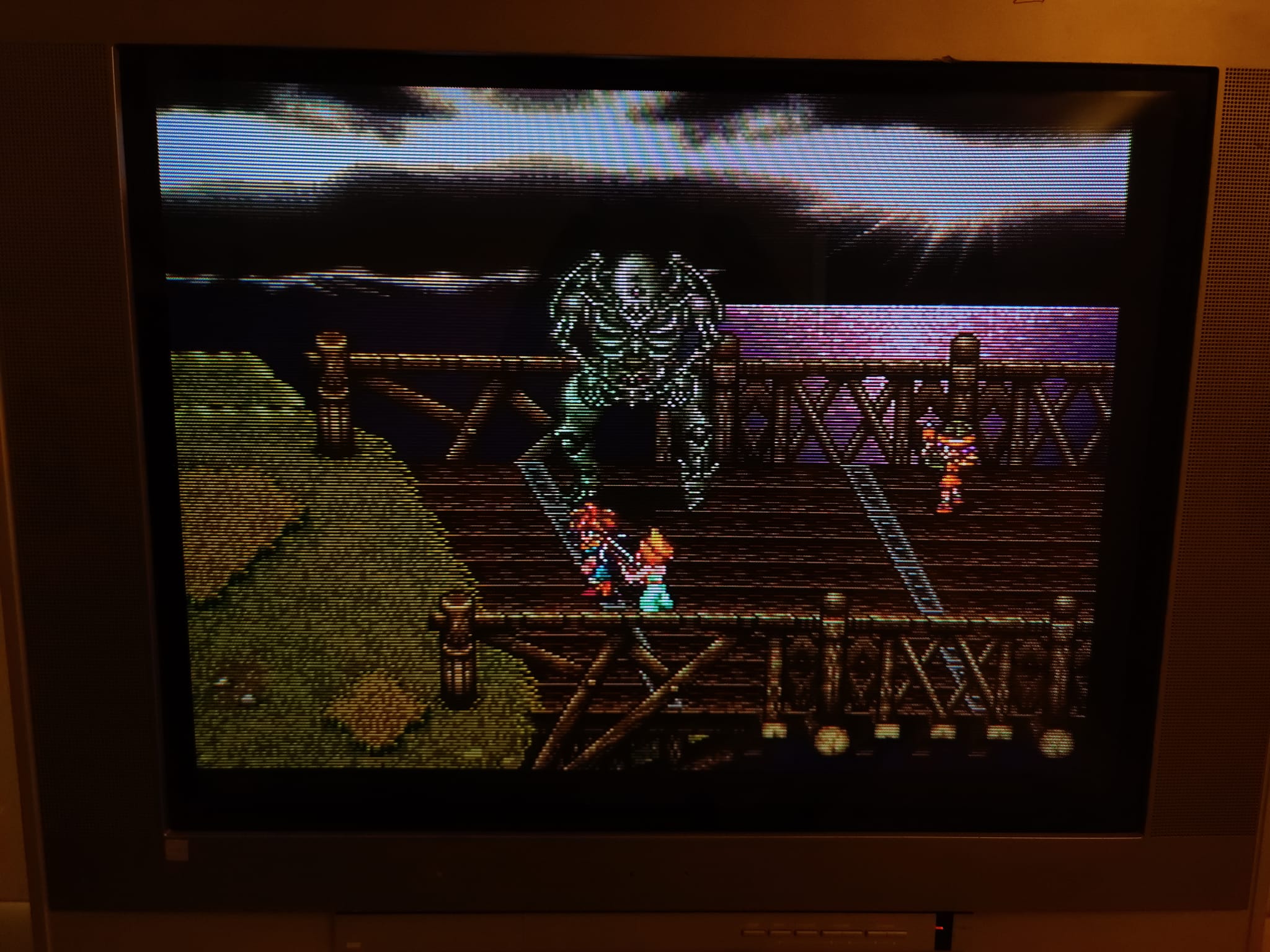

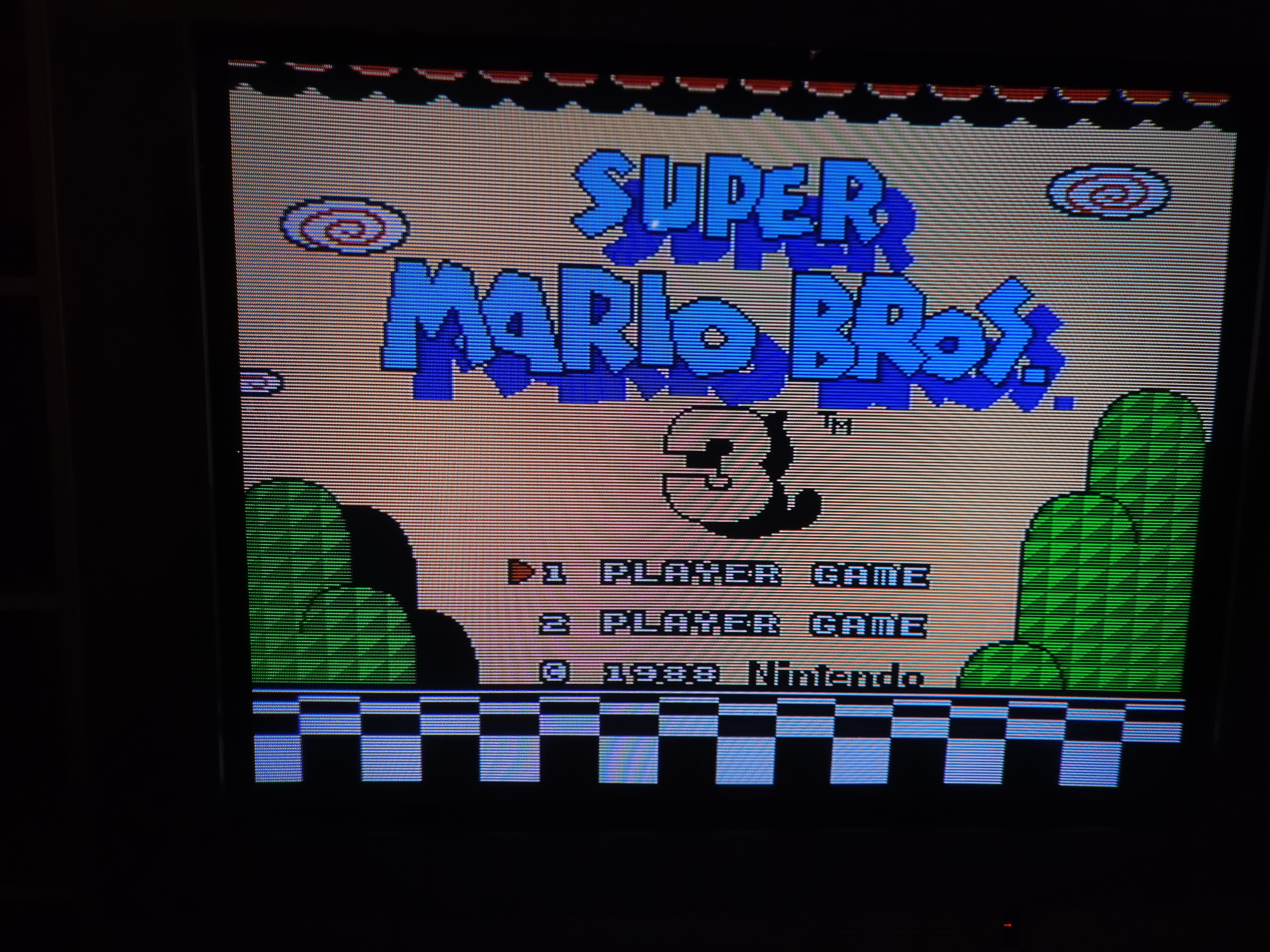

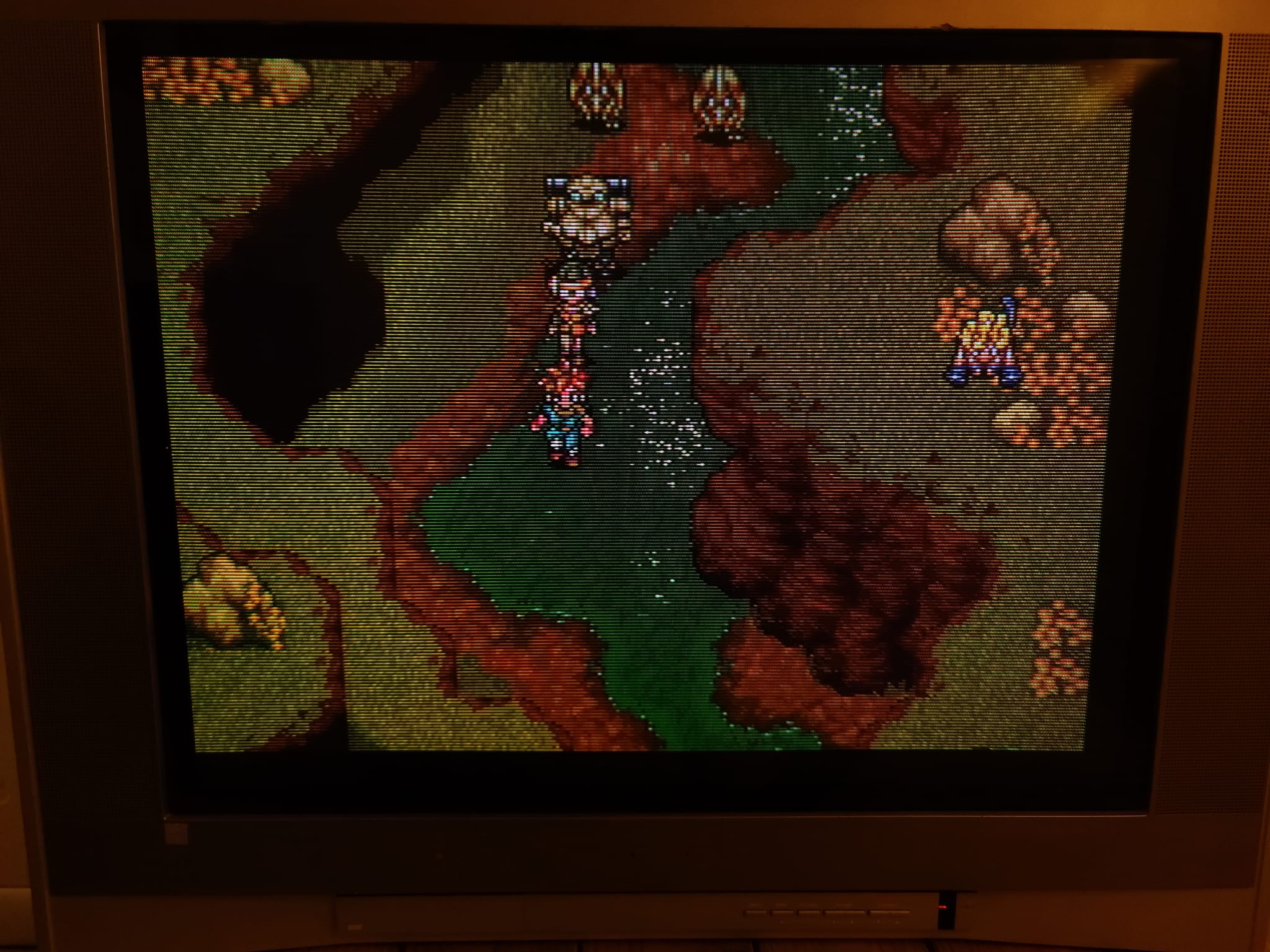

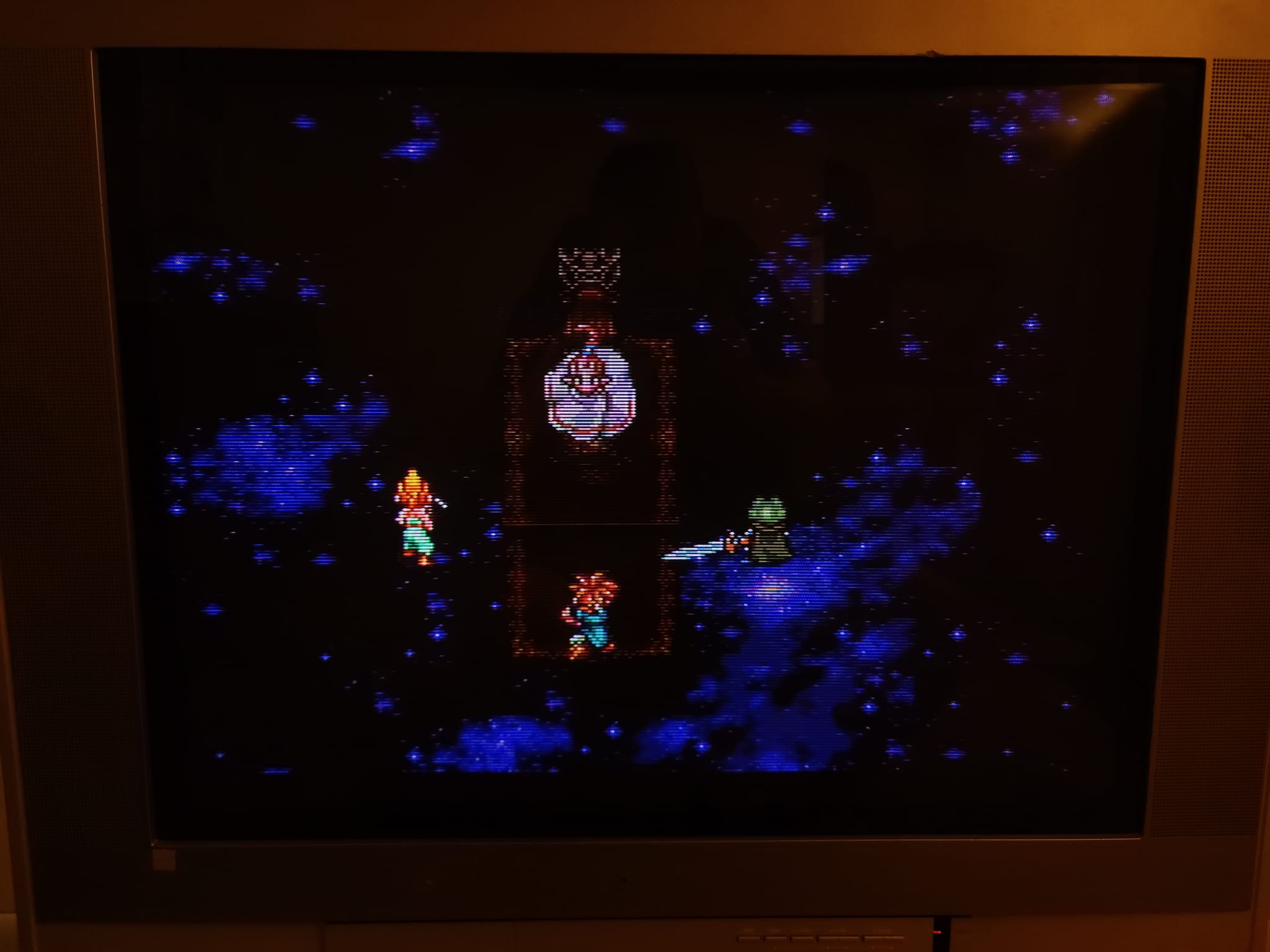

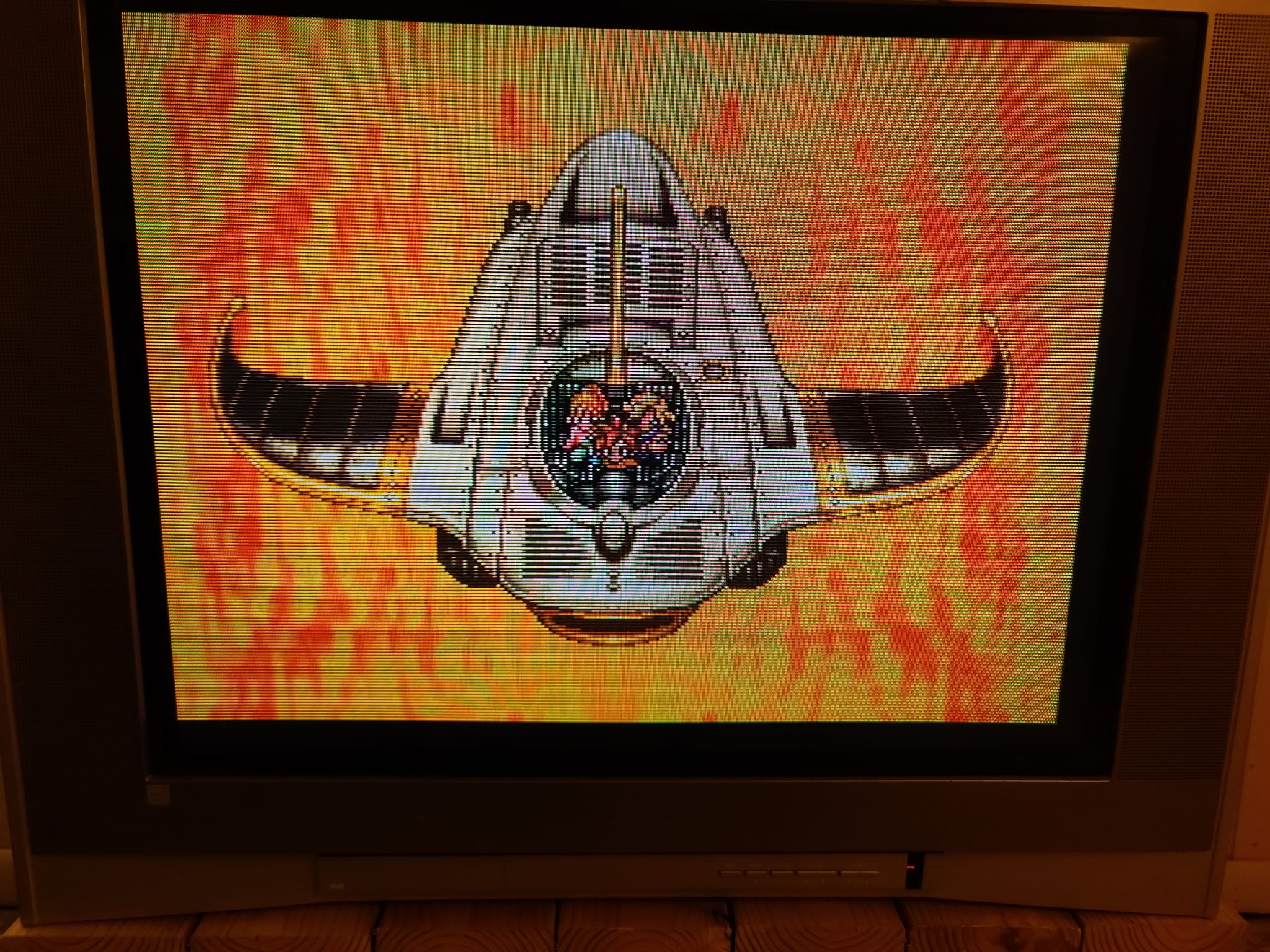

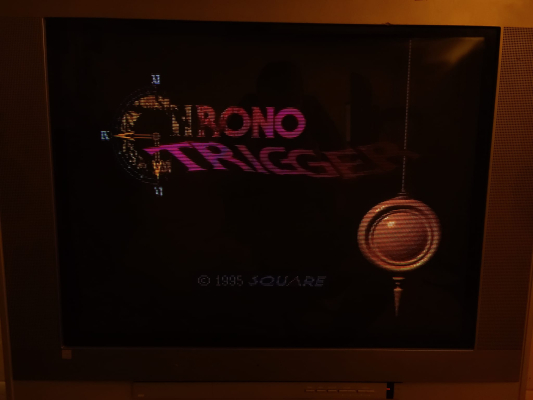

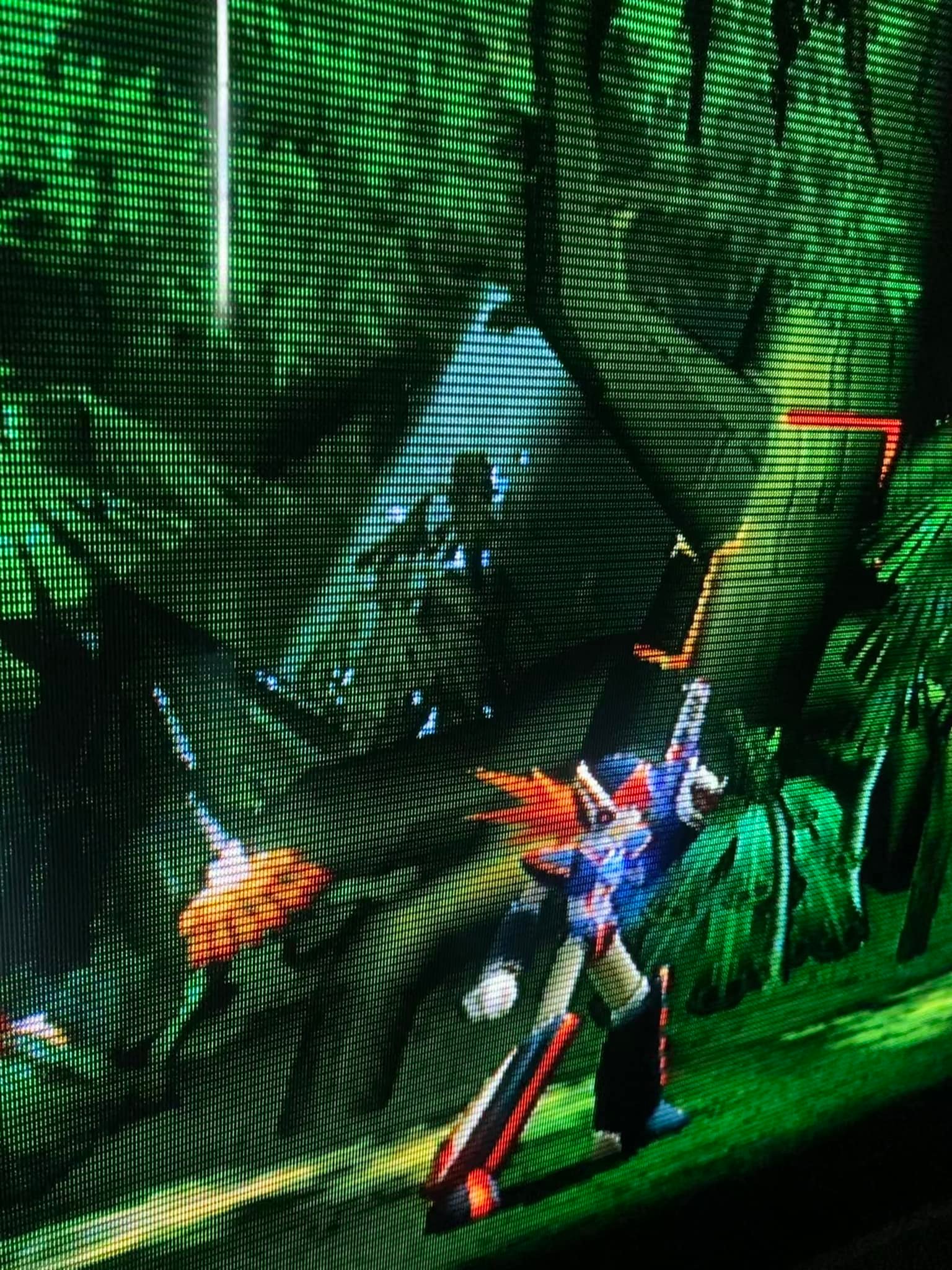

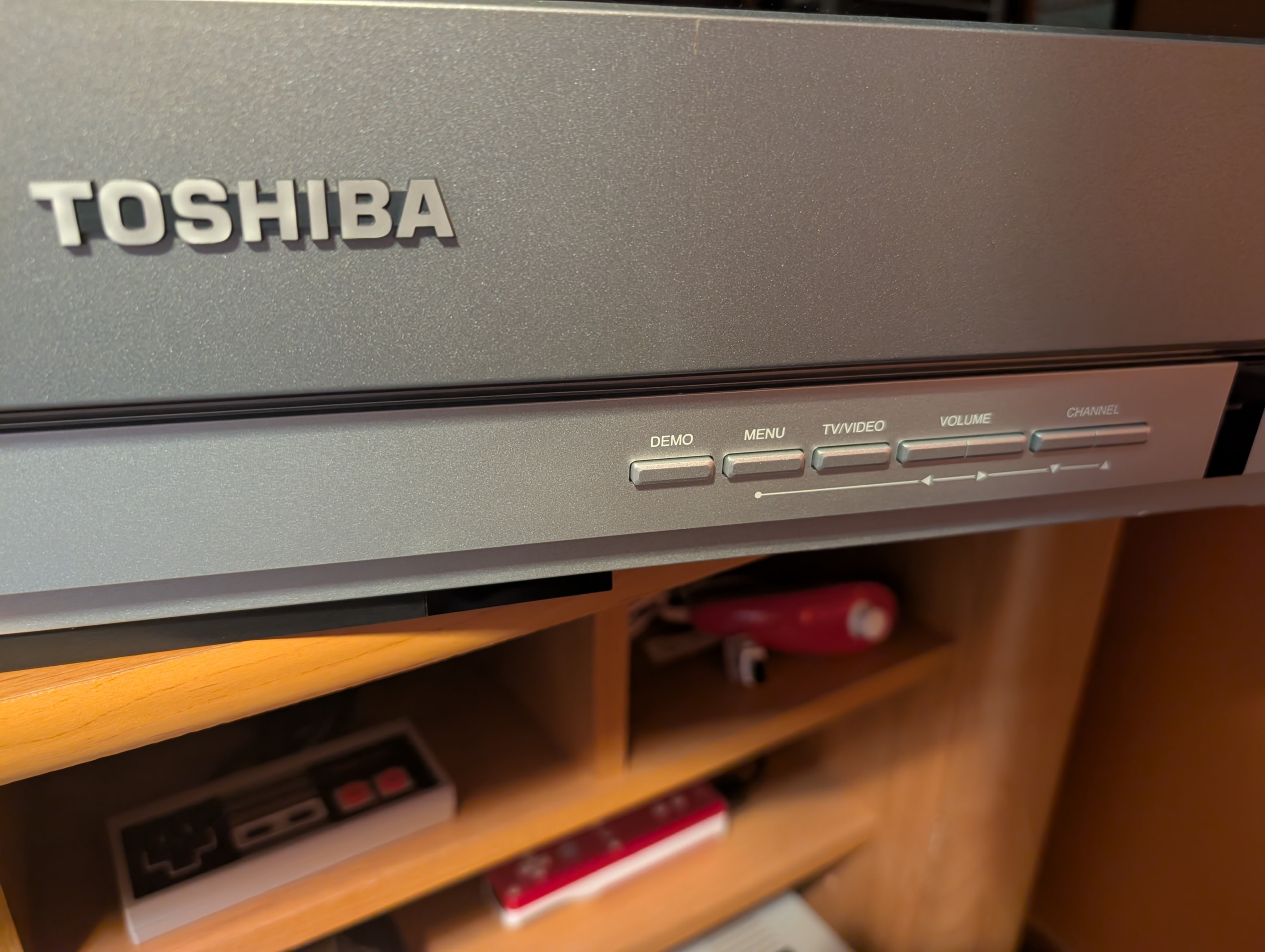

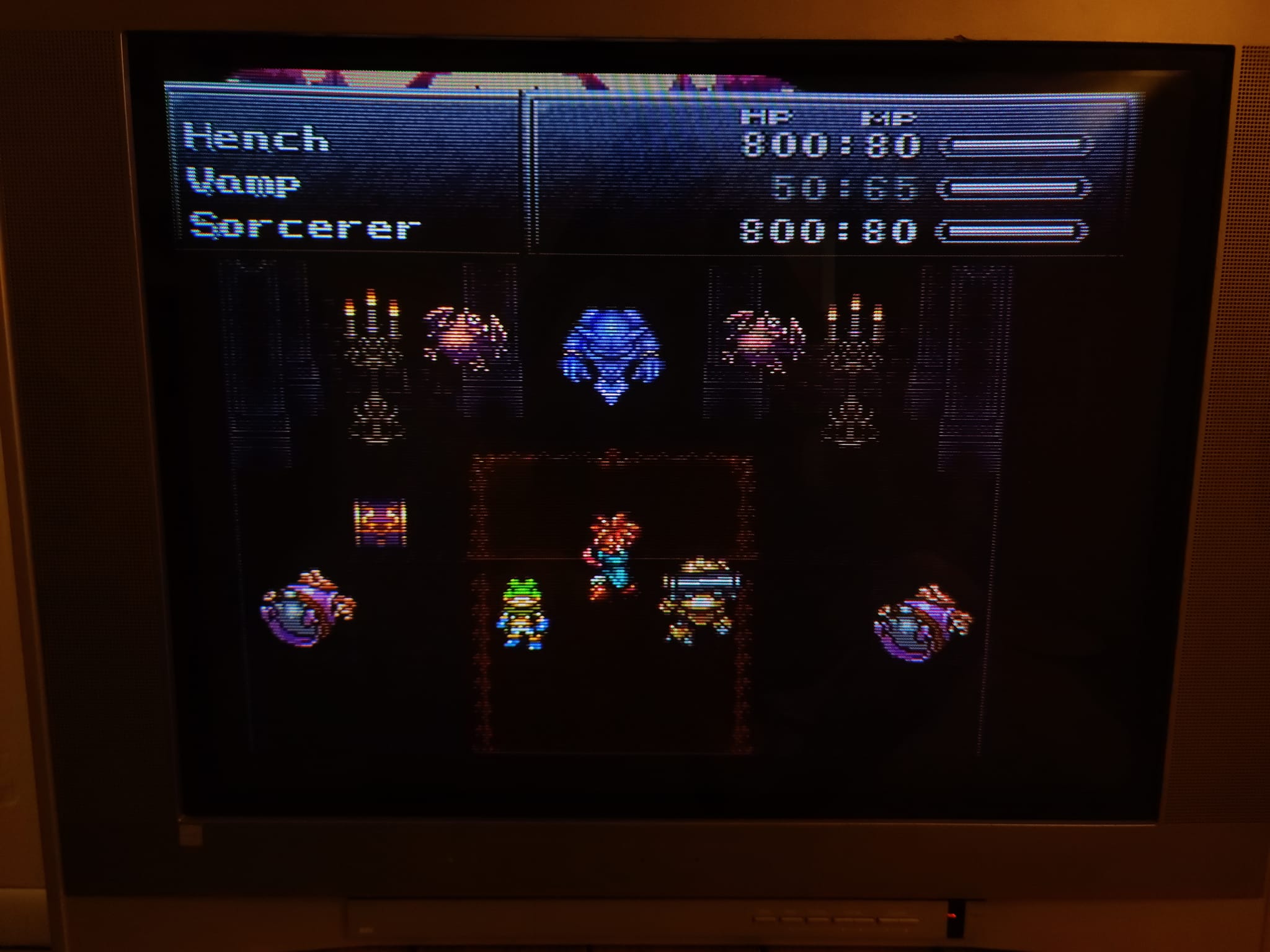

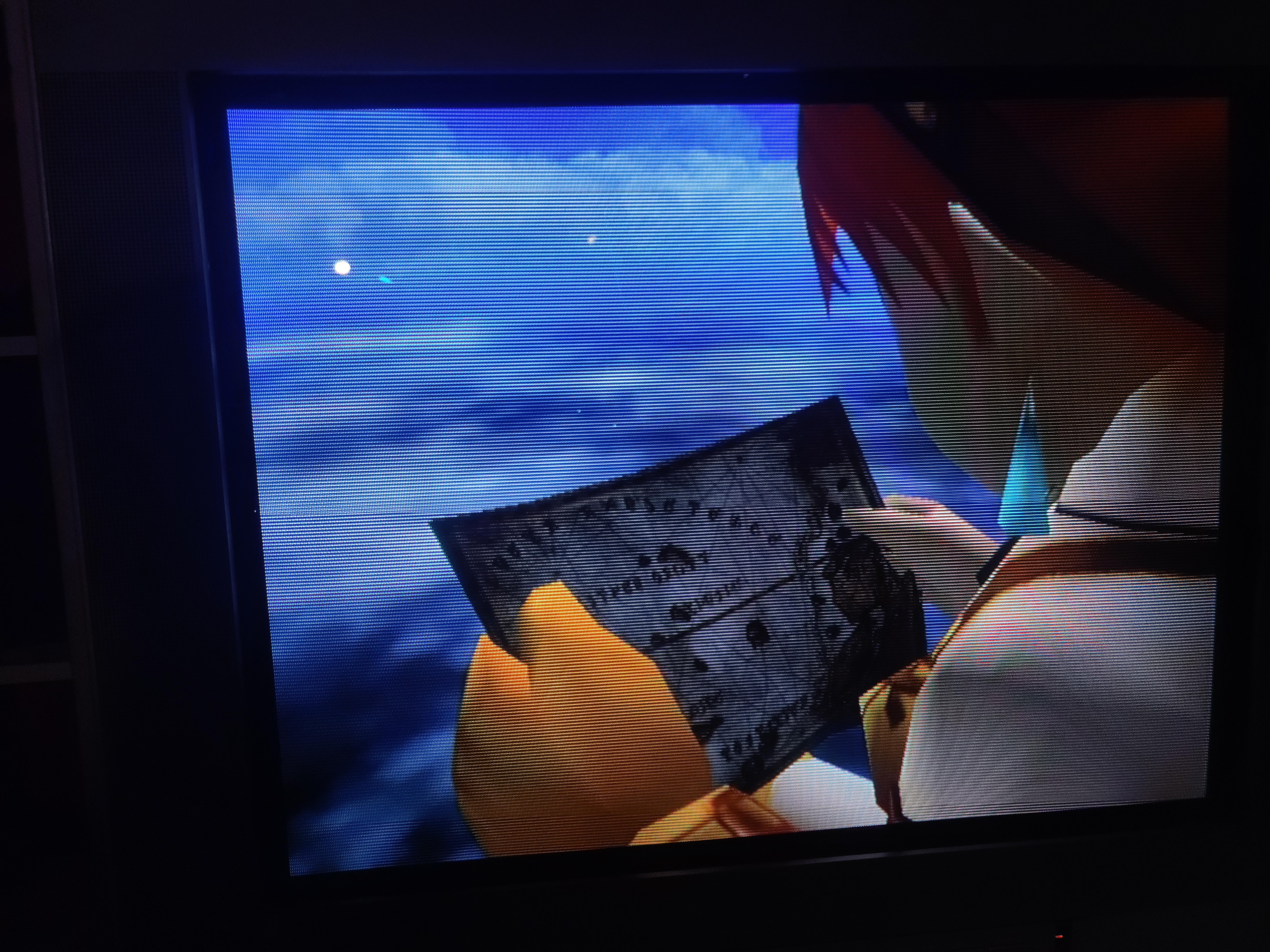

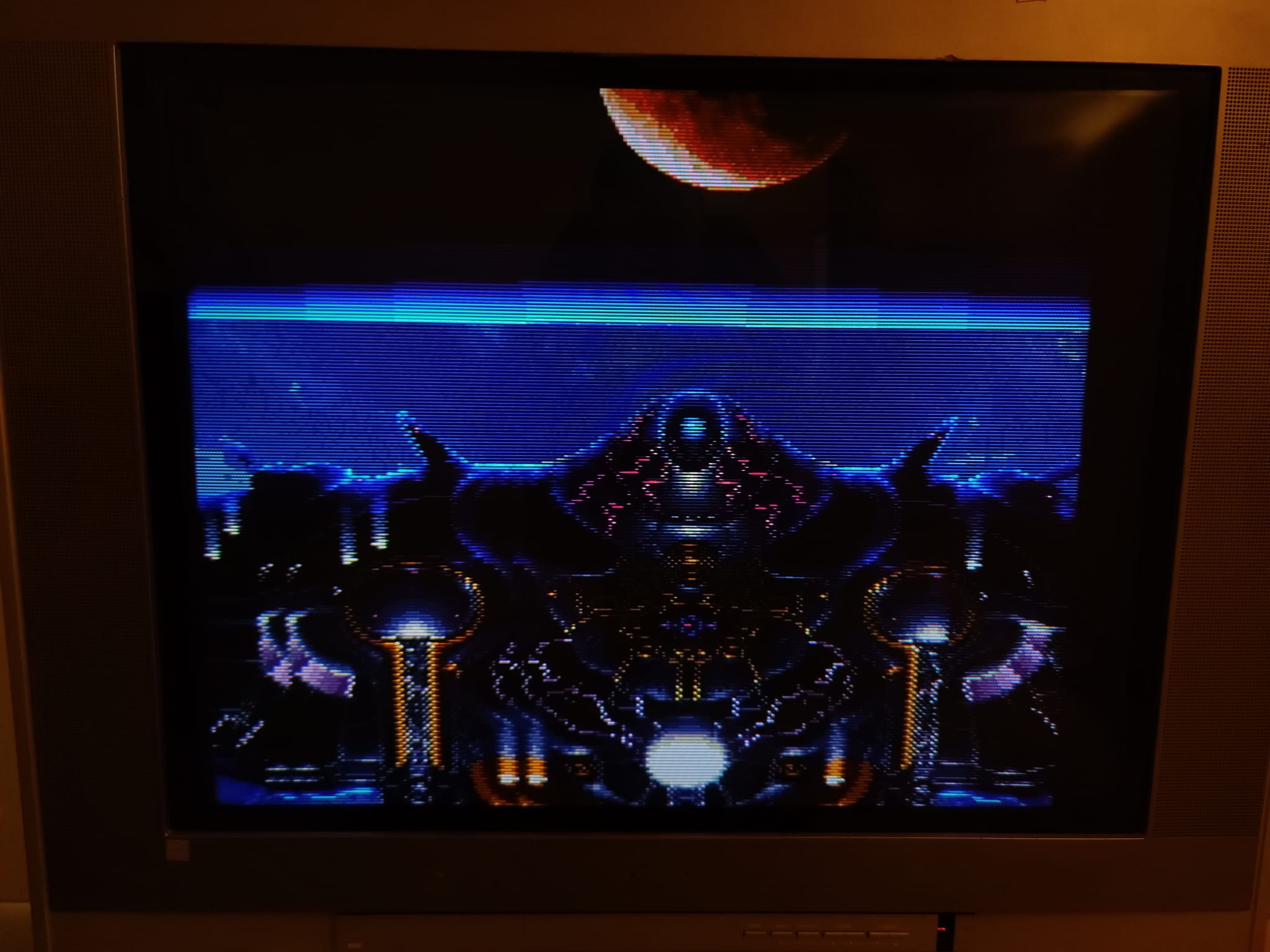

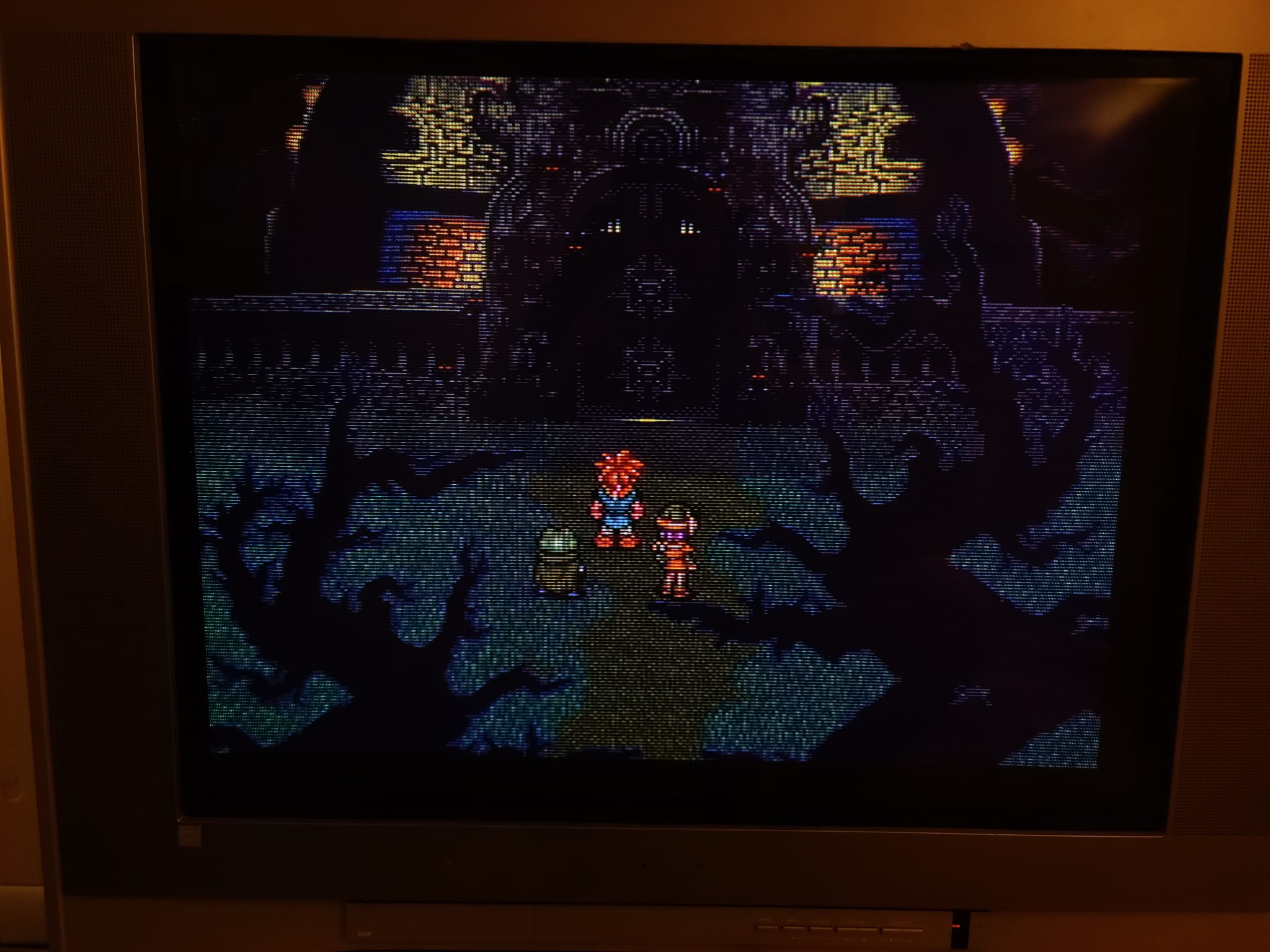

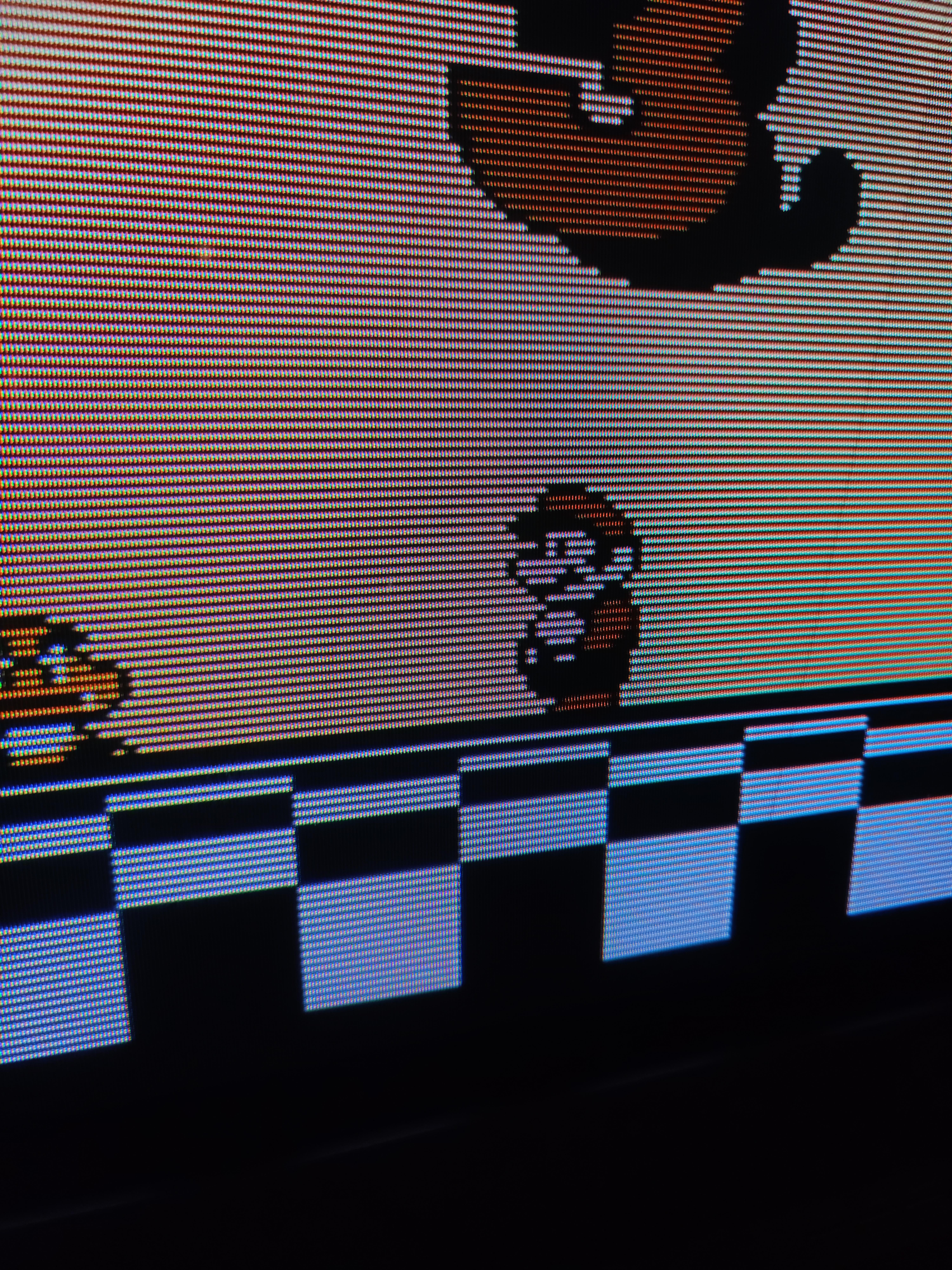

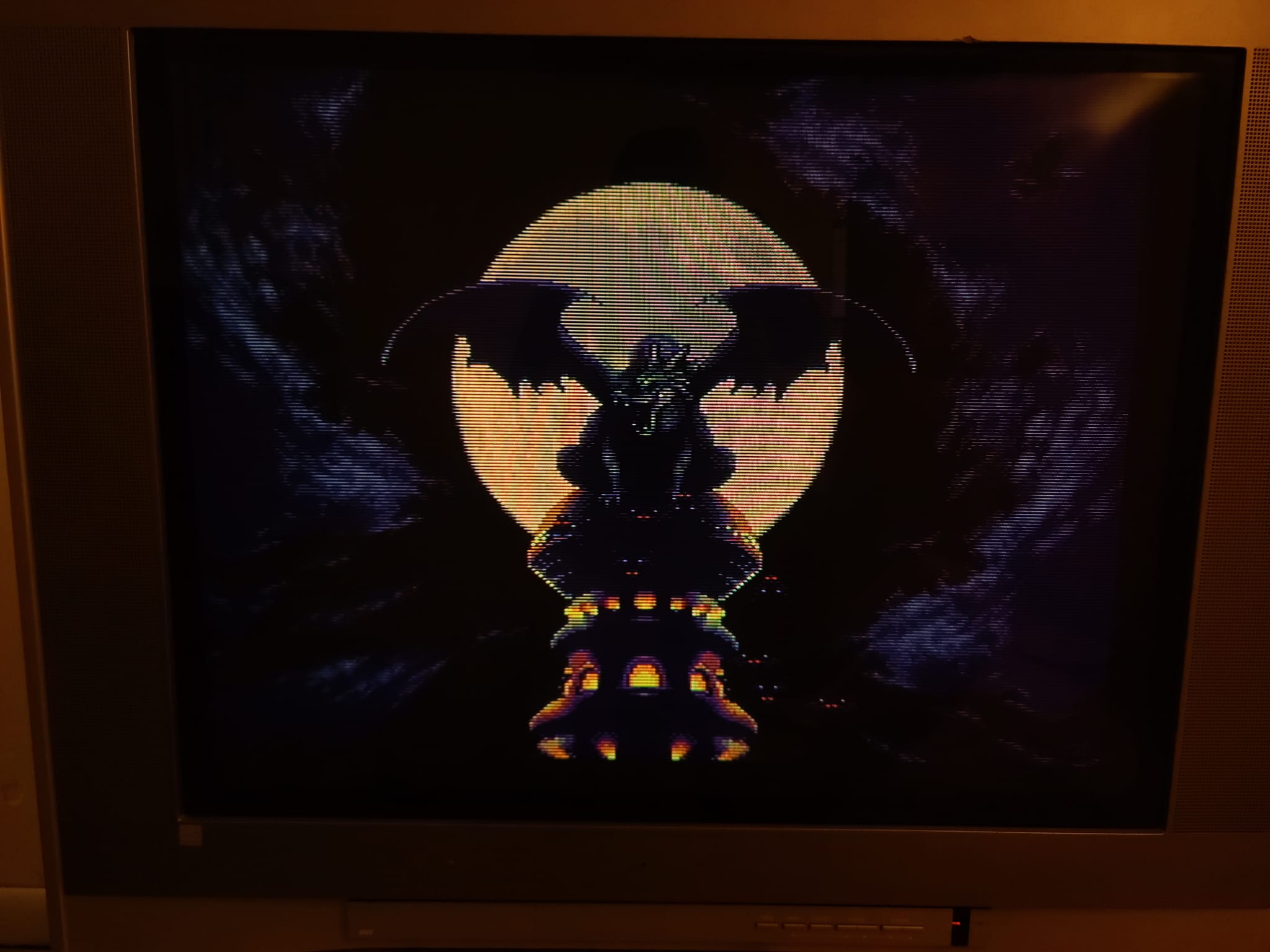

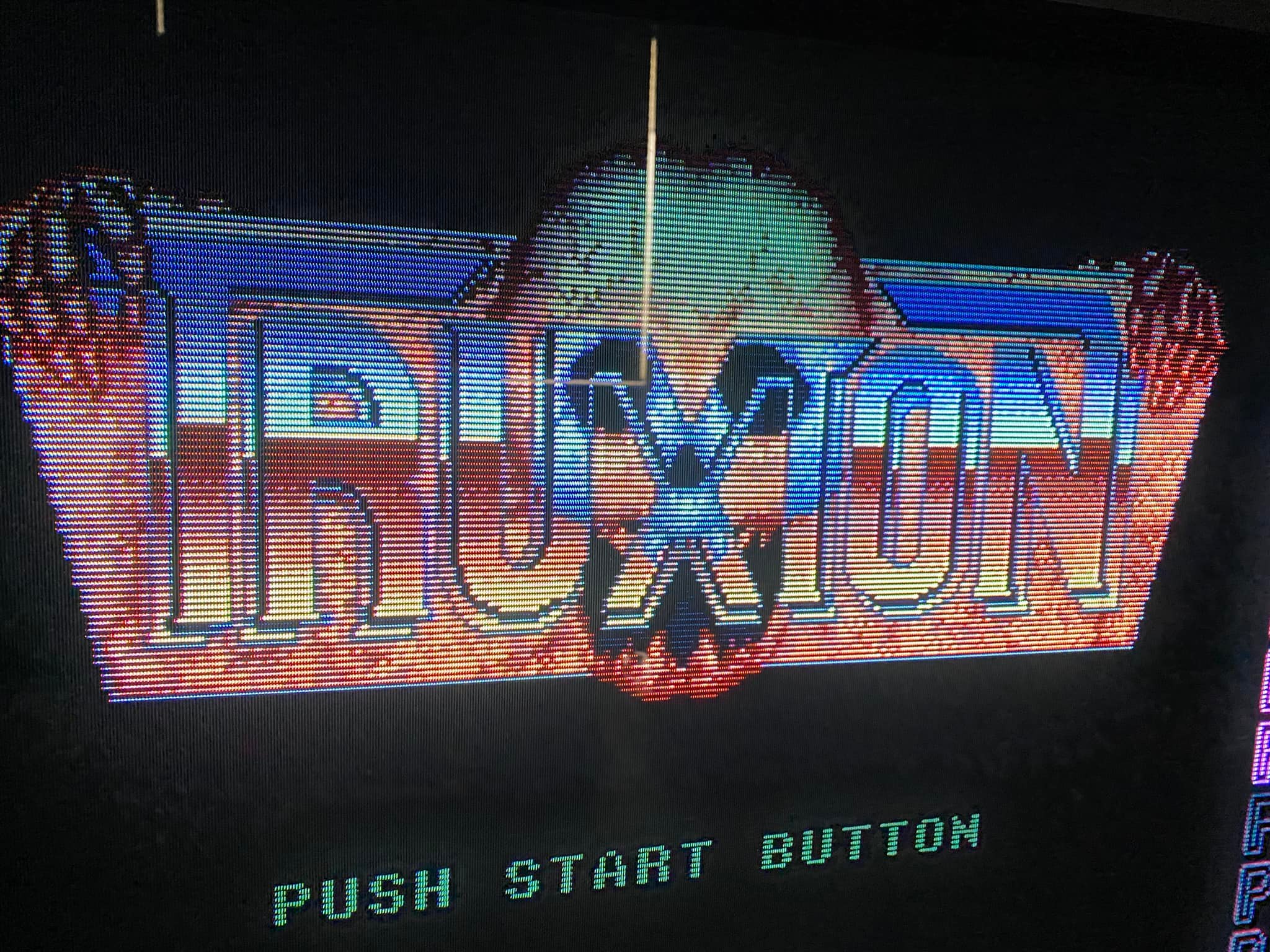

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | 35AF44 |
| Series: | AF |
| Viewable Size: | 35" |

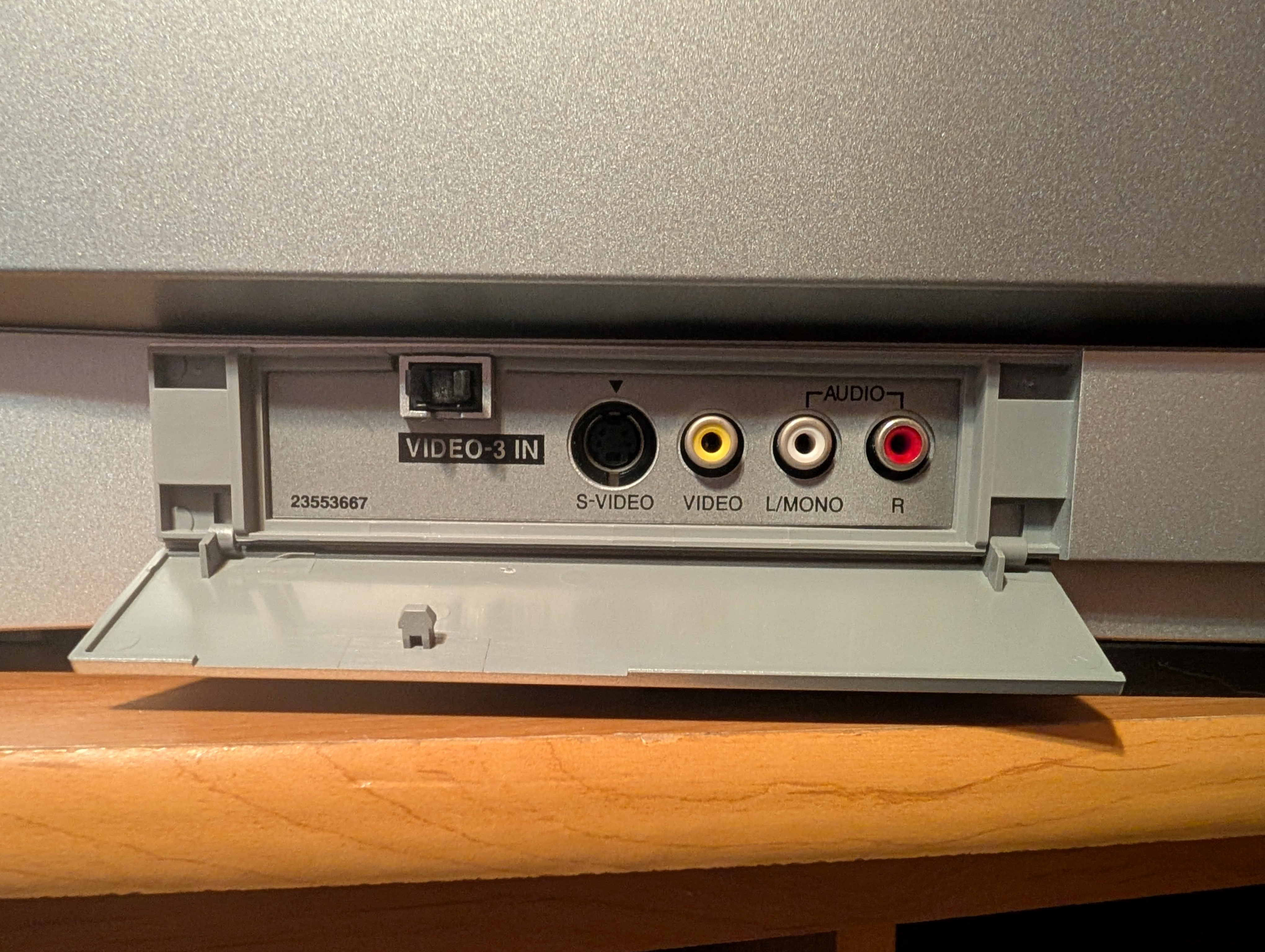

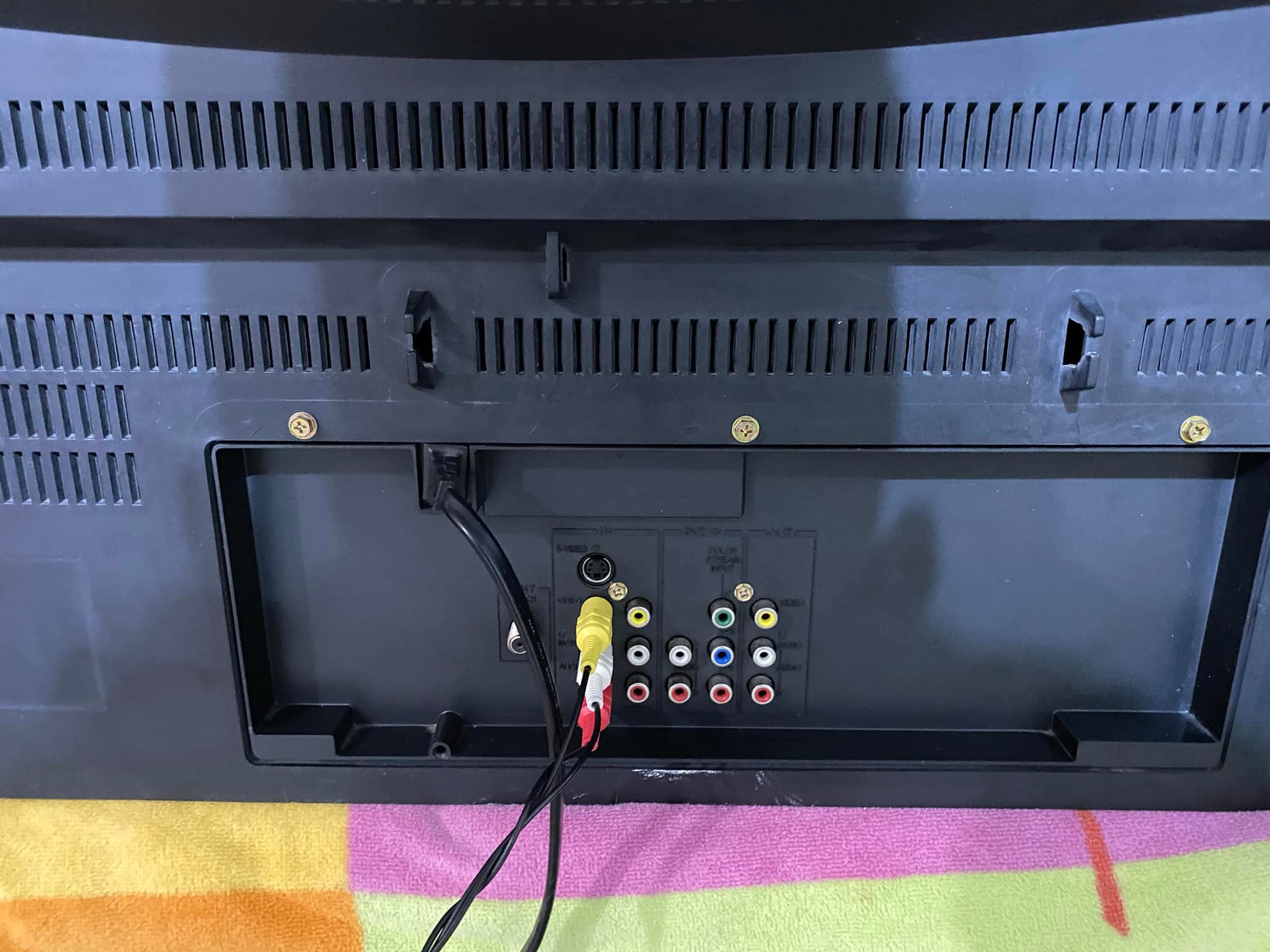

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TA1310N, TA1310 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | TC90A49F |
| Flyback: | TFB4172AD |
| Focus Type: | Dual |
| Tube: | Matsushita-Toshiba , A89AJZ90X07 , A89AJZ90X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |
| Speakers: | Stereo, 5W x 2 |
| Remote: | CT-90157 |
| Chassis: | TAC424, N4NS |
| Weight: | 154 lbs (69.9 kg) |
| Dimensions (W/H/D): |
970 x 751 x 616 mm
(38.1 x 29.5 x 24.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 849 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, ST3564 |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
