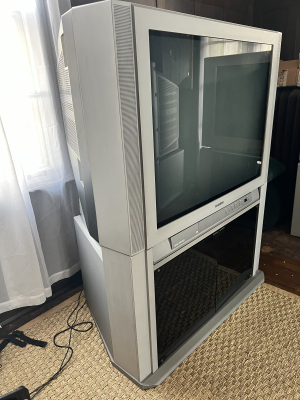

Toshiba 36HFX71
SegaSaturn94
March 18, 2026, 4:33 pm
March 18, 2026, 8:41 pm
March 18, 2026, 4:33 pm
March 18, 2026, 8:41 pm
Summary

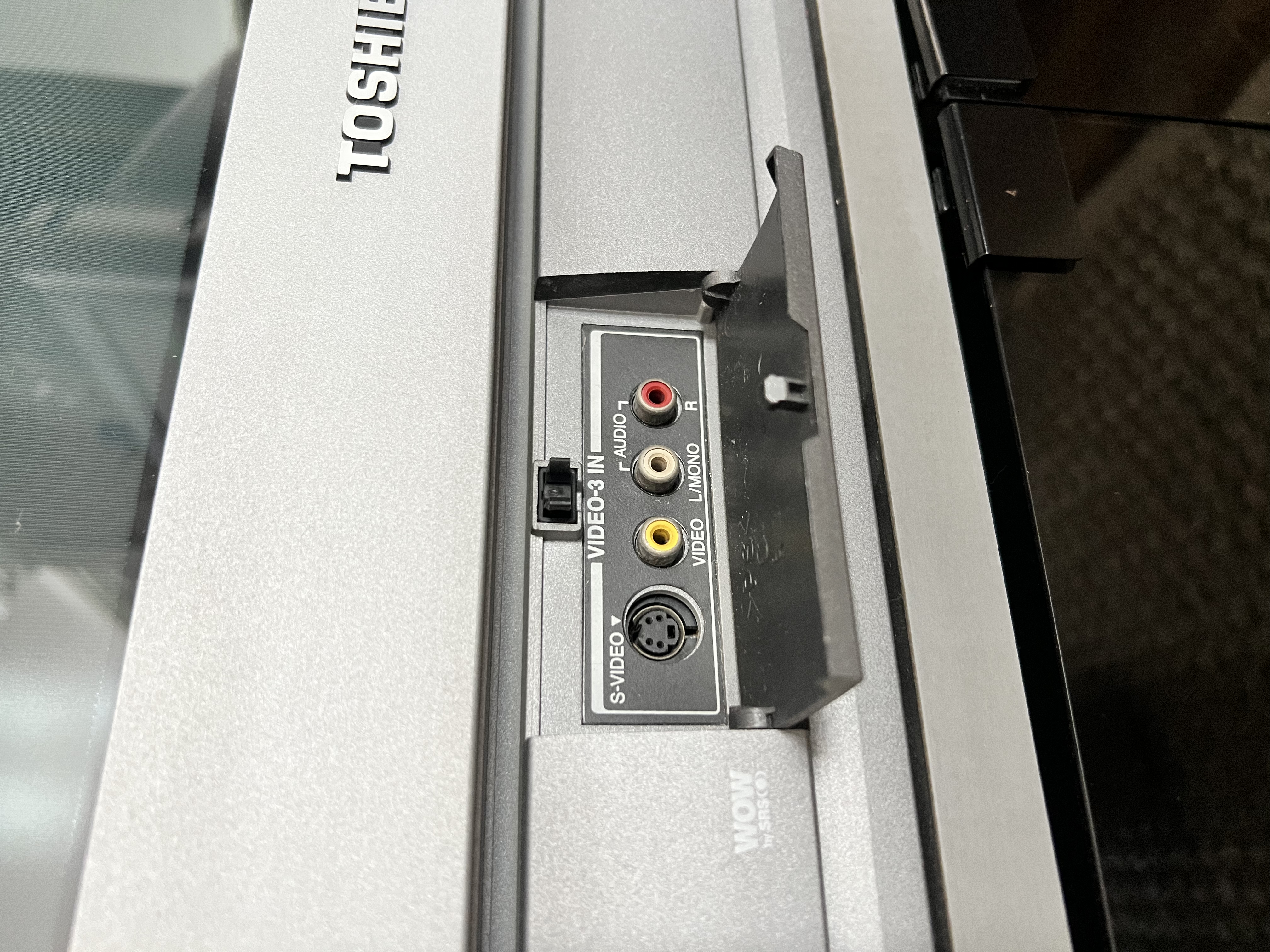

High-end 36" flat-tube HD CRT by Toshiba, made in the USA in 2001. Has RF, composite, s-video, and component inputs with stereo sound.

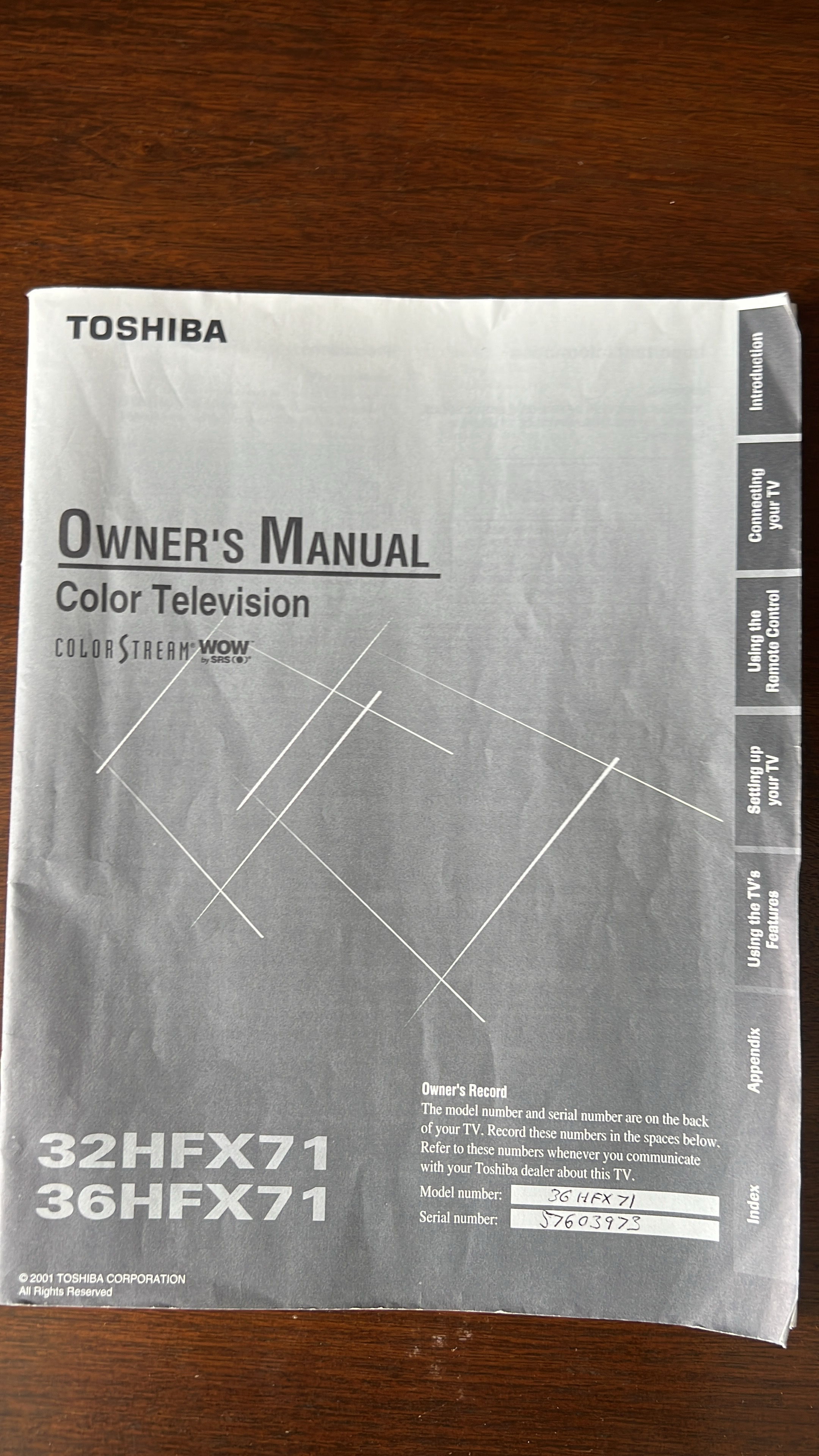

Manuals
Media & Promo Materials
Notes

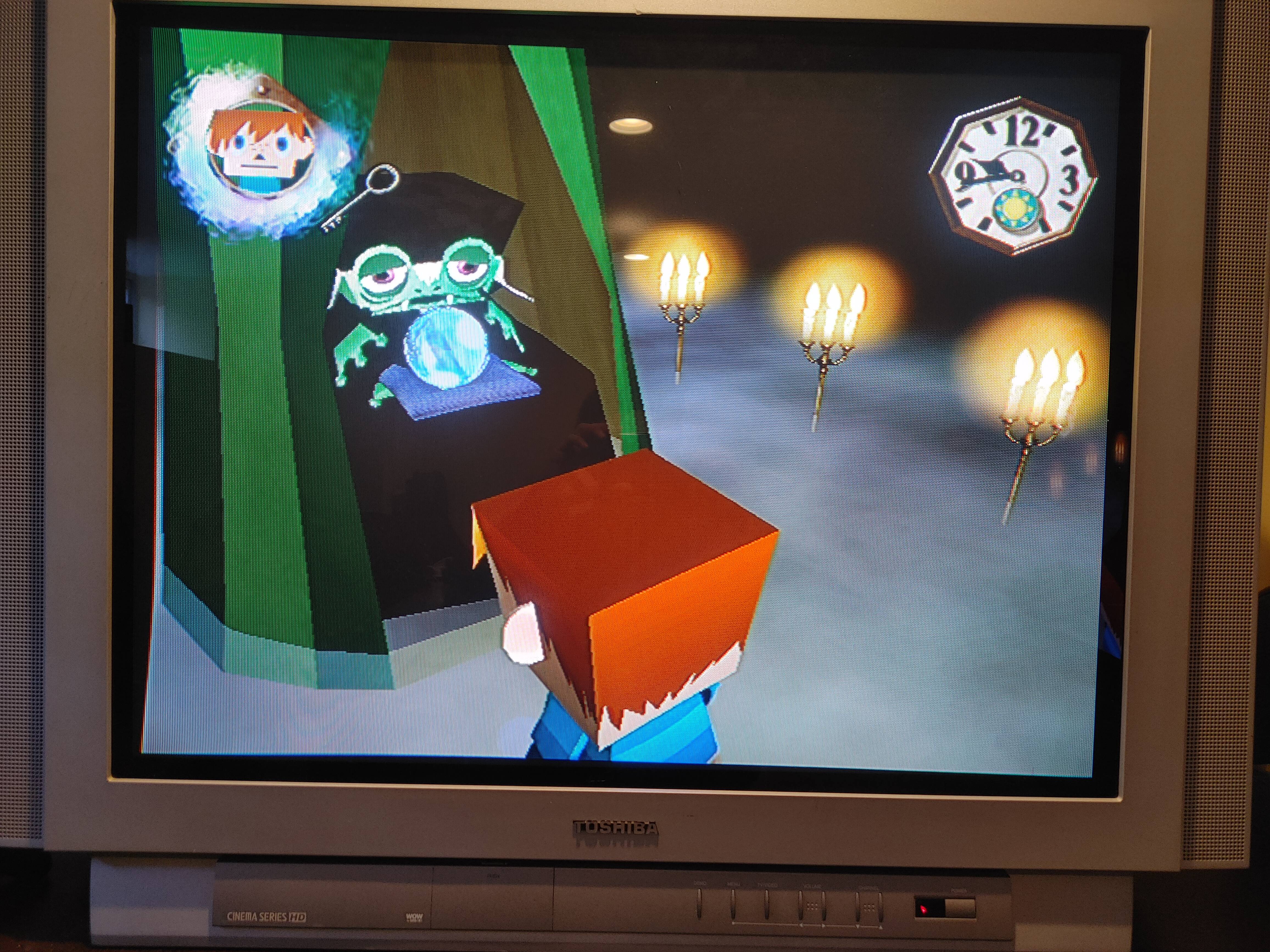

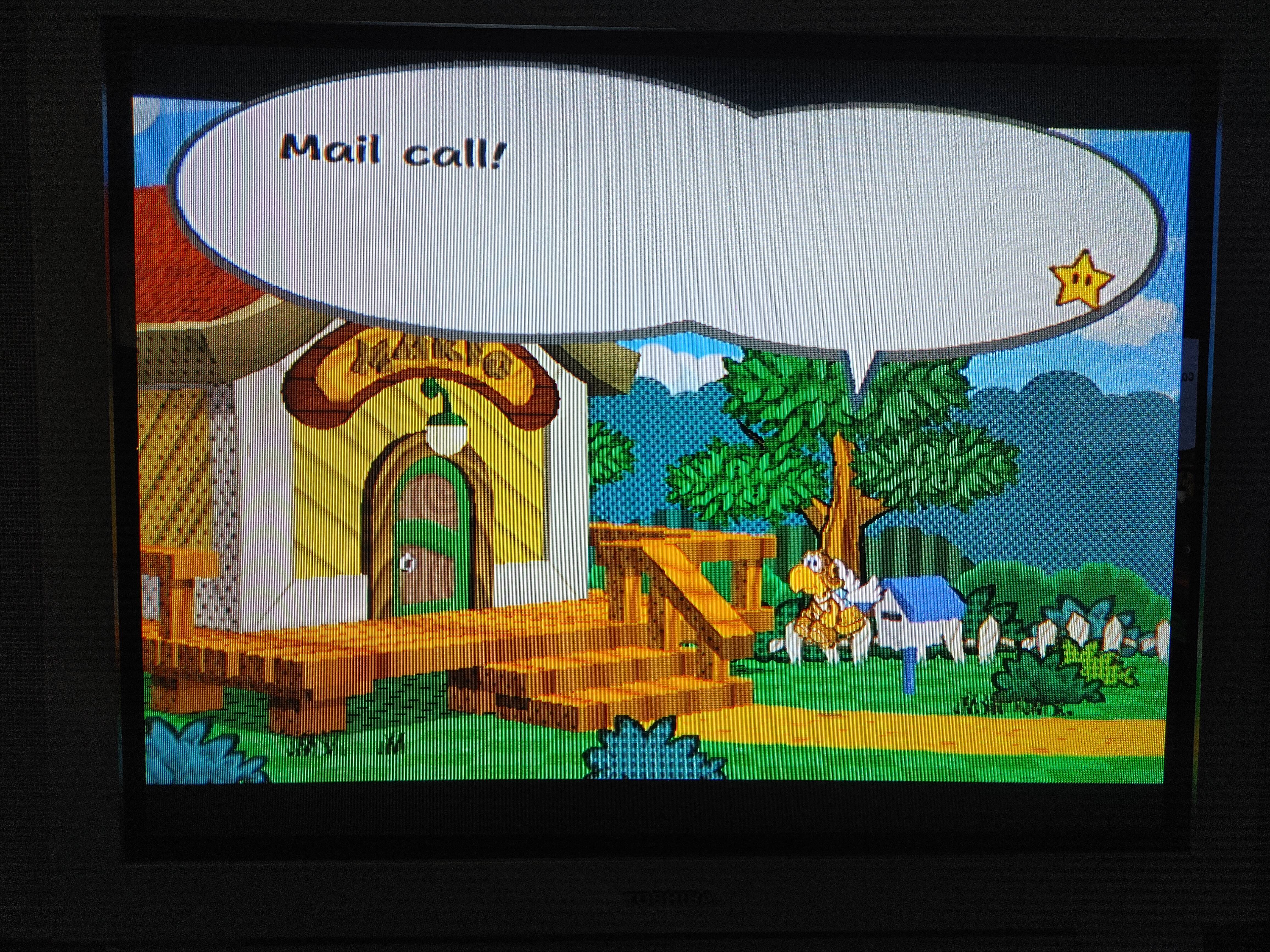

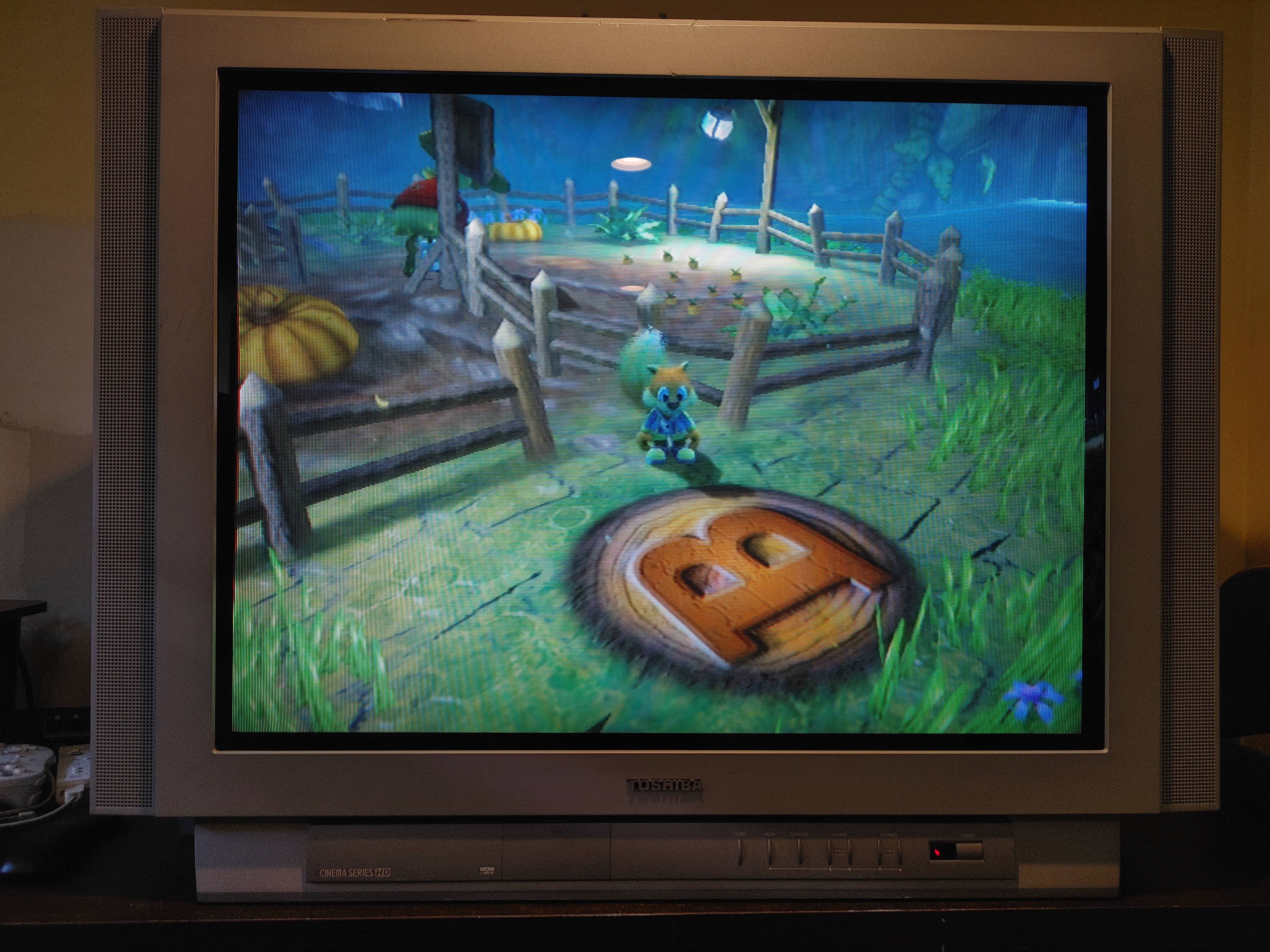

Natively scans 480p and 1080i with no lag. 240p/480i will incur some latency, however.
This set varies from the slightly lower-end 36HF71 model in that it has additional menu features and a 13W subwoofer.
This TV has VM. To disable it, unplug the jumper connecting the yoke to the neckboard.

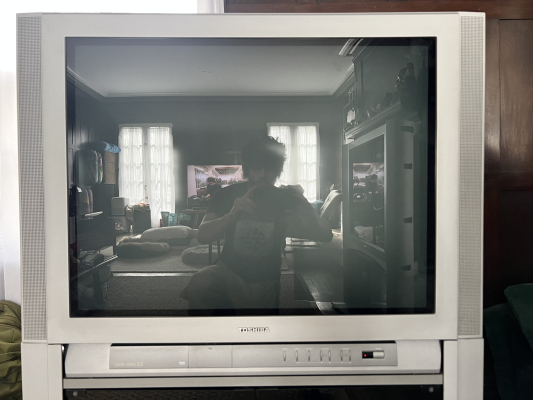

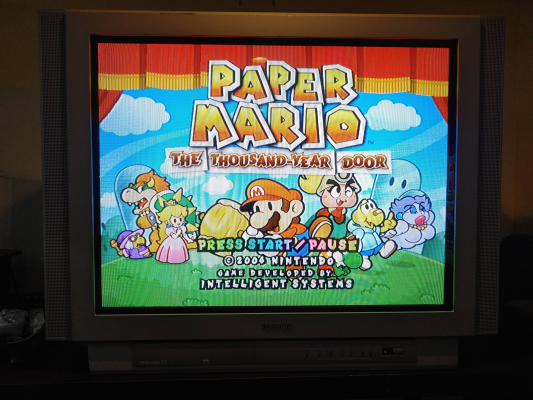

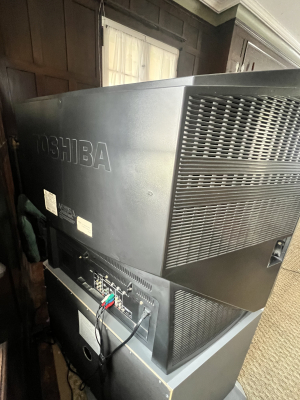

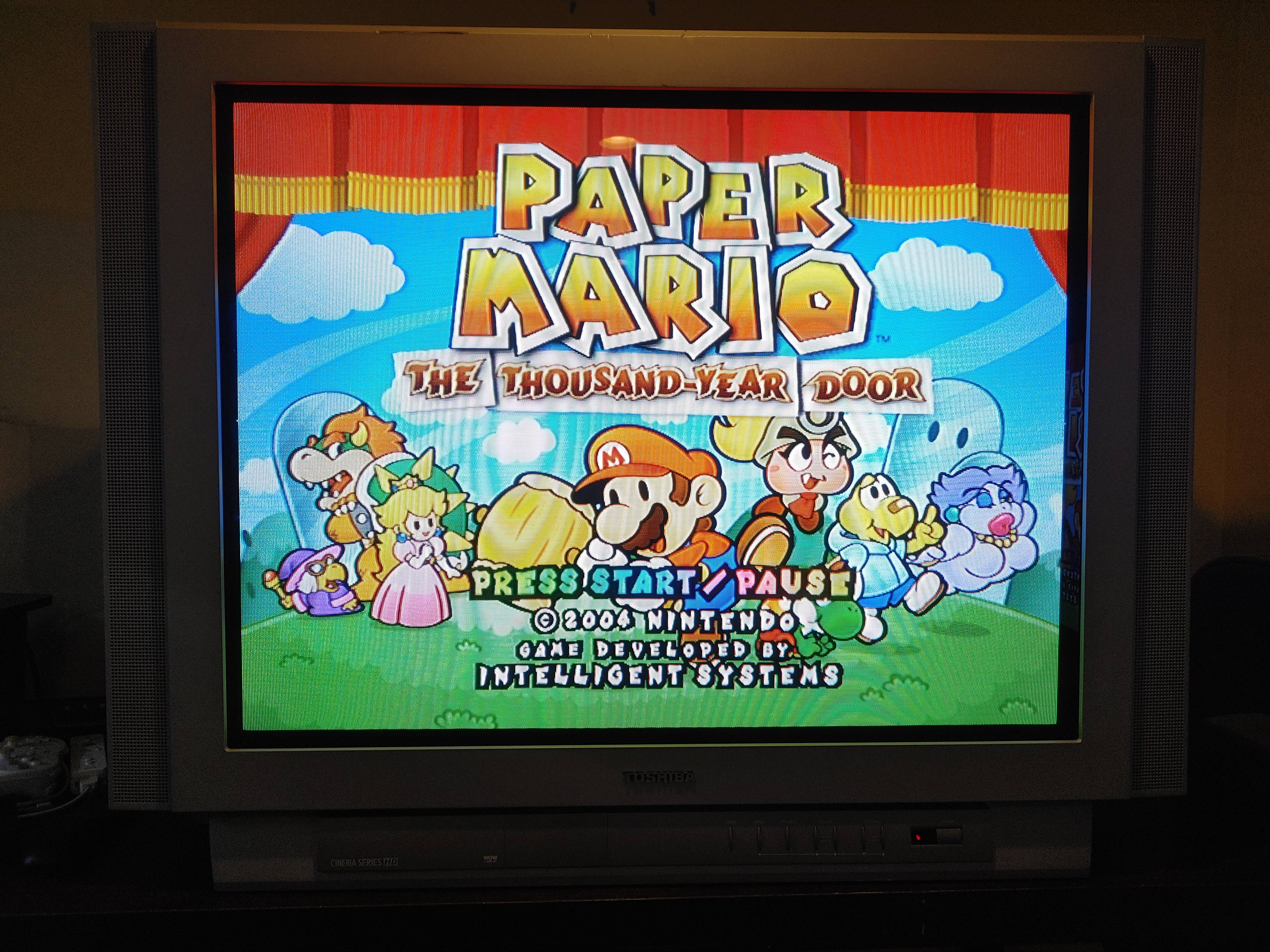

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | 36HFX71 |
| Series: | Cinema Series HD |
| Viewable Size: | 36" |

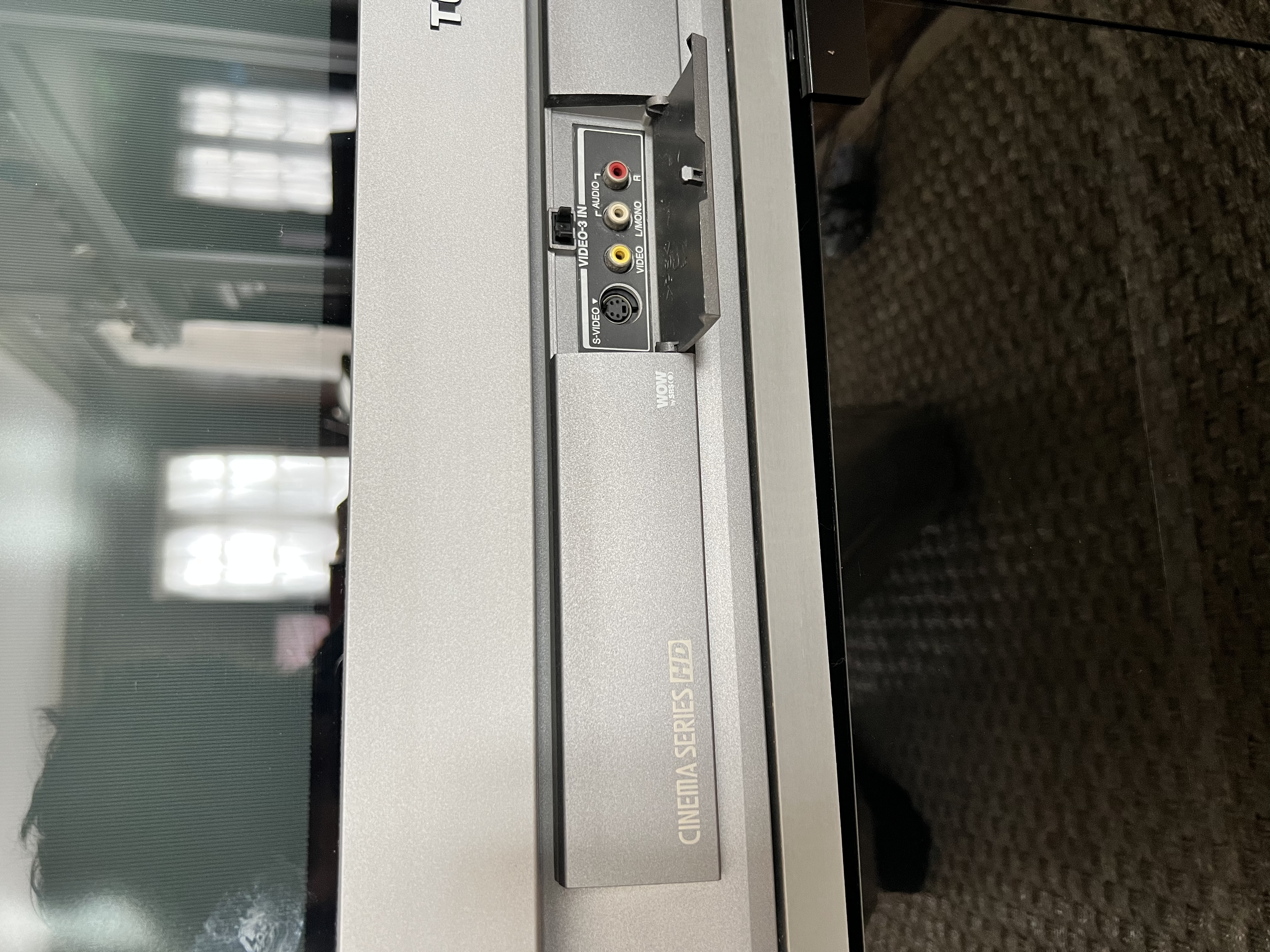

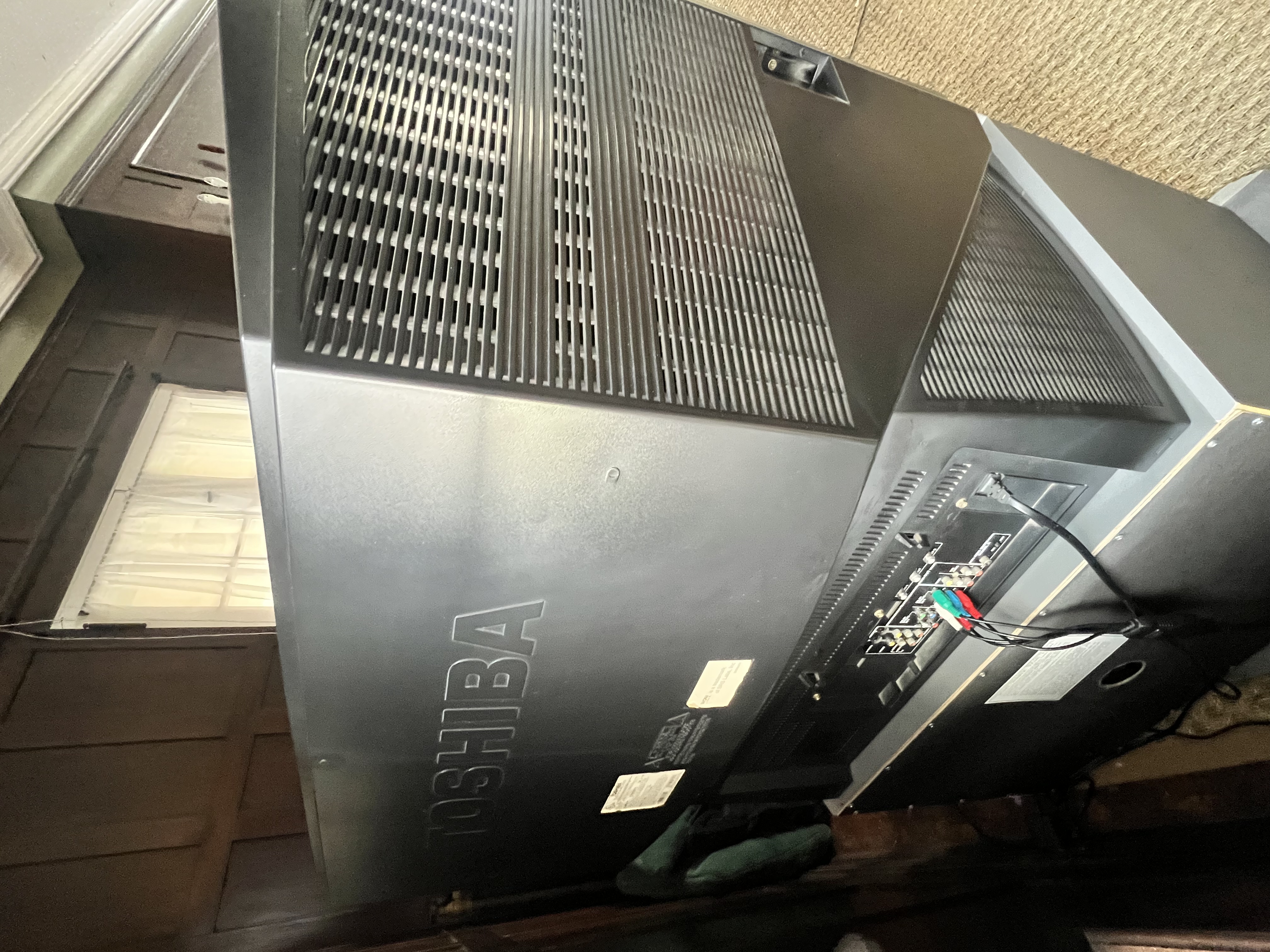

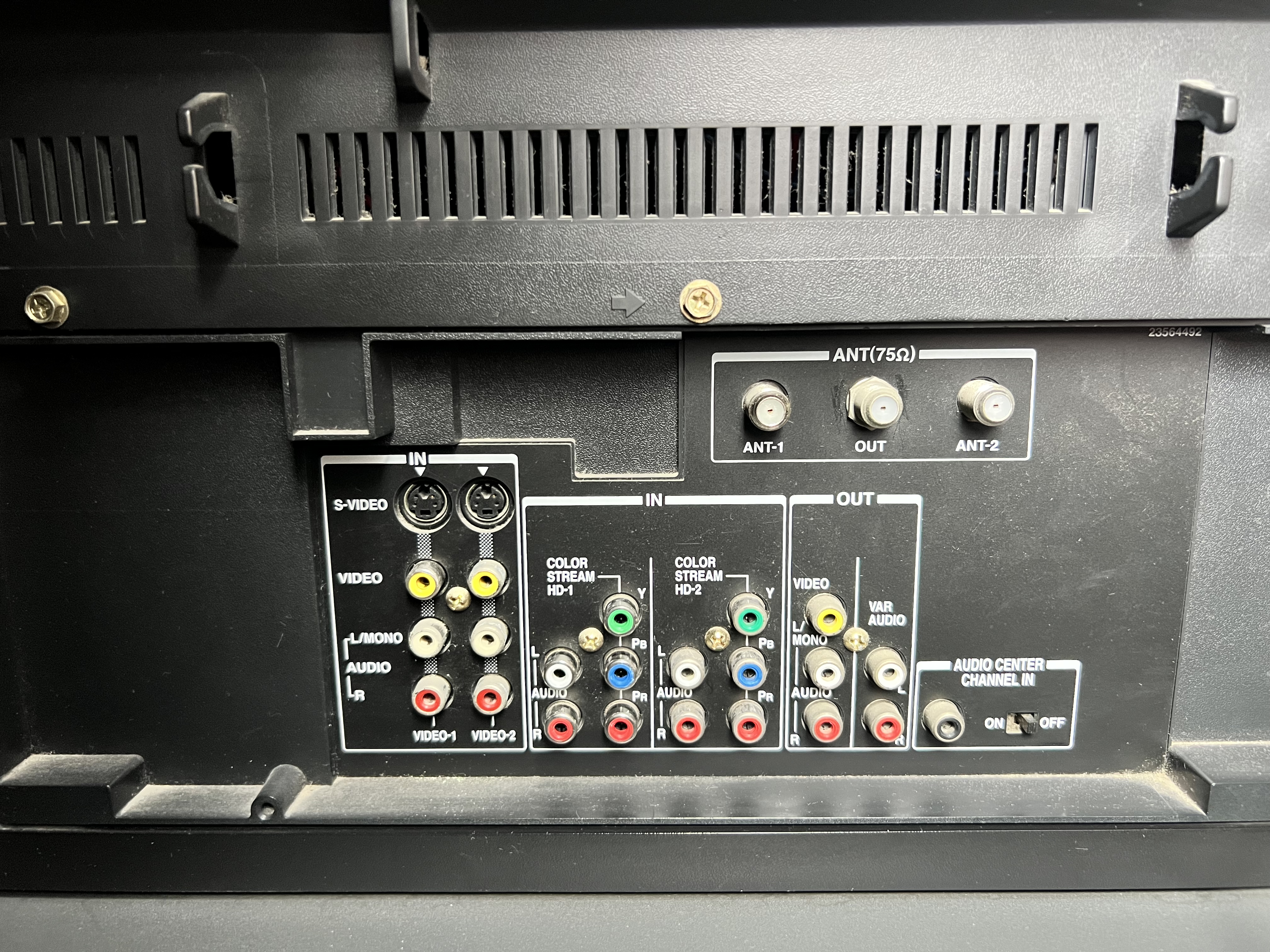

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31.5 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7846N |
| Jungle IC: | Toshiba, TA1316AN, TA1316 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | TC90A45F |
| Flyback: | TFB4165ZD |
| Focus Type: | Dual |
| Tube: | Toshiba , A90AJZ90X30 , A90AJZ90X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 10W x 2, 13W Subwoofer |

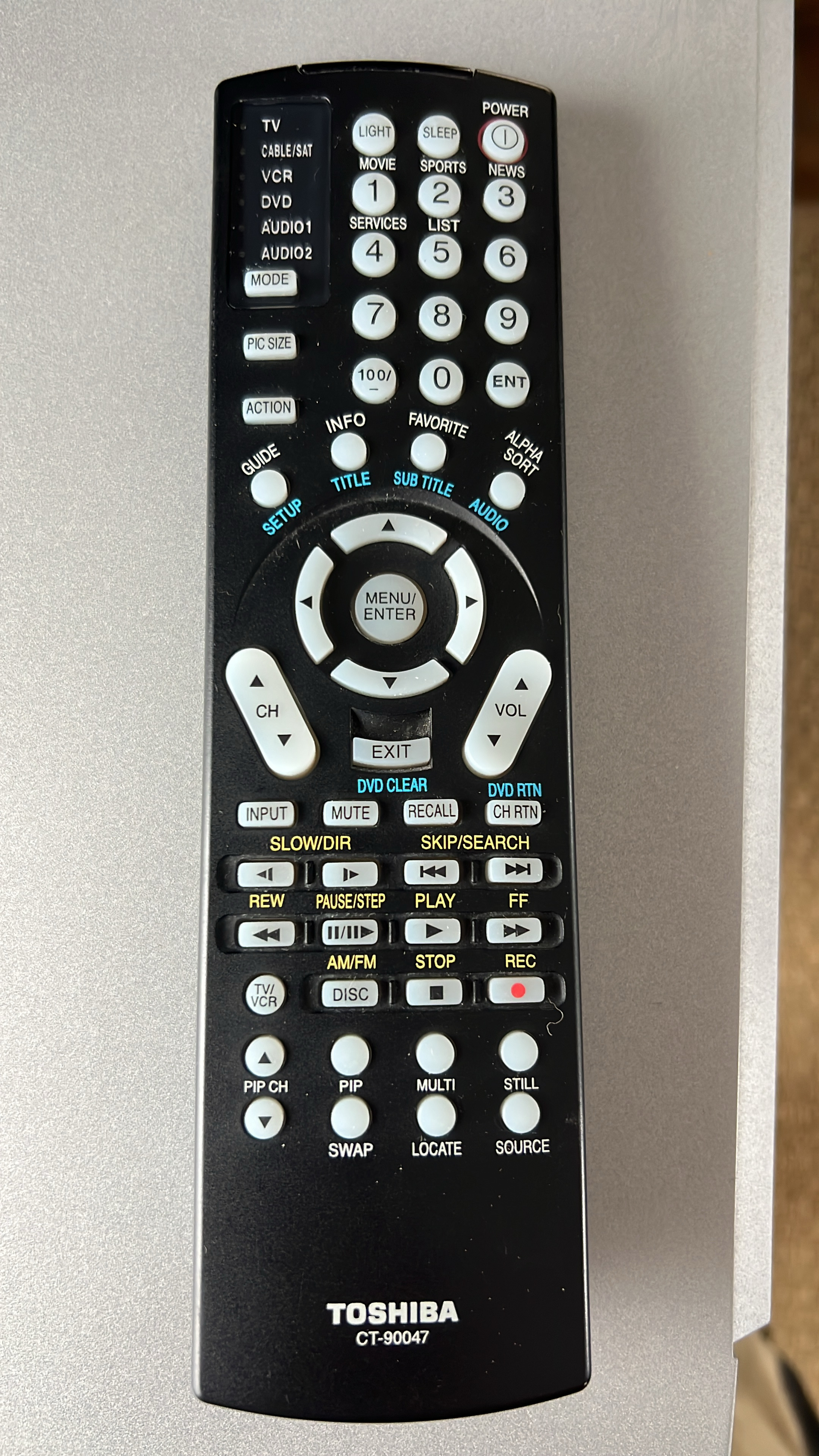

| Remote: | CT-90047 |

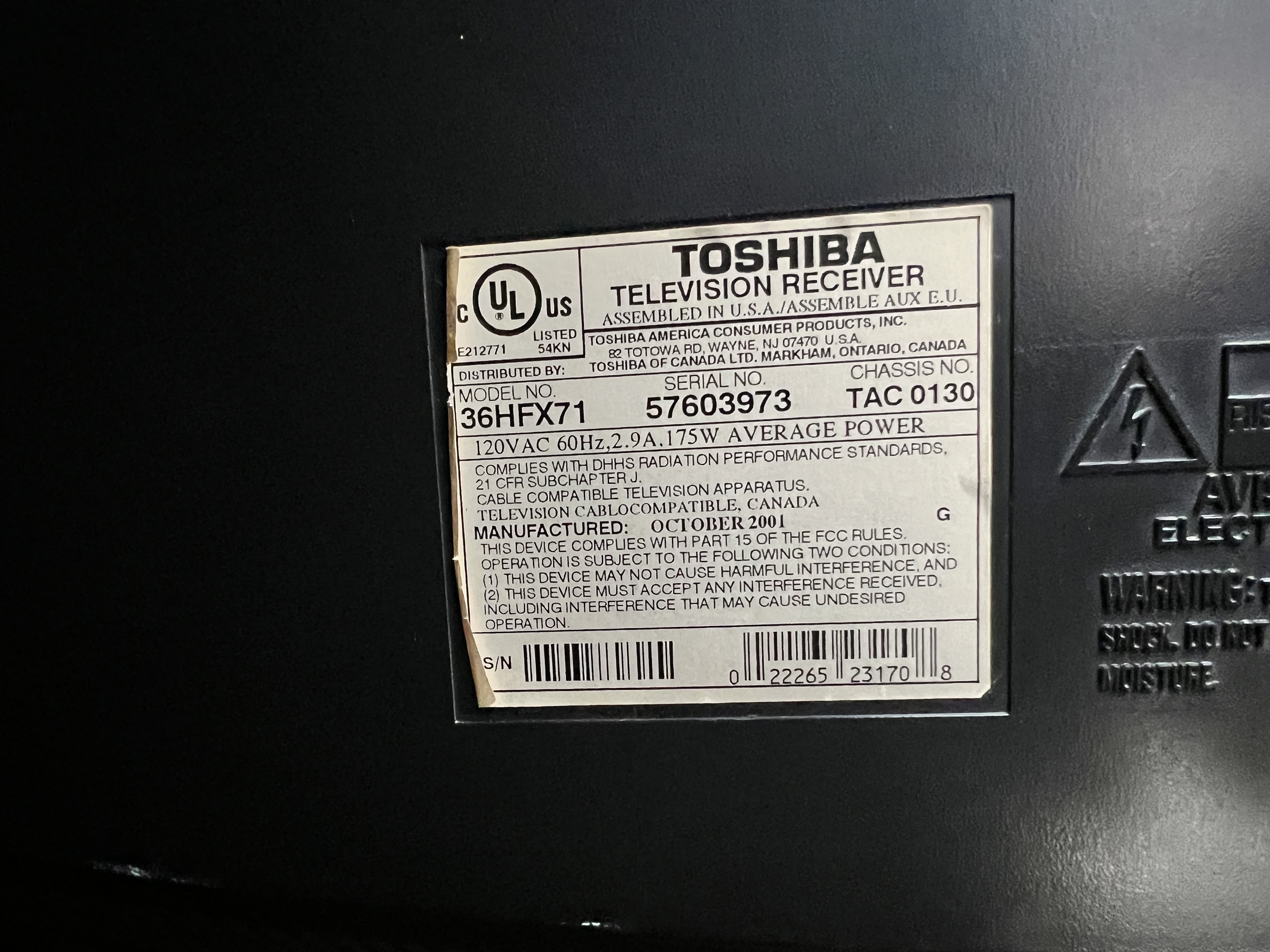

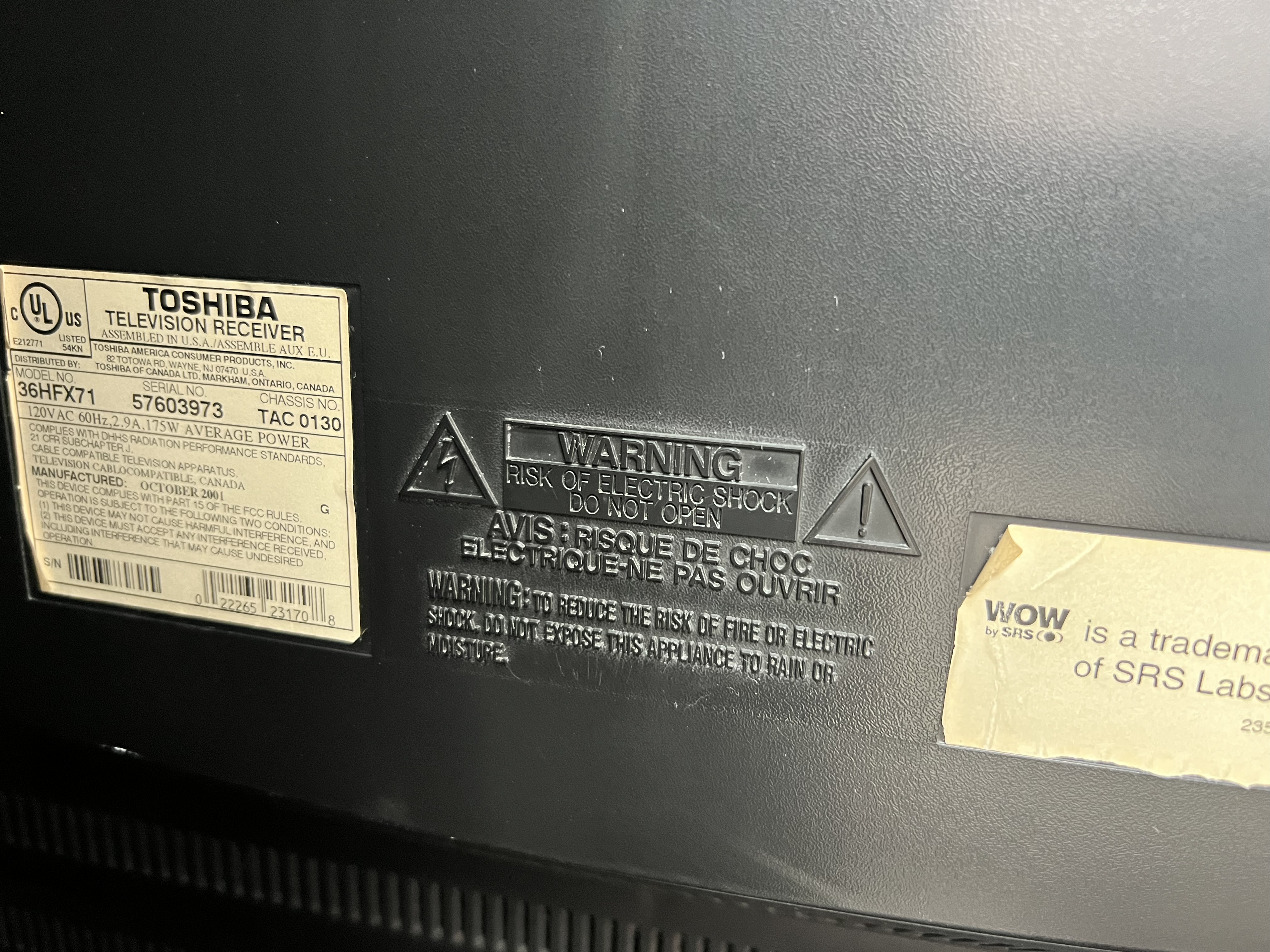

| Chassis: | N1PS, TAC0130 |
| Weight: | 214 lbs (97.1 kg) |
| Dimensions (W/H/D): |
972 x 752 x 616 mm
(38.2 x 29.6 x 24.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 2299 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

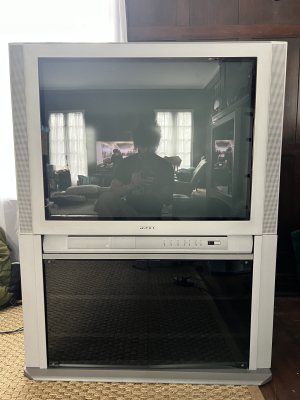

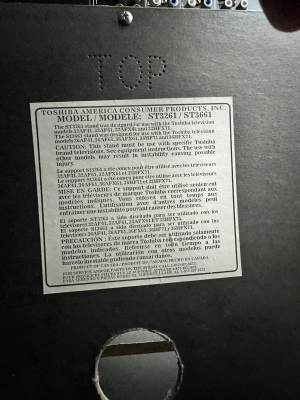

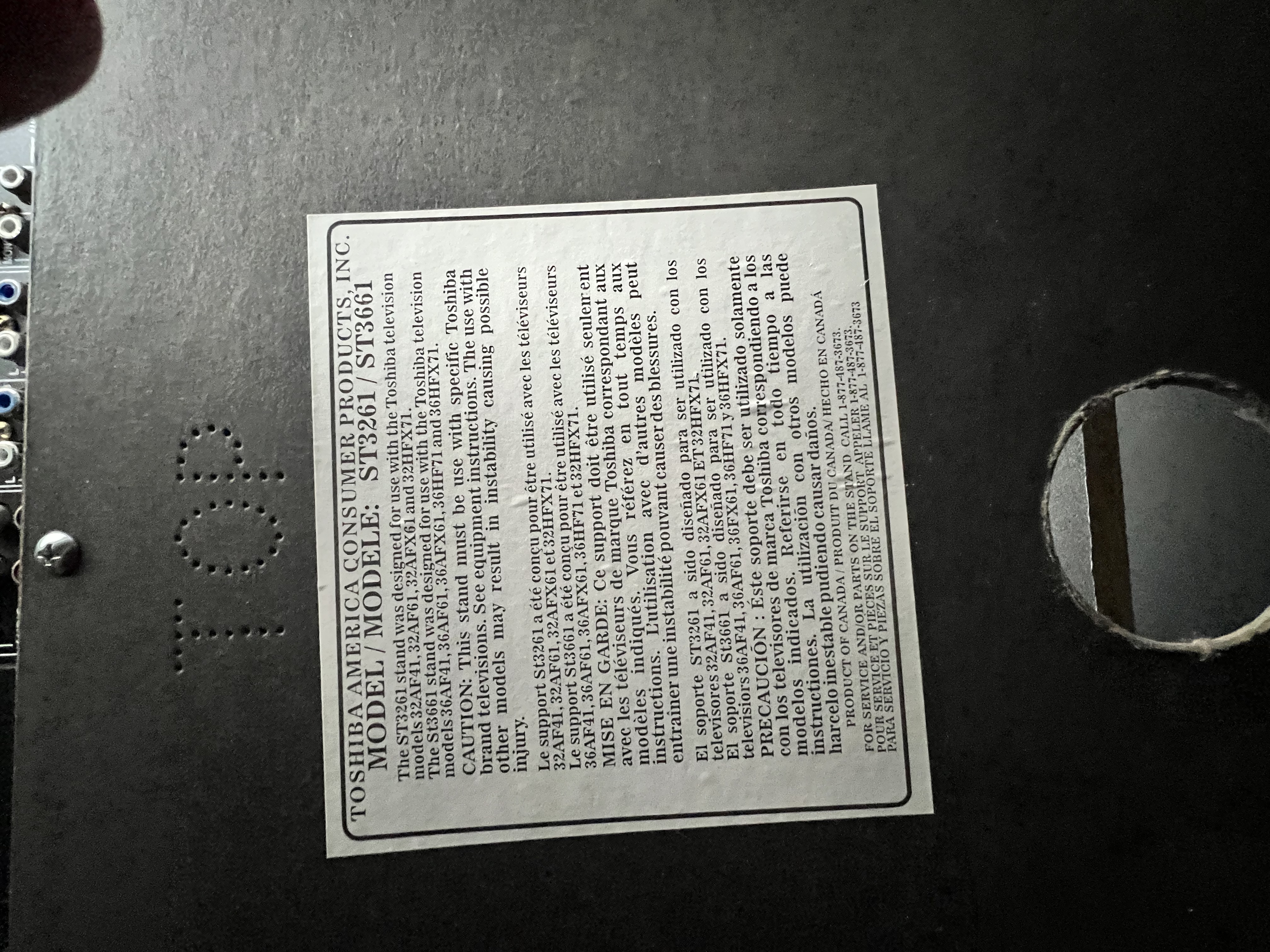

| Mounting: | Table Surface (Standard), OEM Stand, ST3661, ST3261 |
| Degaussing: | Automatic on Power-on |
