Summary
Standard 19" consumer television from Toshiba - can be RGB modded (see below).
Manuals & Promo Materials
RGB Mod
A note on the RGB mod: using typical 75𝝮 termination causes the image to look blown out. Optimal termination between 150-180𝝮. Despite the fact that Sunthar does not use a blanking diode on his CF19G32, I would suggest using one as there was a significant amount of grainy interference.

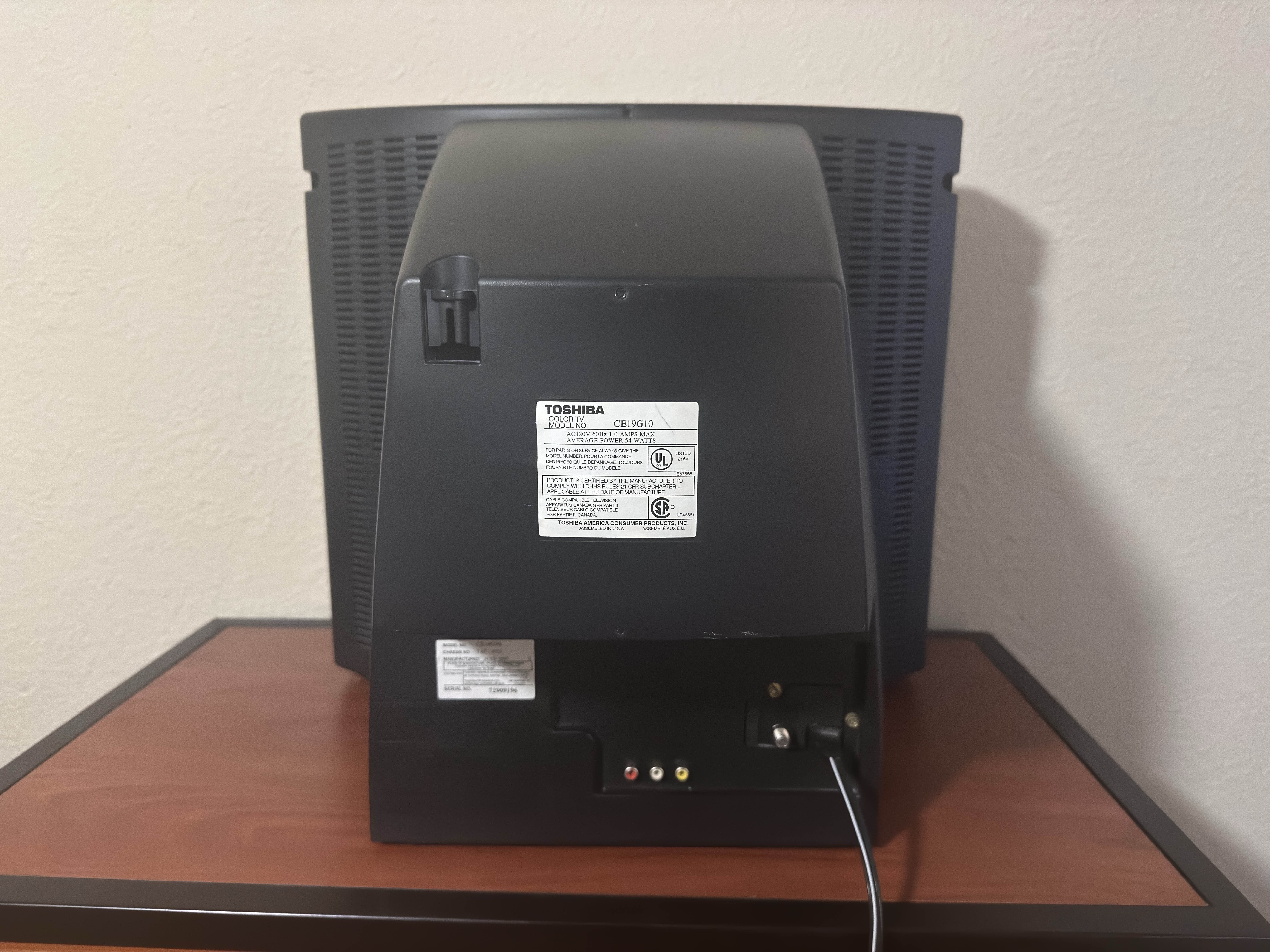

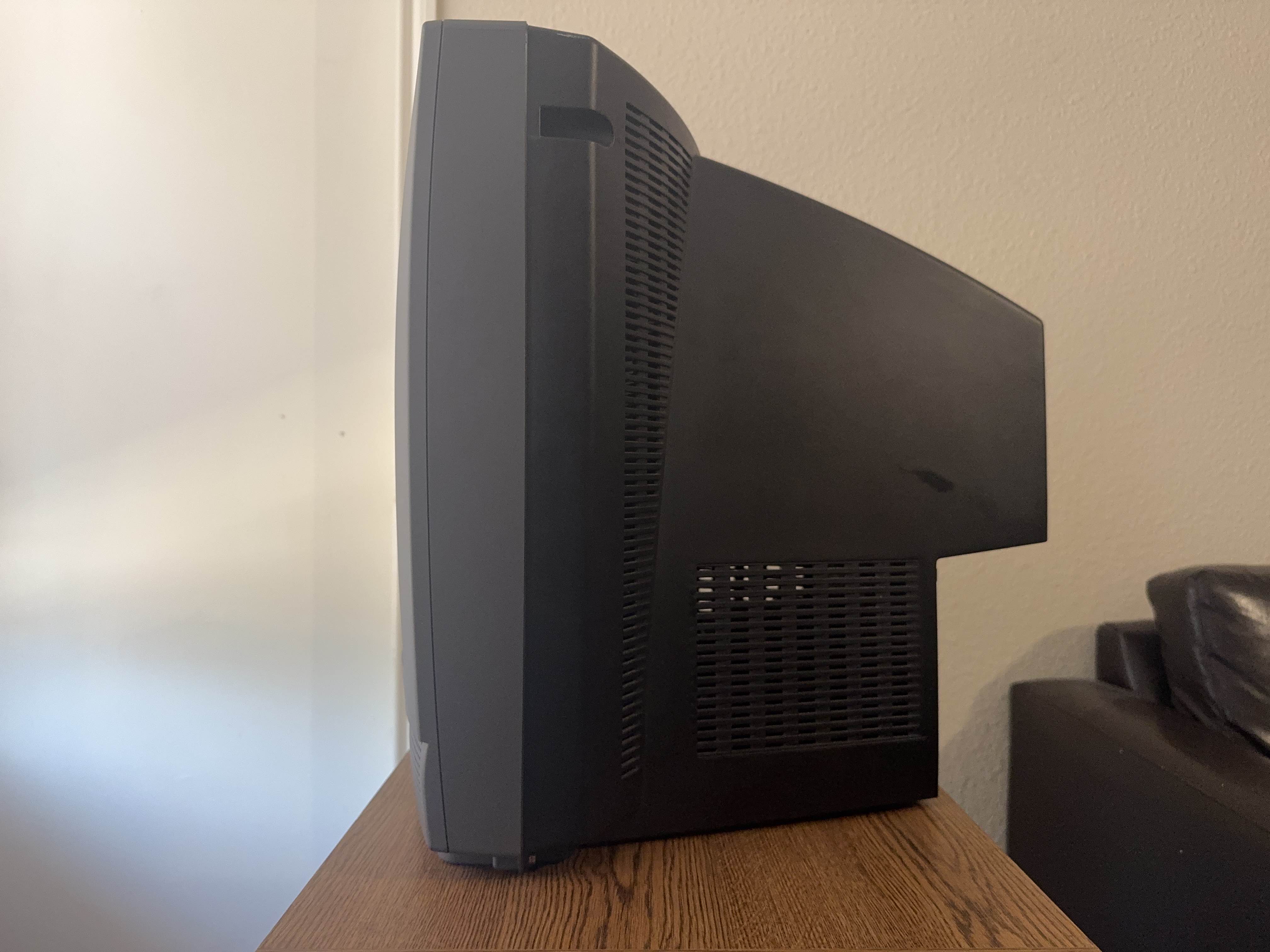

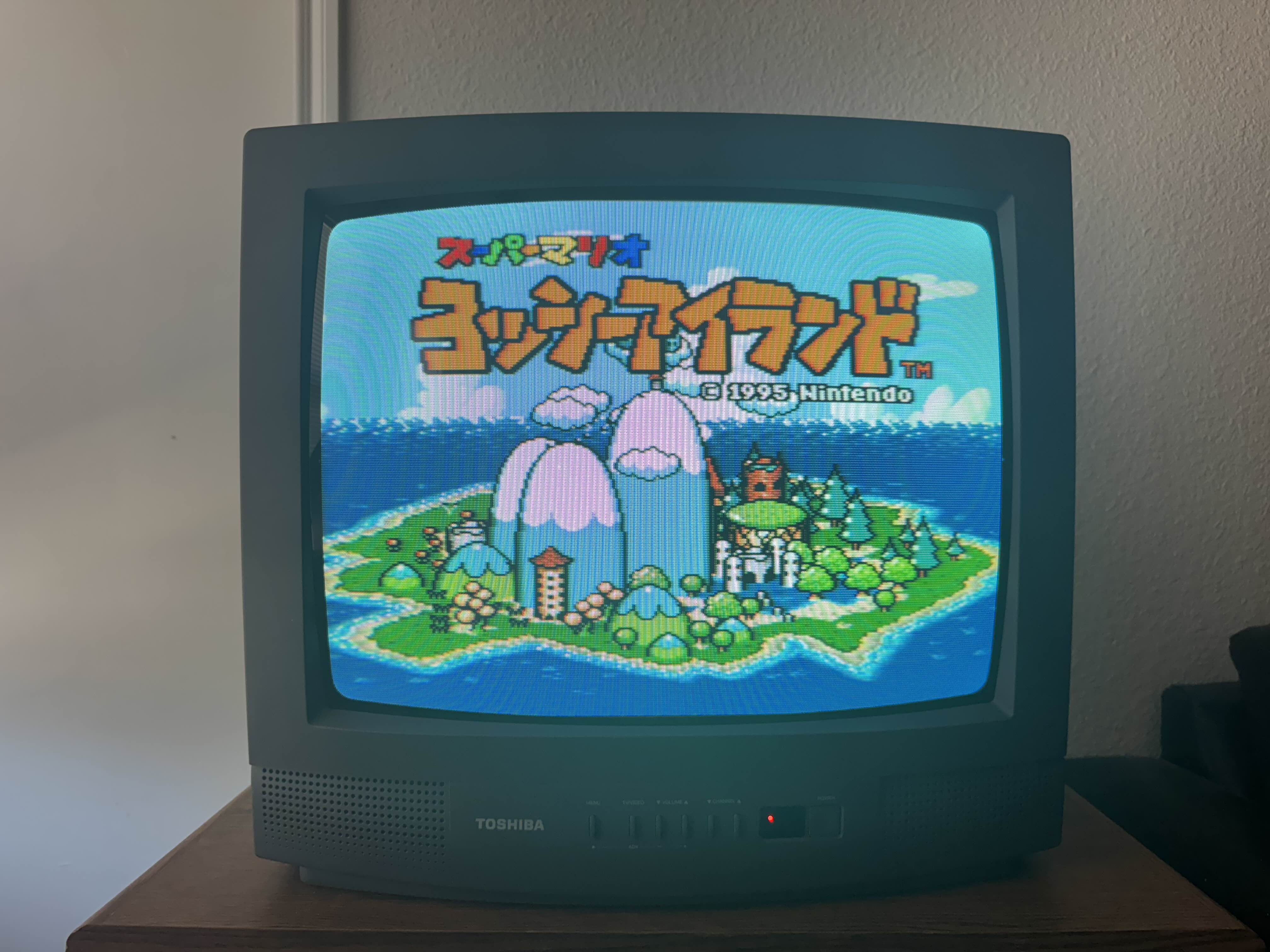

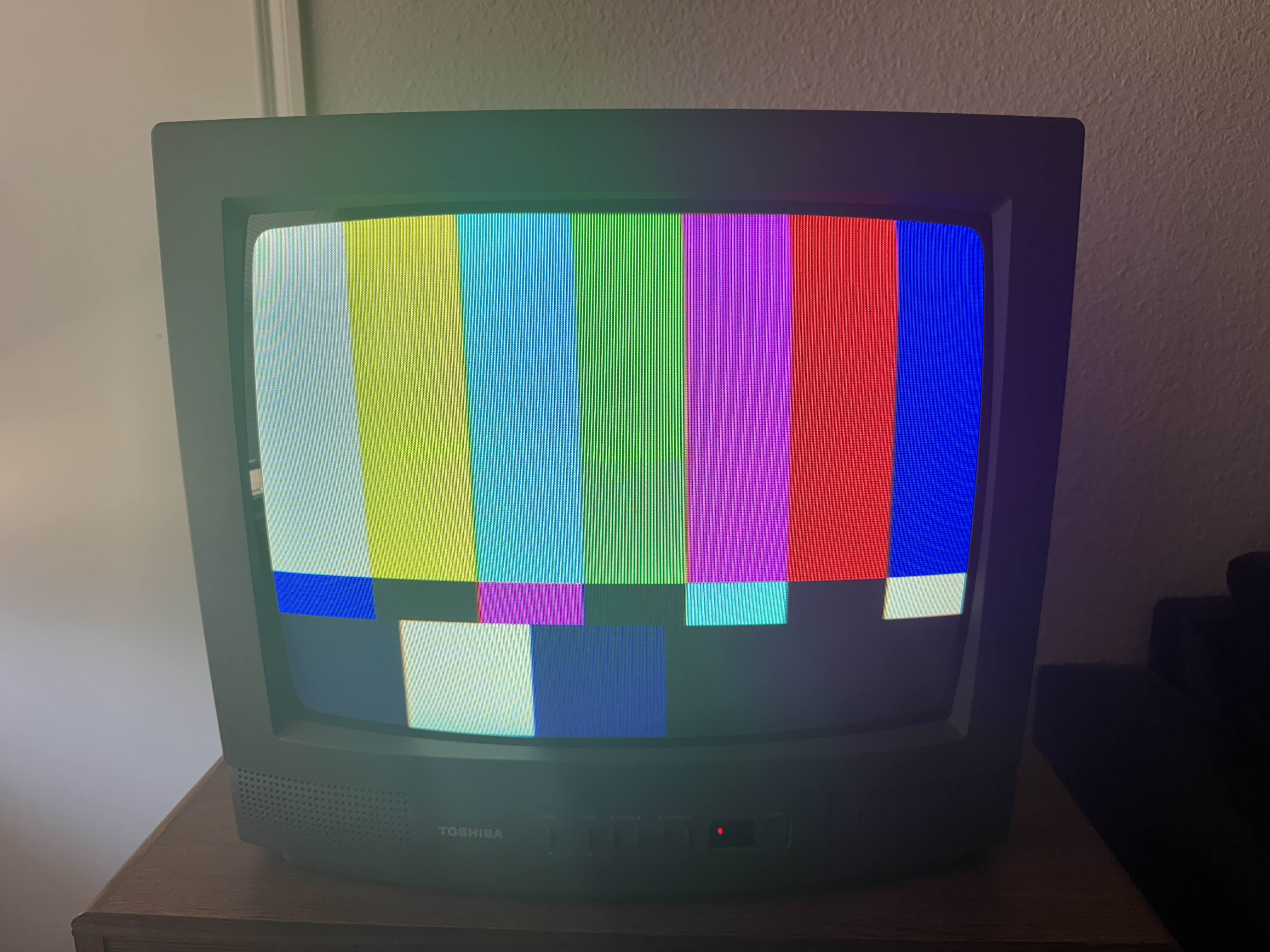

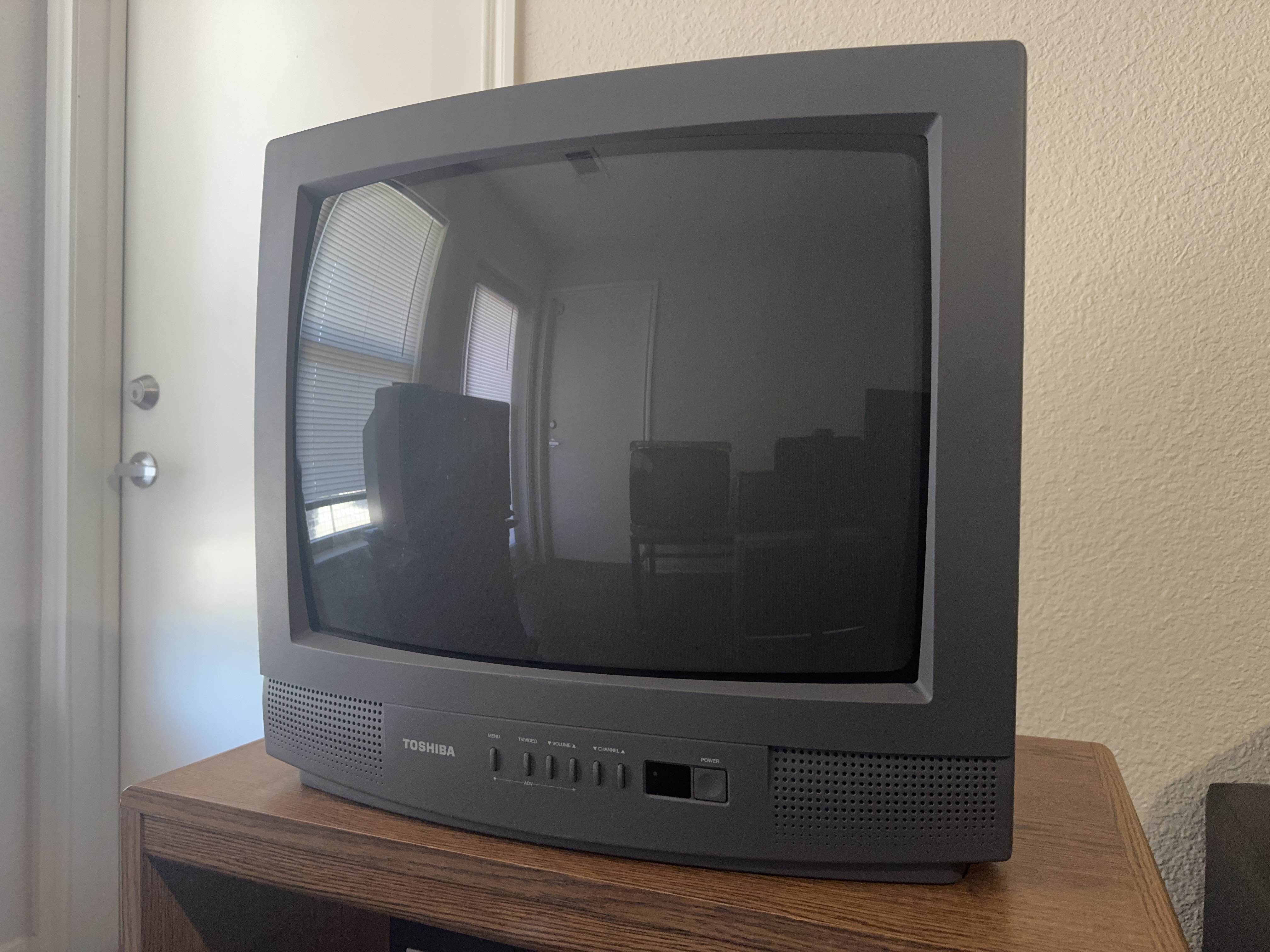

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CE19G10 |
| Series: | CE |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | ON4409 |
| Vertical Output IC: | TA8403K |
| Jungle IC: | TA1223AN |
| Flyback: | Samsung, TFB4122CS, FSB-14B001 |
| Focus Type: | Single |

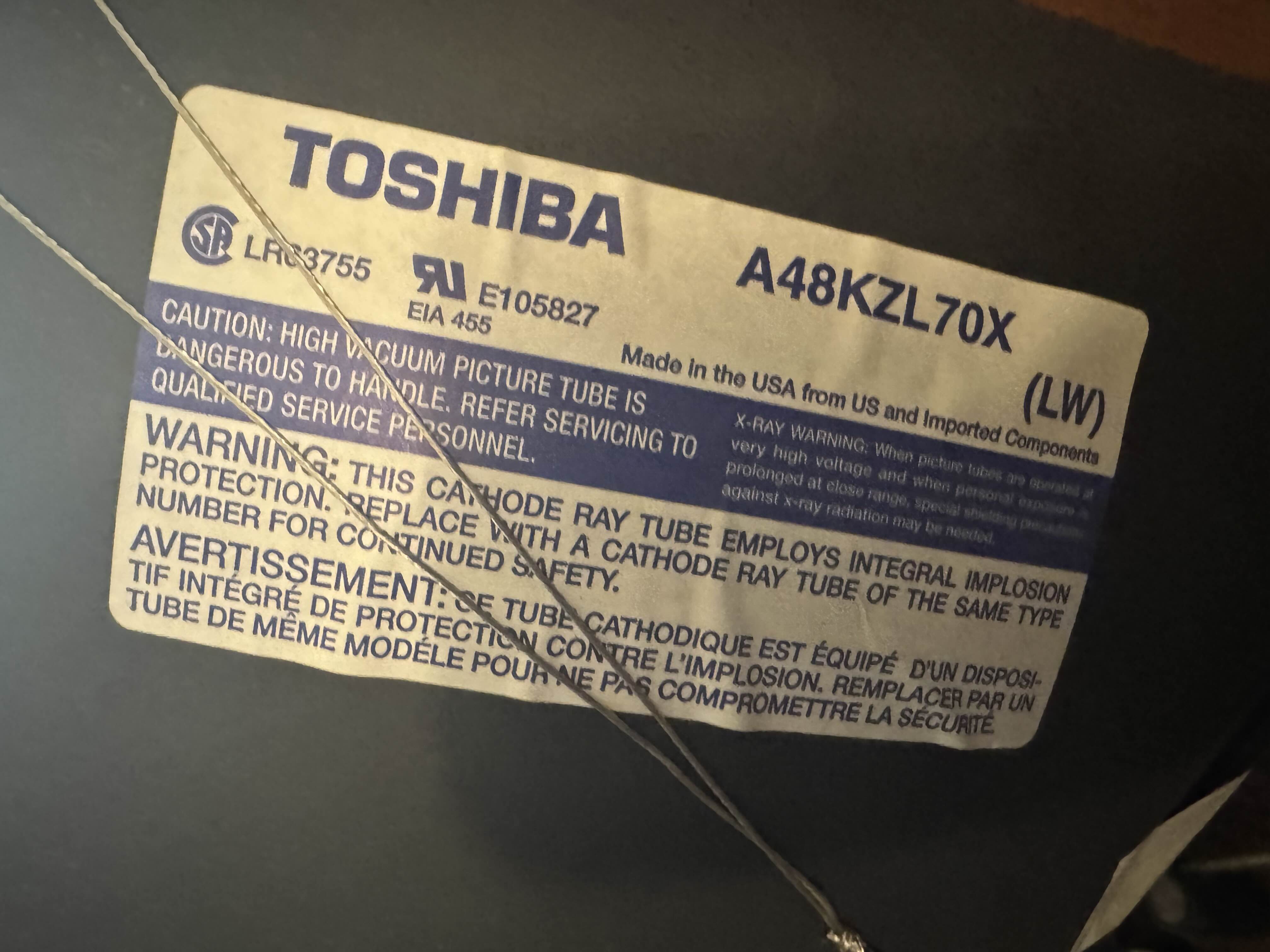

| Tube: | Toshiba , A48KZL70X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TDY-320QS, DSE-1922DL |
| Speakers: | Stereo |
| Chassis: | TAC9725 |
| Weight: | 39 lbs (17.7 kg) |
| Dimensions (W/H/D): |
506 x 470 x 466 mm
(19.9 x 18.5 x 18.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
