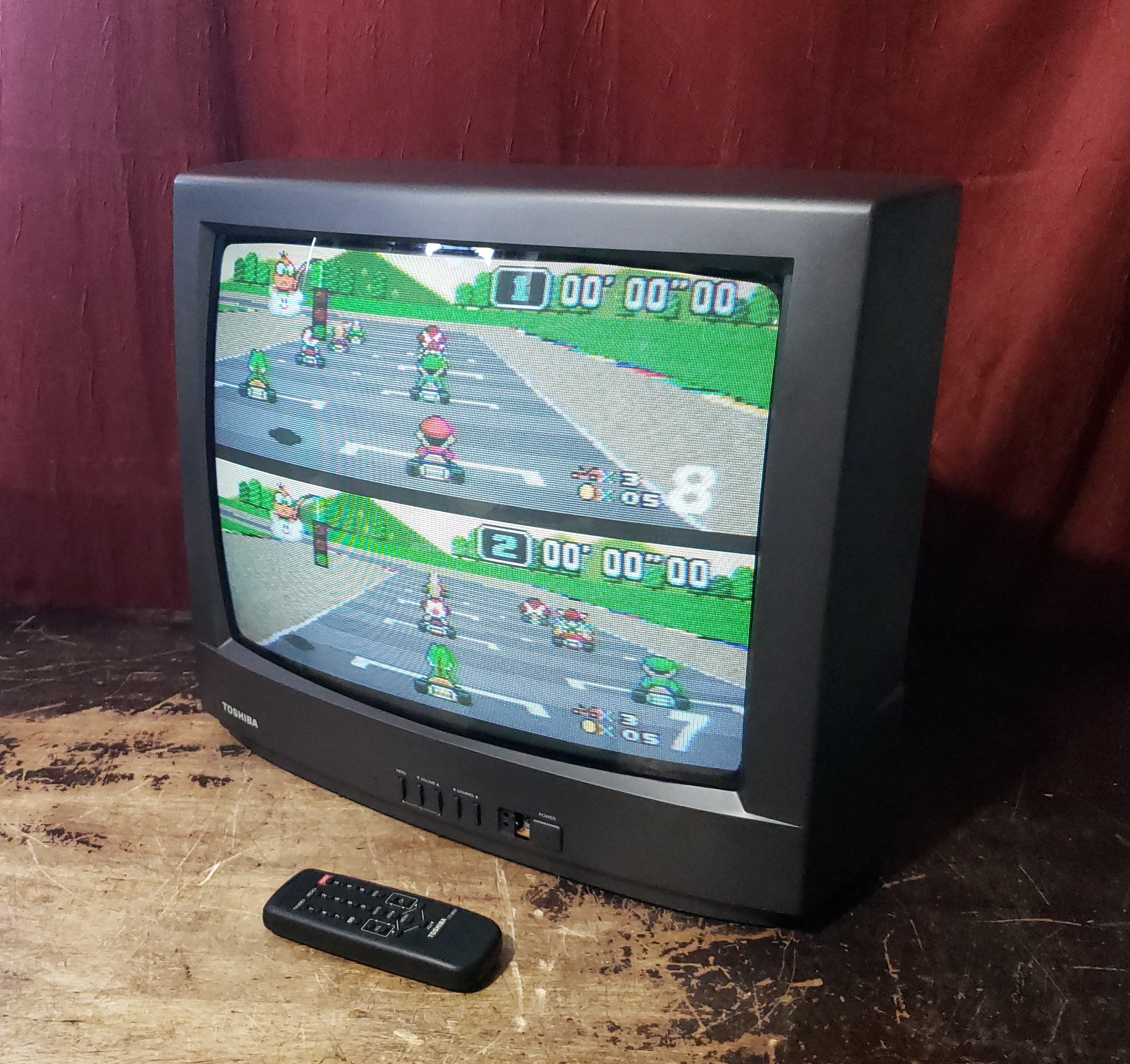

A full feature TV with exceptional performance in an easy-top-place cabinet. 19" Blackstripe II Picture Tube.
Manuals
- User Manual
- Service Manual for similar model with the same chassis
- A poor quality scan of the schematic

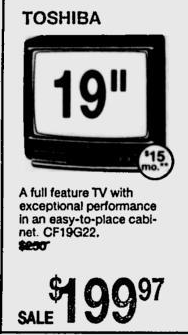

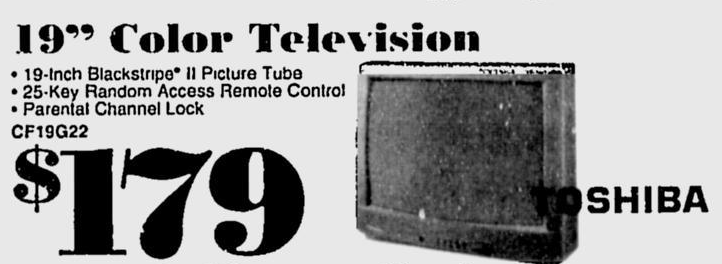

Media & Promo Materials
Notes
As on other genuine Toshiba sets to enter the service menu: with the TV on, press MUTE on the remote control, release it, and press it again while pressing MENU on the TV. An S will appear on the screen. Press MENU again to enter.

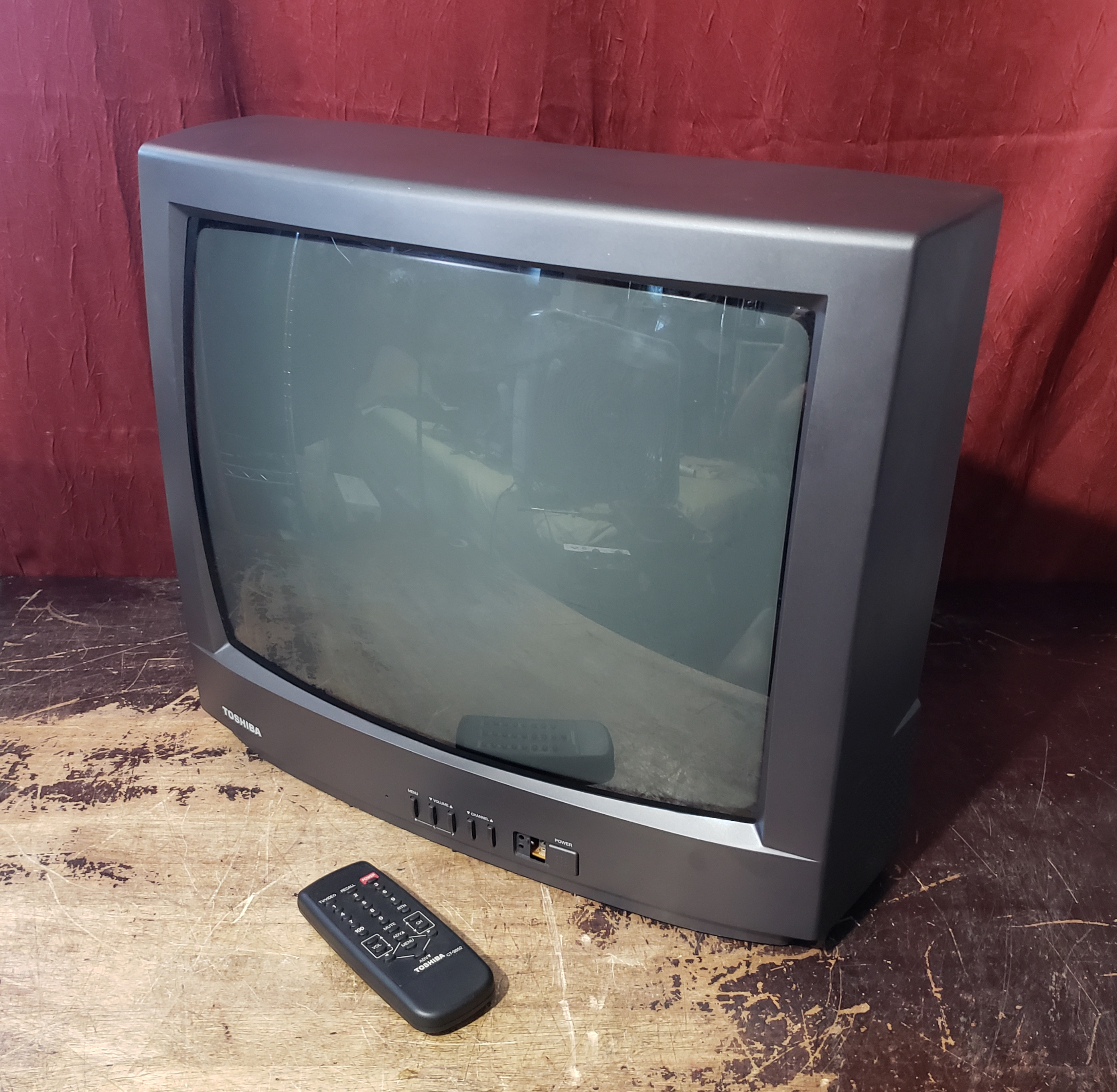

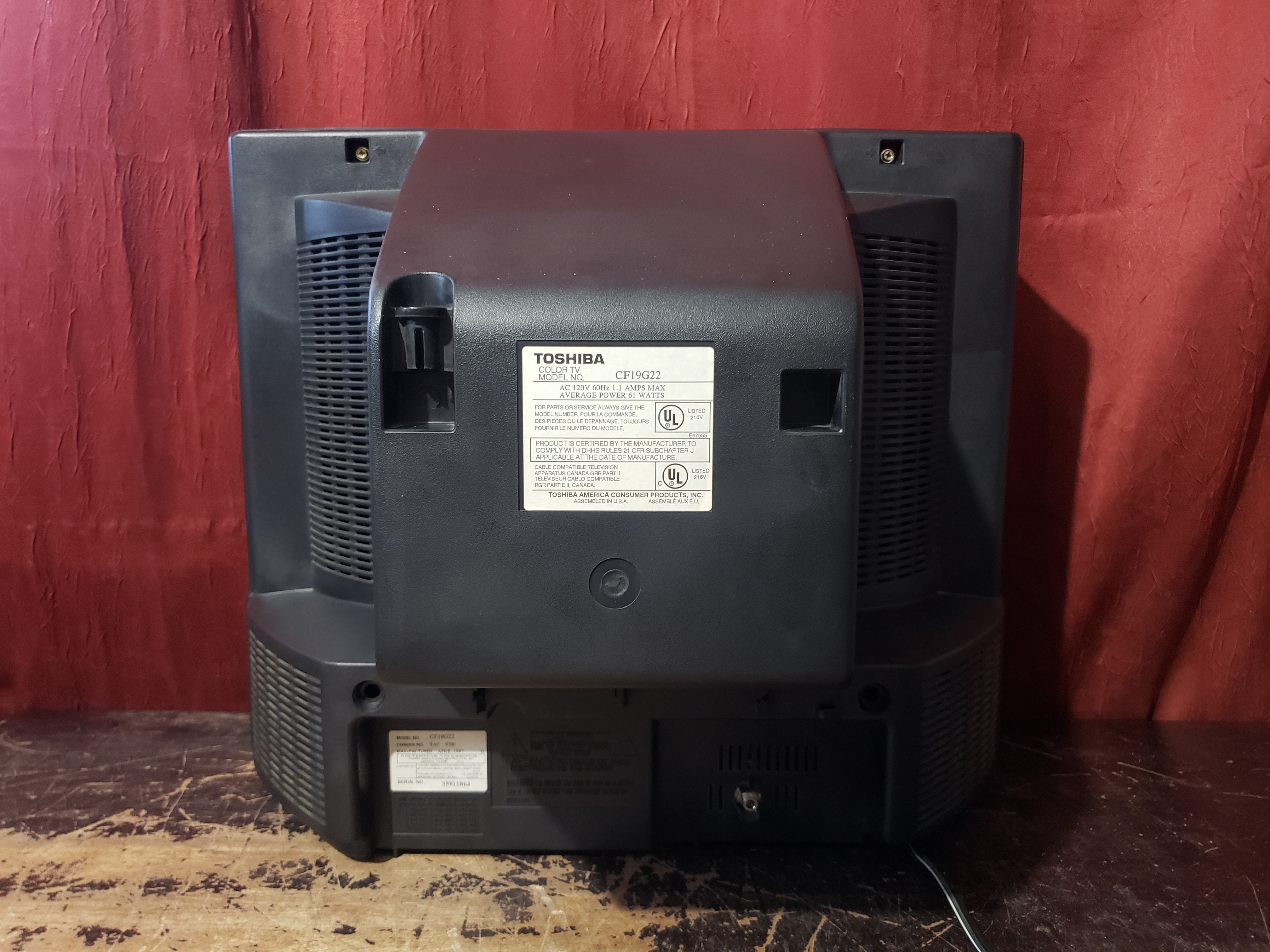

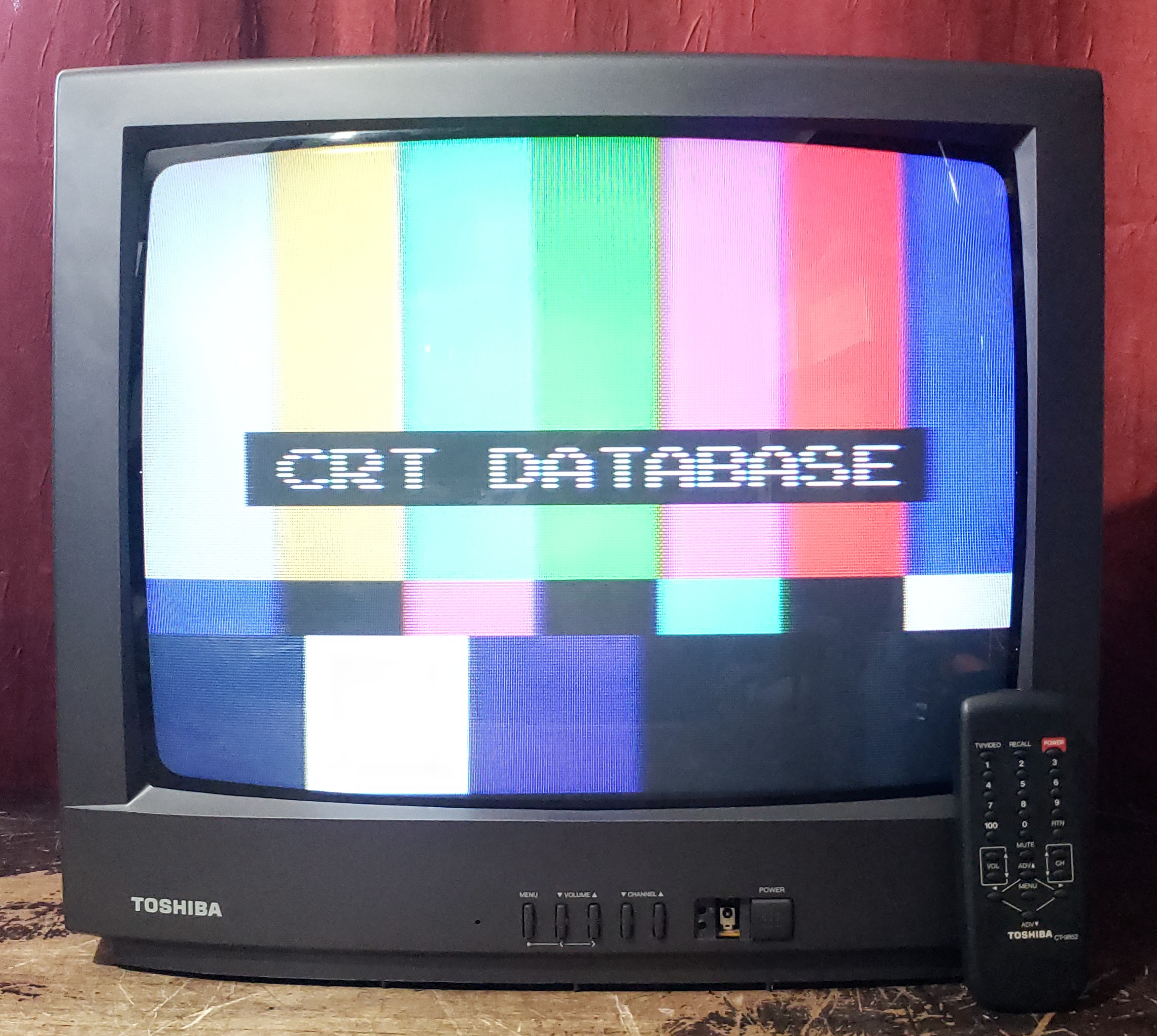

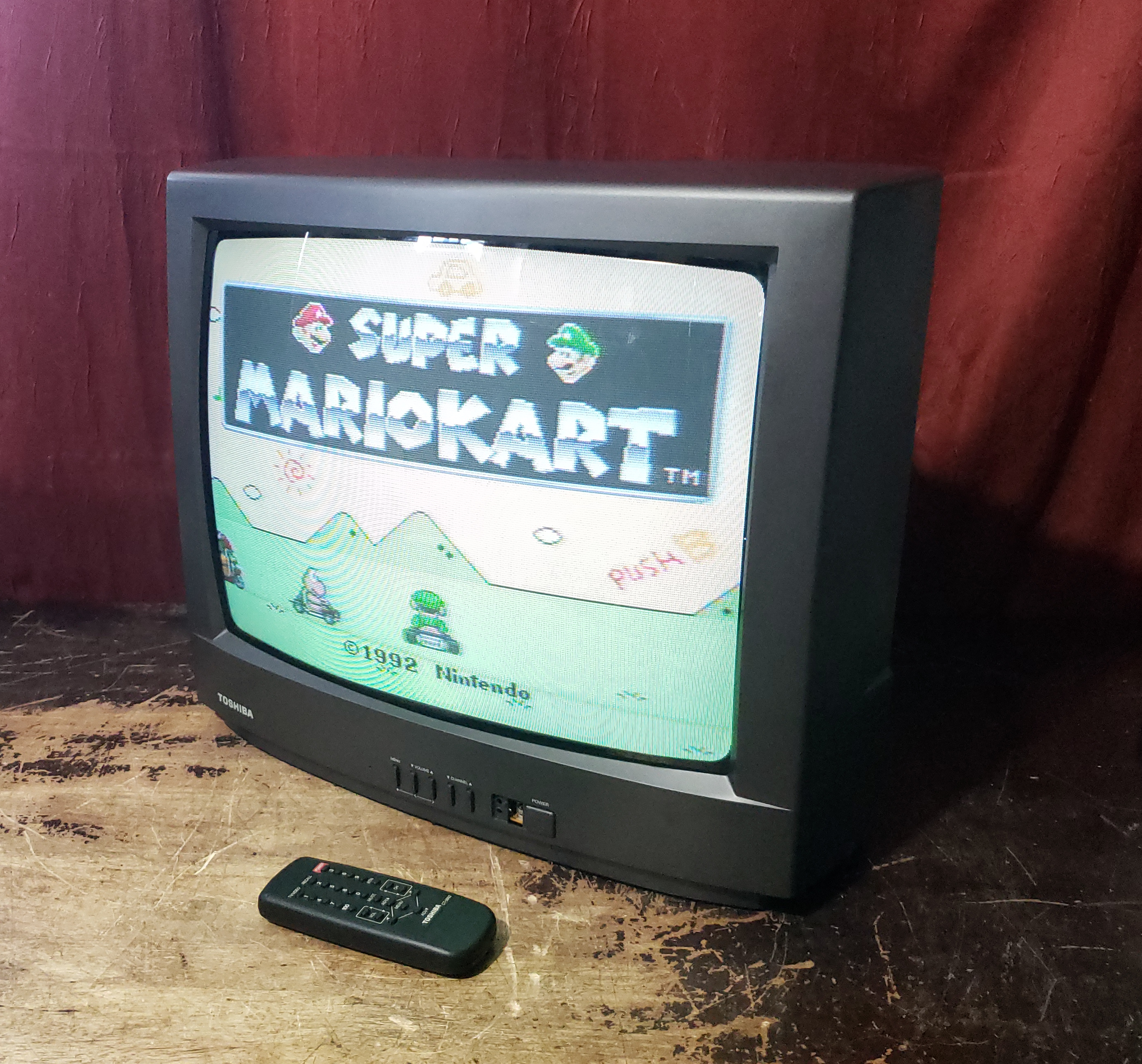

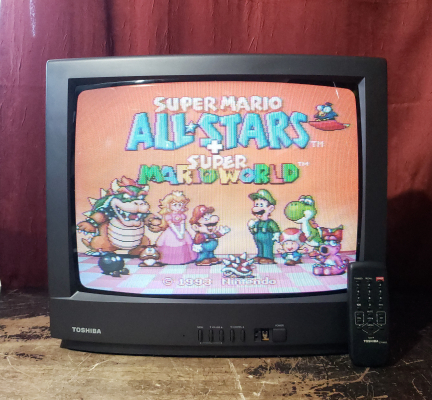

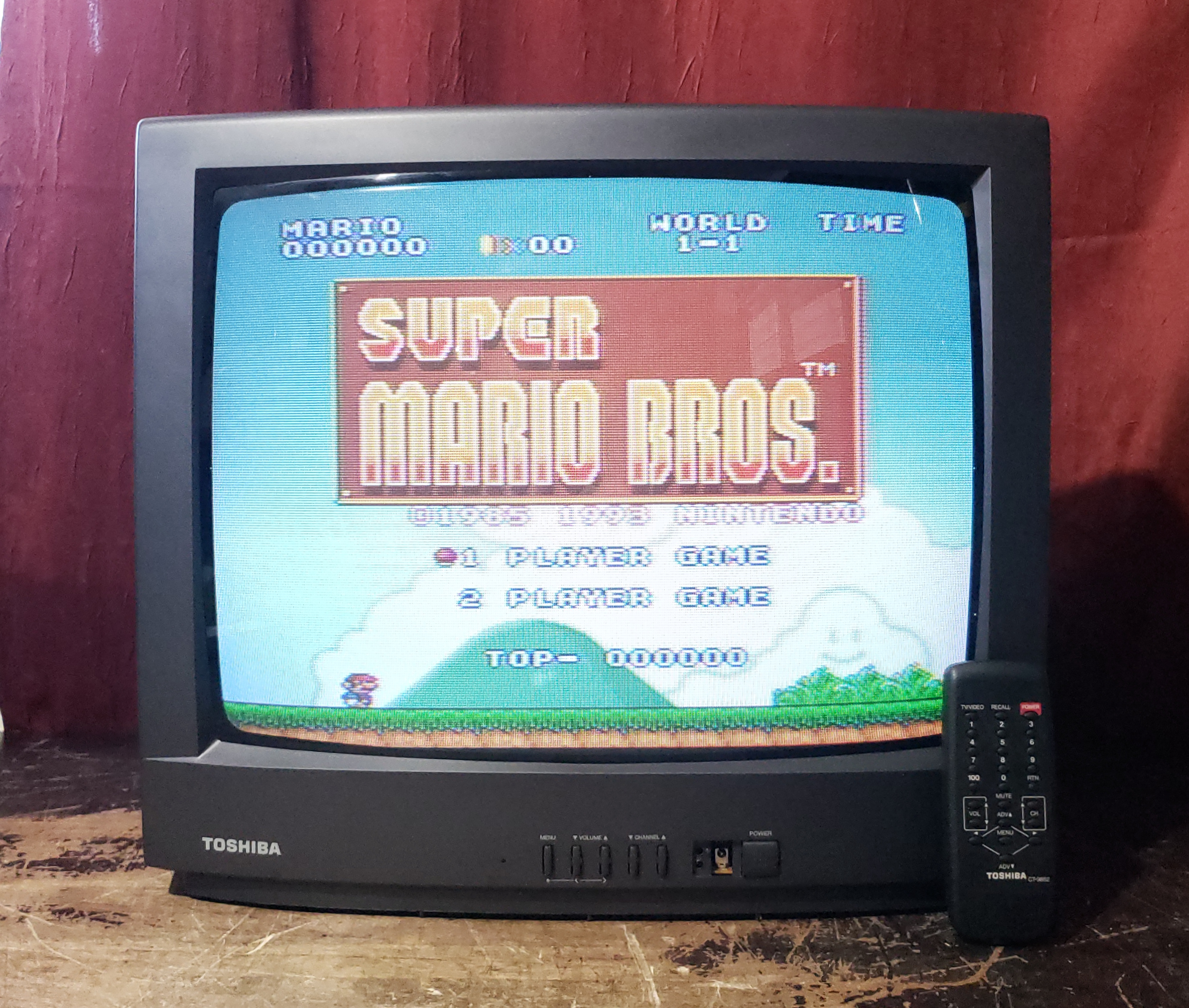

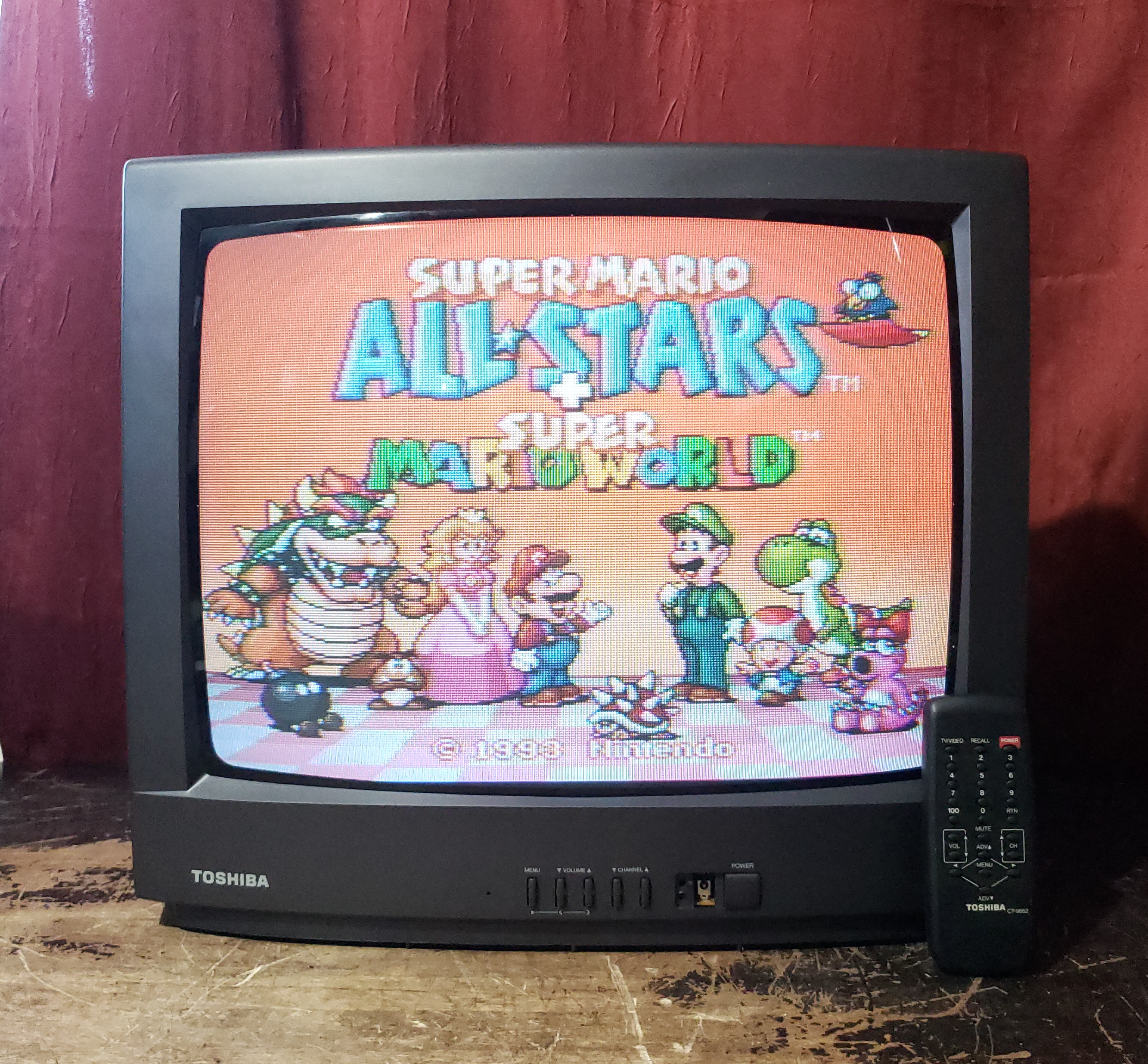

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CF19G22 |
| Series: | CF |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1554 |
| Vertical Output IC: | TA8403K |
| Comb Filtering: | Notch |
| Jungle IC: | Toshiba, TA1223N |

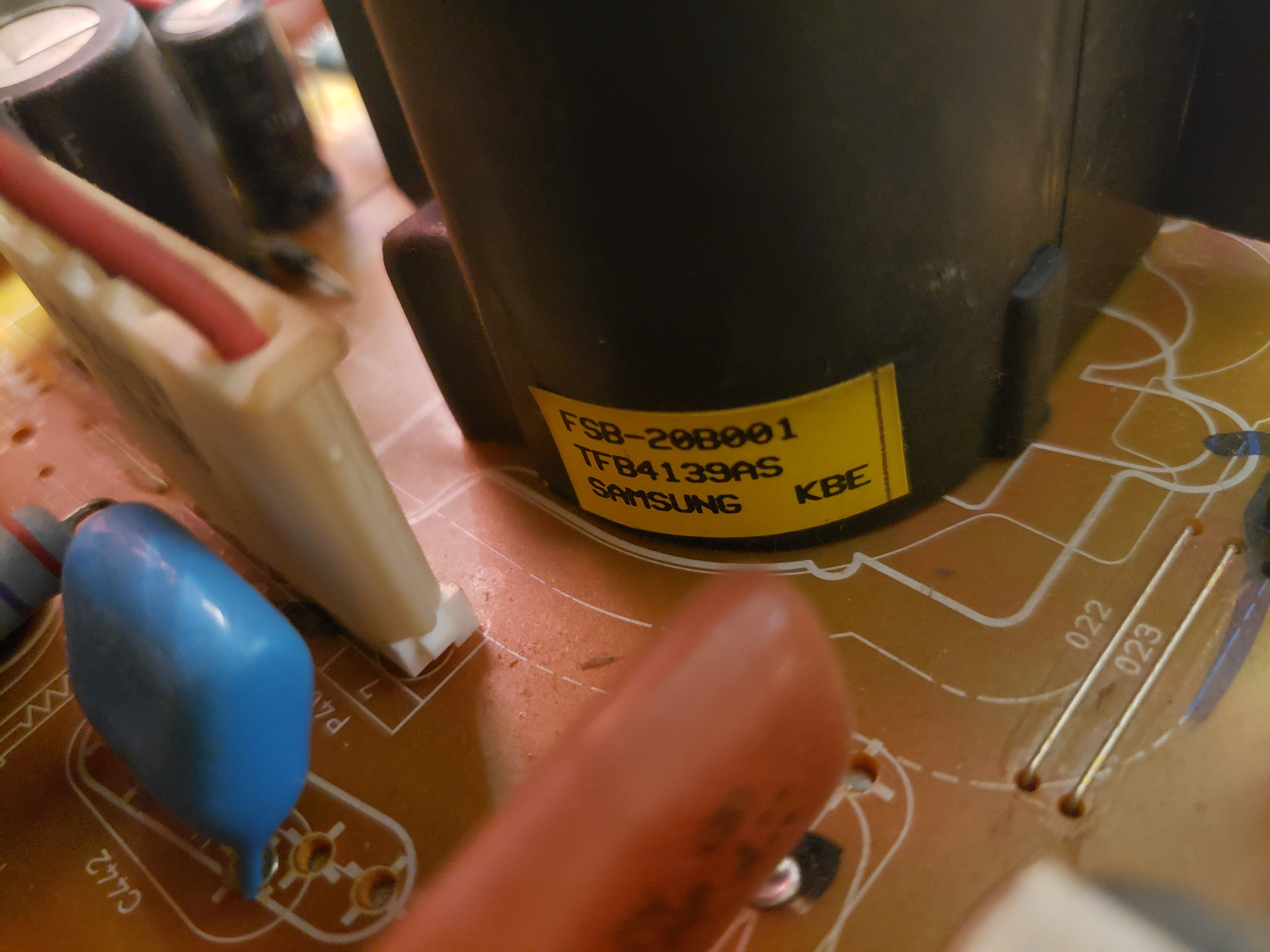

| Flyback: | FSB-20B001, TFB4139AS, Samsung |
| Focus Type: | Single |

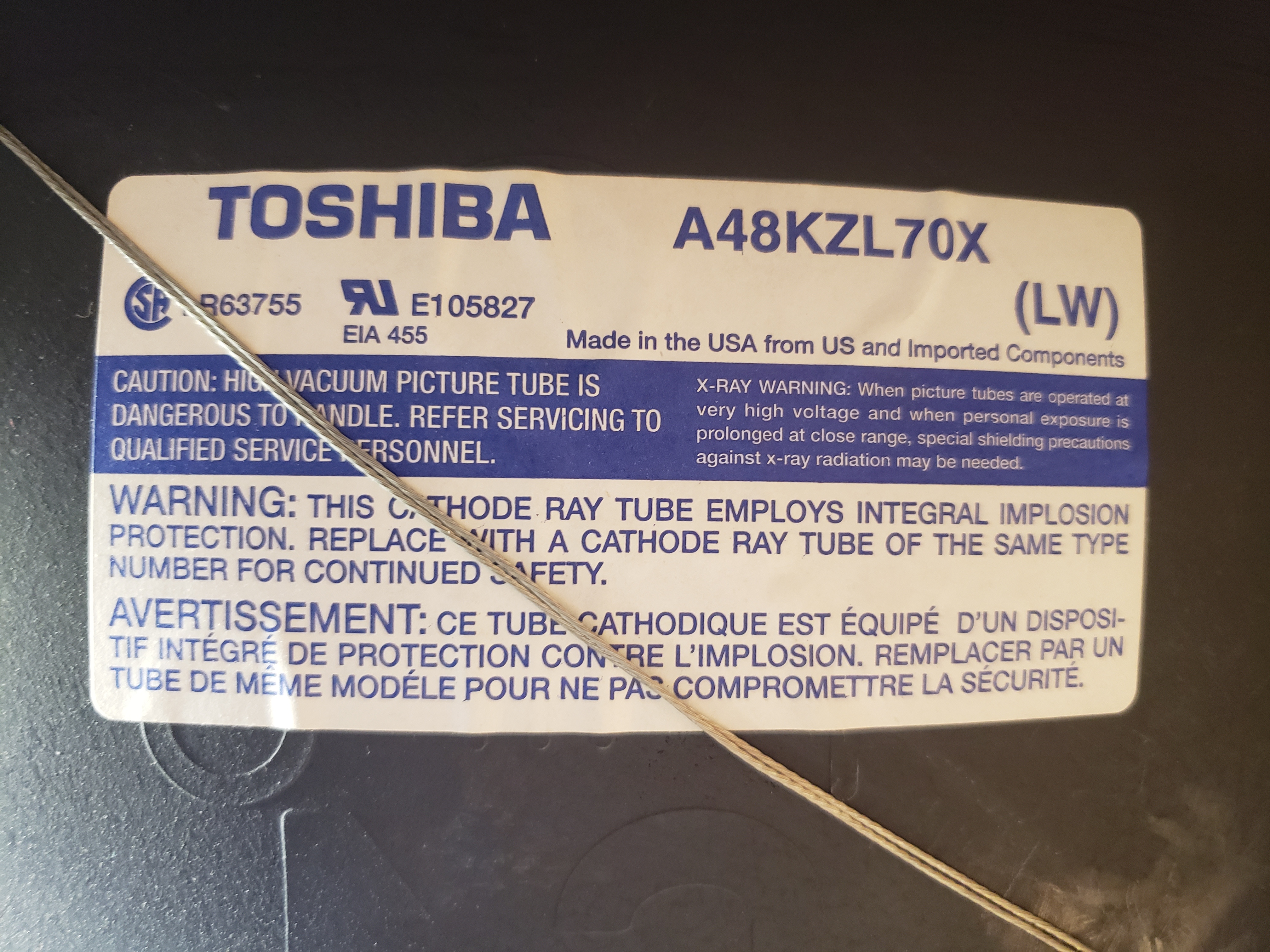

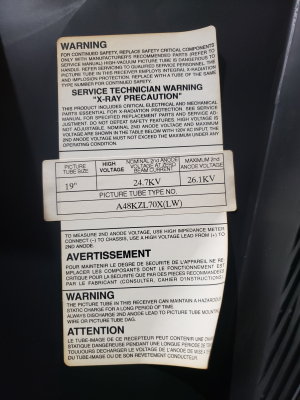

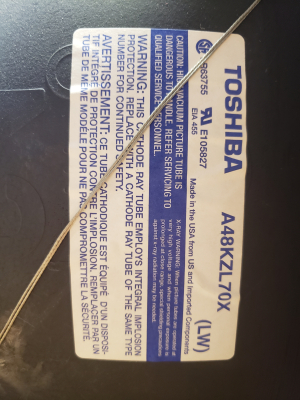

| Tube: | Toshiba , A48KZL70X , Blackstripe II |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

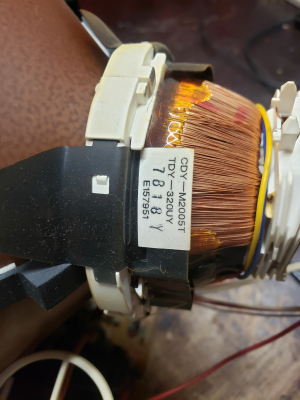

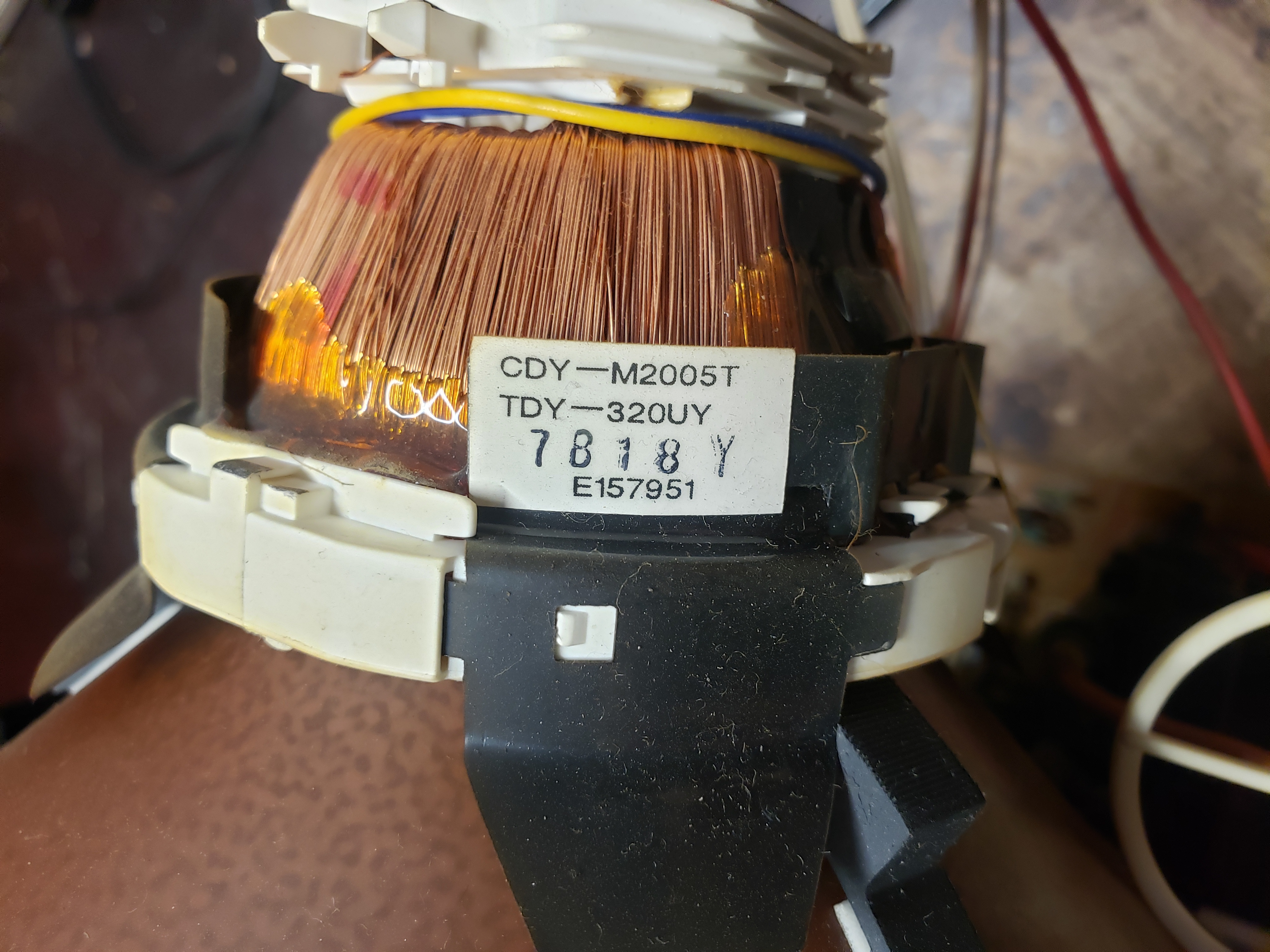

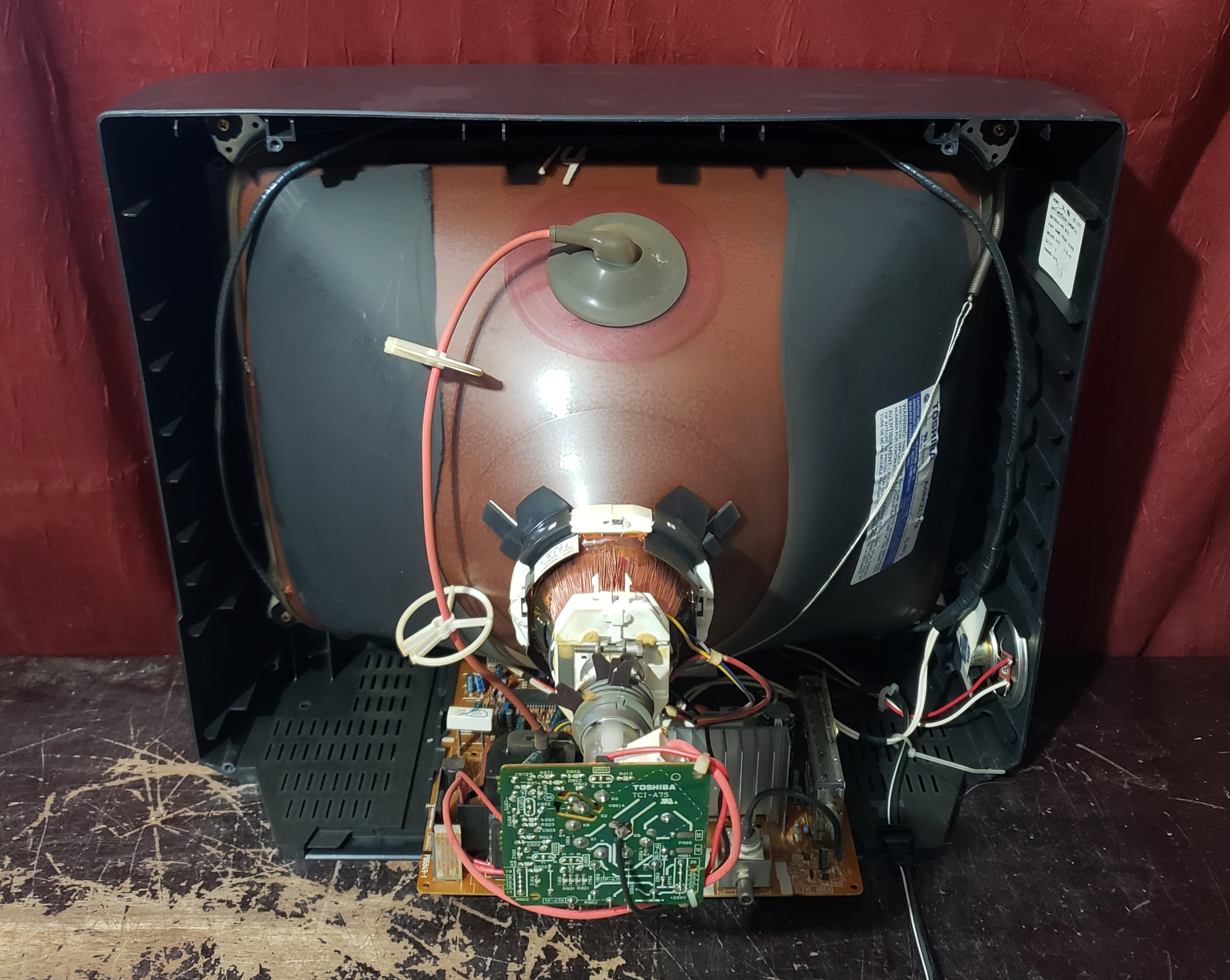

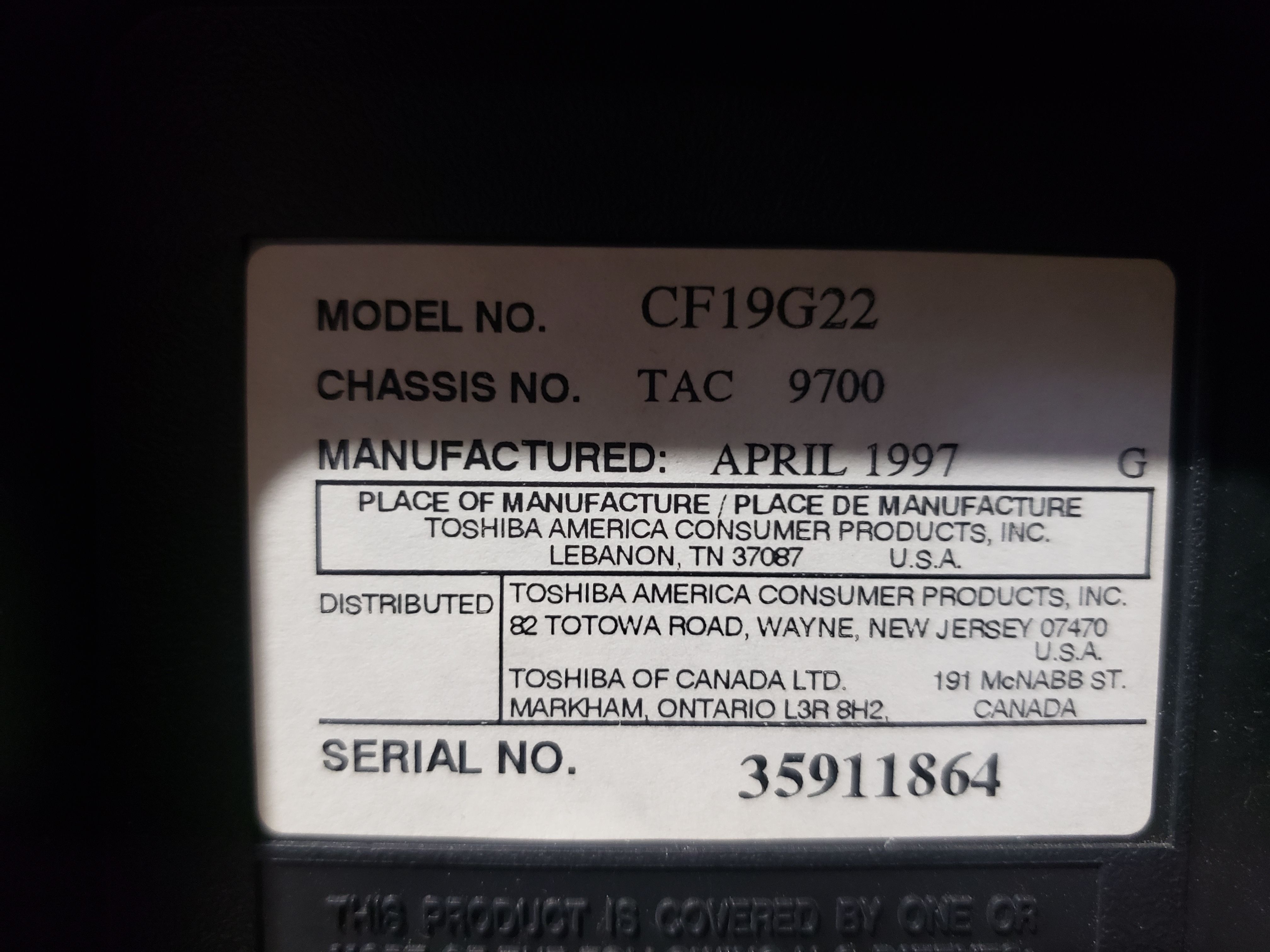

| Yoke: | CDY-M2005T, TDY-320UY |
| Yoke Horz. Inductance: | 3.0 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 18.7 mH (@ 100 Hz) |
| Speakers: | Mono, 1W |
| Remote: | CT-9852 |
| Chassis: | TAC 9700, N5E |
| Weight: | 34.4 lbs (15.6 kg) |
| Dimensions (W/H/D): |
520 x 441 x 467 mm
(20.4 x 17.3 x 18.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 249 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux, S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
