Summary

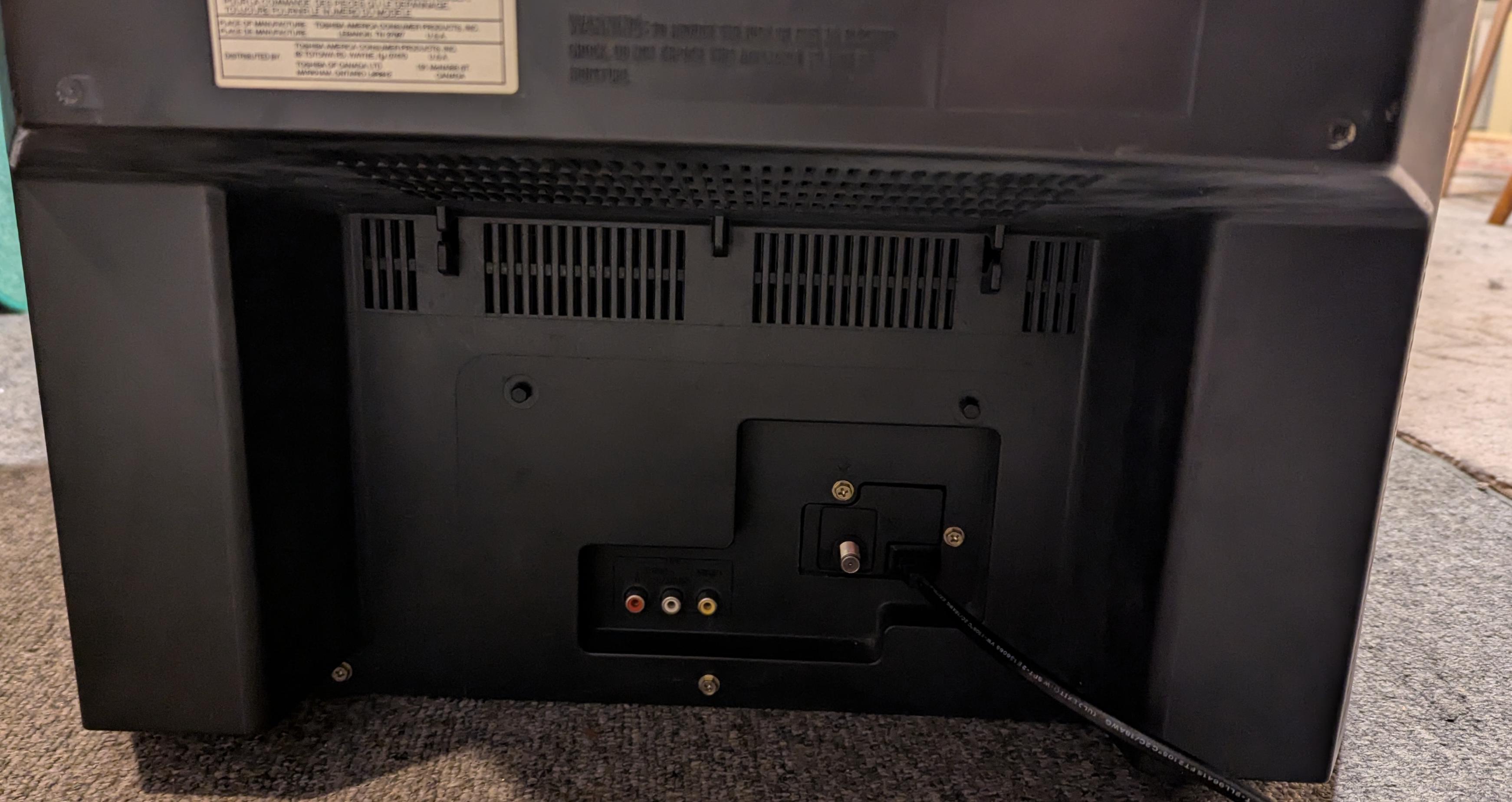

Basic 27" TV with a single rear composite input.
Manuals & Promo Materials
Notes
Chassis number (N8ES) was confirmed from service manual cover, but complete manual does not appear to be freely available. CE27H15 and CF27H50 also share this chassis number. The jungle chip is the same used in the 27A30, so this set can most likely also be RGB modded.

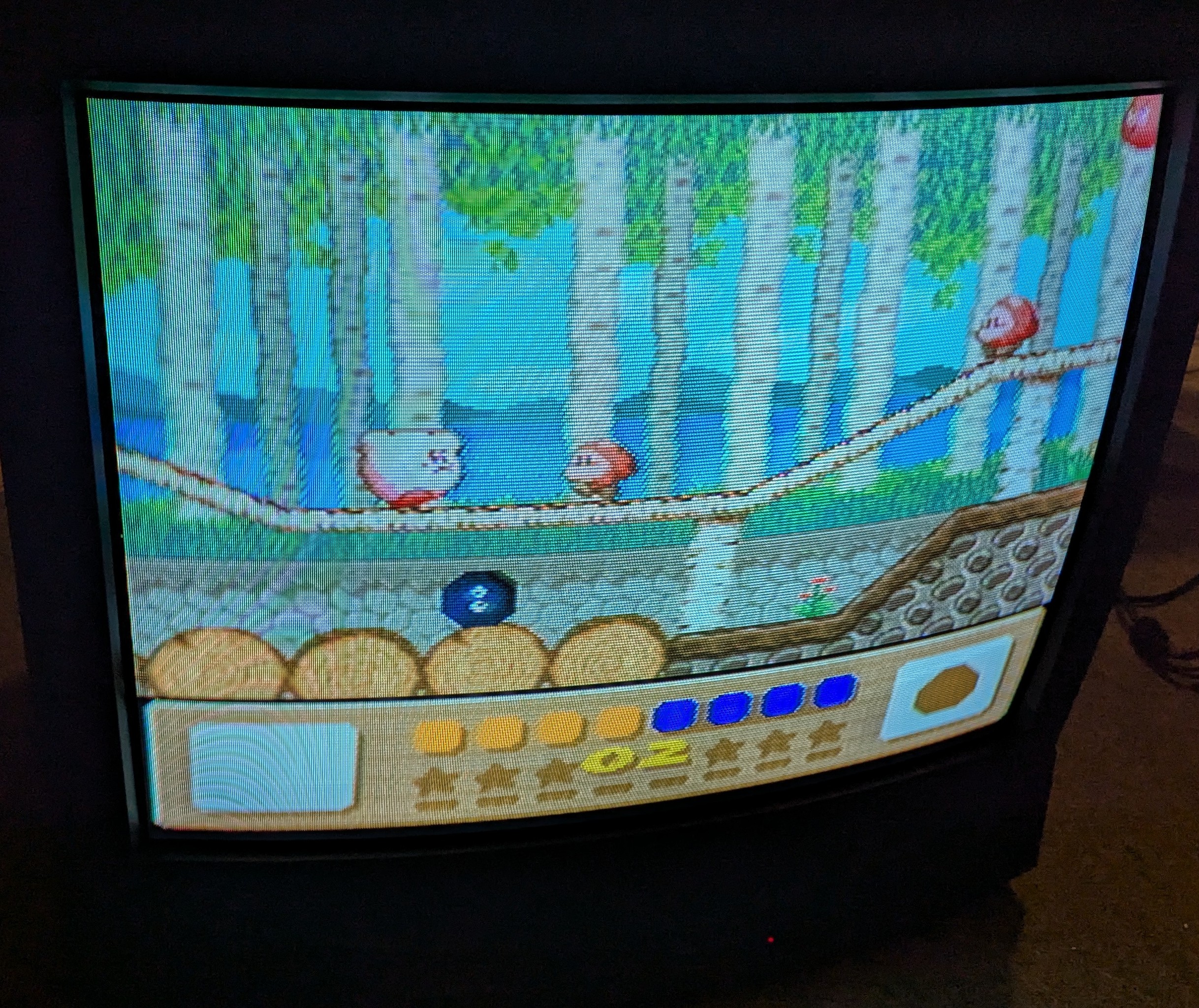

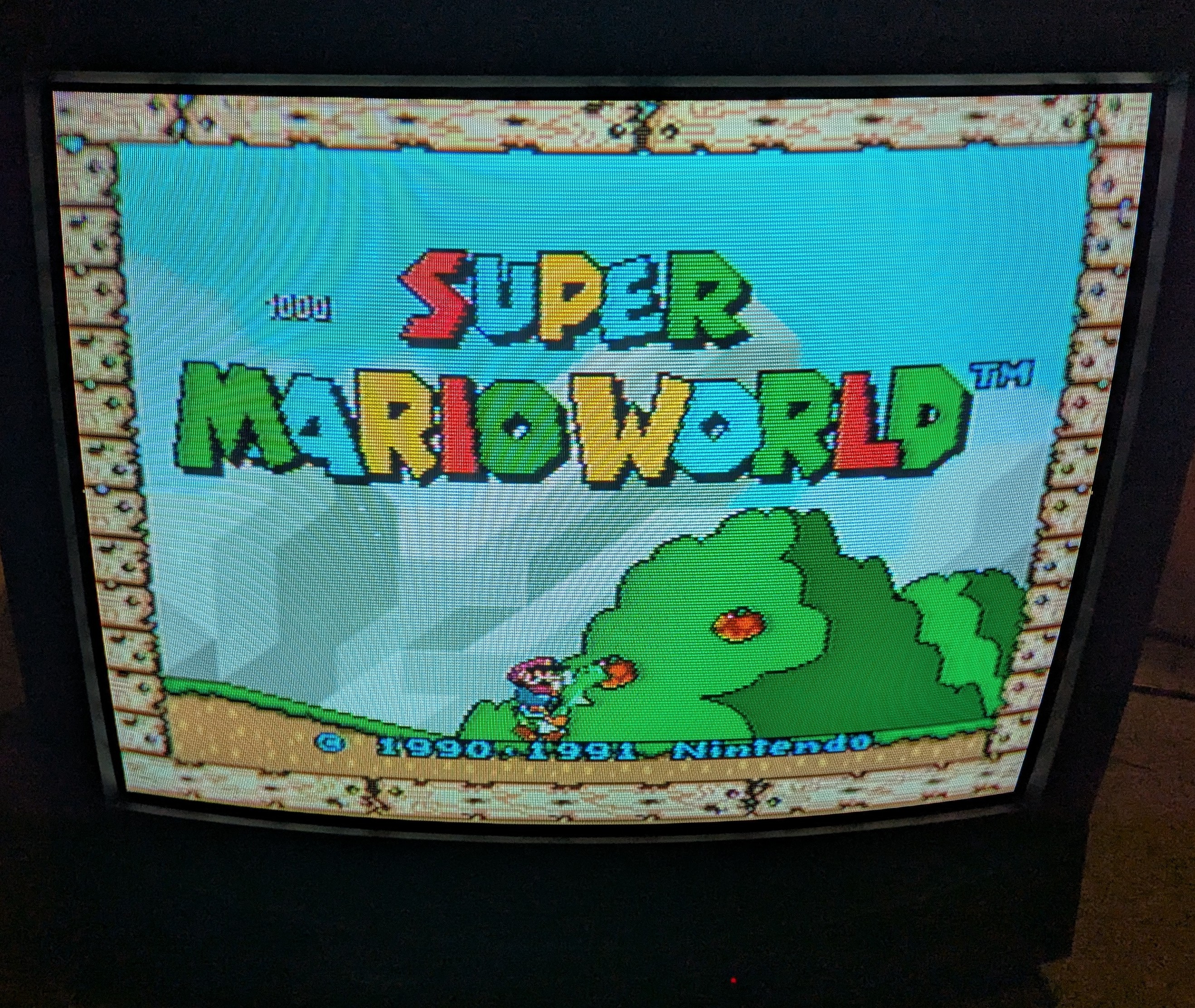

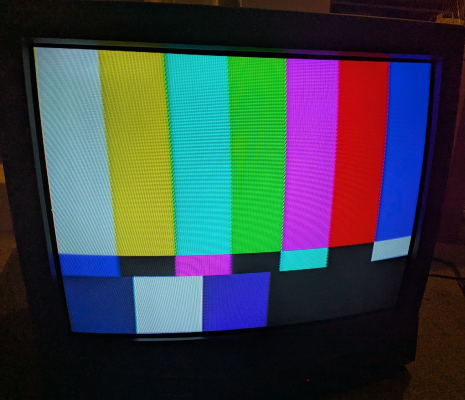

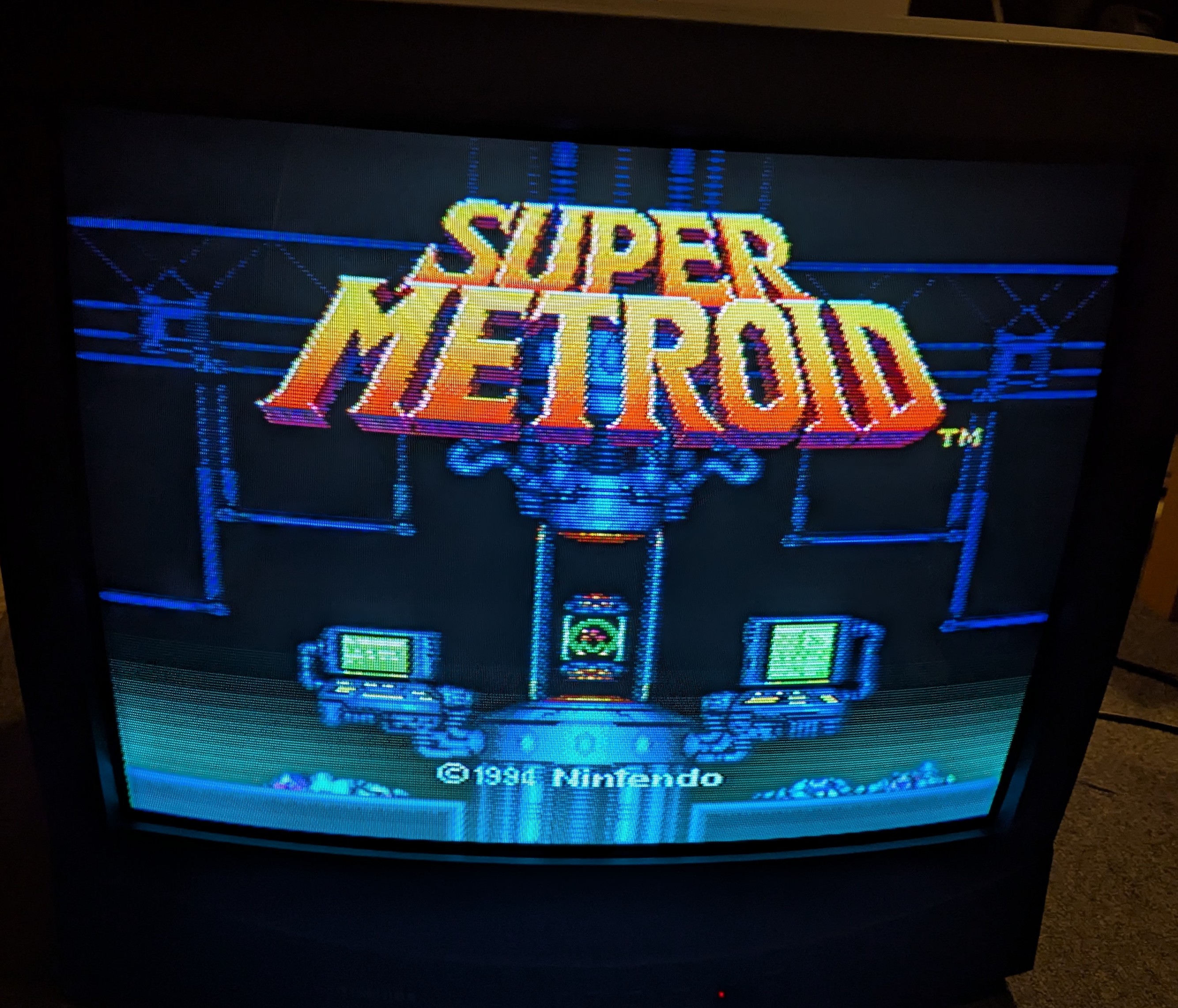

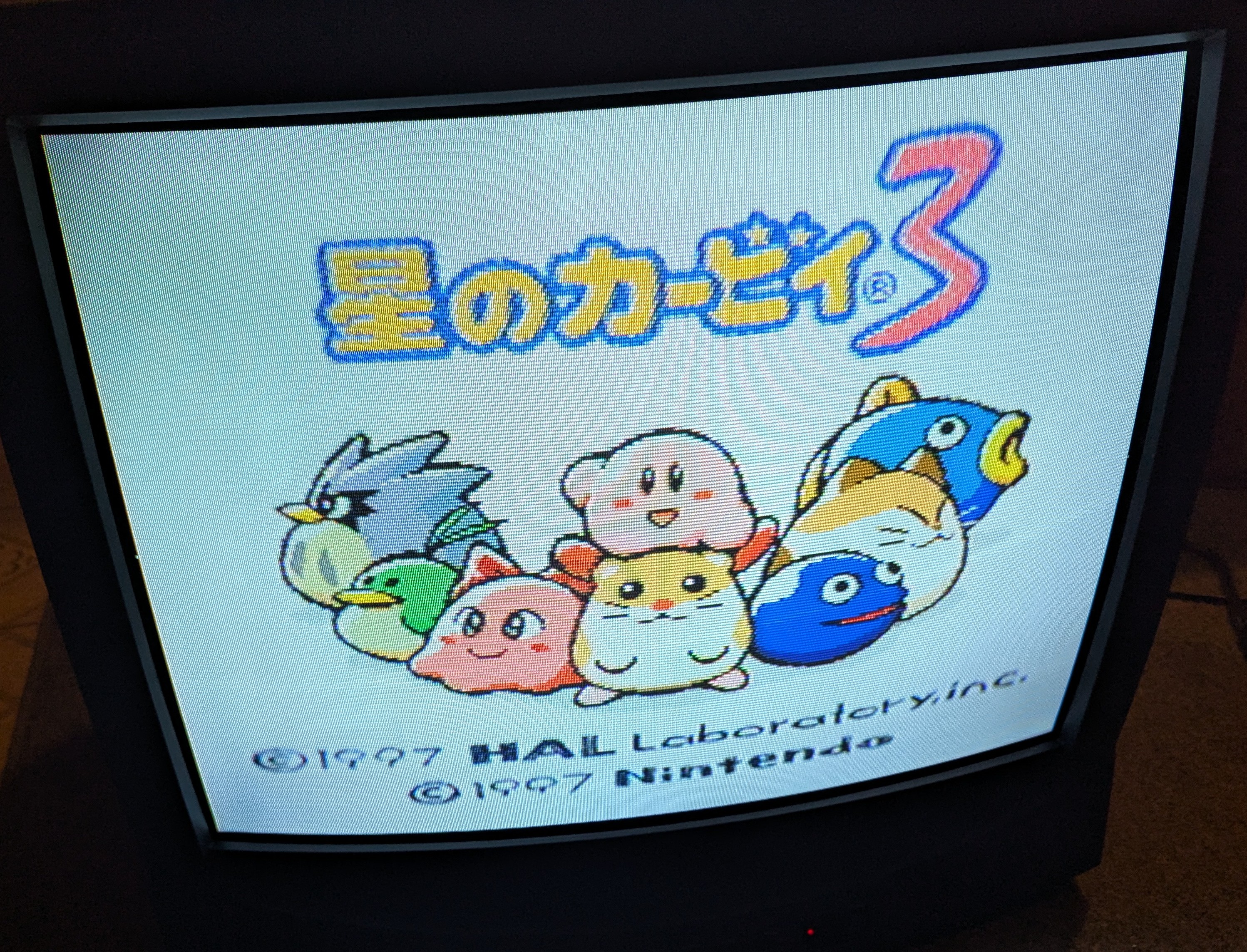

Example pictured suffers from poor corner focus.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CF27H40 |
| Series: | CF |
| Viewable Size: | 27" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Jungle IC: | TA1223AN |

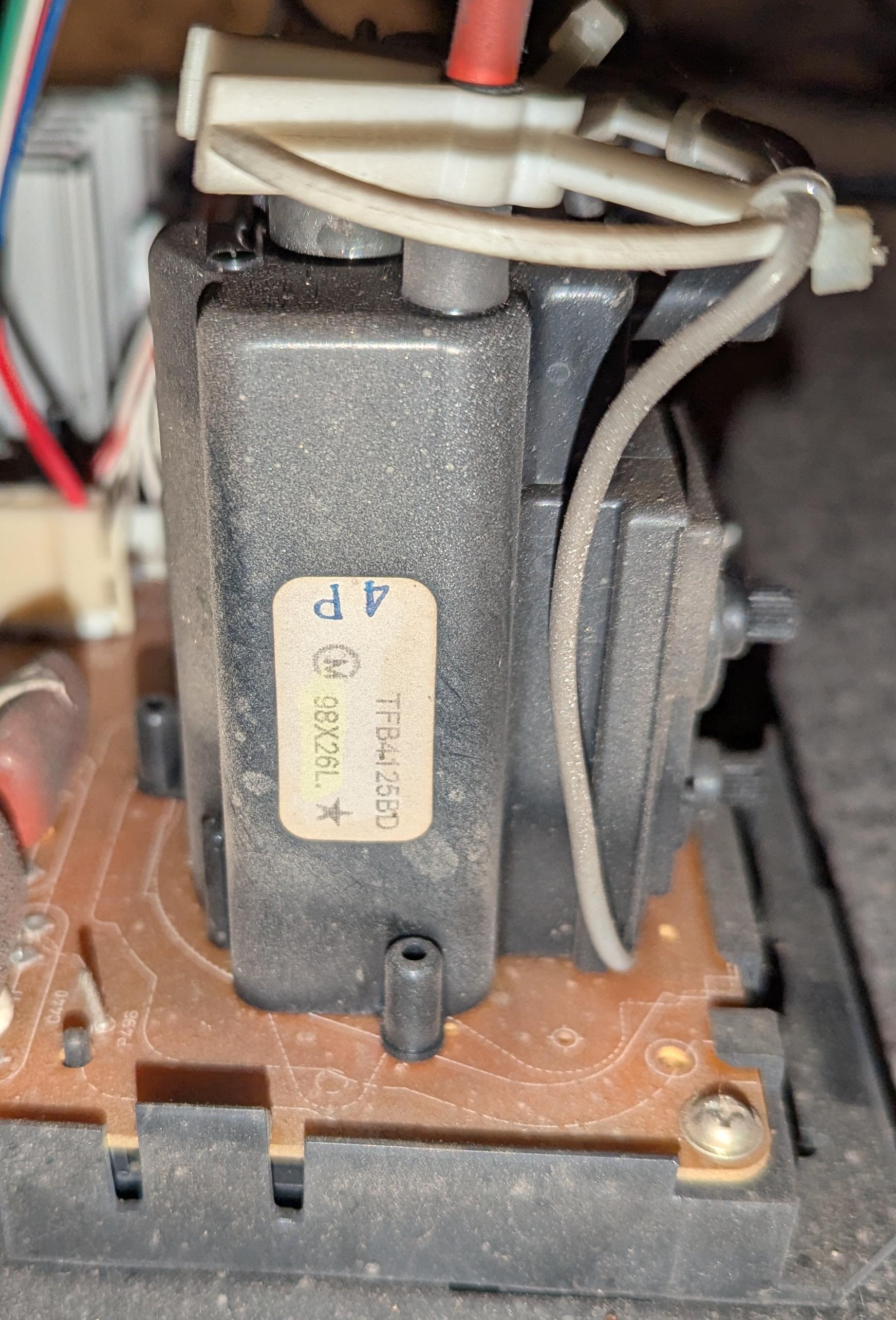

| Flyback: | TFB4125BD |
| Focus Type: | Single |

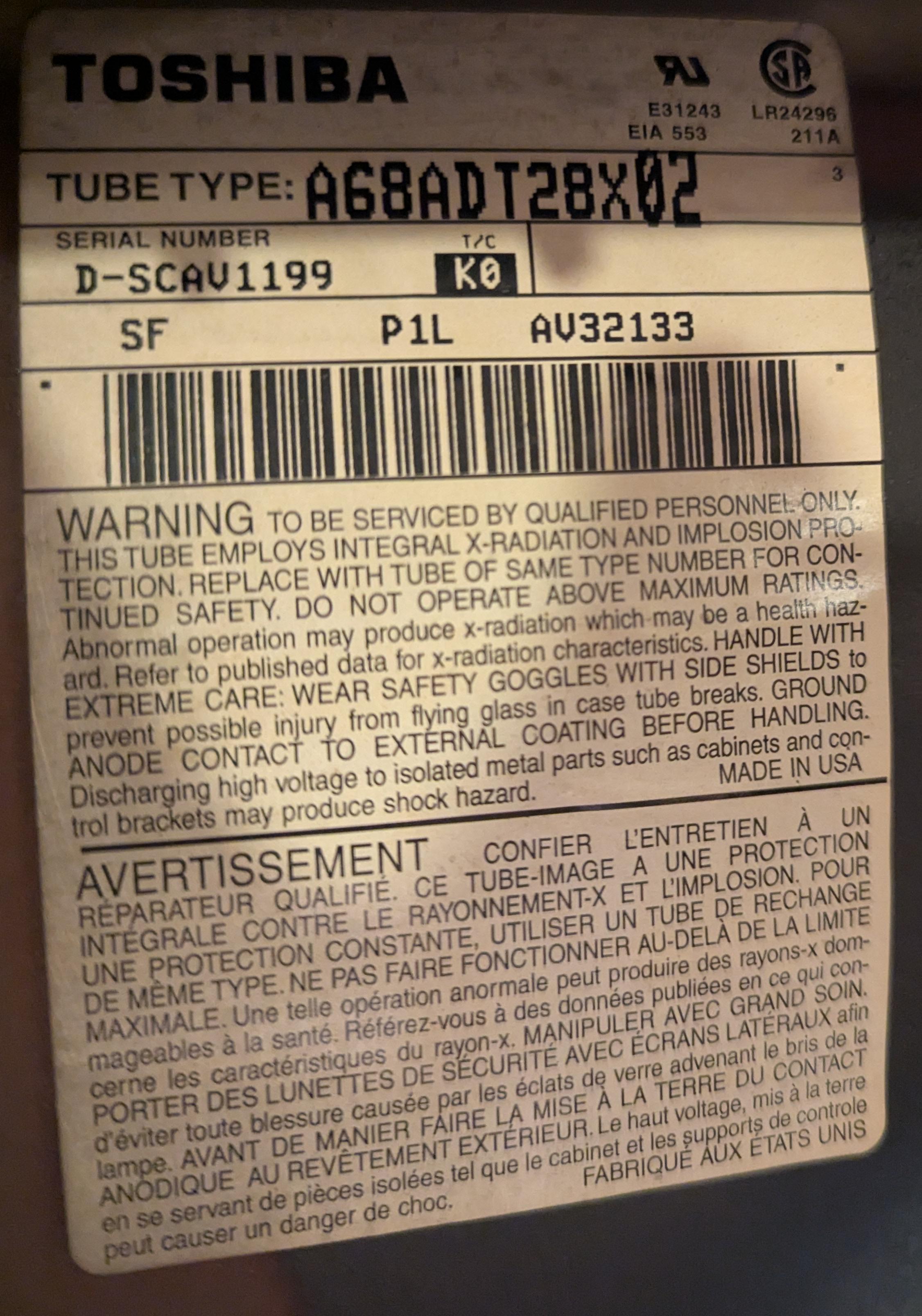

| Tube: | RCA , A68ADT28X02 |
| Mask: |
Slot
|
| Yoke: | 68T1USZ/00 |
| Speakers: | Stereo, 2W x 2 |

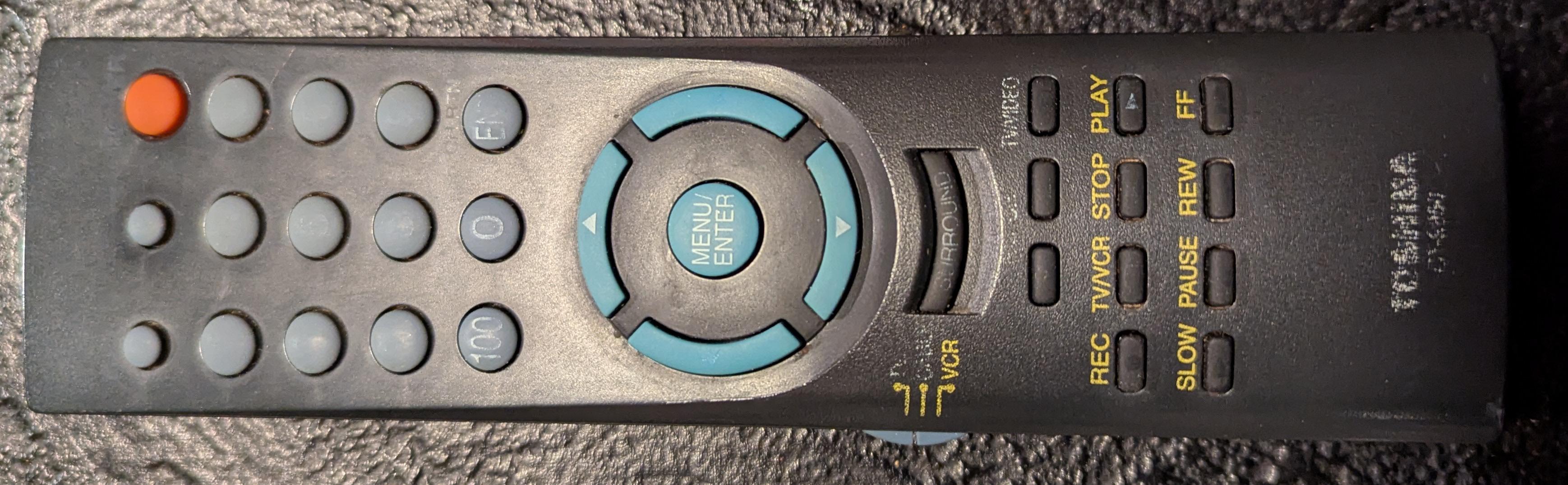

| Remote: | CT-9950 |
| Chassis: | N8ES |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
