Summary

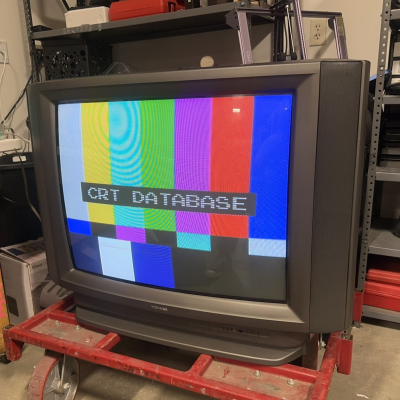

Consumer grade 32" CRT by Toshiba with Composite, S-Video and RF inputs.

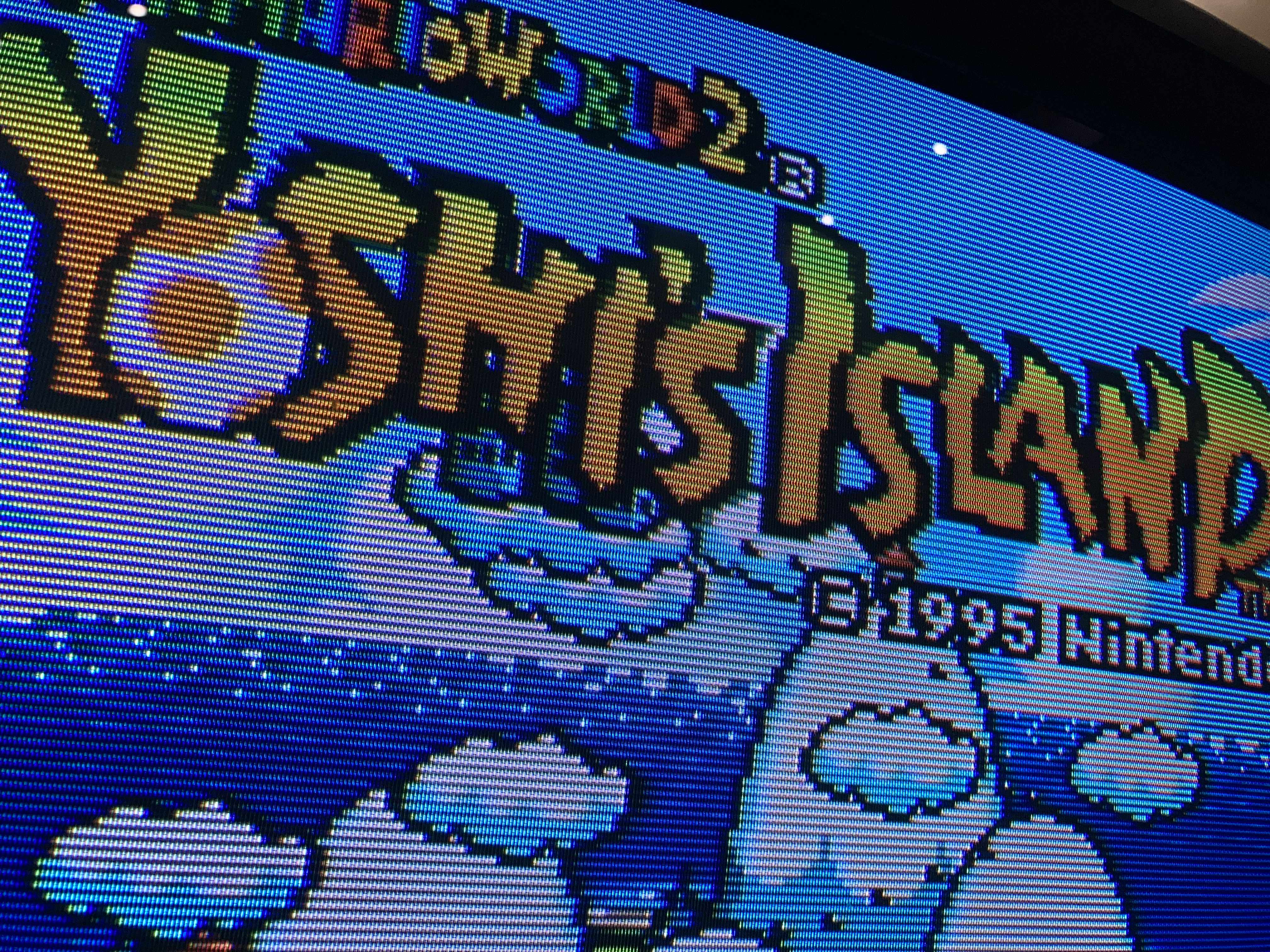

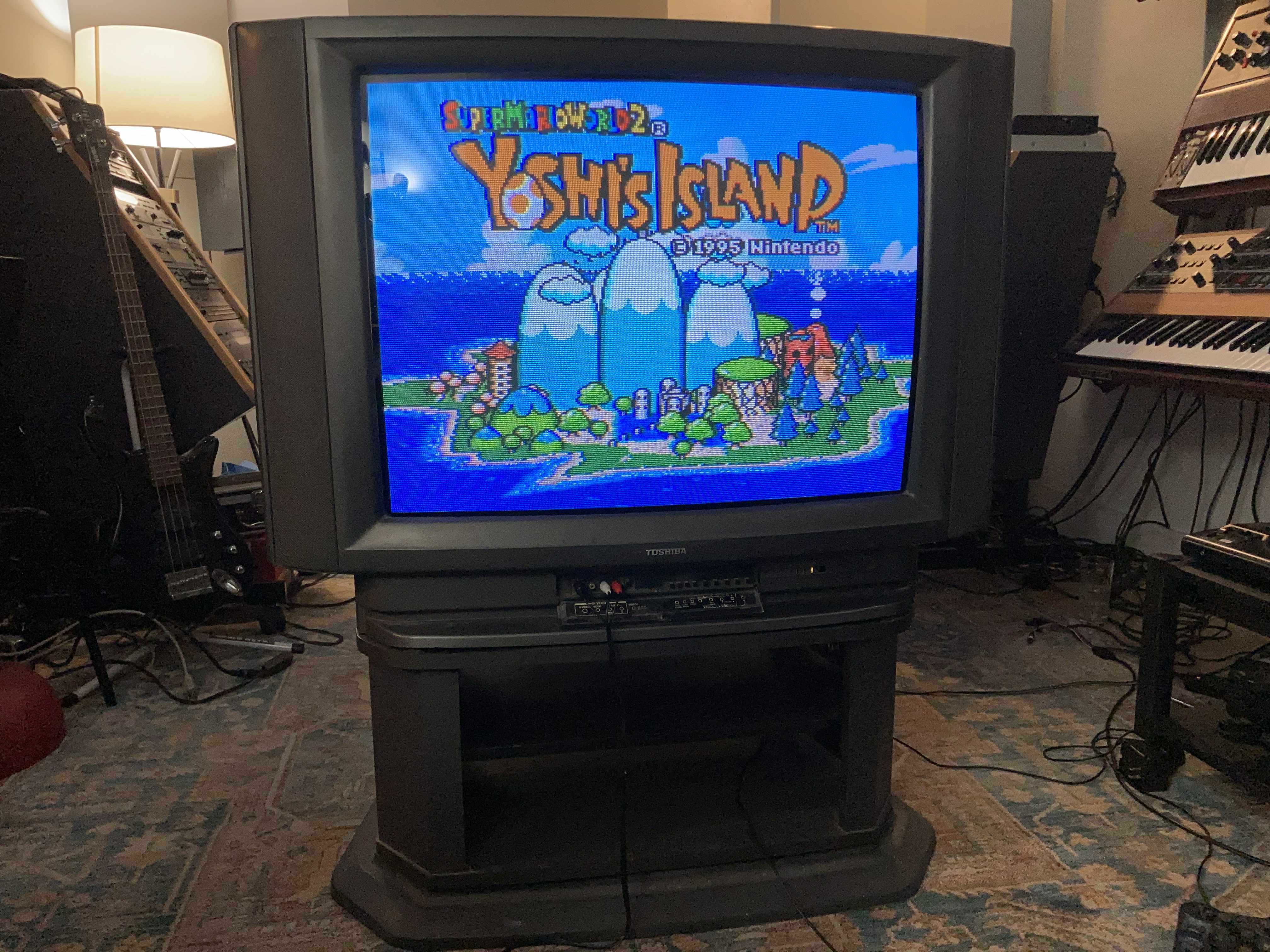

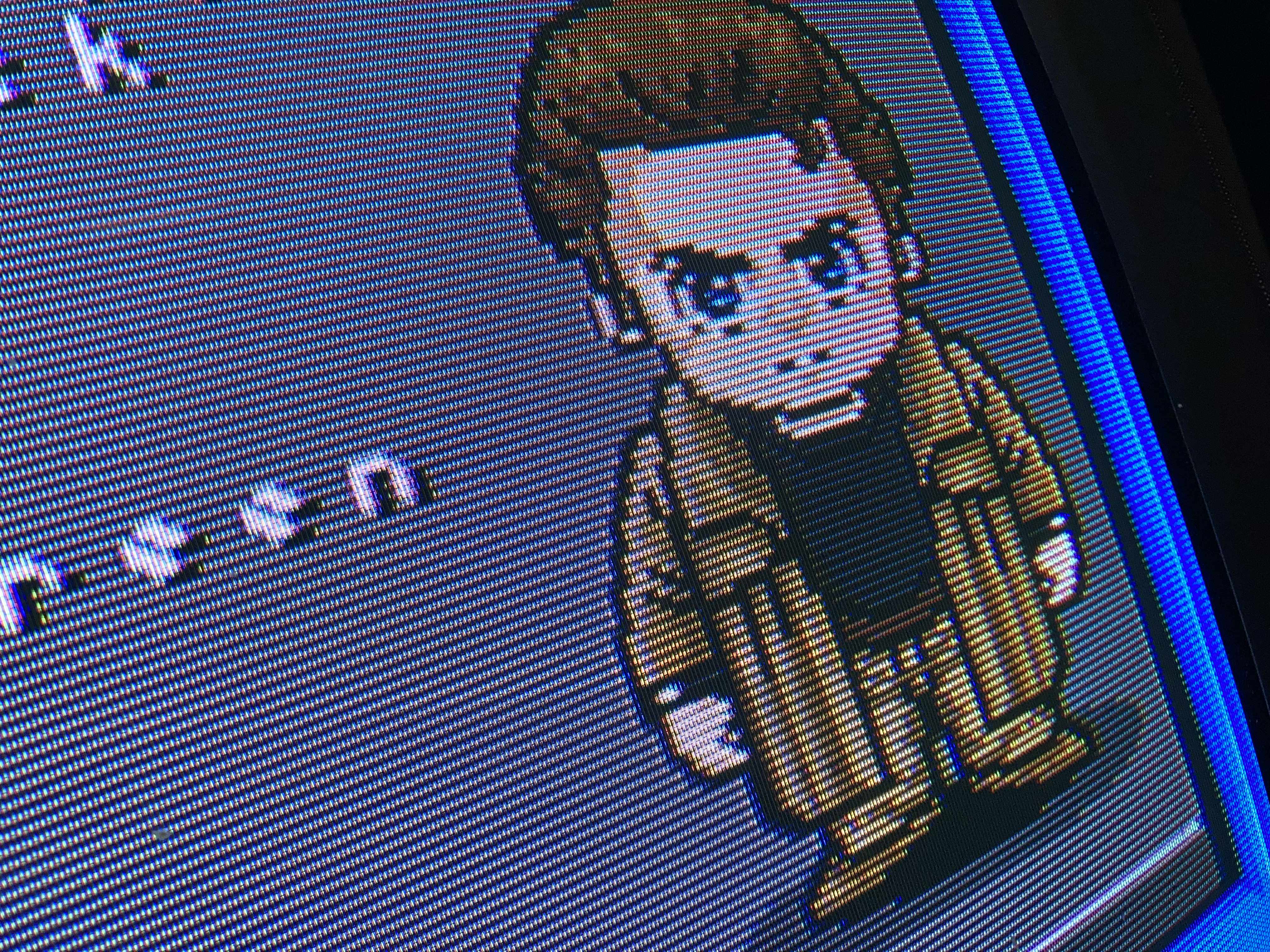

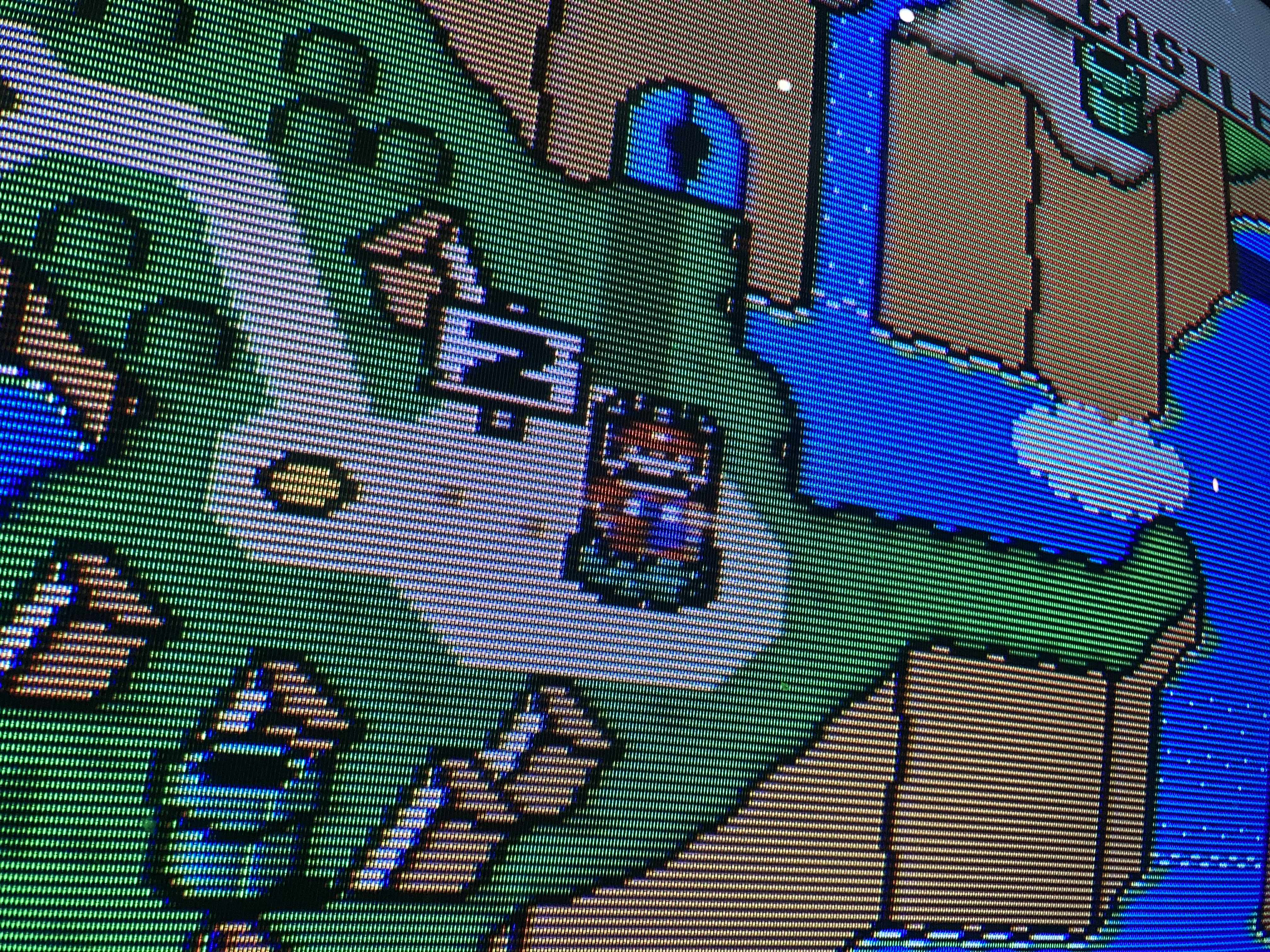

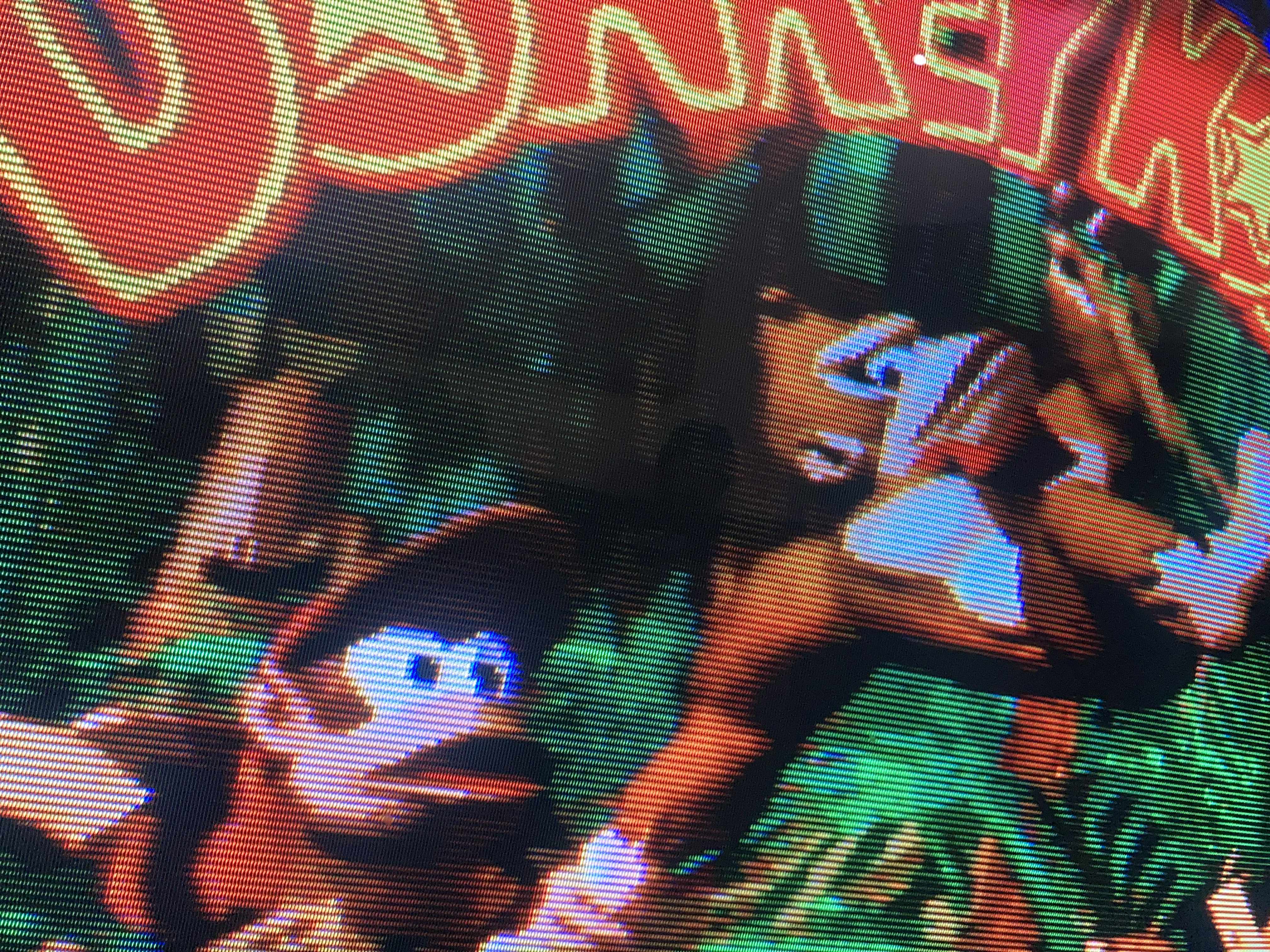

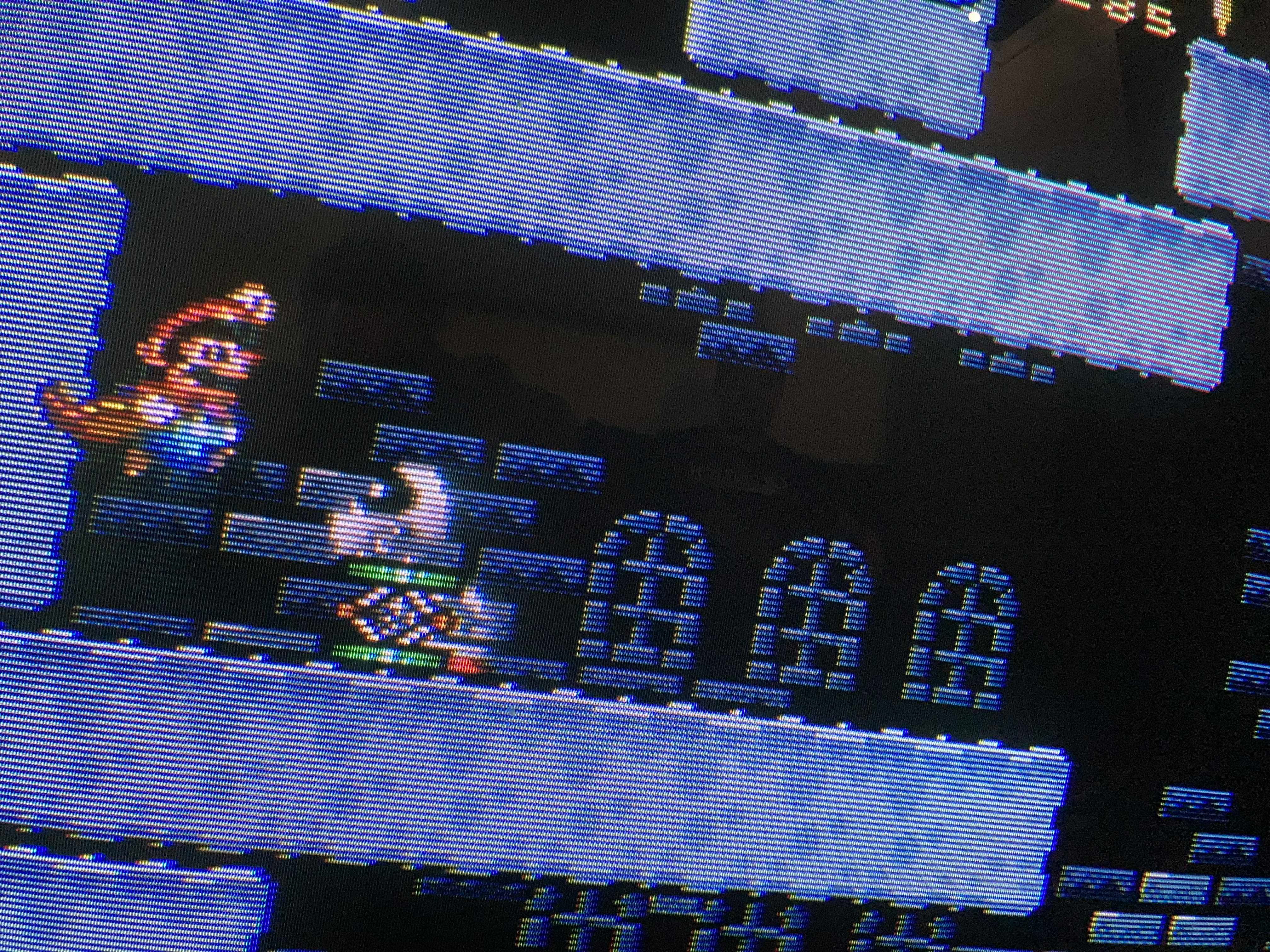

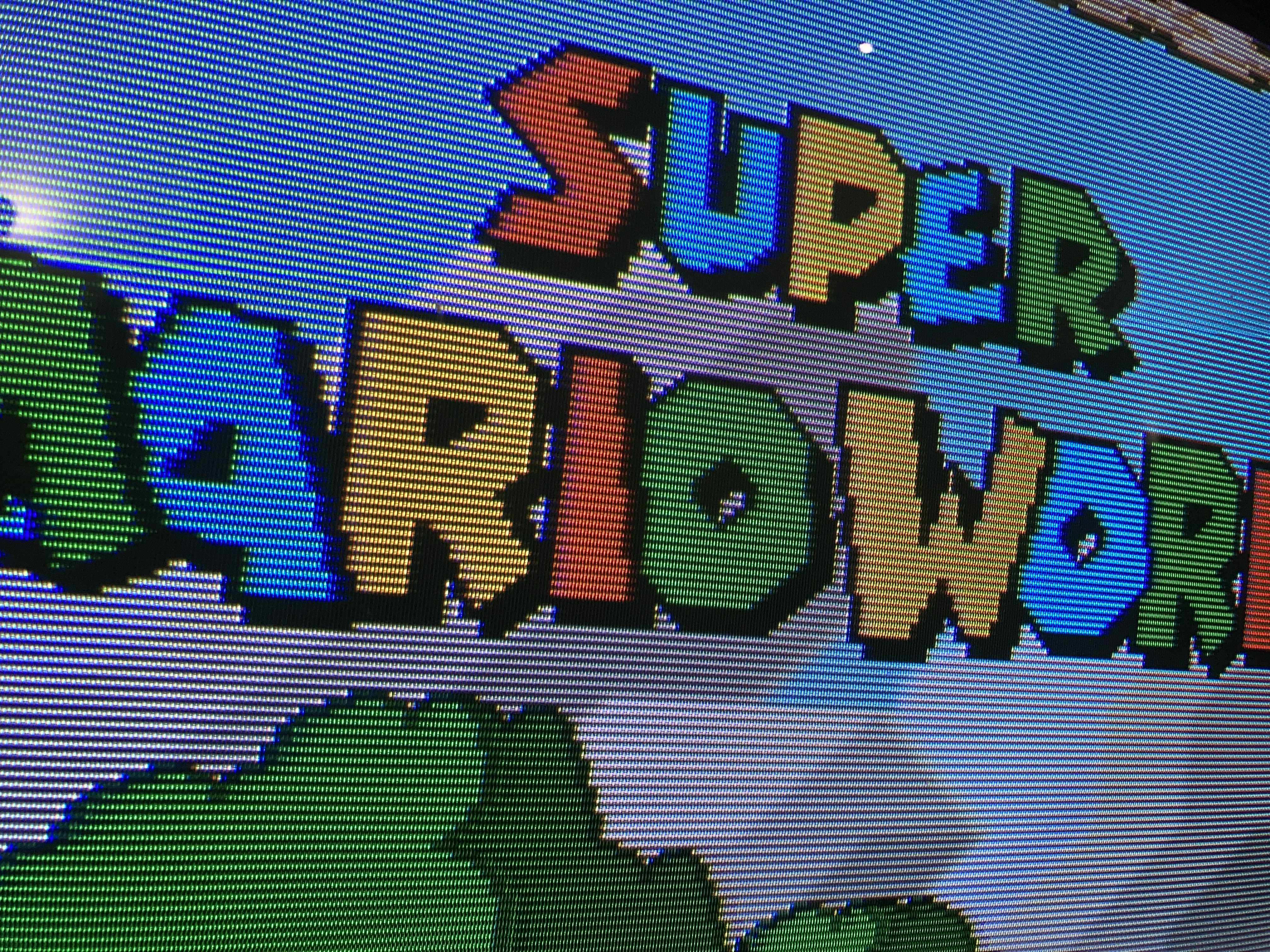

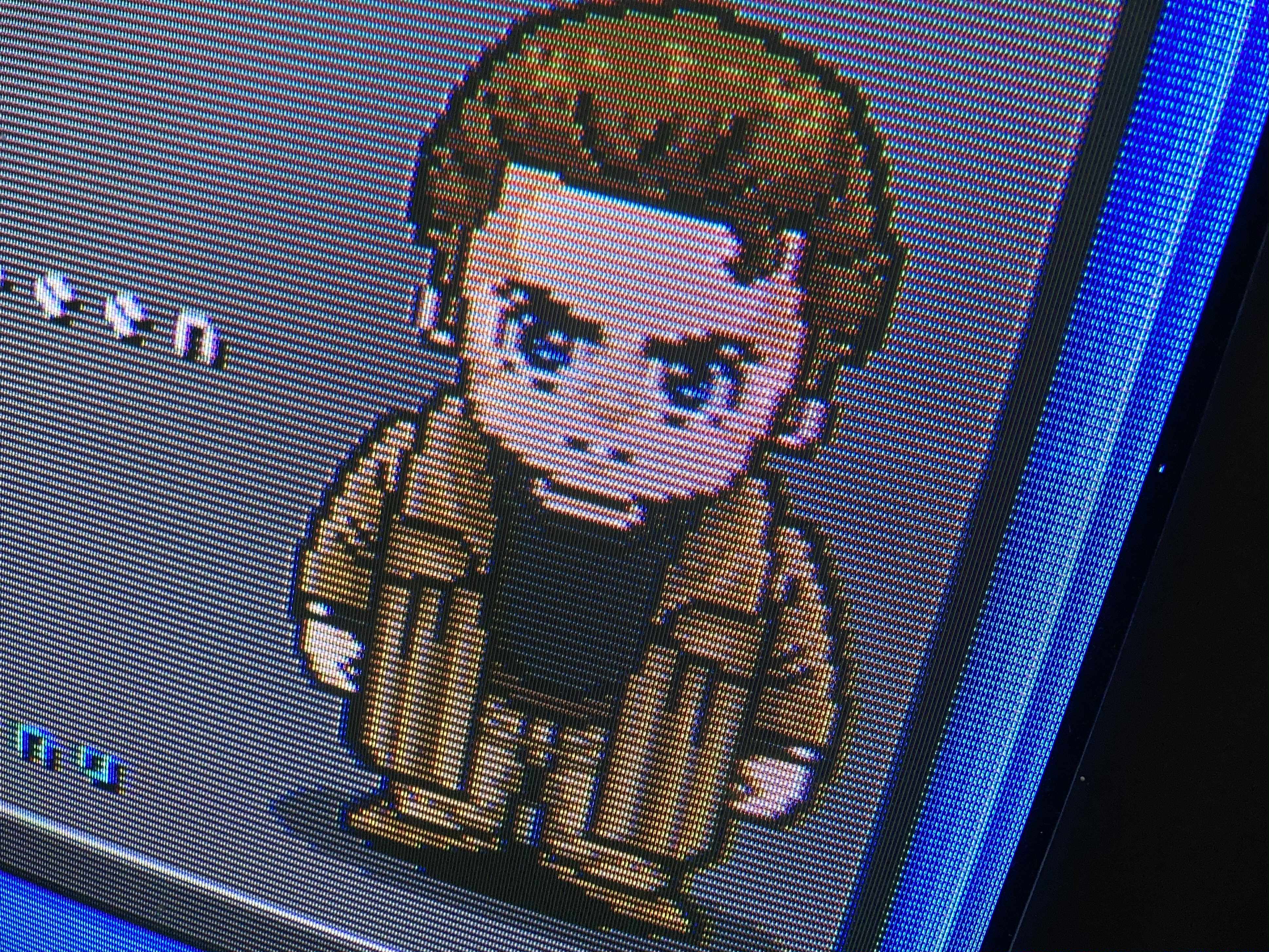

(Special thanks to Pejman R. for the s-video pics!)
Manuals
- Service Manual - Available physically but none scanned at the time of writing
Notes
- Front panel inputs are not dedicated inputs, there's a toggle button to swap VIDEO 1 source between the front and back input
- Has 2 RF inputs and 1 RF output
- Has audio outputs for external speakers, both direct wire and RCA

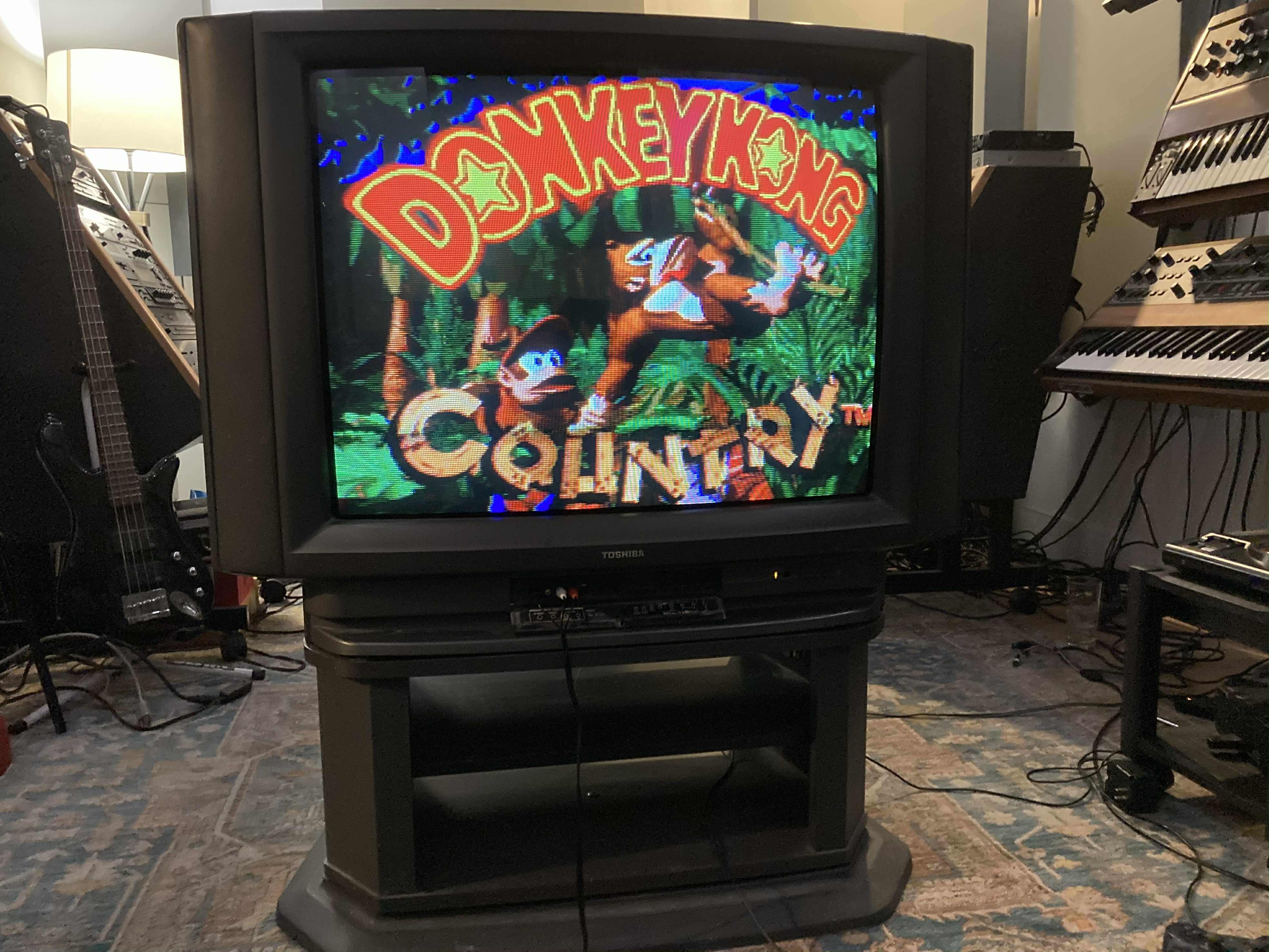

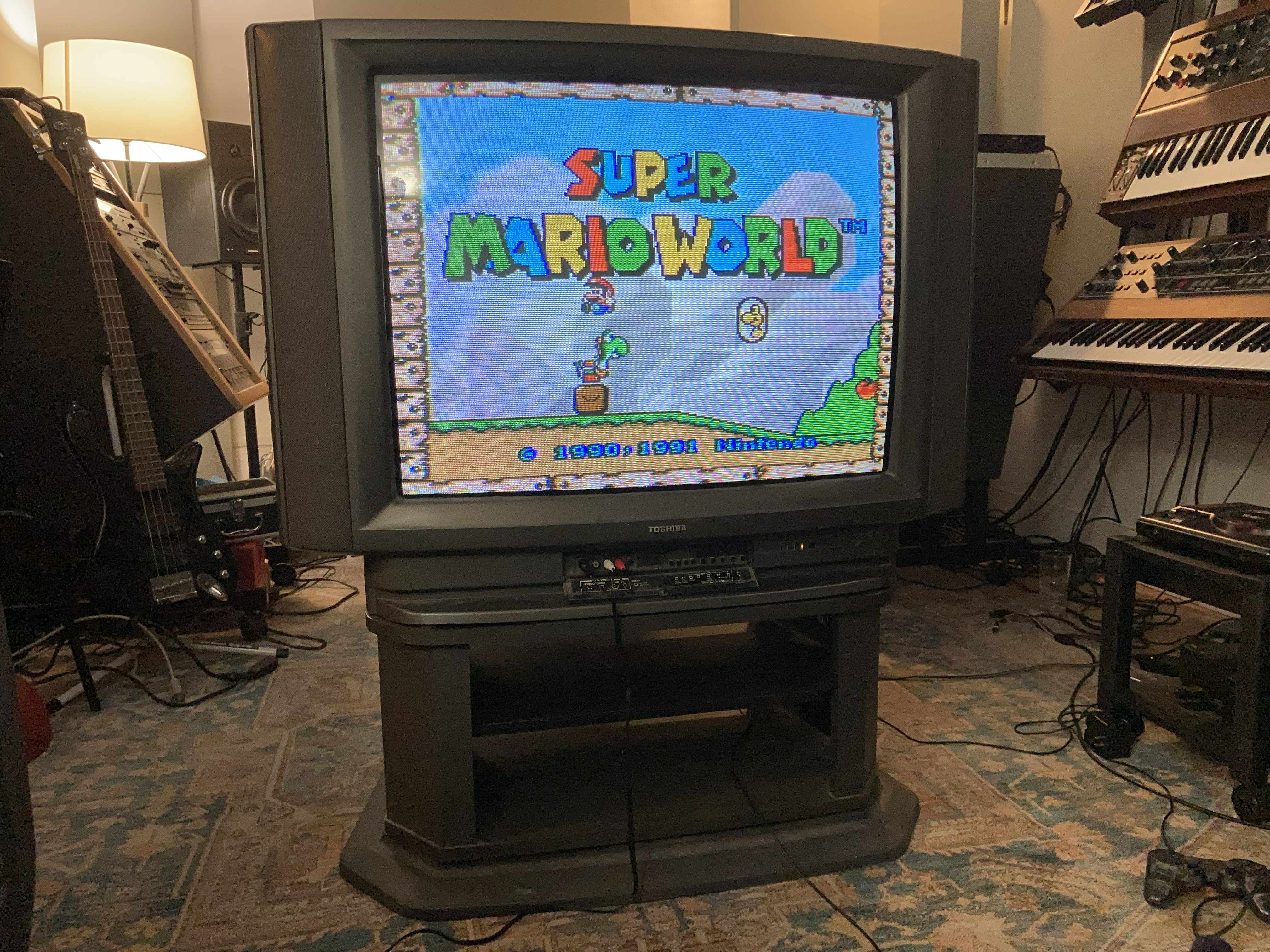

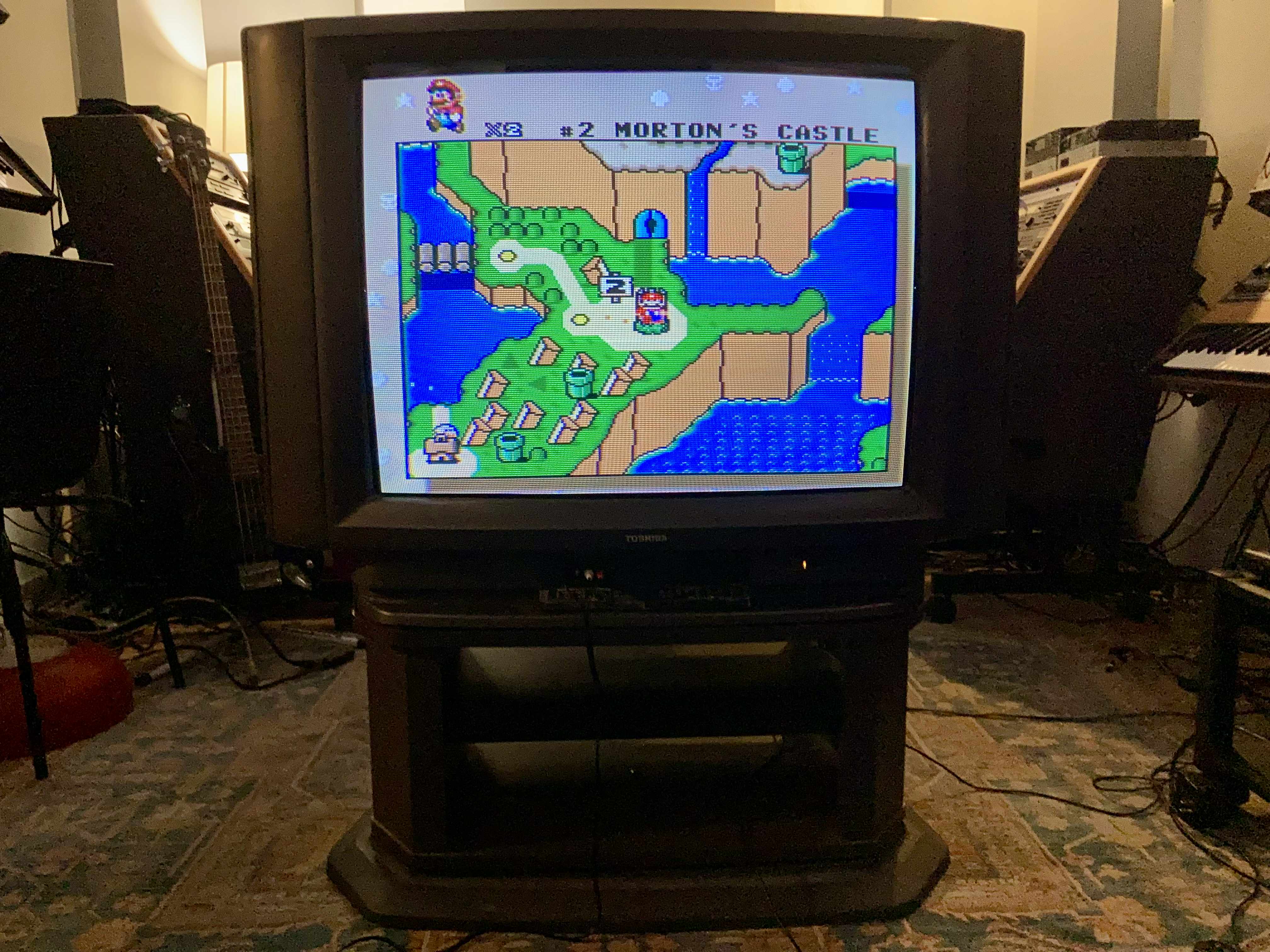

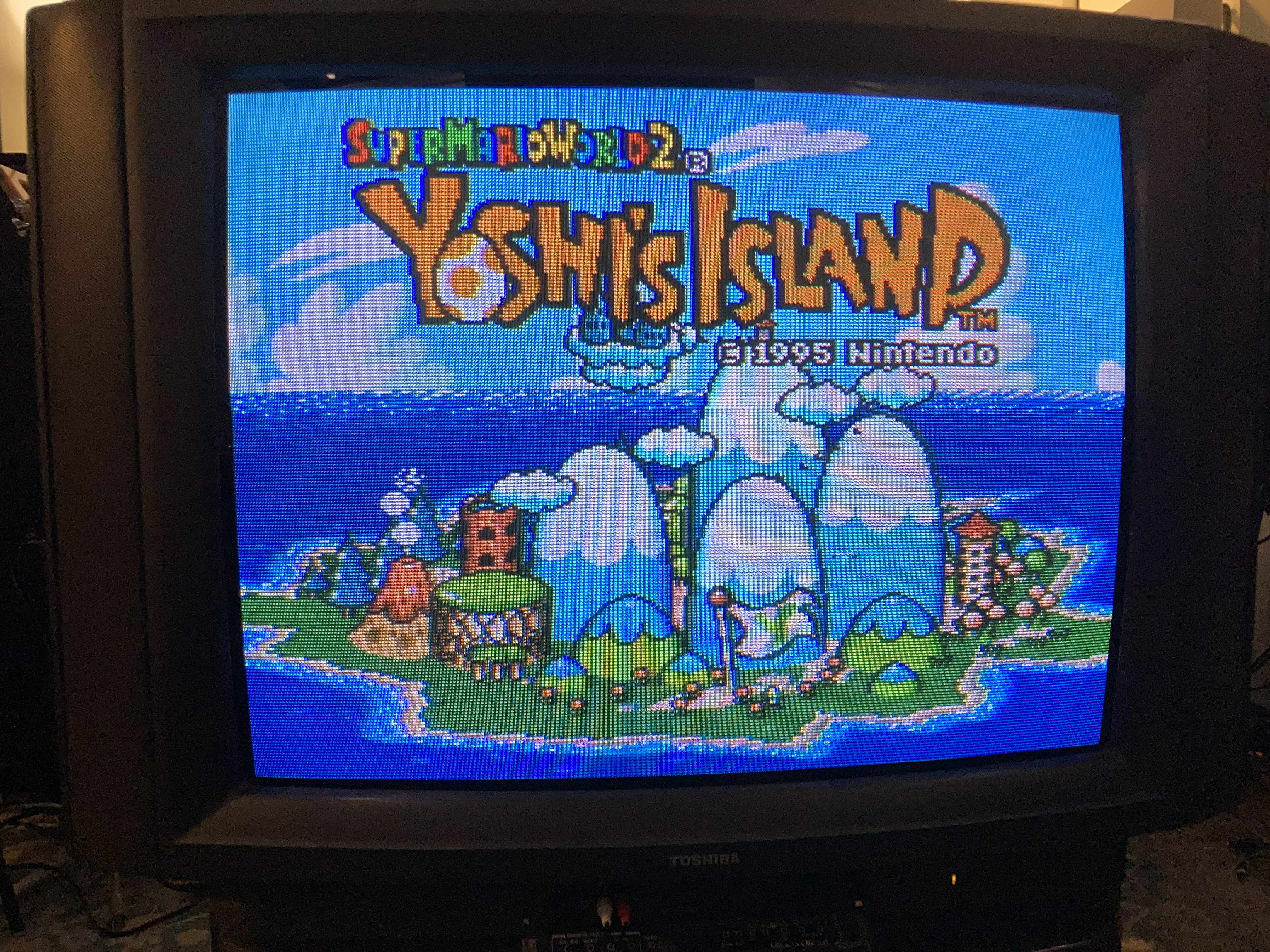

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CF3272B |
| Series: | CF |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle IC: | TA8801AN |
| Tube: | Toshiba , A80JTS96X05 |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Remote: | CT-9725 |
| Application: | Consumer |
| Launched: | 1993 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
