Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CF917A |
| Series: | CF |
| Viewable Size: | 19" |

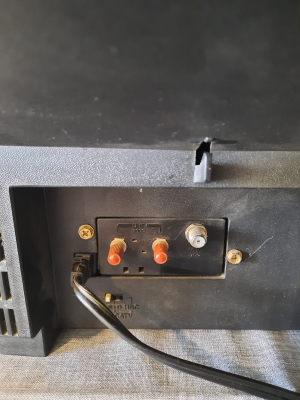

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Focus Type: | Single |
| Tube: | A48JQH93X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Vert. Inductance: | 28.49 mH (@ 100 Hz) |
| Speakers: | Mono, 1W |

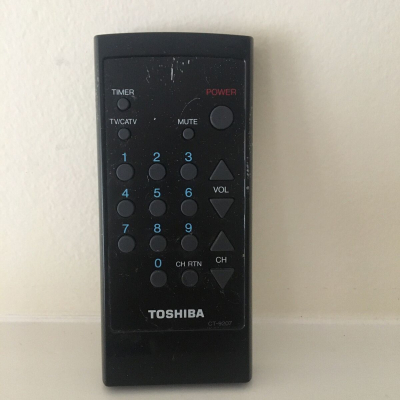

| Remote: | CT-9207 |

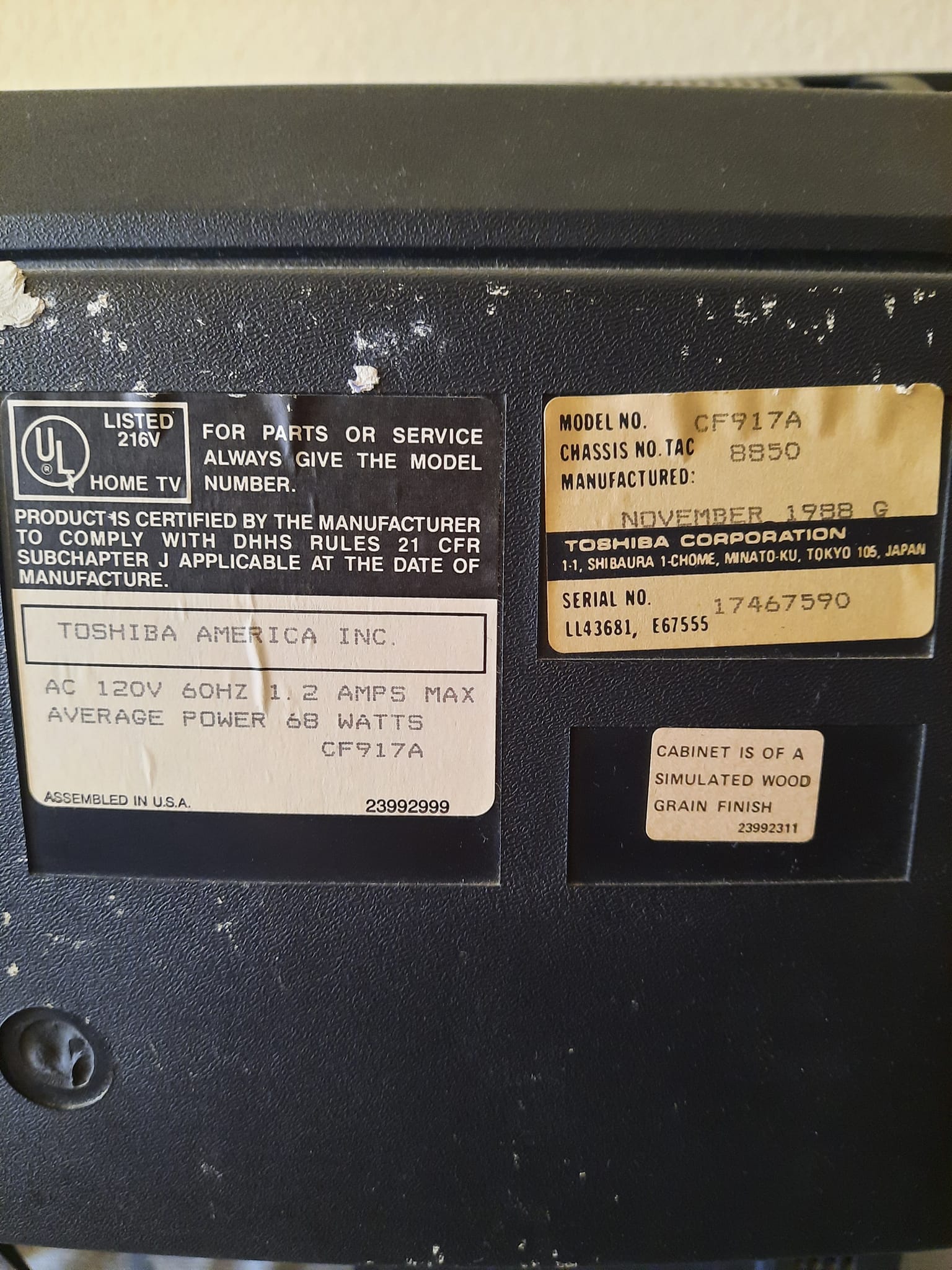

| Chassis: | TAC 8850 |
| Weight: | 39.7 lbs (18 kg) |
| Dimensions (W/H/D): |
500 x 454 x 464 mm
(19.7 x 17.8 x 18.2") |
| Application: | Consumer |
| Cabinet Material: | Simulated Woodgrain |
| Launched: | 1987 |
| MSRP: | 299 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |

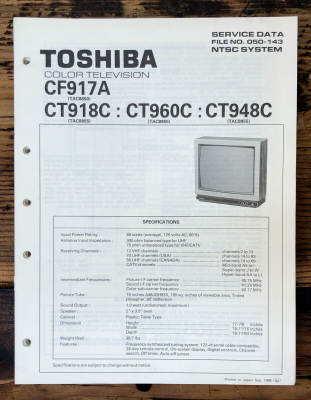

| Tag: | Needs Owners Manual, Needs Service Manual |
