Summary

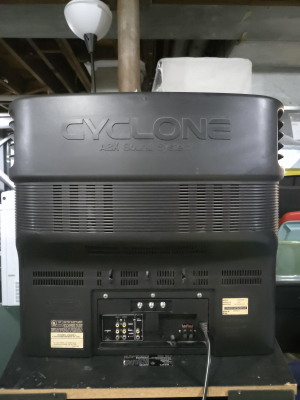

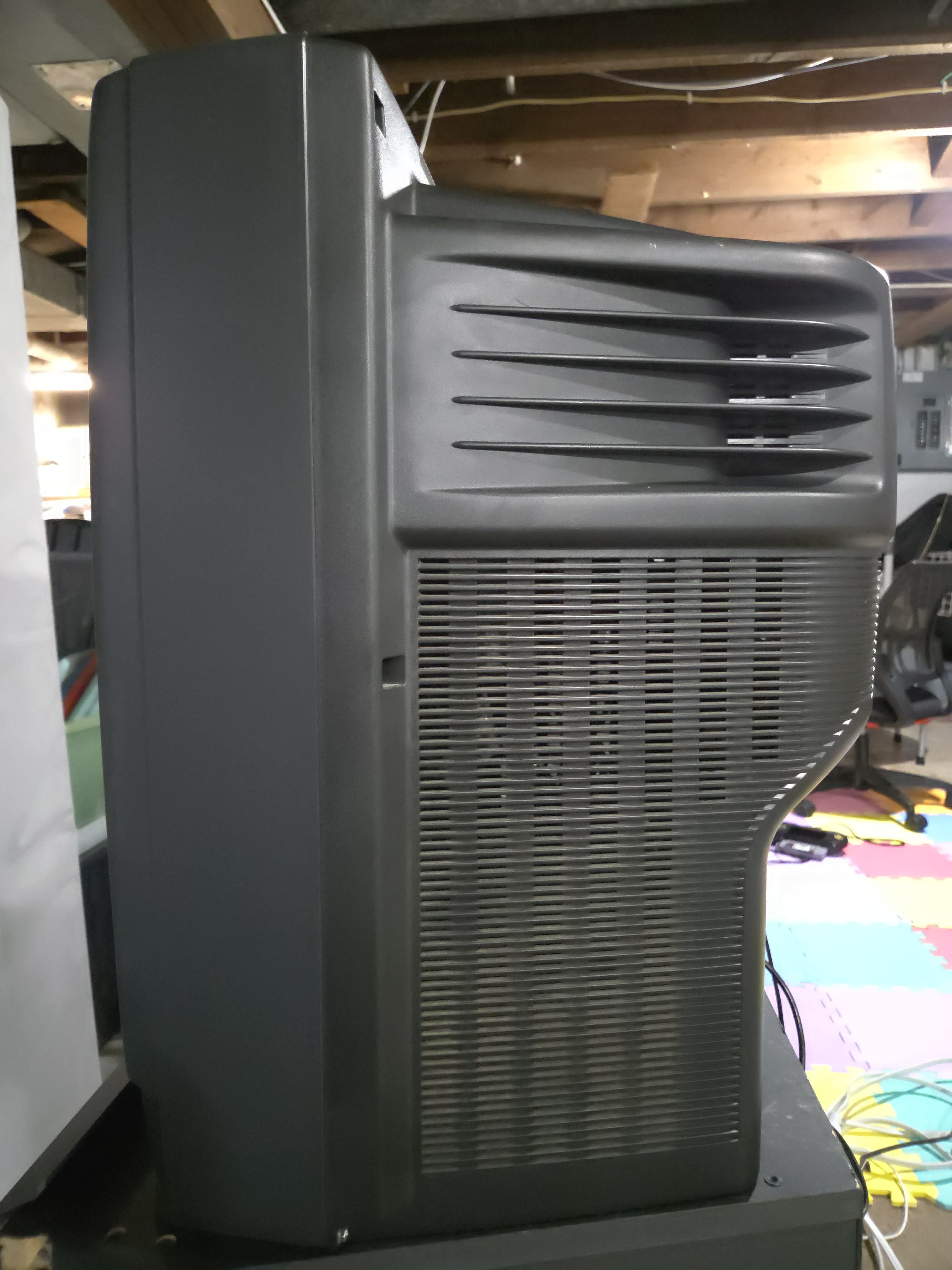

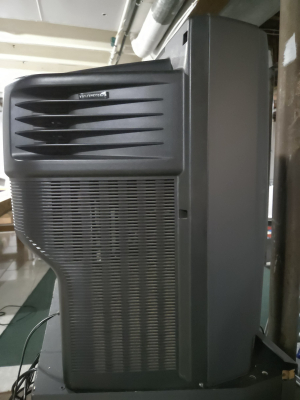

Higher-end 27" TV by Toshiba, part of their Cinema Series line, introduced in 1993. Has RF composite, and s-video inputs with bassy stereo sound blasting from the CYCLONE speaker system. Originally manufactured in the USA in 1994.
(Special thanks to Matt K. for the pics, and Stabarz for uploading the service manual!)
Manuals
Notes
This set has Velocity Modulation. To disable it, unplug the jumper connecting the yoke to the neckboard.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CN27D90 |

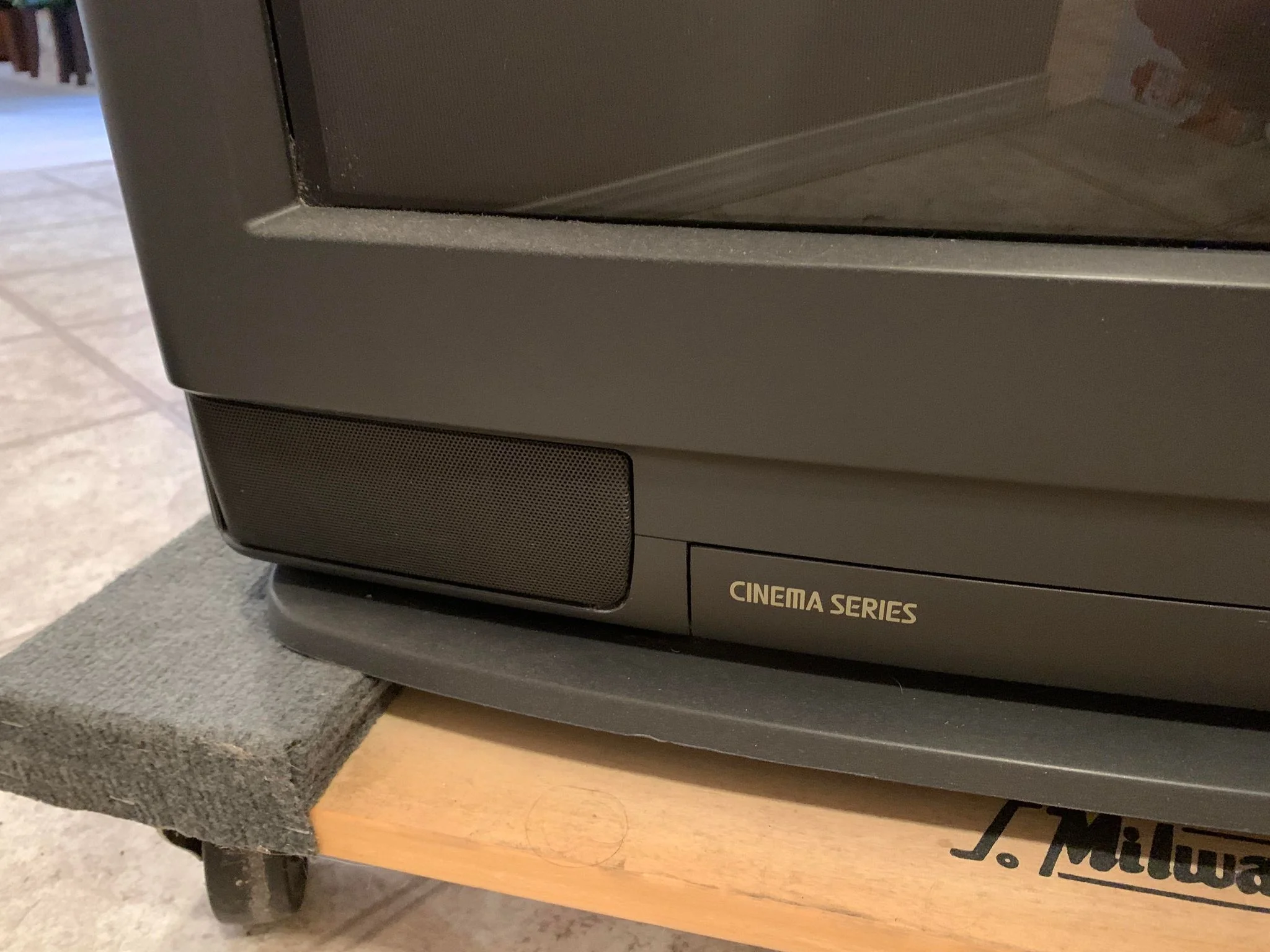

| Series: | Cinema Series |
| Viewable Size: | 27" |

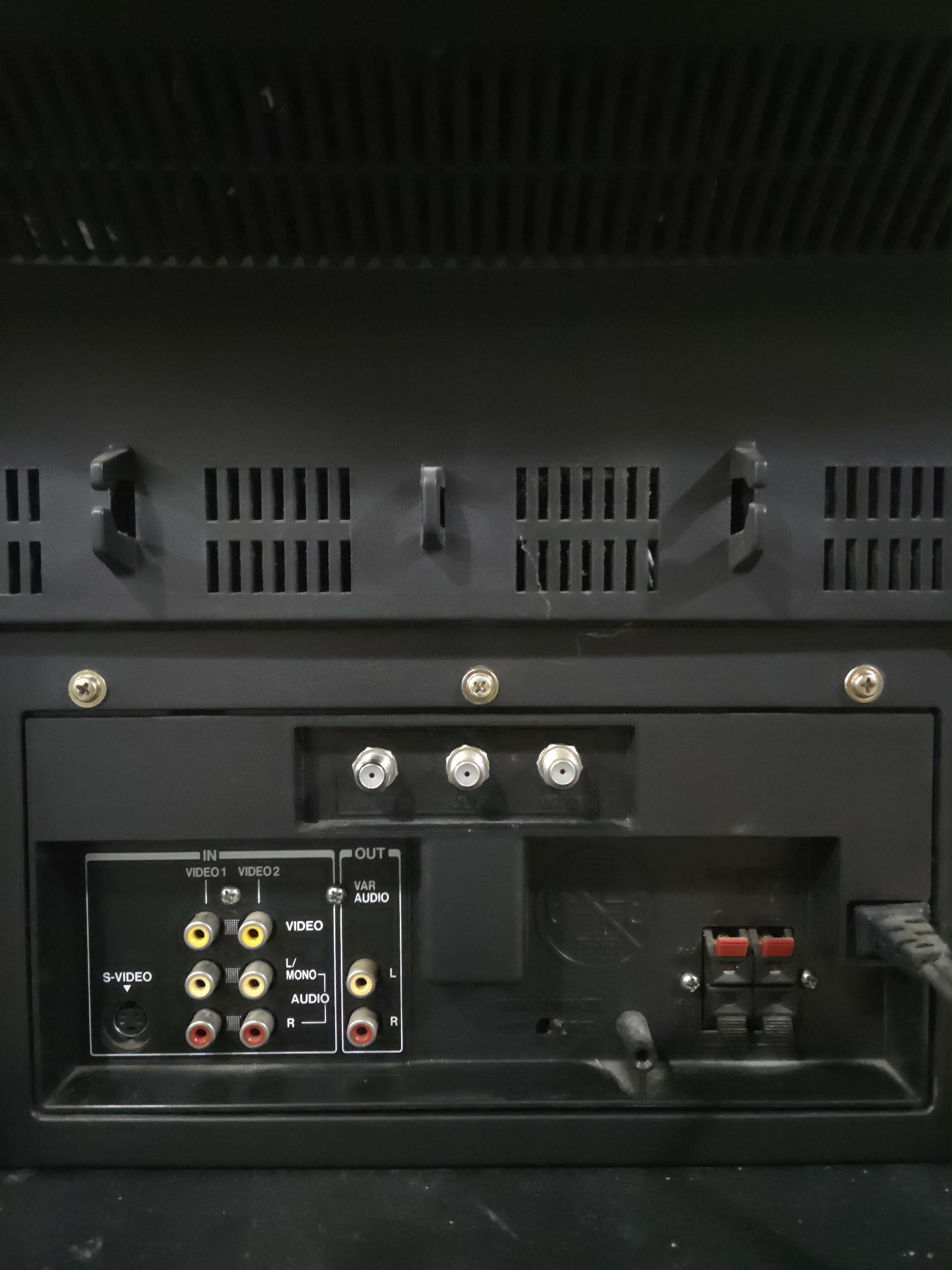

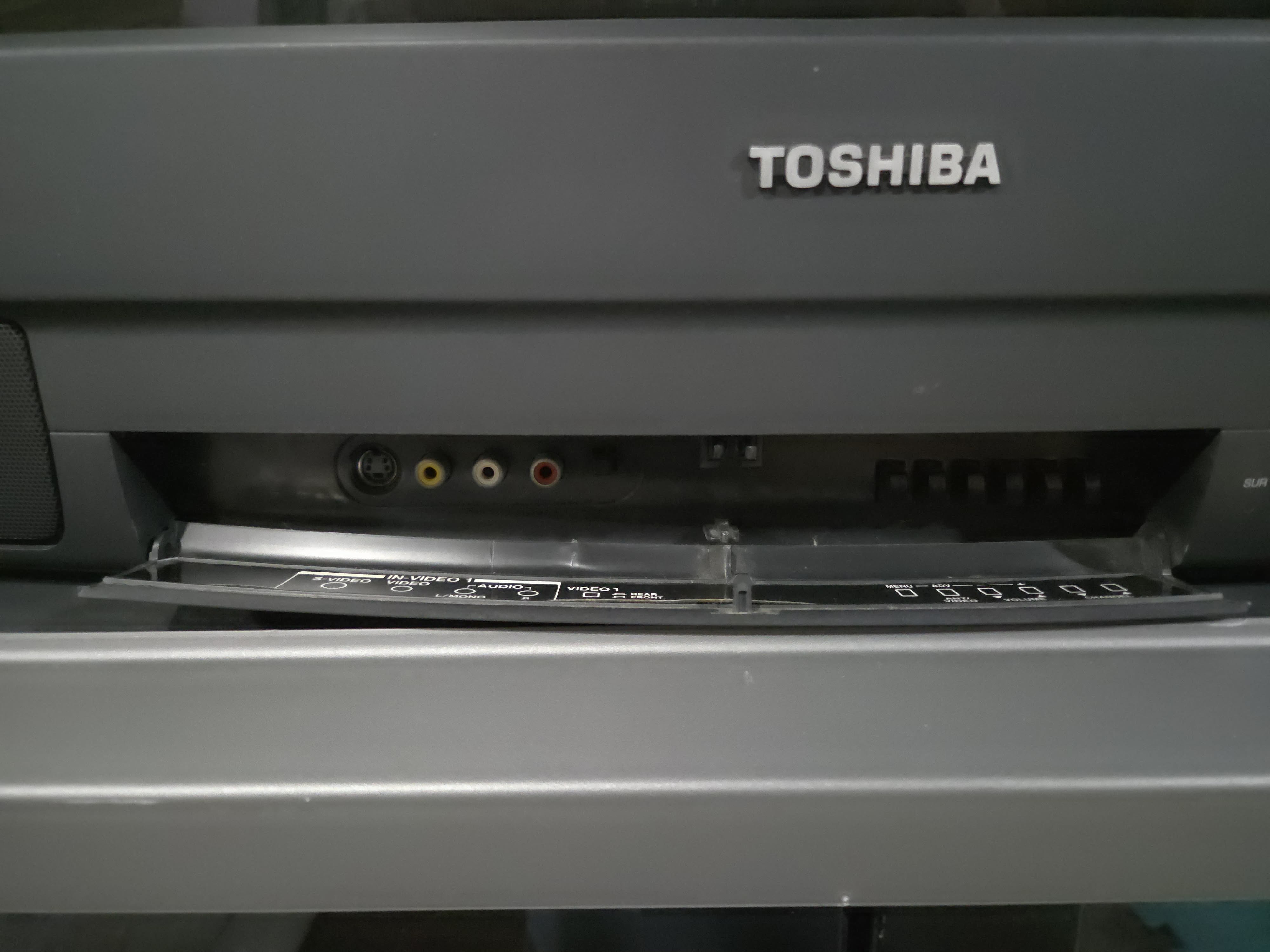

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

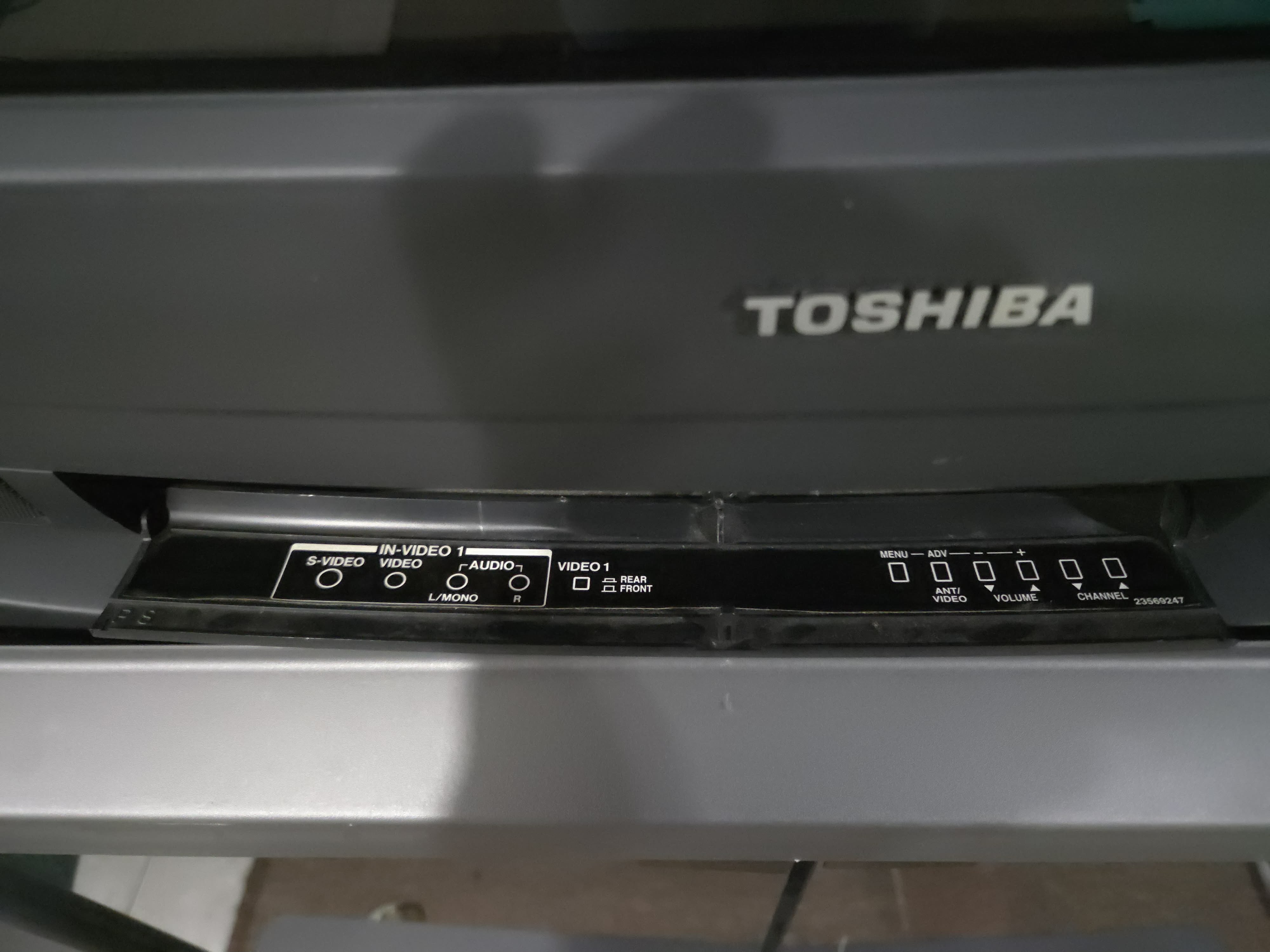

| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Vertical Output IC: | LA7837, Sanyo |
| Jungle IC: | Toshiba, TA8870AN, TA8870 |
| Flyback: | TFB4099AD |
| Focus Type: | Single |
| Tube: | Hitachi , A68KSA30X , A68KSA30X02 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | (ITC) |
| Speakers: | Stereo, 7W x 2, 10W Subwoofer |
| Remote: | CT-9725 |
| Chassis: | TAC9443 |
| Weight: | 88.4 lbs (40.1 kg) |
| Dimensions (W/H/D): |
702 x 624 x 498 mm
(27.6 x 24.5 x 19.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1994 |
| MSRP: | 899 USD |
| Country of Manufacture: | USA |
| Market: | North America |

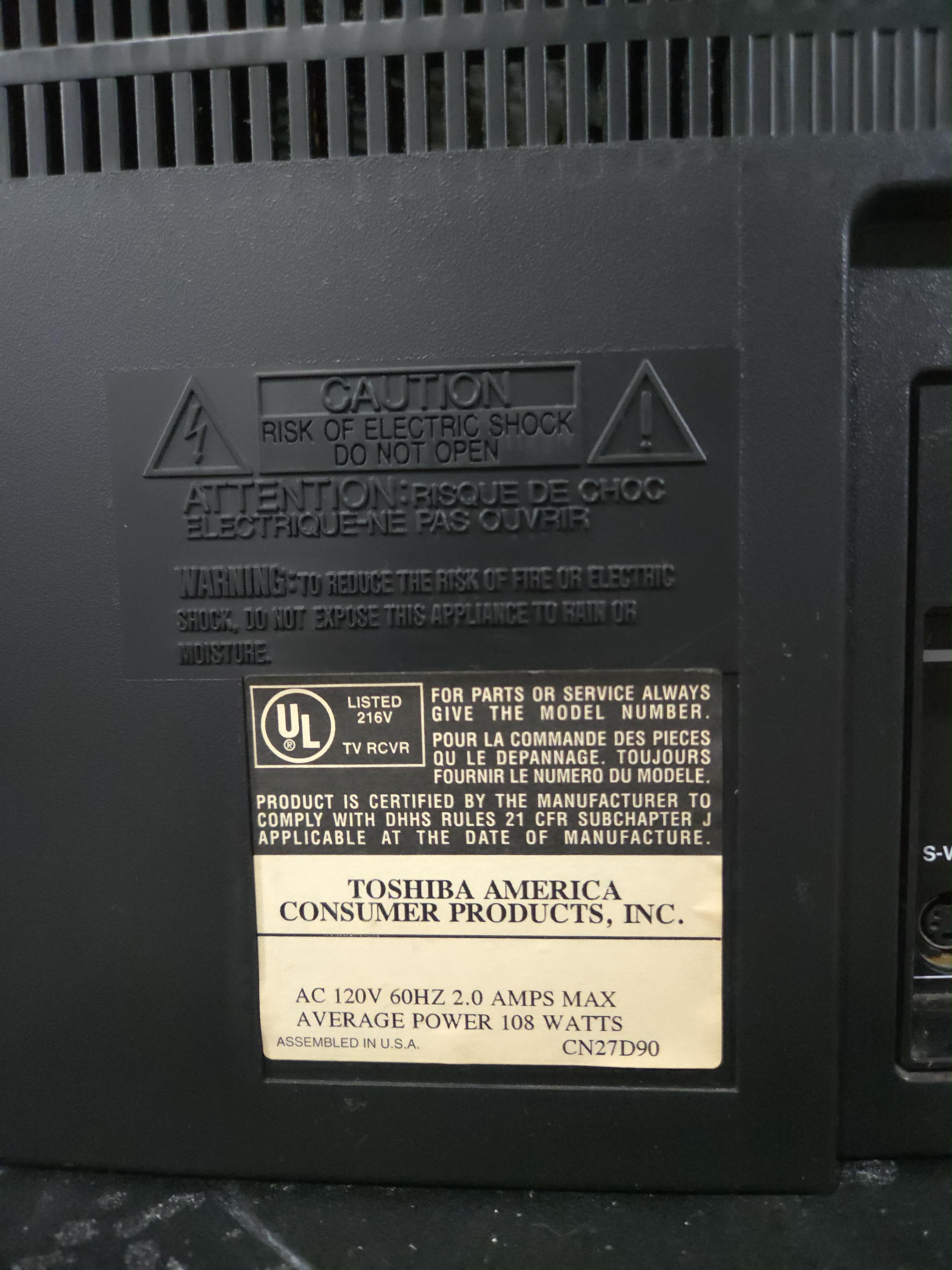

| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand |
| Degaussing: | Automatic on Power-on |
