Summary

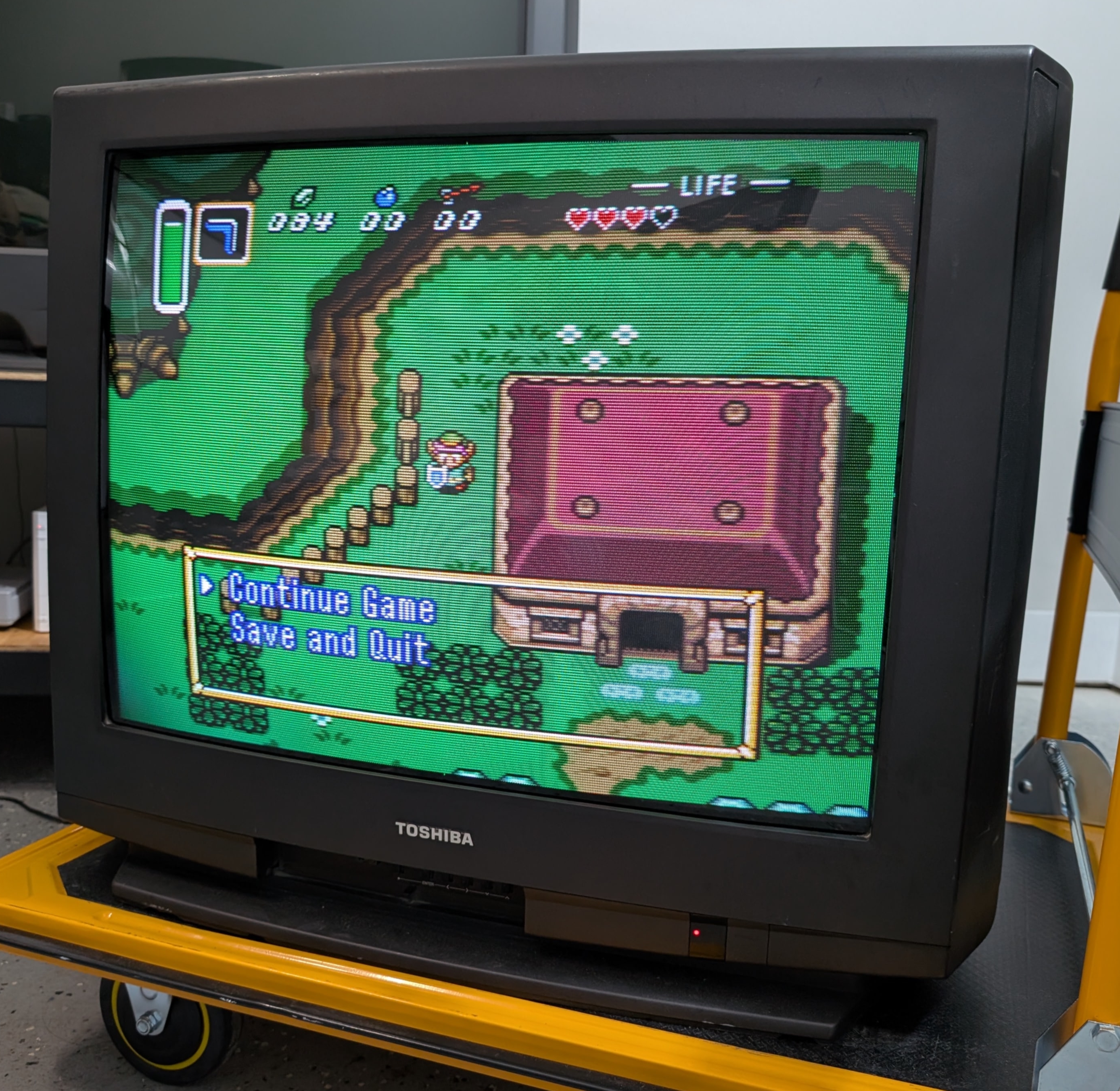

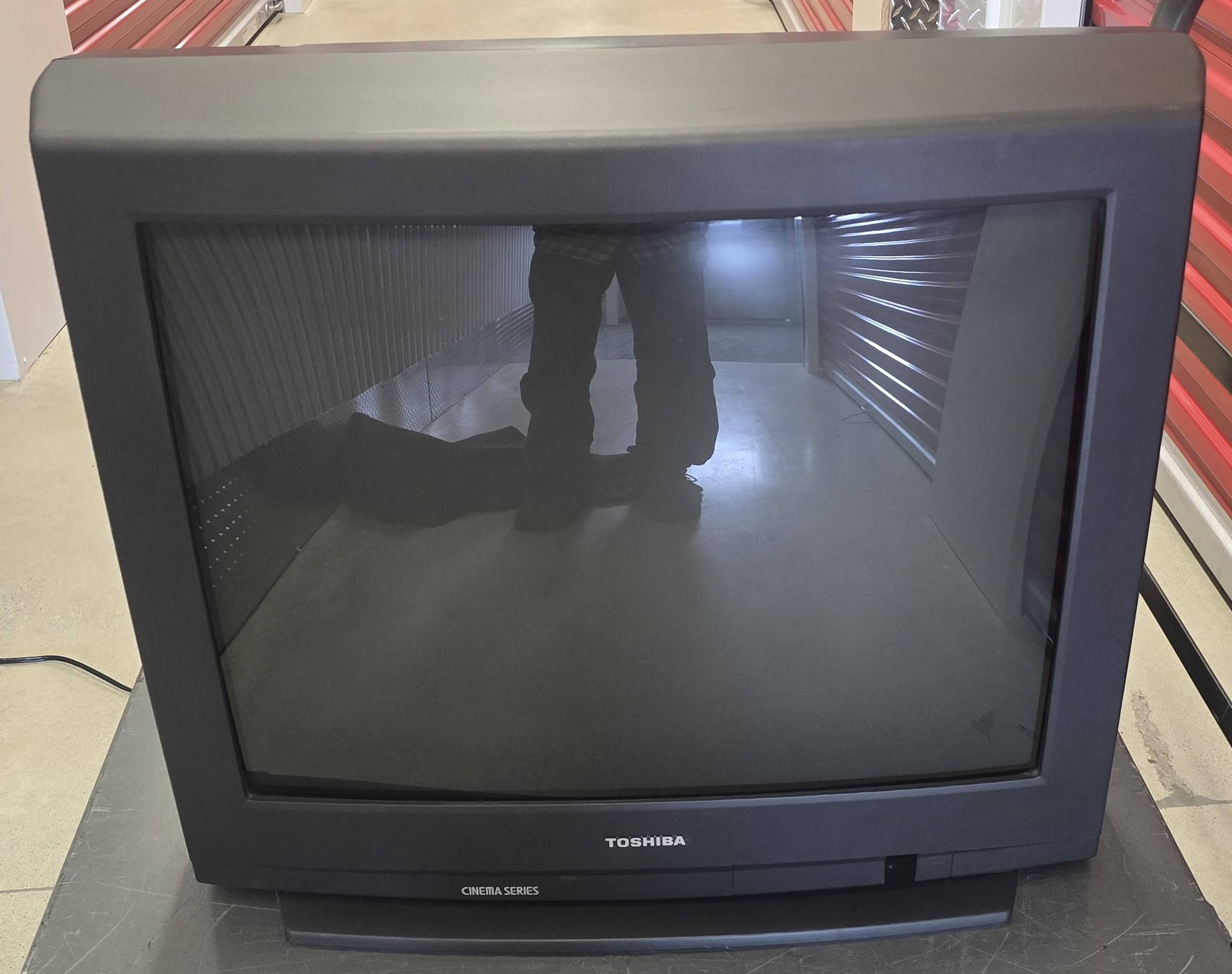

27" curved CRT by Toshiba. Has a full set of inputs. Made in the USA in 1998. Has a full set of inputs: RF, composite, s-video and component.
Manuals
Notes

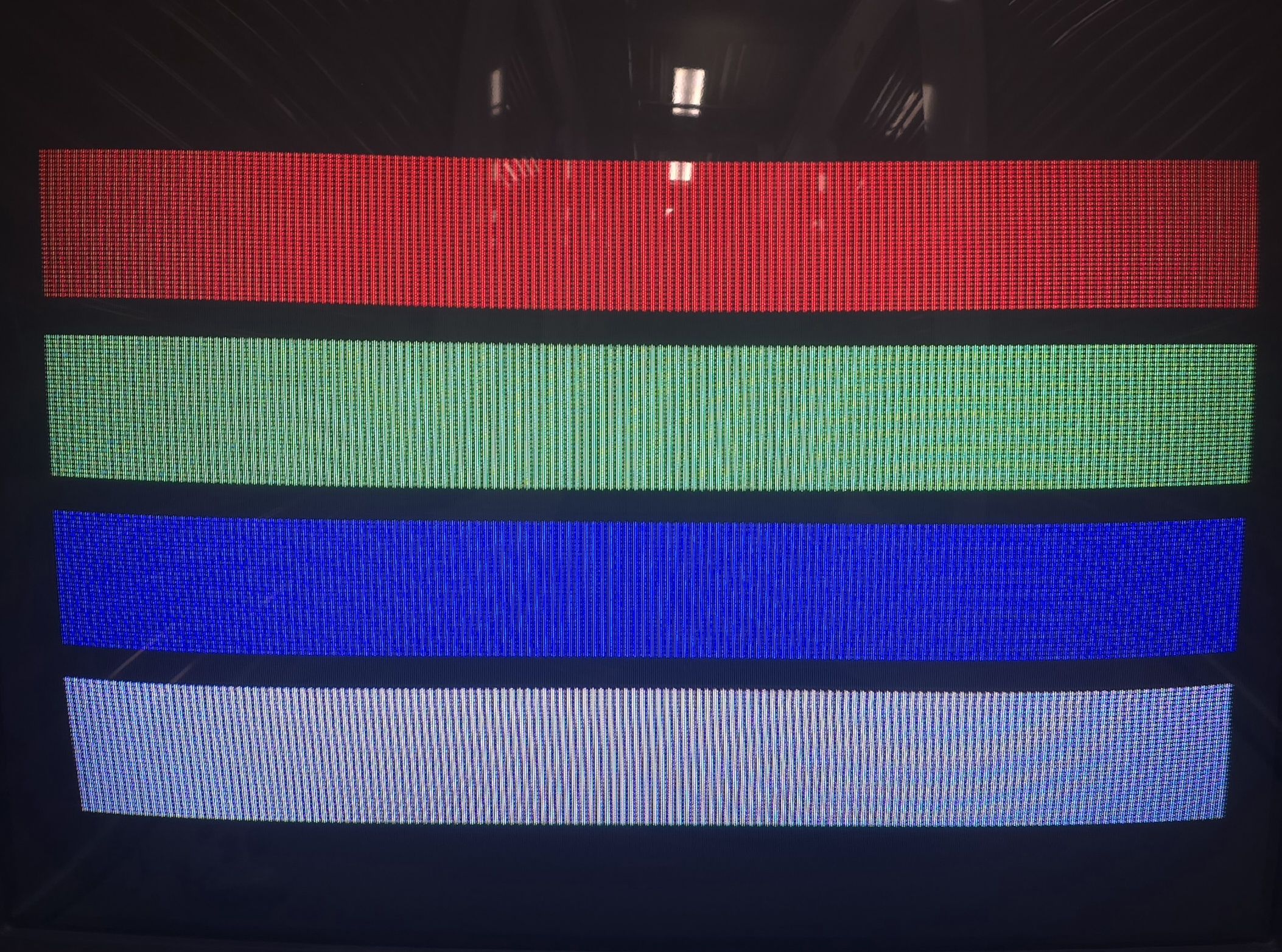

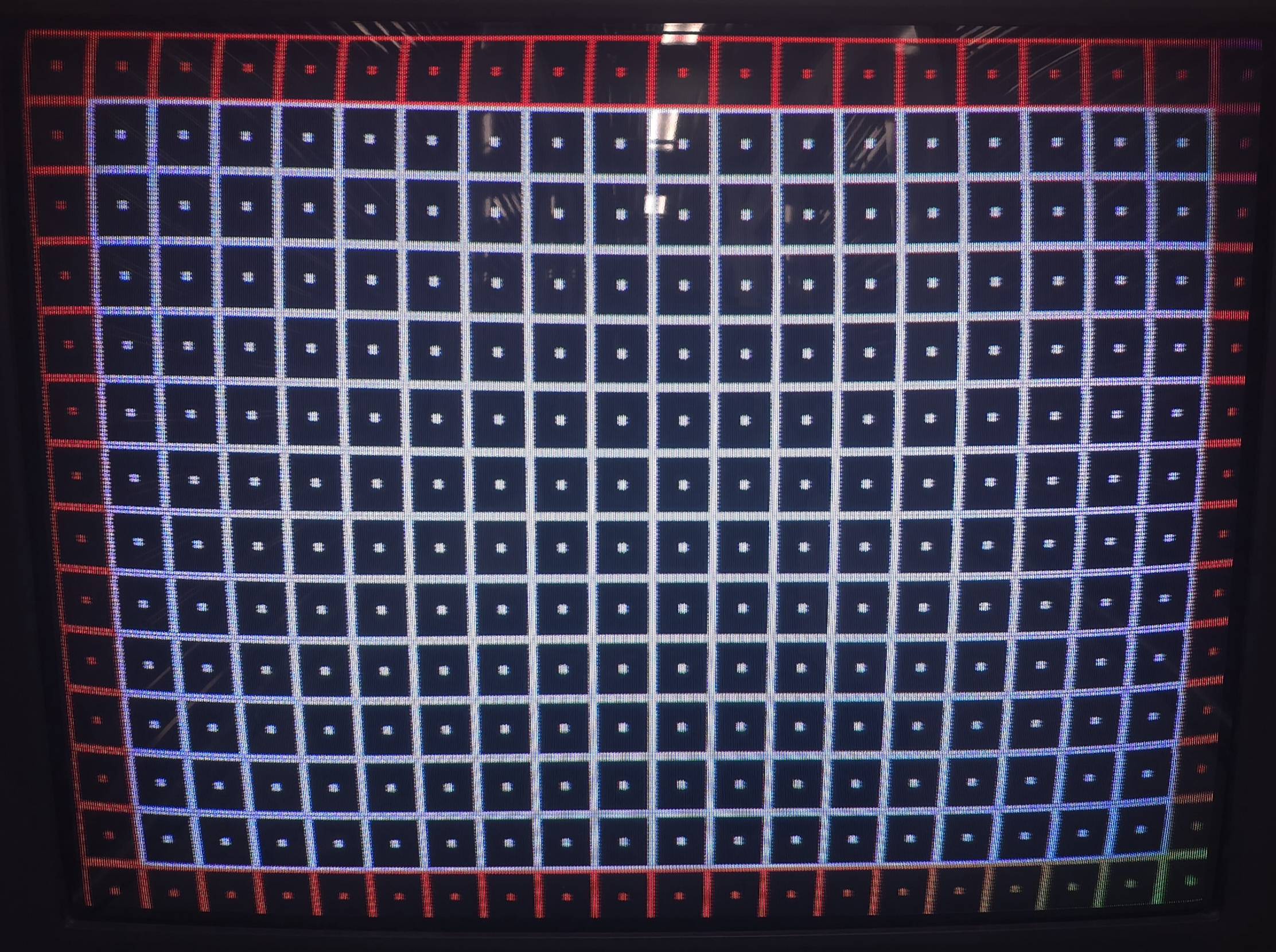

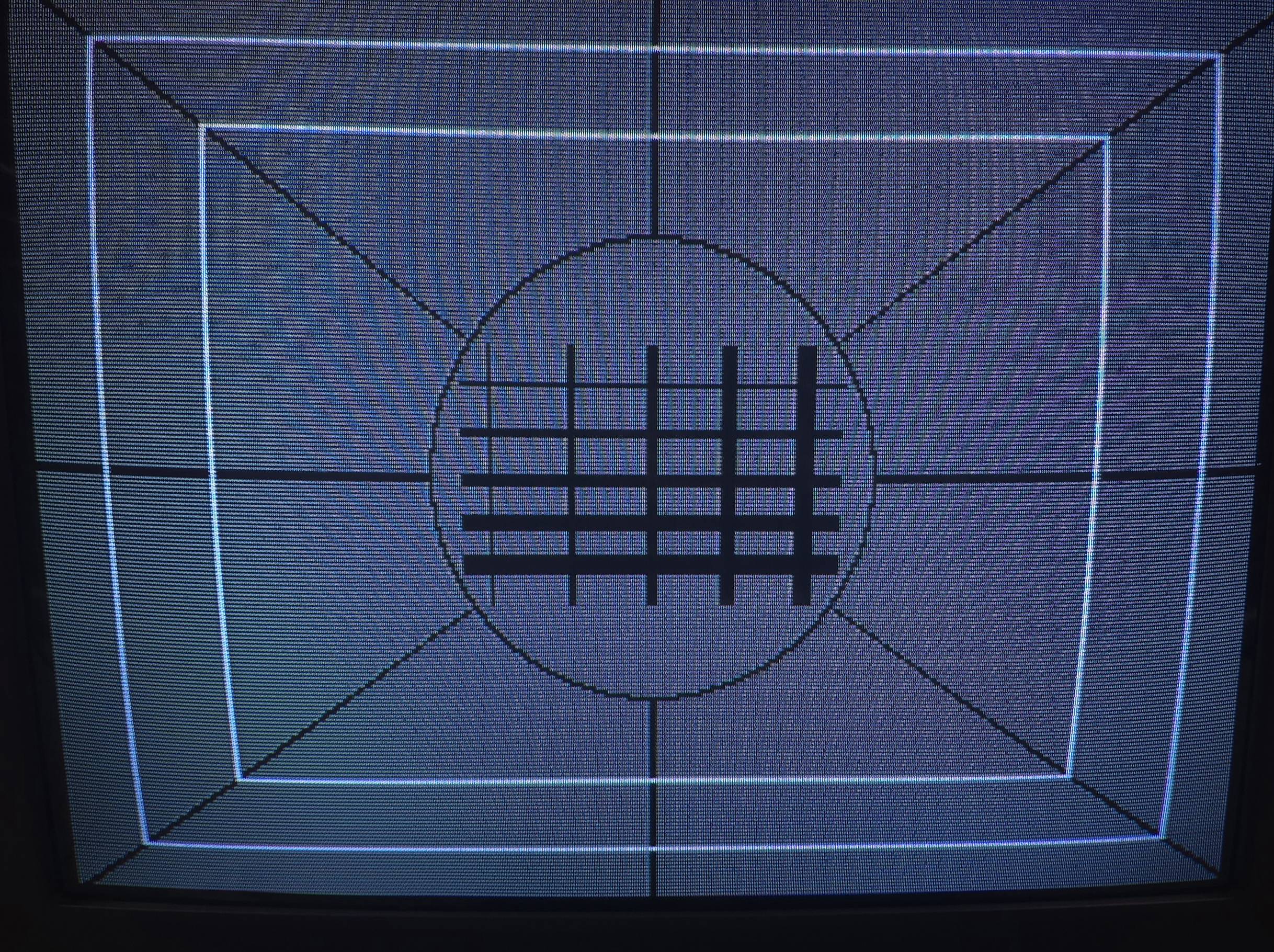

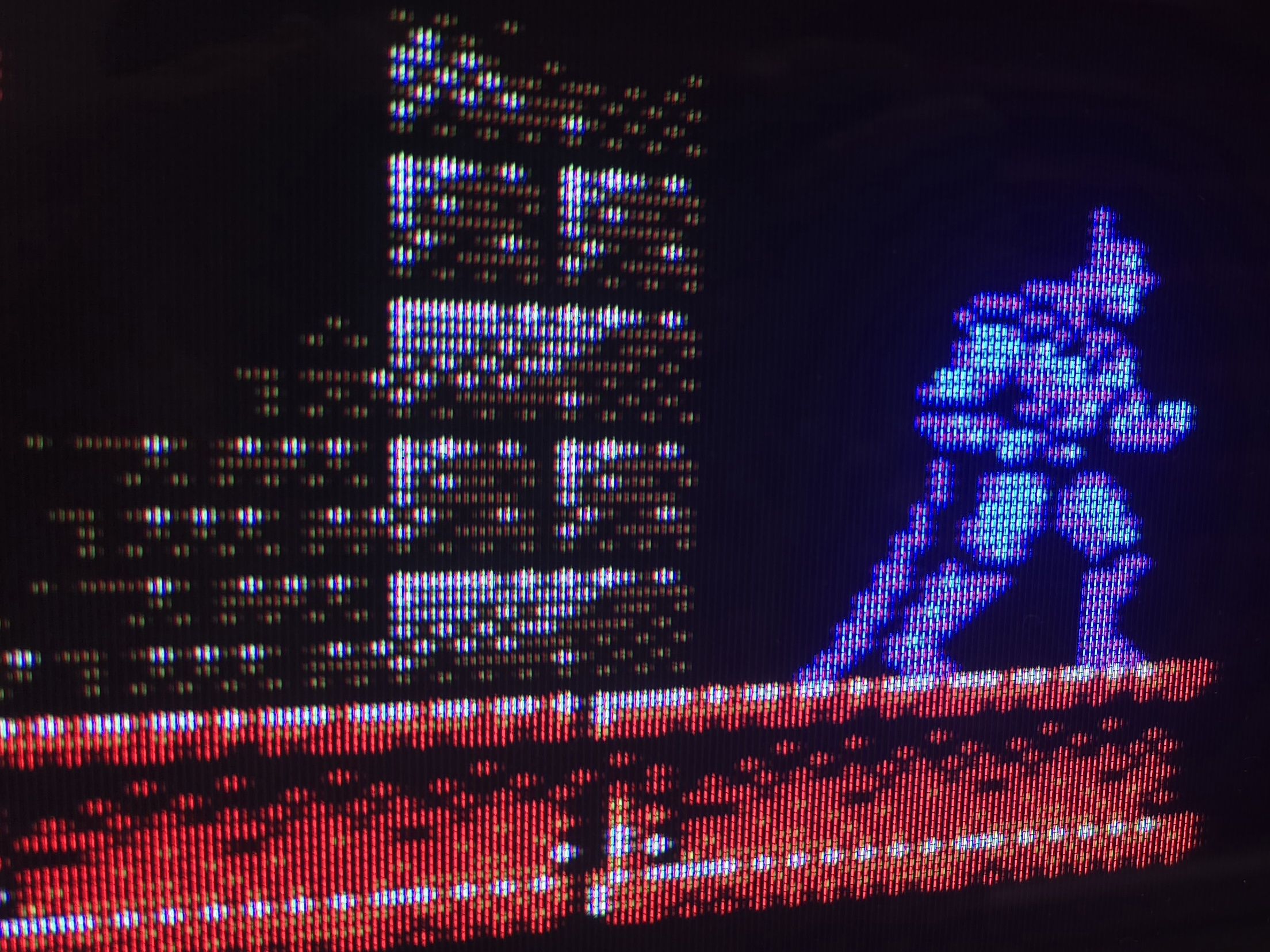

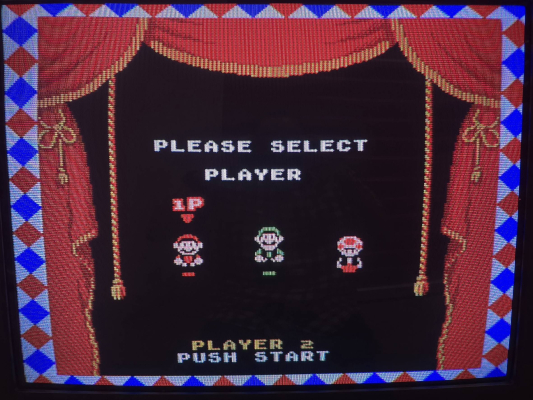

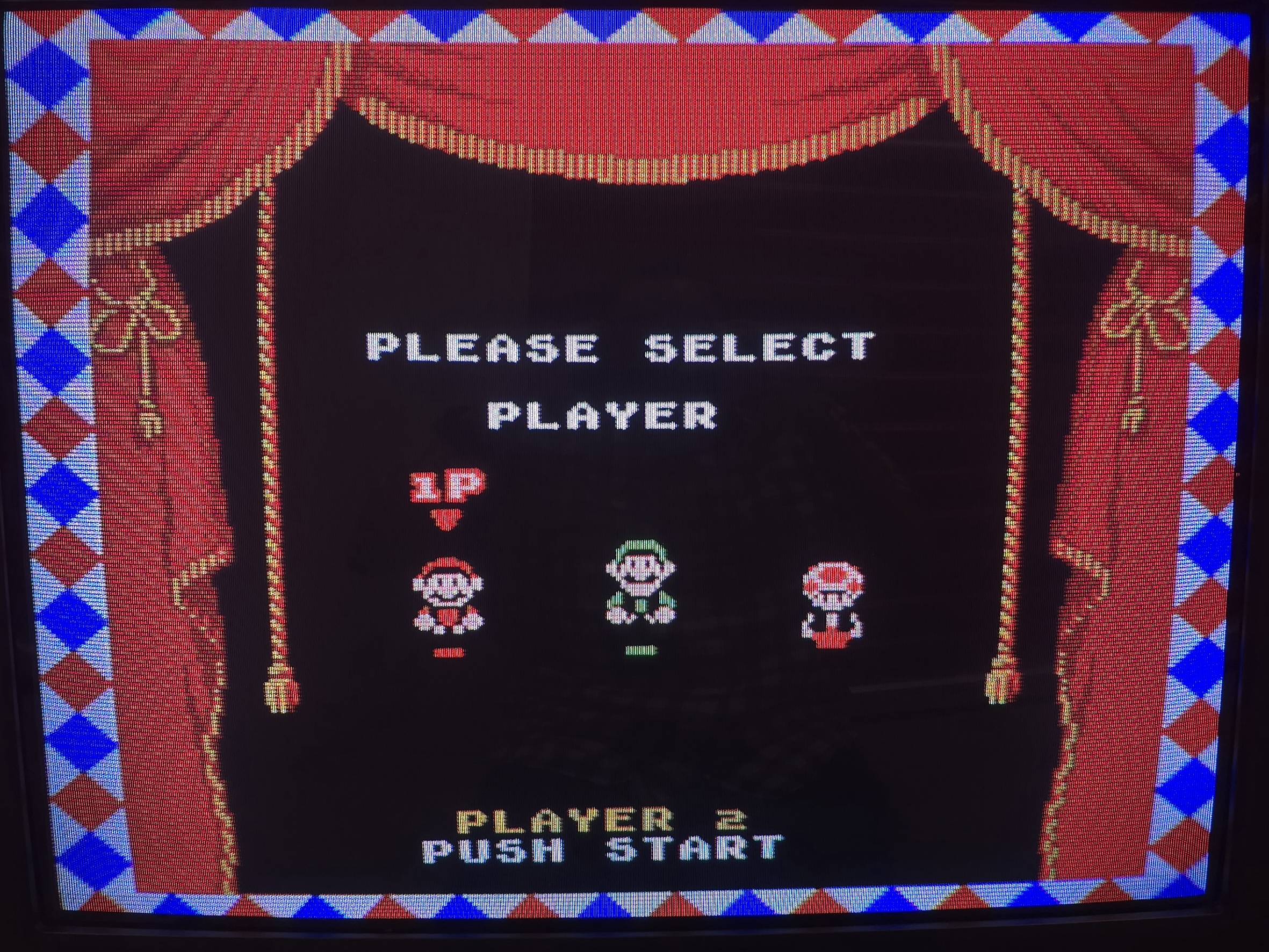

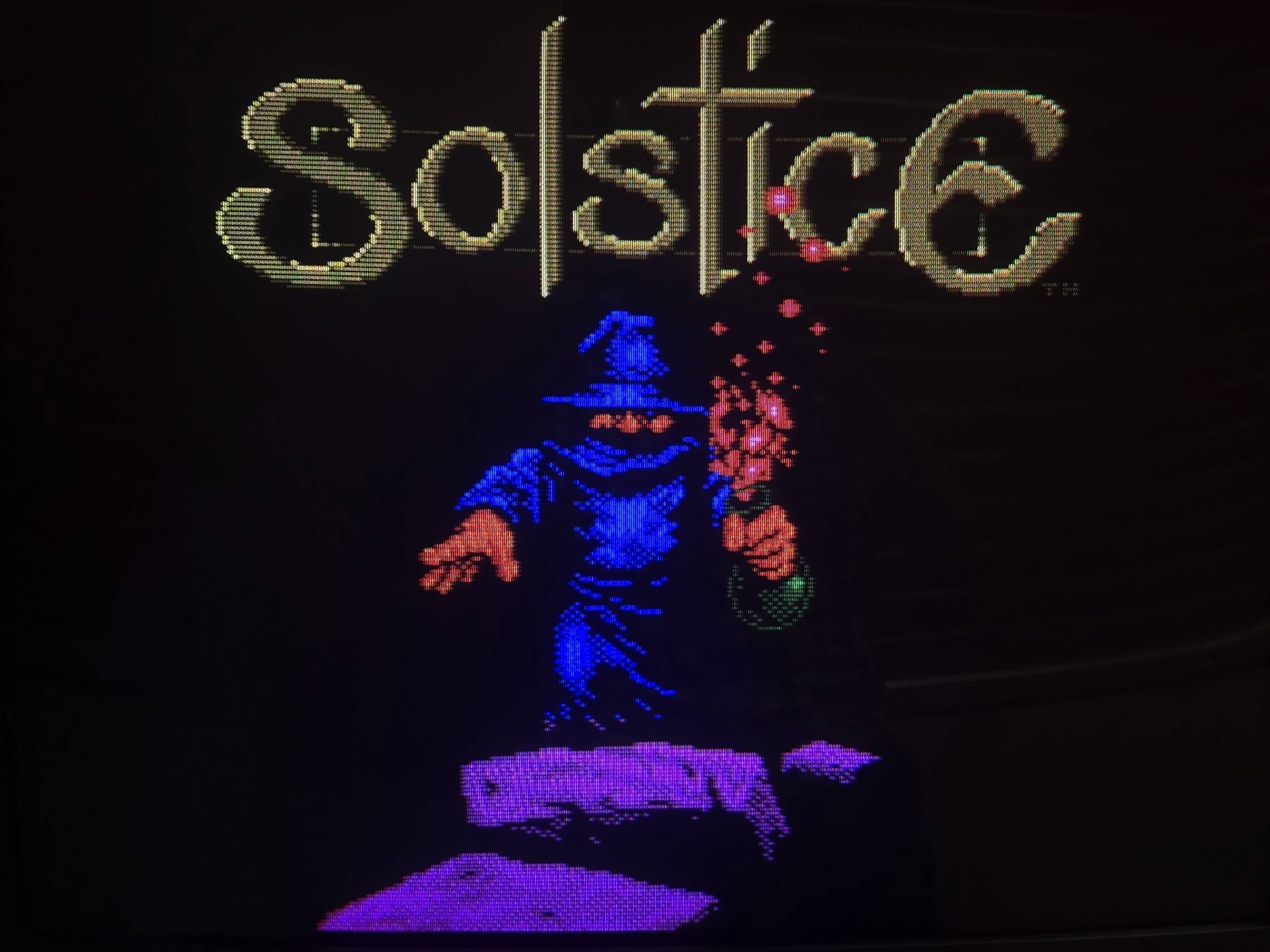

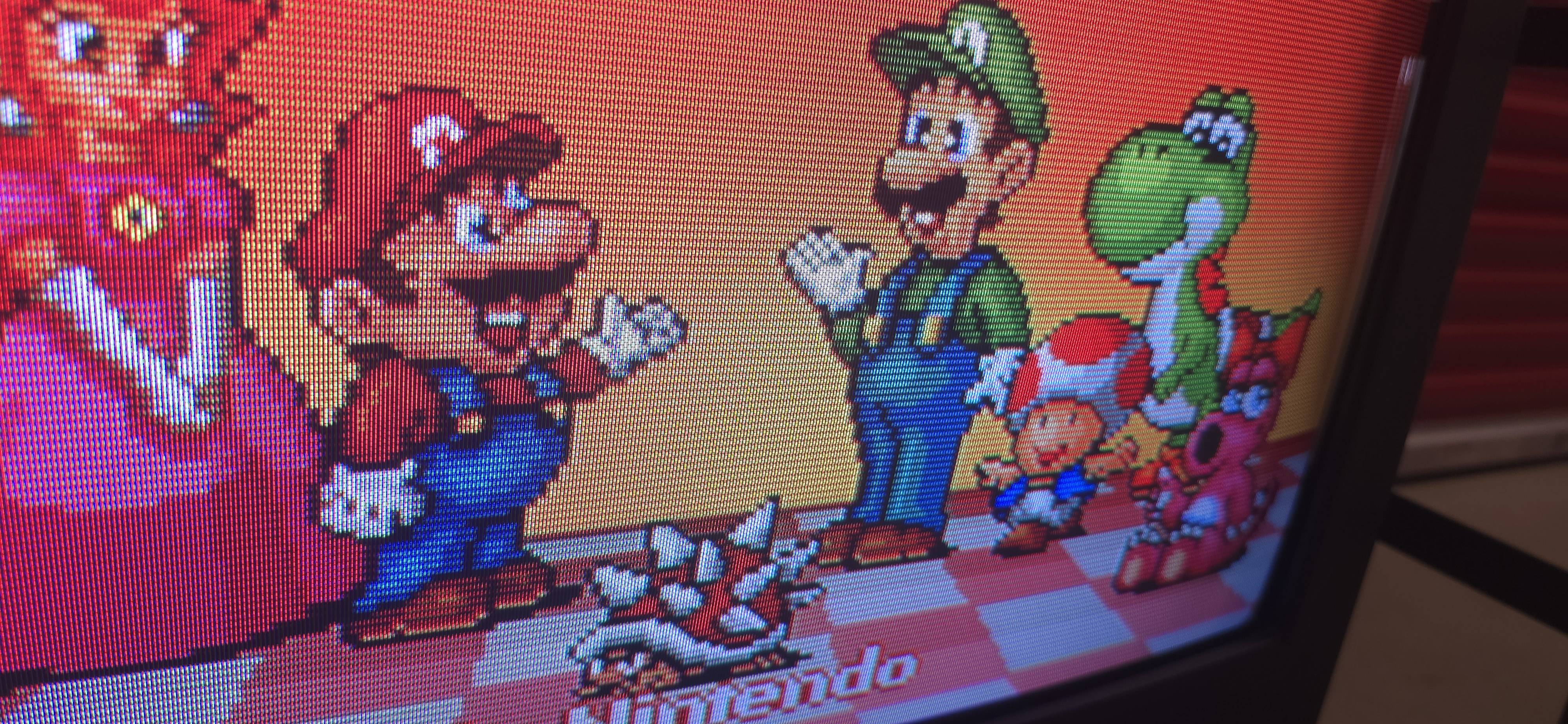

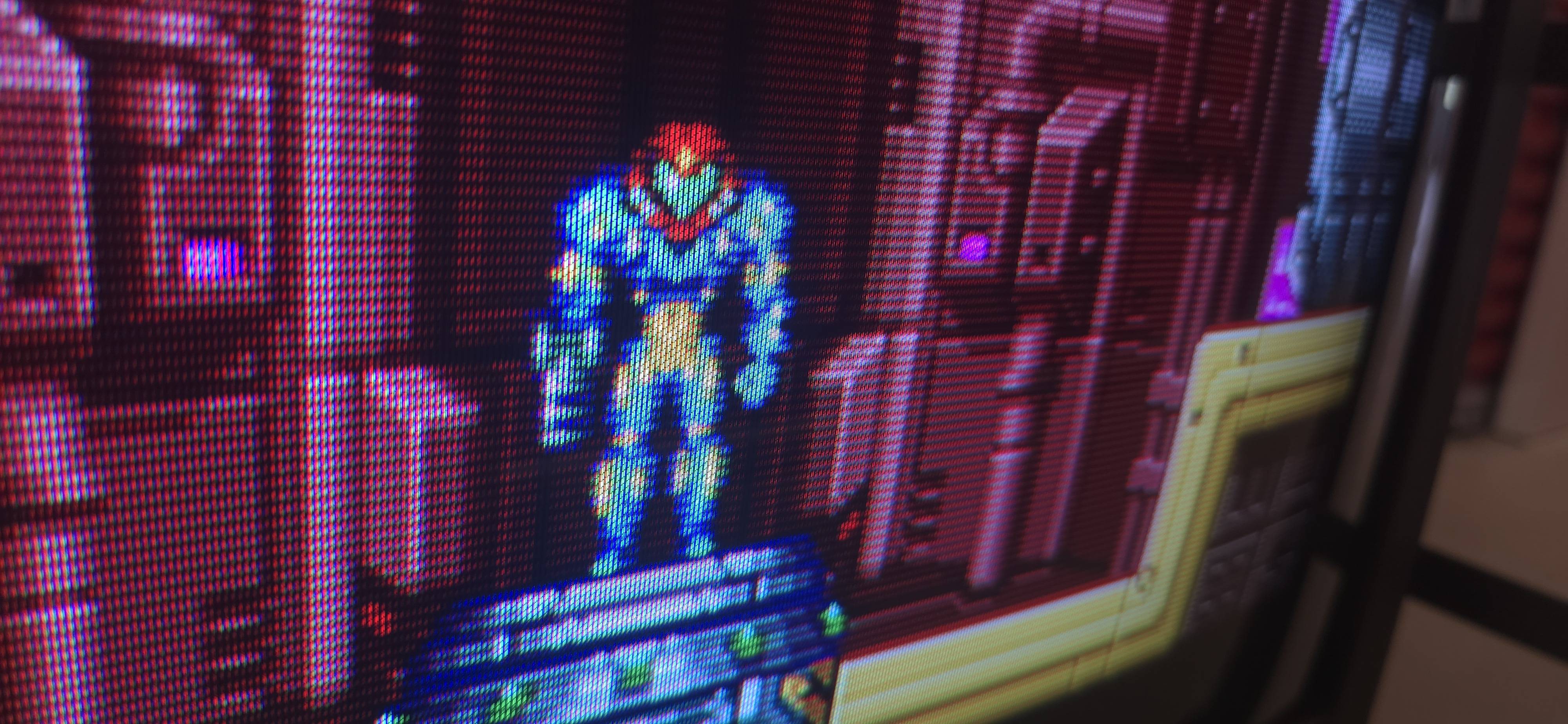

This set used tube picture tubes, one by Hitachi, and another by RCA/Thomson. The first set of gameplay pics are of the former, the second set is of the latter. I've included them both as a comparison.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CN27H95 |
| Series: | Cinema Series |
| Viewable Size: | 27" |

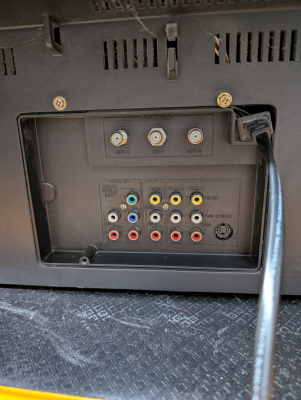

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

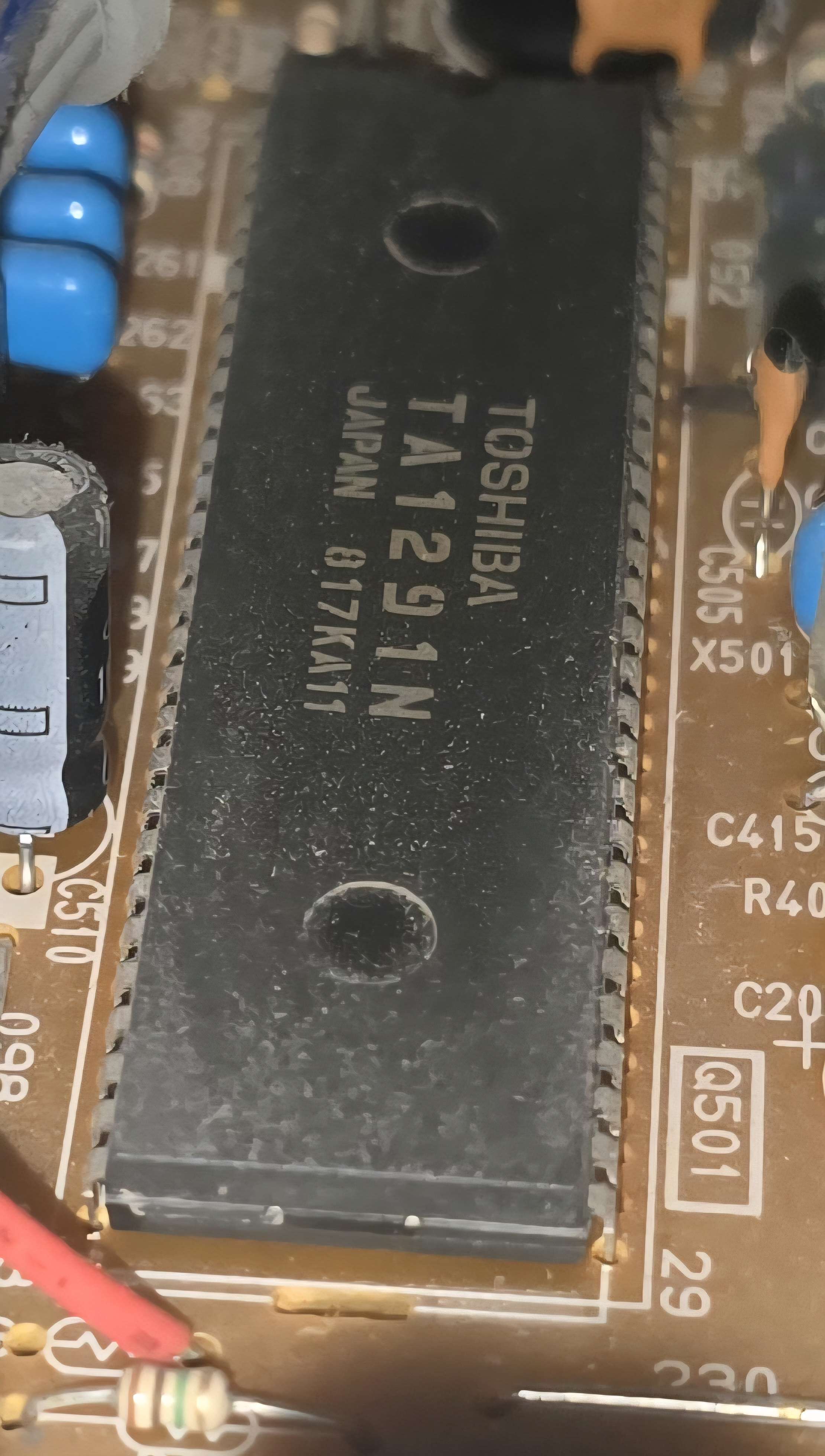

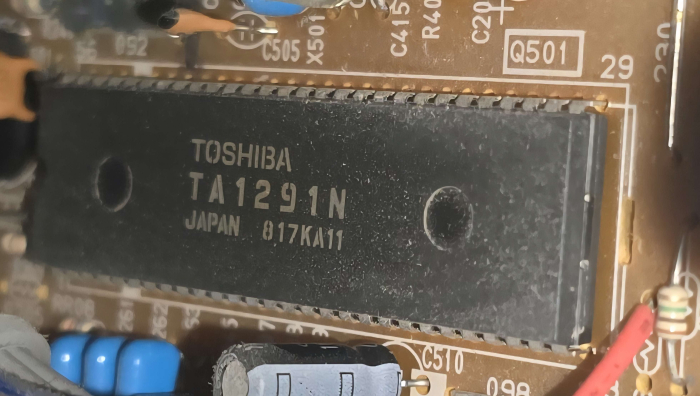

| Jungle IC: | Toshiba, TA1291N |
| Flyback: | TFB4132ED |
| Focus Type: | Single |

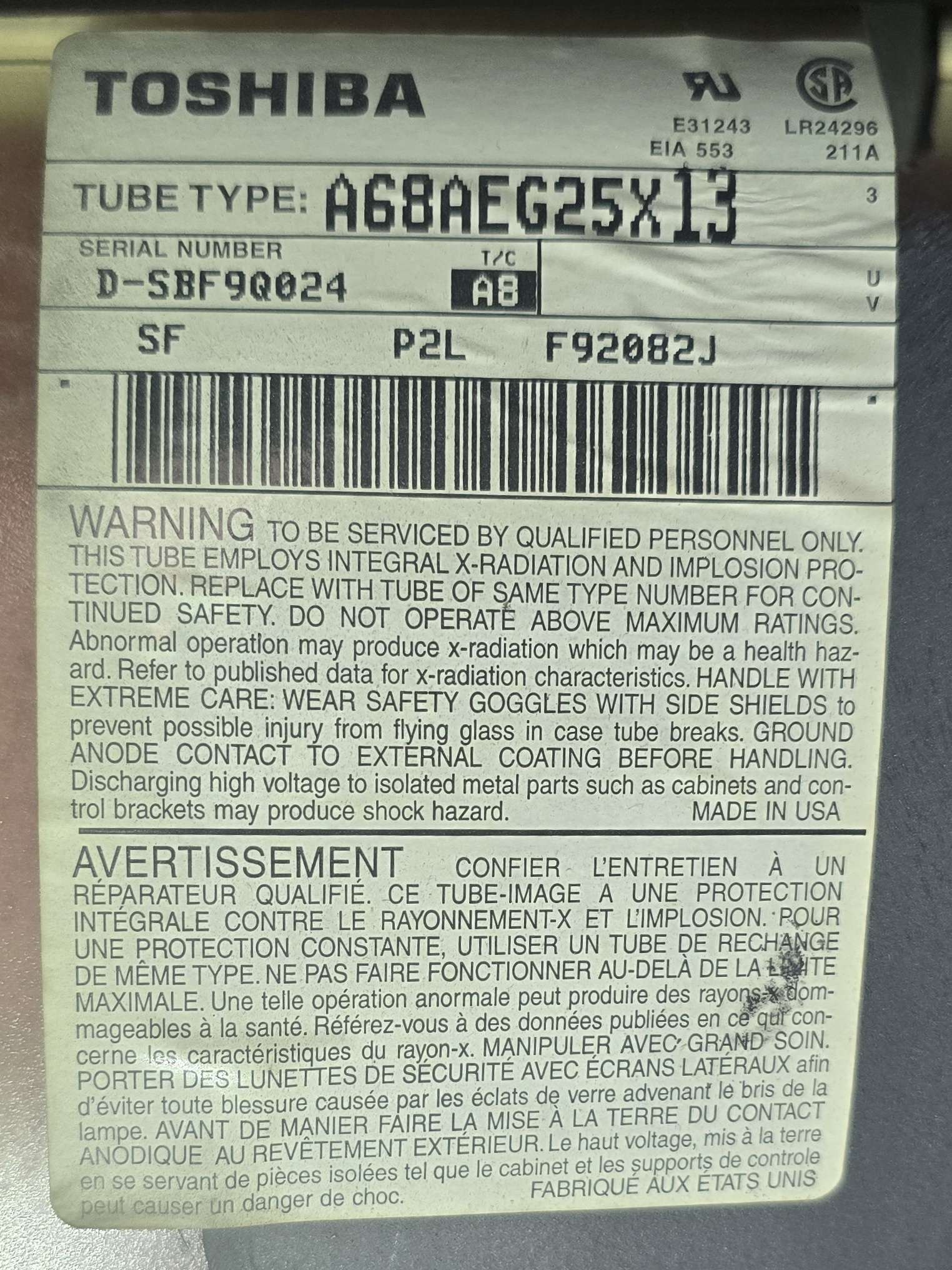

| Tube: | Hitachi , RCA , A68KSA30X , A68AEG25X , A68KSA30X12 , A68AEG25X13 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 10W x 2 |
| Remote: | CT9946 |
| Chassis: | TAC9814 |
| Weight: | 76 lbs (34.5 kg) |
| Dimensions (W/H/D): |
686 x 619 x 548 mm
(27 x 24.3 x 21.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 599 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
