Summary

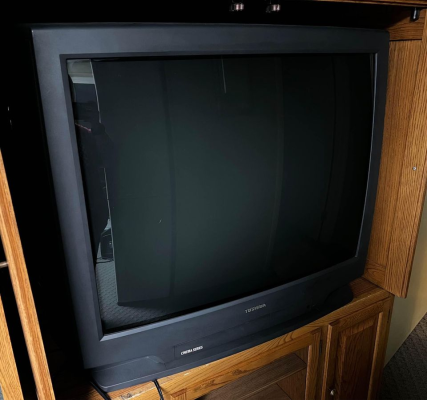

High-end 36" CRT by Toshiba. Has a full set of inputs, including the then-new component YPbPr input (which they called ColorStream.) Made in the USA in 1999. Uses an FST Perfect tube, and Toshiba's last standard-definition model to use one.
(Special thanks to Jonas Kreitzer for the pics!)
Manuals

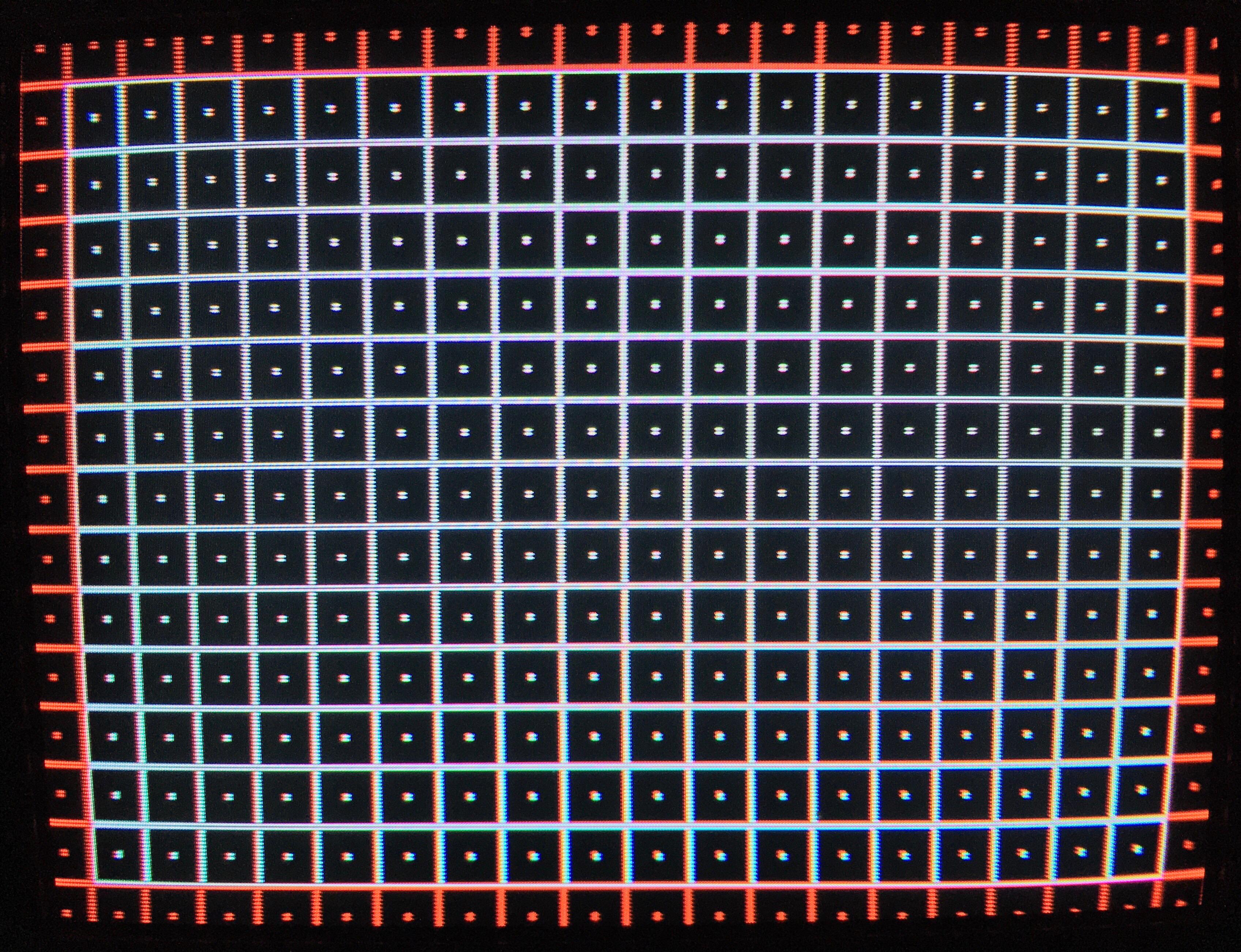

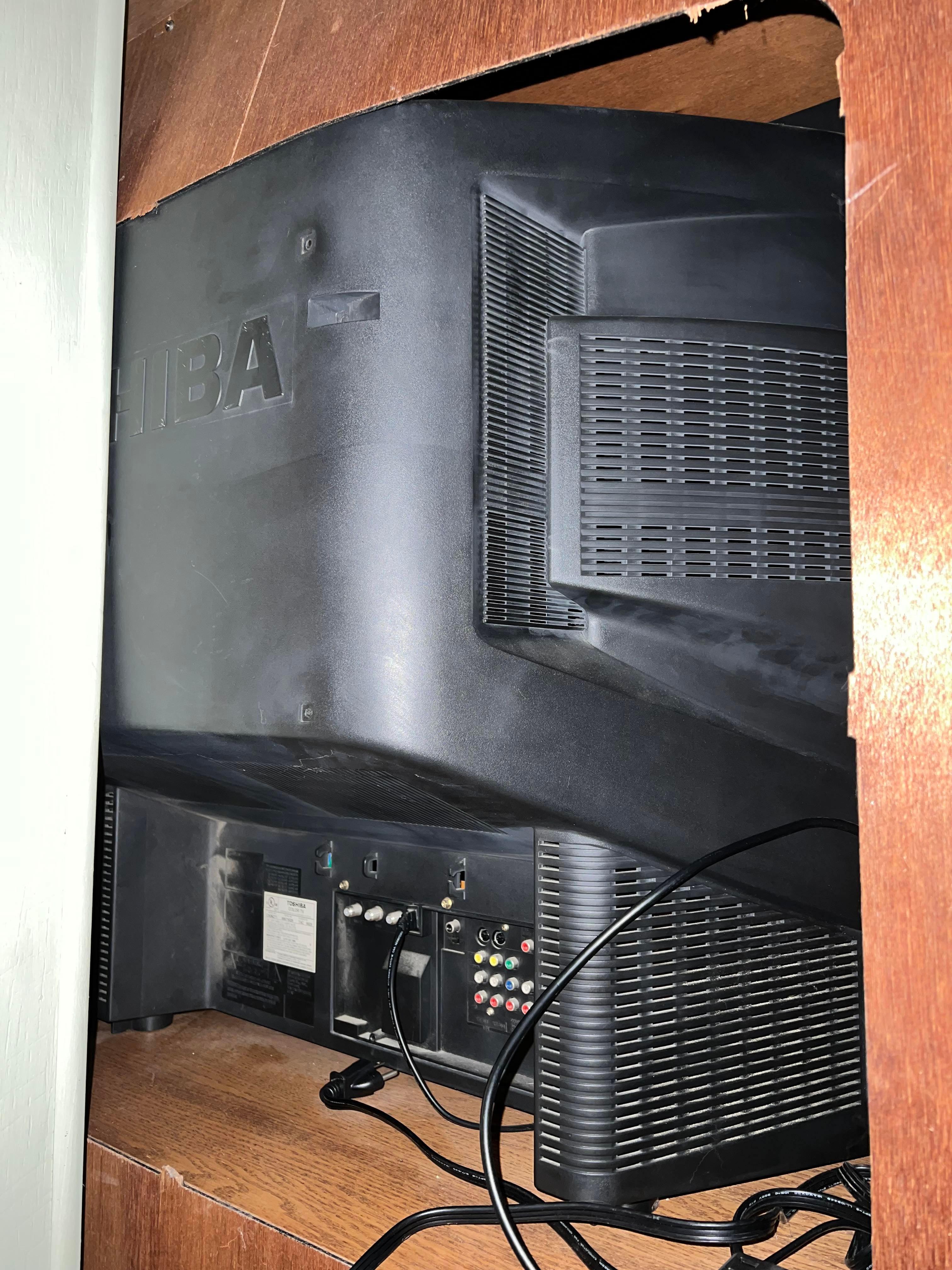

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |
| Model: | CN36Z71 |
| Series: | Cinema Series |
| Viewable Size: | 36" |

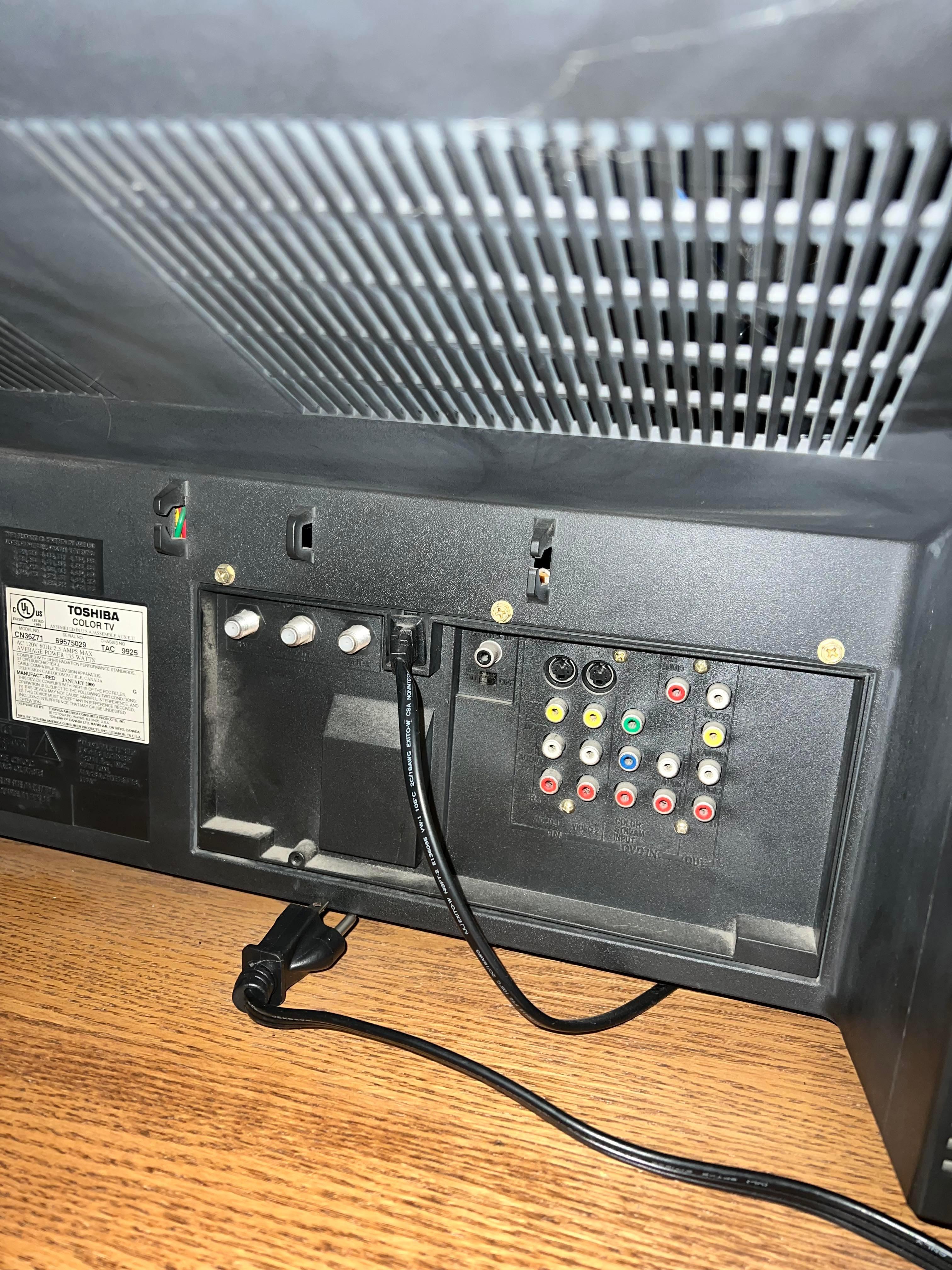

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TA1222N |
| Flyback: | TFB4132XD |
| Focus Type: | Single |
| Tube: | Toshiba FST Perfect , A90AHS50X , A90AHS50X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 10W x 2, 13W Subwoofer |
| Remote: | CT-9954 |
| Chassis: | N9SS, TAC9930 |
| Weight: | 176.4 lbs (80 kg) |
| Dimensions (W/H/D): |
930 x 781 x 650 mm
(36.5 x 30.7 x 25.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
