Summary

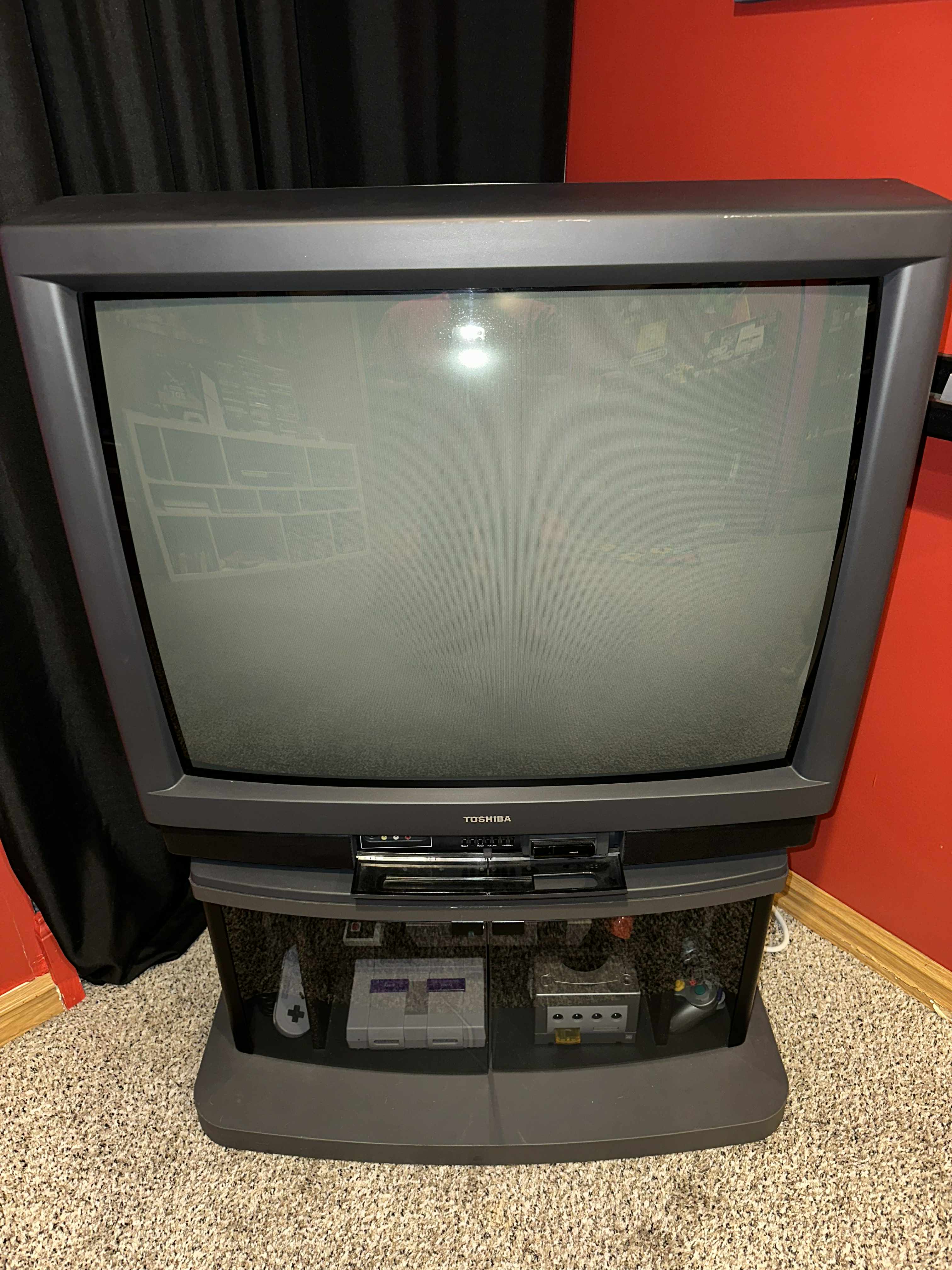

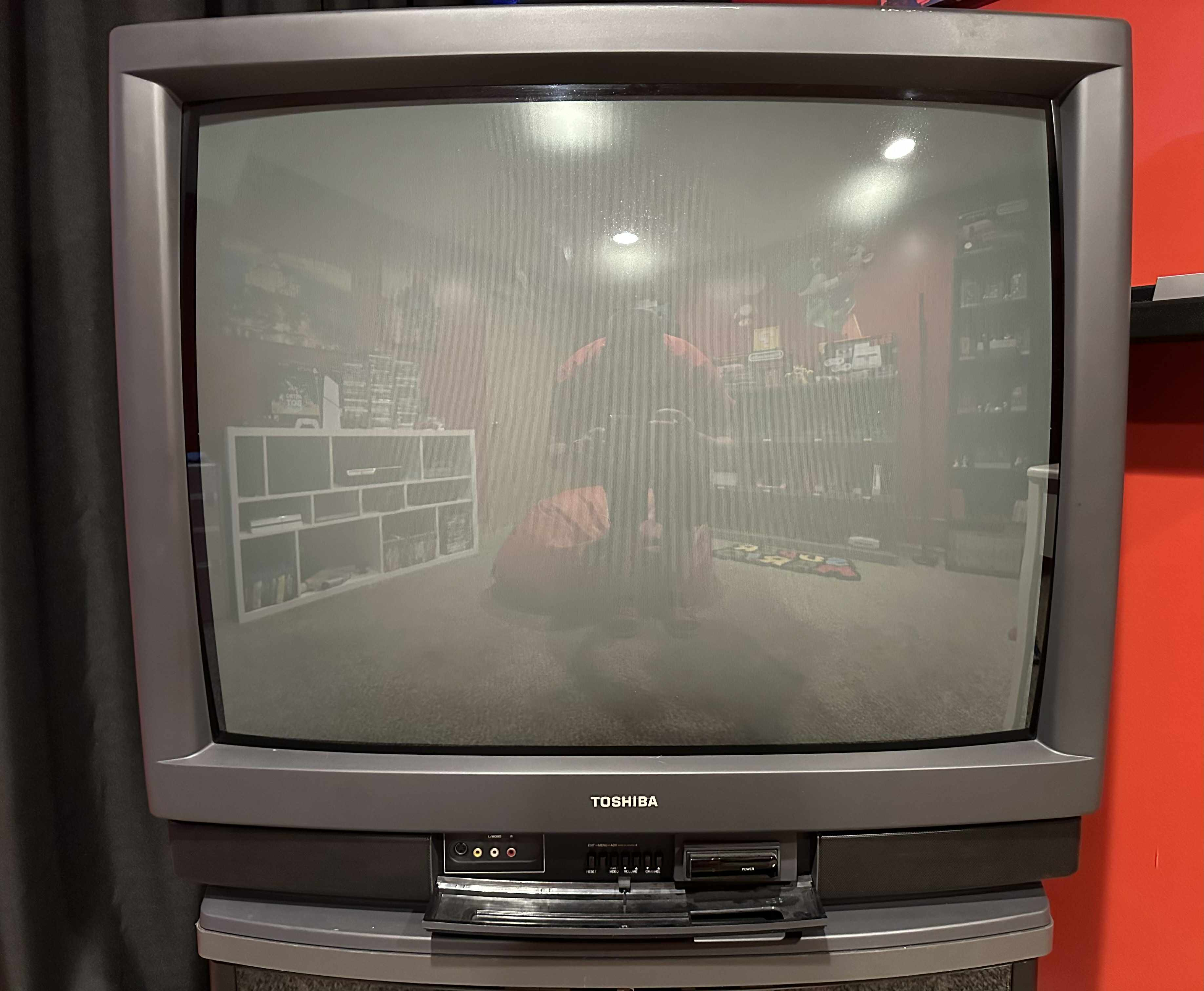

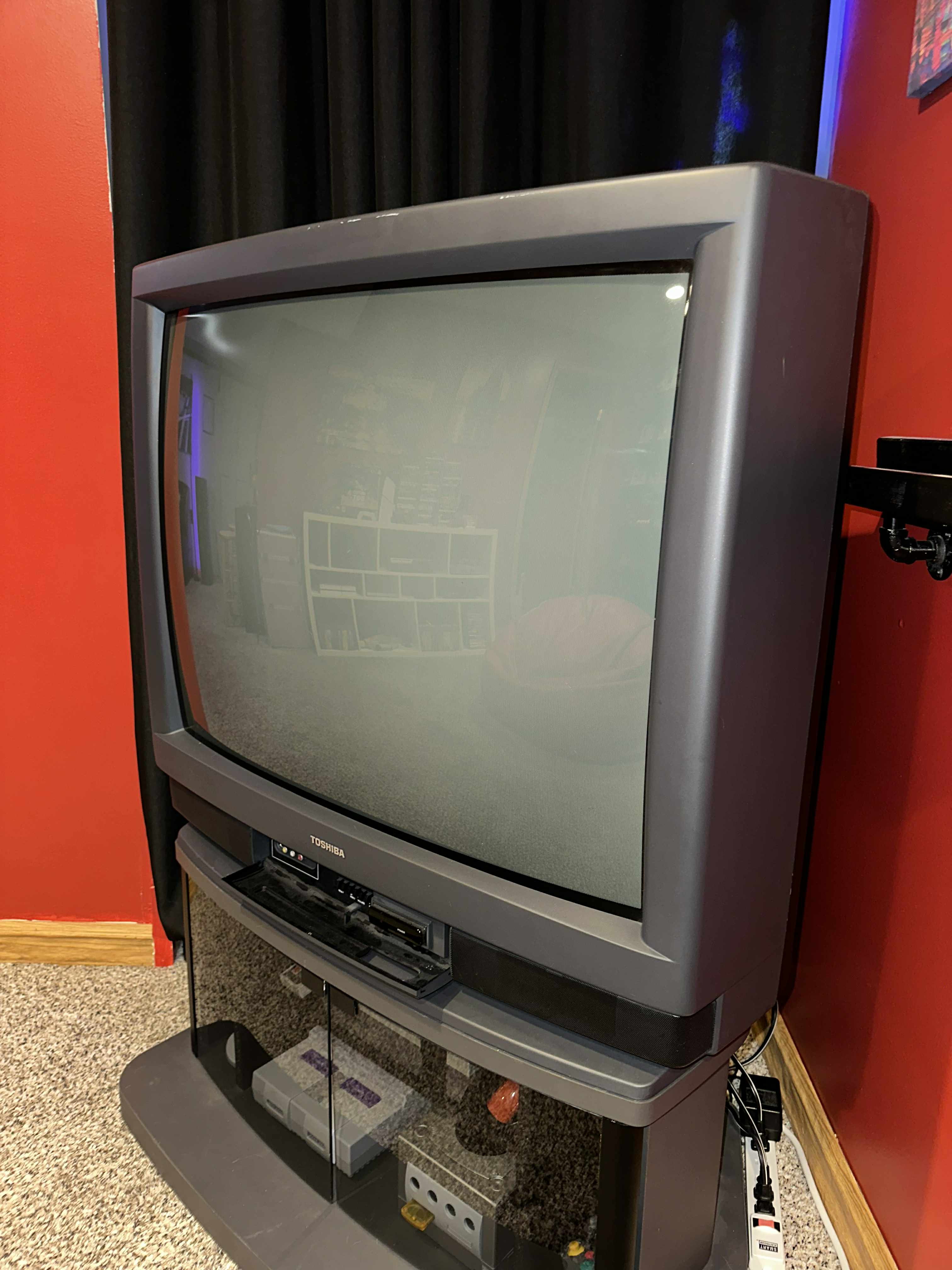

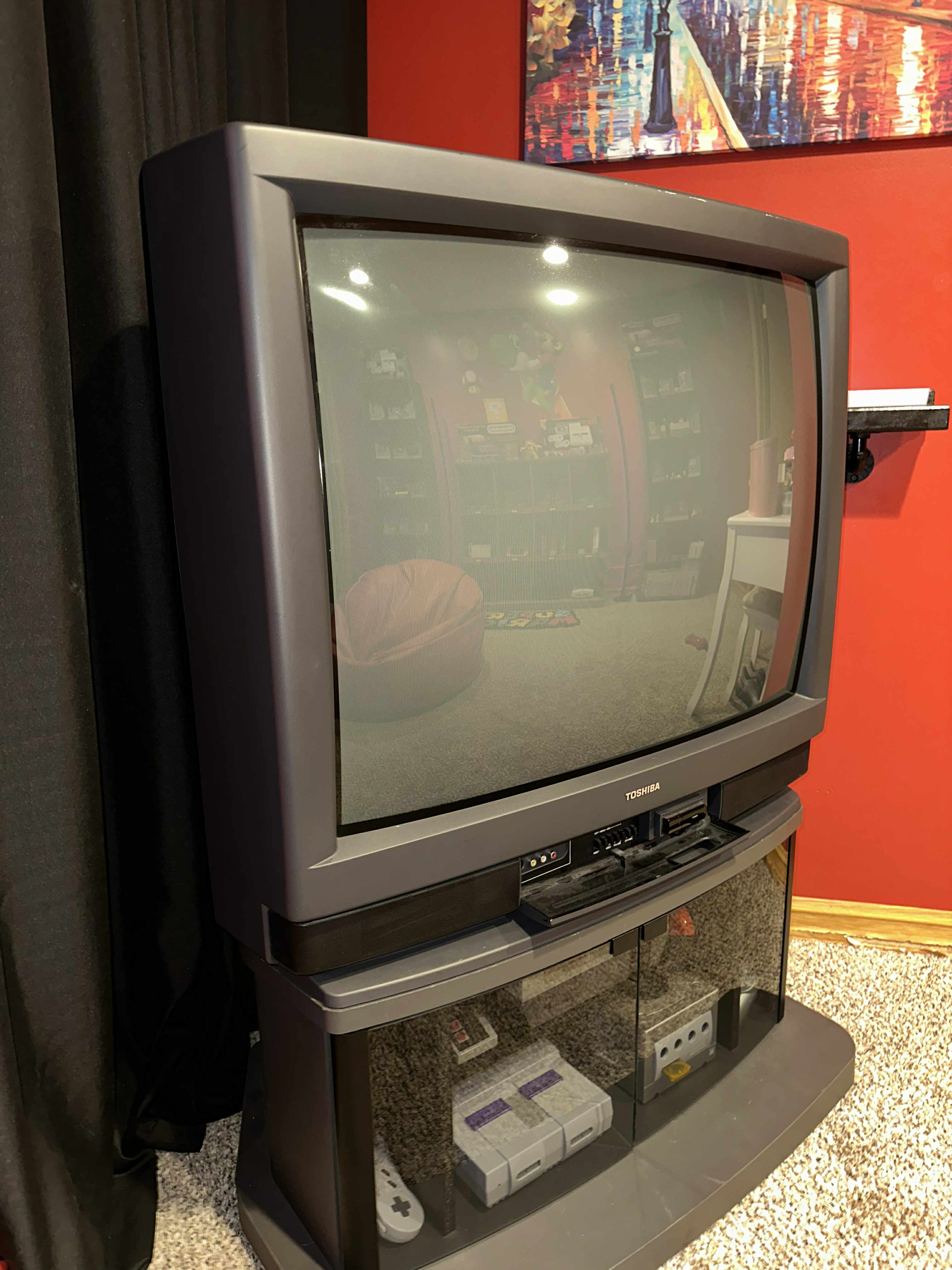

35" CRT by Toshiba. Hasa RF, composite, and s-video input; it also has amped stereo audio outputs. Originally manufactured in the USA in 1993.
(Special thanks to Brian B. for the pics!)

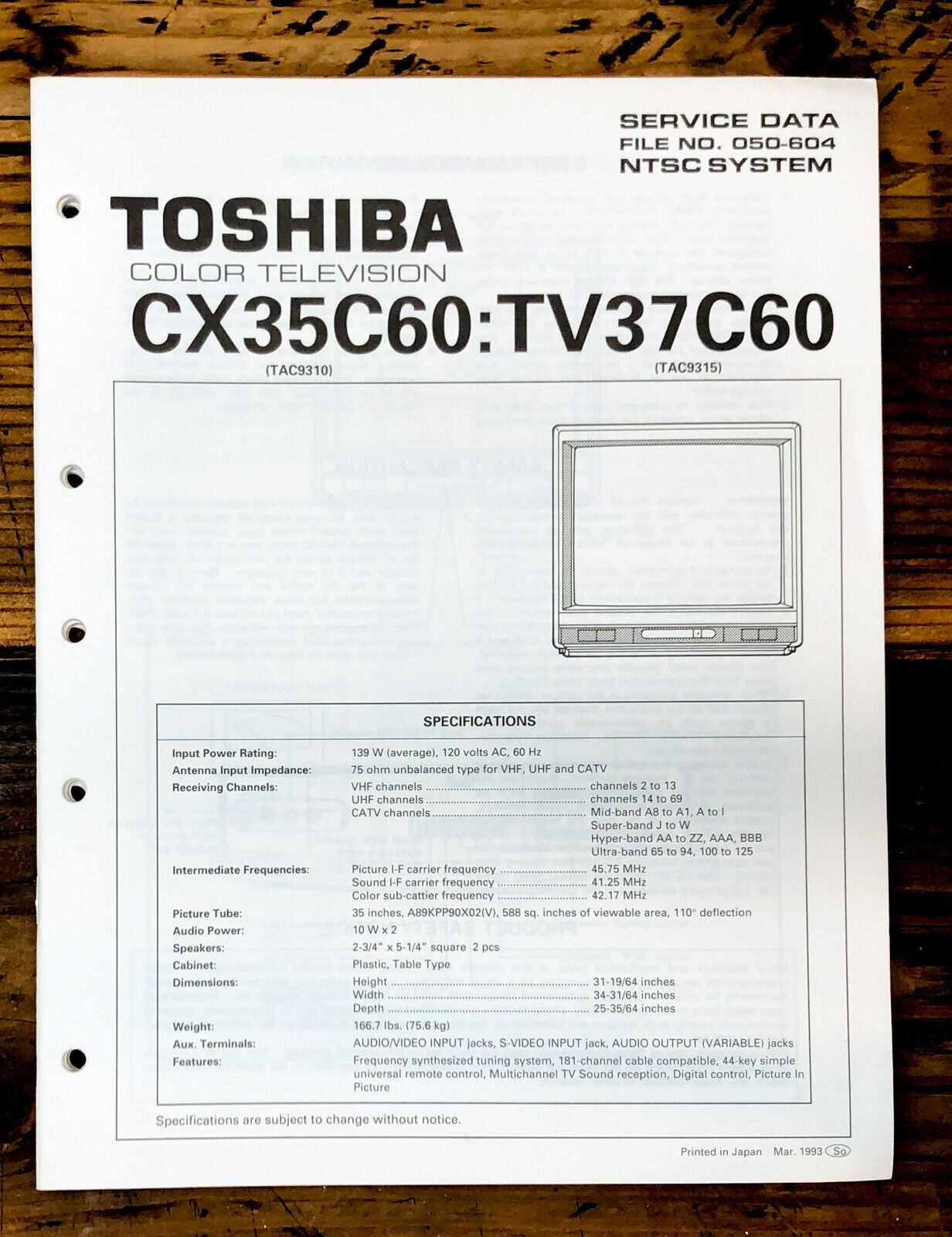

Manuals
Notes

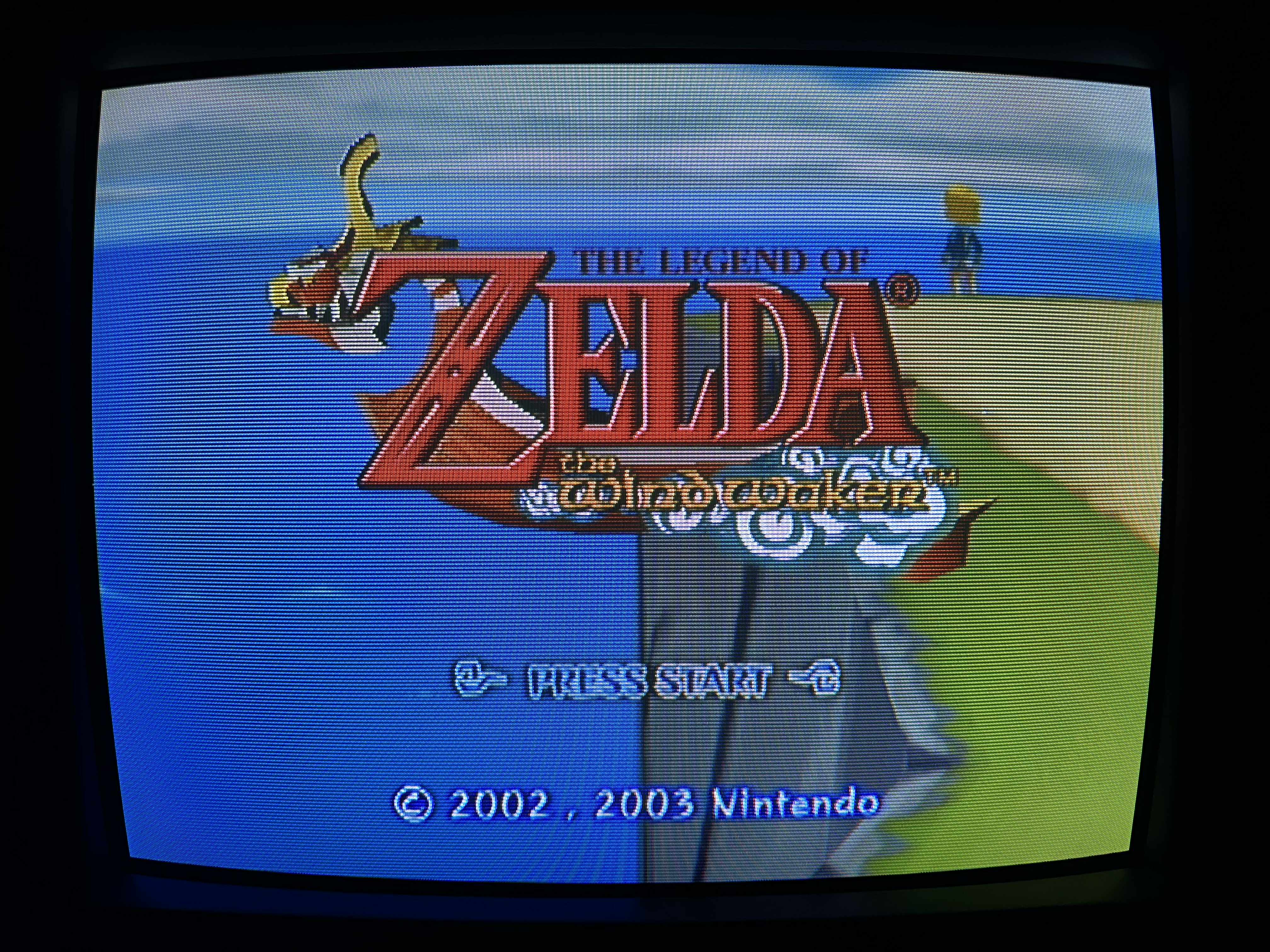

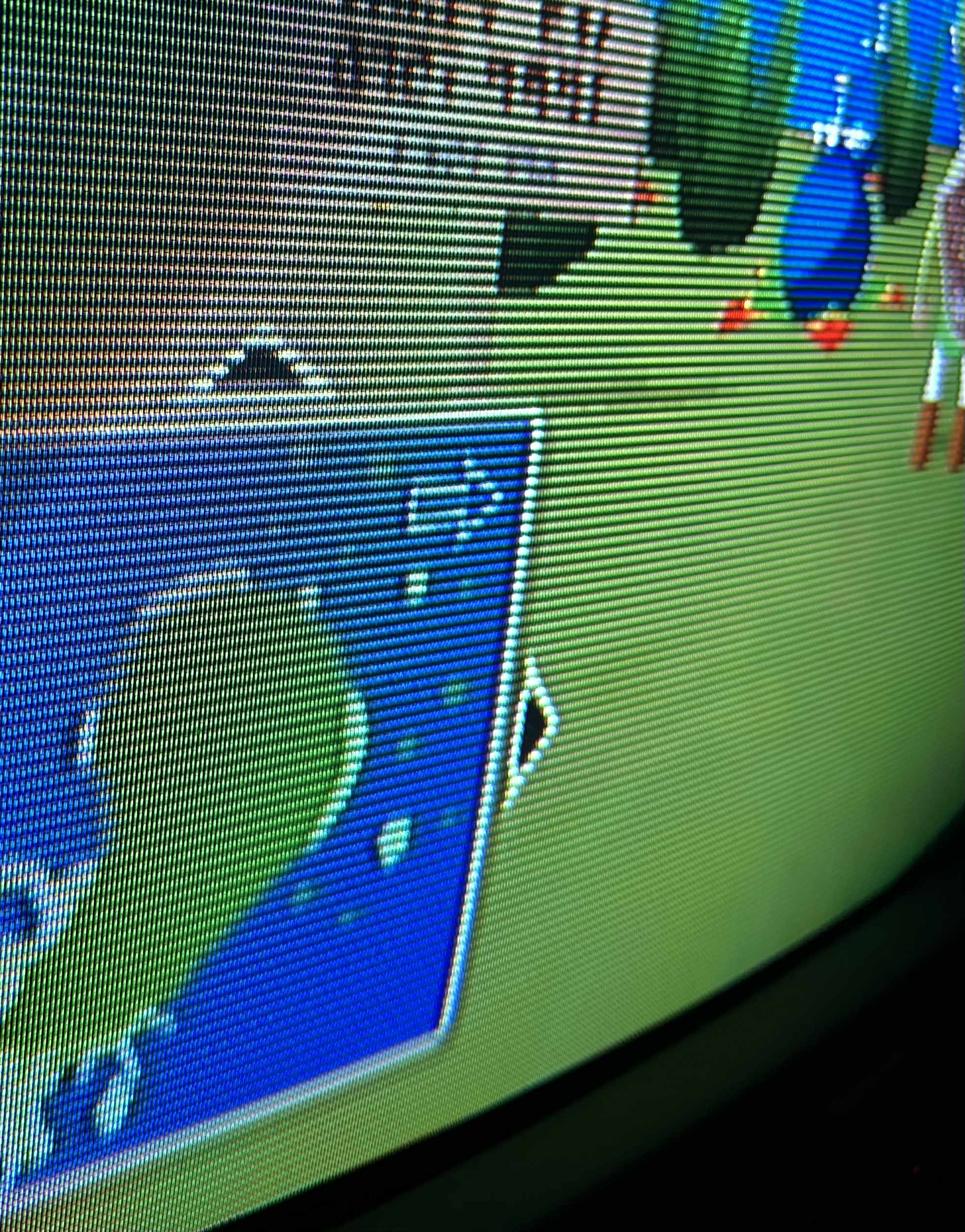

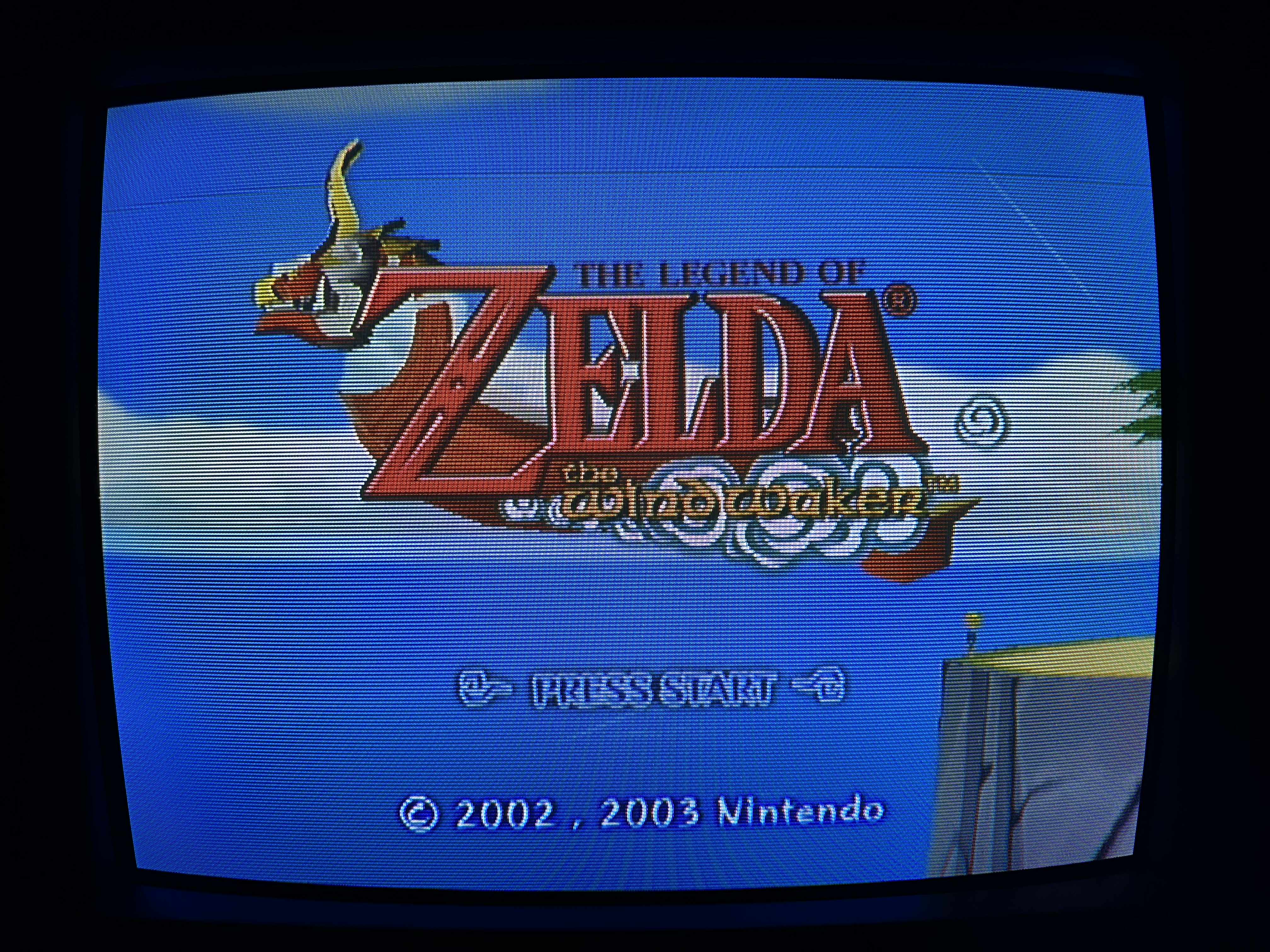

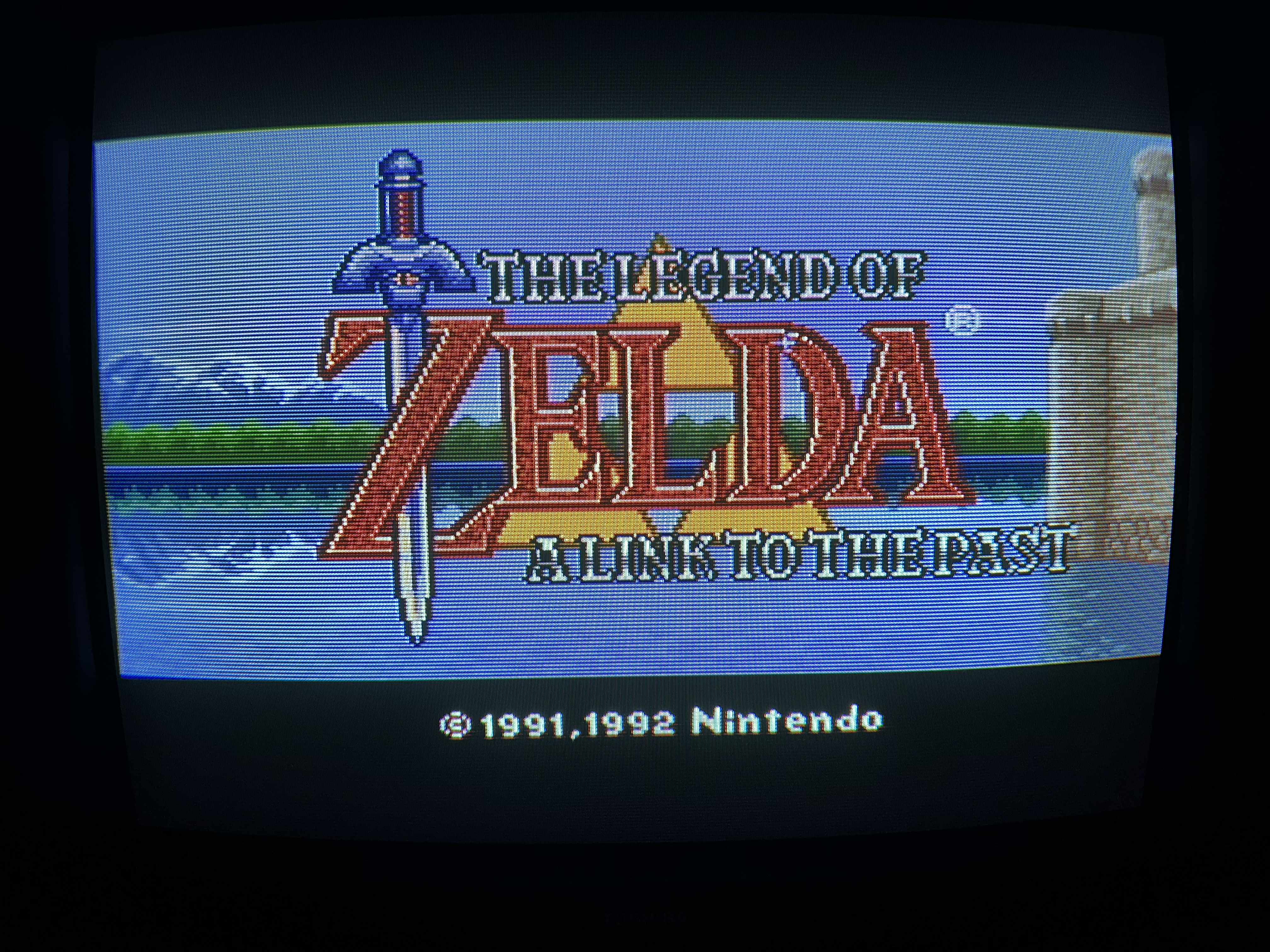

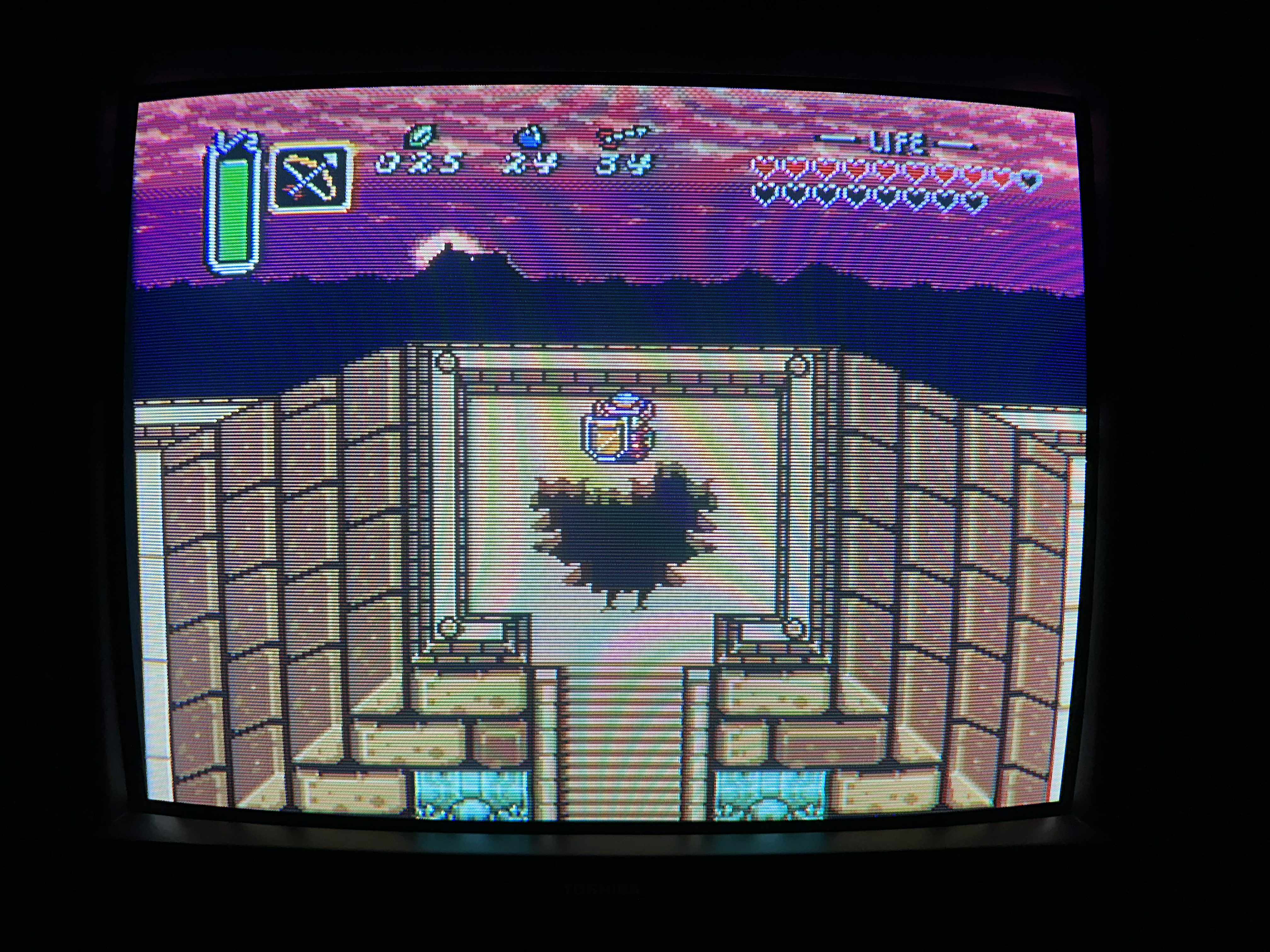

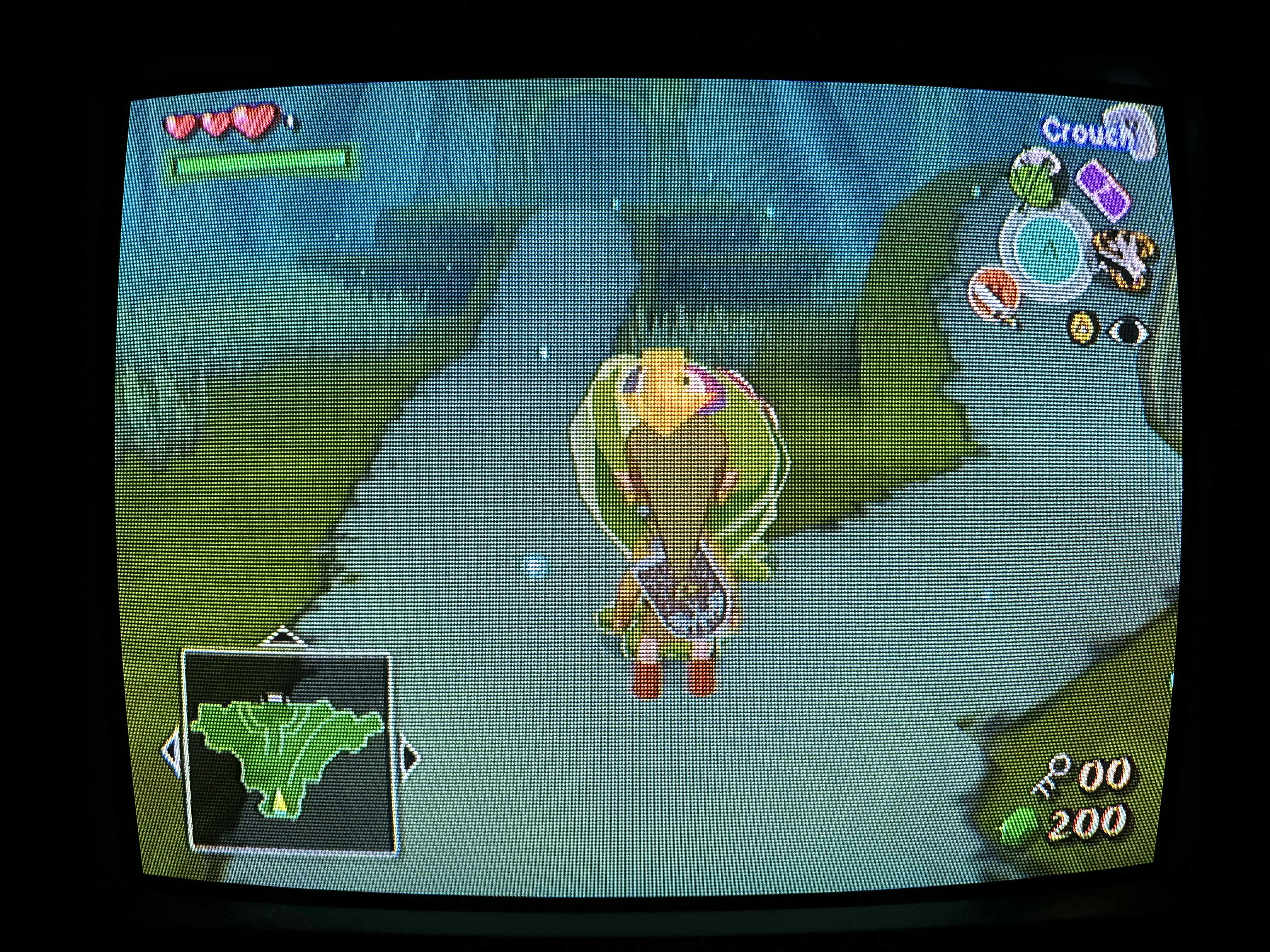

Set has Velocity Modulation that you cannot turn off in the standard menu. The only way to disable it is to pull the jumper connecting the yoke to the flyback. (The provided gameplay images are with VM enabled.)
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |

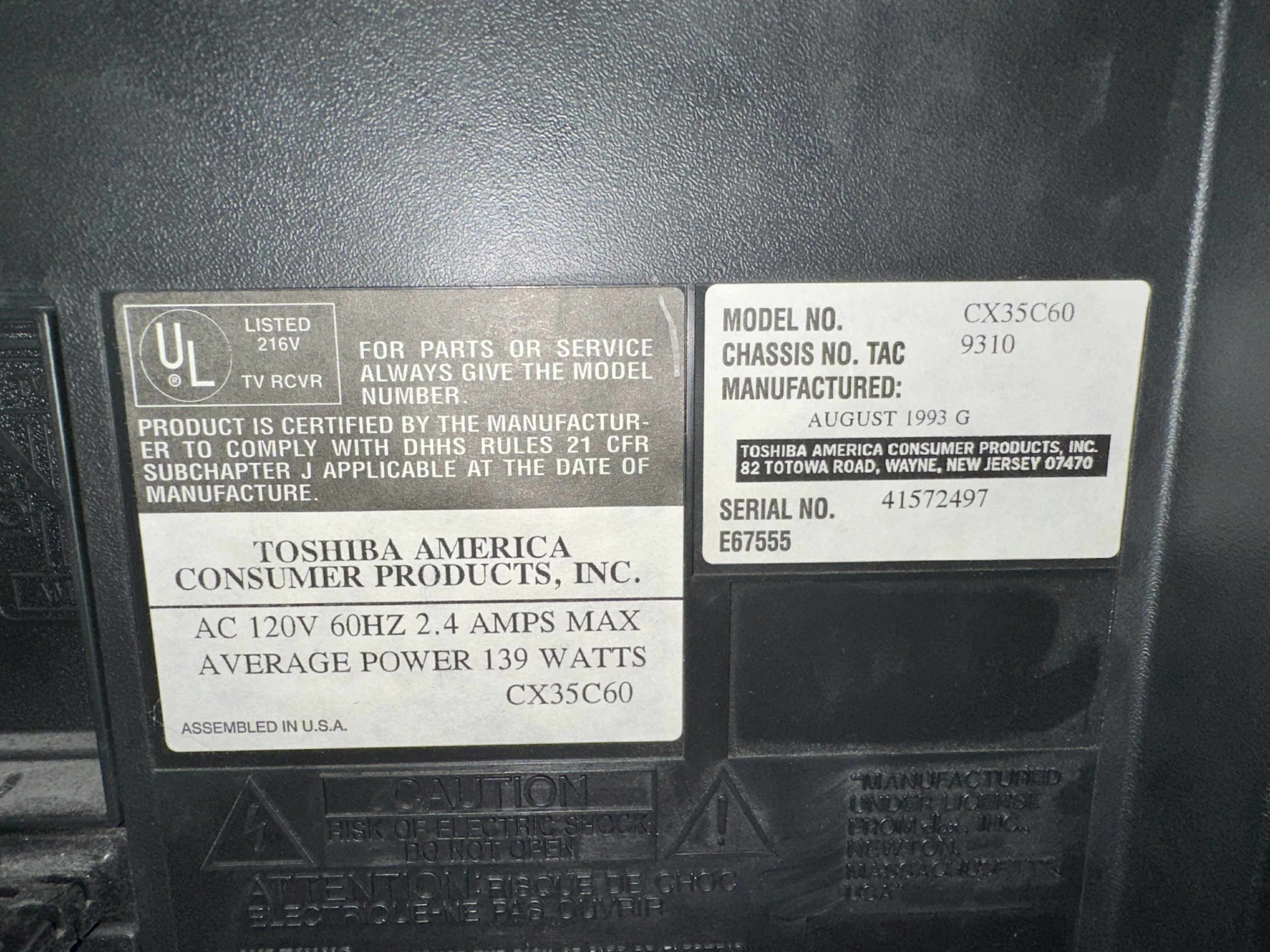

| Model: | CX35C60 |
| Series: | CX |
| Viewable Size: | 35" |

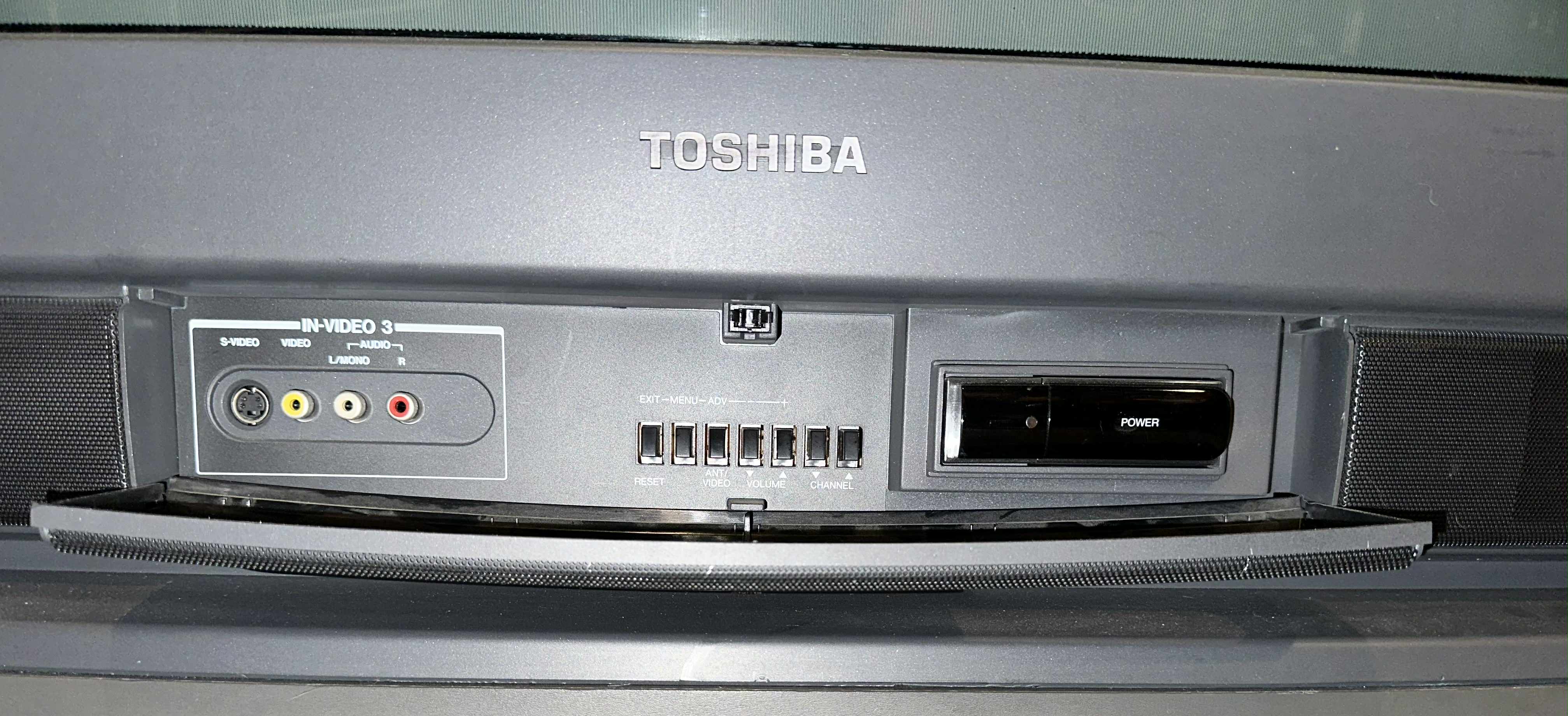

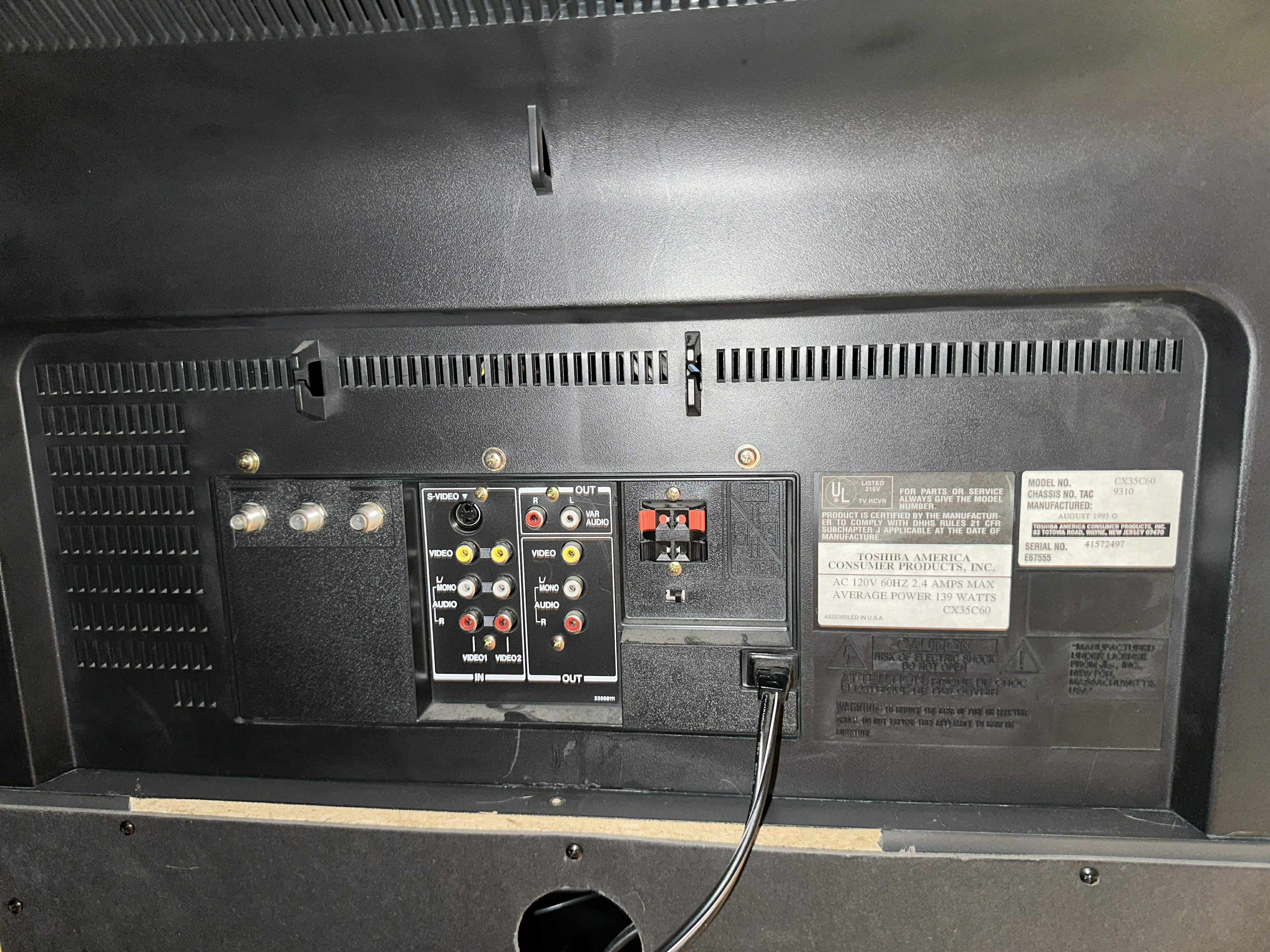

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Single |
| Tube: | Toshiba , A89KPP90X , A89KPP90X02 |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 10W x 2 |

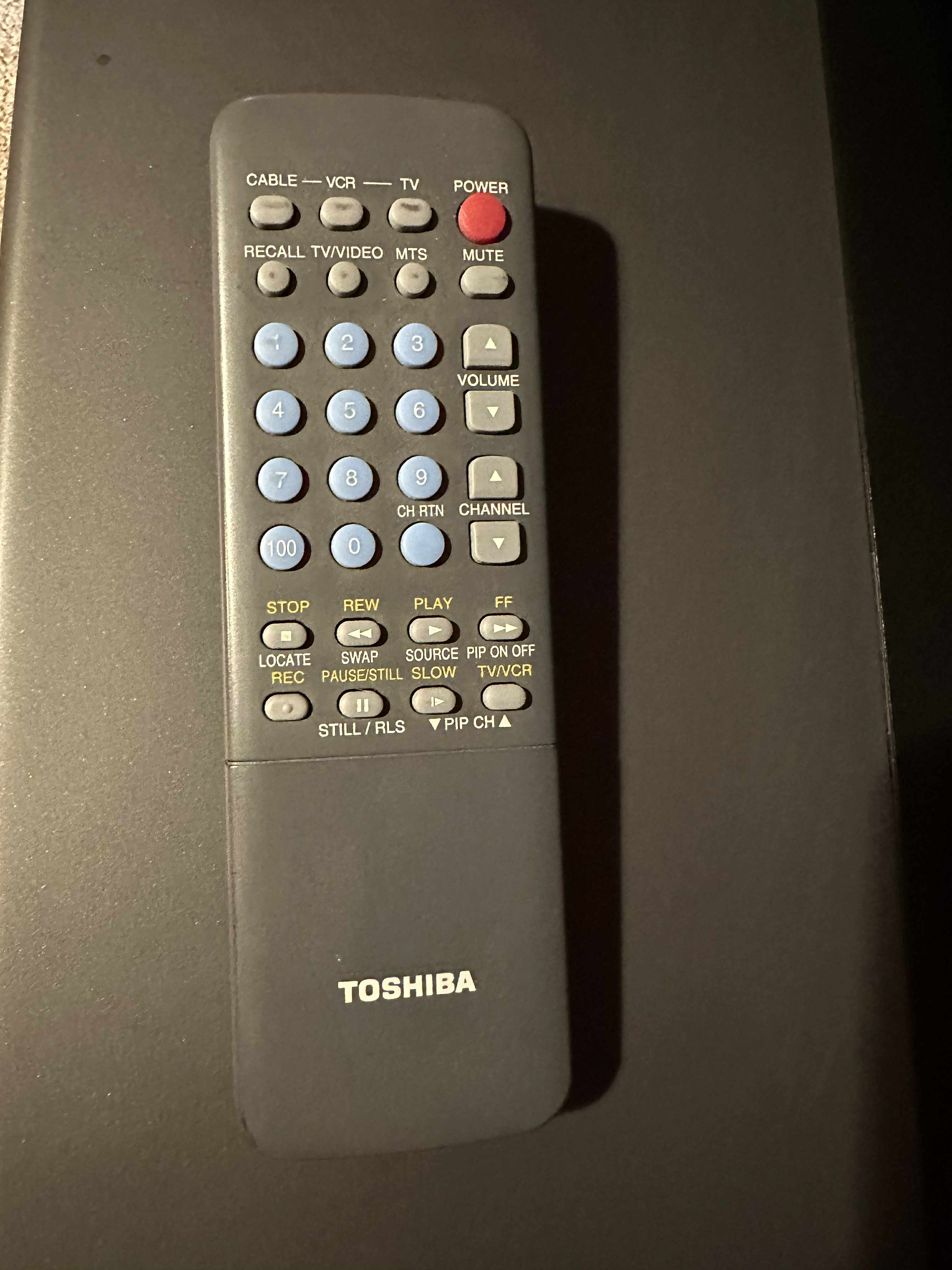

| Remote: | CT9670 |
| Chassis: | TAC9310 |
| Weight: | 166.7 lbs (75.6 kg) |
| Dimensions (W/H/D): |
876 x 795 x 649 mm
(34.4 x 31.2 x 25.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| MSRP: | 1999 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
