Summary

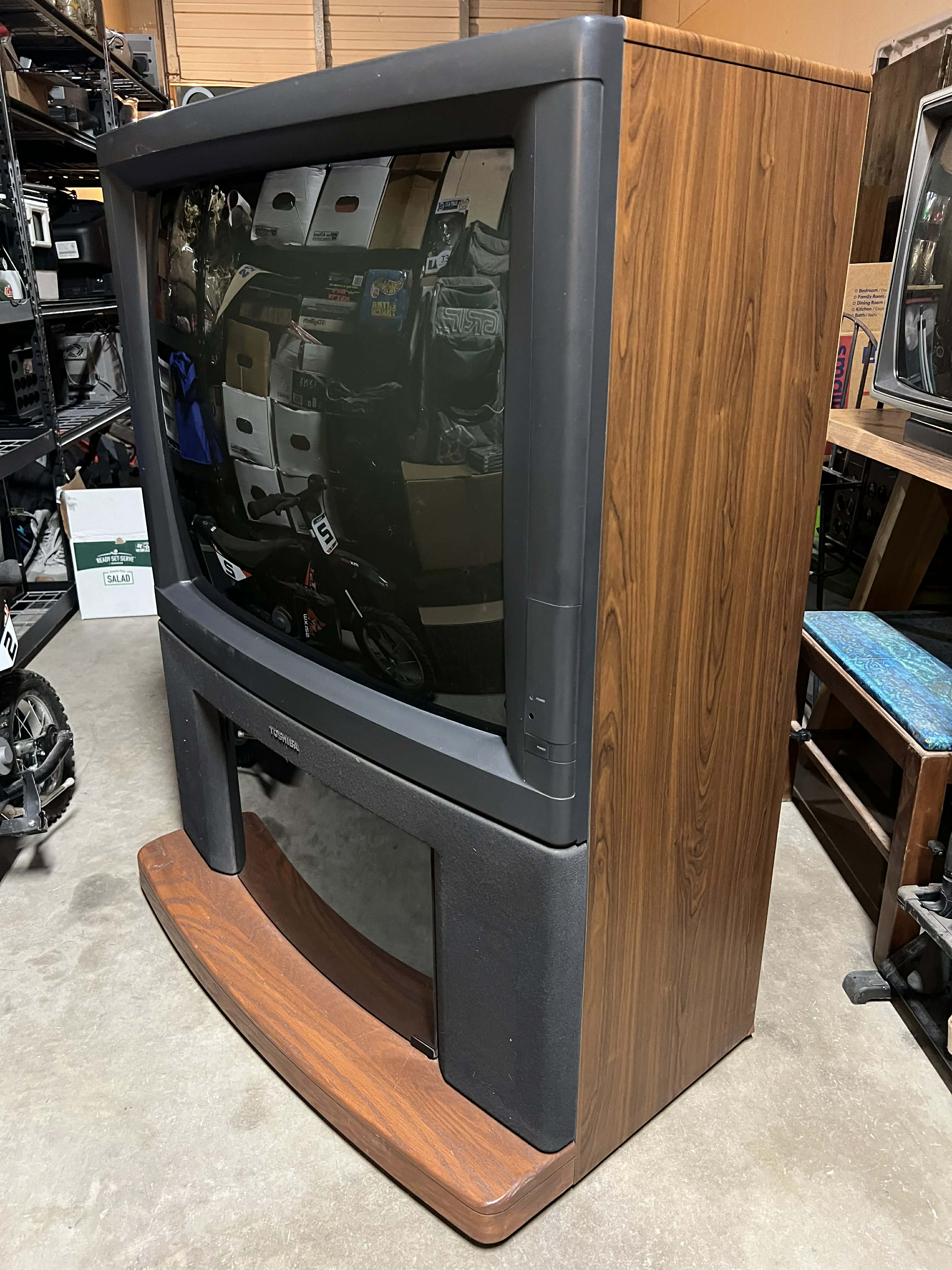

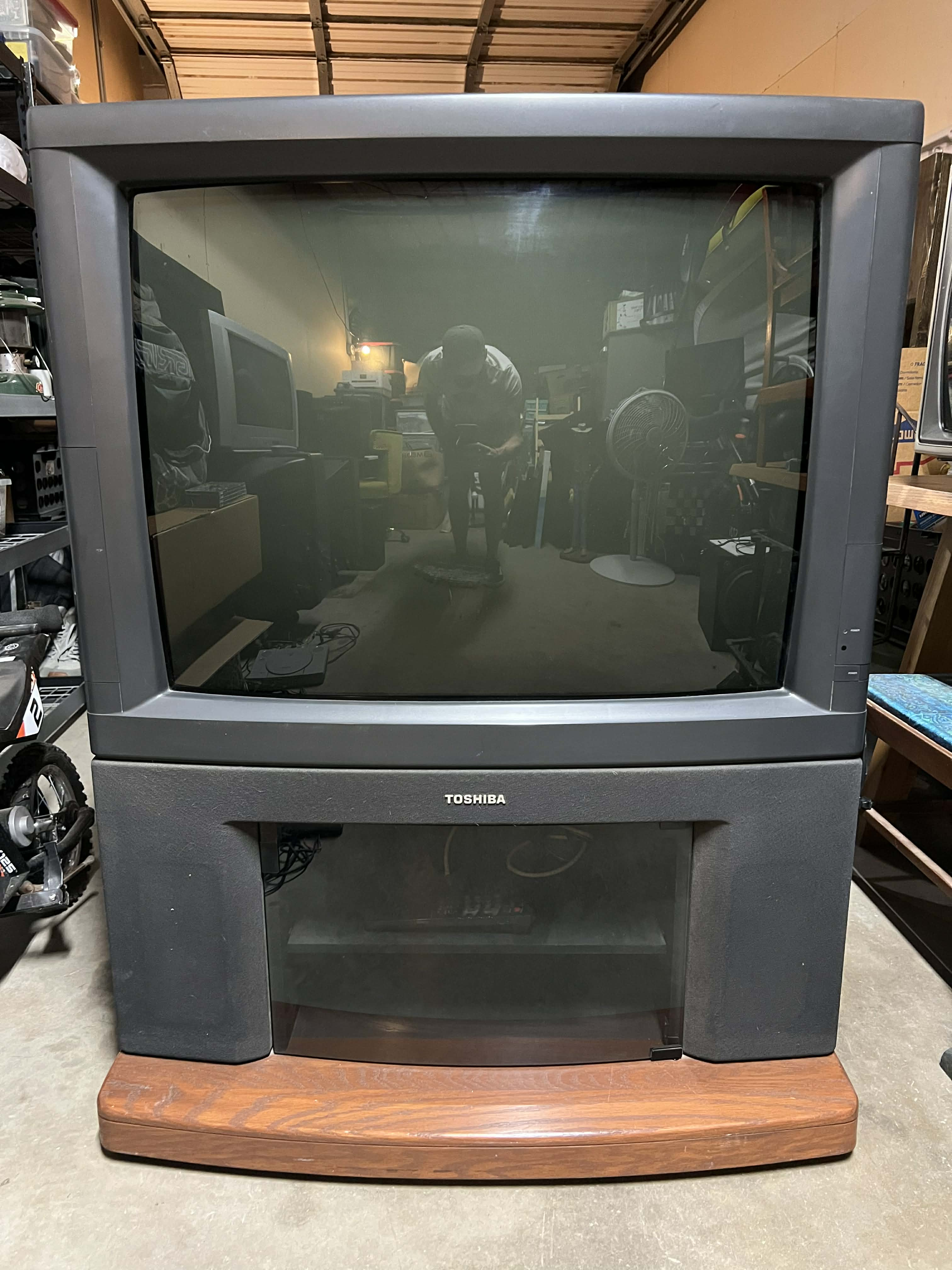

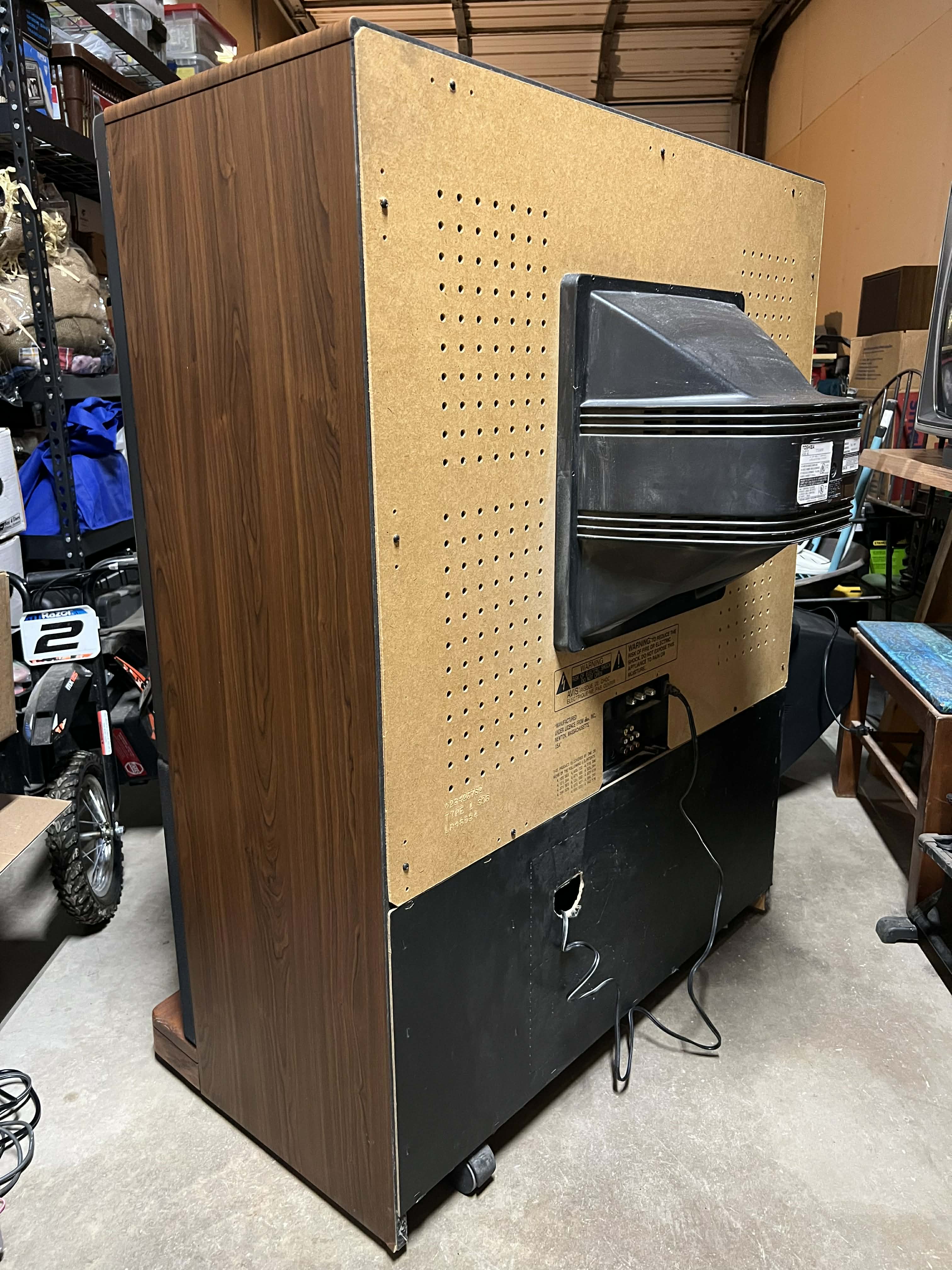

36" vertical wooden console TV by Toshiba, made in the USA in 1996. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Jonathan Gomez for the pics!)
Manuals
Notes
The CX36F84 is the same set but has a black oak finish, whereas this model has a natural oak finish.

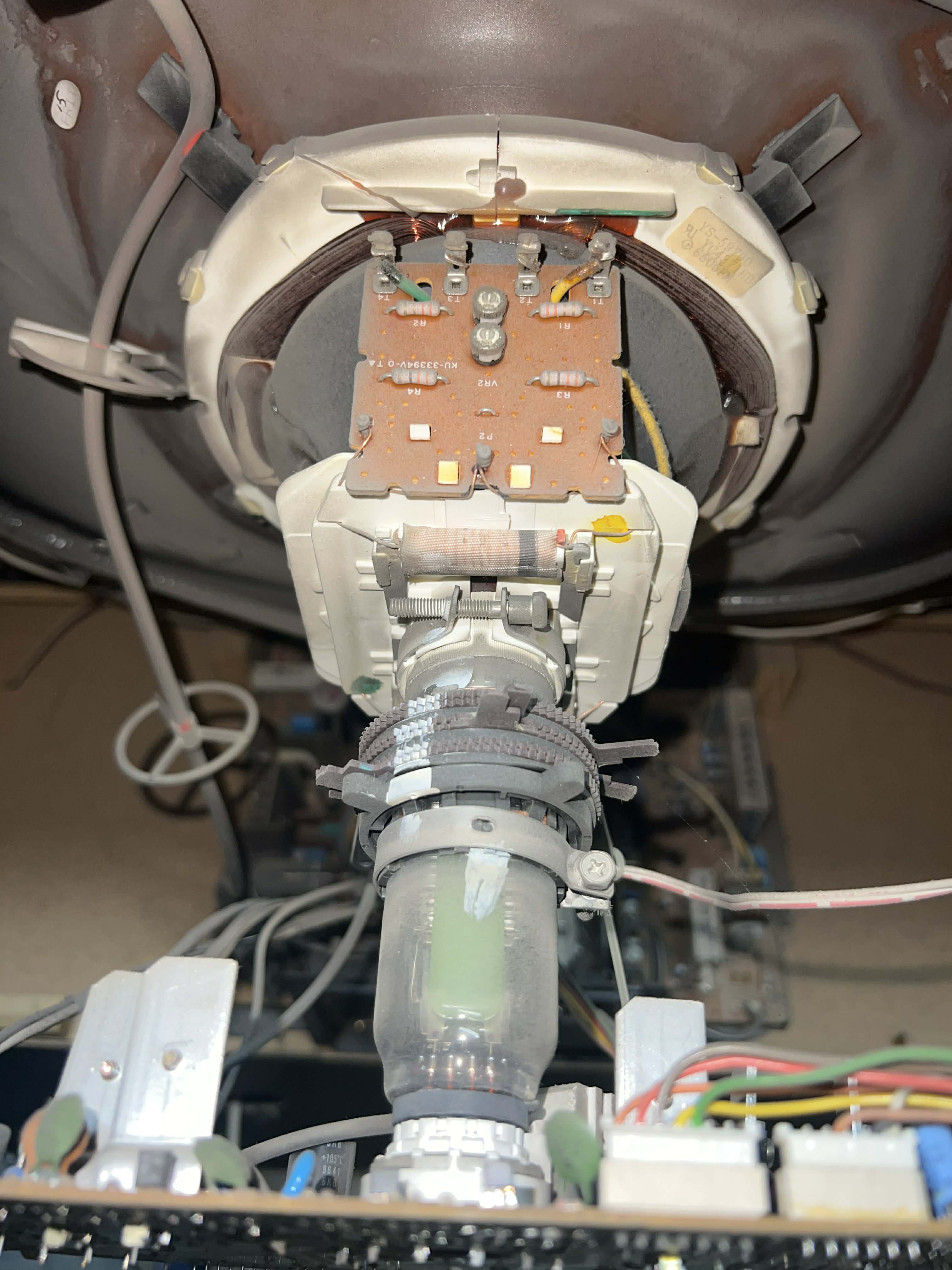

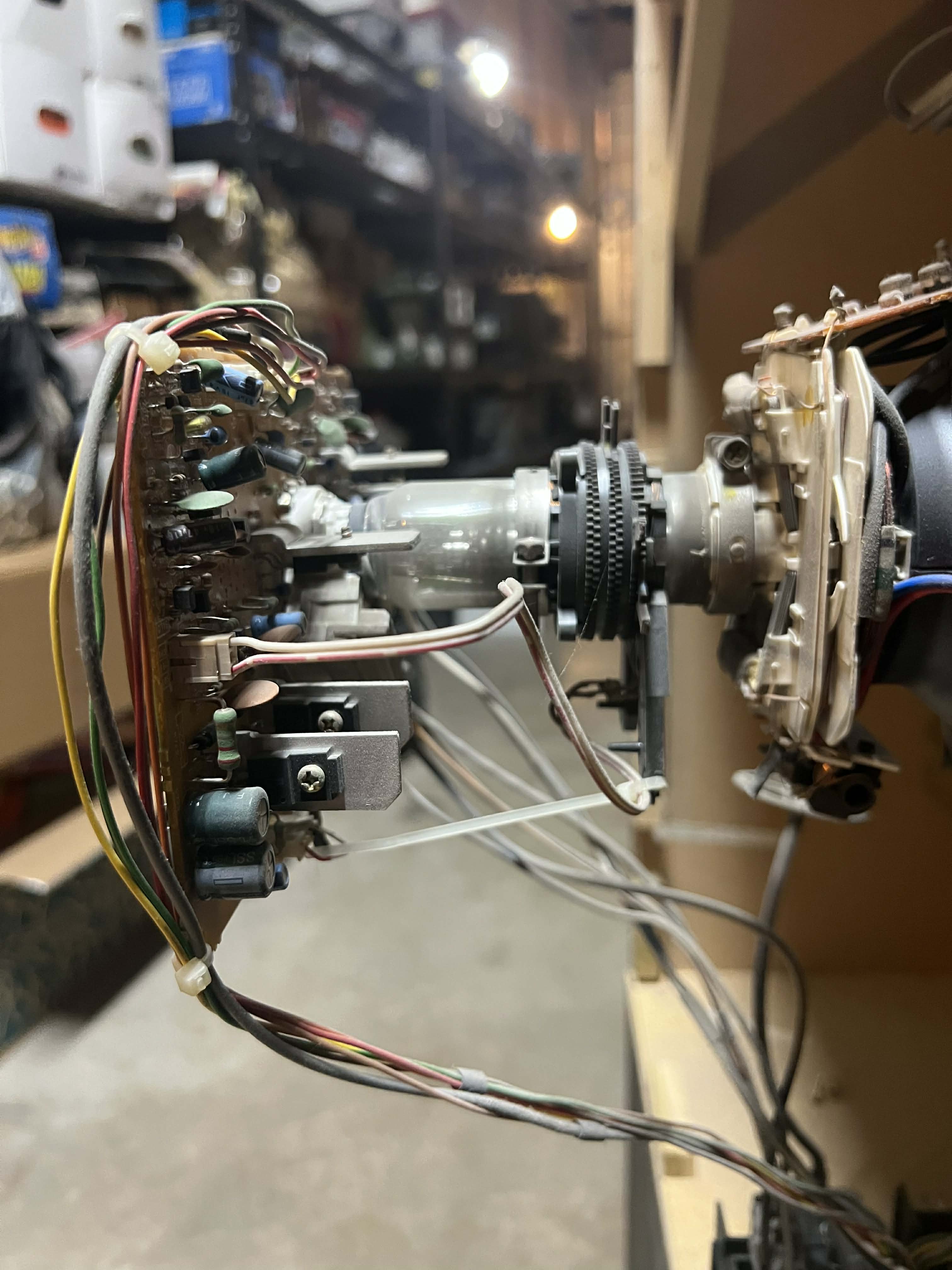

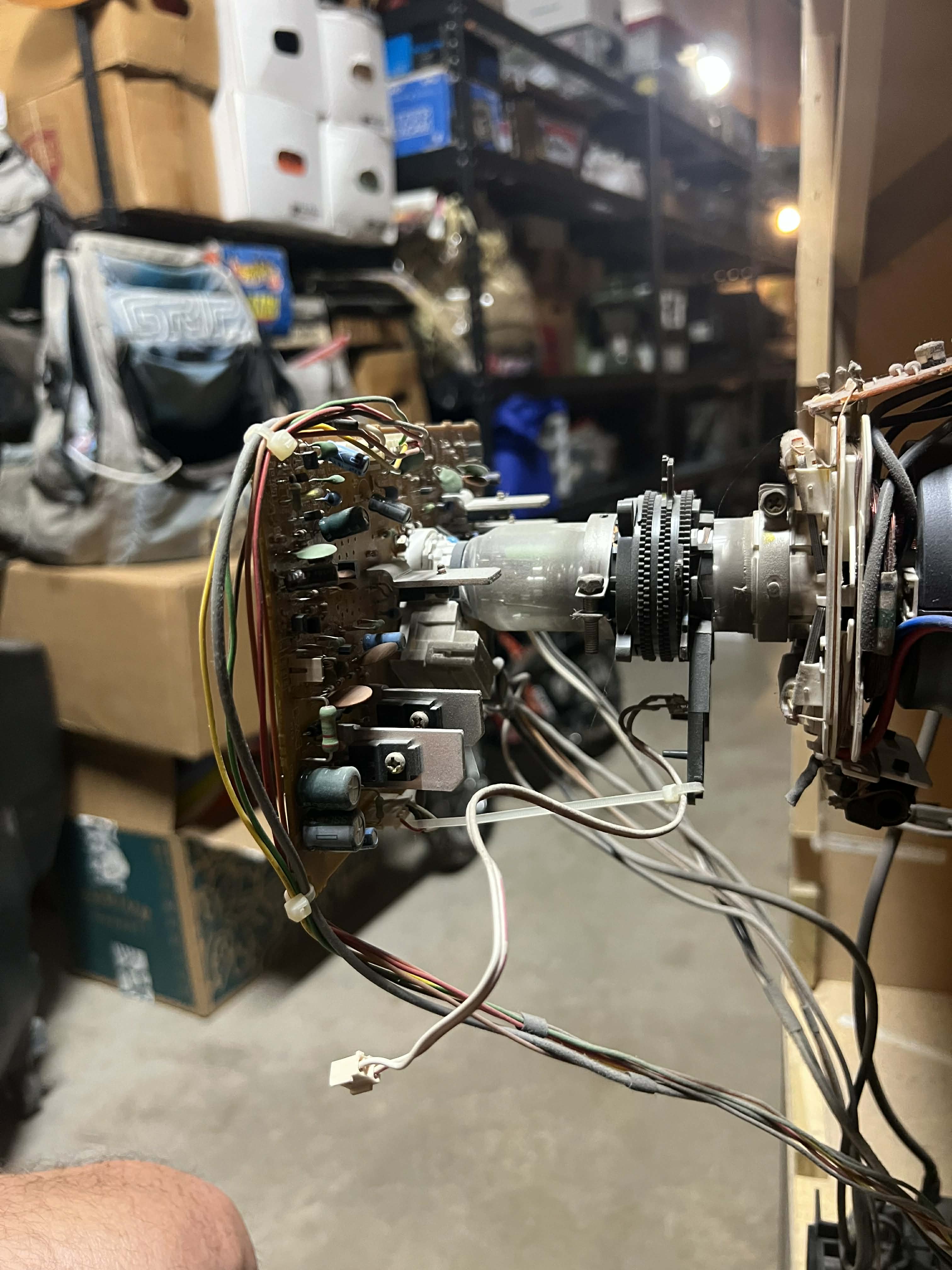

This set has VM. To disable it, unplug this jumper from the neckboard:
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Toshiba |

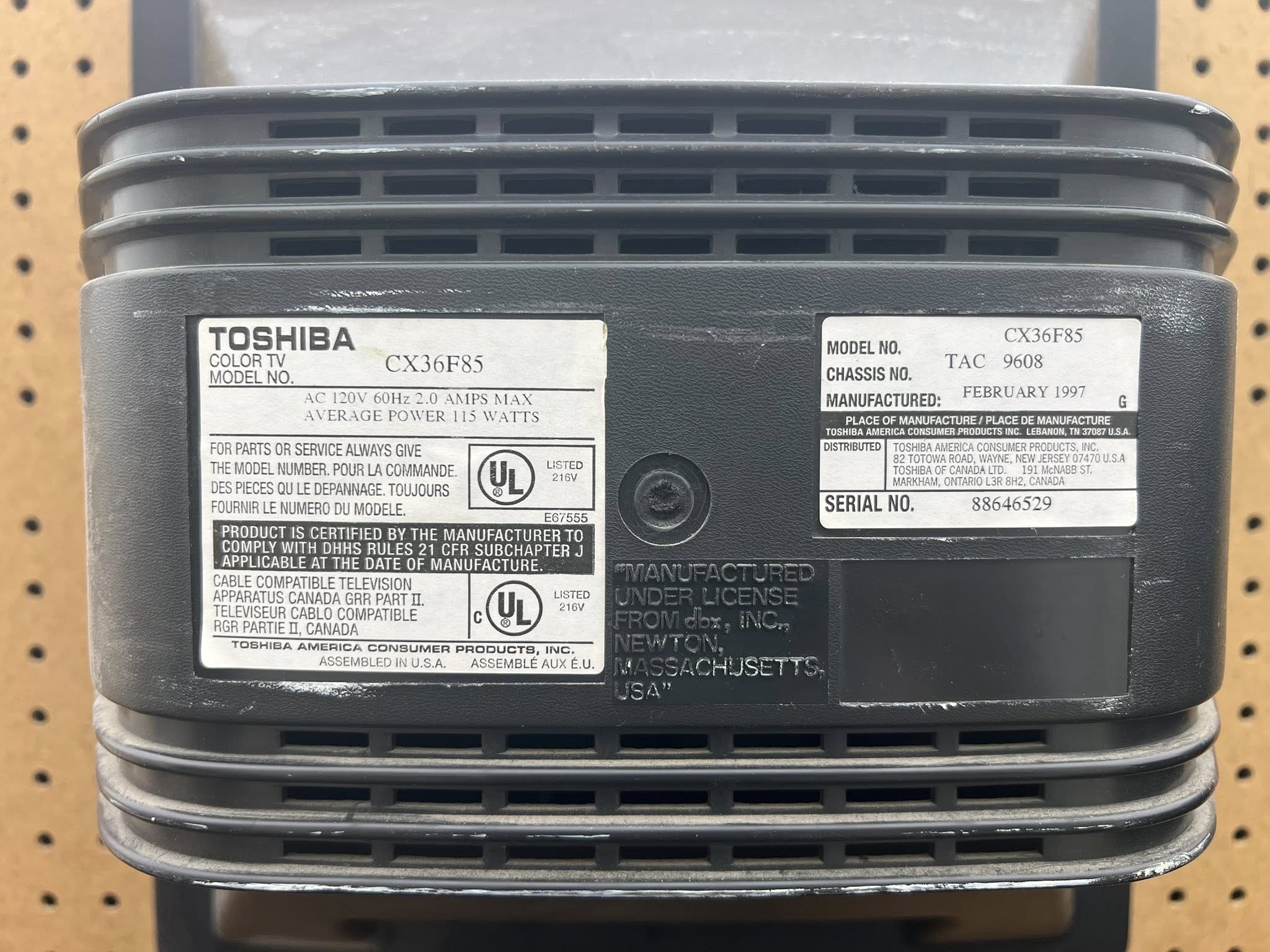

| Model: | CX36F85 |
| Series: | CX |
| Viewable Size: | 36" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

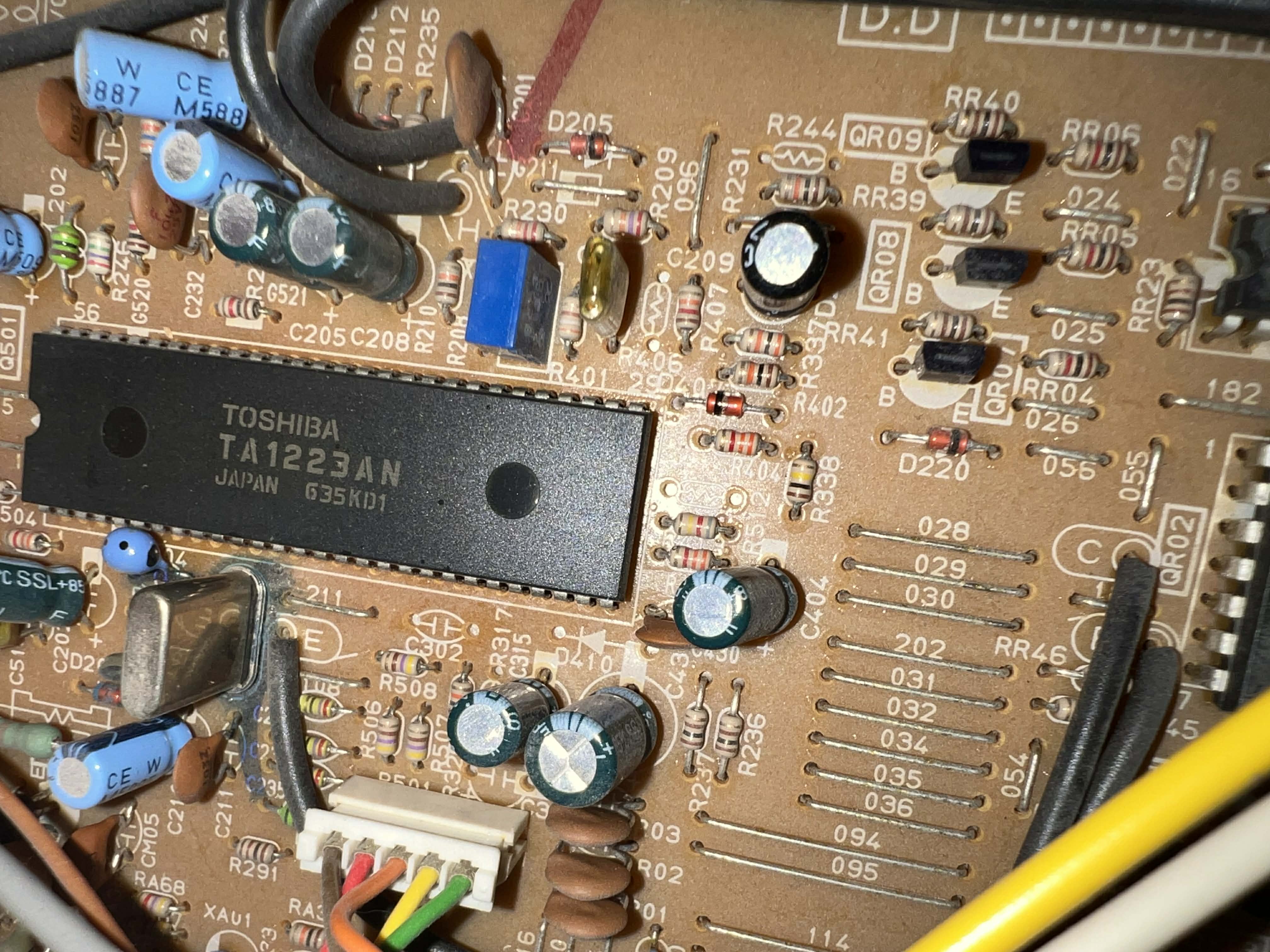

| Jungle IC: | Toshiba, TA1223AN, TA1223 |

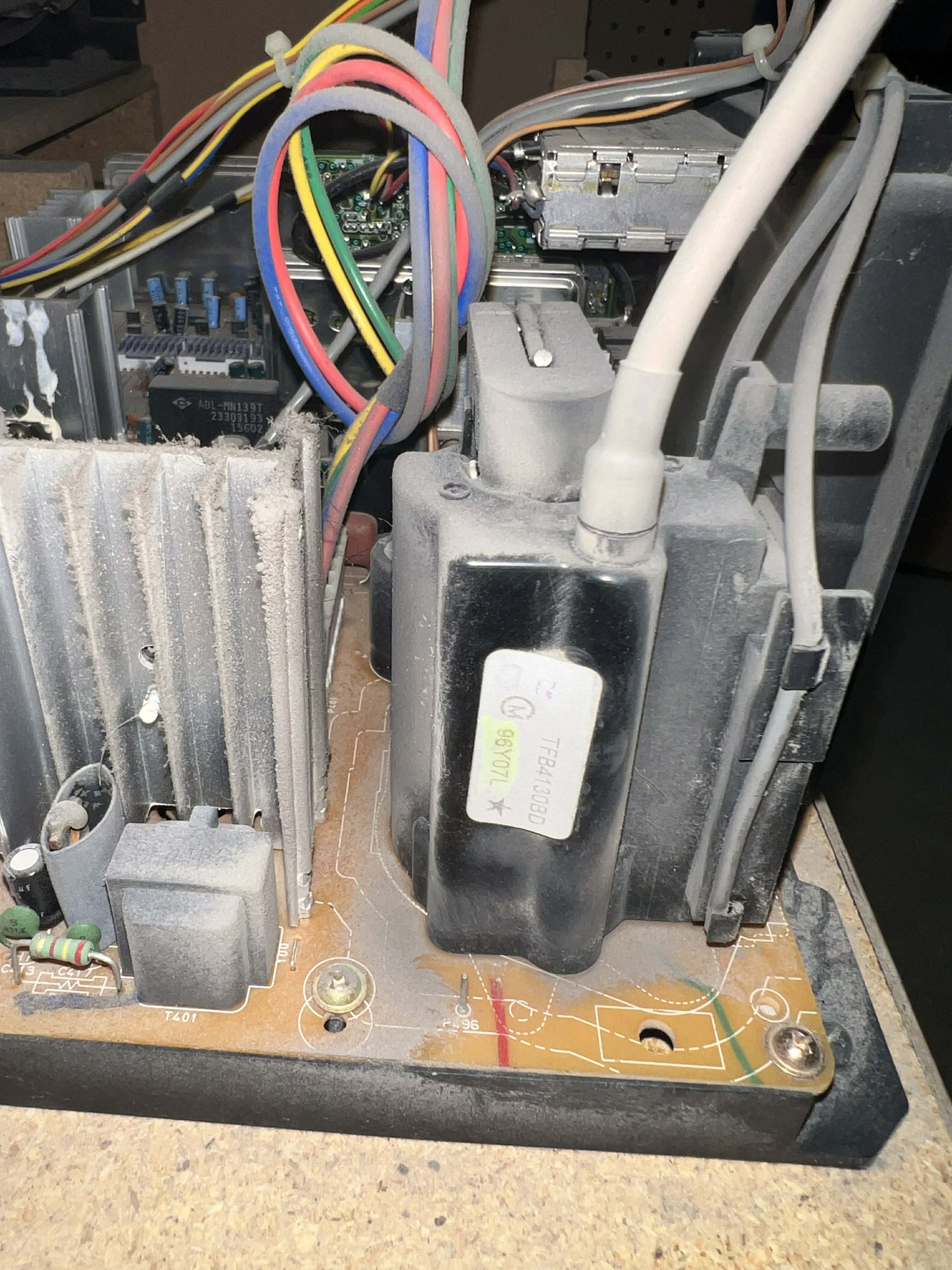

| Flyback: | TFB4130D |
| Focus Type: | Single |

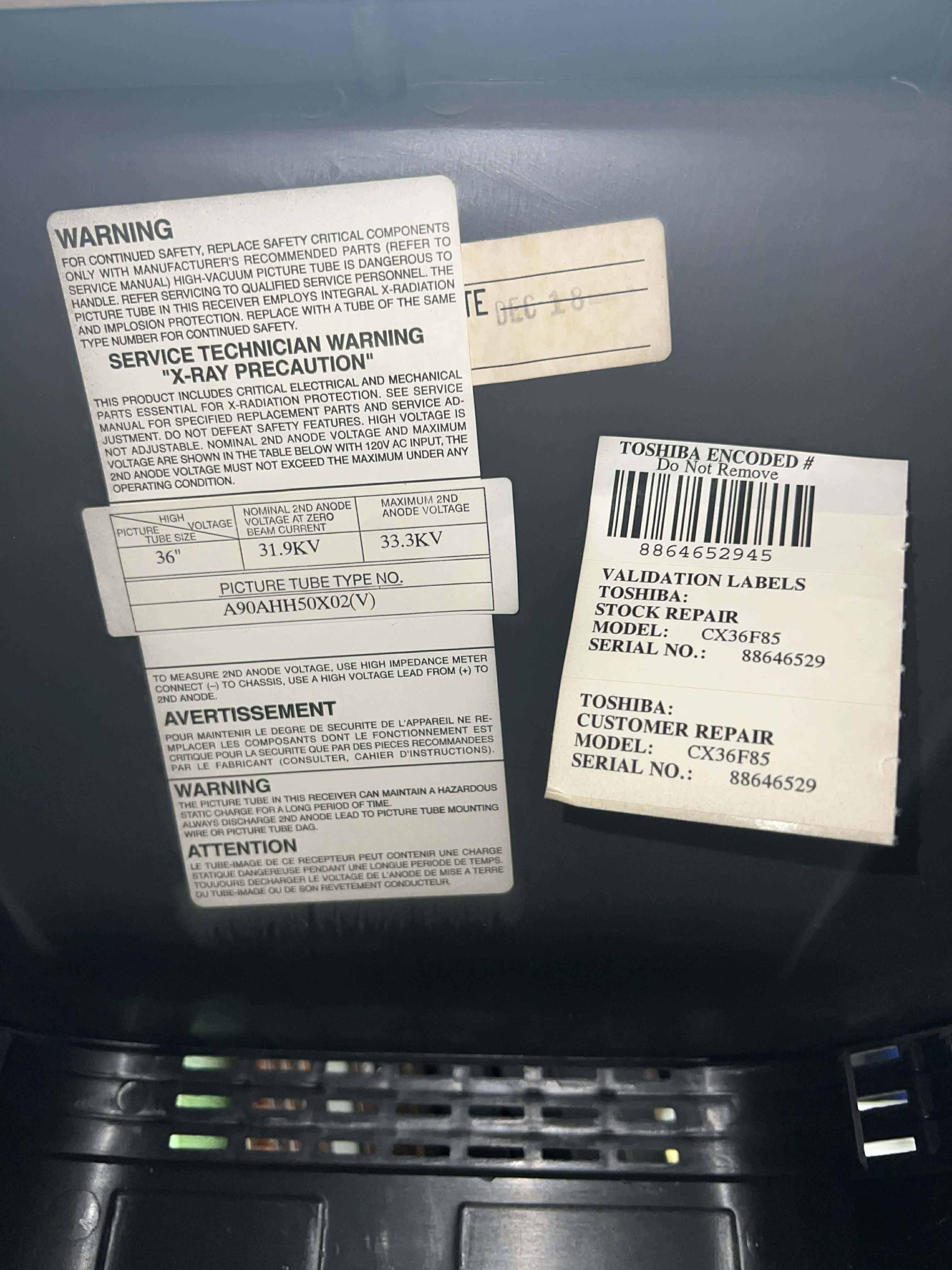

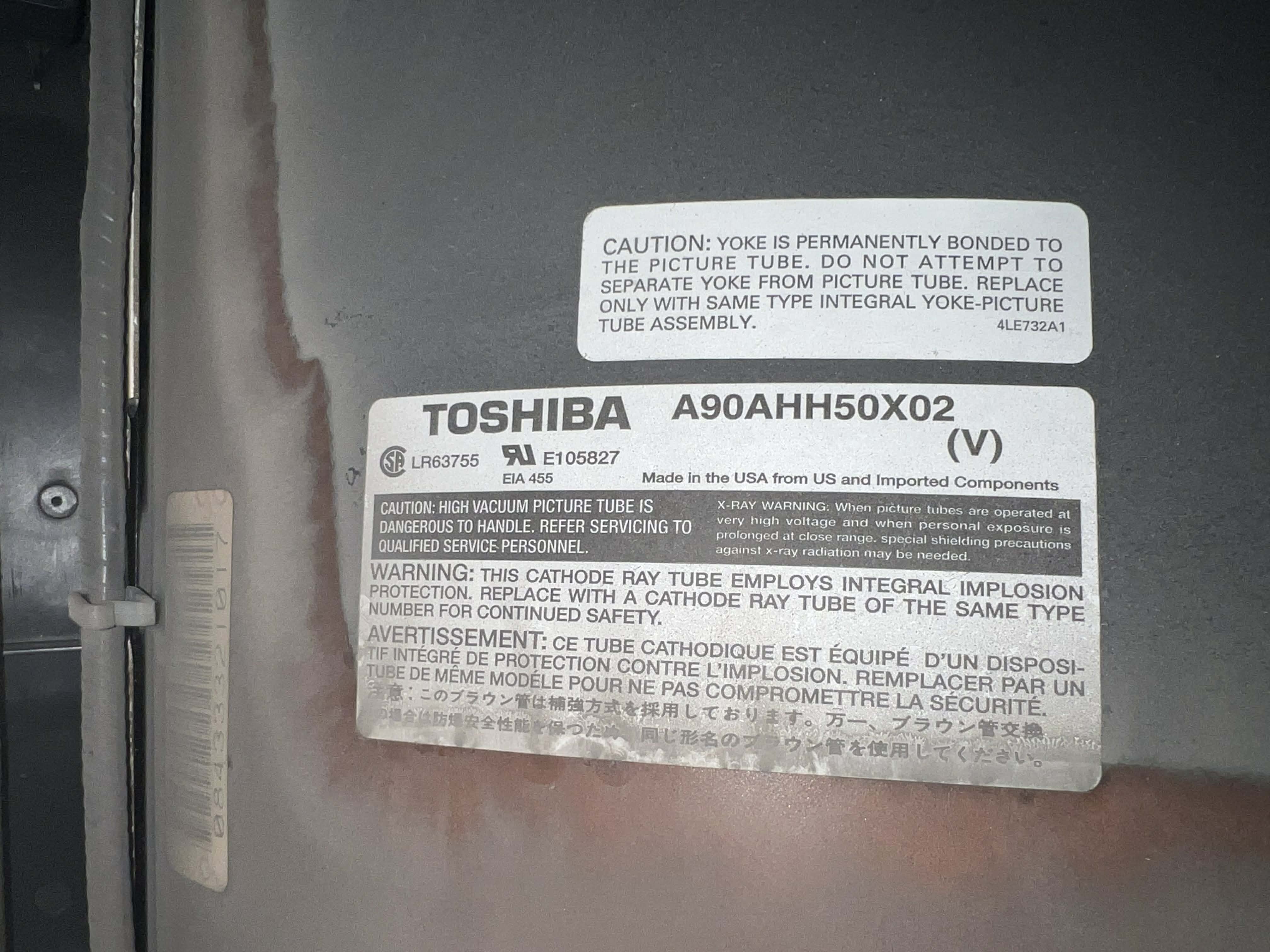

| Tube: | Toshiba , A90AHH50X , FST Black , A90AHH50X02 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

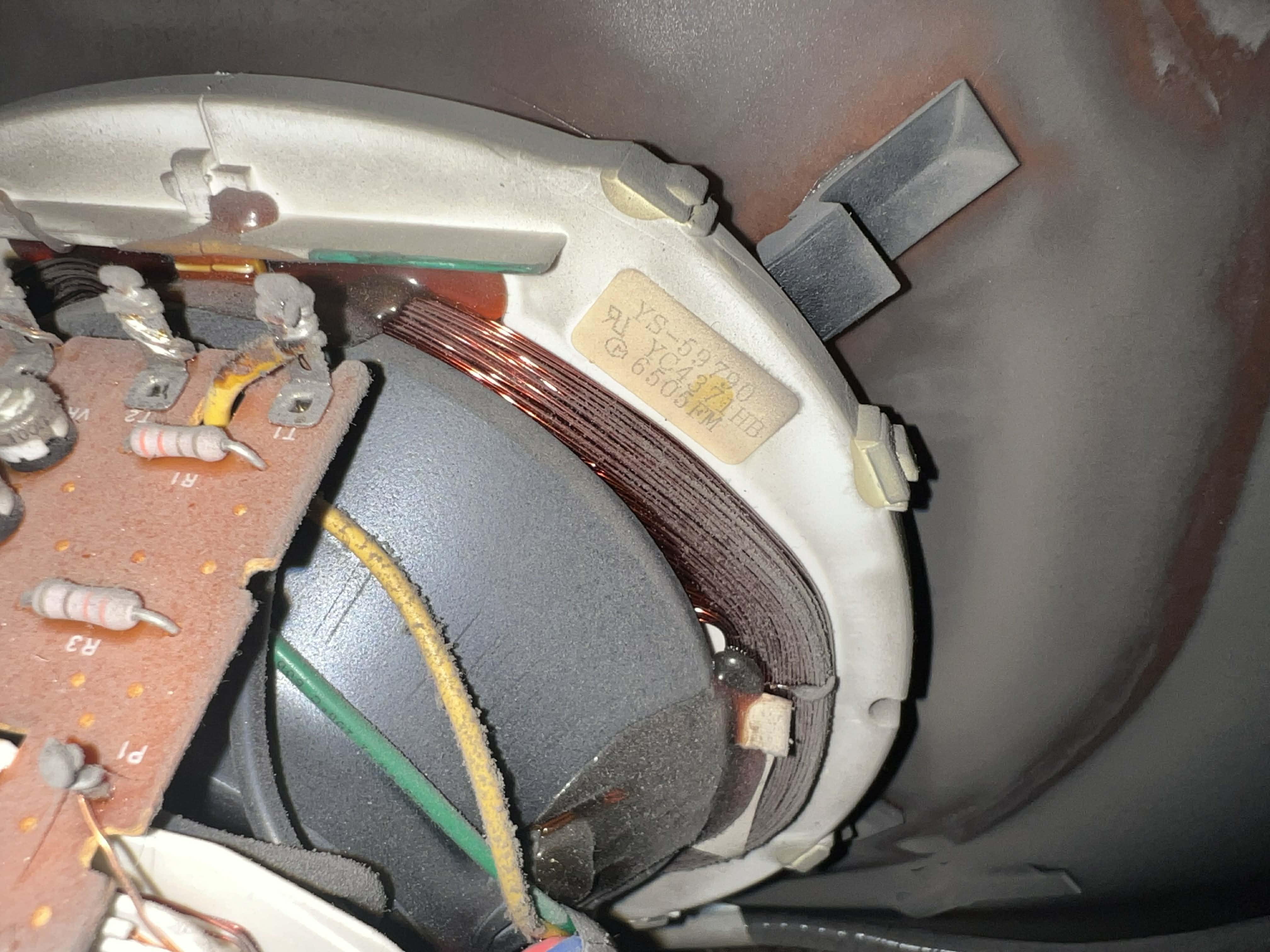

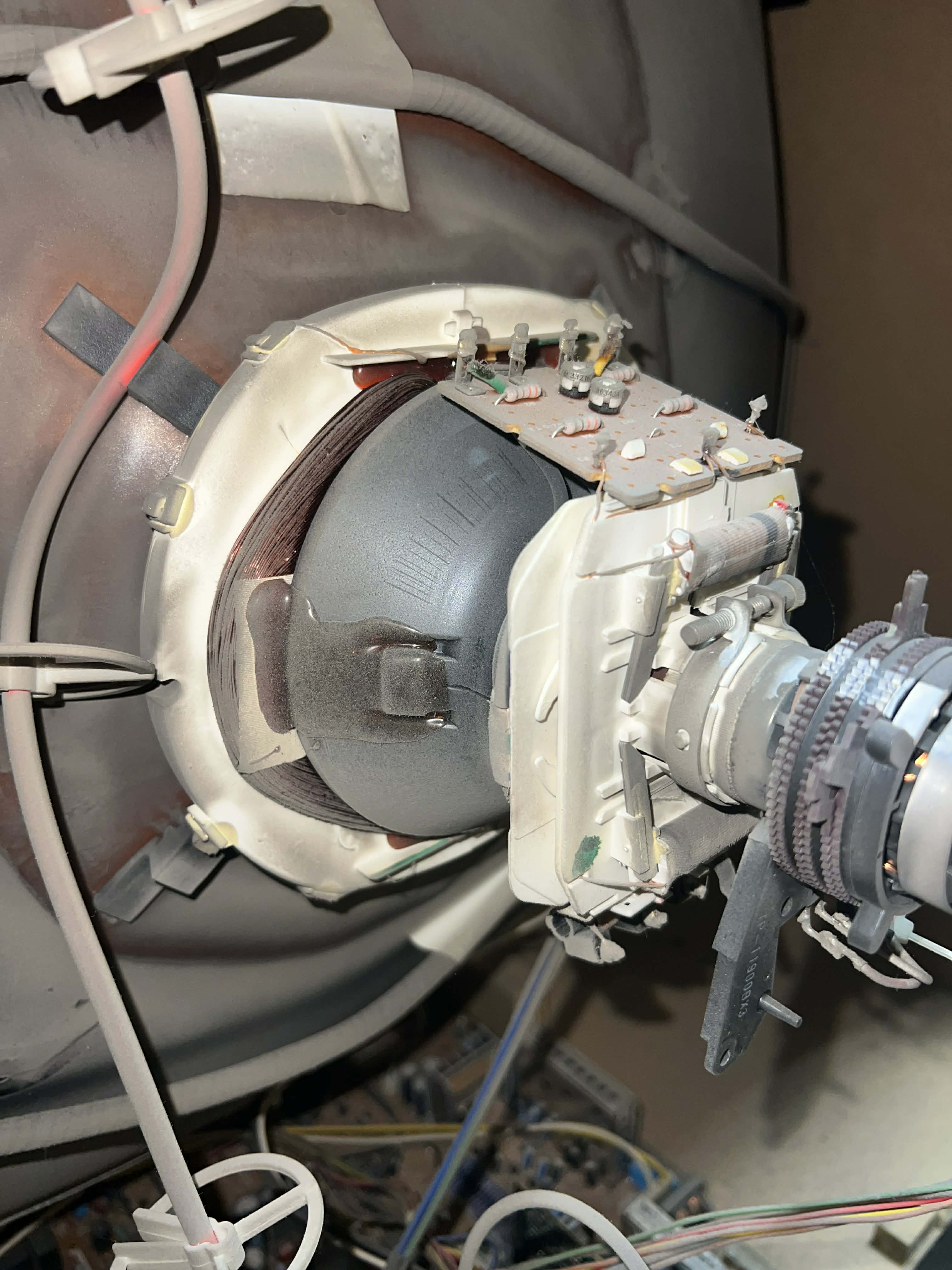

| Yoke: | YS-59790 |
| Speakers: | Stereo, 5W x 2 |
| Remote: | CT-9854 |
| Chassis: | TAC9608 |
| Weight: | 260 lbs (117.9 kg) |
| Dimensions (W/H/D): |
929 x 1202 x 775 mm
(36.5 x 47.2 x 30.5") |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1996 |
| MSRP: | 2399 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
