Summary

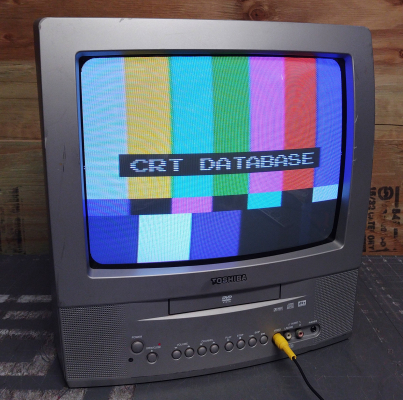

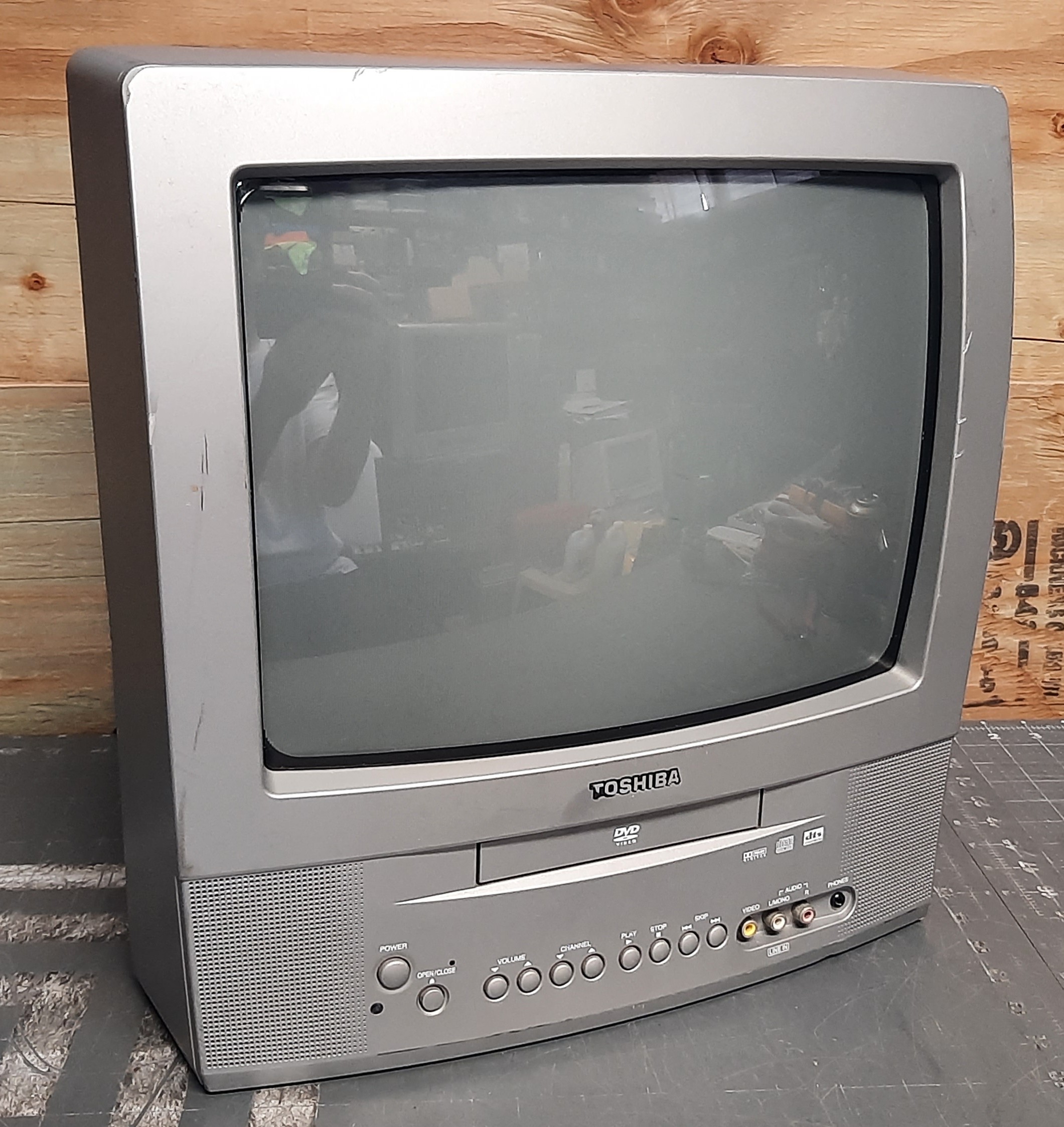

13" TV/DVD combo, made by Orion and sold by Toshiba. Includes a front mounted stereo AV input. Similar in style to the MV13N3.
Literature
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MD13N3 |
| Series: | MD |
| Viewable Size: | 13" |

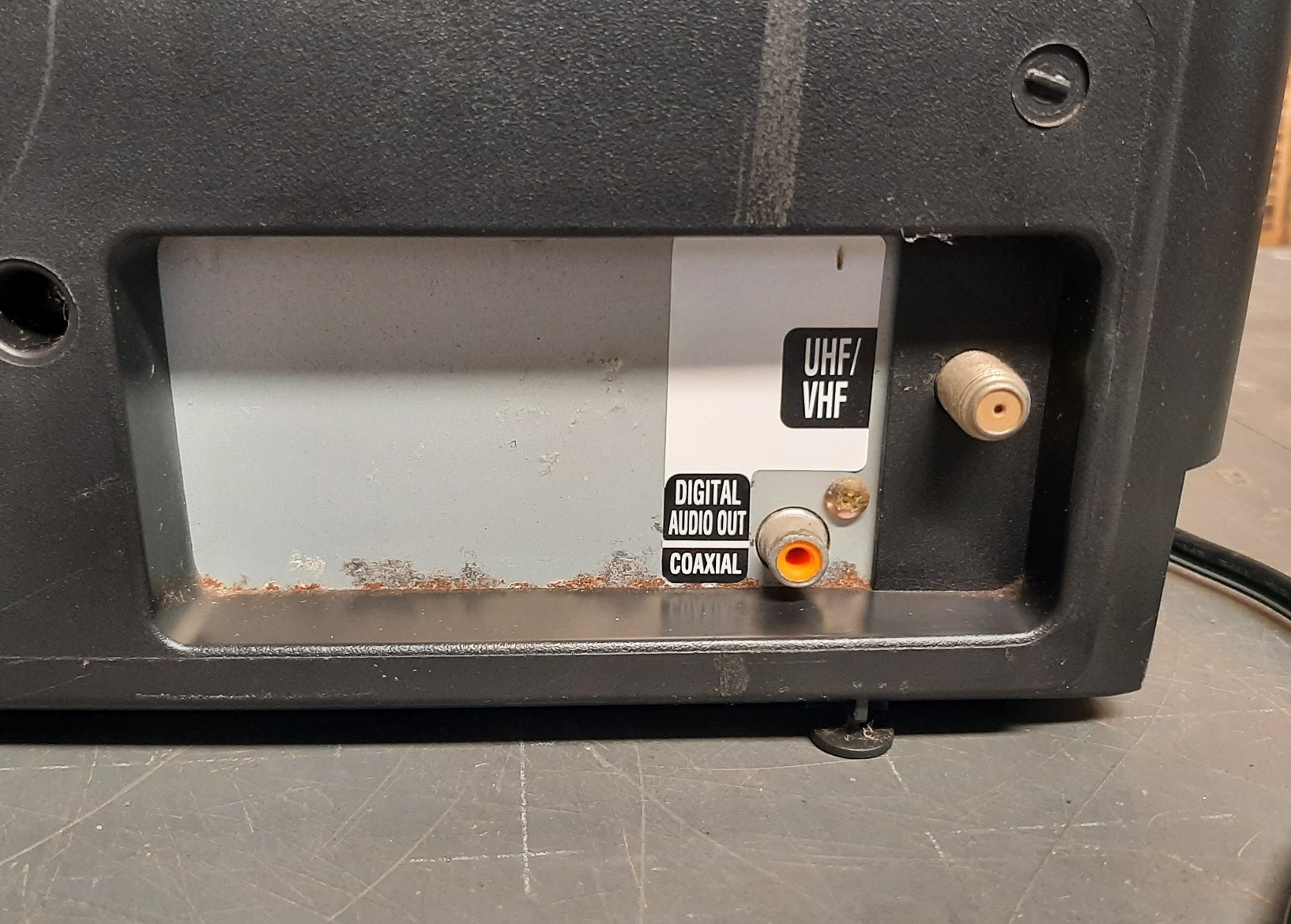

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2140LS |
| Vertical Output IC: | AN5522 |
| Comb Filtering: | None |
| Jungle IC: | LA76319M |
| Flyback: | FNI-14B001 |
| Tube: | Orion , A34AGT13X98 , A34AGT13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | MK-14003AL6, XY-14003AL6 |
| Yoke Horz. Inductance: | 3.920 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.58 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 6.600 ohm |
| Yoke Vert. Resistance: | 14.57 ohm |
| Speakers: | Stereo |
| Remote: | DC-FN20S |
| Weight: | 24 lbs (10.9 kg) |
| Dimensions (W/H/D): |
362 x 382 x 365 mm
(14.2 x 15 x 14.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
