Summary

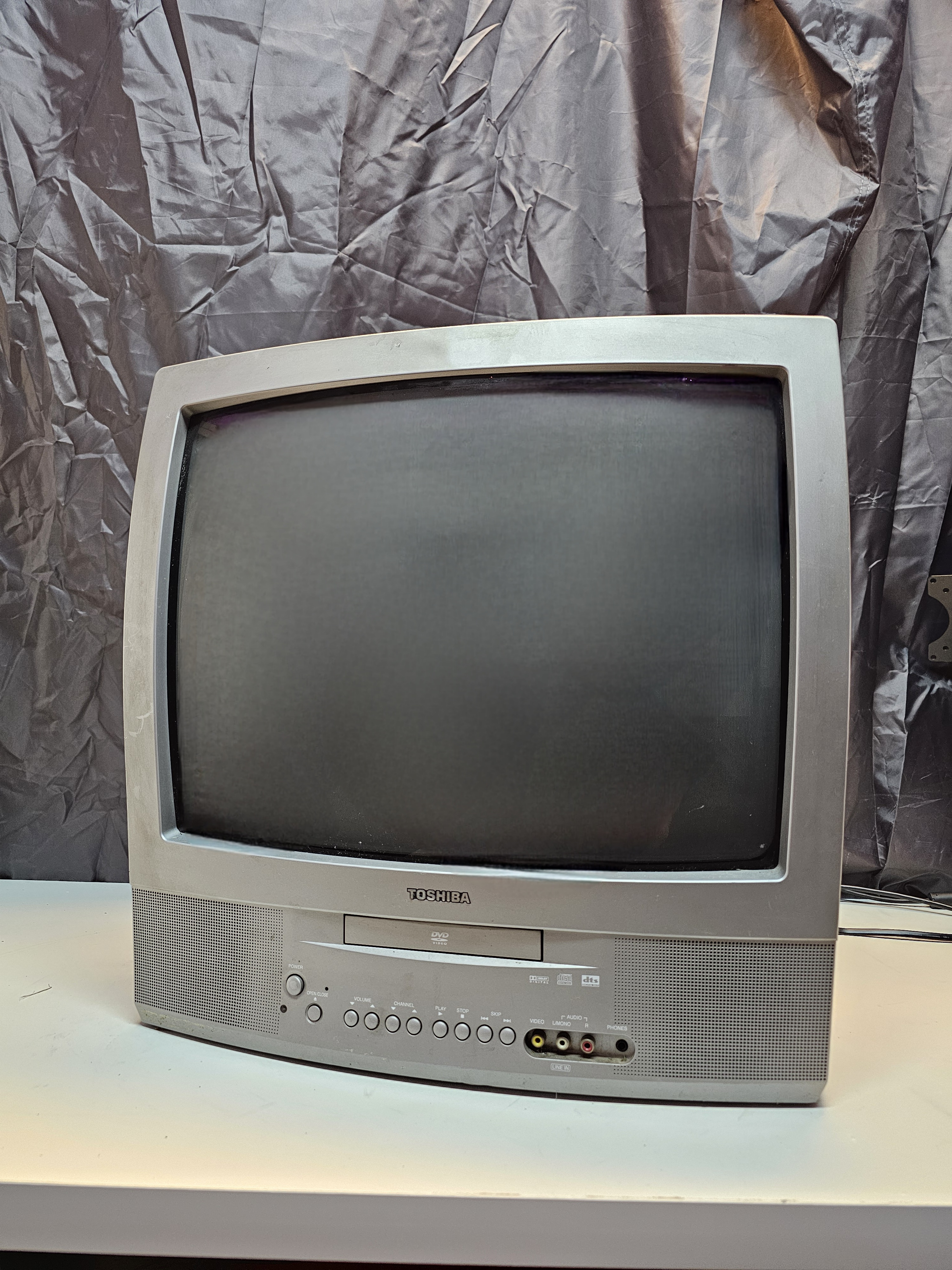

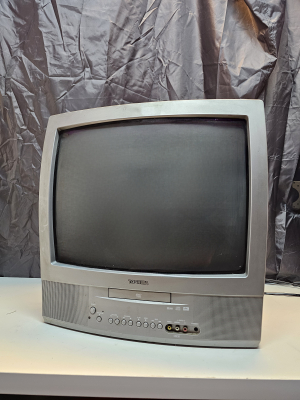

TV/DVD combo unit, made by Orion and sold by Toshiba. Includes a front mounted stereo AV input. Unlike most Toshiba and Orion combo units which use a 20" tube, This set uses a genuine 19" tube, (Same as the Orion TV1934B and likely others) which makes it useful as a potential donor for arcade monitors.
Notes
Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.

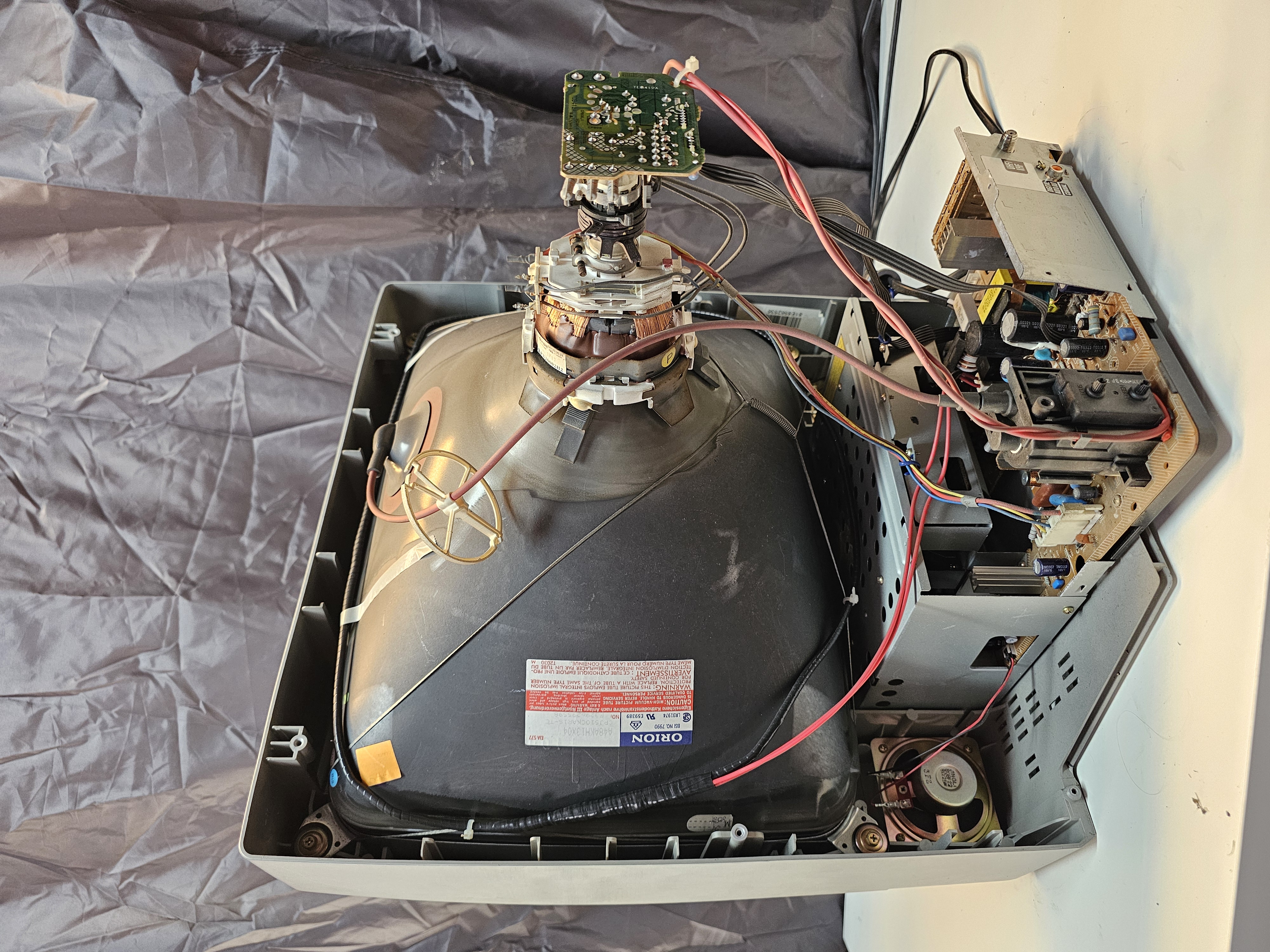

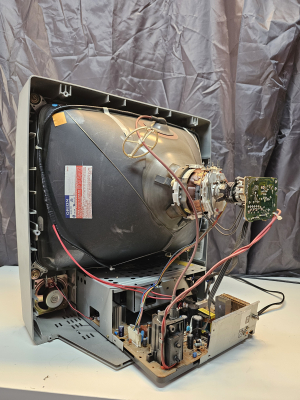

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MD19N3 |
| Series: | MD |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5522 |

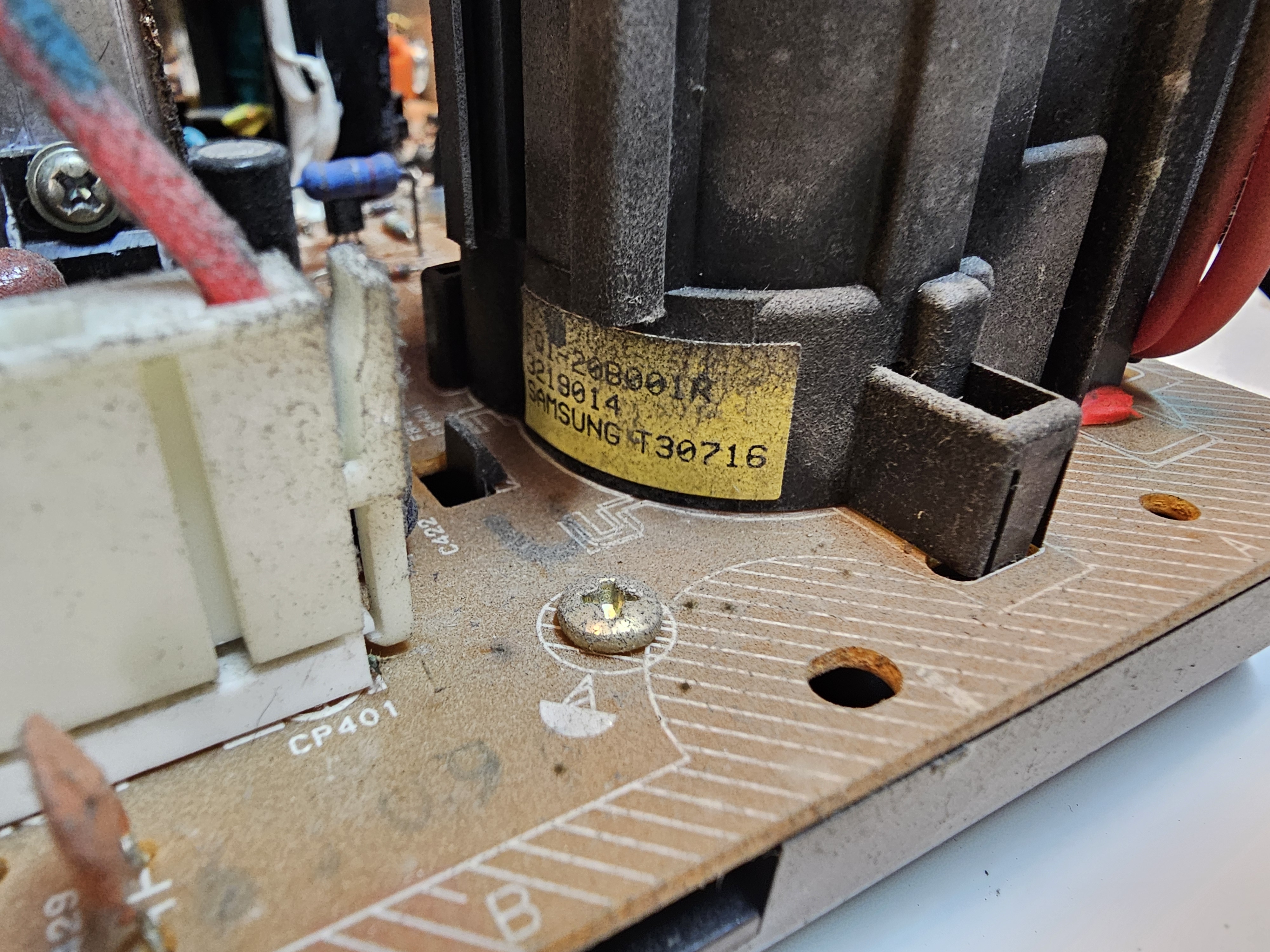

| Flyback: | Samsung, FQI20b001R |
| Focus Type: | Single |

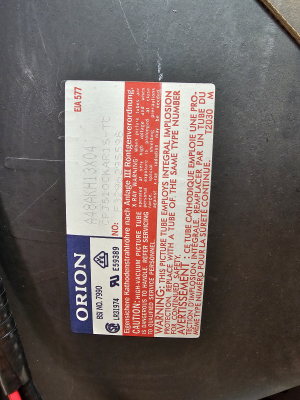

| Tube: | Orion , A48AKH13X04 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

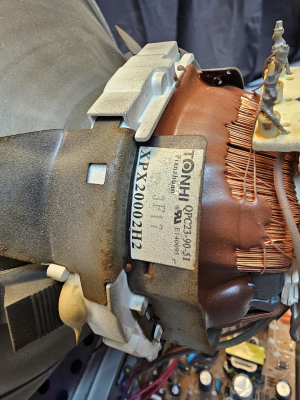

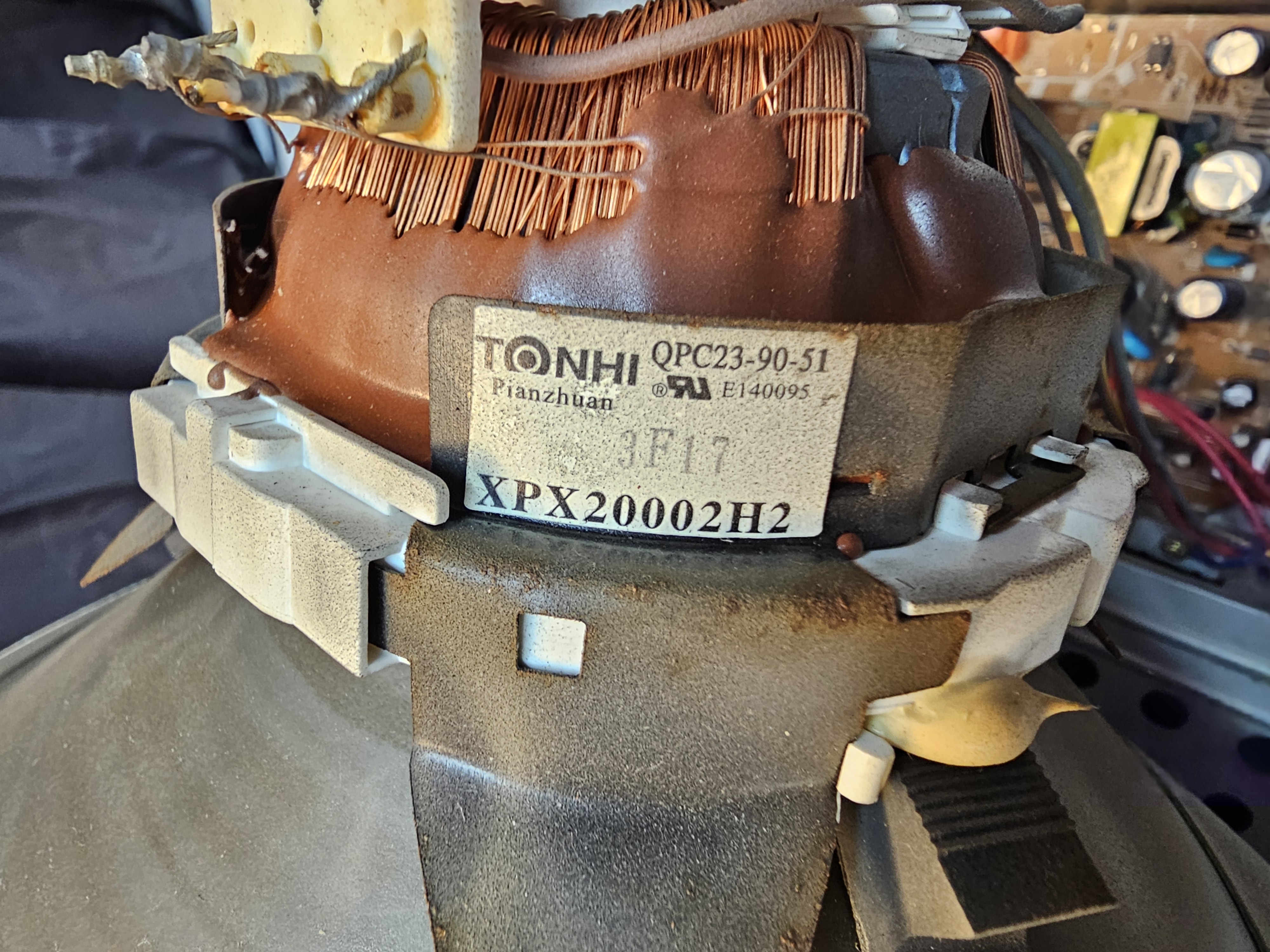

| Yoke: | XPX20002H2 |
| Speakers: | Stereo, Headphone Jack, 2.5W x 2 |
| Weight: | 47.4 lbs (21.5 kg) |
| Dimensions (W/H/D): |
489 x 486 x 465 mm
(19.2 x 19.1 x 18.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
