Summary

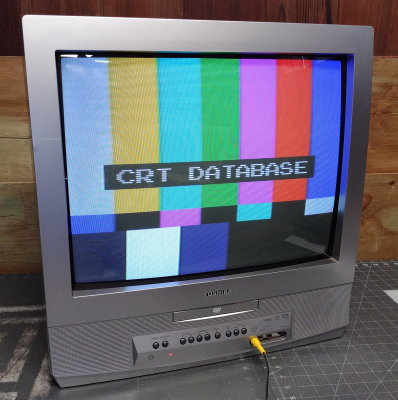

20" TV/DVD combo, made by Orion and sold by Toshiba. Includes one front stereo AV input and a digital audio out jack. Picture quality with DVD playback is very clean, as the DVD section is connected internally through S-Video.
Manuals
Notes
This TV includes a Game Mode, which has reduced contrast and increased brightness compared with the default line in settings. It works very well with vintage game consoles.
An original remote (DC-SB1) is required to access all the functions on this TV. Other Toshiba TV/DVD remotes may also work satisfactorily. It's difficult to find a universal remote that's fully compatible.
The jungle chip on this TV is configured for digital RGB, and as such the TV cannot be modded for external RGB input. However, an S-Video mod should be possible.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MD20Q41 |
| Series: | MD |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5885 |
| Vertical Output IC: | AN5522 |
| Jungle IC: | LA76319NM-MPB-E |
| Comb Filtering: | None |
| Flyback: | FQI20B001R_M |
| Tube: | Thai CRT Co. , A51LZM10X , A51LZM10X20 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 330N511 |
| Yoke Horz. Inductance: | 2.401 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 20.93 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.12 ohm |
| Yoke Vert. Resistance: | 10.08 ohm |
| Speakers: | Stereo |
| Remote: | DC-SB1 |
| Weight: | 48.5 lbs (22 kg) |
| Dimensions (W/H/D): |
502 x 513 x 489 mm
(19.7 x 20.2 x 19.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Thailand |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
