Summary

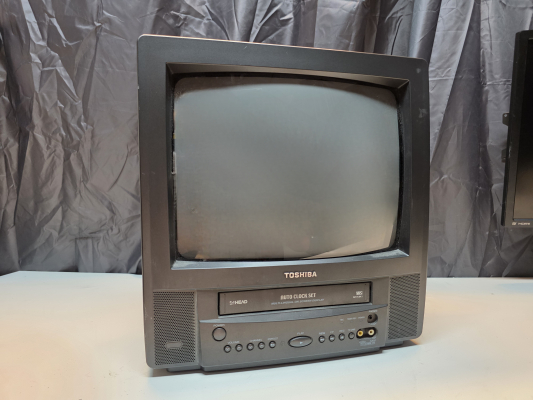

13" TV/VCR combo, made by Orion and sold by Toshiba.
Notes
Unlike many Orion TVs, the AV input can be selected with the channel buttons. However, a remote is still required to access the user menu.Like many Orion made sets from this time, this TV includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.

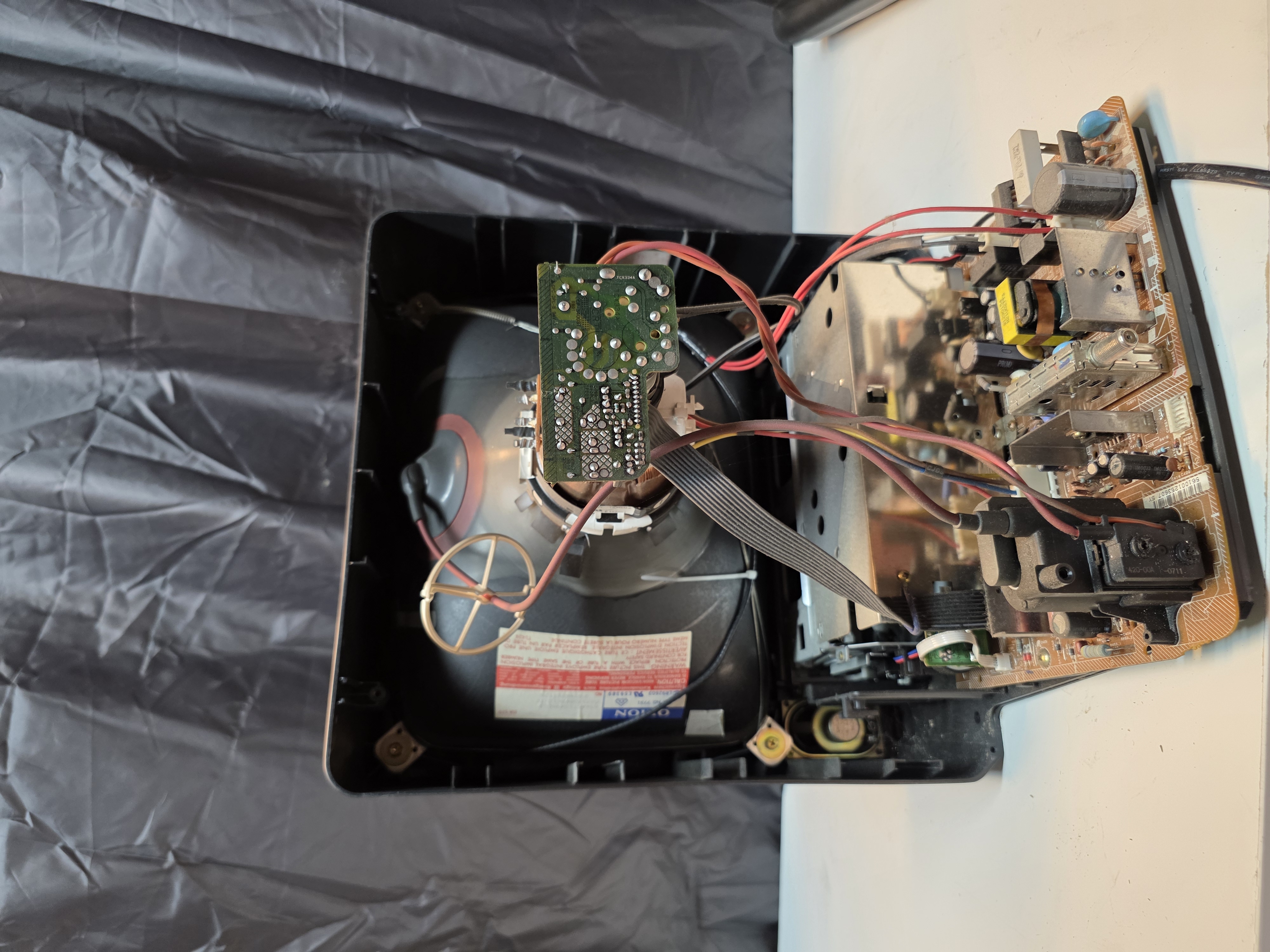

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MV13K1R |
| Series: | MV |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

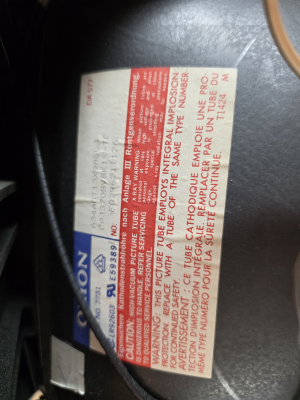

| Tube: | A34AGT13X98 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

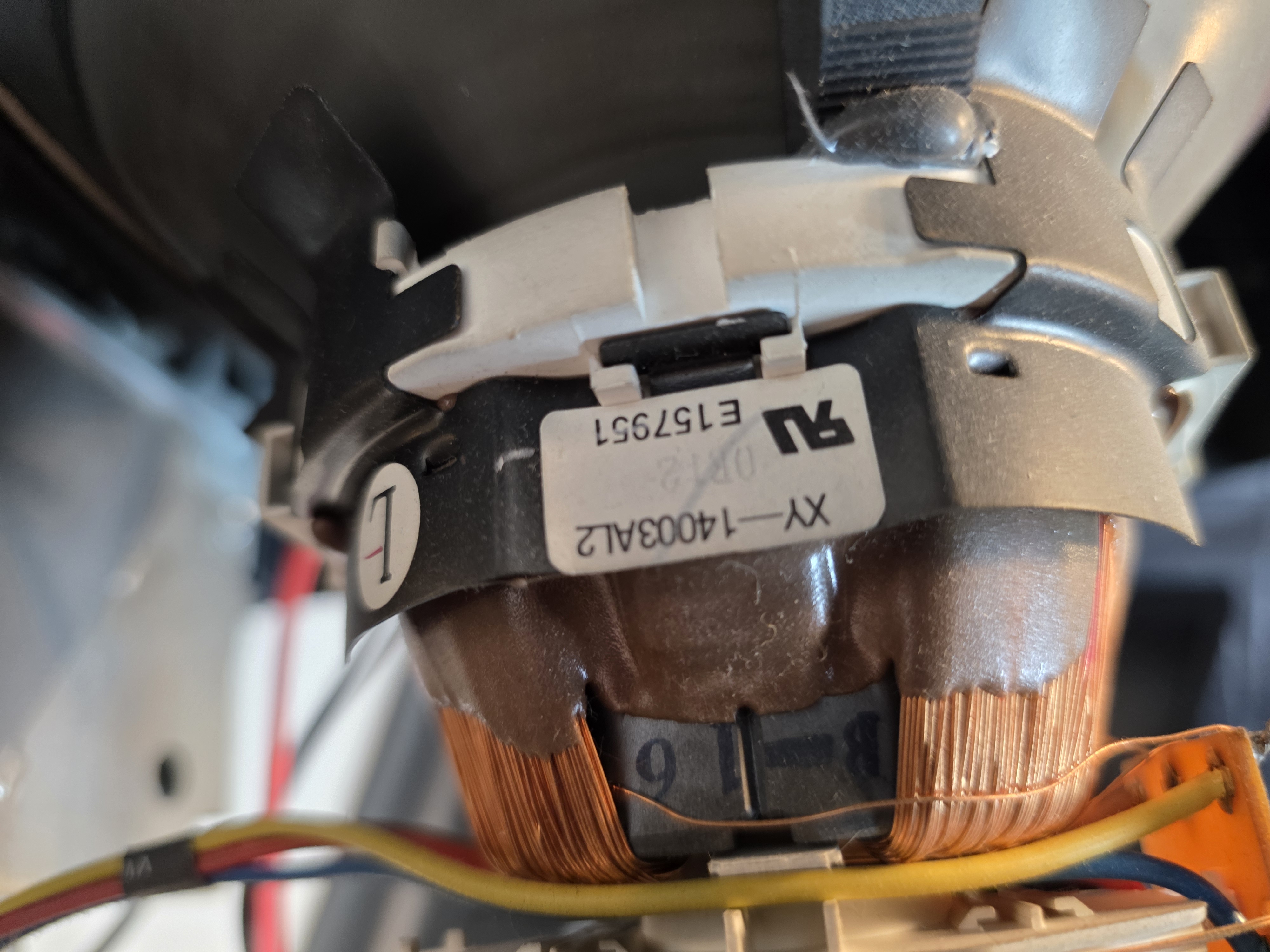

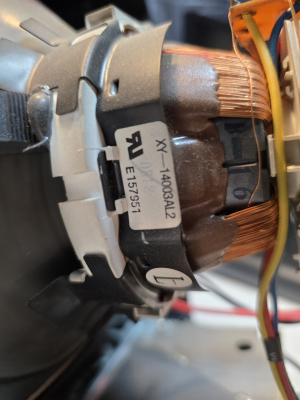

| Yoke: | XY-14003AL2 |
| Speakers: | Mono, 1.2W |
| Weight: | 27.6 lbs (12.5 kg) |
| Dimensions (W/H/D): |
362 x 381 x 368 mm
(14.2 x 15 x 14.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
