Toshiba MV13L3
Matt Ross
September 7, 2024, 10:15 pm
May 28, 2025, 6:52 am
September 7, 2024, 10:15 pm
May 28, 2025, 6:52 am
Summary
13" TV/VCR combo, made by Orion and sold by Toshiba. Includes a front mounted mono AV input.
Literature
Notes

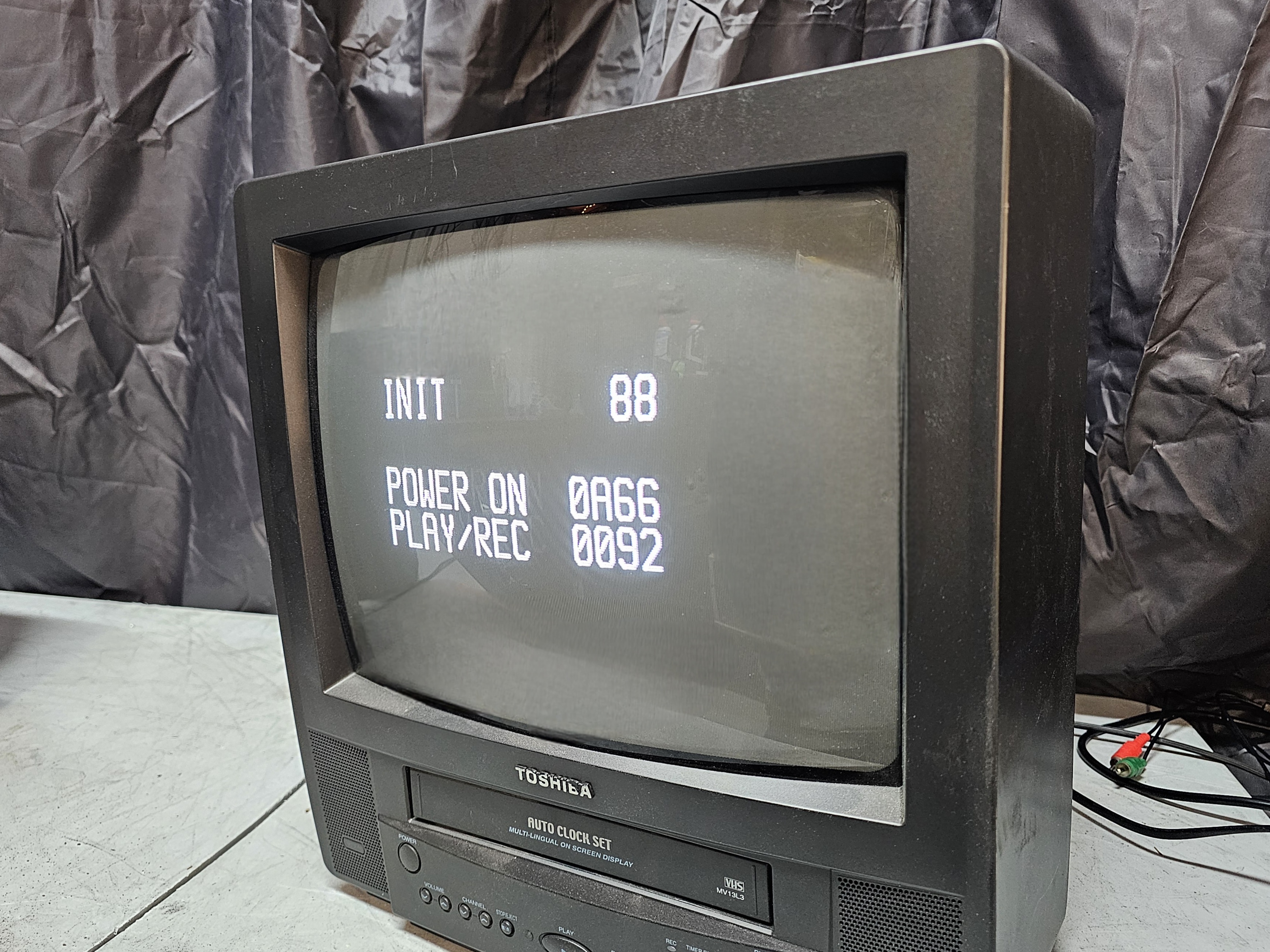

Unlike many Orion TVs, the AV input can be selected with the channel buttons. However, a remote is still required to access the user menu. Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.
Gallery




Specifications | |
---|---|
Brand: | Toshiba |
Manufacturer: | Orion |
Model: | MV13L3 |
Series: | MV |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Linecount: | 220 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | D2627 |
Vertical Output IC: | AN5522 |
Jungle: | M61206FP |
Flyback: | 043213013R |
Tube: | Orion , A34AGT13X98 , A34AGT13X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Yoke: | MK-14003AL2 |
Yoke Horz. Inductance: | 3.934 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 29.82 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 5.4 ohm |
Yoke Vert. Resistance: | 14.7 ohm |
Speakers: | Mono, 1.5W |
Remote: | RC-DQ |
Weight: | 24.3 lbs (11 kg) |
Dimensions (W/H/D): |
362 x 382 x 369 mm
(14.2 x 15 x 14.5") |
Application: | Consumer |
Launched: | 2001 |
Country of Manufacture: | Thailand |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
