Summary

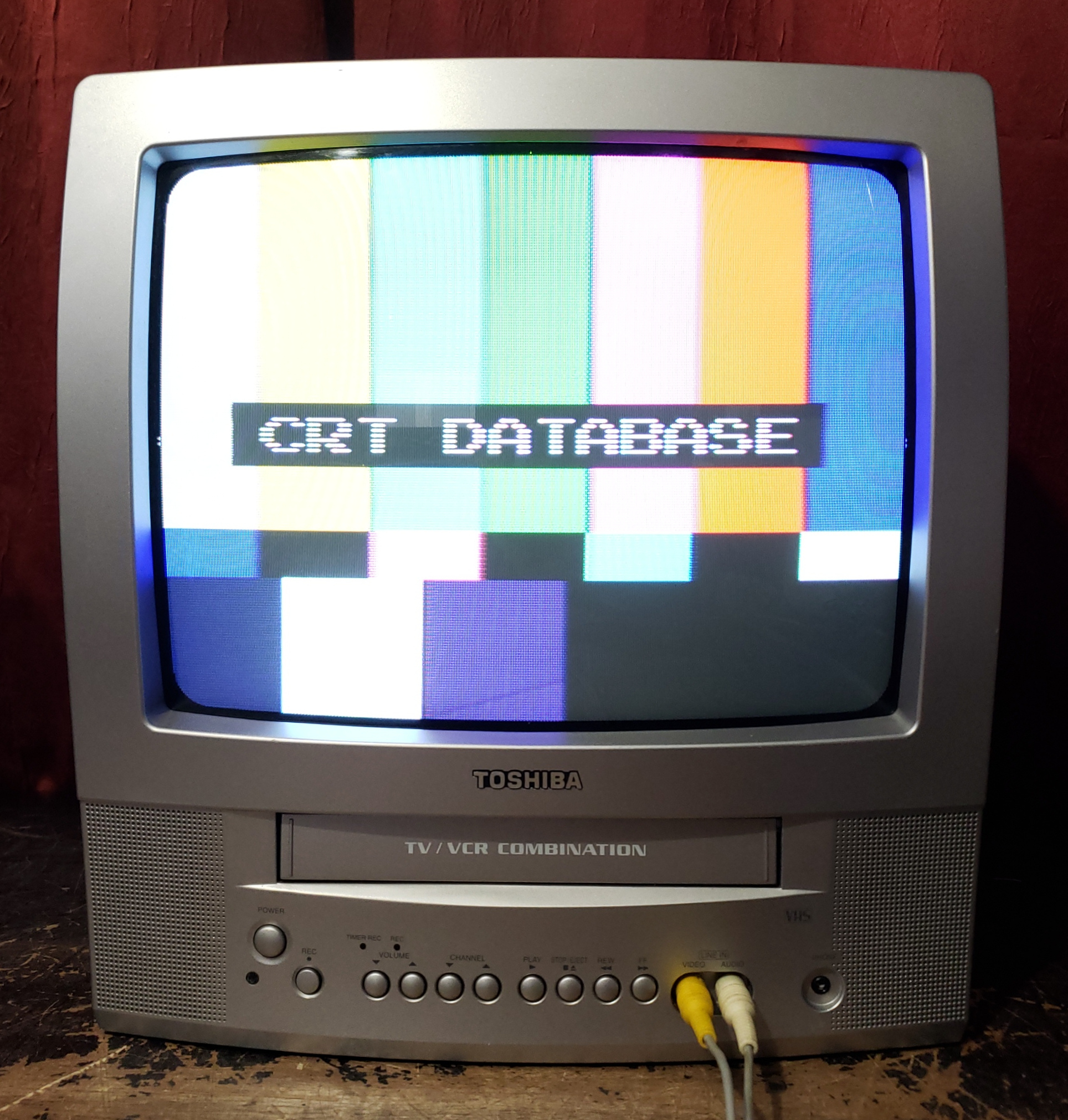

Unique space saving design combines a color TV and a video cassette recorder. 13" set with Full-Featured VCR for the ultimate in convenience. Front AV Inputs for easy connection of video games or a camcorder.
Manuals
Media & Promo Materials
Notes
VCR is connected to the jungle using composite. There is a separate chroma input on the jungle chip, but may require software changes to enable it. OSD appears to be digital.

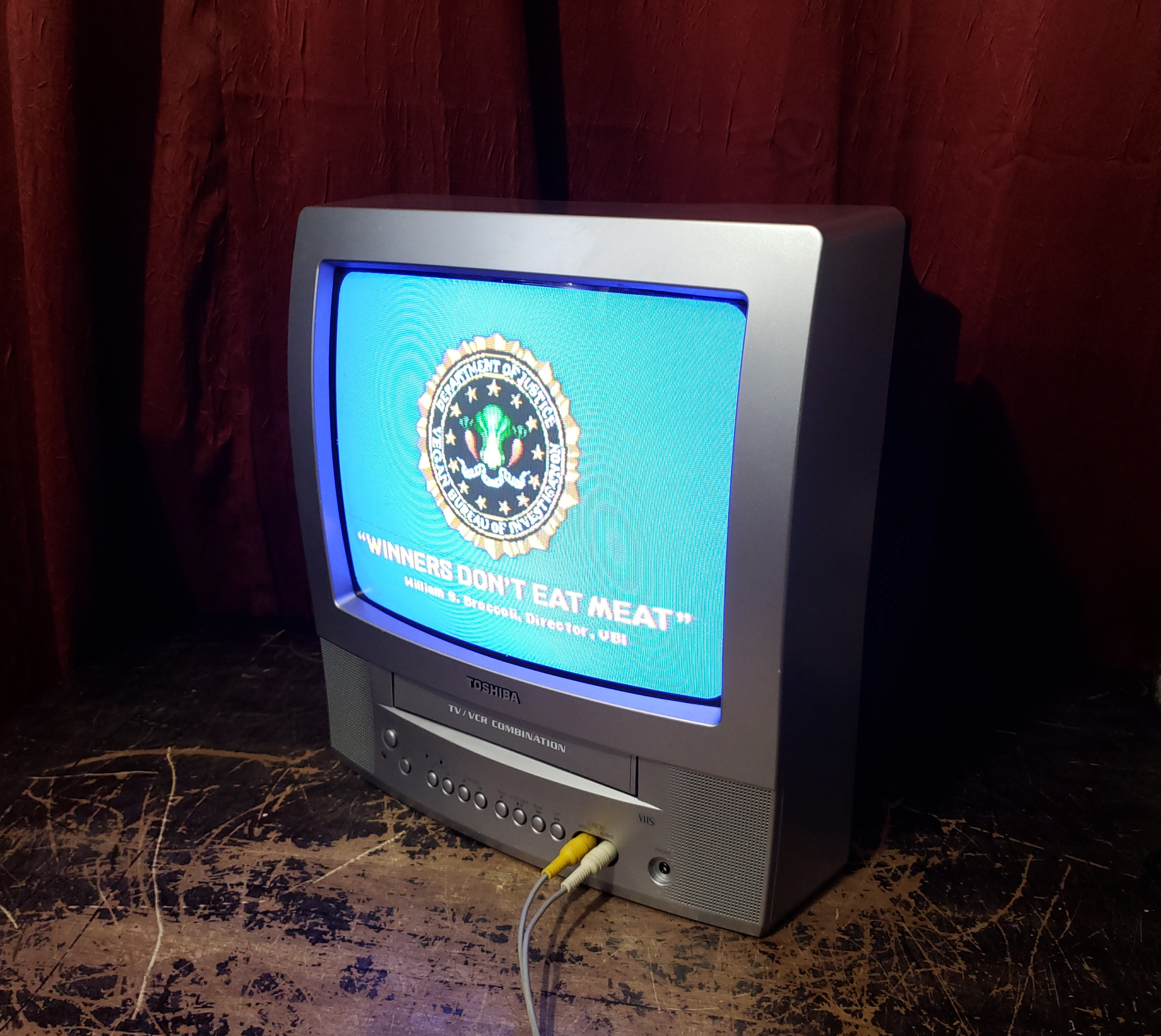

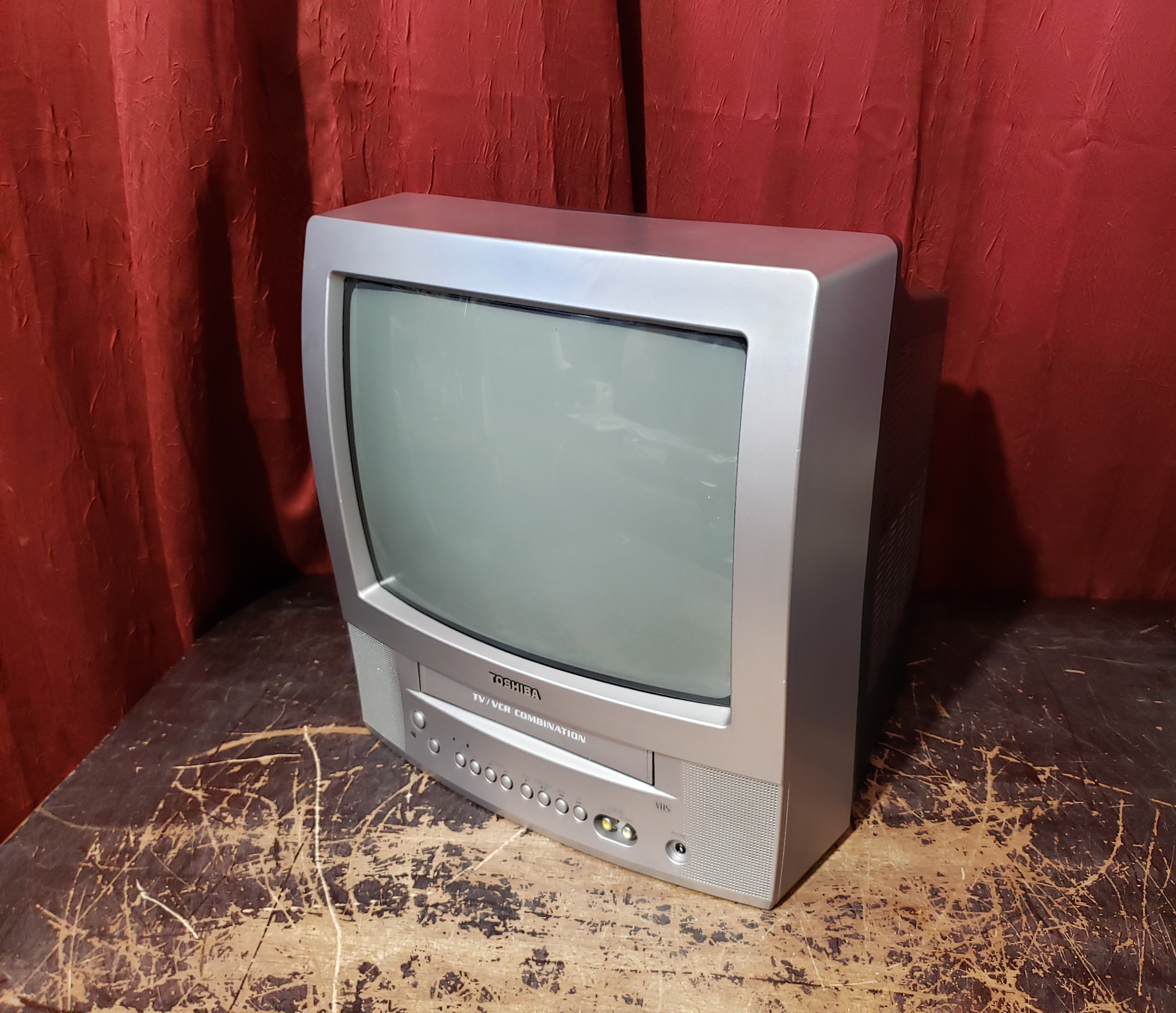

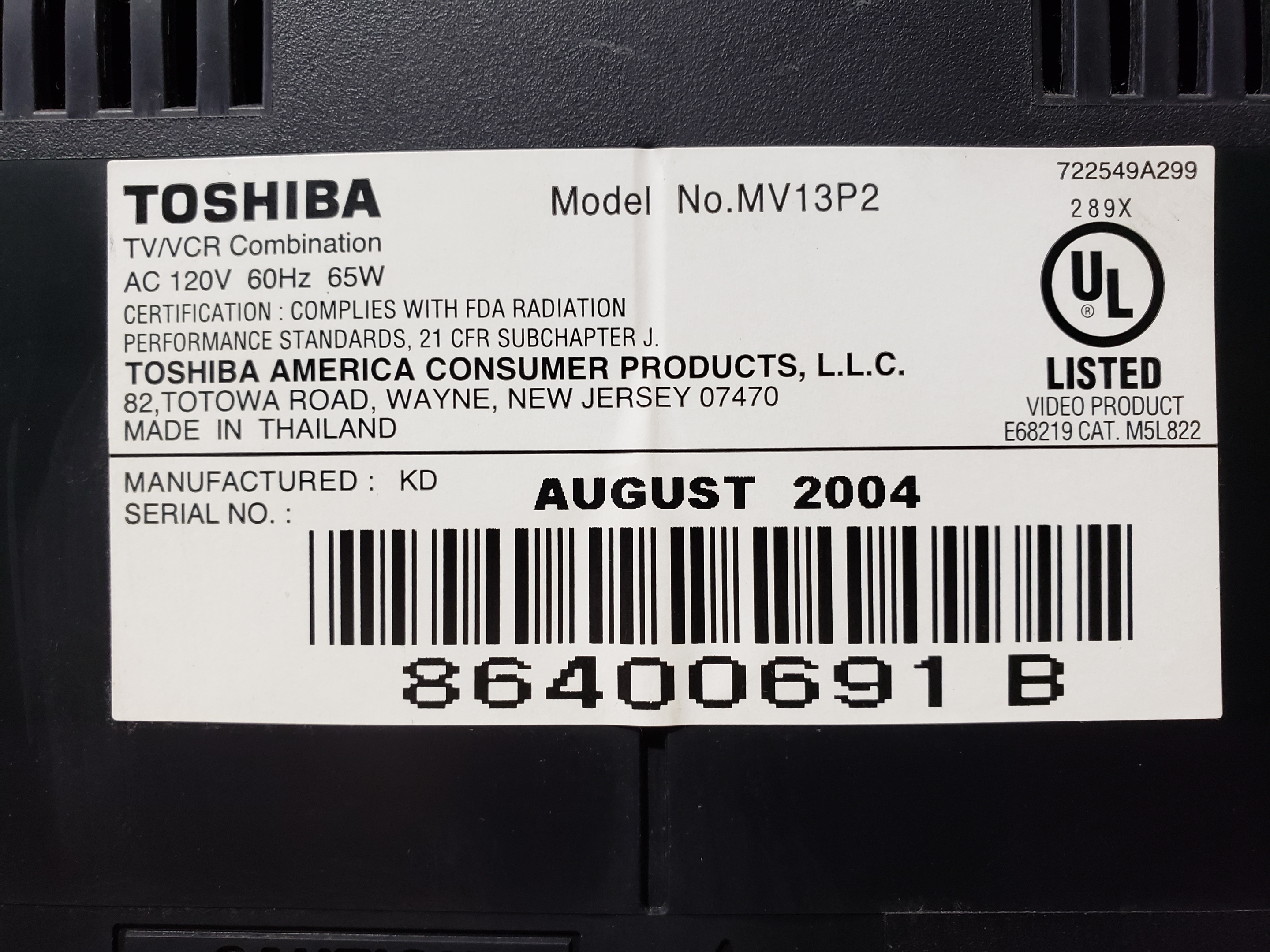

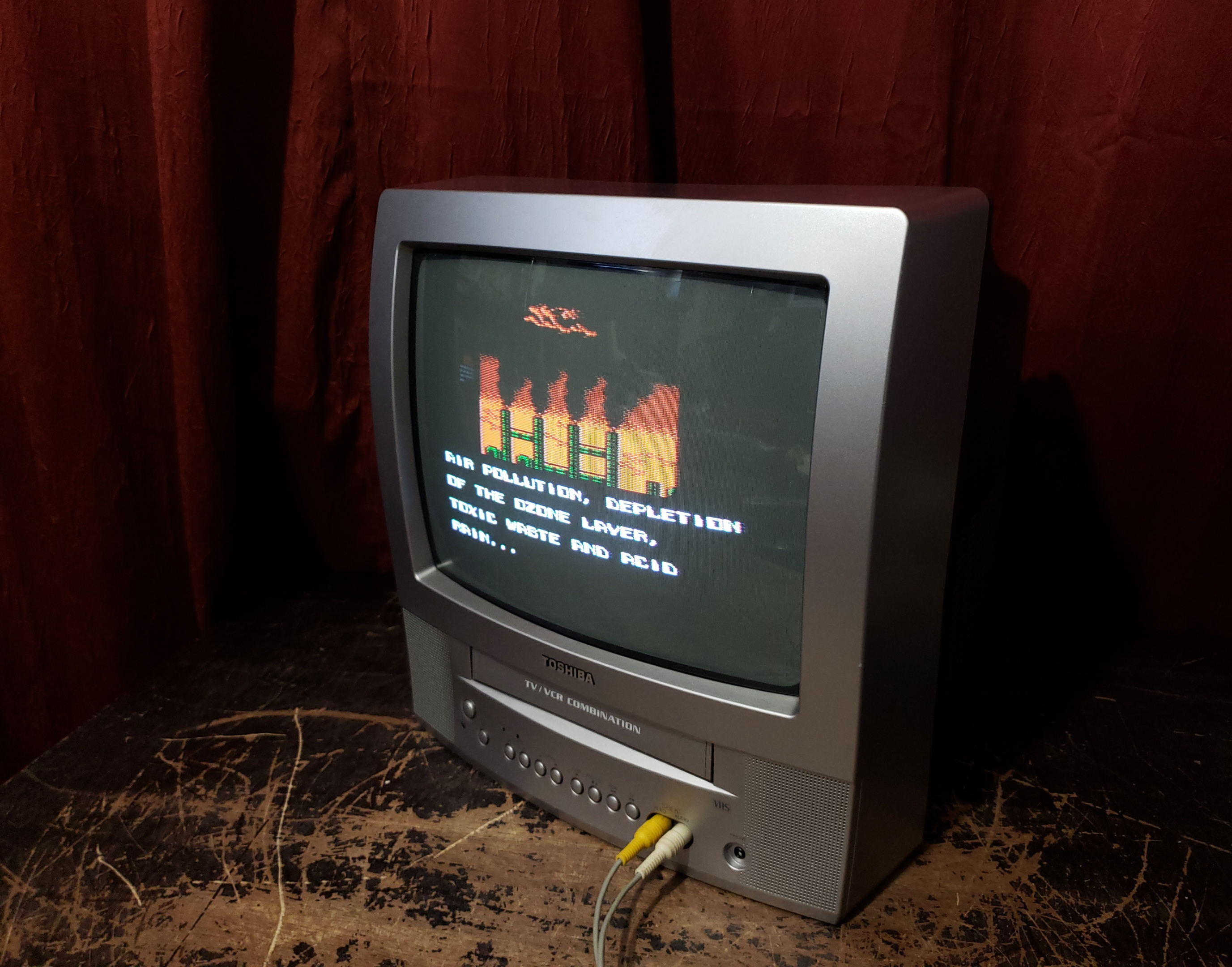

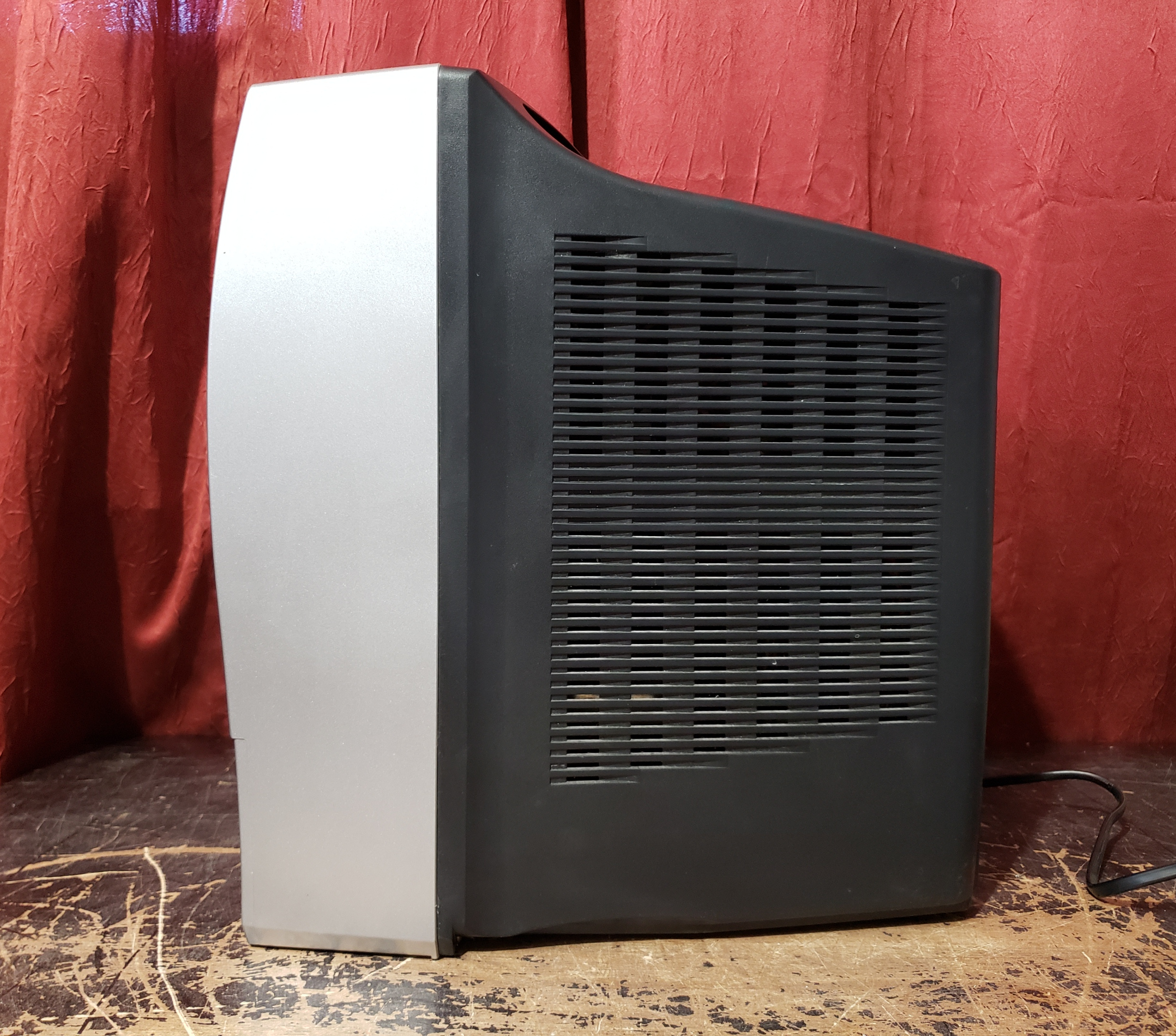

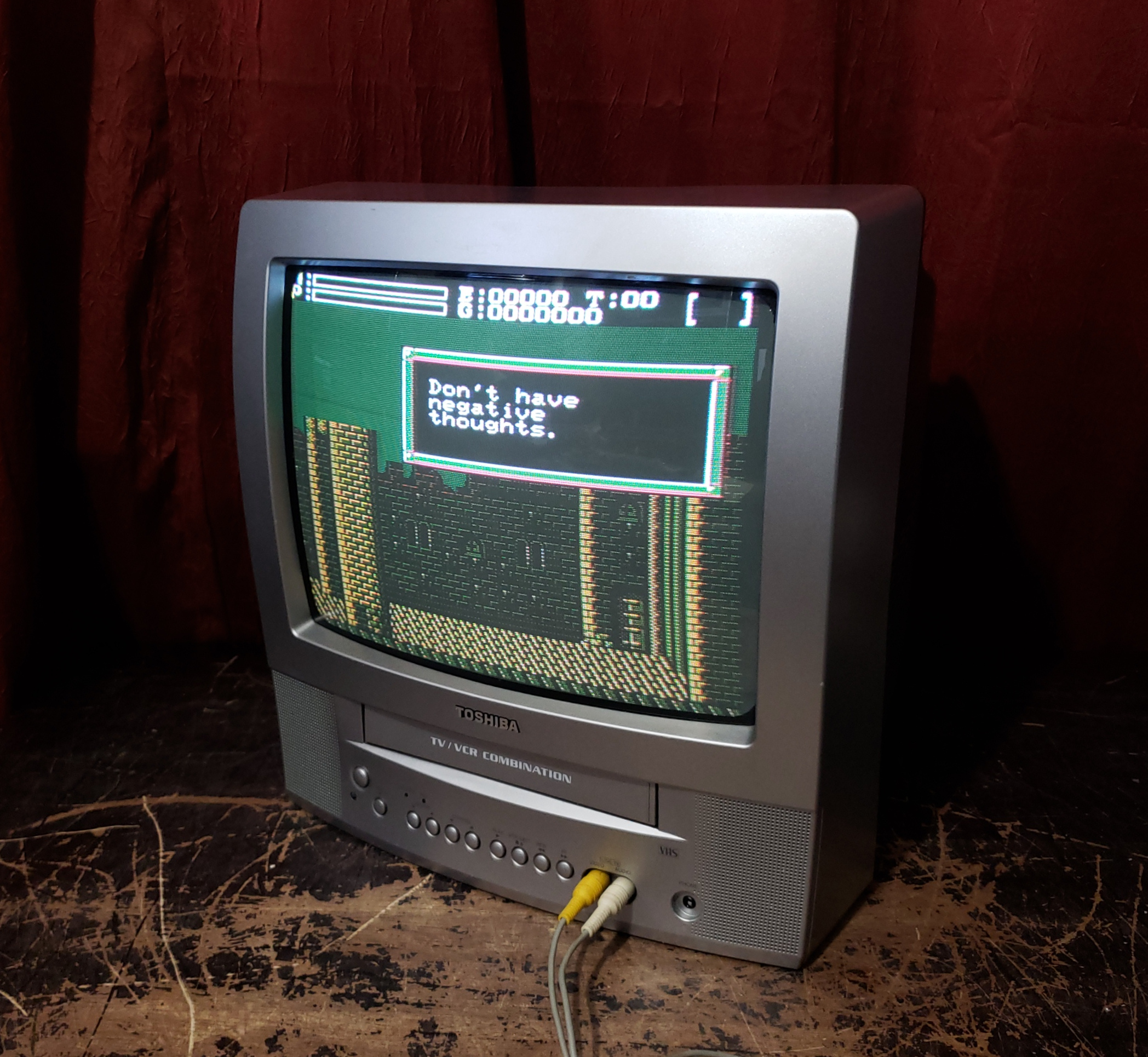

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MV13P2 |
| Series: | MV |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2140LS |
| Vertical Output IC: | LA78040N-E |
| Jungle IC: | M61250FP |

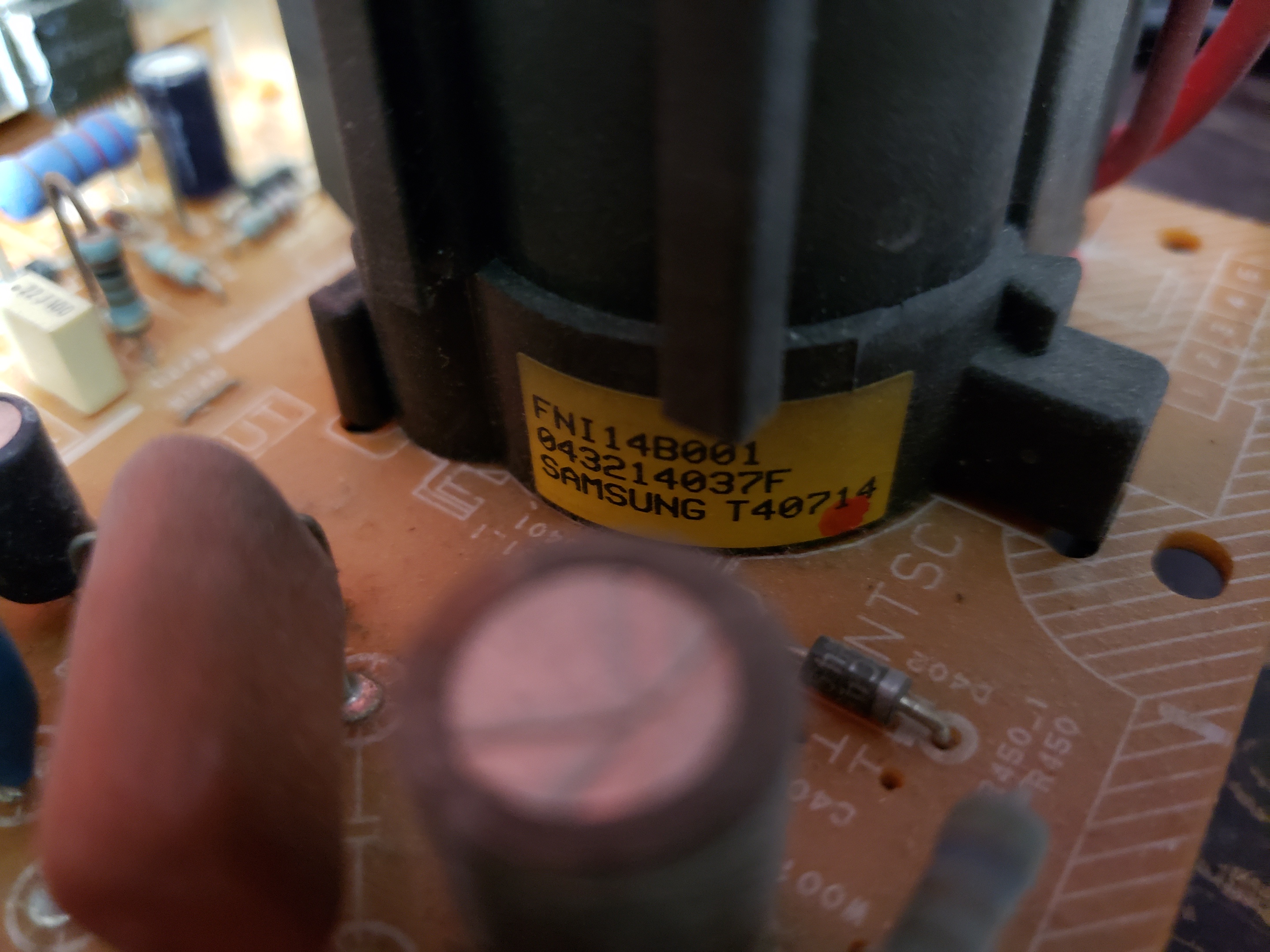

| Flyback: | FNI-14B001 |

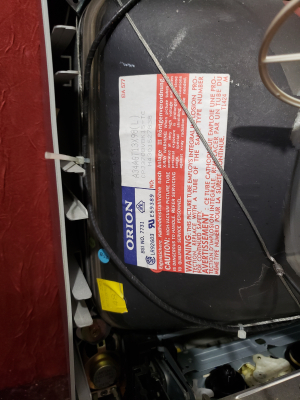

| Tube: | Orion , A34AGT13X98 , A34AGT13X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

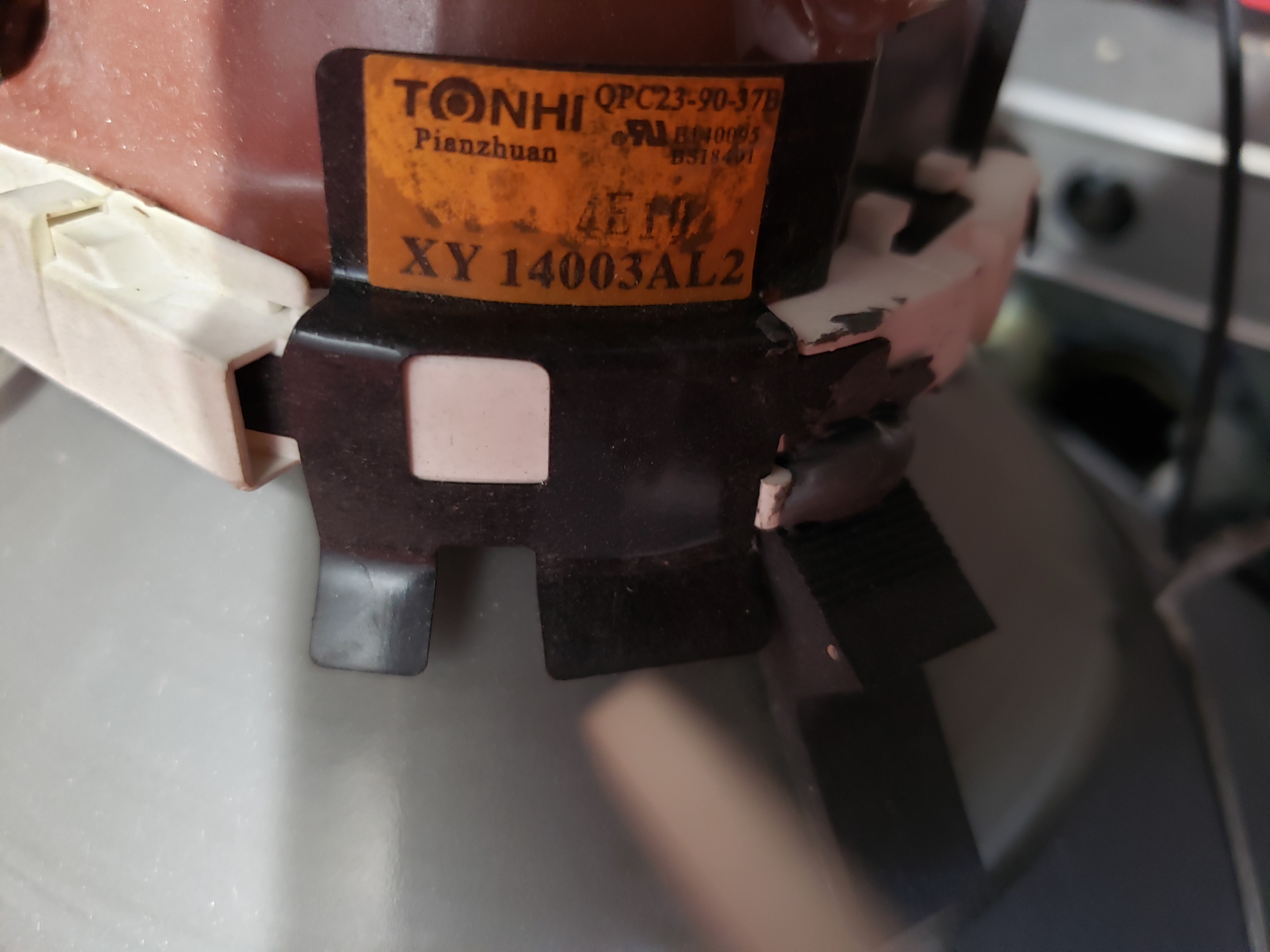

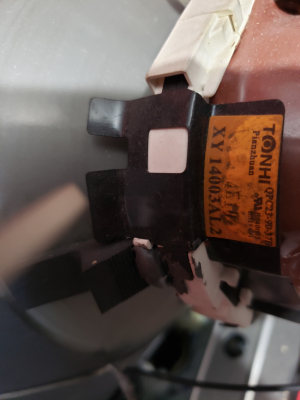

| Yoke: | XY14003AL2 |
| Speakers: | Mono |
| Remote: | VC-P2S |
| Weight: | 24.3 lbs (11 kg) |
| Dimensions (W/H/D): |
362 x 382 x 365 mm
(14.2 x 15 x 14.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 119 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
