Summary

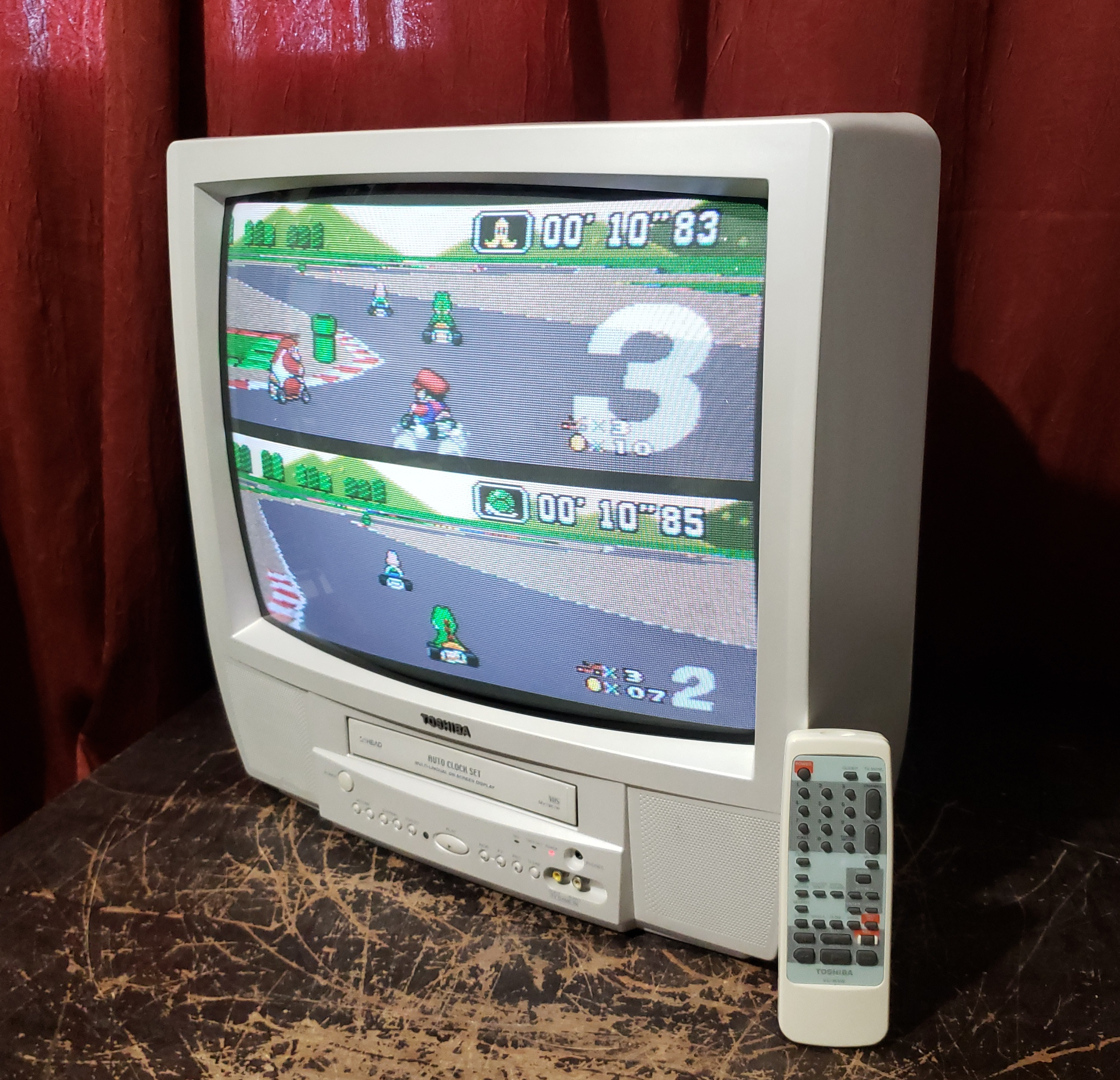

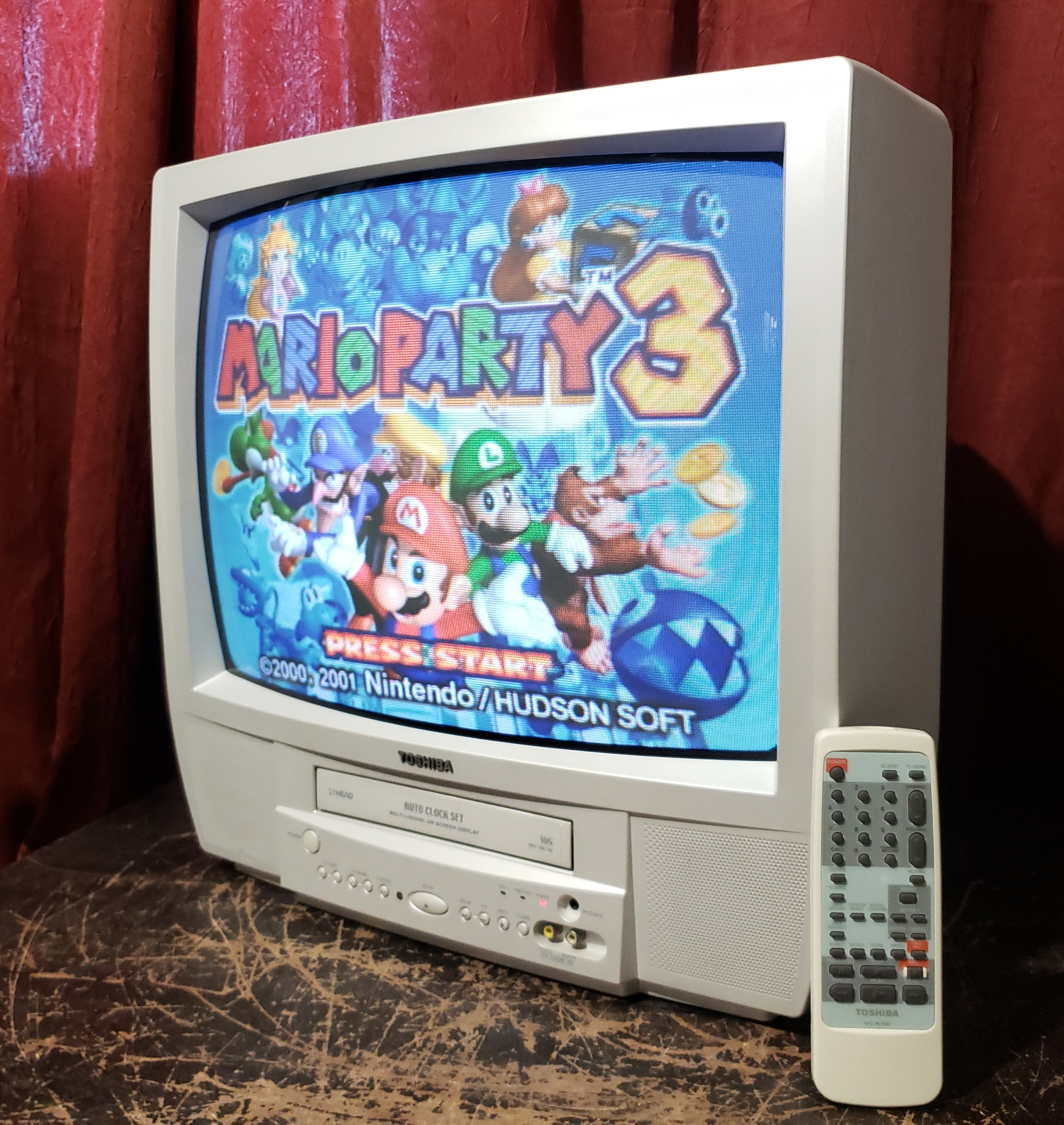

19" TV/VCR combo made by Orion. White version of the MV19K1.
Manuals
Media & Promo Materials
- Toshiba Product Page for the black version
- Toshiba Model Comparison
Notes
Unlike many Orion TVs, the AV input can be selected with the channel buttons. However, a remote is still required to access the user menu.
A difference between the MV19K1 and K2 is that the former has four playback heads for the VCR, and the latter has two.

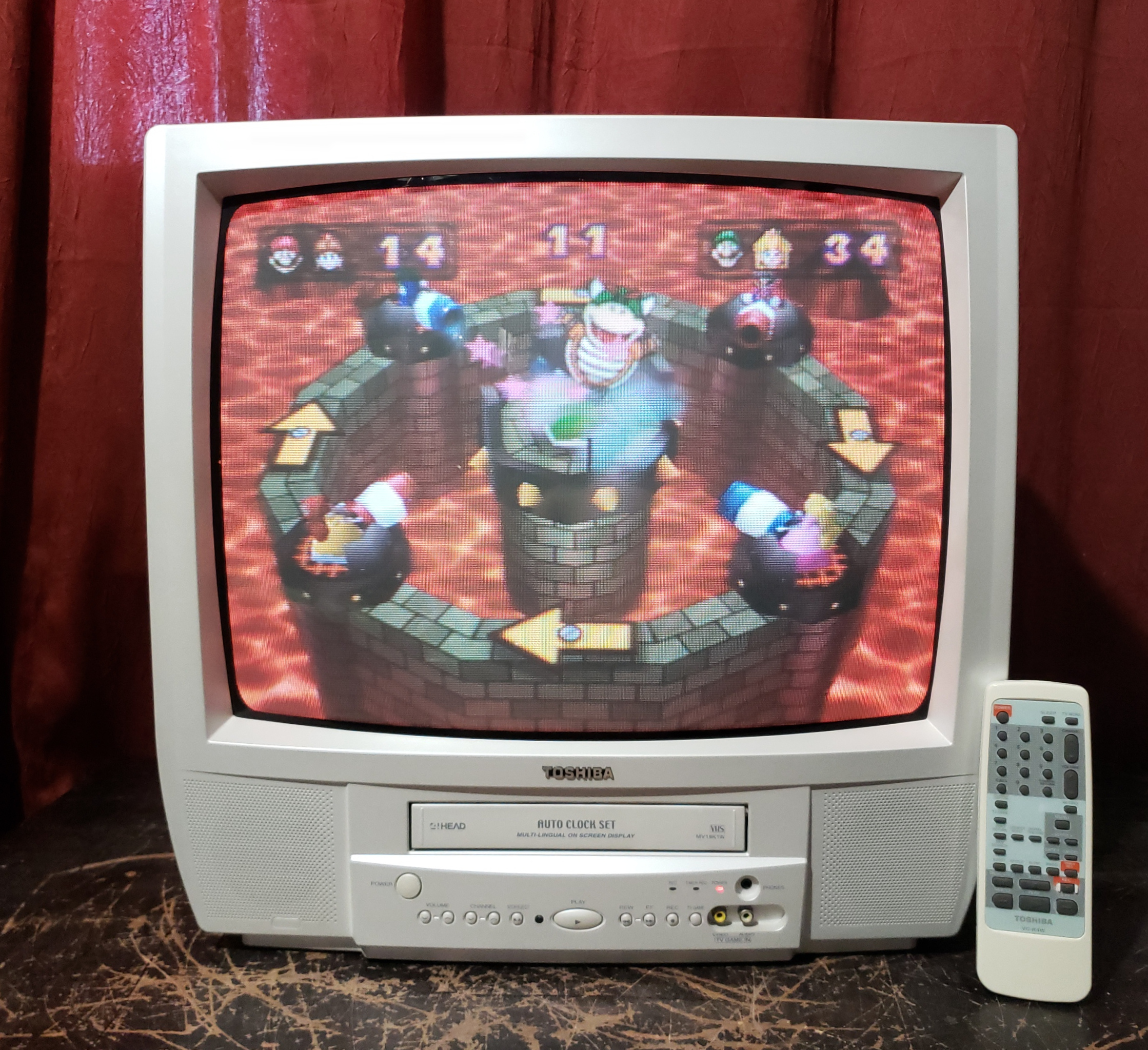

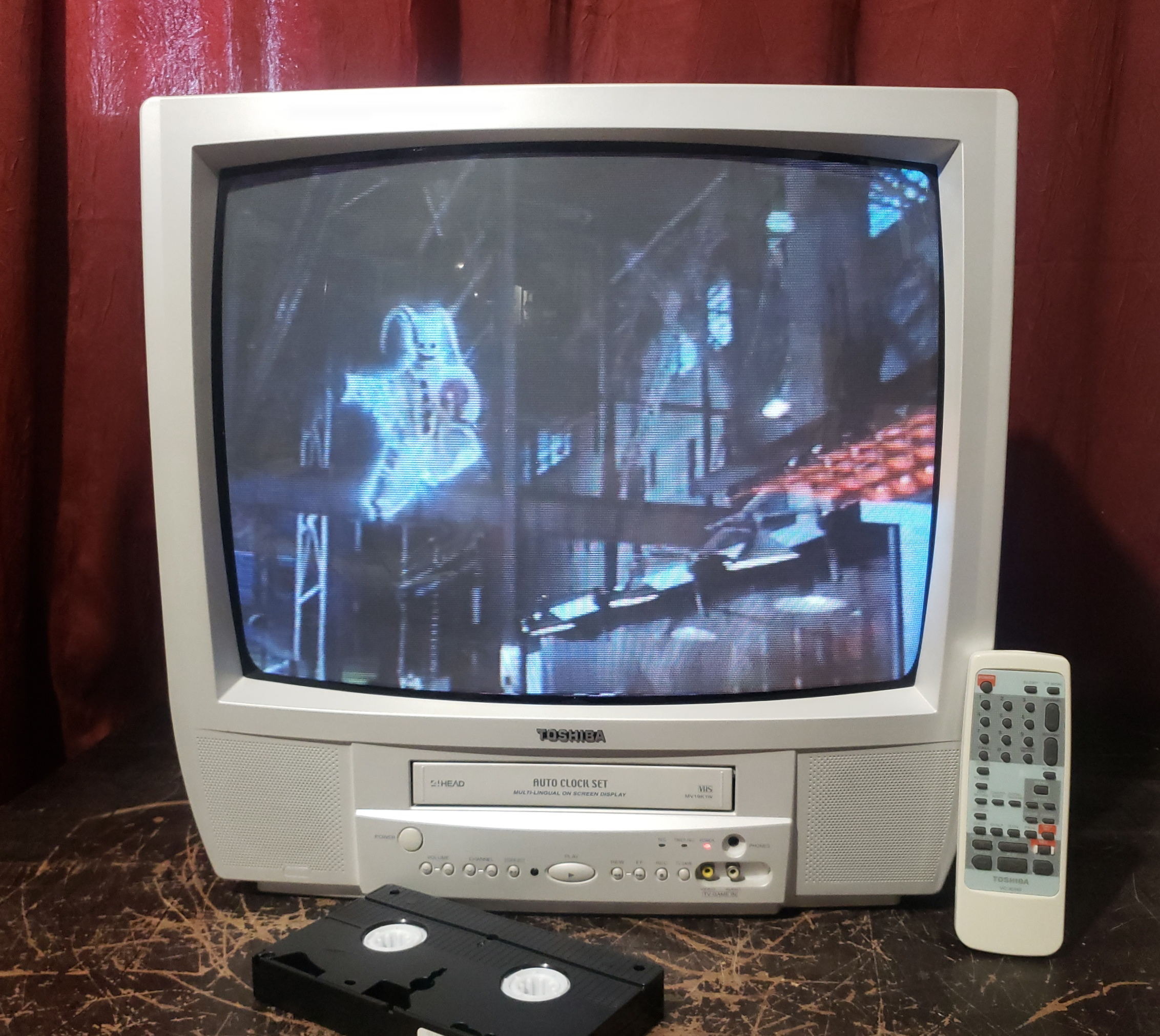

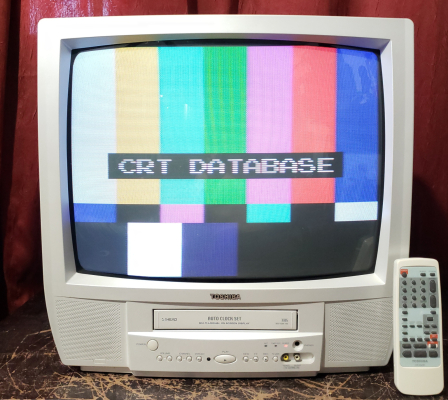

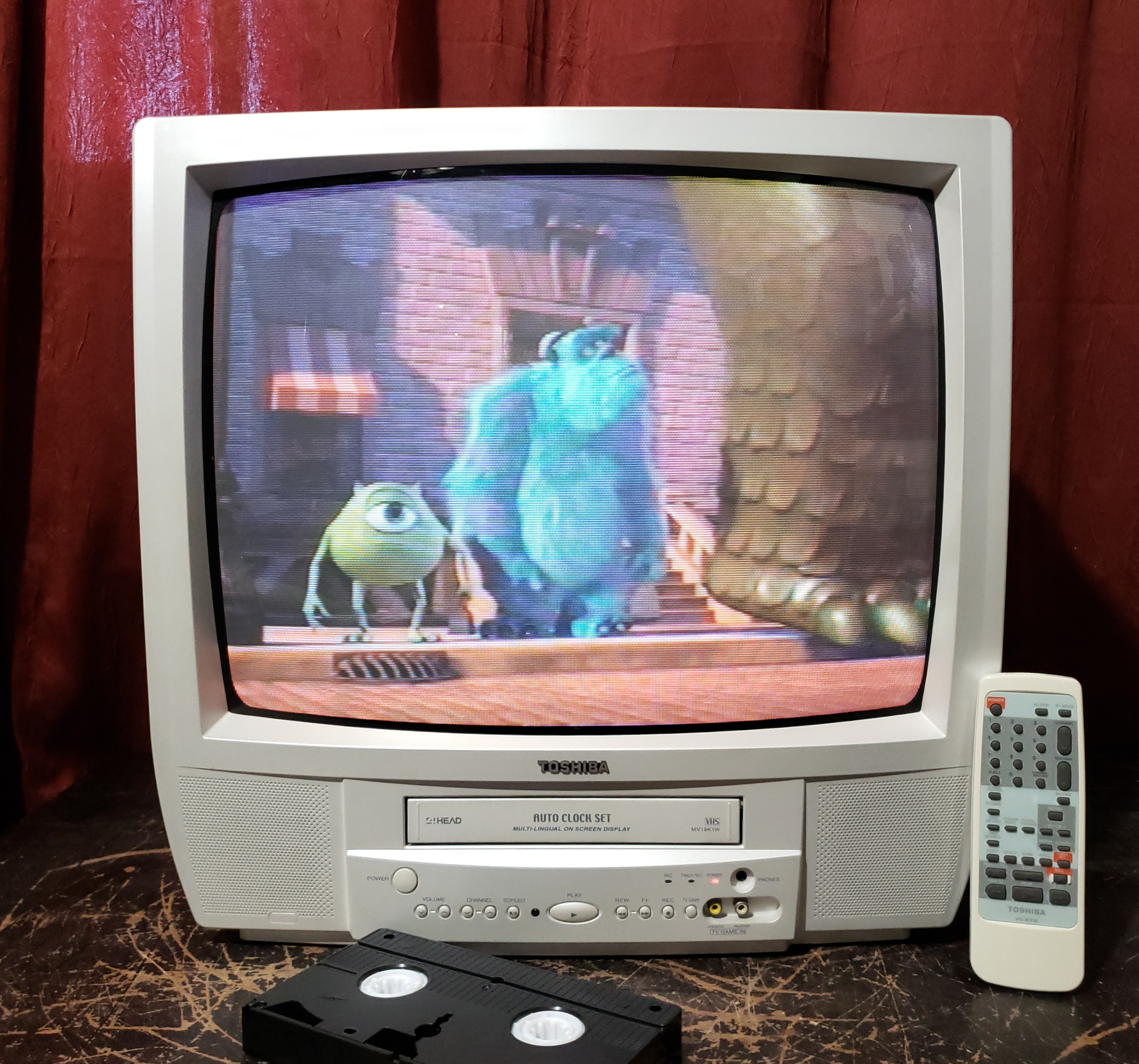

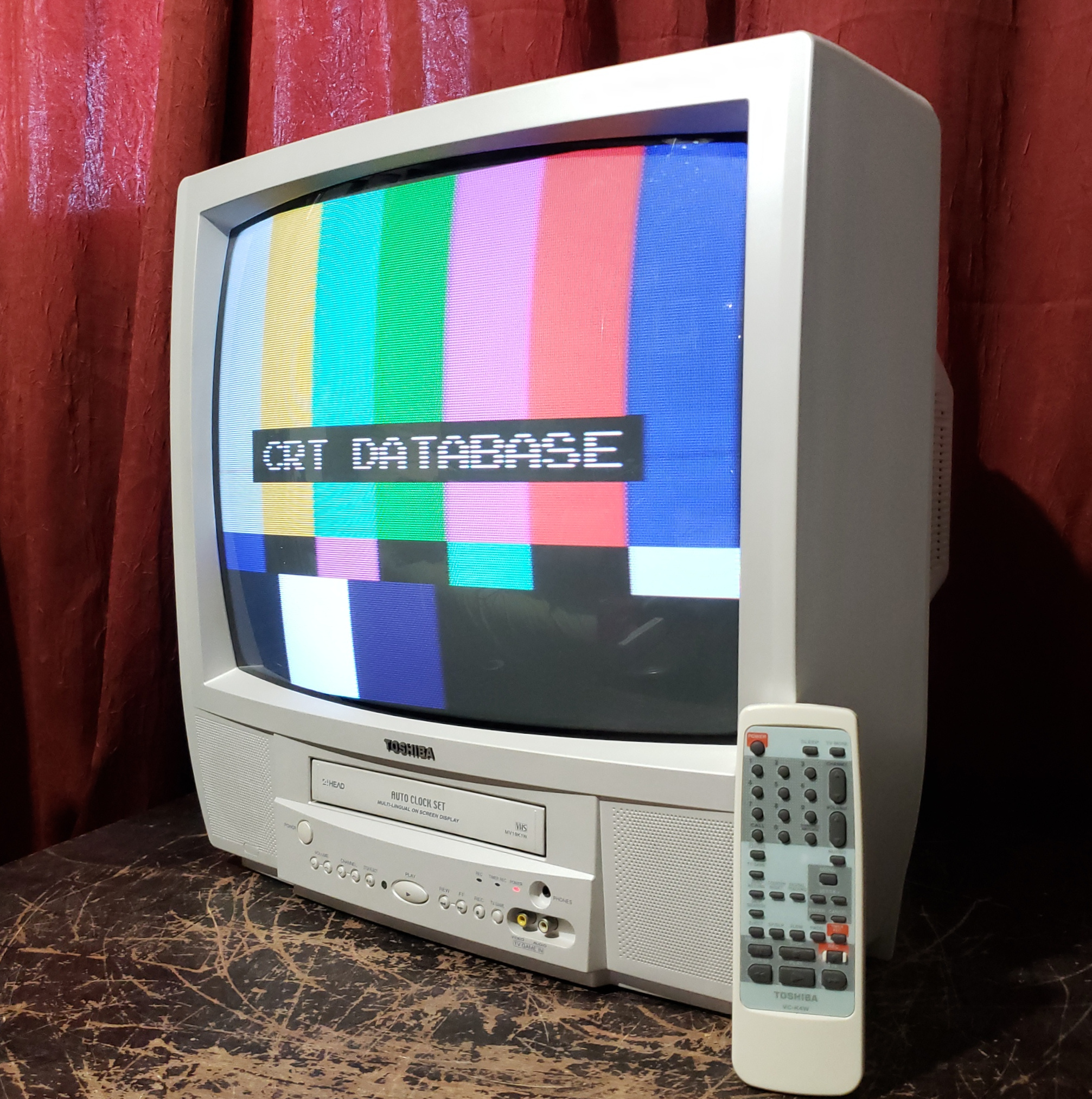

Gallery
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MV19K1W |
| Series: | MV |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2499 |
| Vertical Output IC: | LA7840 |
| Jungle IC: | LA76814BM-MPB |

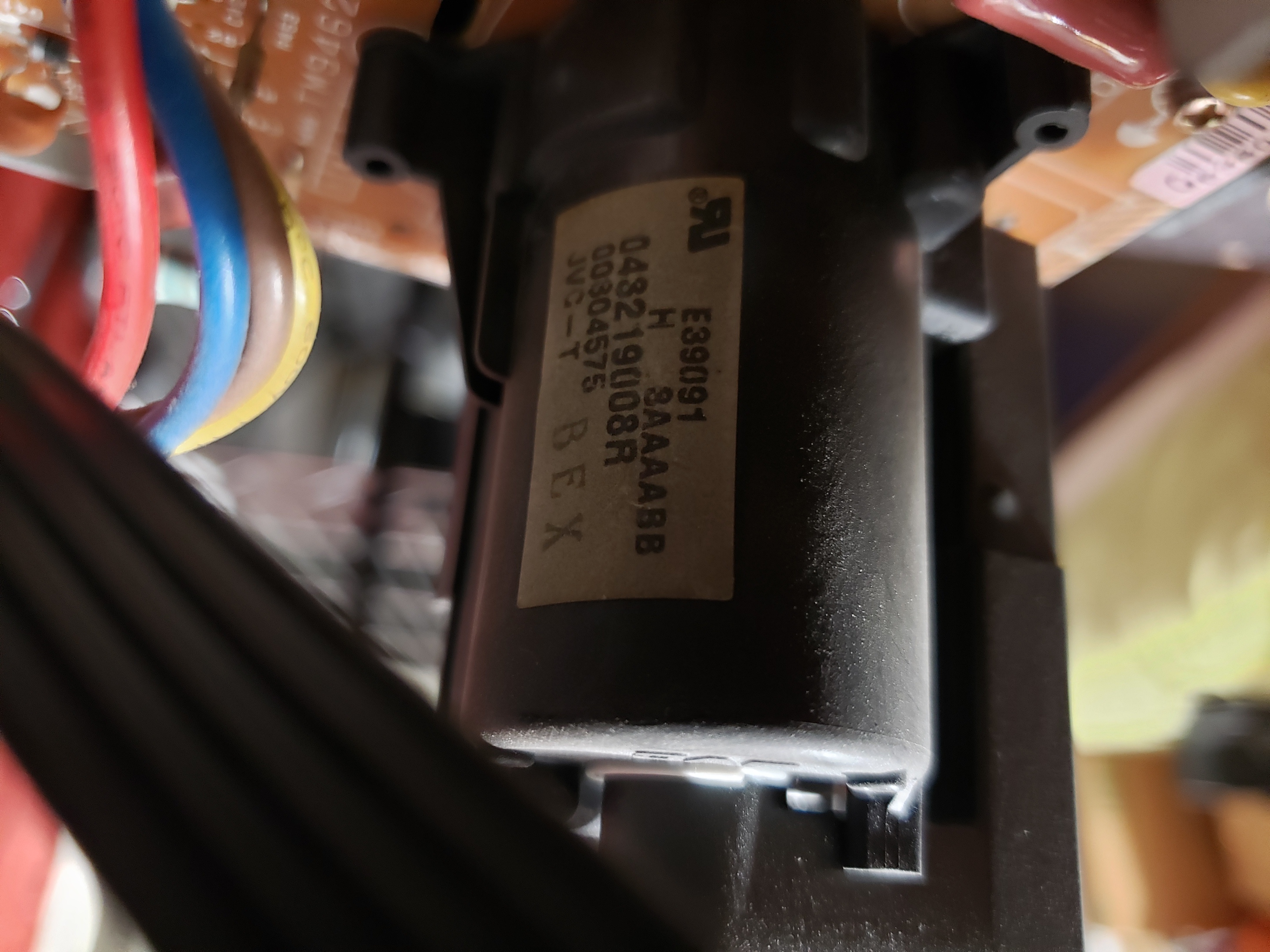

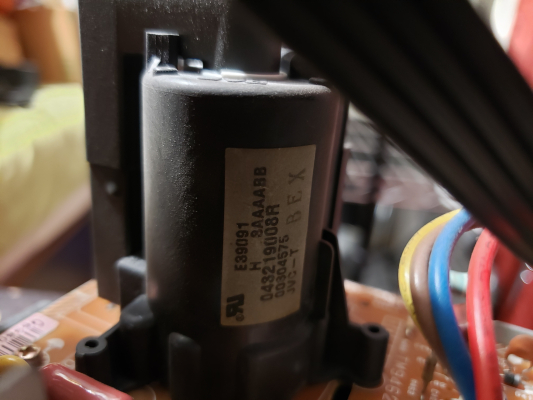

| Flyback: | CJ28721-00A, 043219008R |
| Focus Type: | Single |

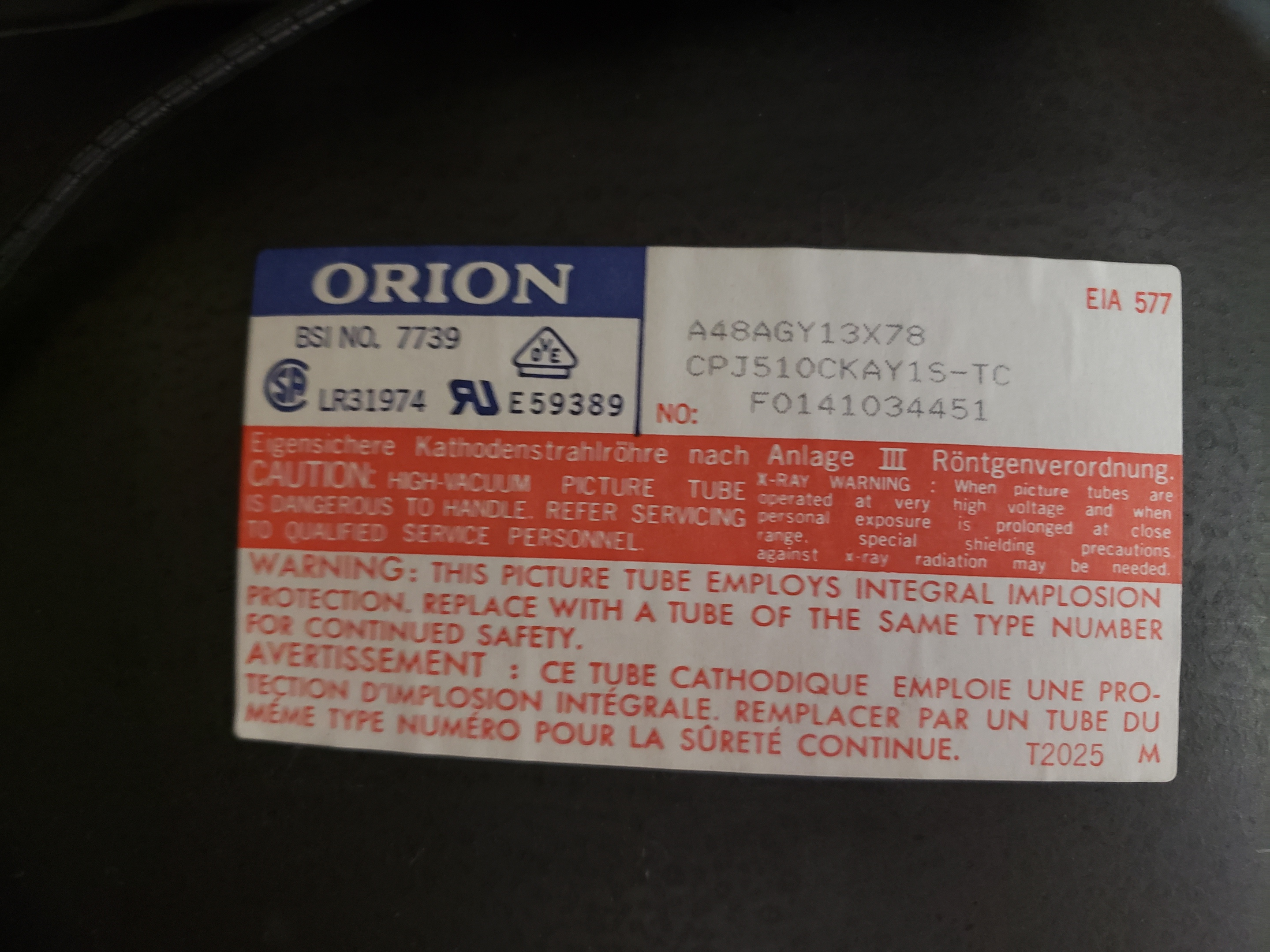

| Tube: | Chunghwa , A48AGY13X , A48AGY13X78 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

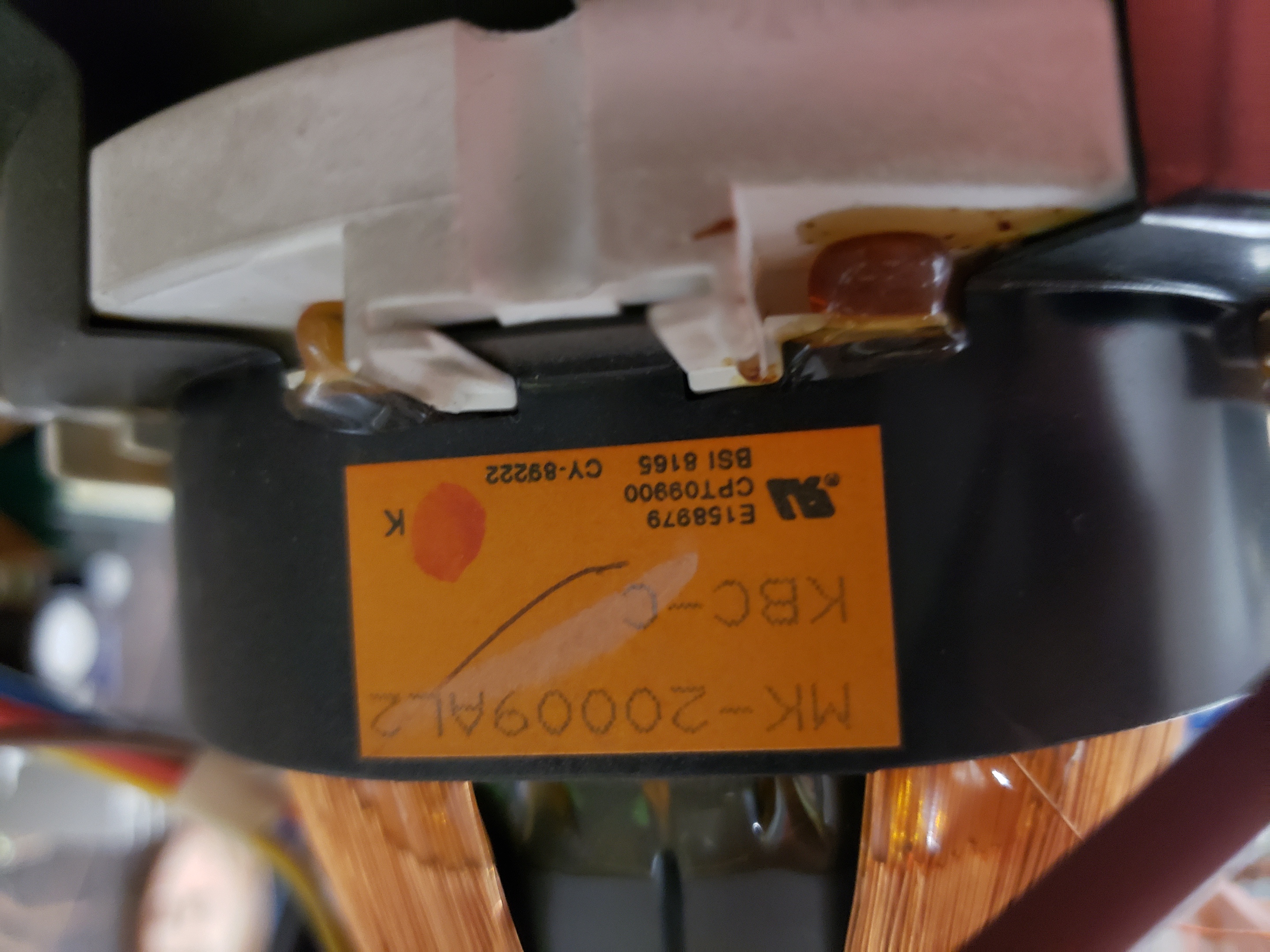

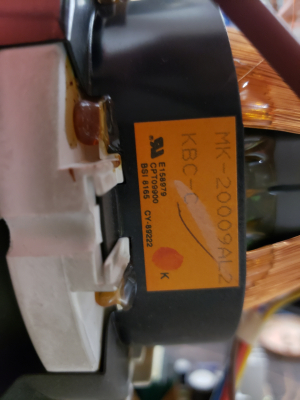

| Yoke: | MK-20009AL2 |
| Yoke Horz. Resistance: | 2.5 ohm |
| Yoke Vert. Resistance: | 13.1 ohm |
| Speakers: | Mono, 2.5W |
| Remote: | VC-K4W |
| Weight: | 48.6 lbs (22 kg) |
| Dimensions (W/H/D): |
489 x 480 x 462 mm
(19.2 x 18.9 x 18.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 329 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Carrying Handle |
| Degaussing: | Automatic on Power-on |
