Summary

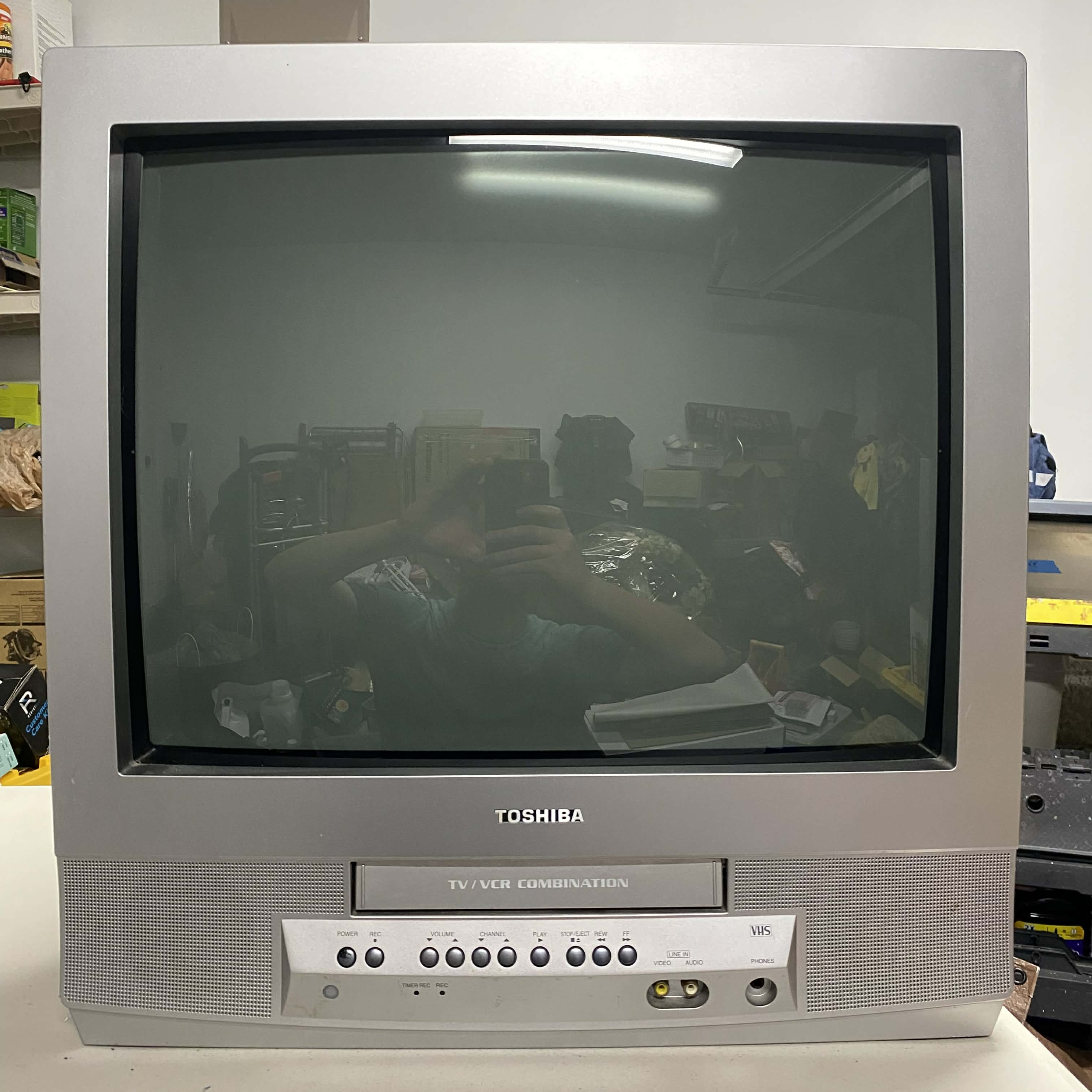

20" TV/VCR combo, made by Orion and sold by Toshiba. Includes a front mounted mono AV input. Very similar in style and appearance as the MD20Q41 but his model has a built in VCR as apposed to a DVD player.
(Special thanks to Kyle Mazabob for the pics!)
Manuals
Notes
Despite having two speakers, this TV only has mono audio. The speakers are wired in parallel and it has a single channel audio amp. Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MV20P2 |
| Series: | MV |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5522, Panasonic |
| Jungle IC: | Renesas, M61250, M61250FP |

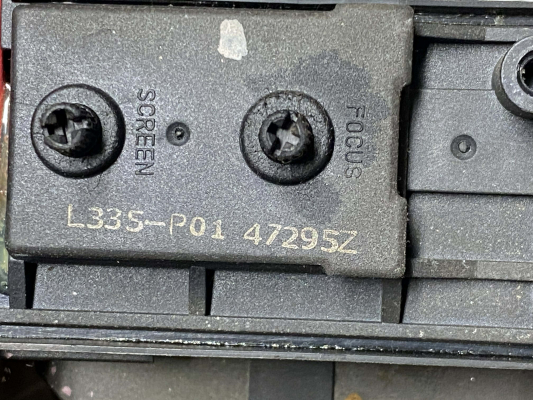

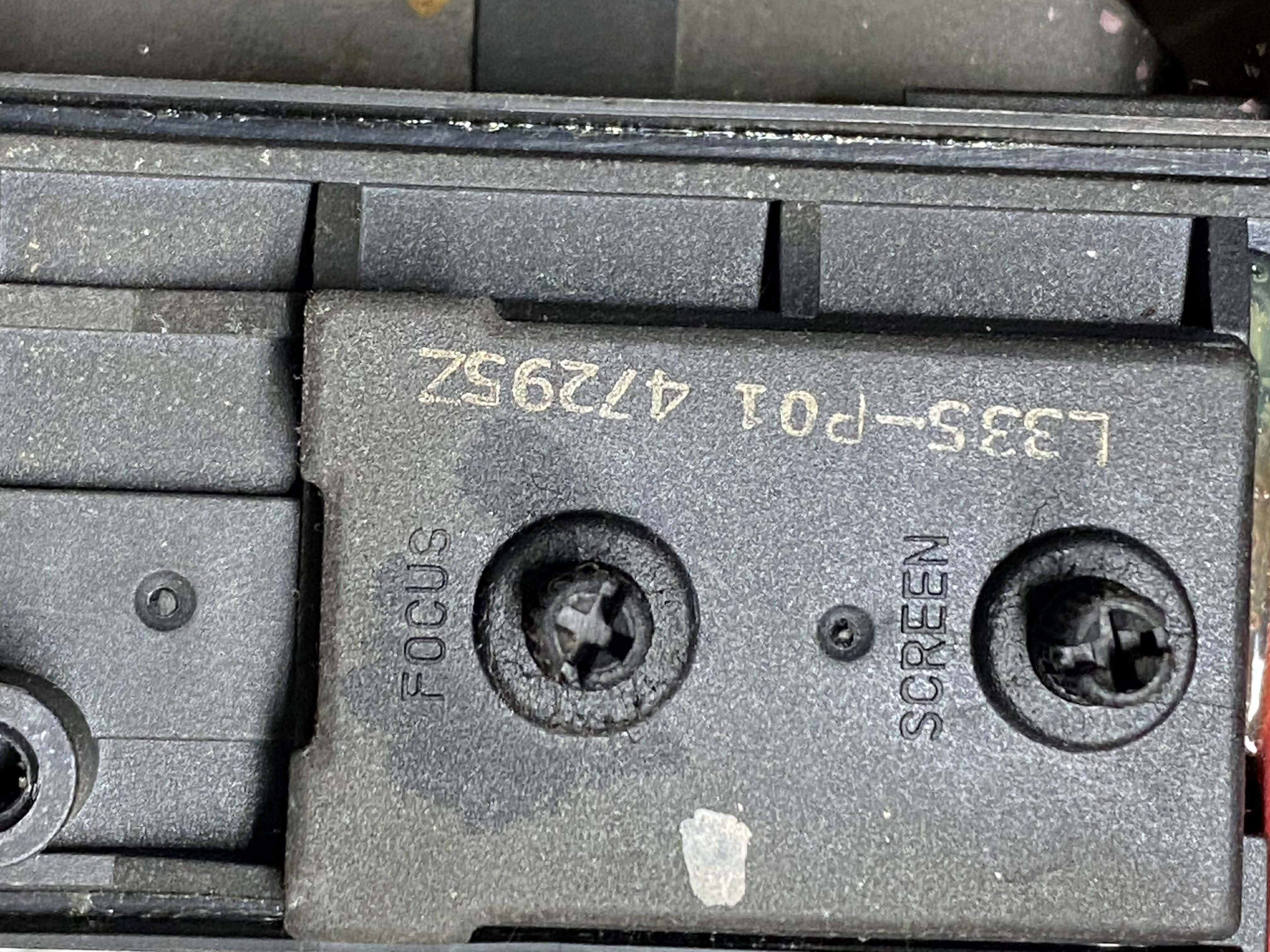

| Focus Type: | Single |

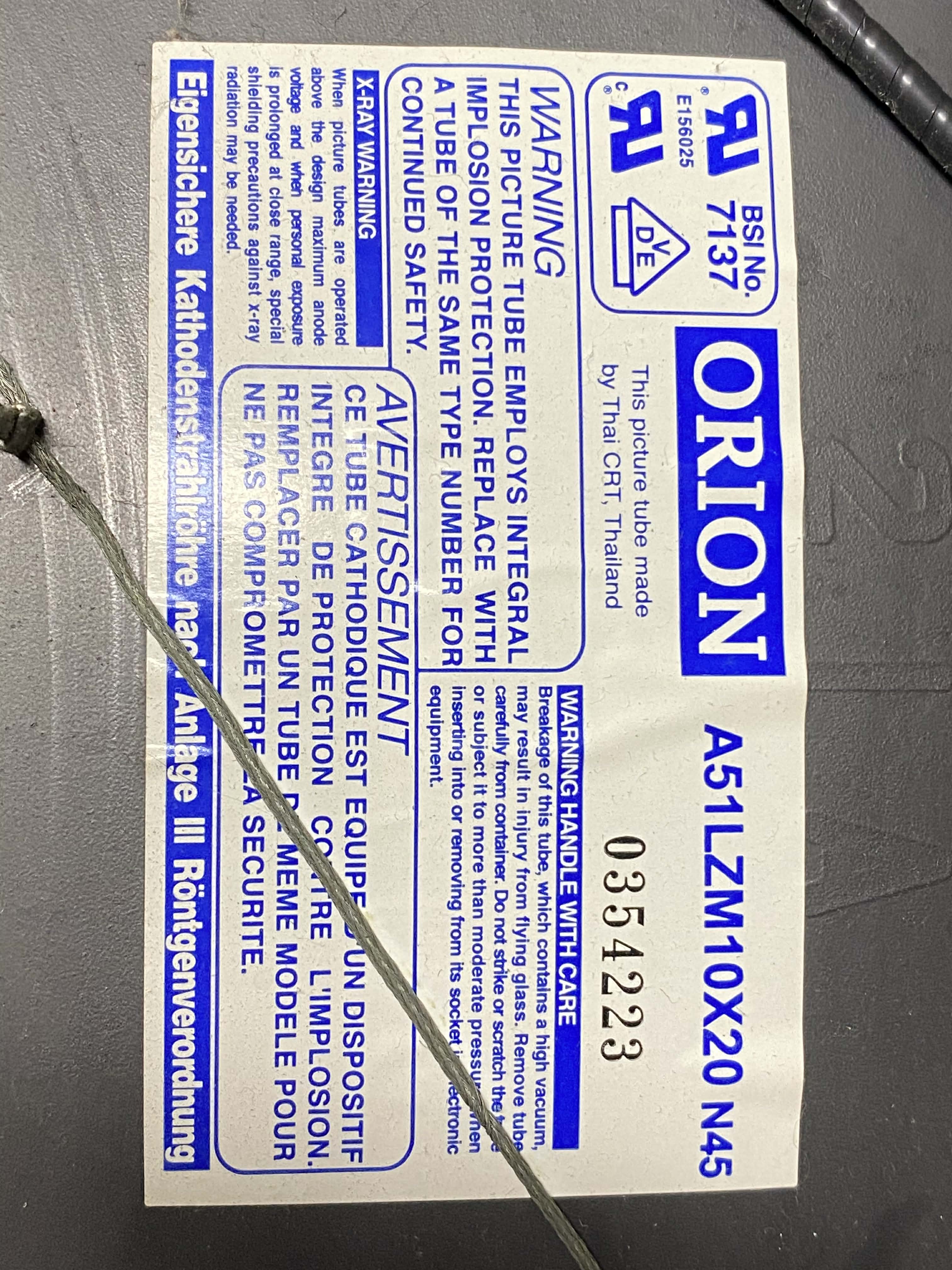

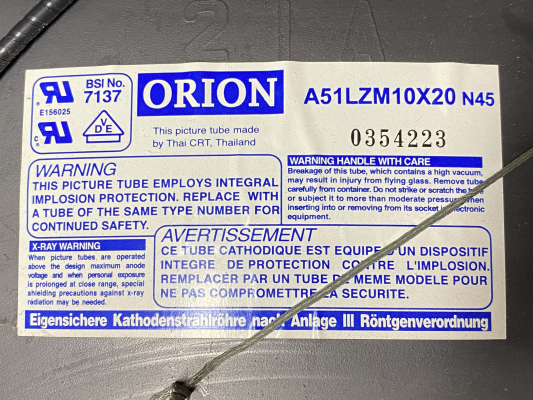

| Tube: | Thai CRT Co. , A51LZM10X , A51LZM10X20 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

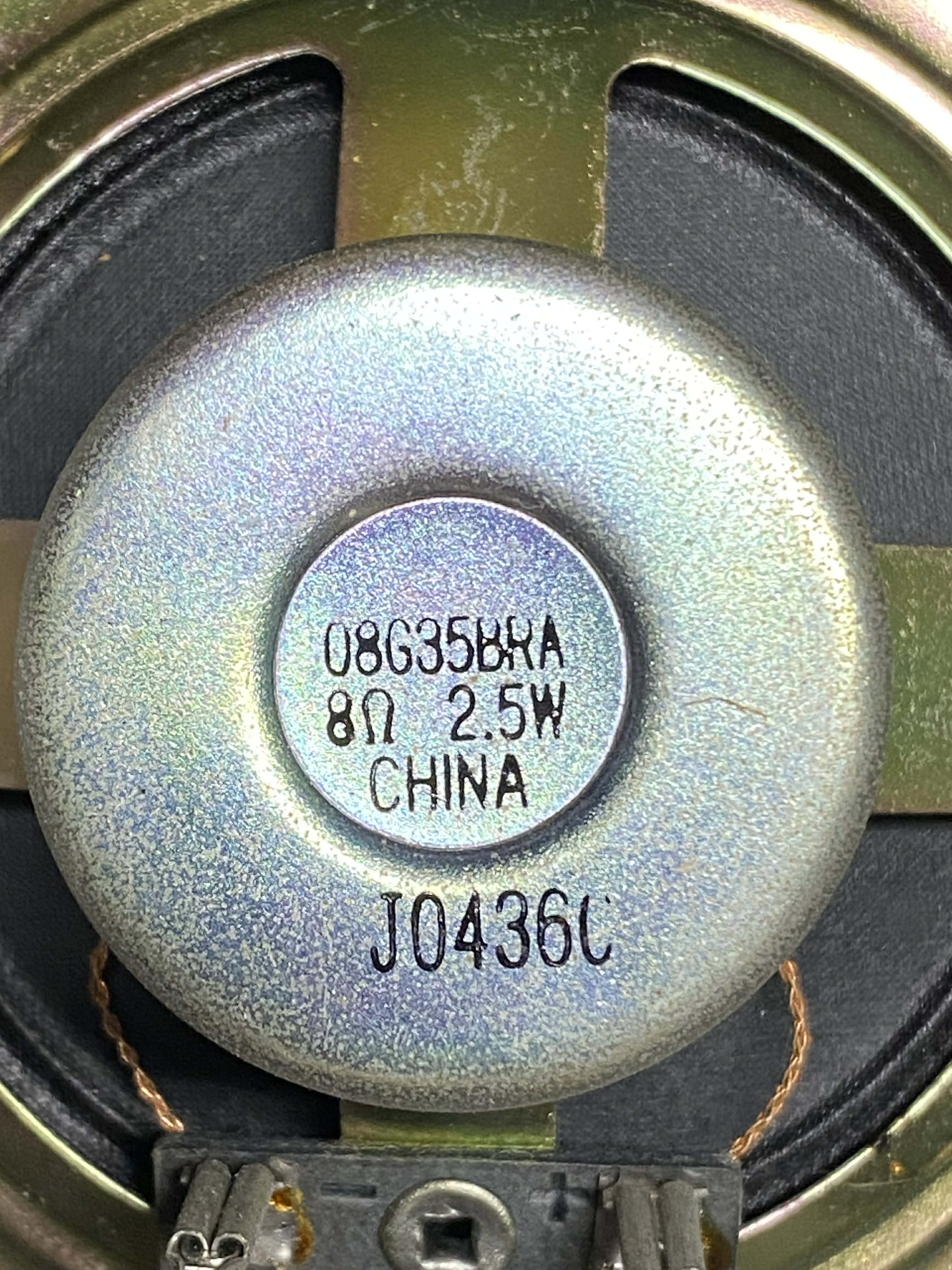

| Speakers: | Mono, 2.5W x 2, Headphone Jack |

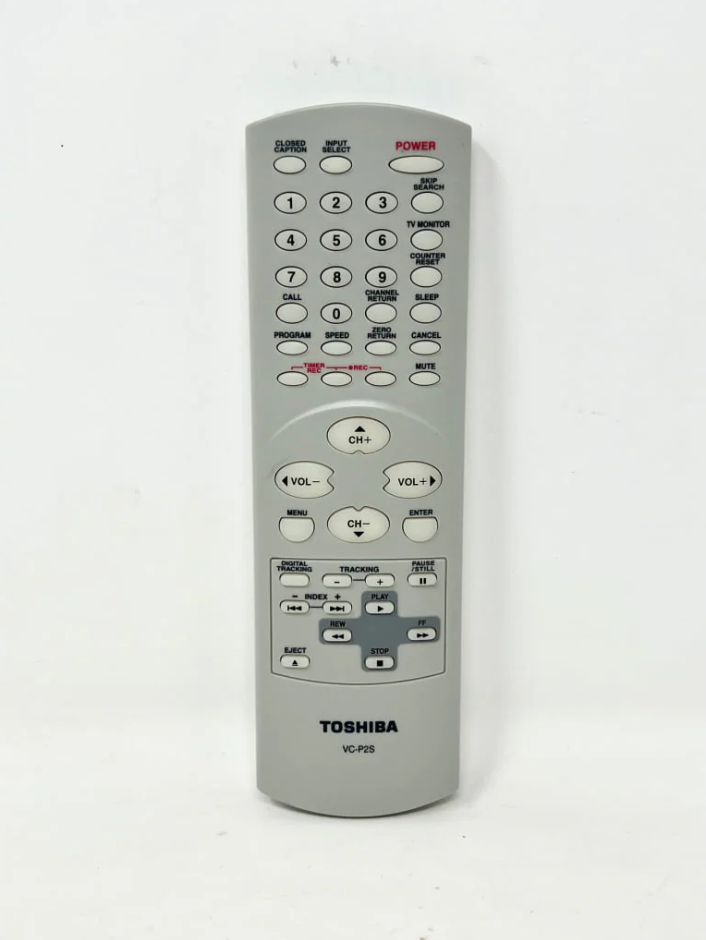

| Remote: | VC-P2S |
| Chassis: | M5L929 |
| Weight: | 48.5 lbs (22 kg) |
| Dimensions (W/H/D): |
502 x 513 x 489 mm
(19.7 x 20.2 x 19.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 179 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
