Summary
20" TV/VCR combo, made by Orion and sold by Toshiba. Includes a front mounted mono AV input. Very similar in style and appearance as the MD20Q41 but his model has a built in VCR as apposed to a DVD player.
Literature
Notes

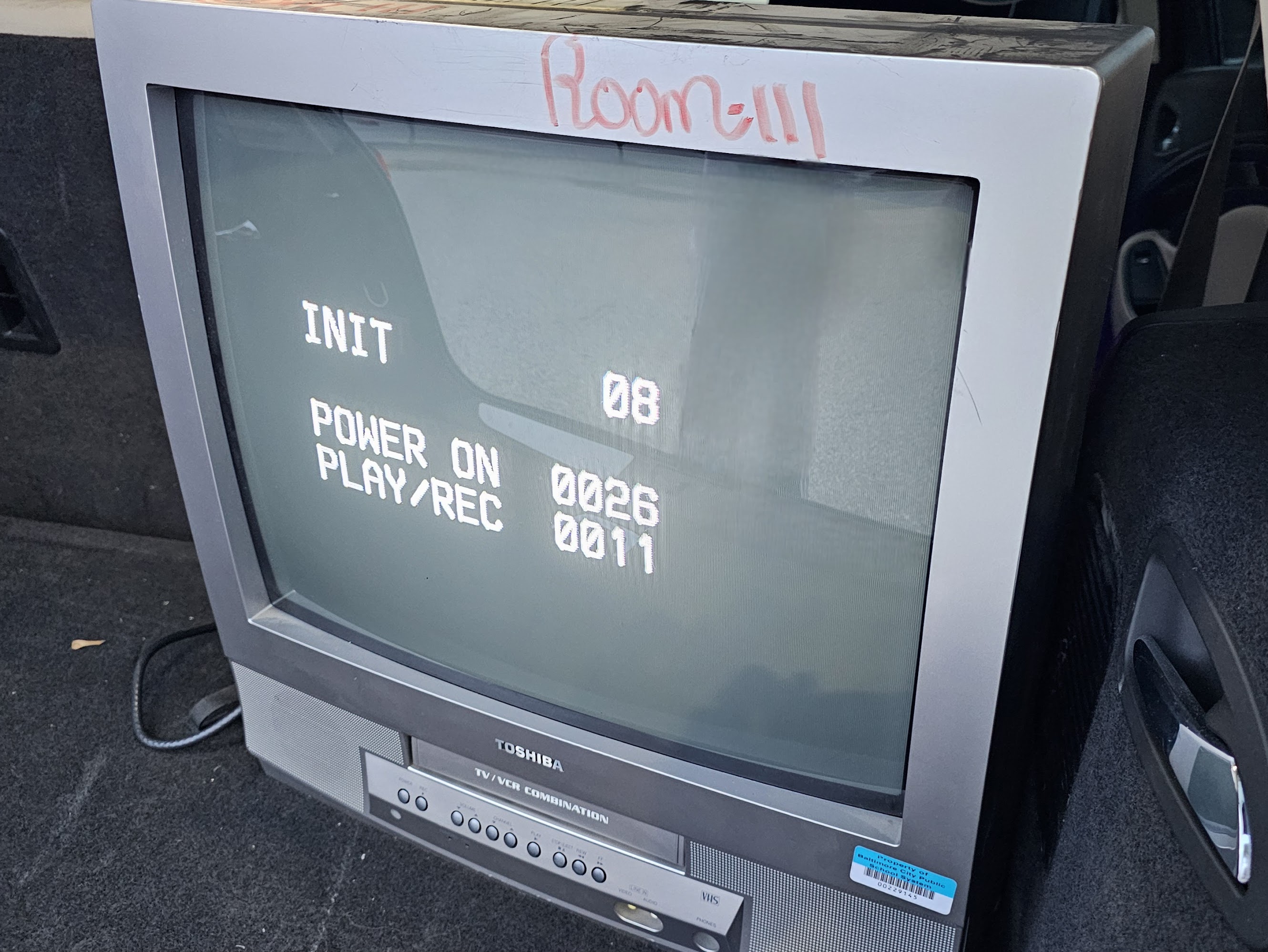

Despite having two speakers, this TV only has mono audio. The speakers are wired in parallel and it has a single channel audio amp. Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MV20Q41 |
| Series: | MV |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | Orion |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Mono |
| Weight: | 48.5 lbs (22 kg) |
| Dimensions (W/H/D): |
502 x 513 x 489 mm
(19.7 x 20.2 x 19.2") |
| Application: | Consumer |
| Launched: | 2004 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
