Summary

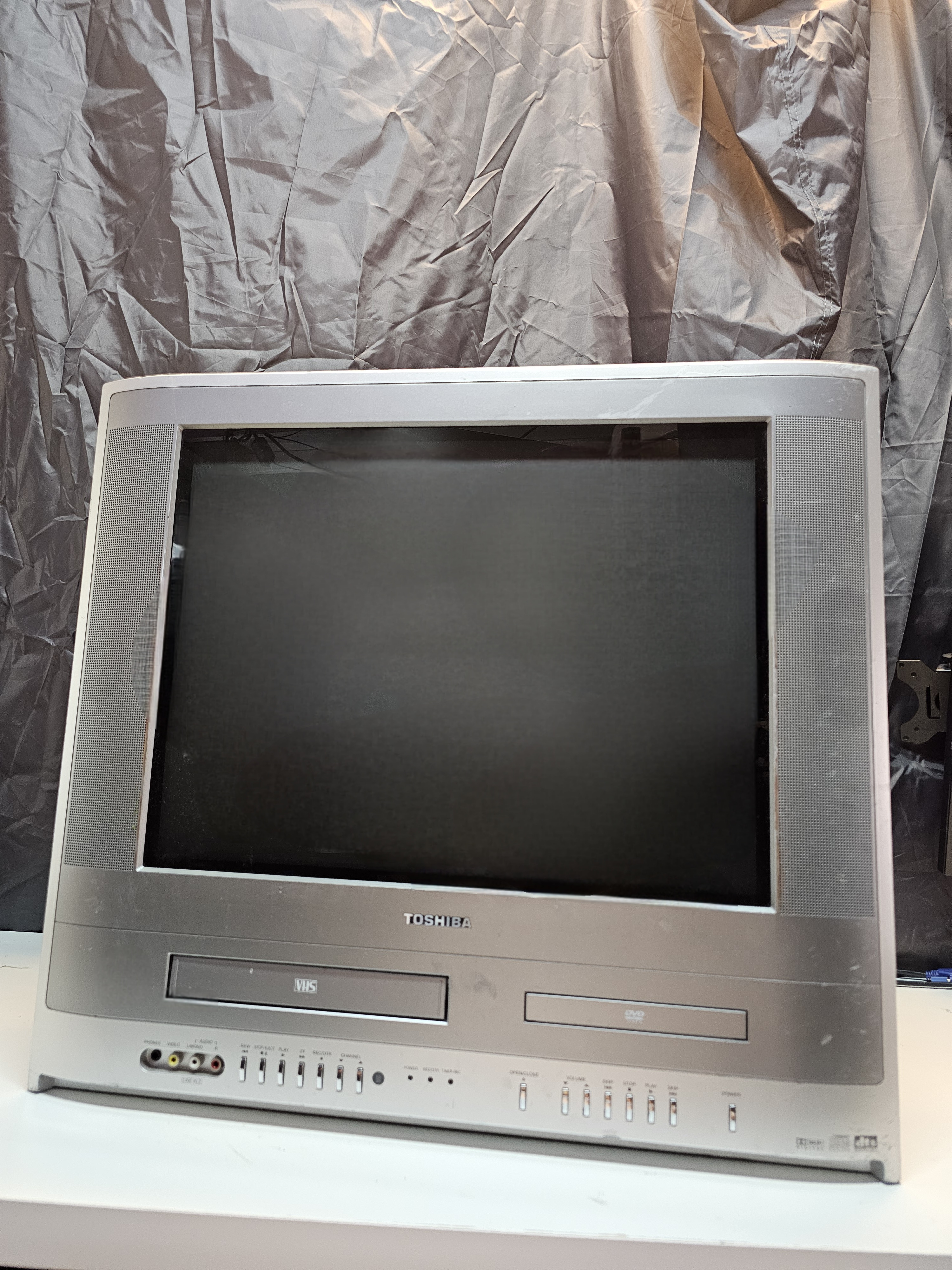

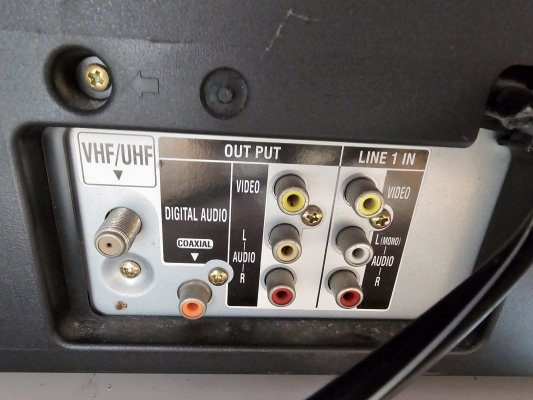

20" TV/VCR/DVD combo made by Orion. Includes two stereo AV inputs, and one set of outputs.
Manuals

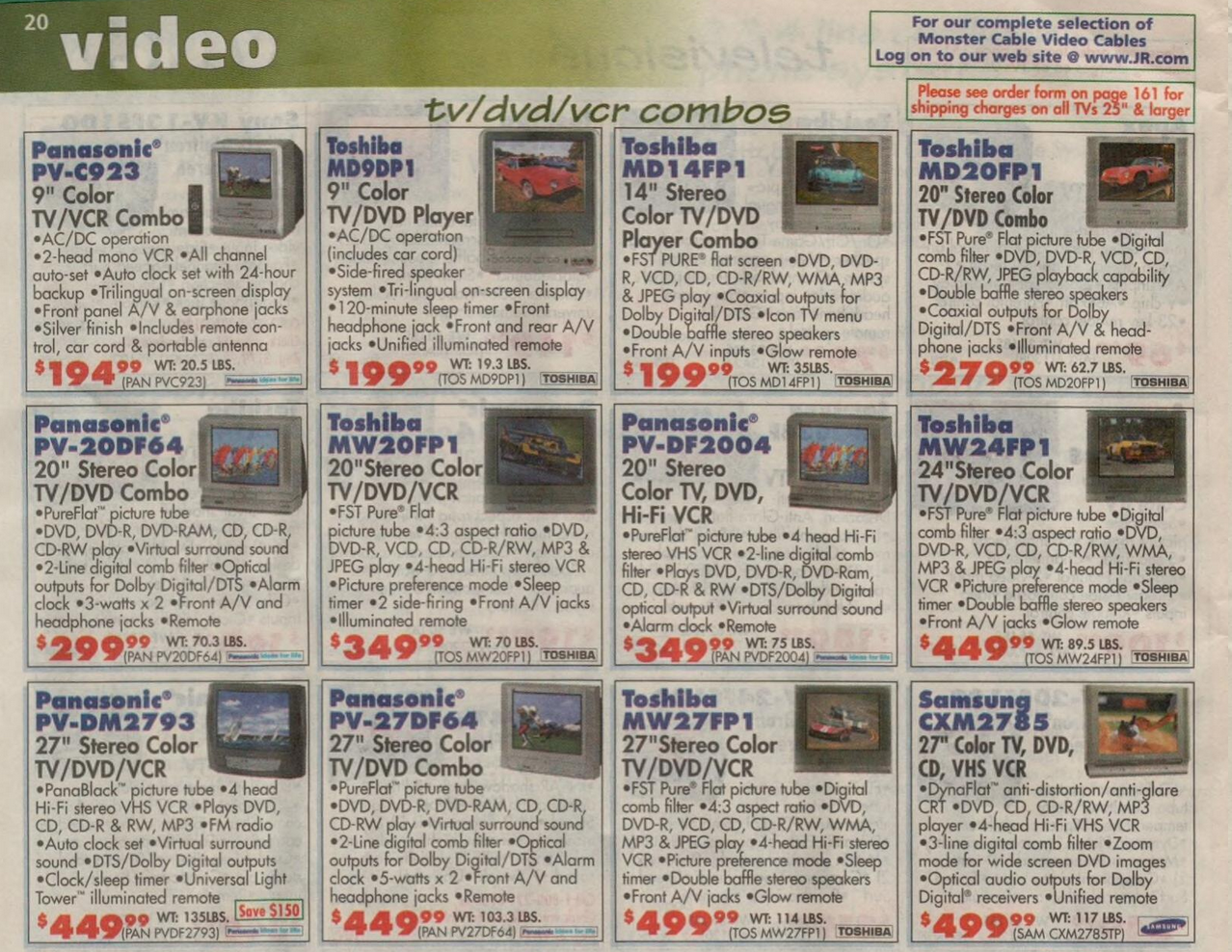

Media & Promo Materials
Notes
Like many Orion made sets from this time, this TV includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the TV.

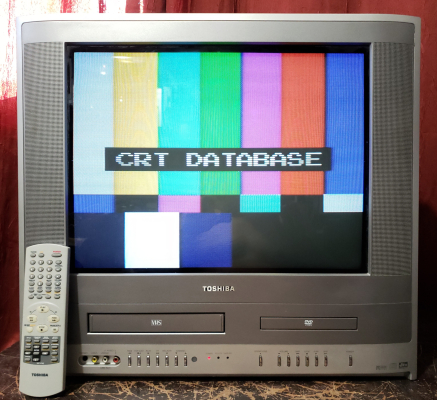

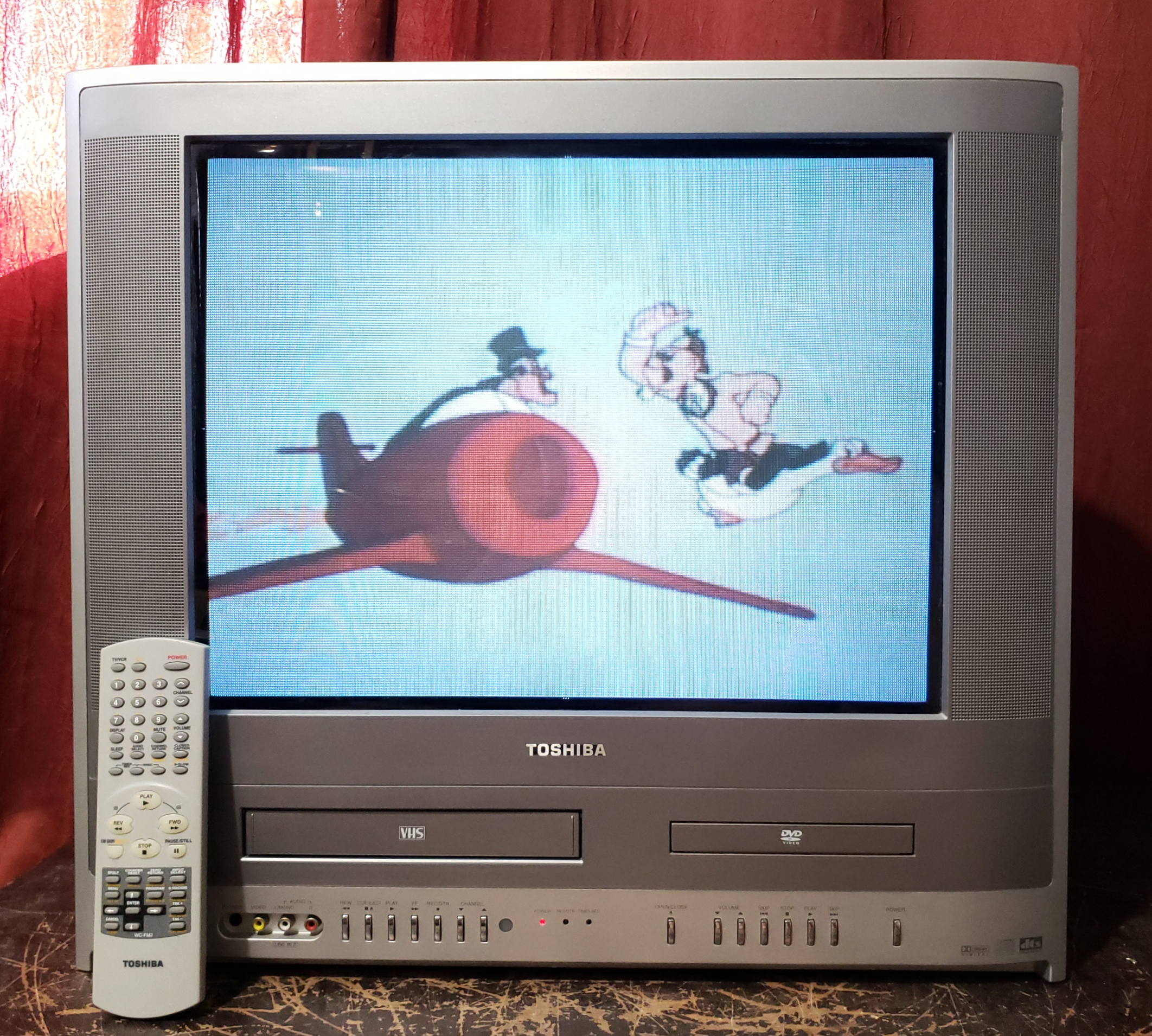

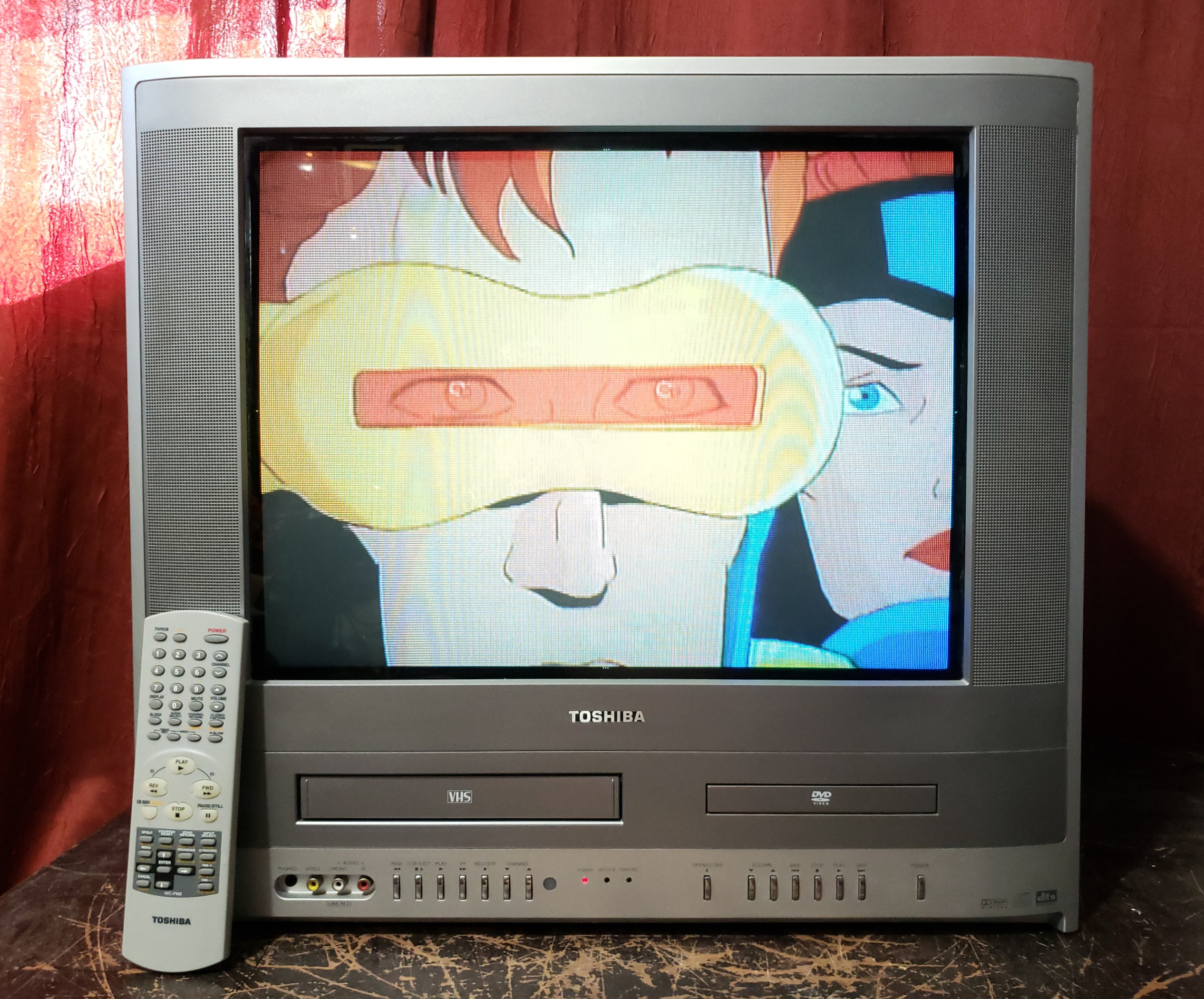

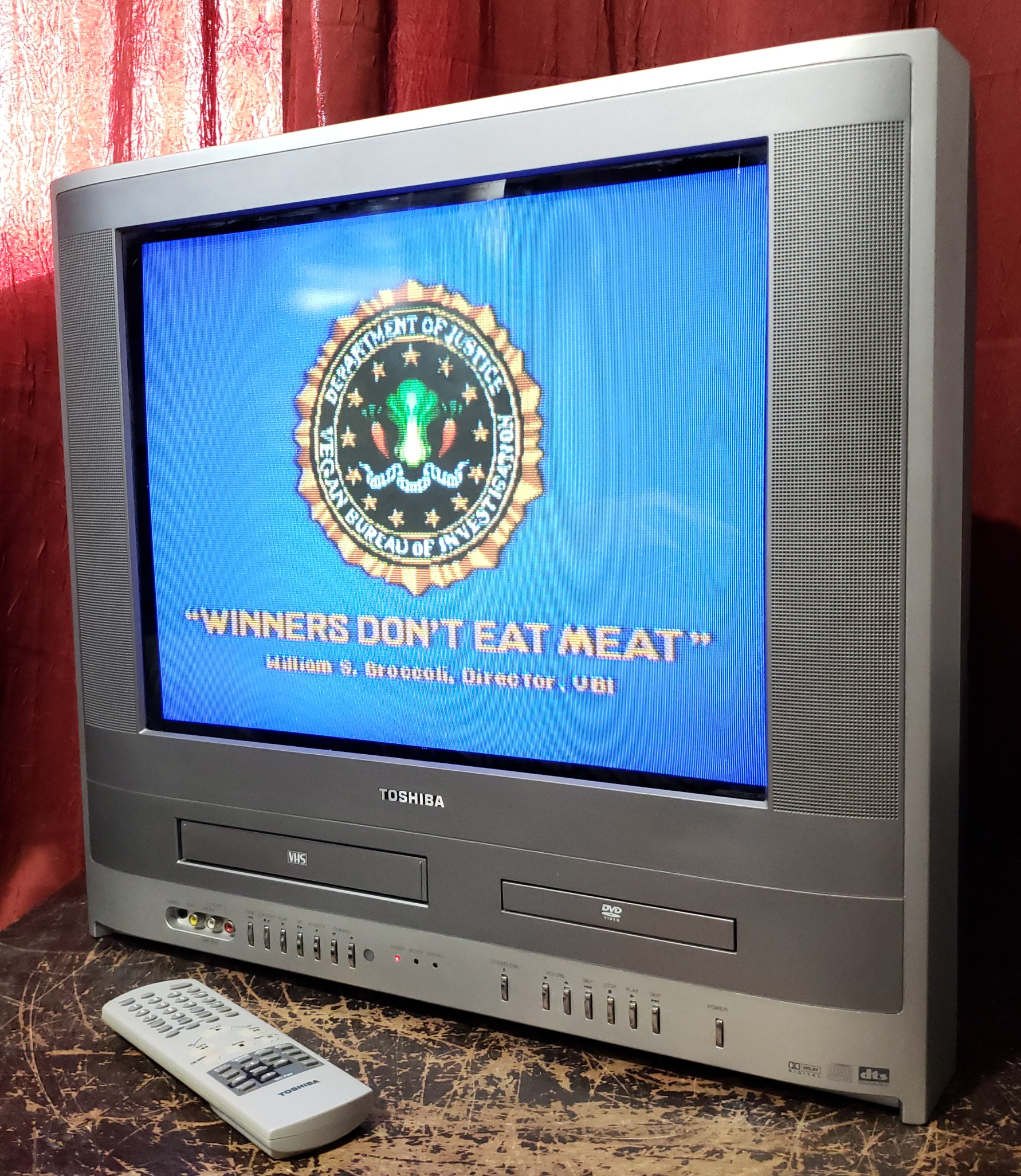

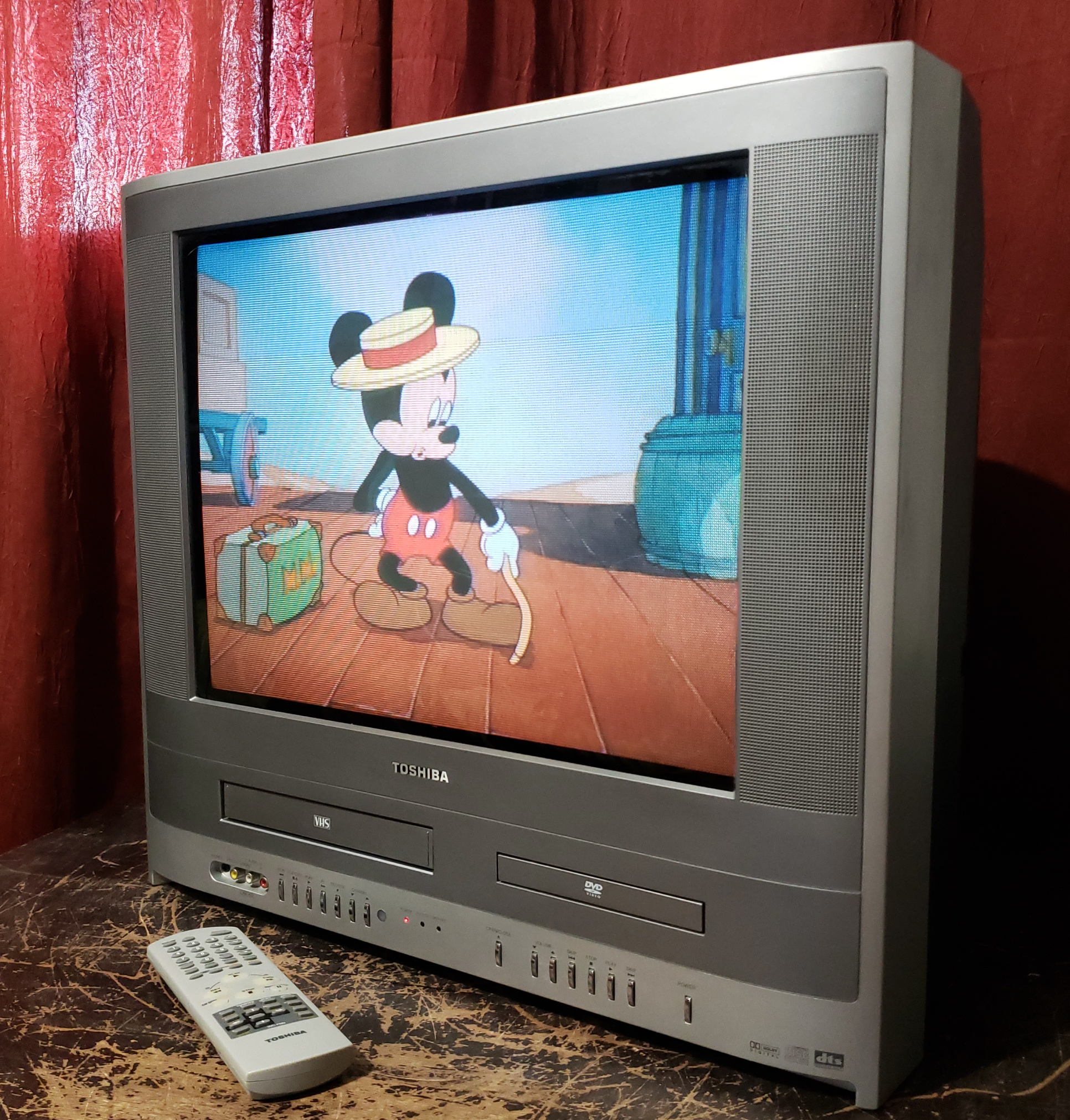

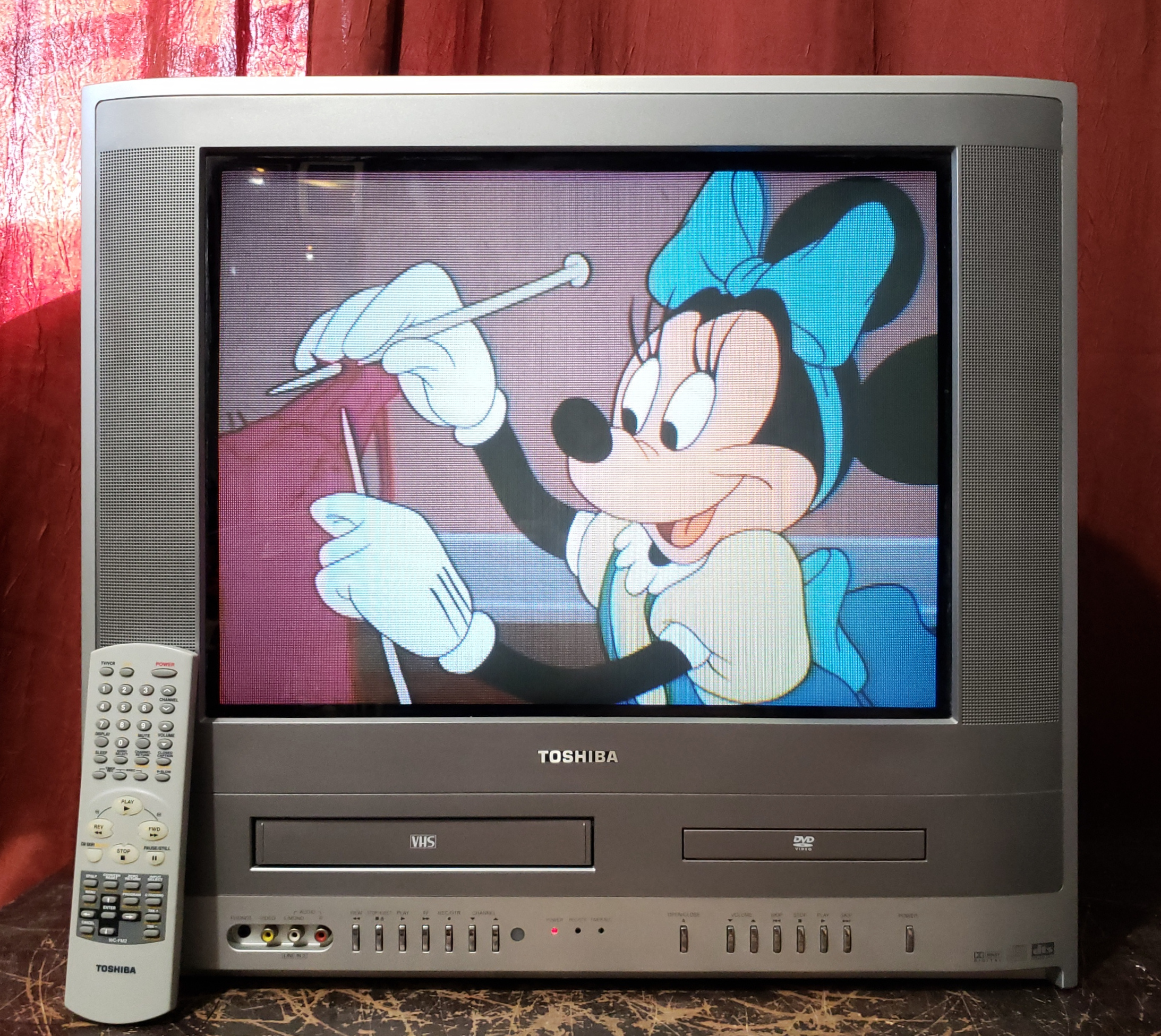

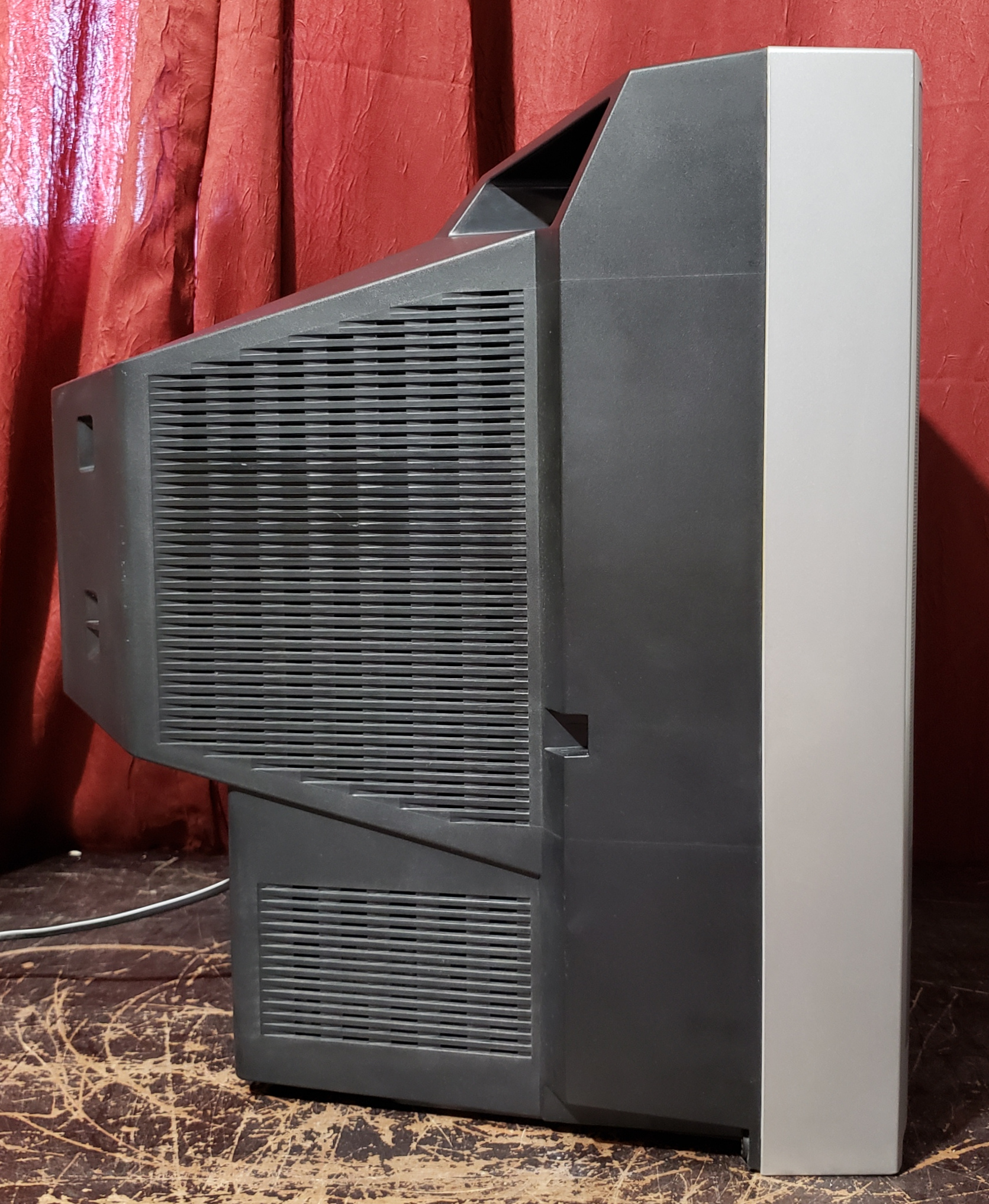

Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |

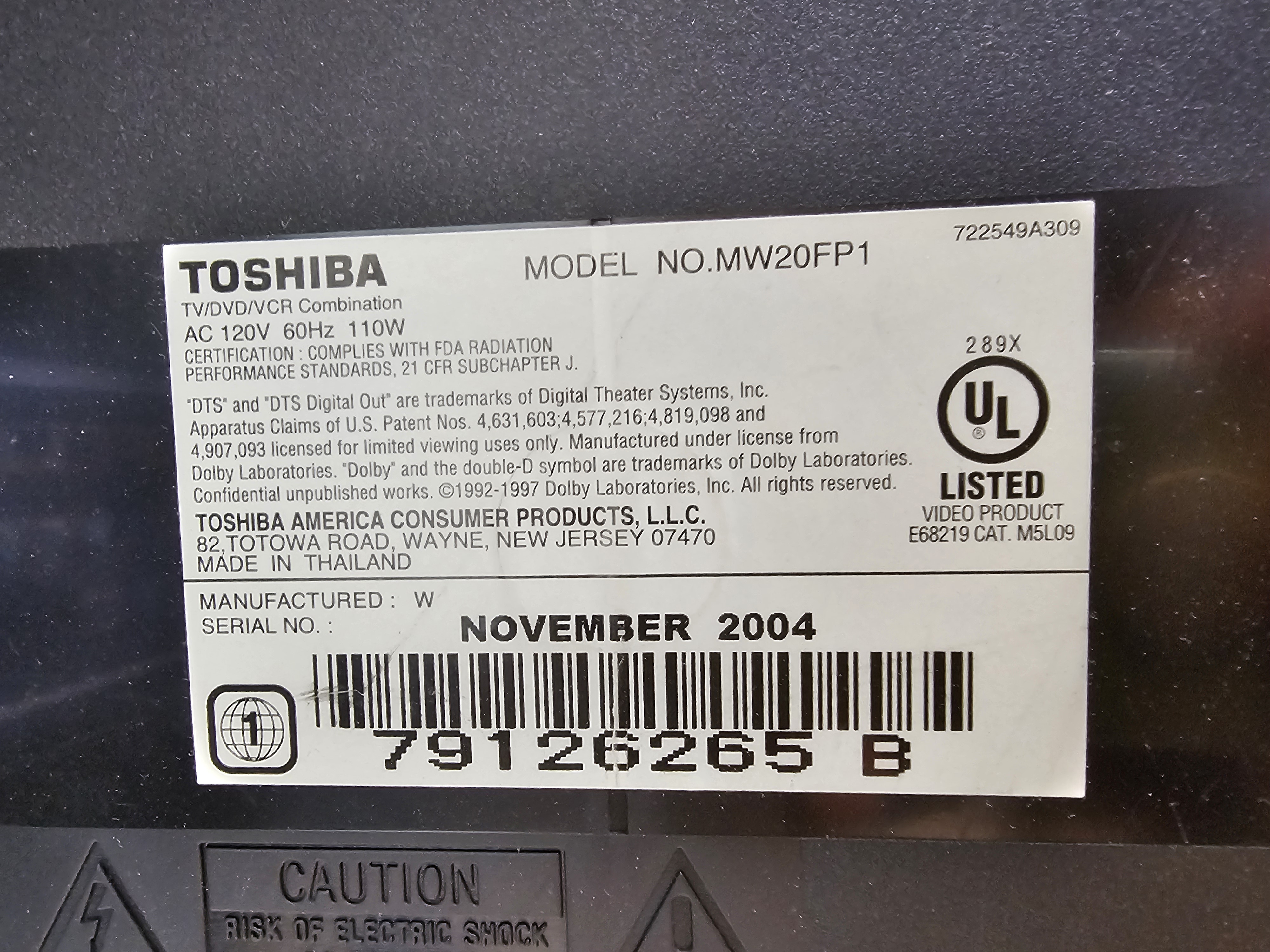

| Model: | MW20FP1 |
| Series: | MW |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2638 |
| Vertical Output IC: | LA78041 |
| Jungle: | LA76324M |
| Comb Filtering: | 3-Line Digital |

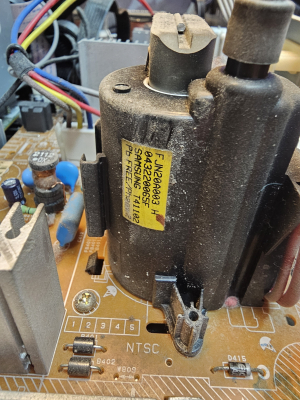

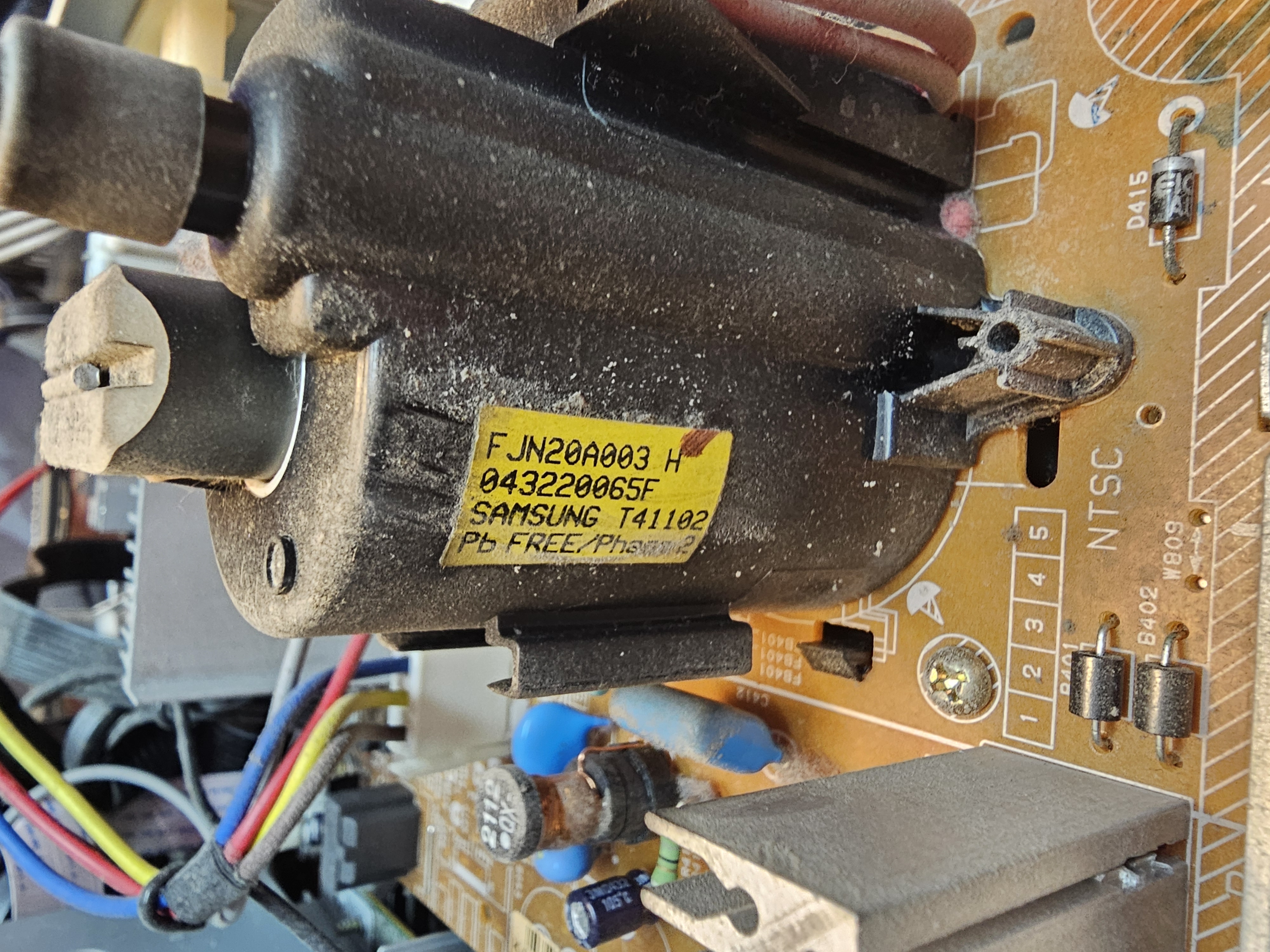

| Flyback: | Samsung, FJN20A003 |

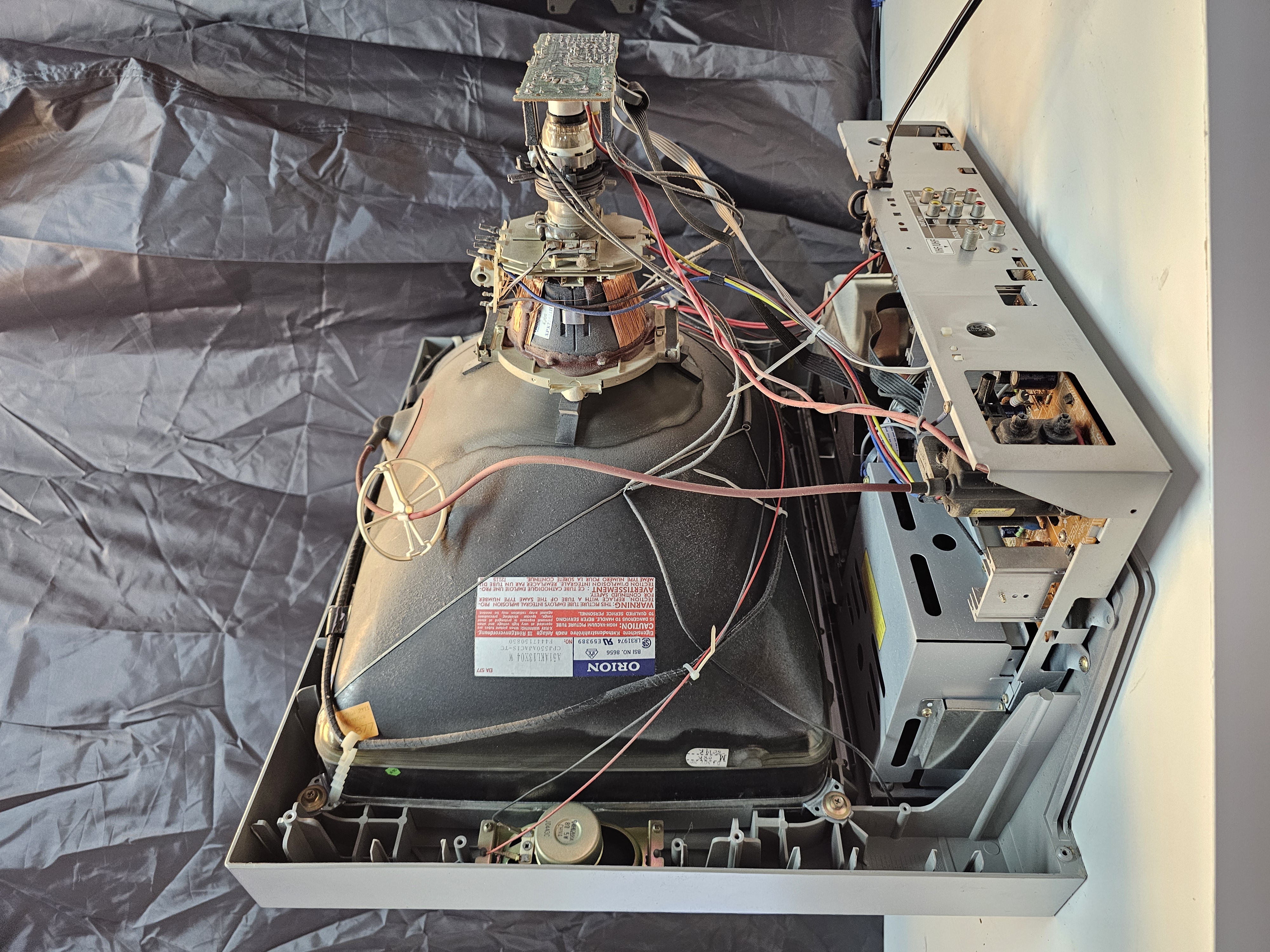

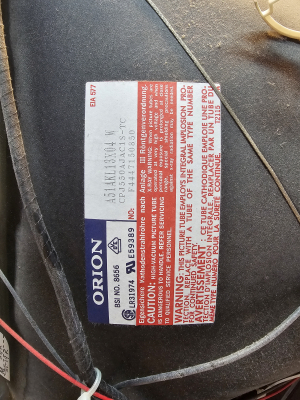

| Tube: | Orion , A51AKL13X04 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

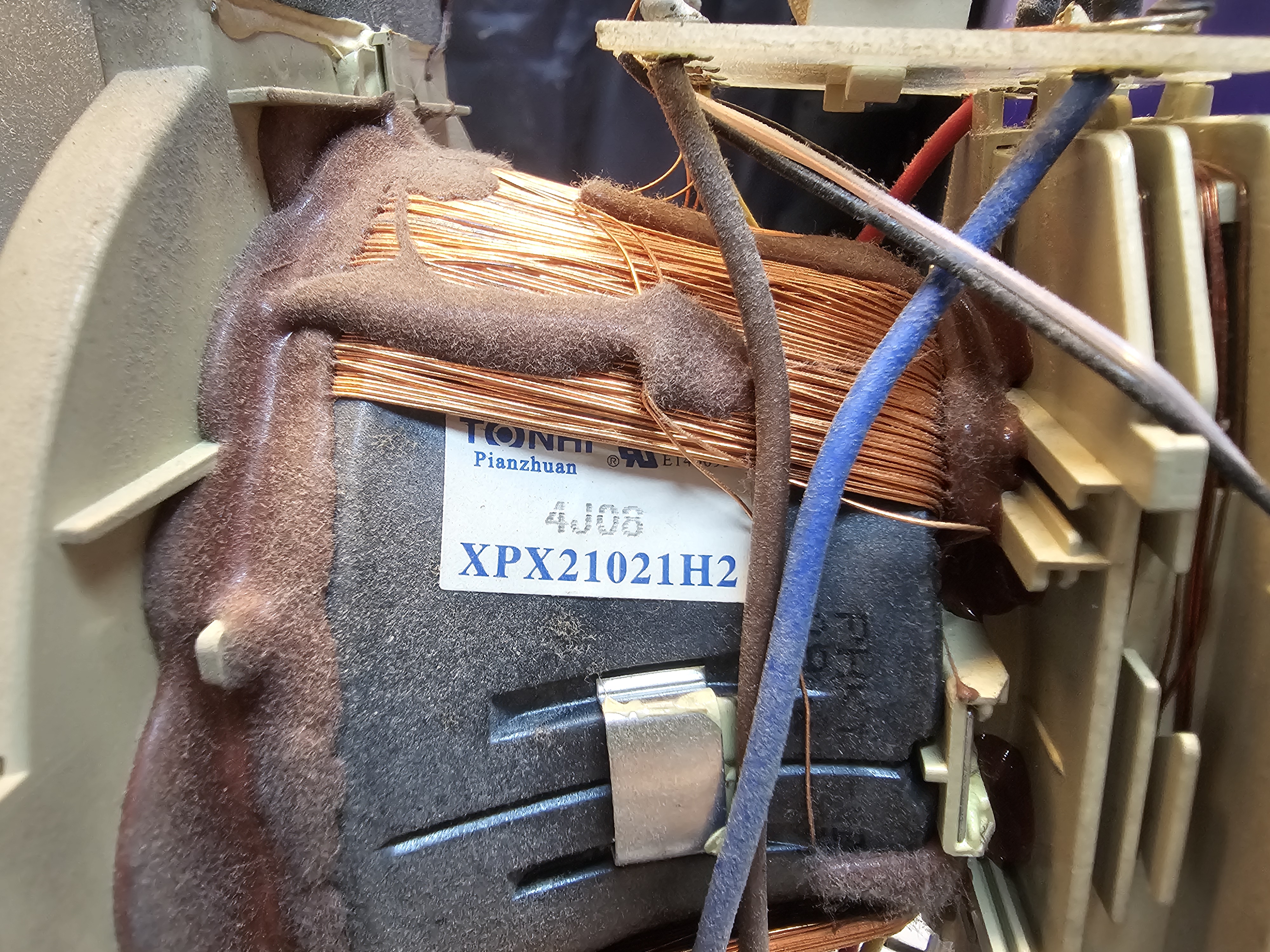

| Yoke: | E59373, XPX2102H2 |
| Yoke Horz. Inductance: | 1.6 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 9.2 mH (@ 100 Hz) |
| Speakers: | Stereo, Headphone Jack |
| Remote: | AD301950 |
| Weight: | 79.4 lbs (36 kg) |
| Dimensions (W/H/D): |
655 x 580 x 473 mm
(25.7 x 22.8 x 18.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
