Summary
Late model 27" TV/VCR/DVD combo, made by Orion and sold by Toshiba. One of the very few combo units ever made to feature component and S-Video inputs.
Literature
Notes

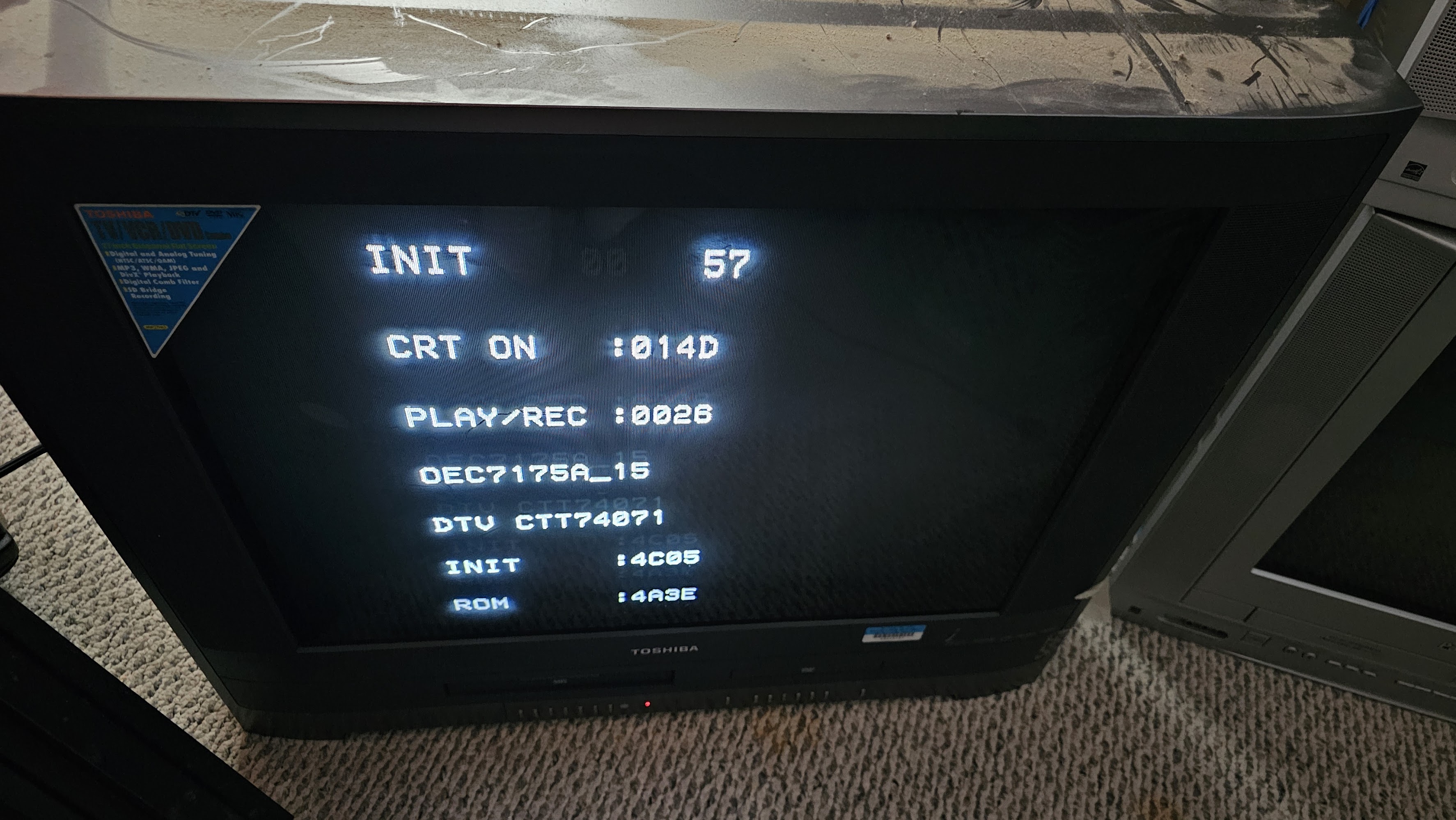

Like many Orion made sets from this time, this tv includes an hour counter. To access it you need to hold down 6 on the remote while pressing the volume down button on the tv. Features an ATSC tuner.
Gallery
| Specifications | |
|---|---|
| Brand: | Toshiba |
| Manufacturer: | Orion |
| Model: | MW27H63 |
| Series: | MW |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | LA76327M-B-MPB-E |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Headphone Jack |
| Weight: | 97 lbs (44 kg) |
| Dimensions (W/H/D): |
740 x 645 x 493 mm
(29.1 x 25.3 x 19.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
