Summary
Multisync presentation monitor from ViewSonic, rebadge of the Panasonic DT-2730MS.
Manuals
Notes
Specs state 64khz upper limit, however it displays up to 69khz with no issues.
On the one unit tested, composite video filtering is poor quality, presenting heavy color artifacts.
Computer Signal Compatibility: 640 x 480 VGA @ 60, 72, 75, 85 Hz non-interlaced 800 x 600 SVGA @ 56, 60, 72, 75, 85 Hz non-interlaced 1024 x 768 @ 60, 70 Hz non-interlaced 1280 x 1024 @ 60 Hz non-interlaced 8514/A, XGA, XGA-2 Macintosh: 640 x 480, 832 x 624, 1024 x 768
Bandwidth: RGB: 40 MHz; Video: 6 MHz

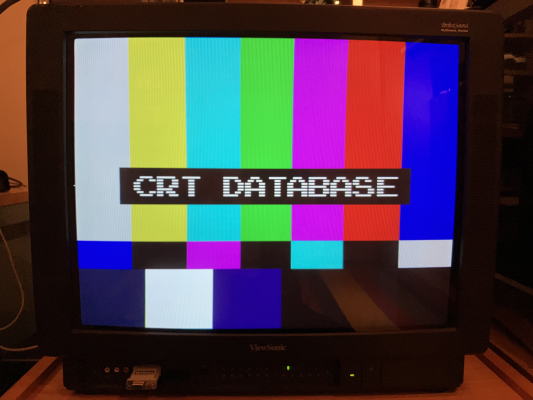

Gallery
| Specifications | |
|---|---|
| Brand: | ViewSonic |
| Manufacturer: | Panasonic |
| Model: | 2964GA-1 |
| Series: | Graphics Series |
| Viewable Size: | 27" |
| Inputs: | VGA, Composite, S-Video |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Native Resolutions: | VGA, SVGA, XGA, 240p, 480i, XGA (Interlaced) |
| Linecount: | 600 TVL |
| Horizontal Scan Range: | 69 kHz, 15 kHz |
| Vertical Scan Range: | 160 Hz, 45 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Front Mounted Buttons |
| Focus Type: | Dual |
| Tube: | A68KZN696X |
| Deflection: | 108° |
| Mask: |
Slot
|
| Pitch: | .8 mm, 0.8 mm |
| Tint: | Light |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | PQF9227011 |
| Chassis: | KMK-22901 |
| Weight: | 127.6 lbs (57.9 kg) |
| Dimensions (W/H/D): |
678 x 565 x 530 mm
(26.6 x 22.2 x 20.8") |
| Application: | Commercial |
| Cabinet Material: | Metal |
| MSRP: | 3995 USD |
| Country of Manufacture: | Japan |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on, Manual |
