Summary

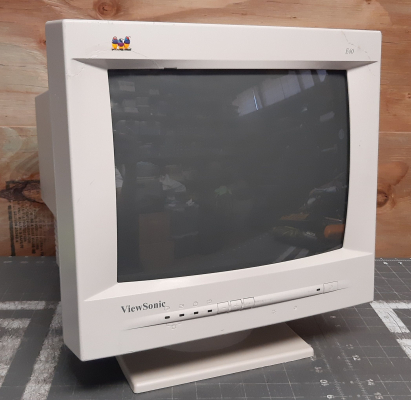

Very basic 14" computer monitor, released in 1999 as a low end budget model. Unlike most monitors from its time, it has no OSD and is missing features common to most PC CRTs such as manual degauss, rotation, and advanced geometry correction. Intended to be used with SVGA (800x600) and has a horizontal refresh rate of 50 kHz.
Literature
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | ViewSonic |
| Manufacturer: | ViewSonic |
| Model: | E40 |
| Series: | E |
| Viewable Size: | 13" |
| Inputs: | VGA |
| Sync: | HV Sync |
| Resolutions: | VGA, SVGA, XGA |
| Horizontal Scan Range: | 30 kHz, 50 kHz |
| Vertical Scan Range: | 50 Hz, 90 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Flyback: | 39L2029AZ |
| Tube: | Chunghwa , M34AFA83X16 , M34AFA83X |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm |
| Tint: | Dark |
| Yoke: | JKY-4602 |
| Yoke Horz. Inductance: | 0.396 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 7.297 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.9 ohm |
| Yoke Vert. Resistance: | 8.6 ohm |
| Speakers: | None |
| Weight: | 25.1 lbs (11 kg) |
| Application: | Computer Monitor |
| Launched: | 1999 |
| Country of Manufacture: | Malaysia |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
