ViewSonic E655 (VCDTS21378-2M)
Matt Ross
May 26, 2024, 4:13 am
January 16, 2025, 11:33 pm
May 26, 2024, 4:13 am
January 16, 2025, 11:33 pm
Summary
Mid-range 15" PC monitor from Viewsonic. Capable of a 65 kHz horizontal scan rate, which is quite good for its size. Similar to the Viewsonic E55.
Manuals
- User Manual
- Service Manual Year marked in manual matches FCC certification, but may be inaccurate.
Notes
Several variants of the E655 were produced. This model, VCDTS21378-2M, was an earlier variant and has a different front button layout and OSD than later versions.

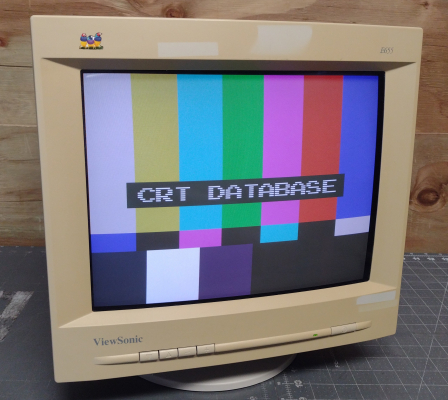

Gallery
| Specifications | |
|---|---|
| Brand: | ViewSonic |
| Manufacturer: | Delta Electronics |
| Model: | E655 |
| Series: | E |
| Viewable Size: | 14" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 65 kHz |
| Vertical Scan Range: | 50 Hz, 100 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Tube: | Philips , M36EDR323X , M36EDR323X131 |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | AT1730/2131F01 |
| Speakers: | None |
| Weight: | 26.6 lbs (12.1 kg) |
| Dimensions (W/H/D): |
365 x 368 x 394 mm
(14.3 x 14.5 x 15.5") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Country of Manufacture: | Thailand |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
