Summary
Late model 21" PC monitor from Viewsonic. One of the highest spec shadow mask displays, it has a max horizontal scan rate of 130 kHz. It is a rebrand of the Philips 202P70, with a redesigned case.
Literature
Notes

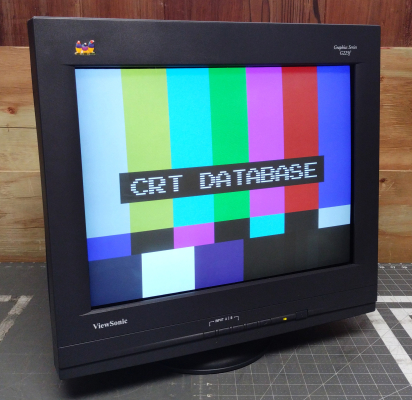

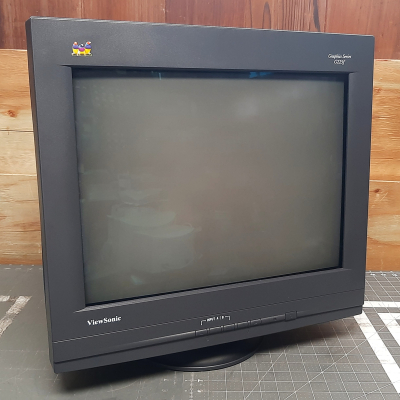

Two color variants were produced. The standard G225f model is a steel gray color, while the G225fb (pictured) is black.
This monitor does have a service menu, and can be calibrated manually without the need for a PC interface (although one does exist). It can be accessed by holding the menu, left, and right buttons simultaneously as the monitor is powered on. Then, in the user menu, scroll all the way down to the bottom bar (which shows model information) and press "menu".
Gallery
| Specifications | |
|---|---|
| Brand: | ViewSonic |
| Manufacturer: | Philips |
| Model: | G225f |
| Series: | Graphics Series |
| Viewable Size: | 20" |

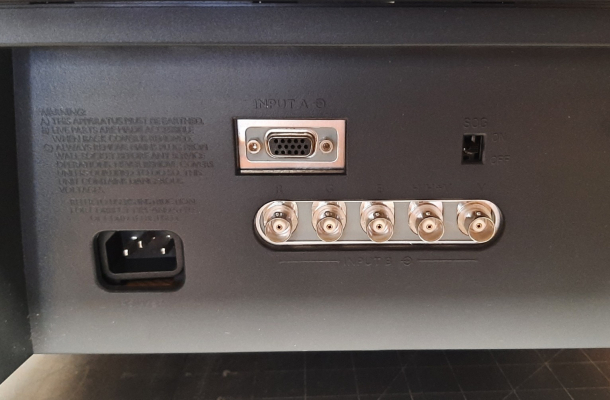

| Inputs: | VGA, BNC |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Native Resolutions: | VGA, SVGA, XGA, SXGA, UXGA, QXGA, QSXGA |
| Horizontal Scan Range: | 30 kHz, 130 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu, Software Calibration |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.25 mm |
| Tint: | Dark, Matte Anti-Glare |
| Speakers: | None |
| Chassis: | P72 |
| Weight: | 58.2 lbs (26 kg) |
| Application: | Computer Monitor |
| Launched: | 2005 |
| Country of Manufacture: | China |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
