Summary

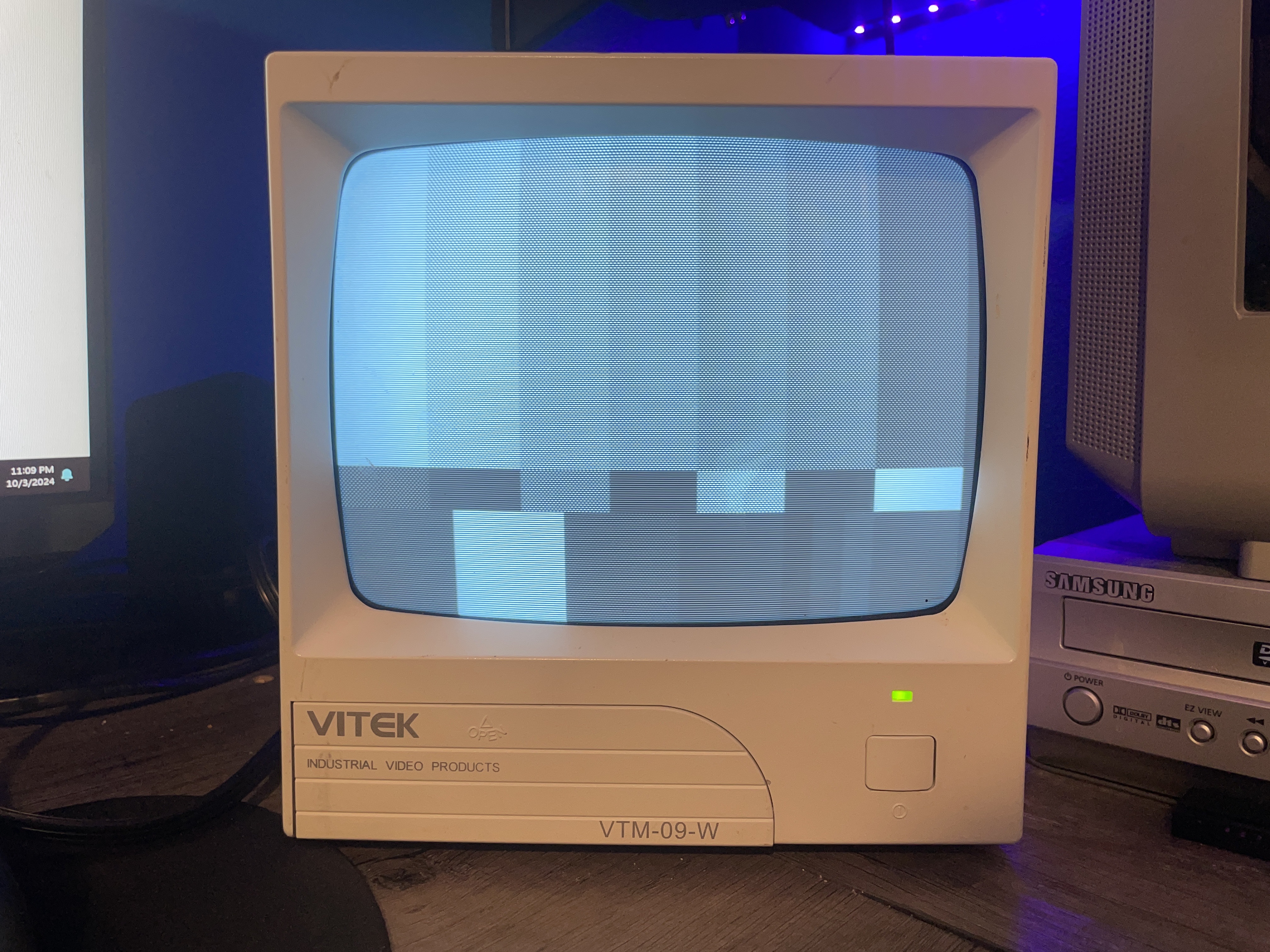

9" CCTV Monitor by Vitek, advertised as 1000TVL, white version. Originally manufactured in Taiwan and launched in 2002.

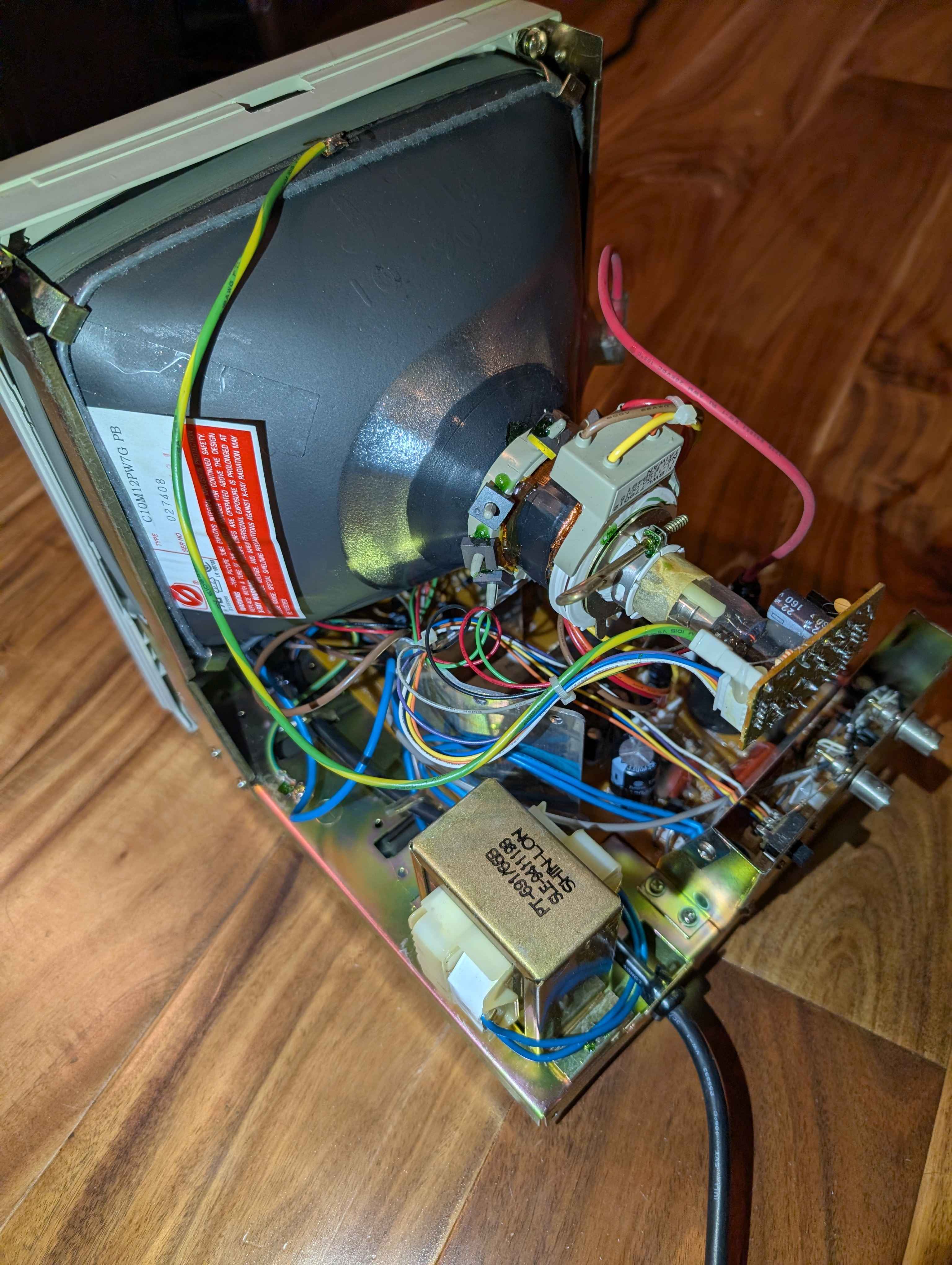

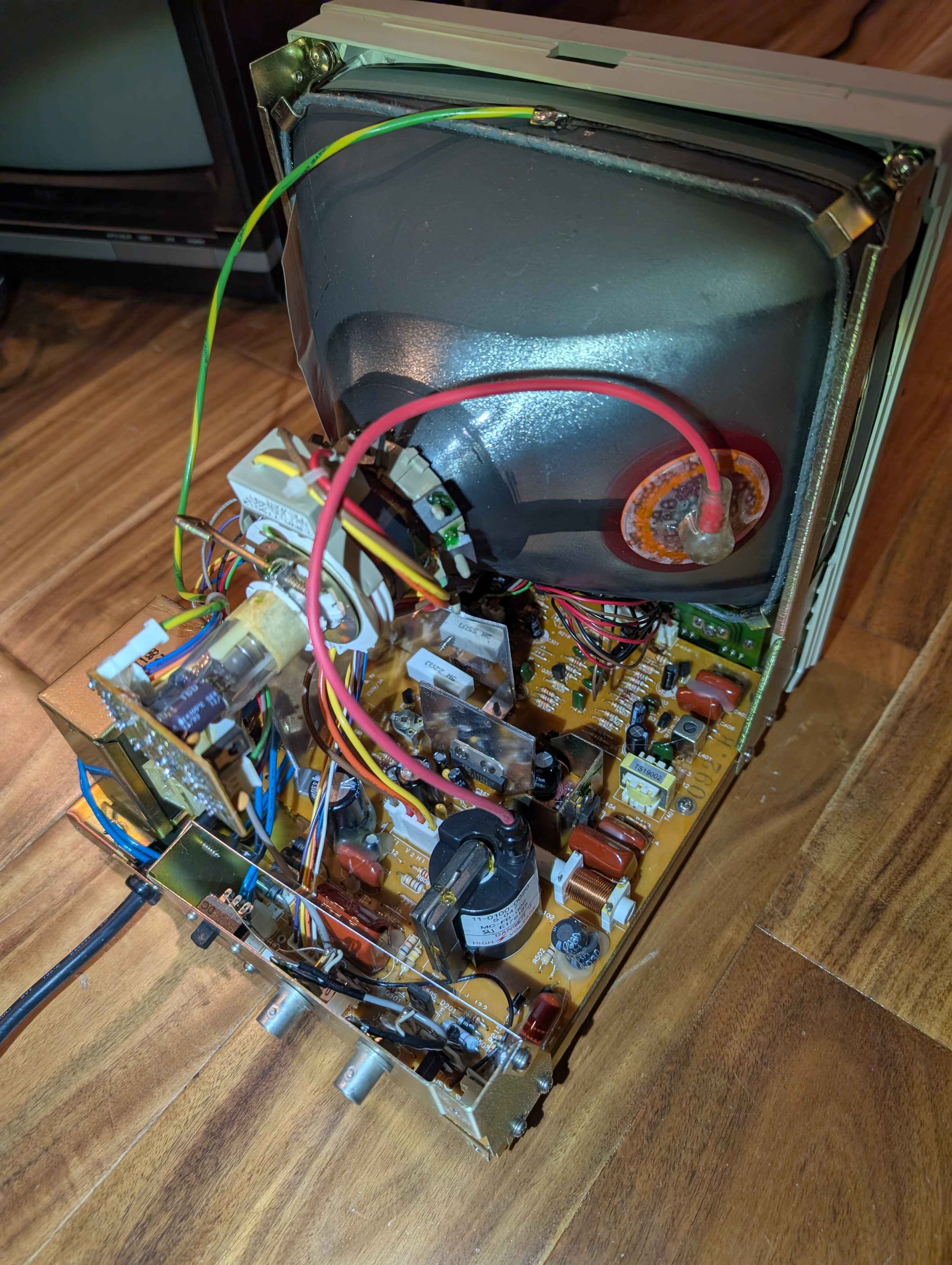

(Special thanks to Zephyr for the internal pics!)

Manuals

Gallery

Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W Vitek VTM-09-W
Specifications
Brand: Vitek
Manufacturer: Vitek
Model: VTM-09-W
Series: VTM
Viewable Size: 9"
Input Signals: Composite
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 50 Hz, 60 Hz
Aspect: 4:3
Adjustments: External Potentiometers, Front Mounted Buttons

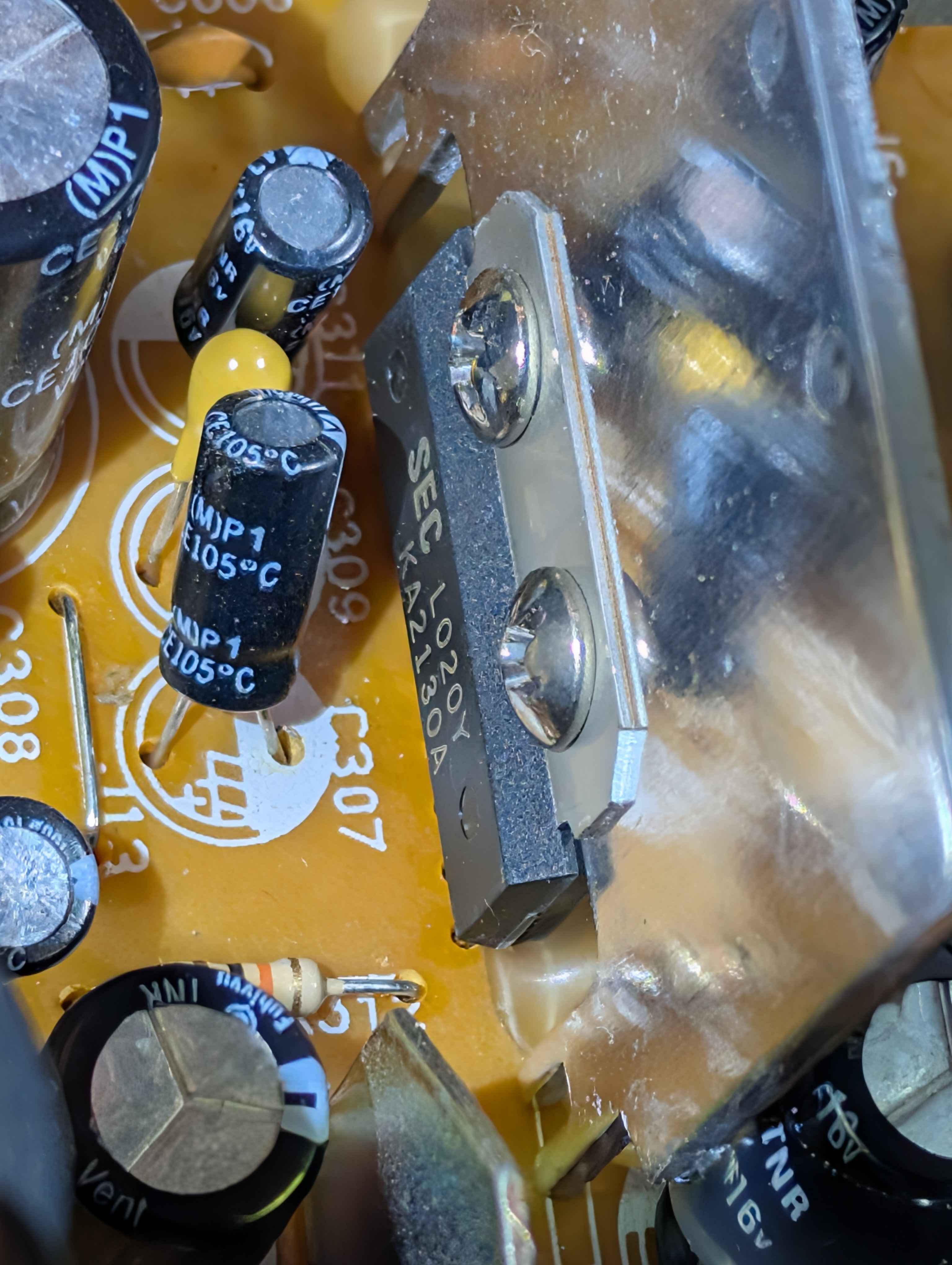

Vertical Output IC: SEC, KA2130A

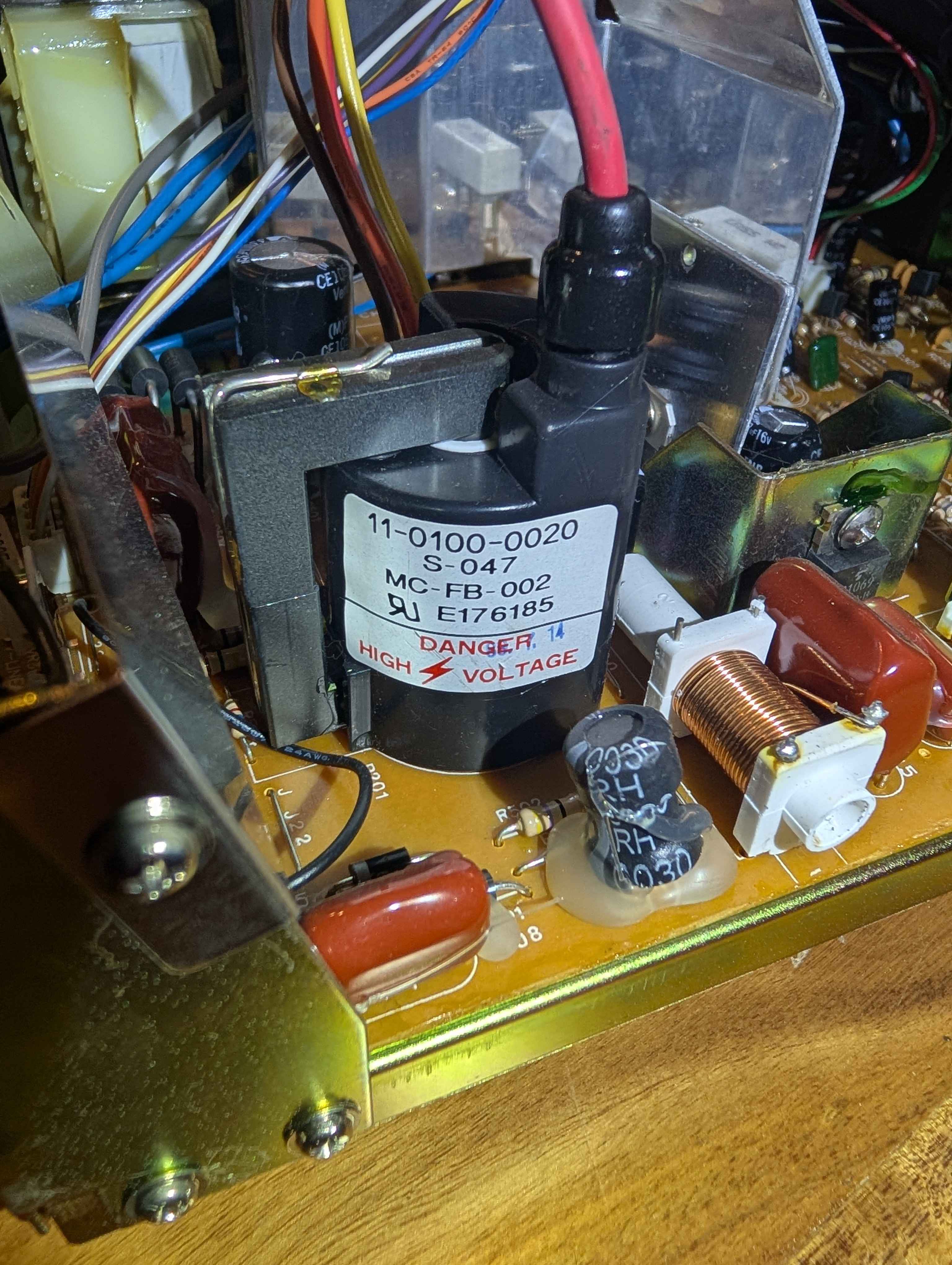

Flyback: 11-0100-0020
Focus Type: Single

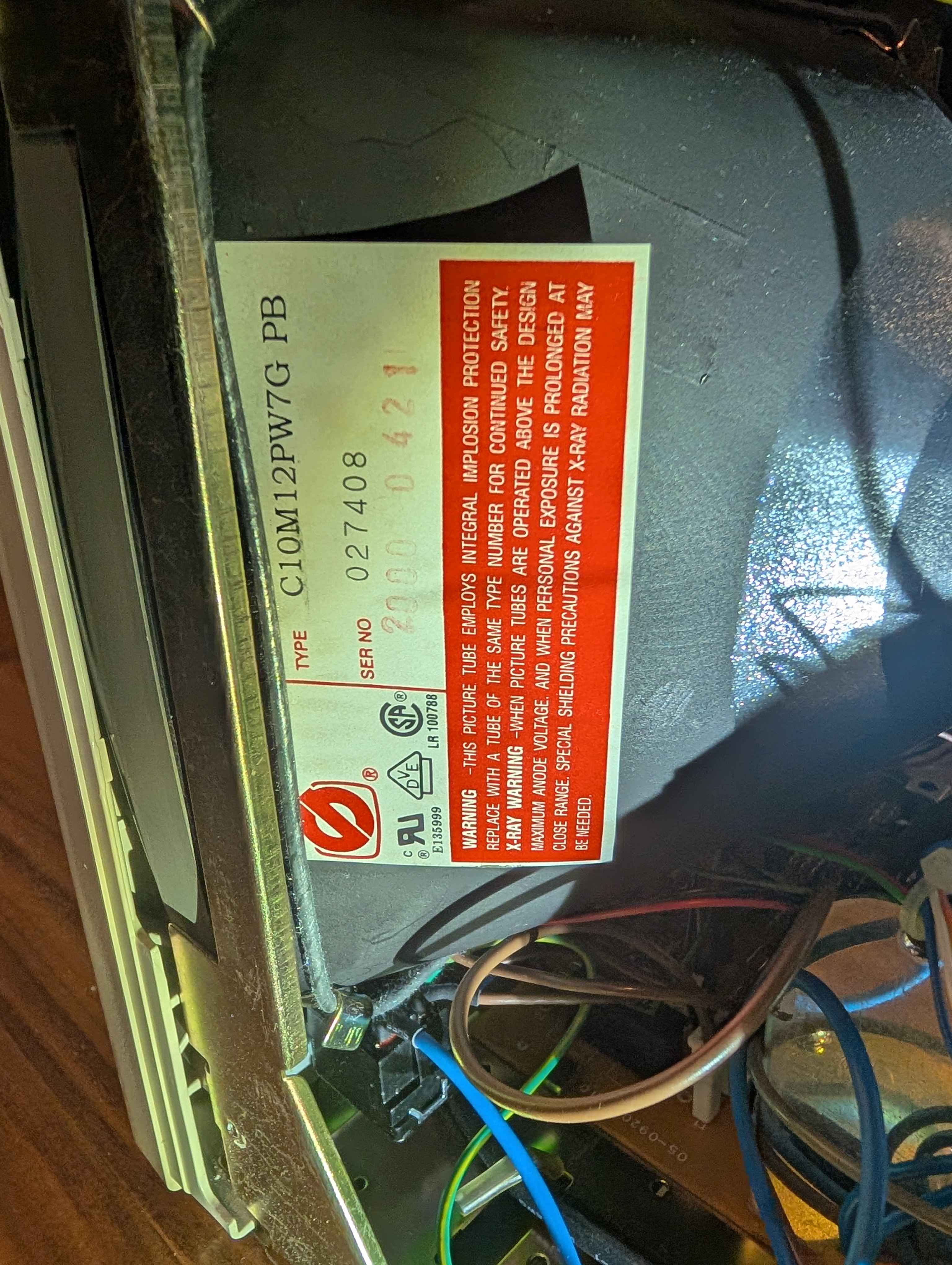

Tube: C10M12PW7G
Mask: Monochrome Tube (no mask)

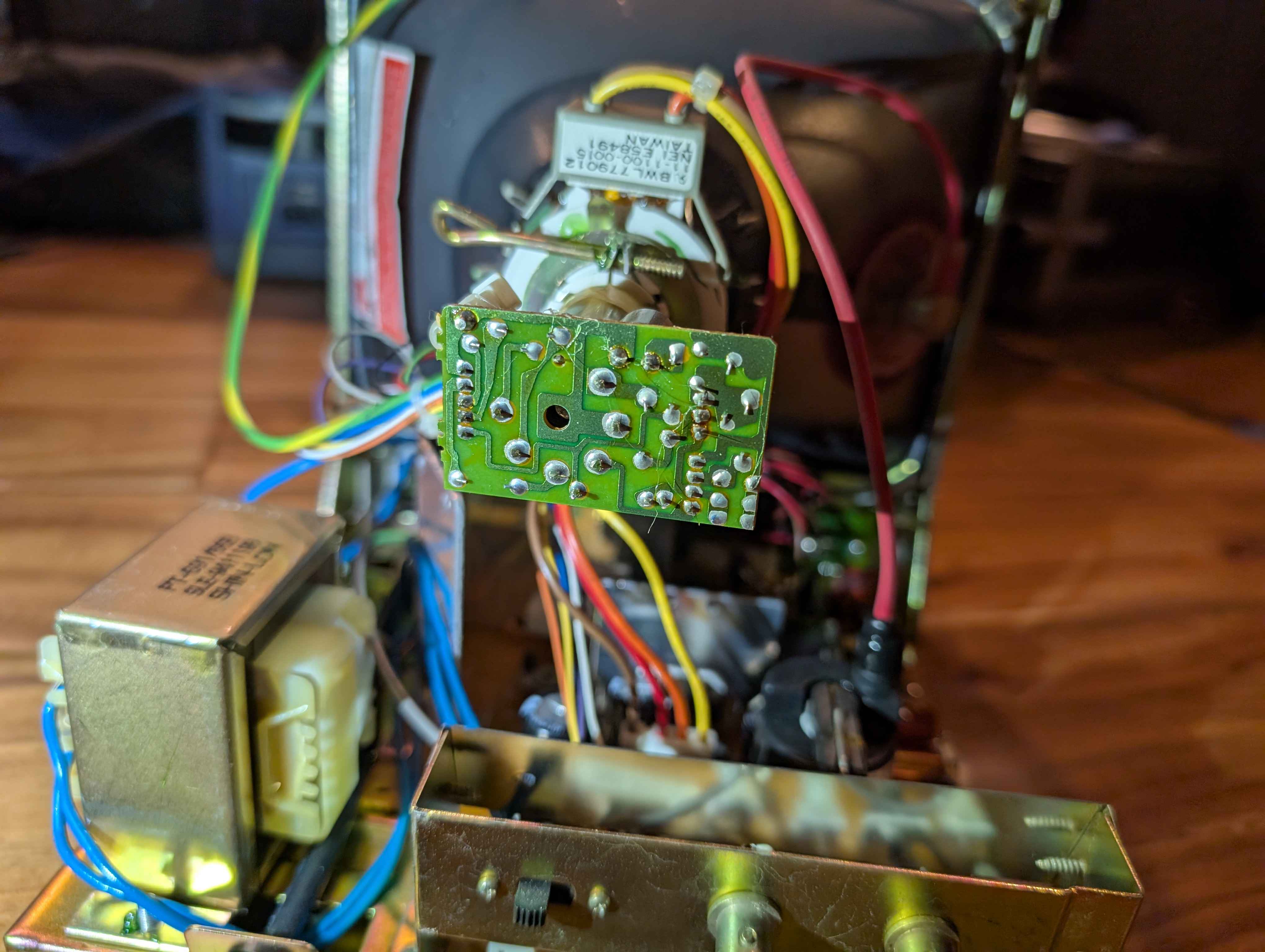

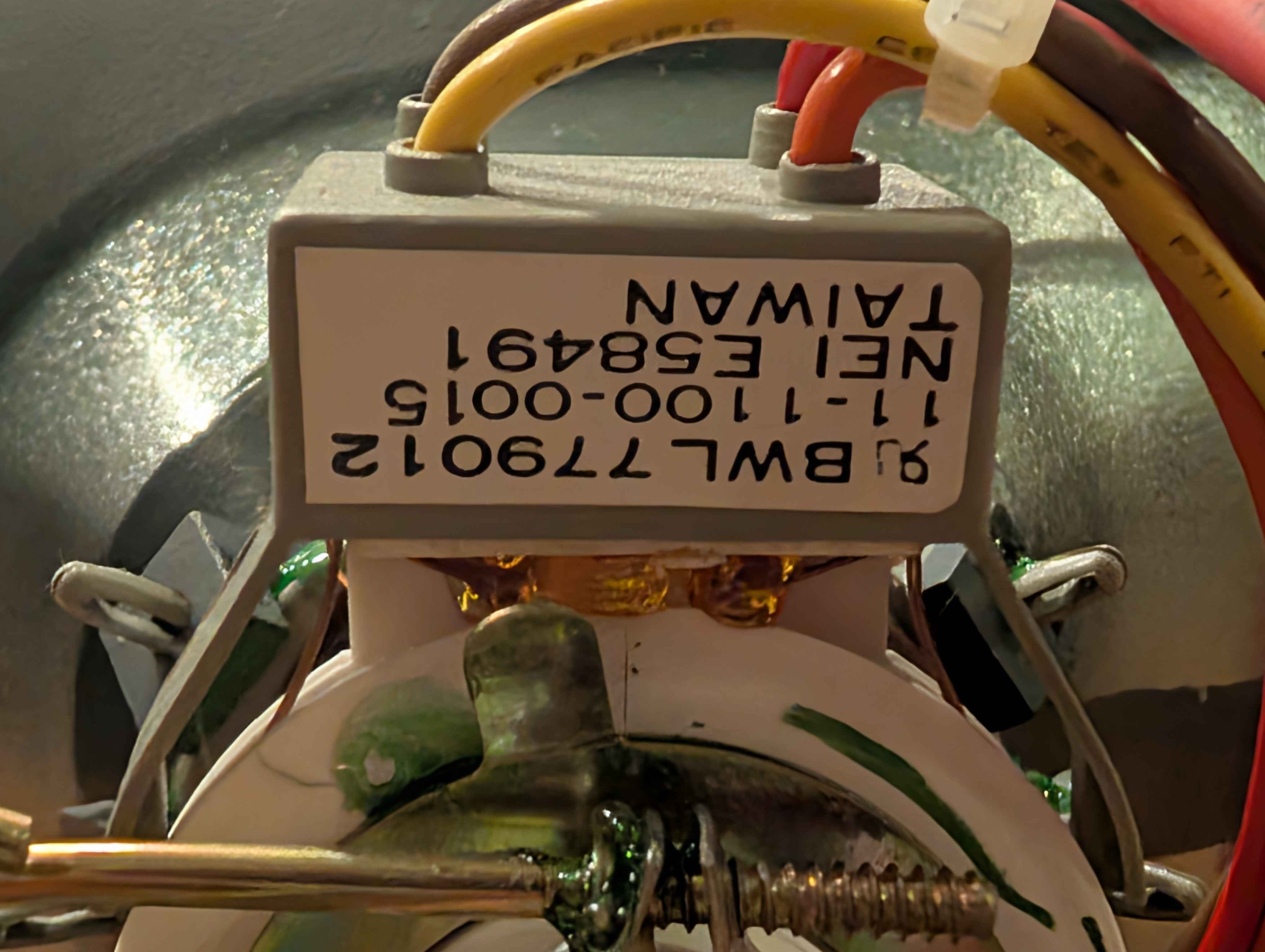

Yoke: BWL779012, 11-1100-0015
Speakers: None
Application: Professional
Cabinet Material: Metal
Launched: 2002
Country of Manufacture: Taiwan
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Tube Info, Community Submission
