Summary
Basic 25" CRT by White-Westinghouse from 1997. Has RF and composite inputs. Originally manufactured by Daewoo in Mexico, and is a rebadge of model DTQ-26S1FC.
Manuals
Notes

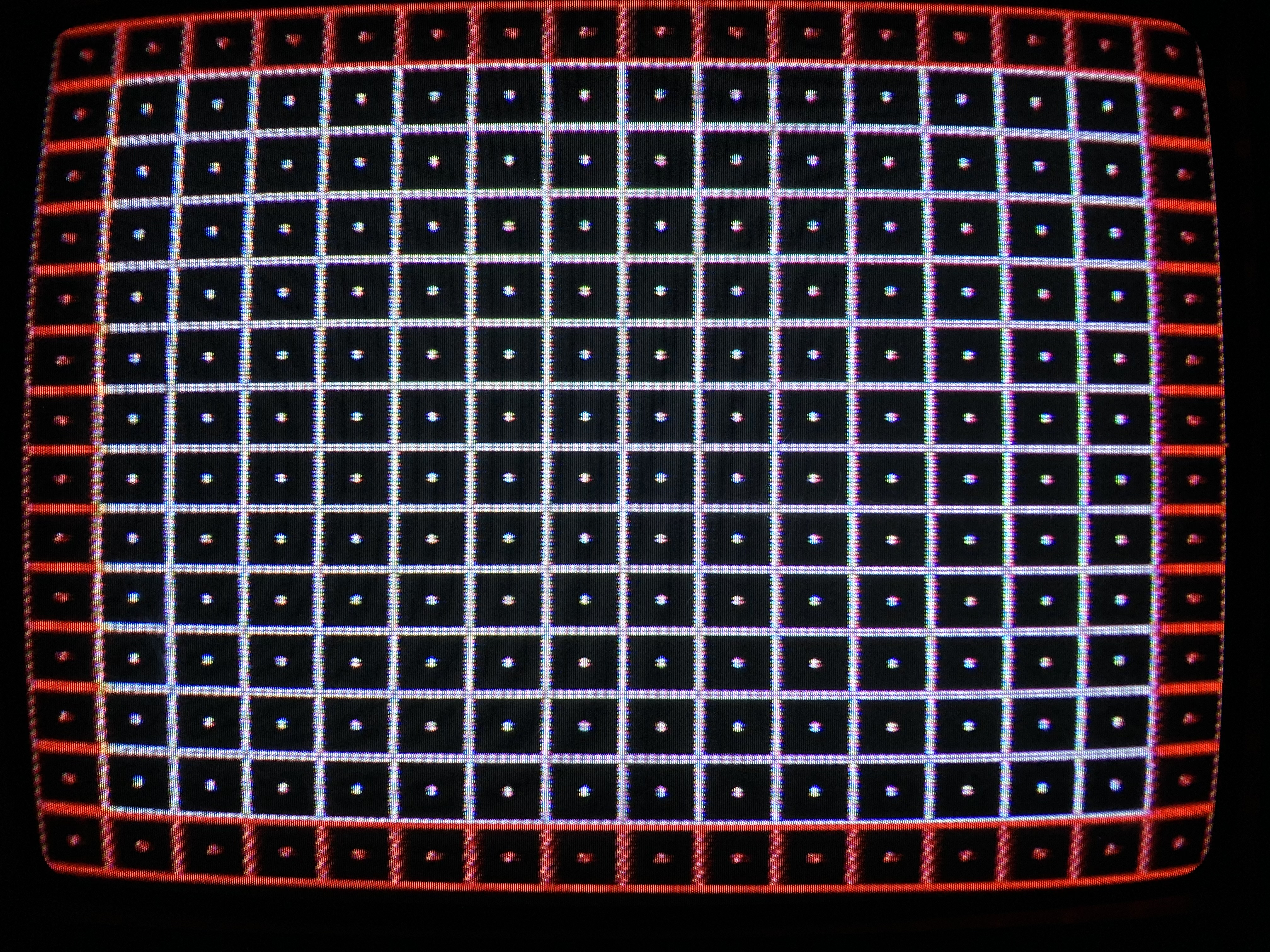

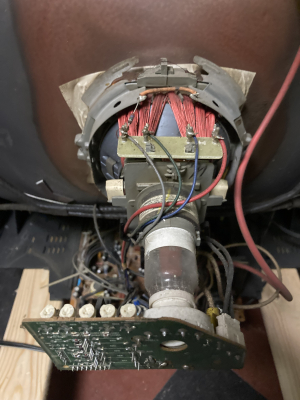

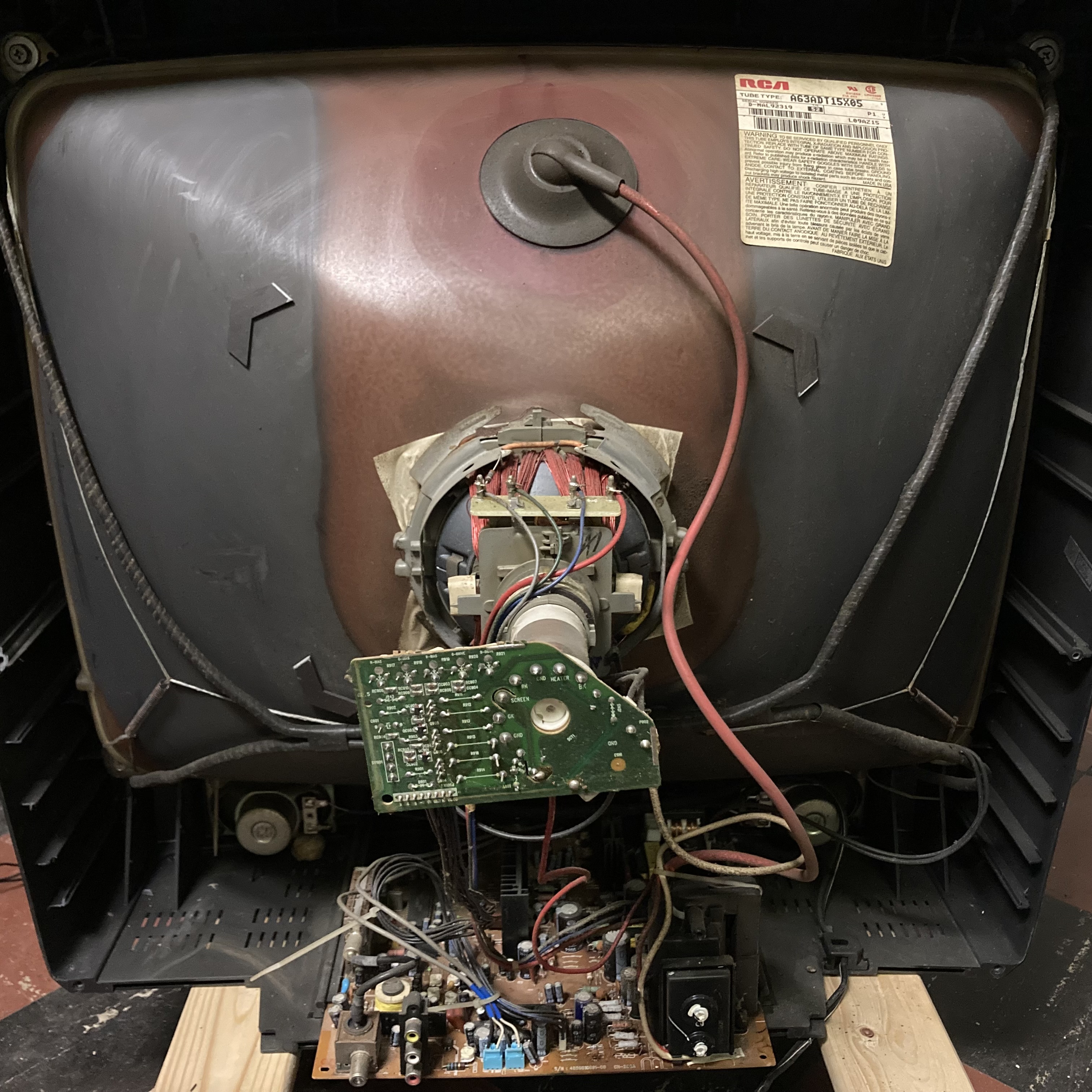

The American-made RCA picture tube is decent, although it has blurrier corners due to it aging more poorly compared to other makers of the time. Yoke is bonded.

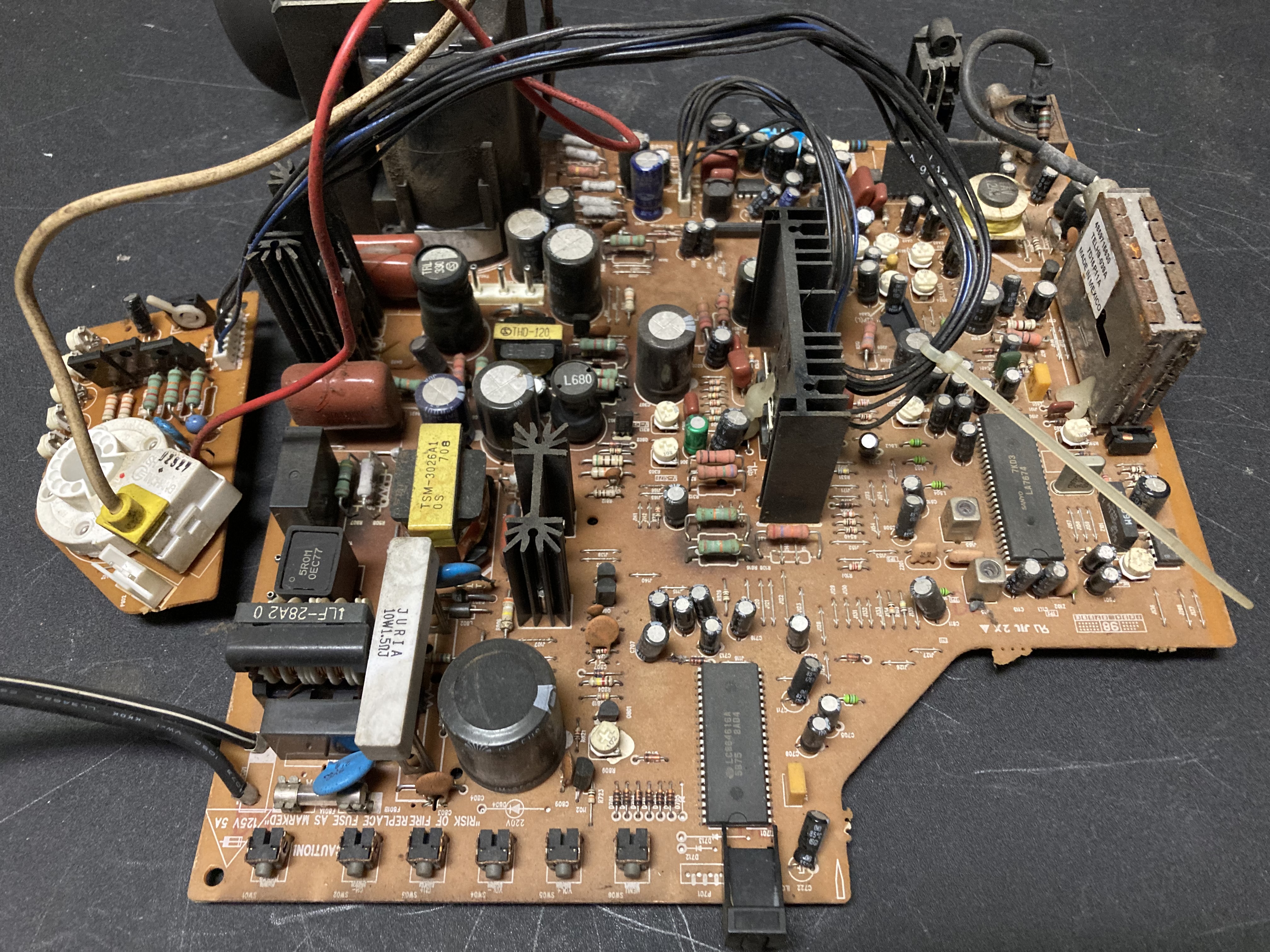

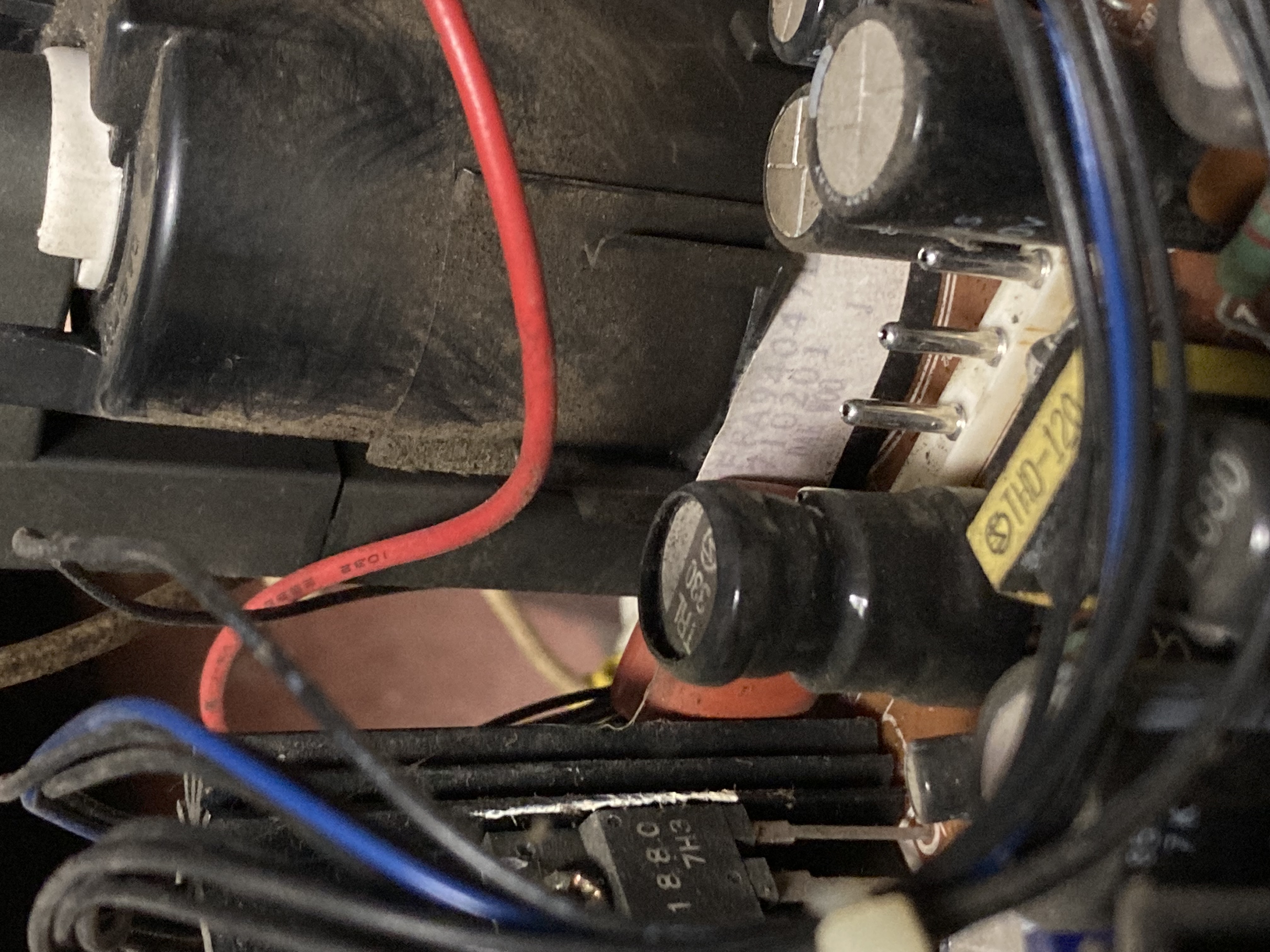

While this set has a consumer OSD, service adjustments are done via potentiometers on the chassis itself.

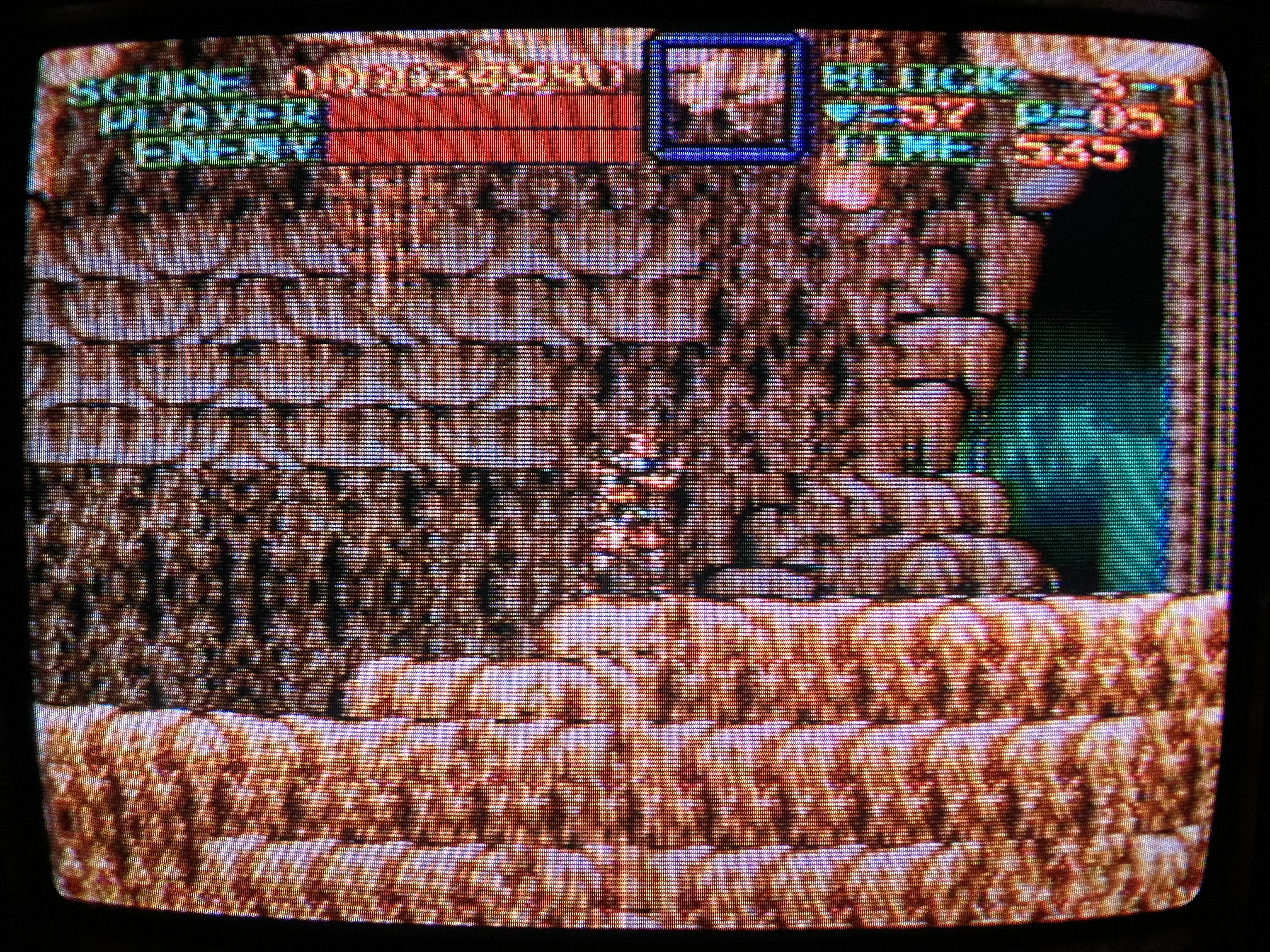

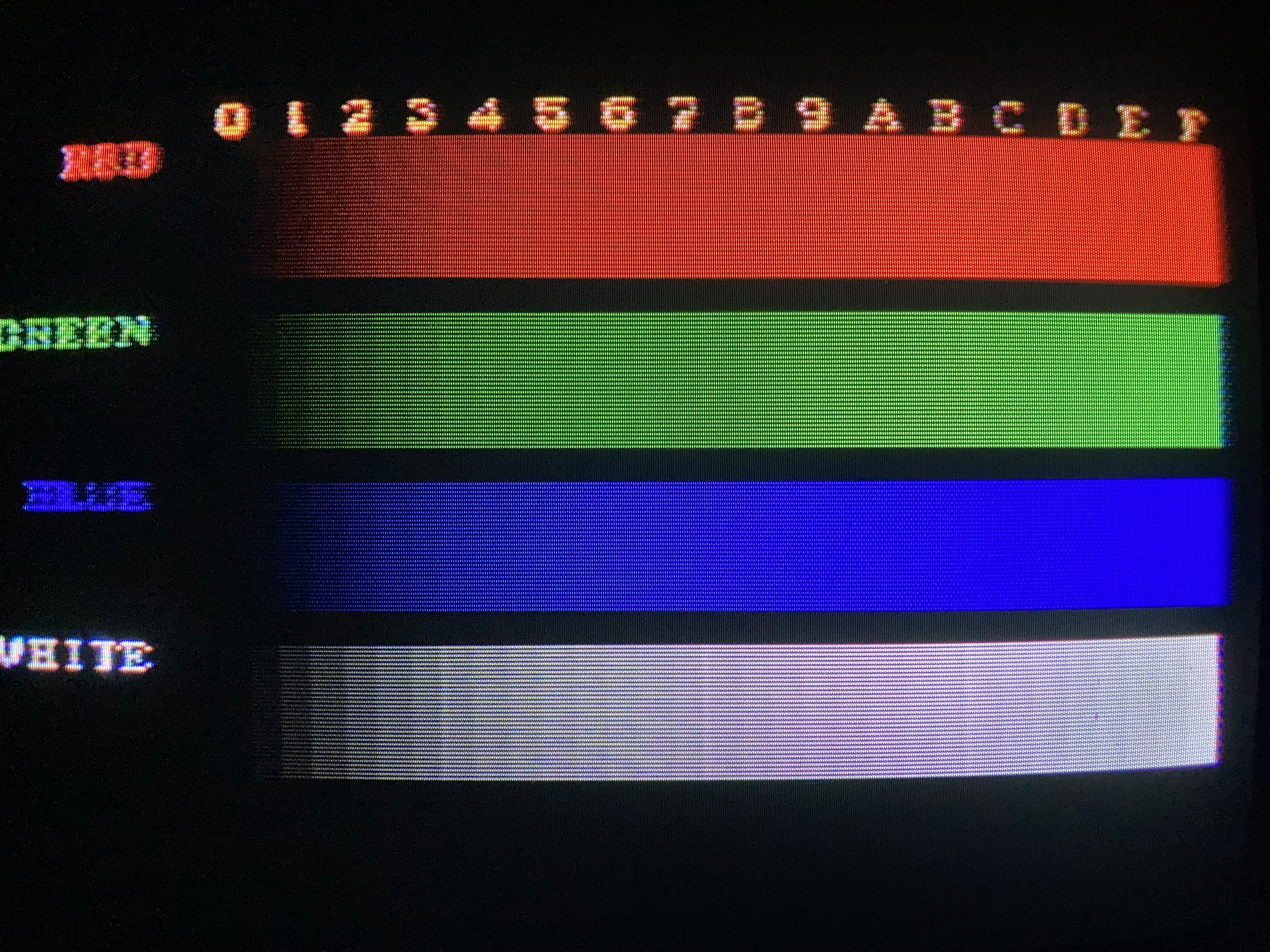

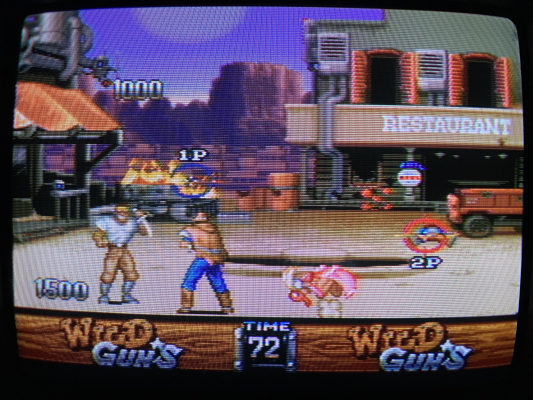

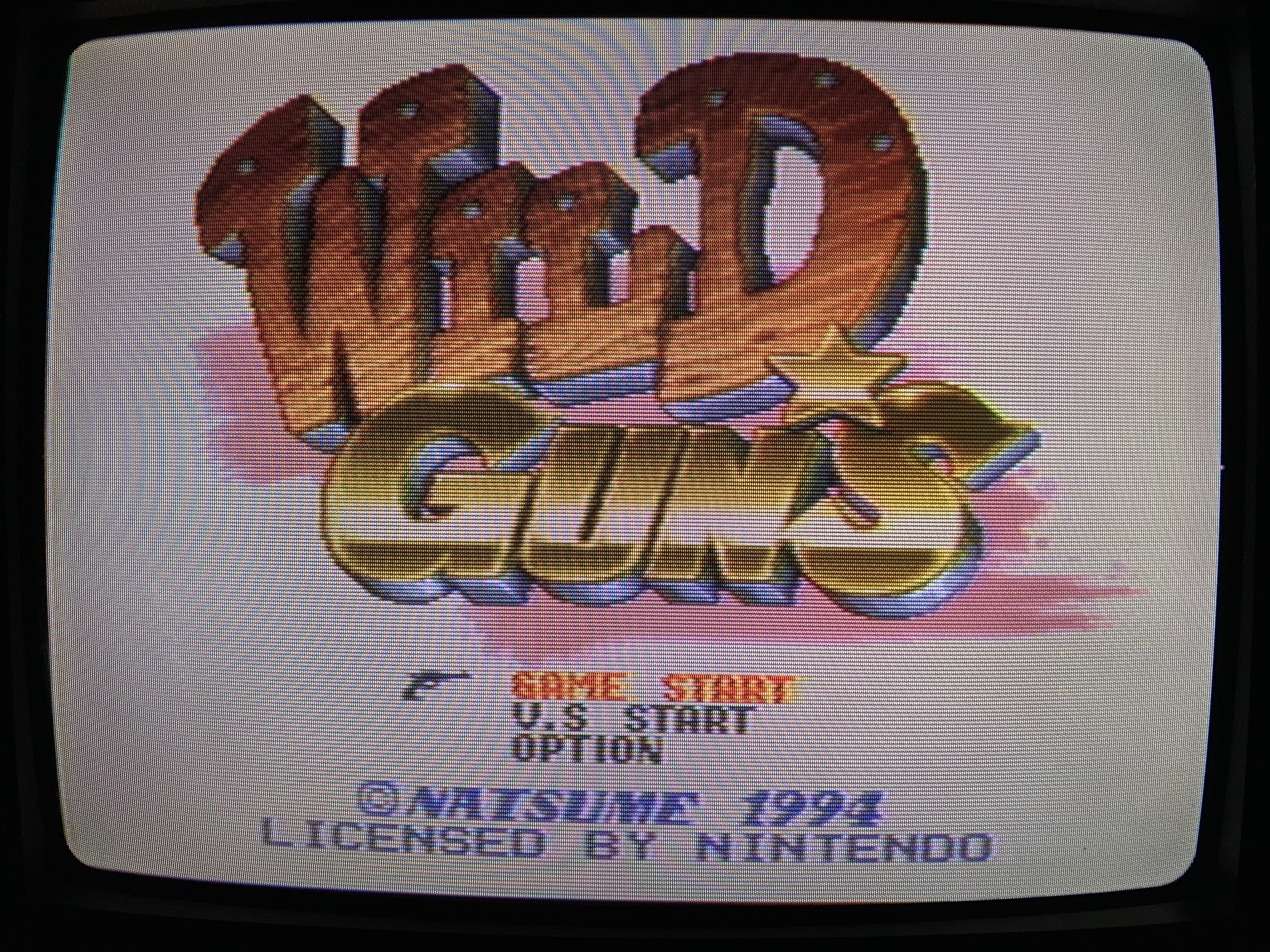

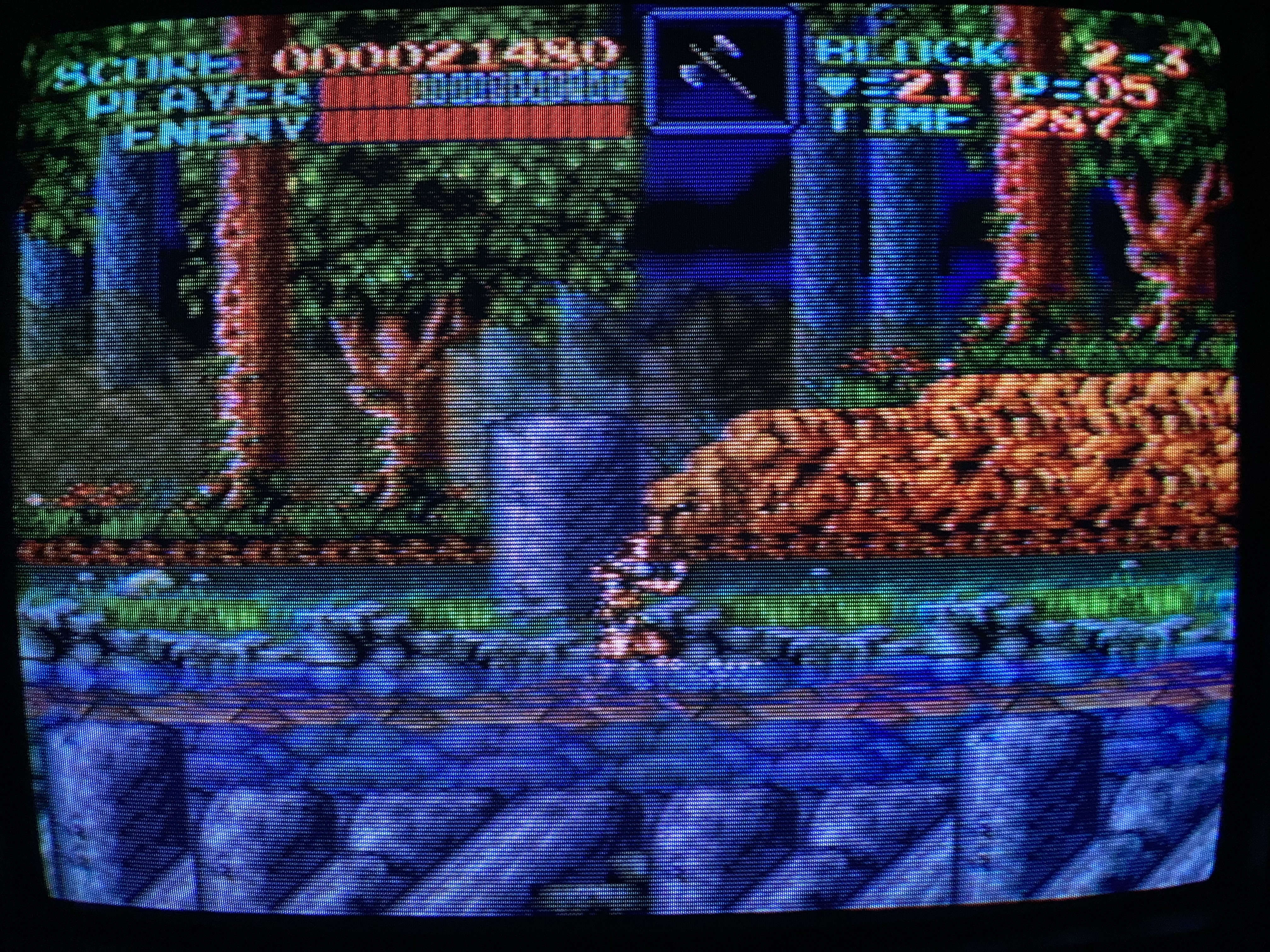

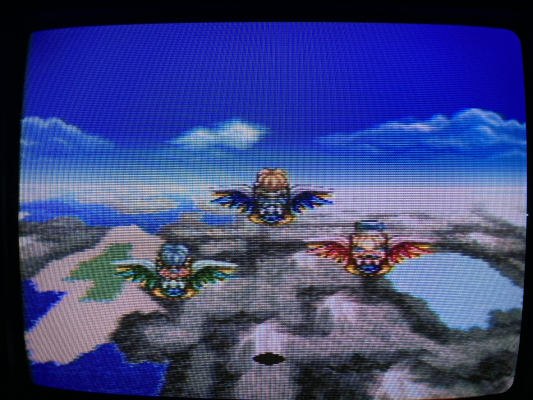

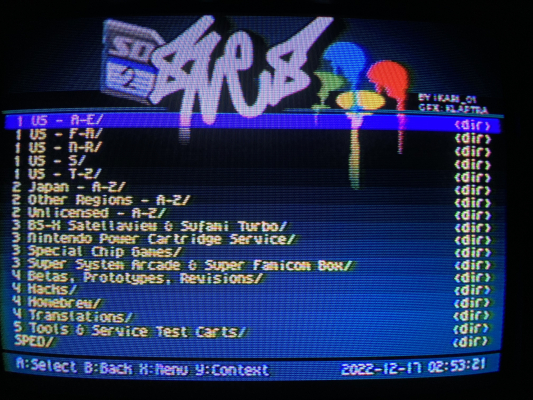

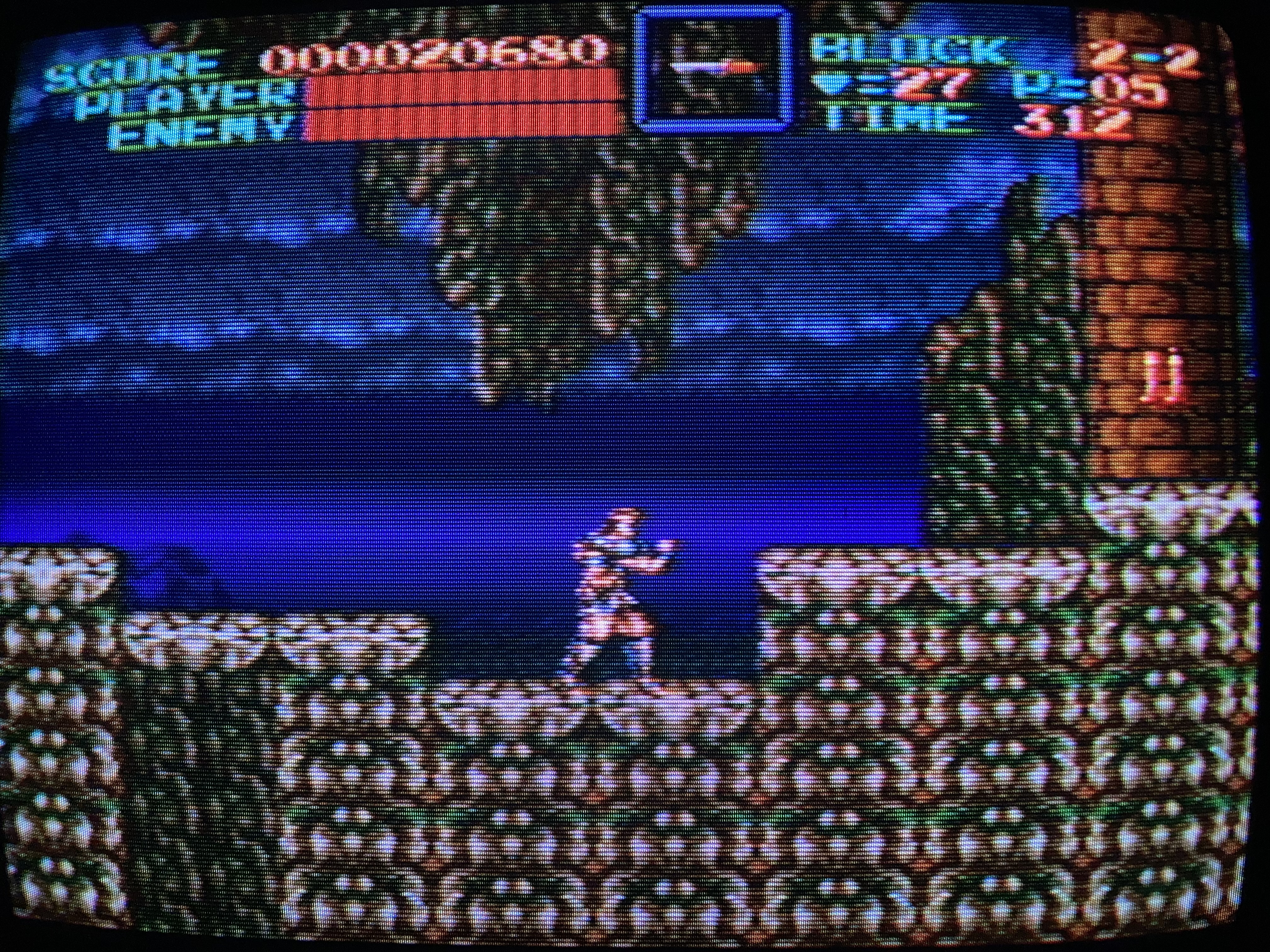

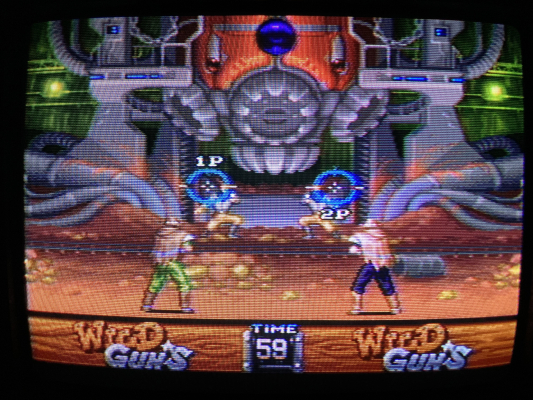

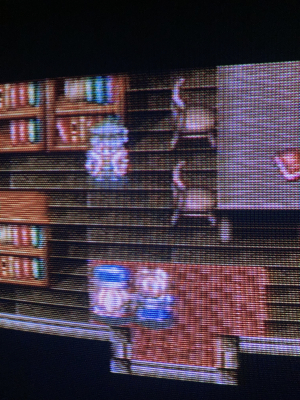

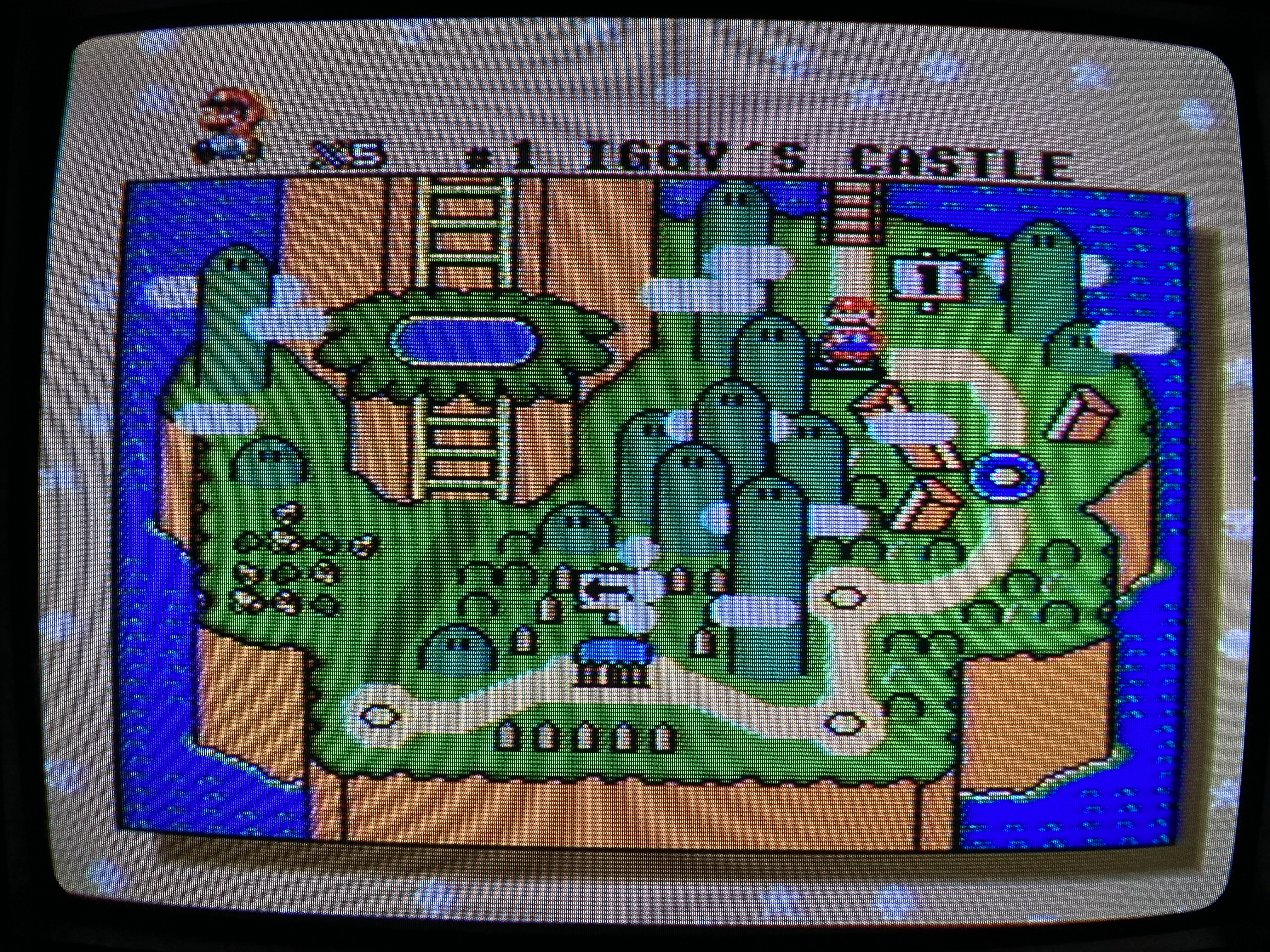

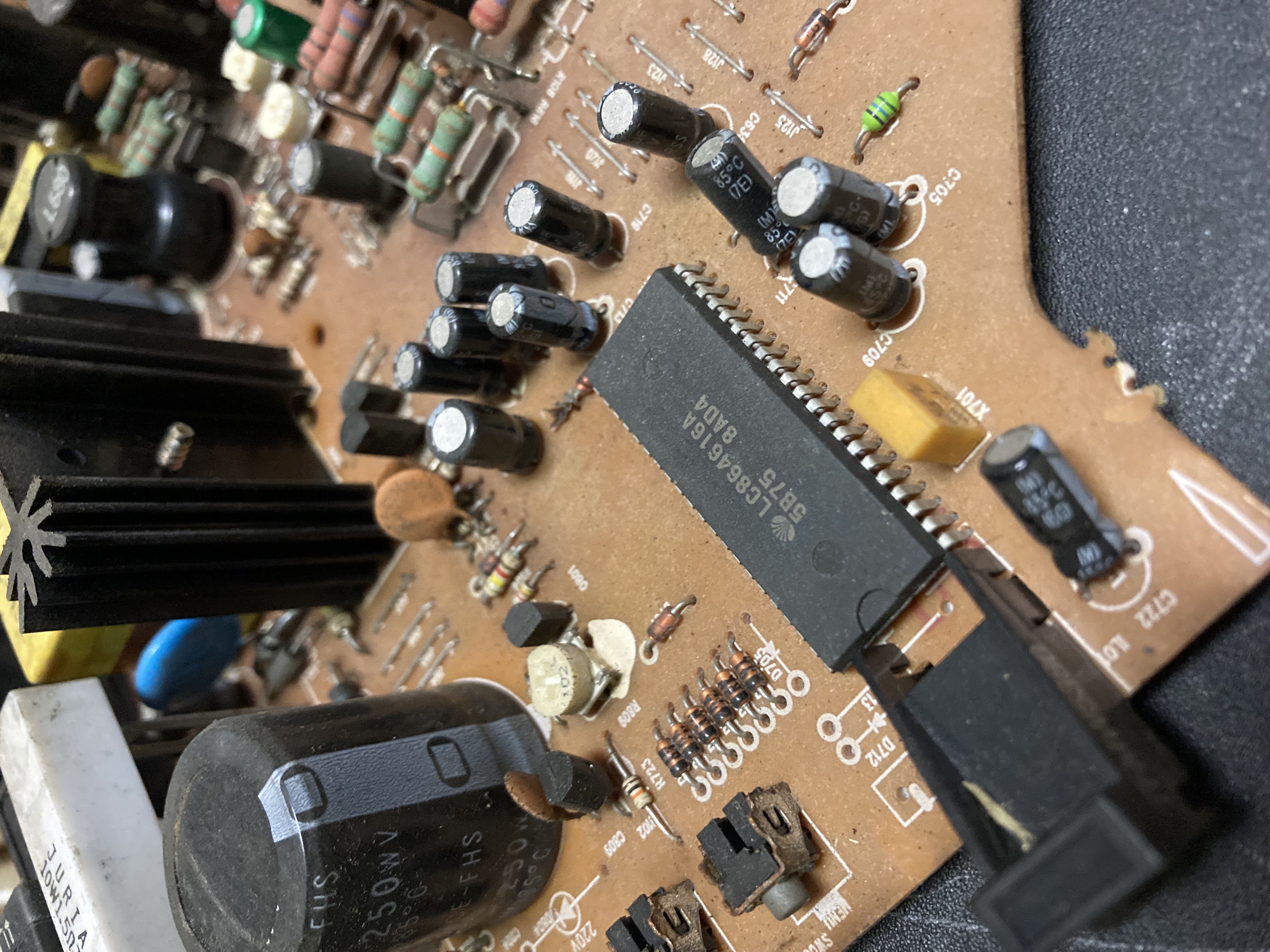

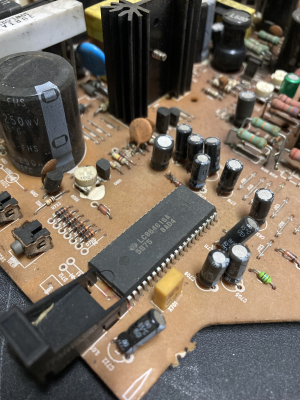

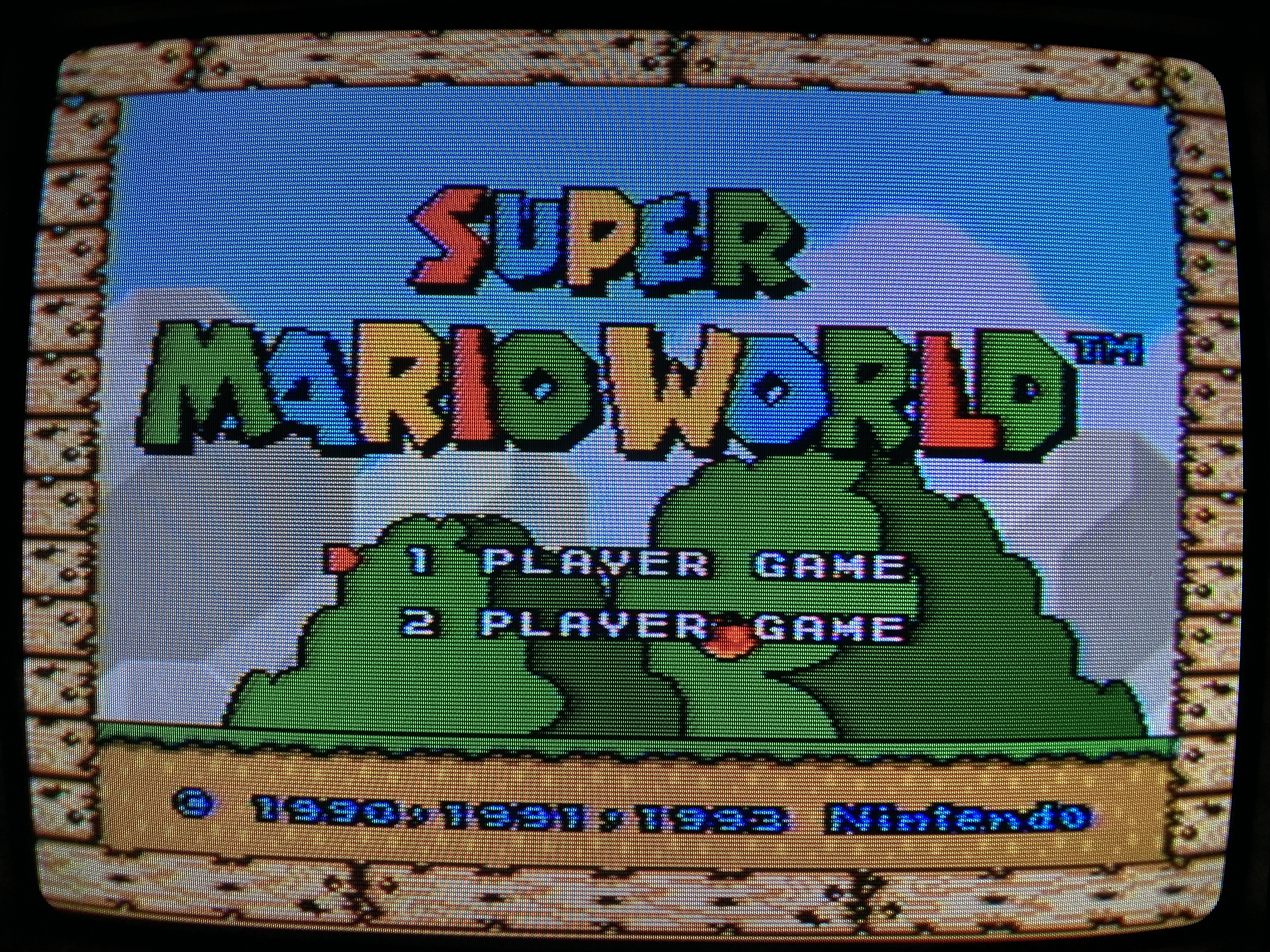

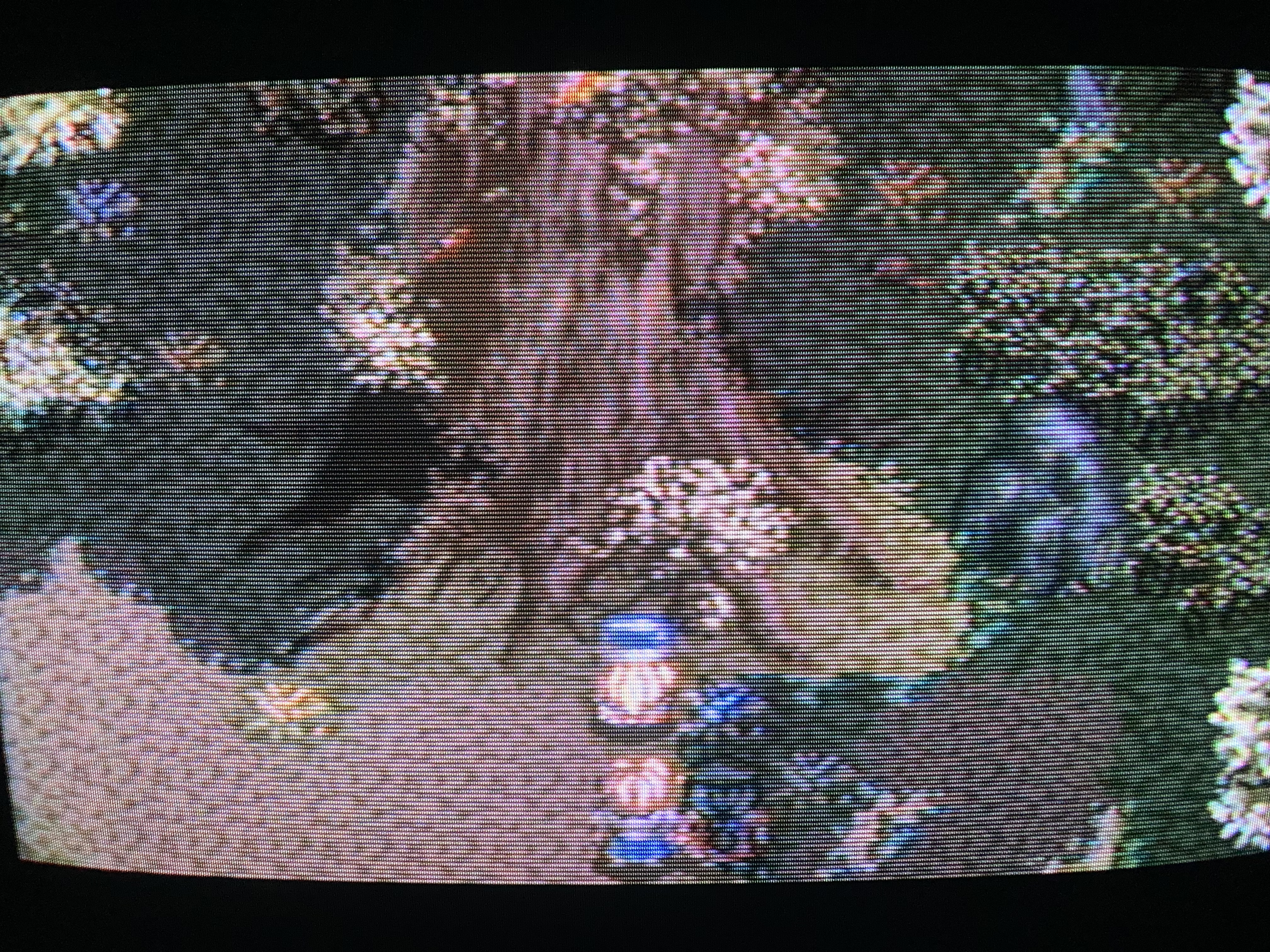

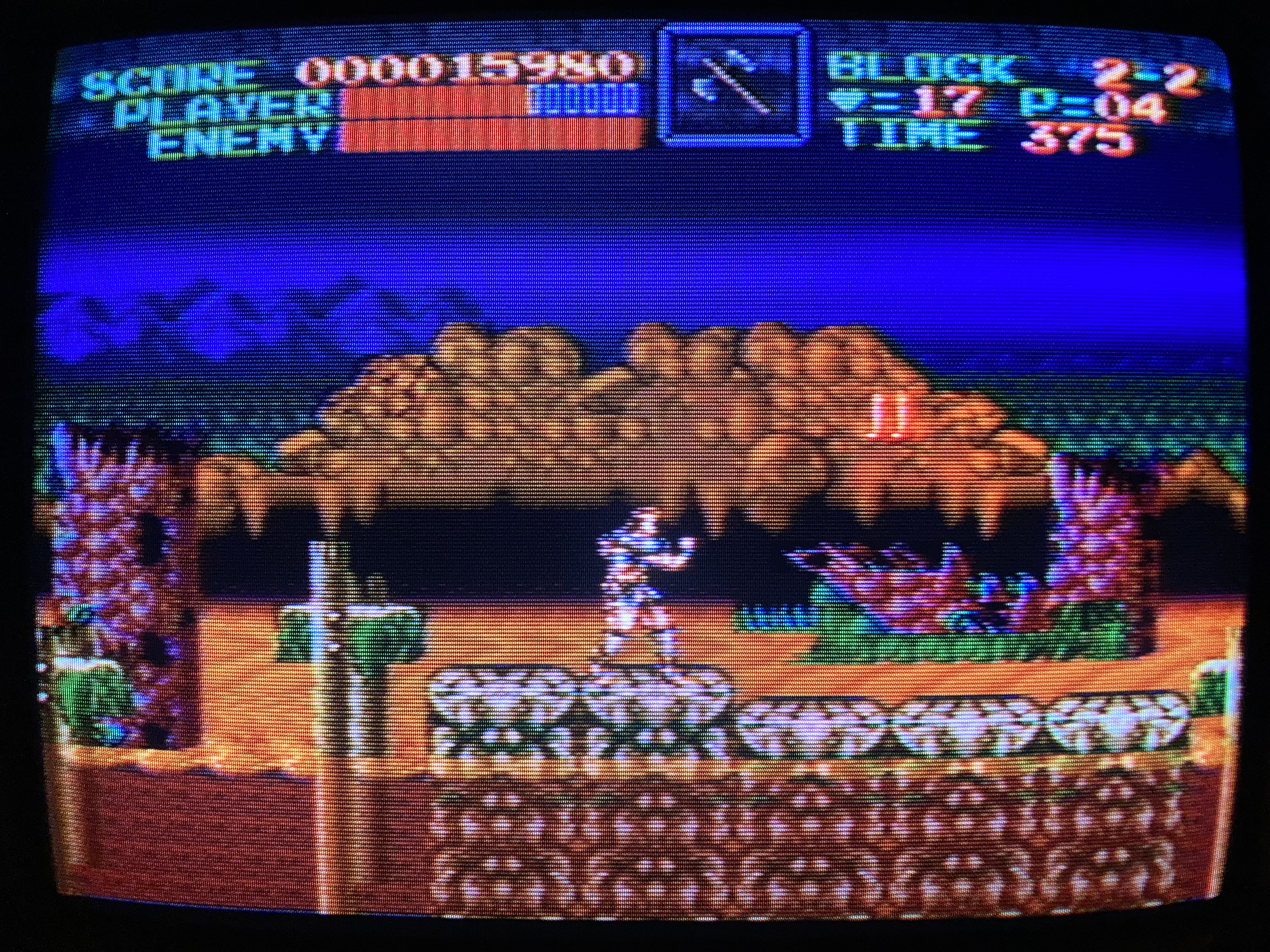

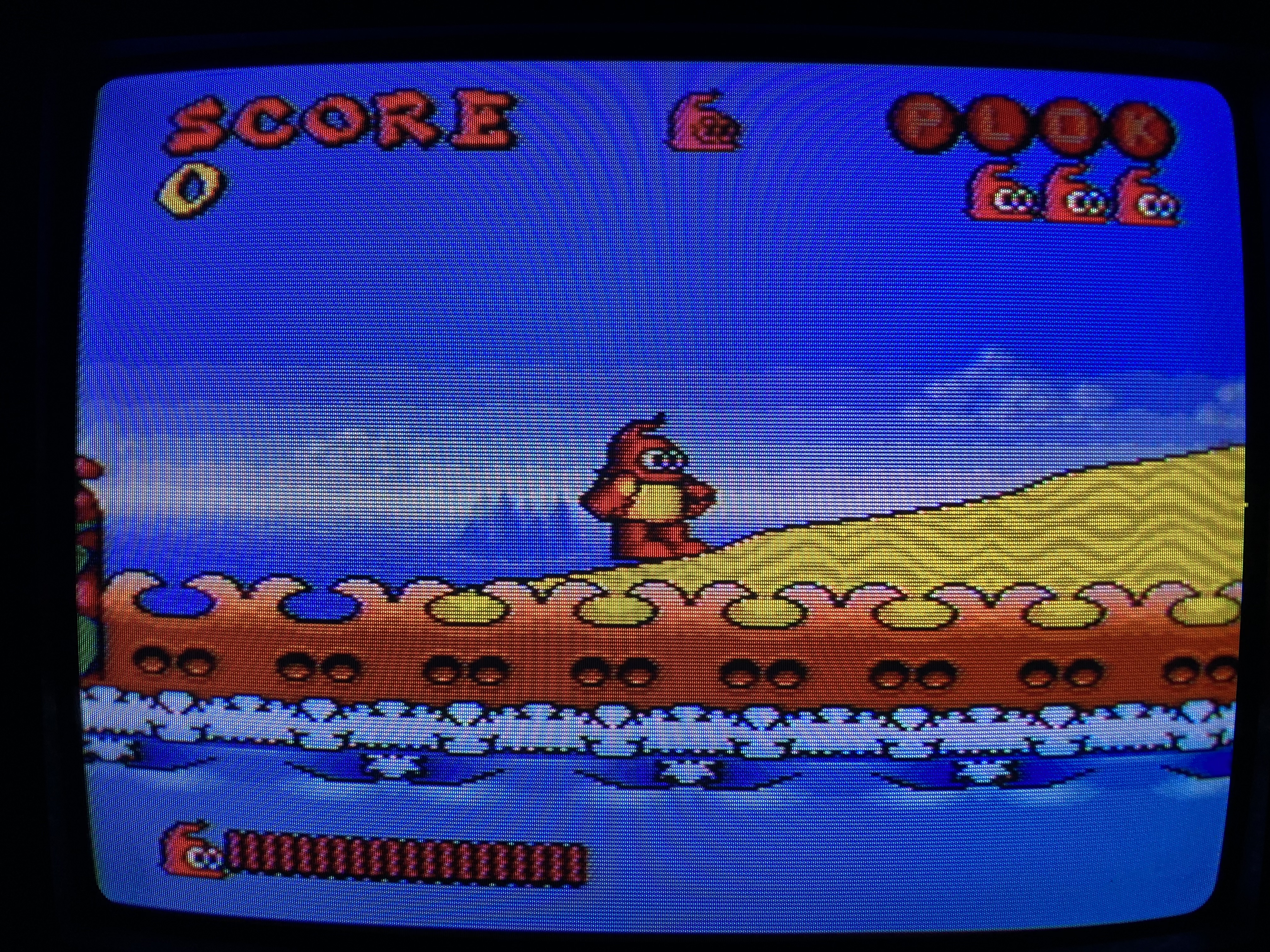

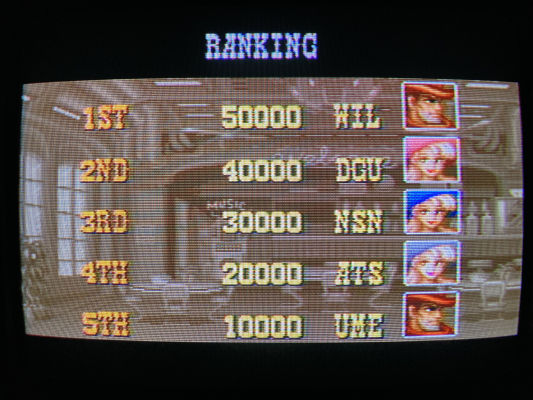

The Sanyo jungle chip has a very "raw" look to the composite signal, what with lots of dot crawl. It is also possible to s-video mod the set.

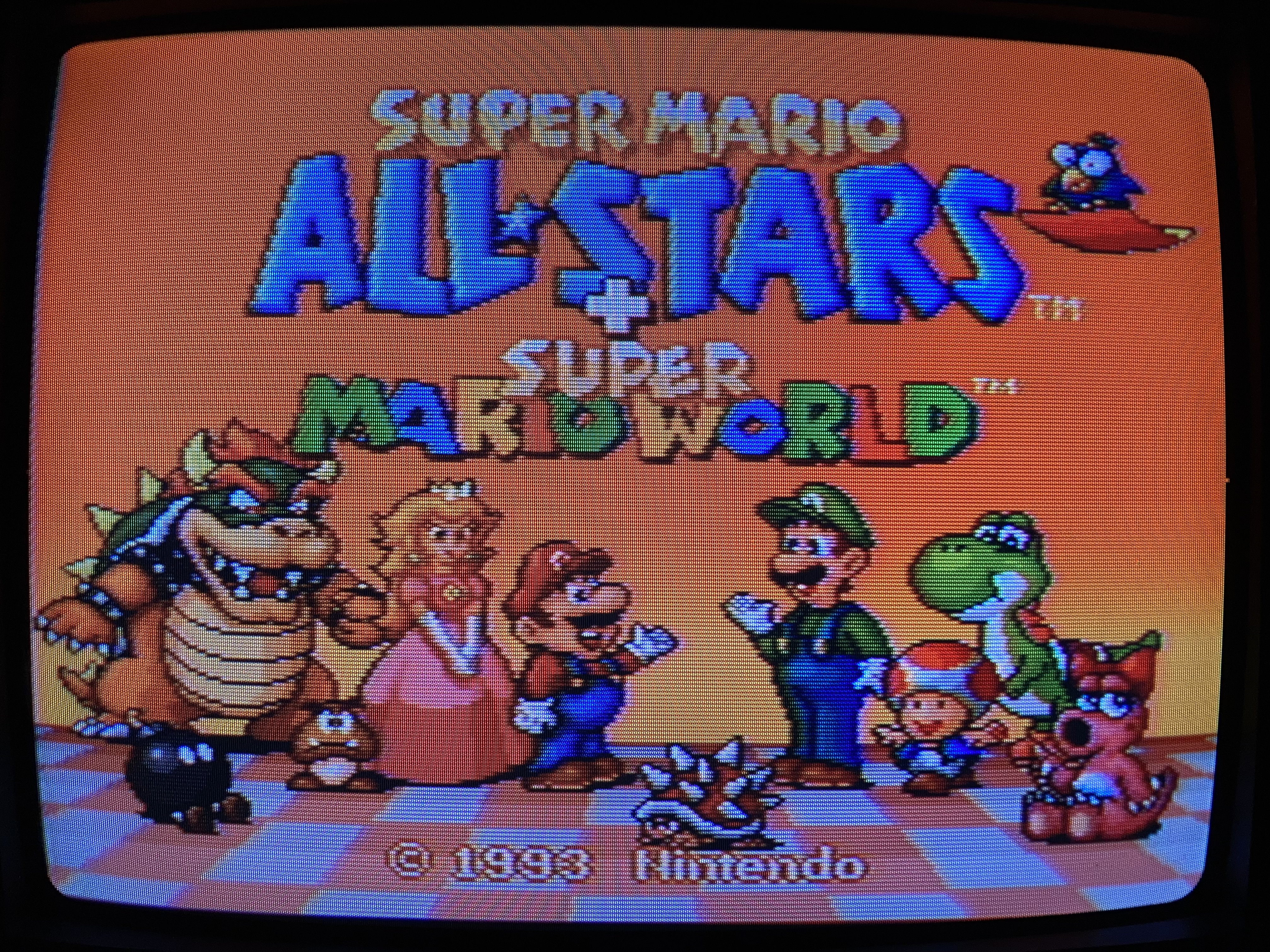

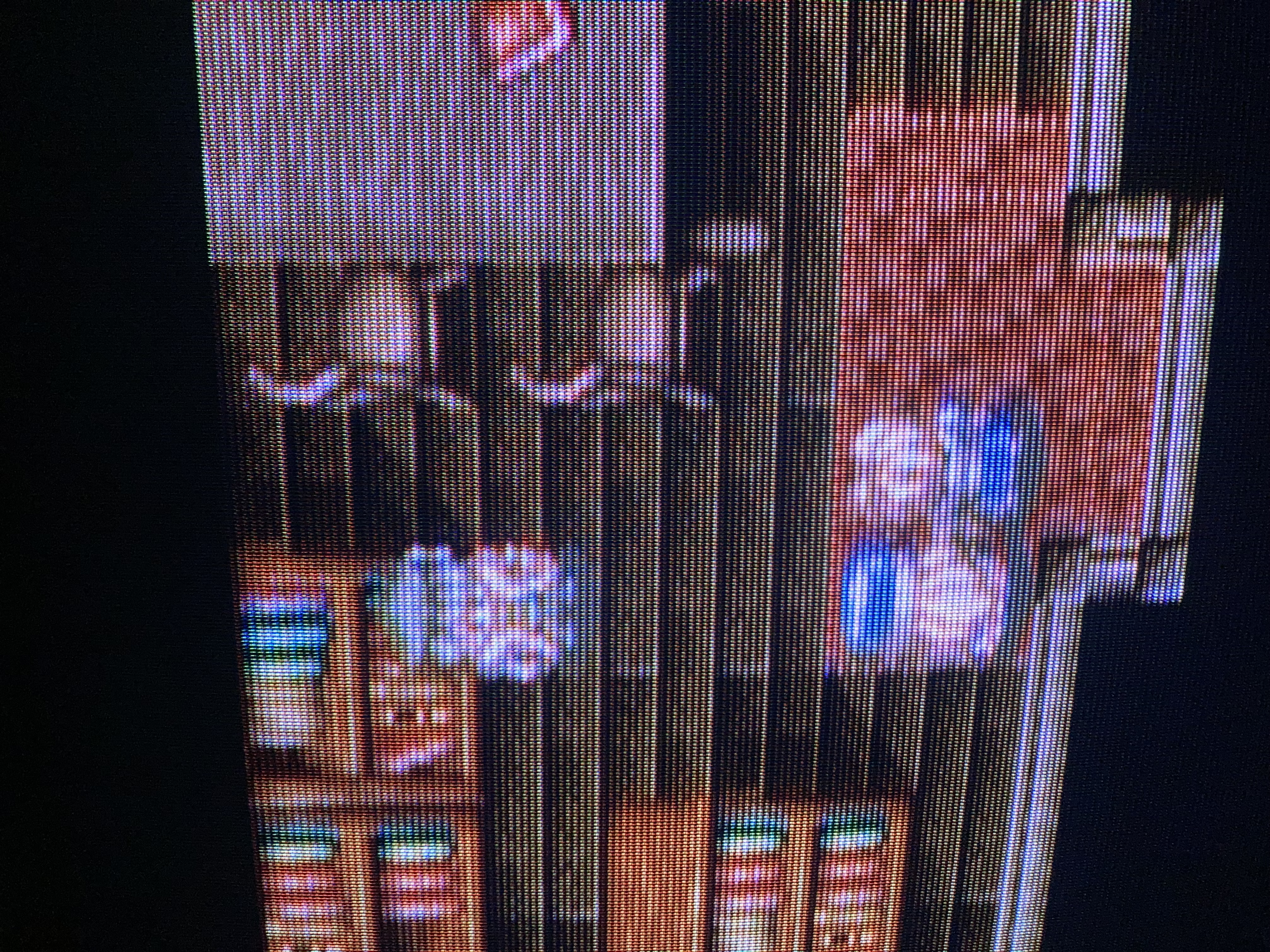

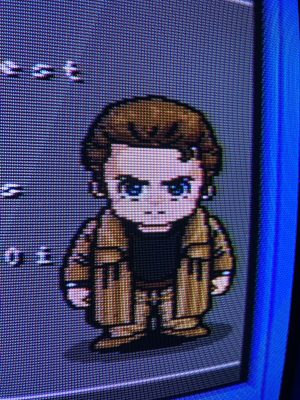

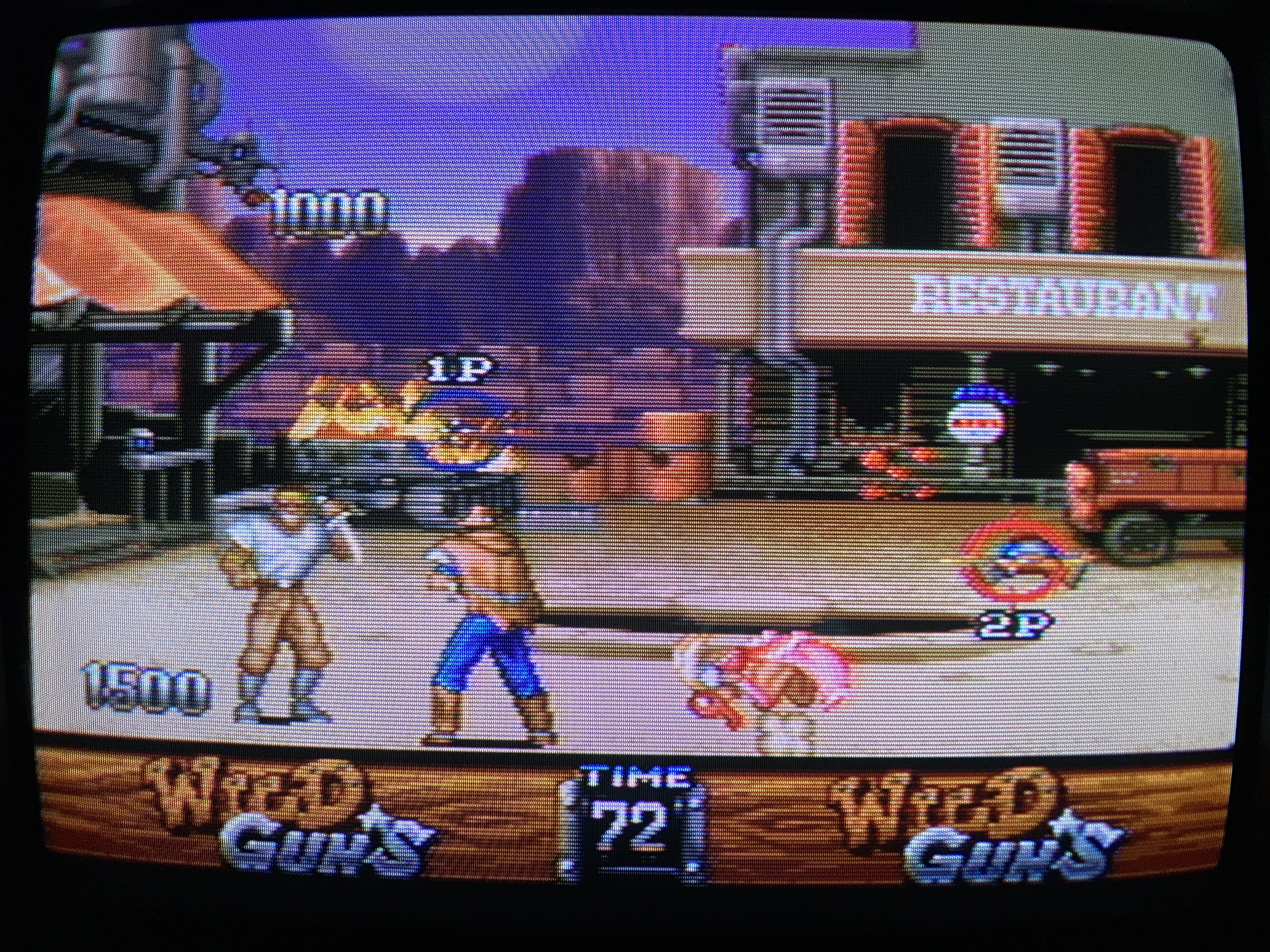

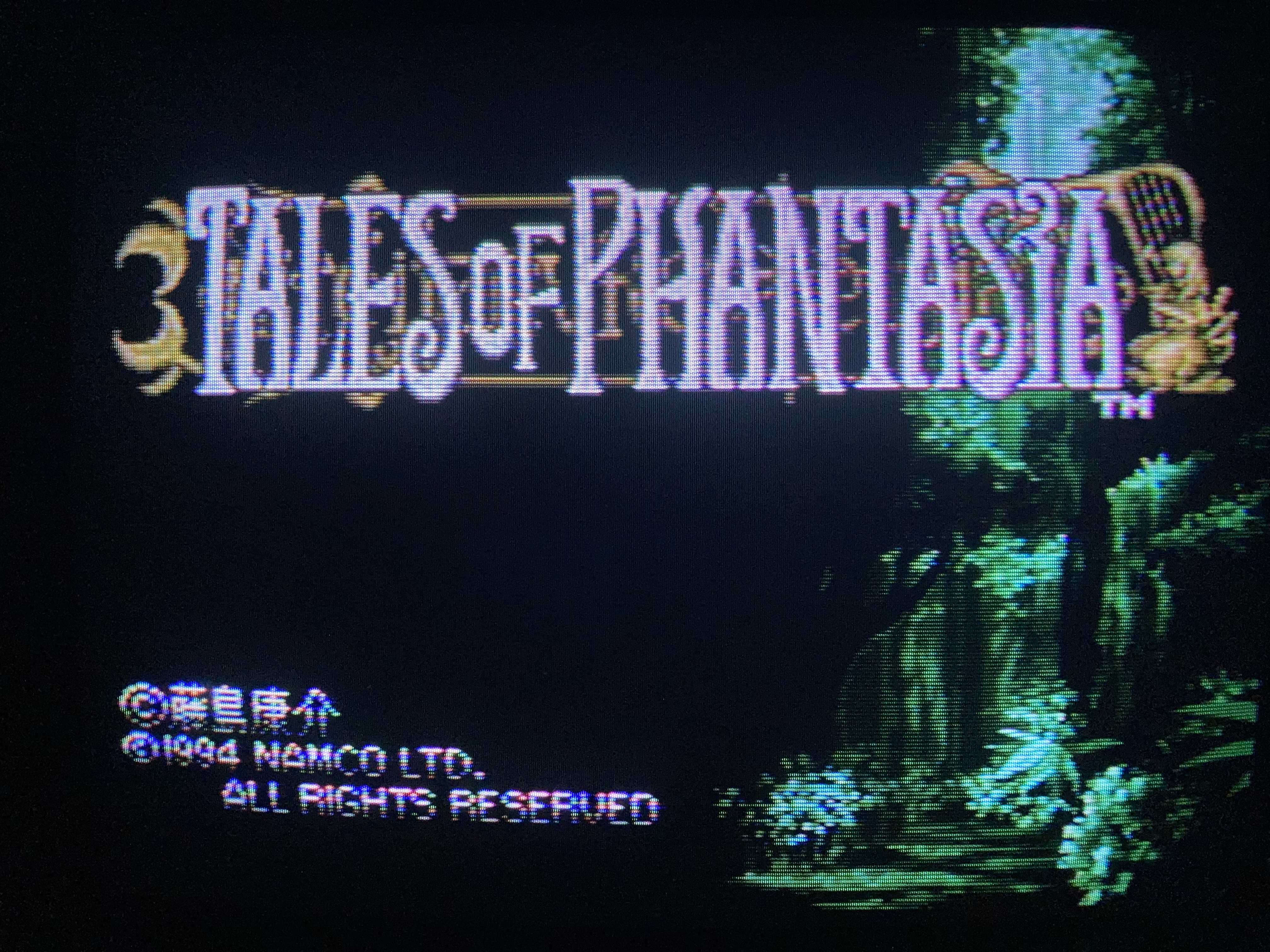

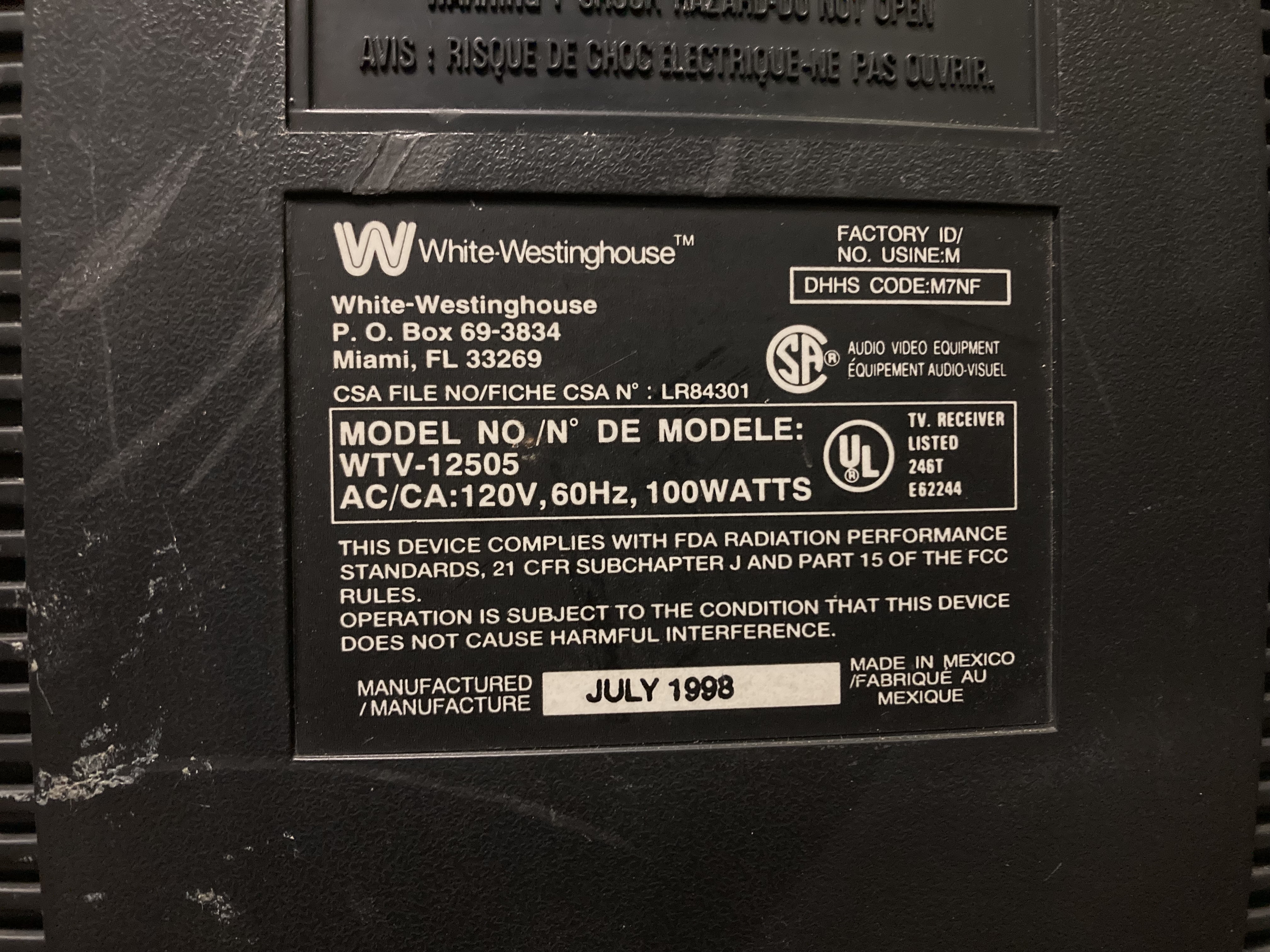

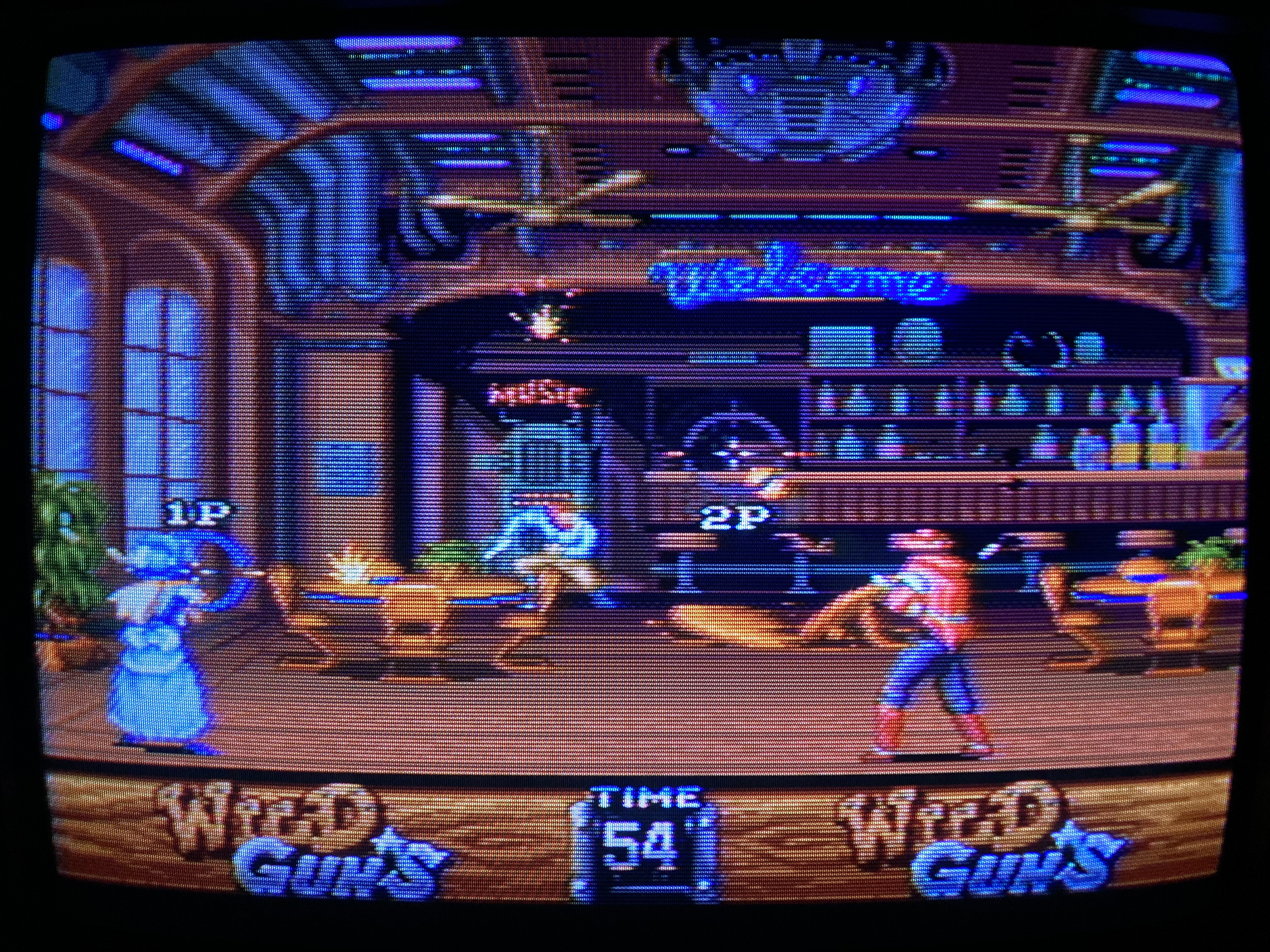

Gallery
| Specifications | |
|---|---|
| Brand: | White-Westinghouse |
| Manufacturer: | Daewoo |
| Model: | WTV-12505 |
| Series: | WTV |
| Viewable Size: | 25" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

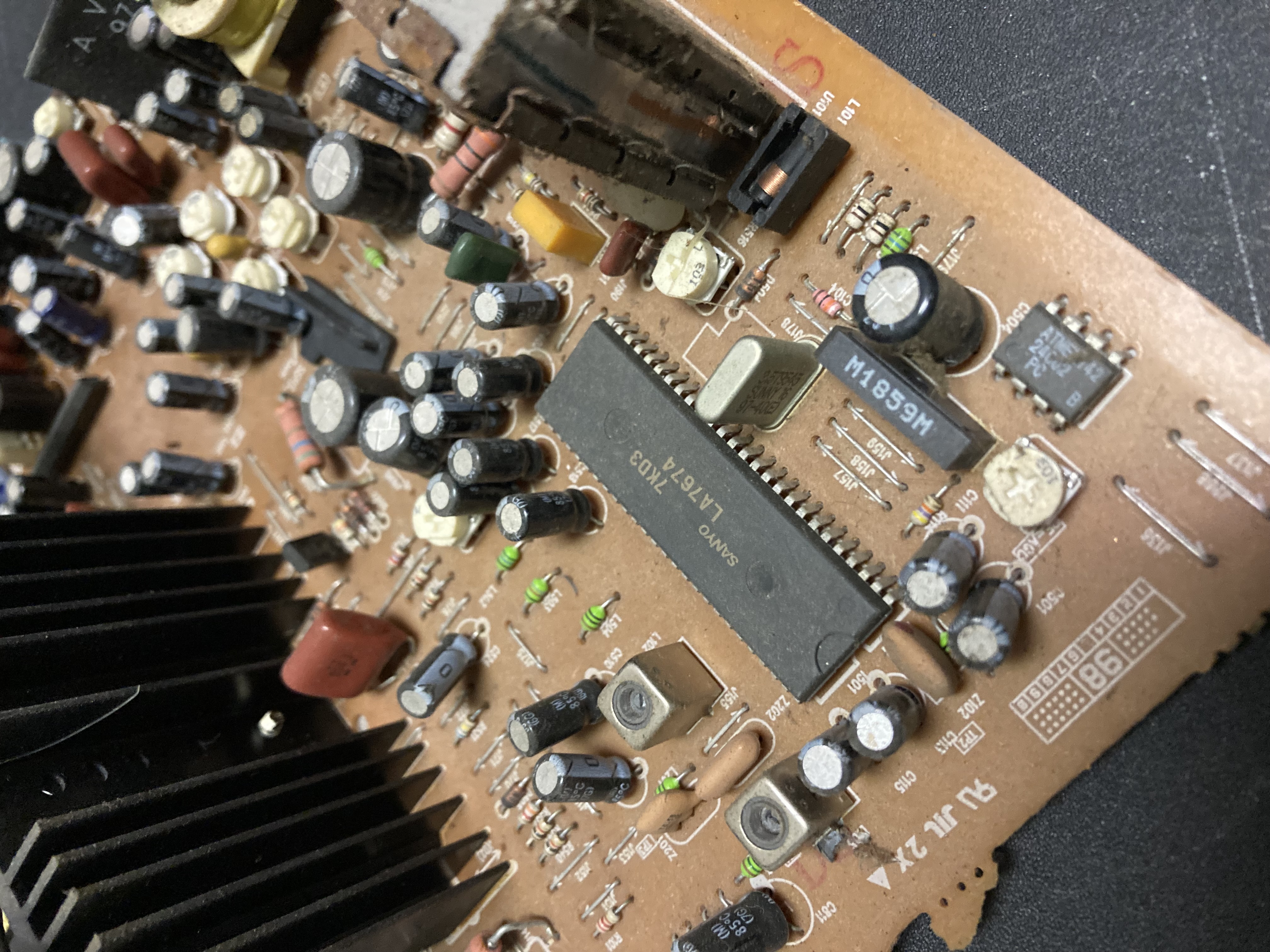

| Vertical Output IC: | Sanyo, LA7674 |
| Jungle: | Sanyo, LA7674 |
| Focus Type: | Single |

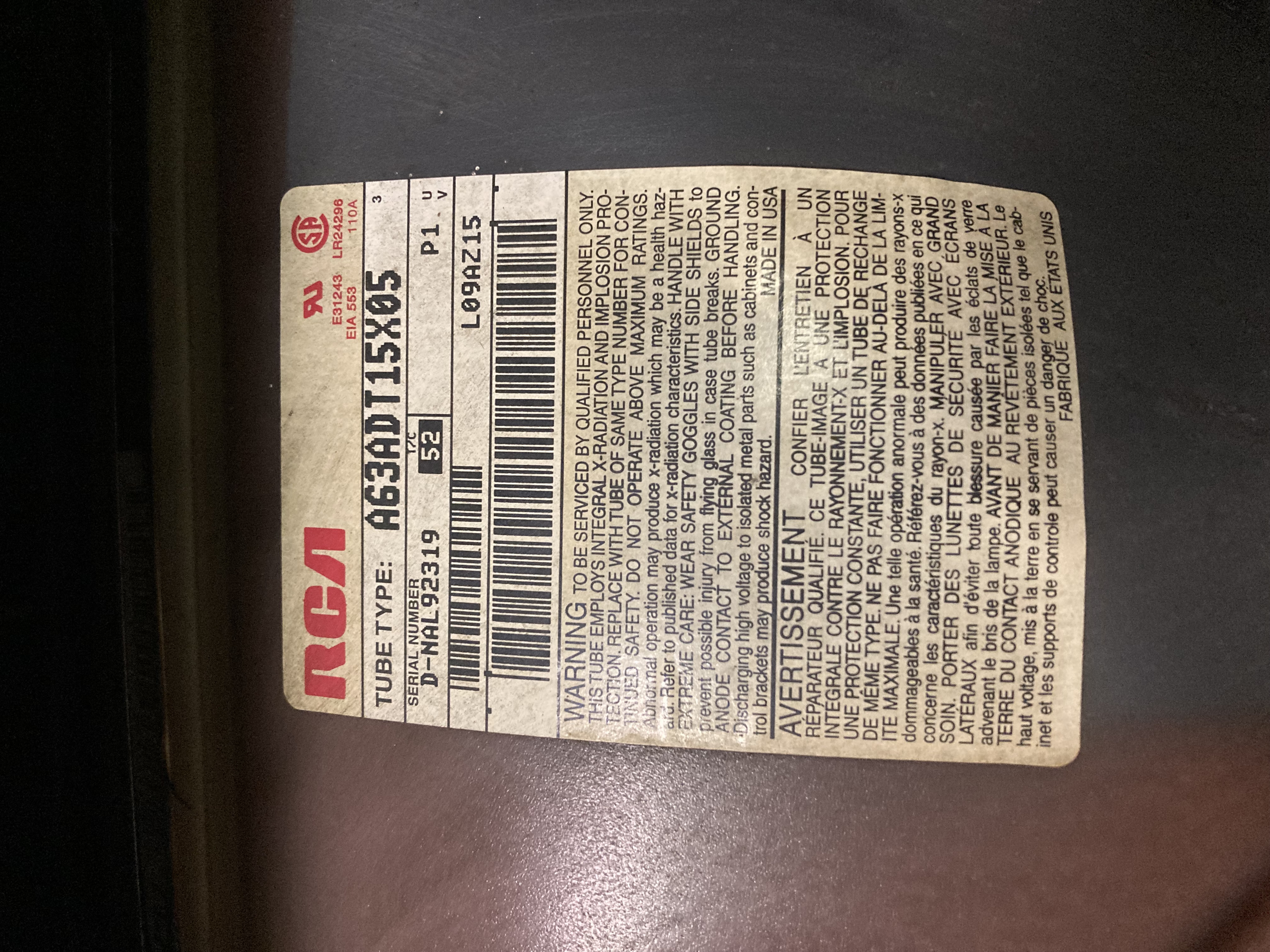

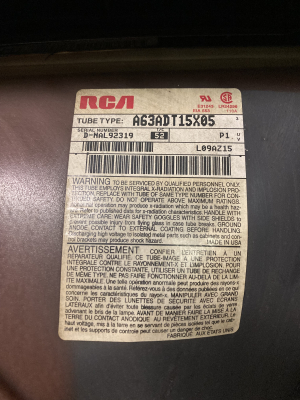

| Tube: | Thomson , RCA , A63ADT15X , A63ADT15X05 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

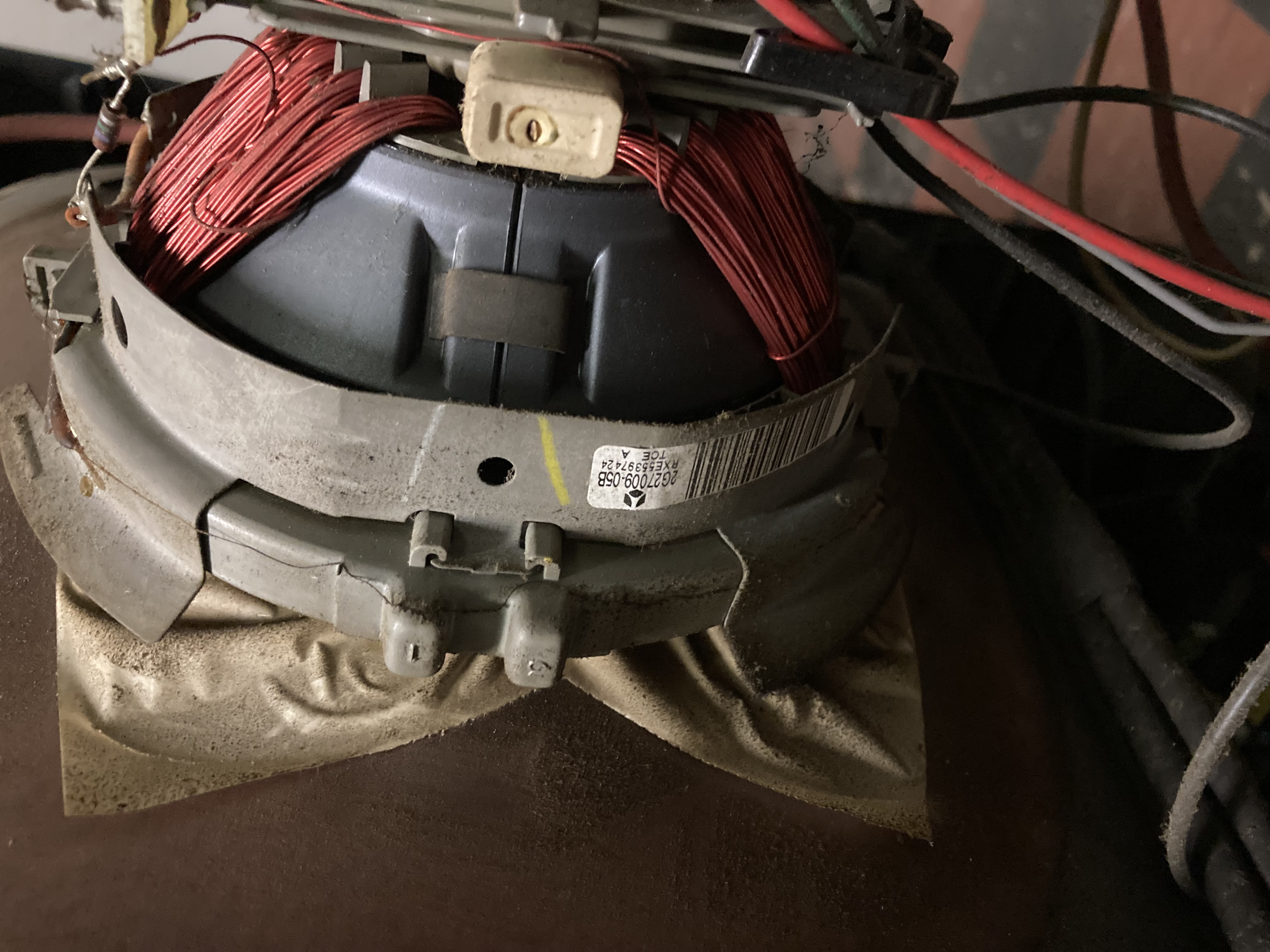

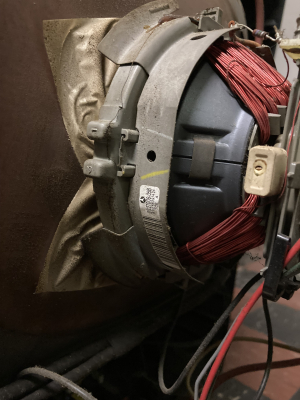

| Yoke: | RXE55397424, 2G27009-05B |
| Speakers: | Stereo, 2W x 2 |
| Remote: | R-25C04 |

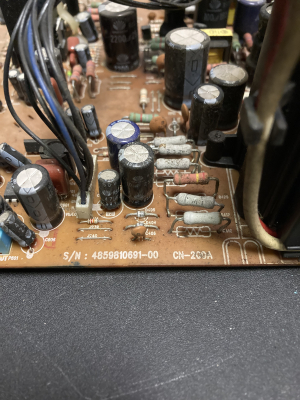

| Chassis: | CN-200A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 269 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements |
