| Specifications | |
|---|---|

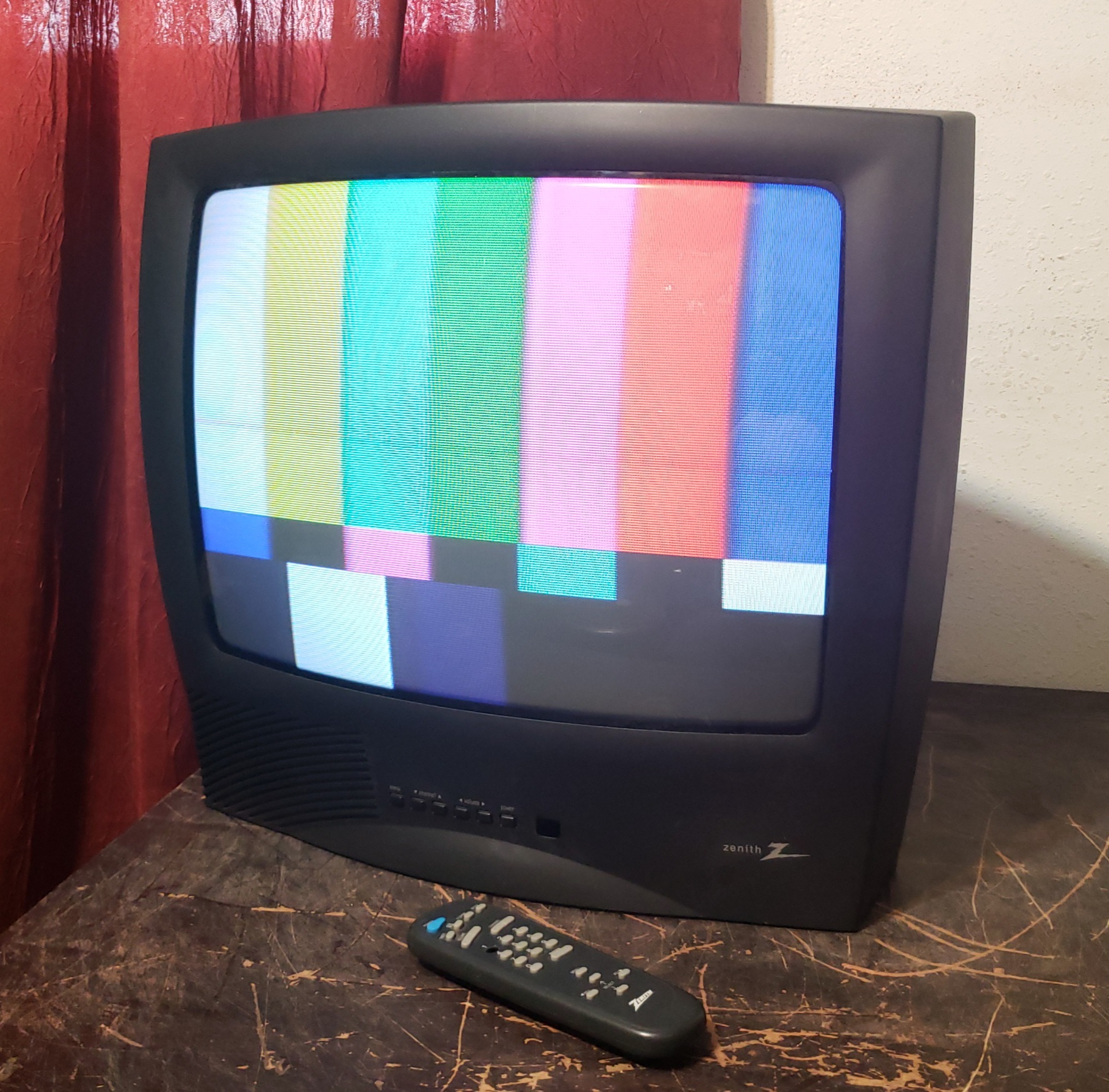

| Brand: | Zenith |
| Manufacturer: | Zenith |

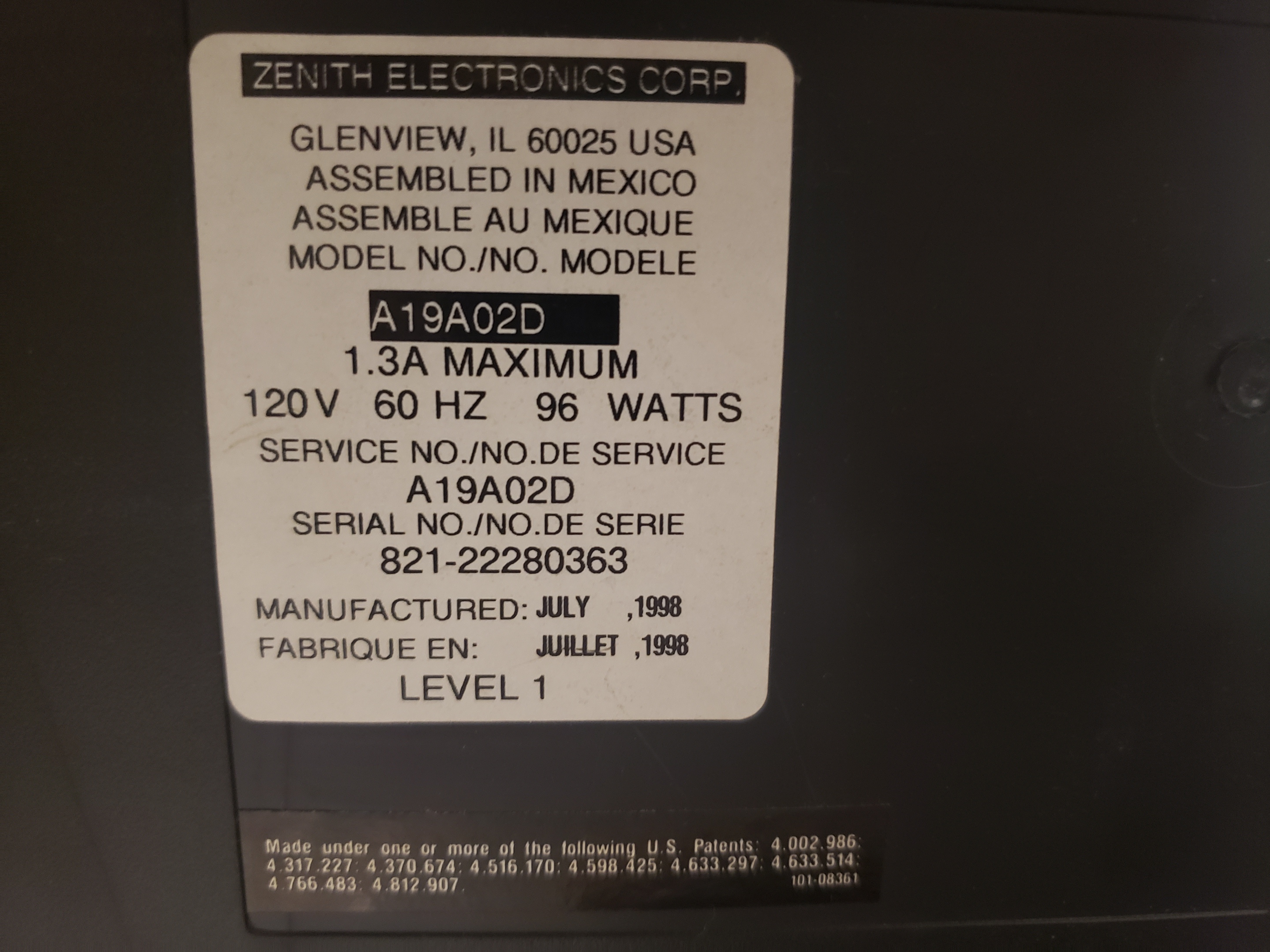

| Model: | A19A02D |
| Series: | Home Basics |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Linecount: | 270 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 121-1310A |
| Vertical Output IC: | 221-00903 |
| Comb Filtering: | Notch |
| Jungle IC: | Toshiba, TA1268N |
| Flyback: | 95-4376-02 |
| Focus Type: | Single |

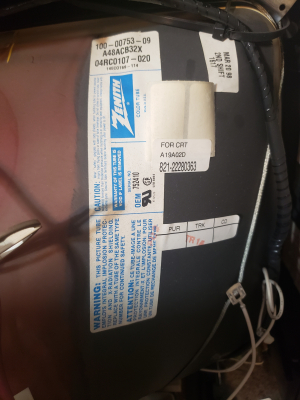

| Tube: | Zenith , A48ACB32X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.74 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 95-3705-12 |
| Yoke Horz. Resistance: | 3.3 ohm |
| Yoke Vert. Resistance: | 9.2 ohm |
| Speakers: | Mono |

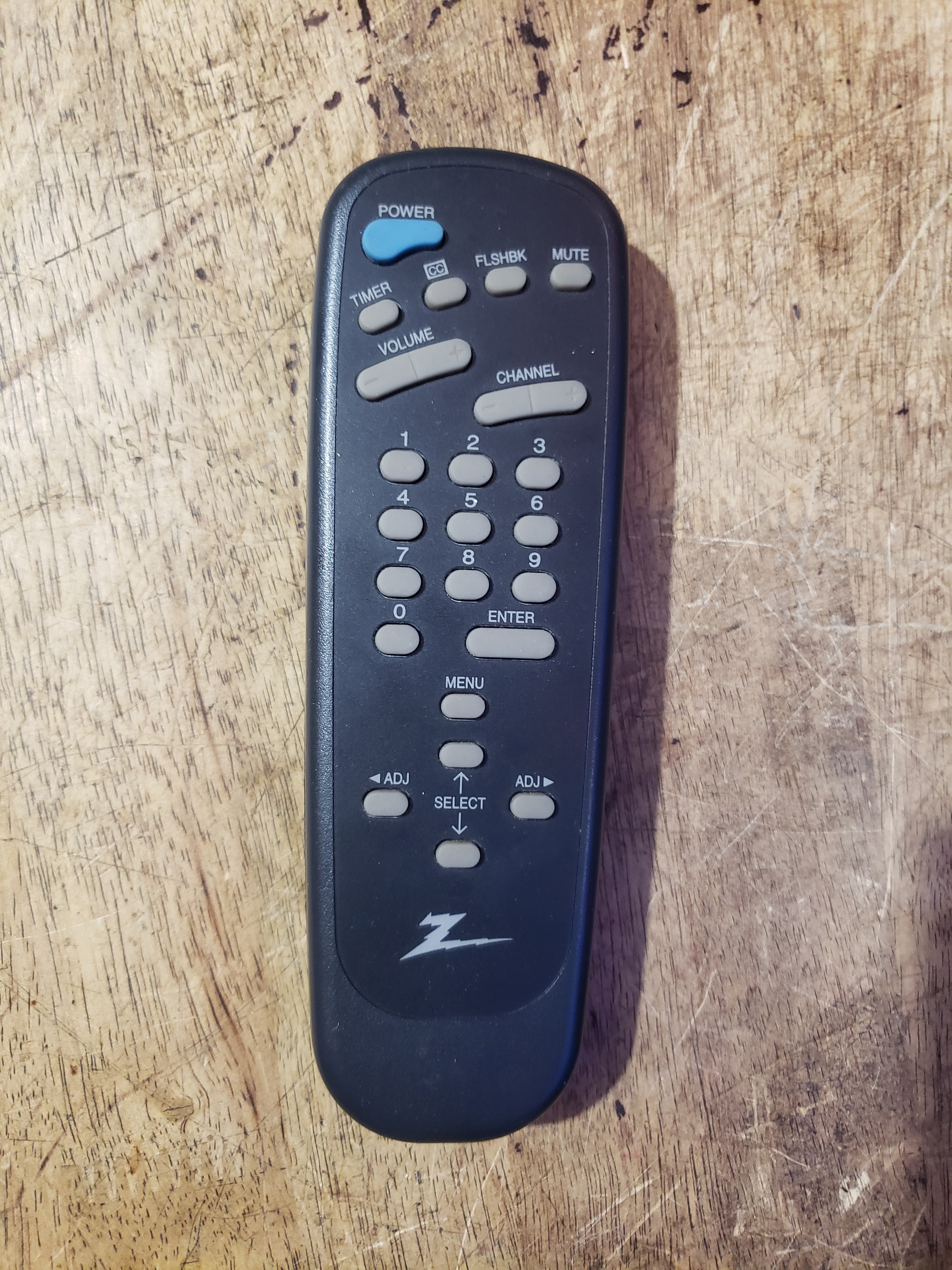

| Remote: | SC3492 |

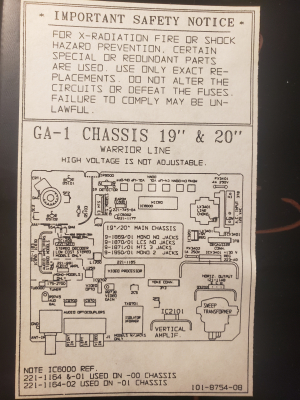

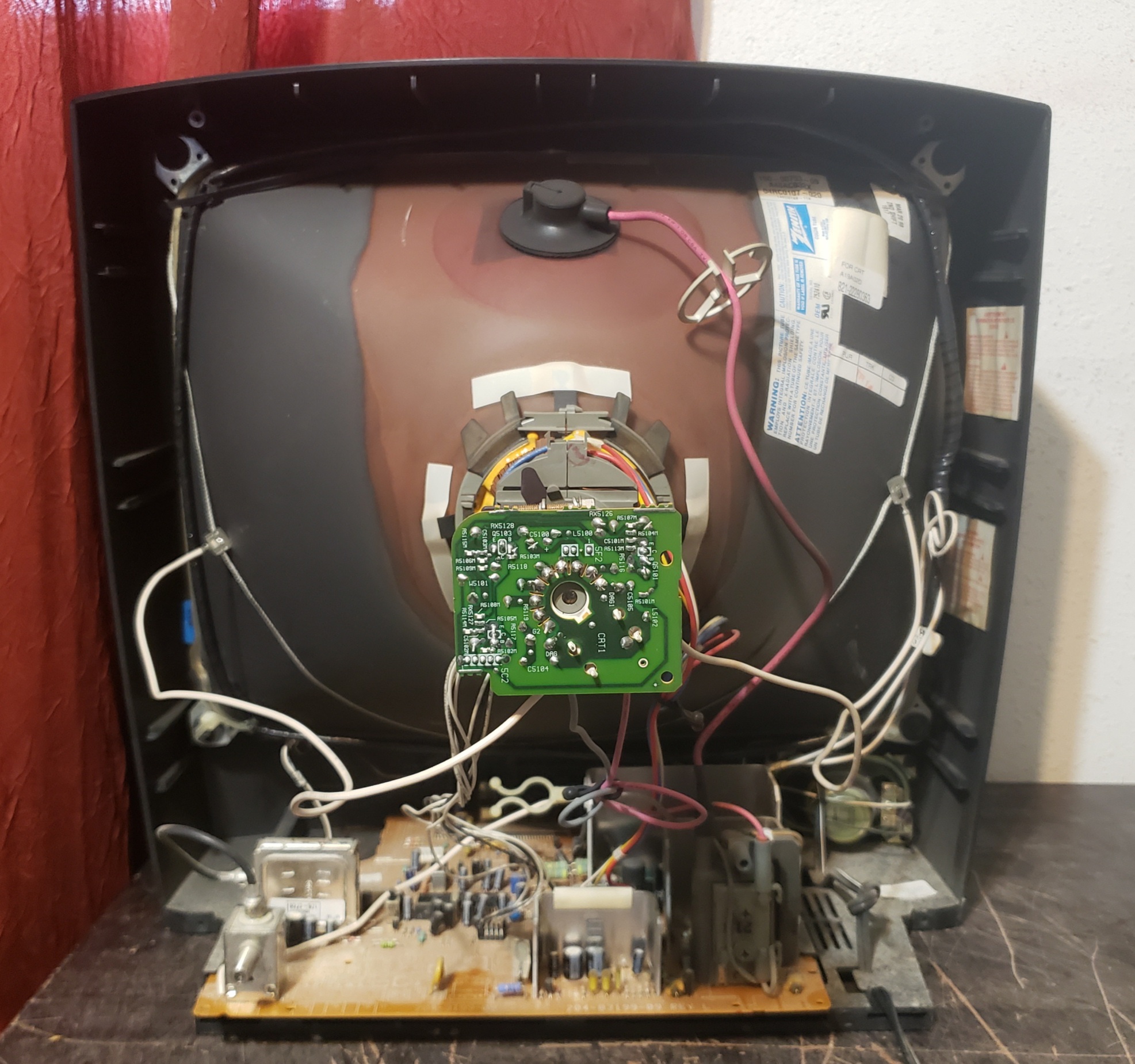

| Chassis: | GA-1, Warrior Line, GA |
| Weight: | 38 lbs (17.2 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 249 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Measurements |
