| Specifications | |
|---|---|

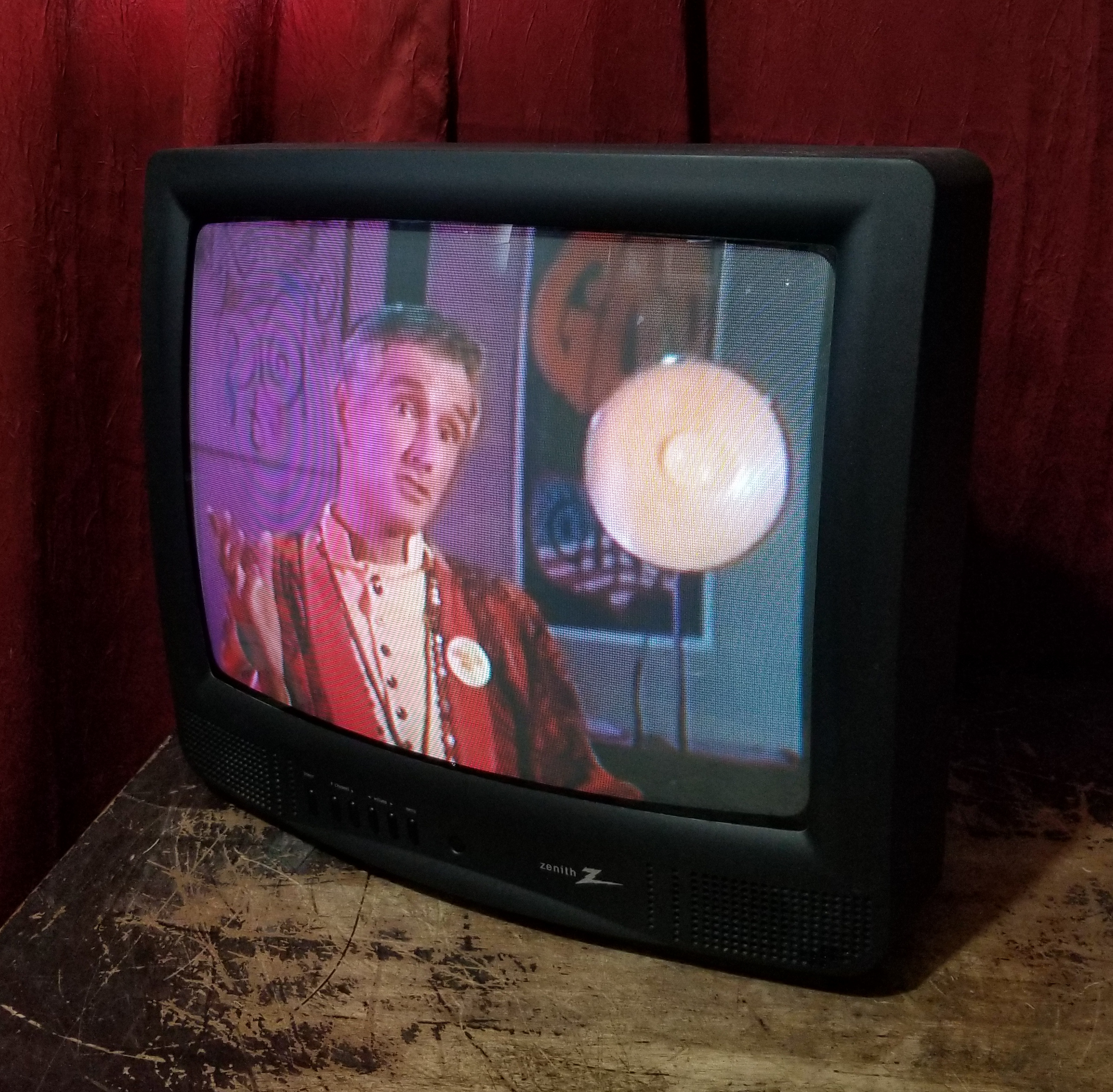

| Brand: | Zenith |
| Manufacturer: | Daewoo |

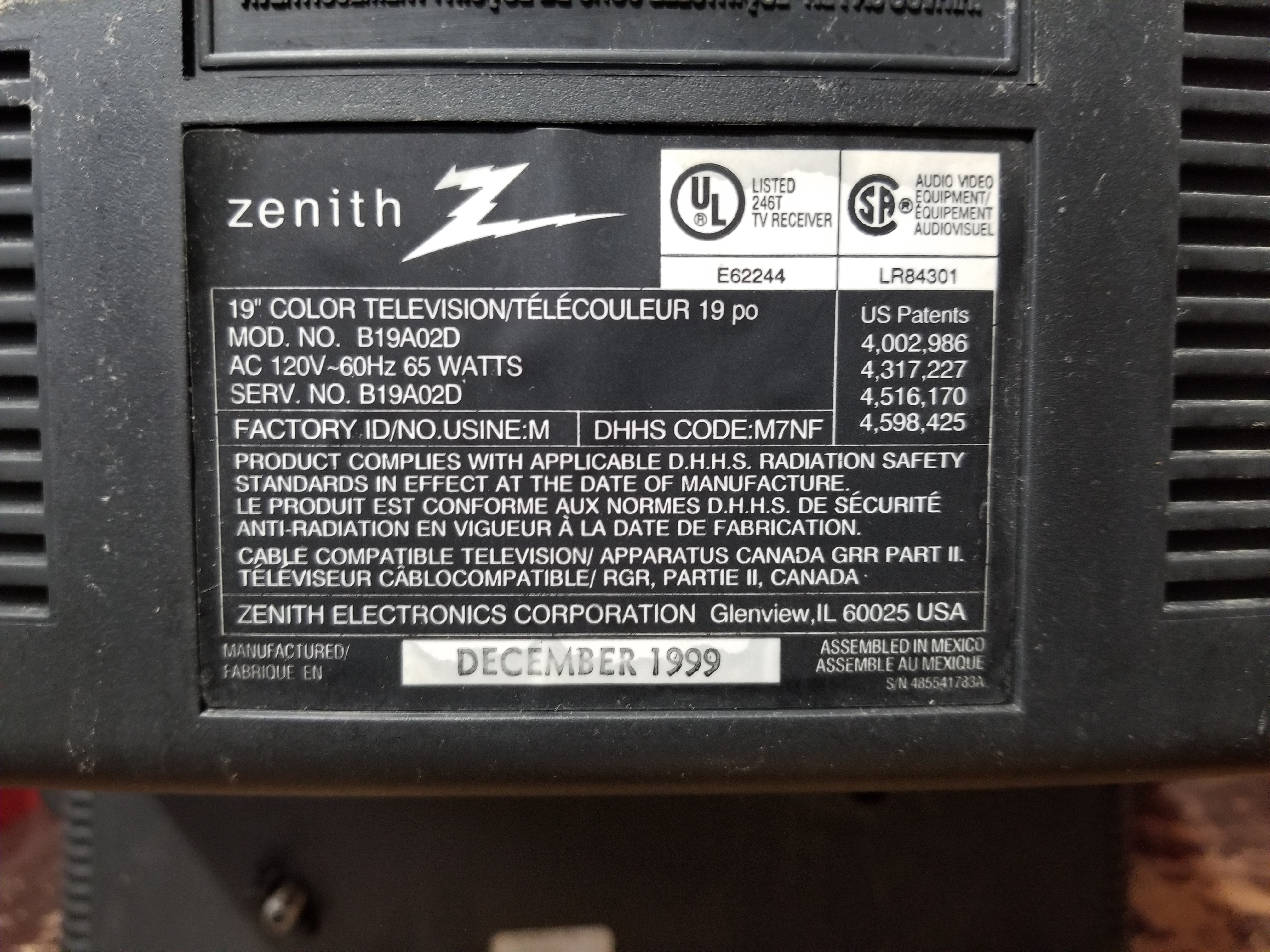

| Model: | B19A02D |
| Series: | B |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

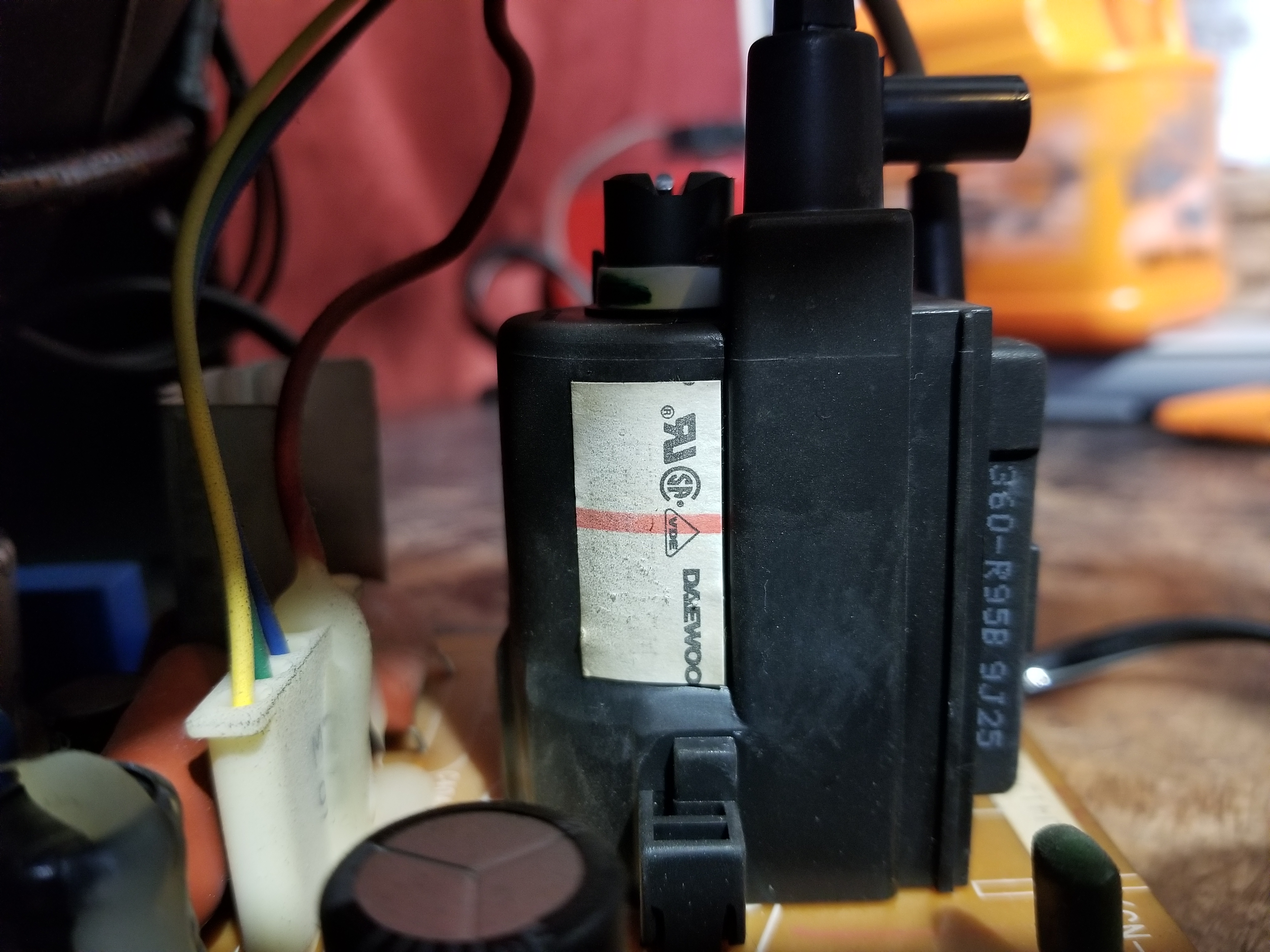

| Flyback: | FSA37012M |
| Focus Type: | Single |

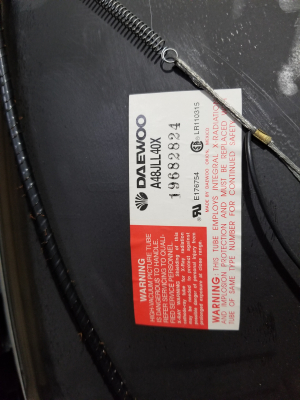

| Tube: | Daewoo-Orion , A48JLL40X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

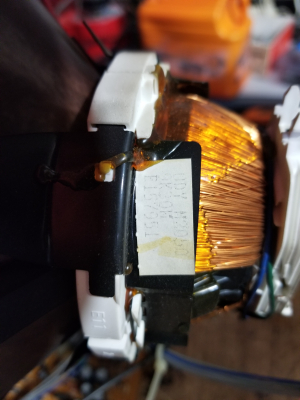

| Yoke: | ODY-M2050 |
| Yoke Horz. Resistance: | 3.8 ohm |
| Yoke Vert. Resistance: | 14.1 ohm |
| Speakers: | Mono |

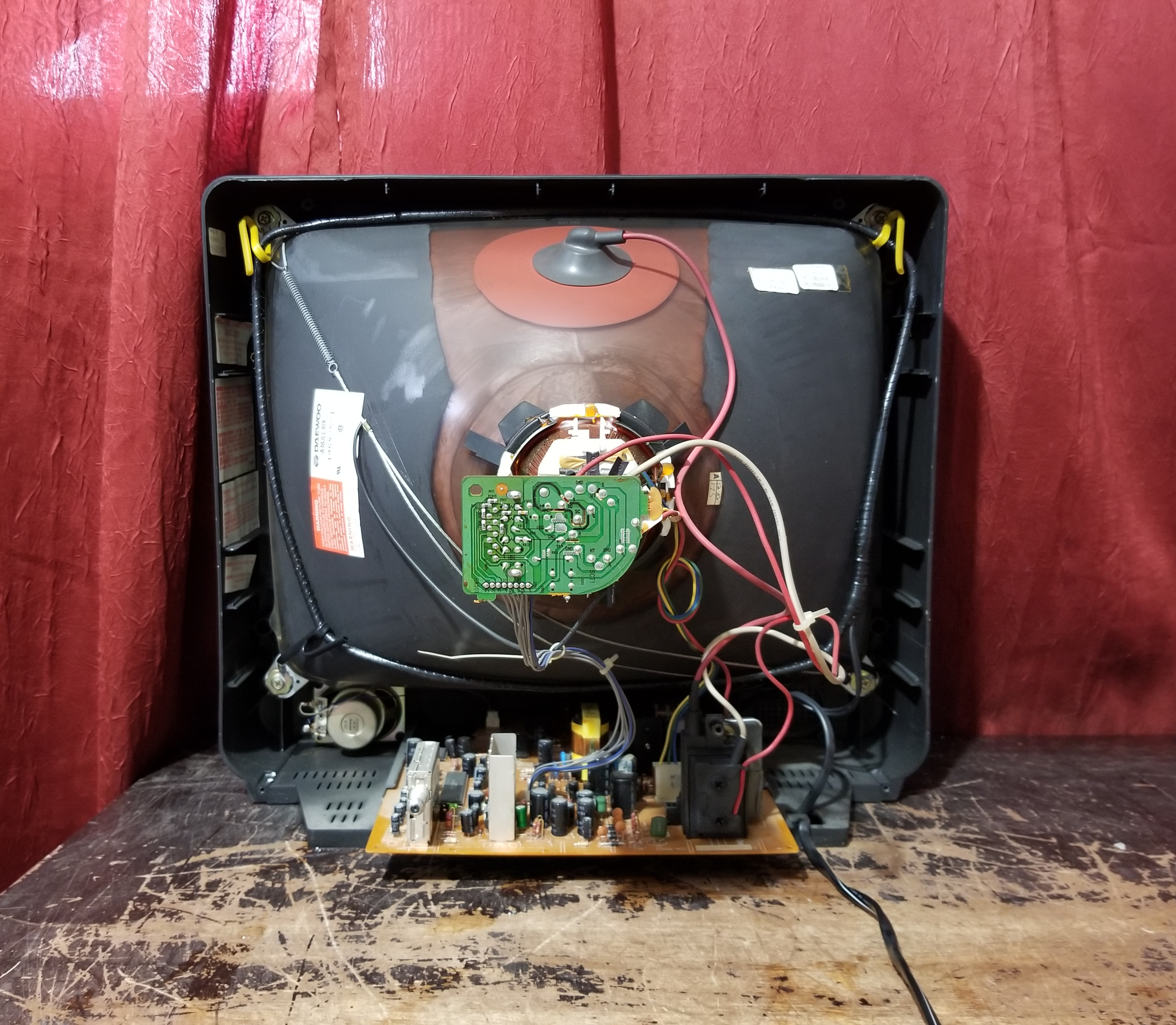

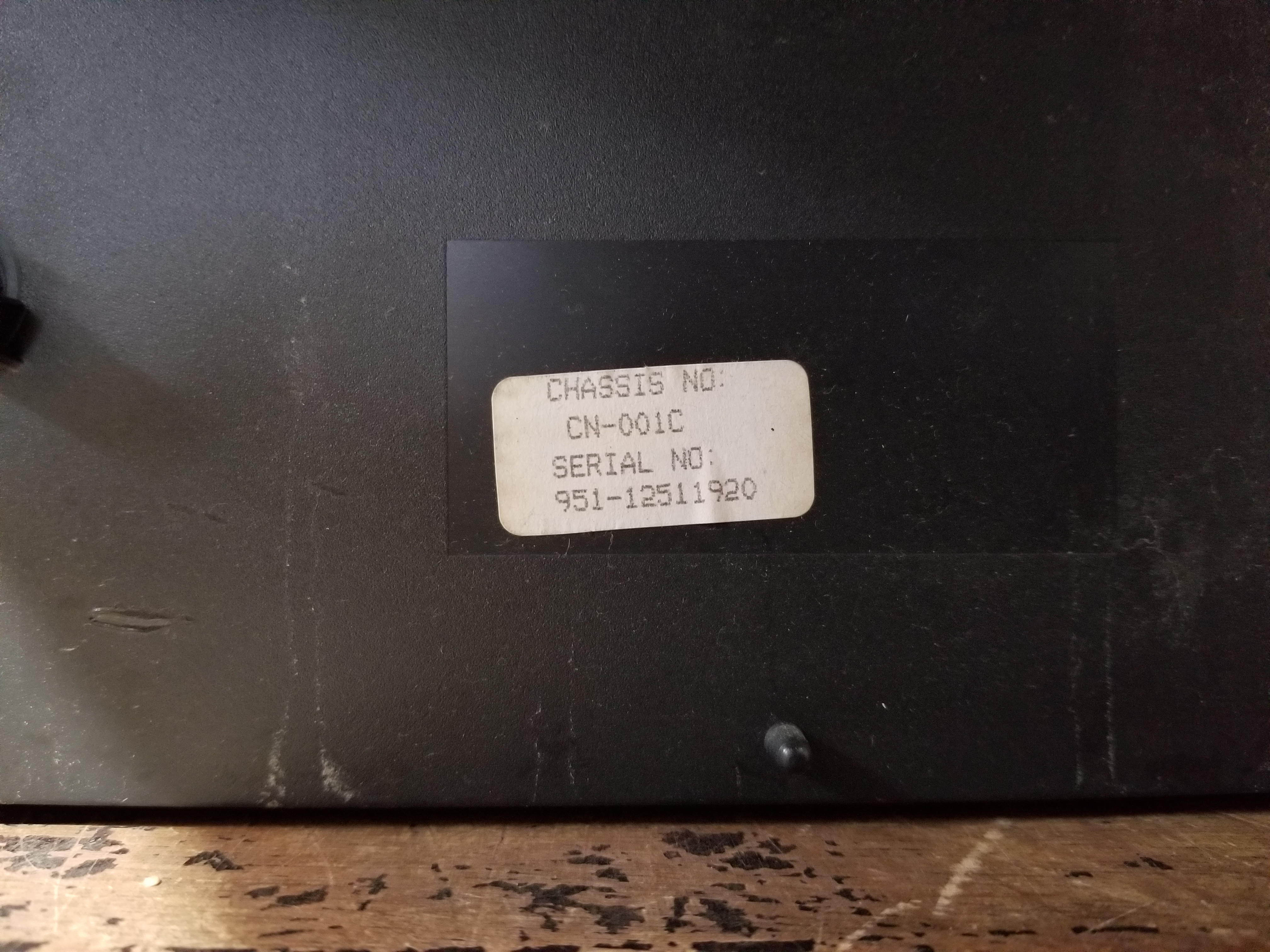

| Chassis: | CN-001C |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 199 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements |
