Summary

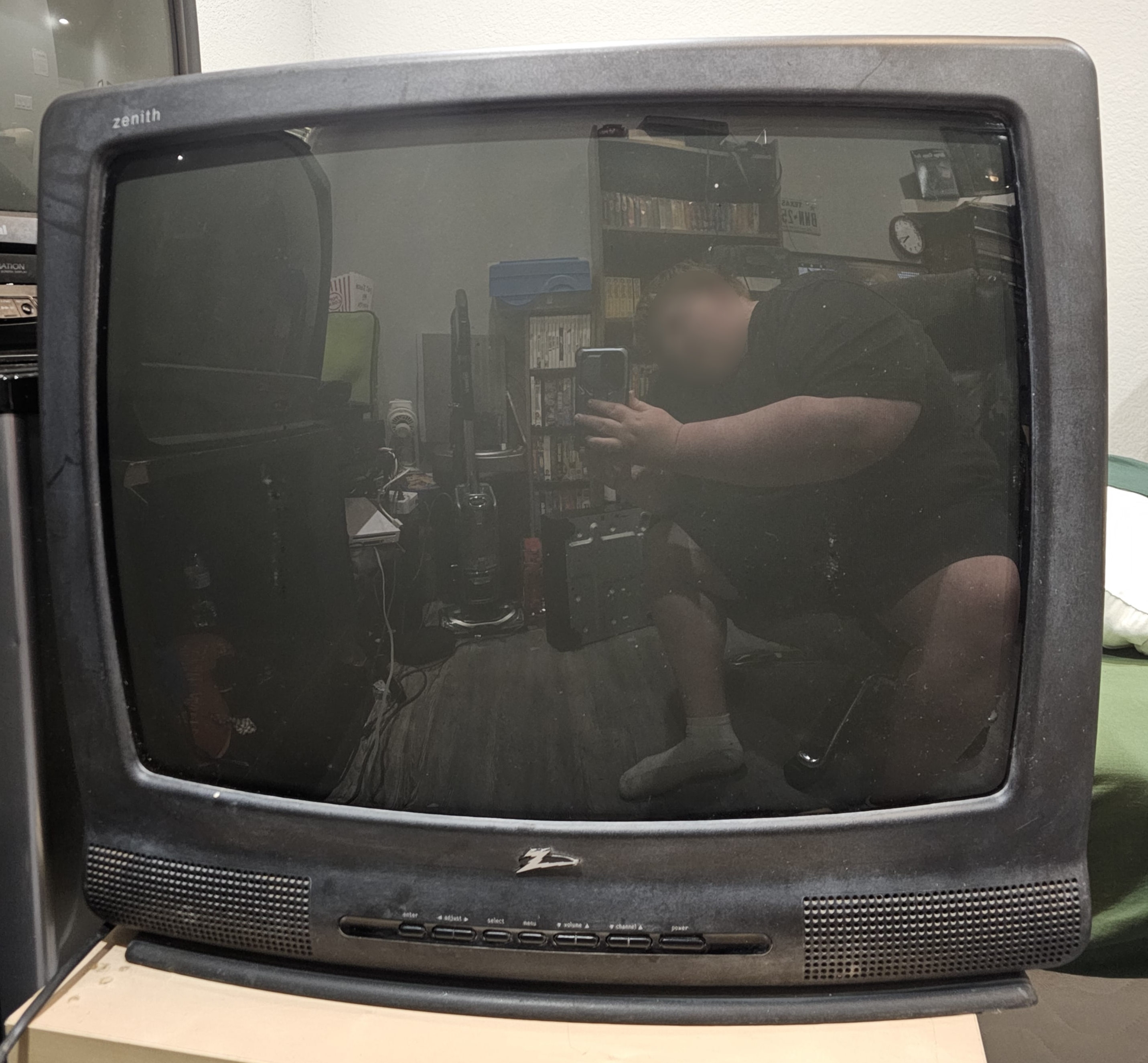

25" Zenith CRT TV, made at their Mexico plant in 1999. A rare combination of a 25" screen and having s-video input.
(Special thanks to Bryce Wilson for the pics!)
Manuals
Notes

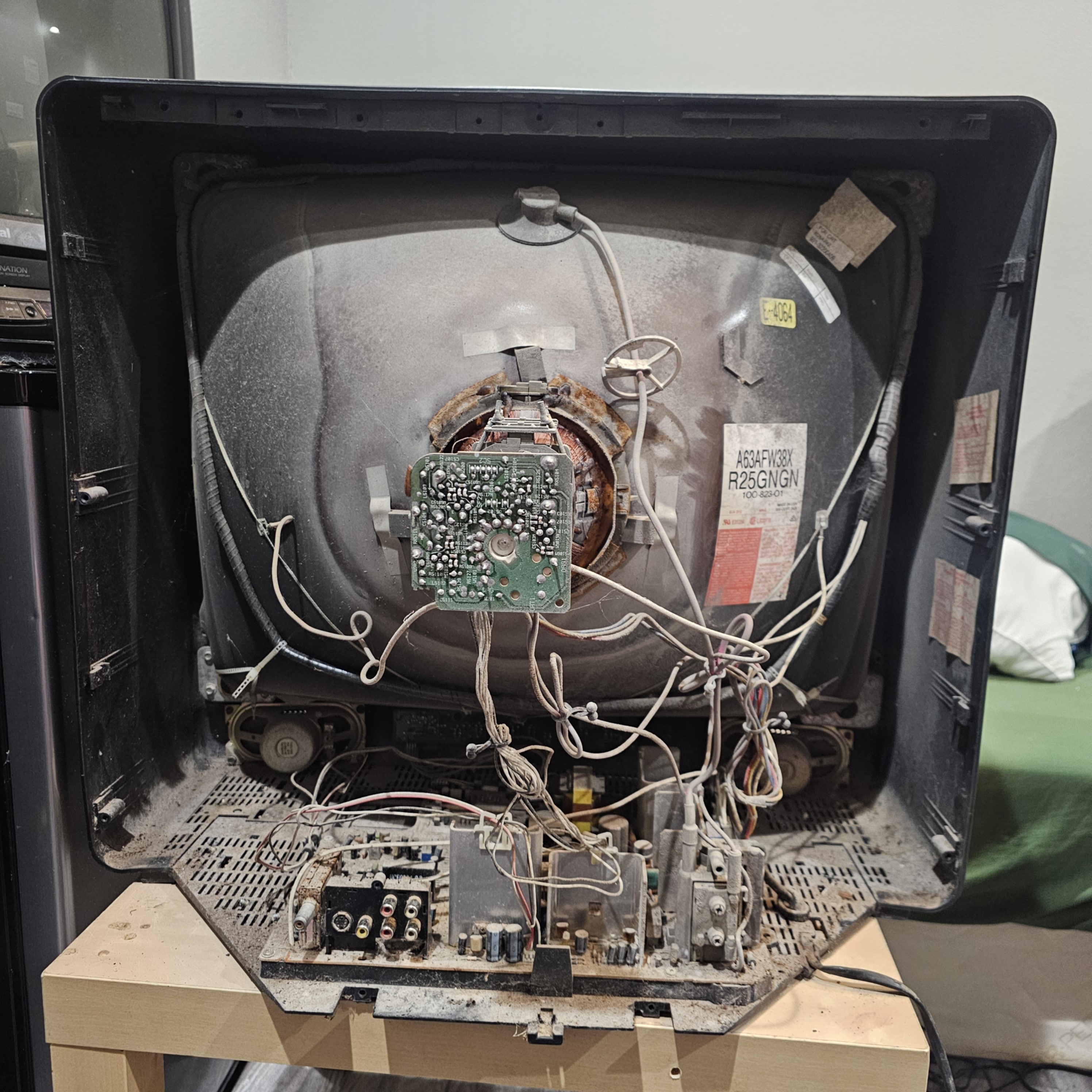

Since Zenith ceased making picture tubes in 1998, the tube in this set was made by Philips. It is a much more reliable tube compared to the awful 25" AGD and ACT-family tubes made a few years prior.

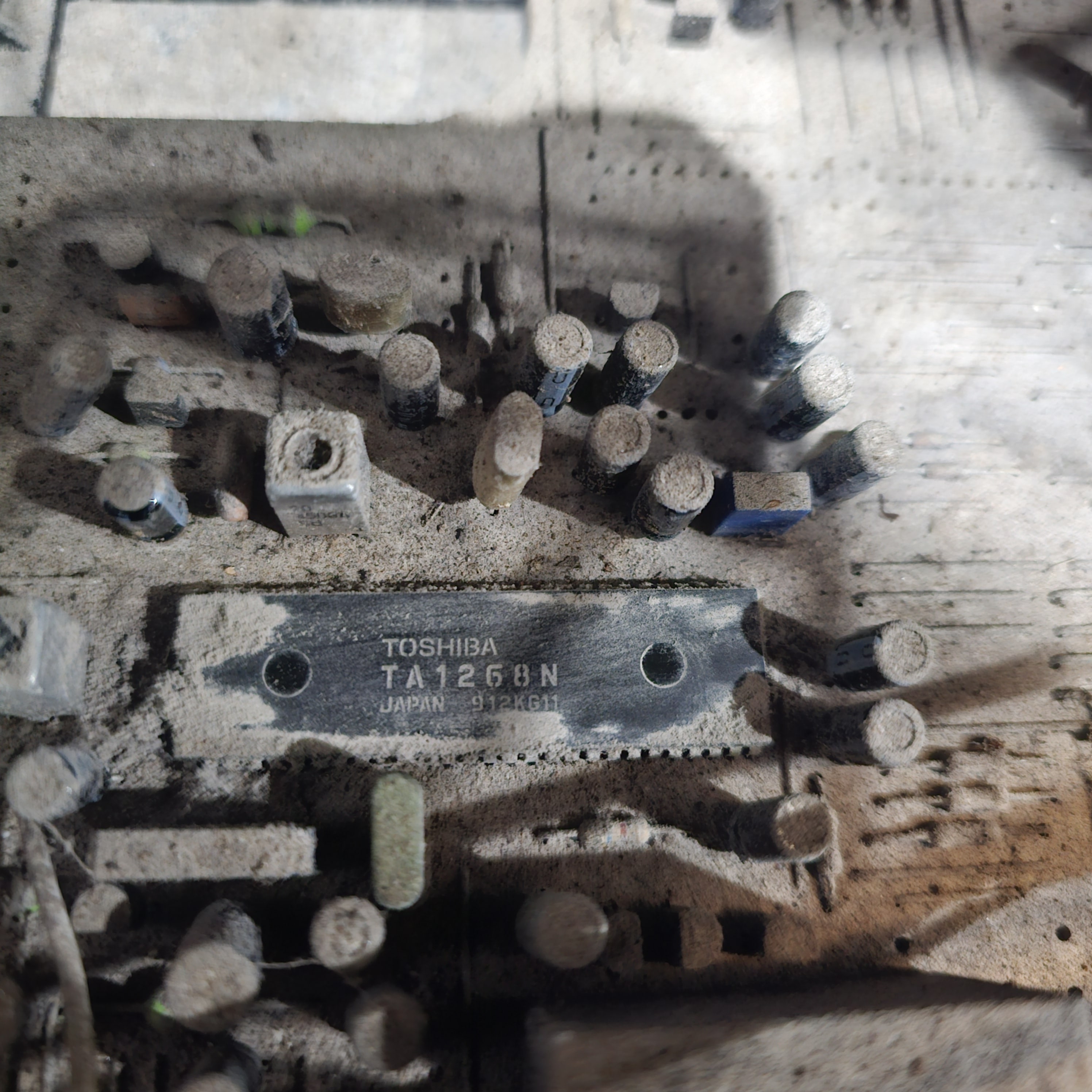

The Toshiba jungle chip supports analog RGB modification.

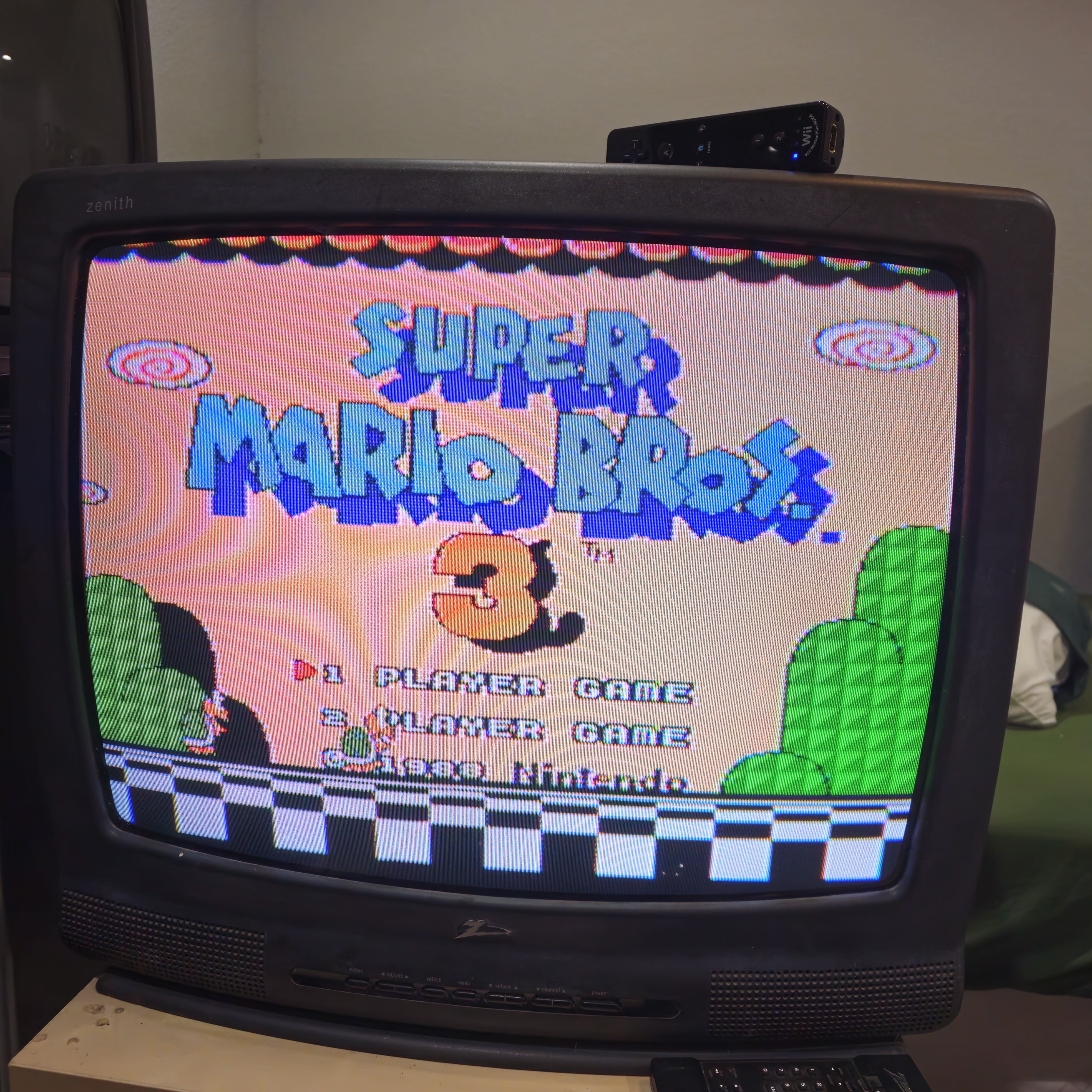

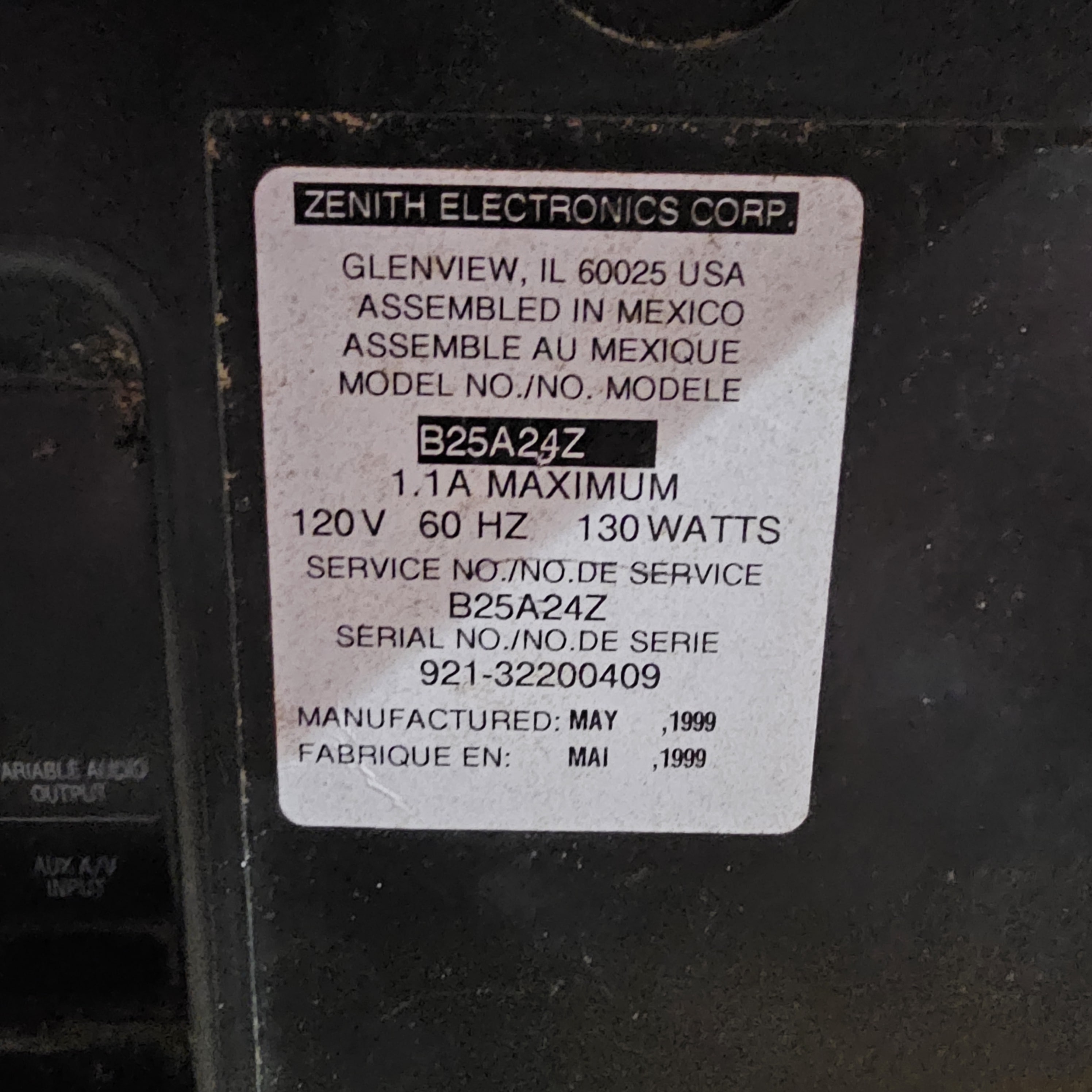

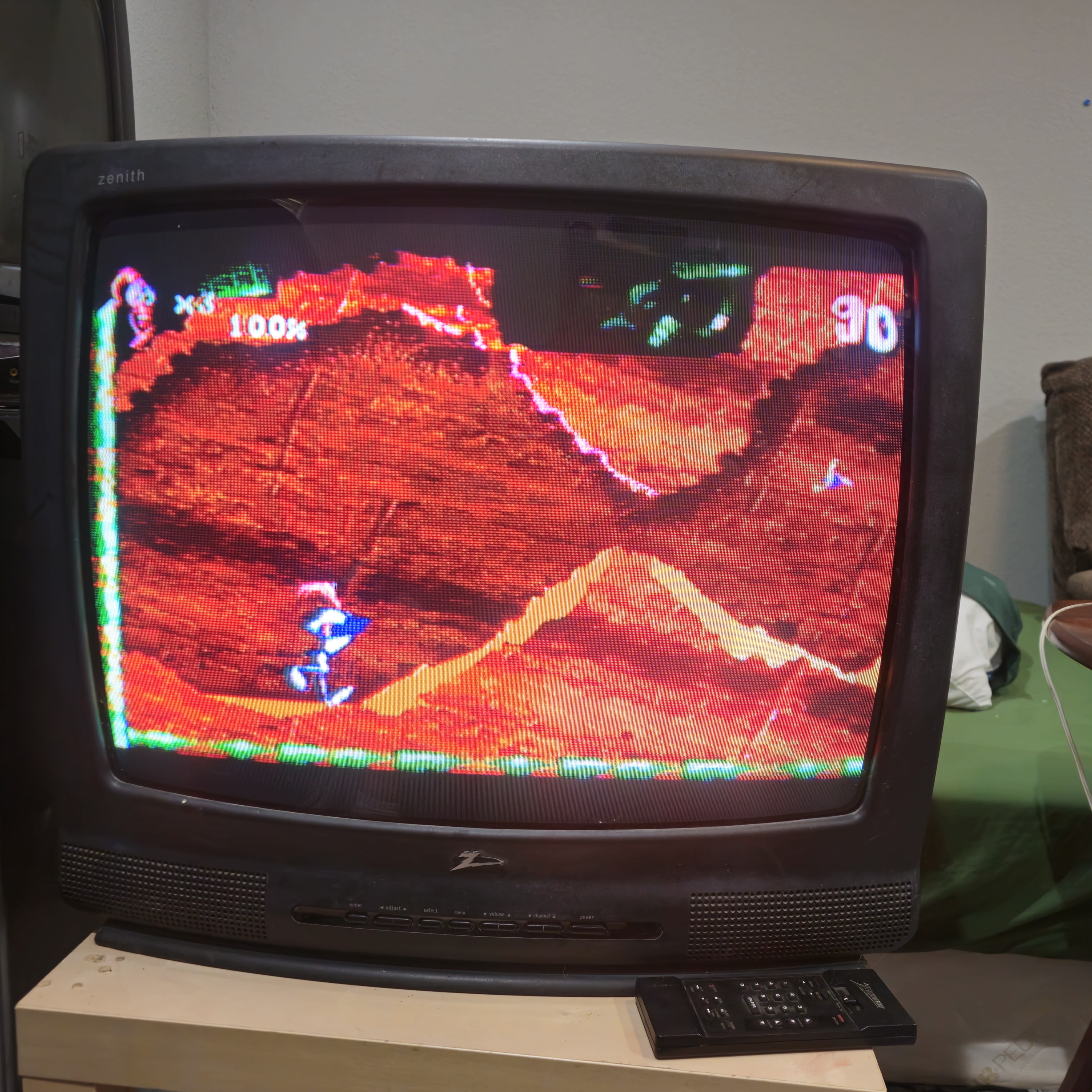

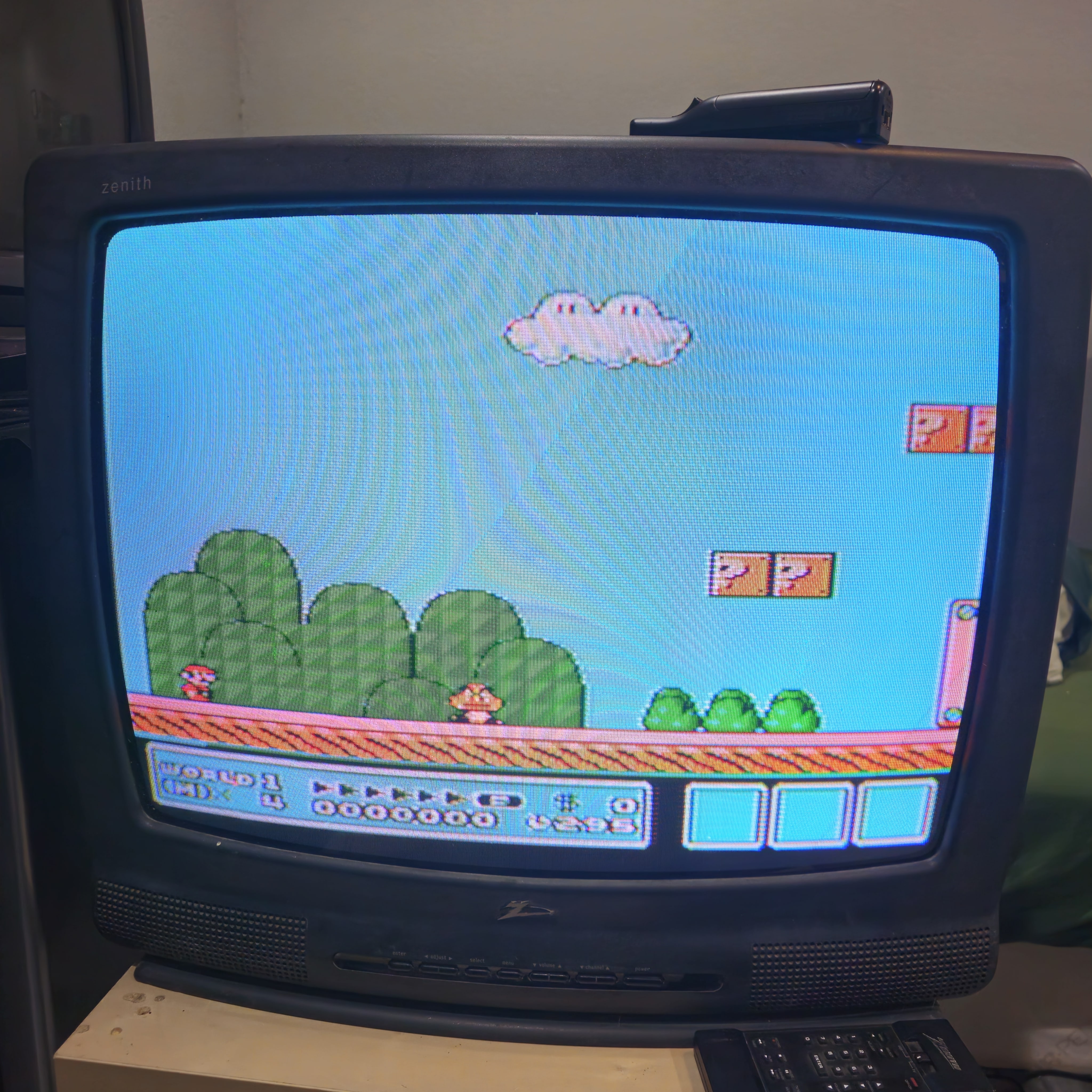

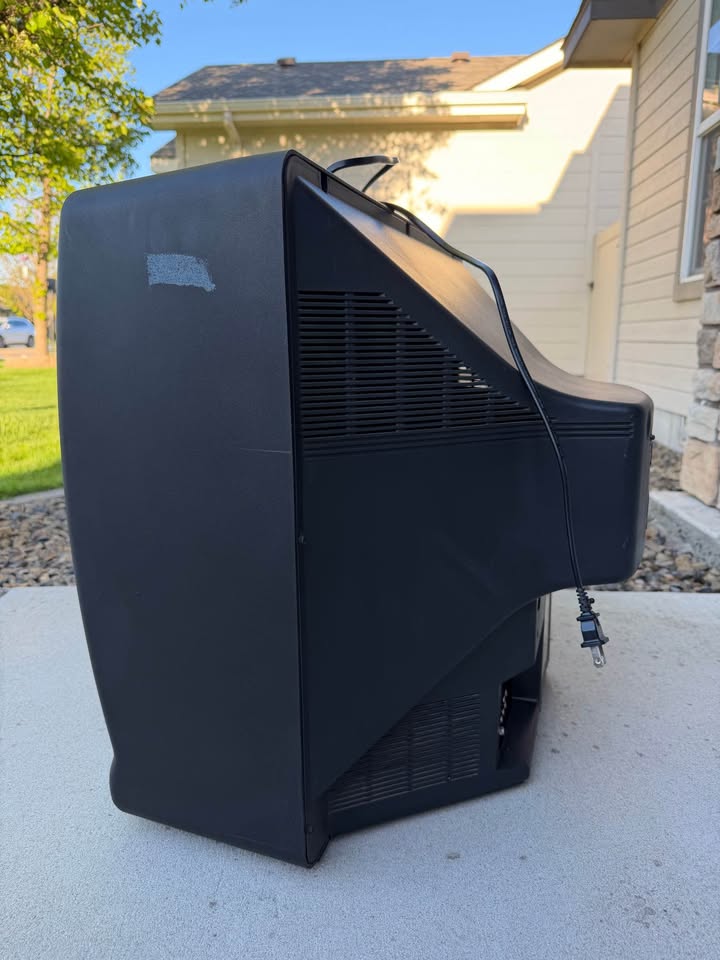

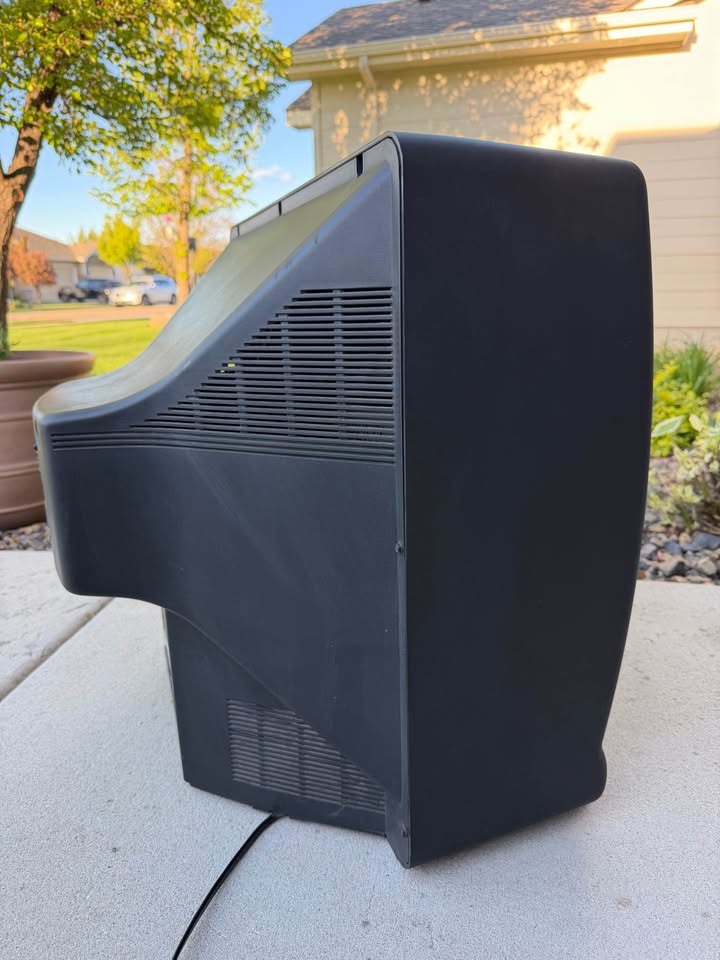

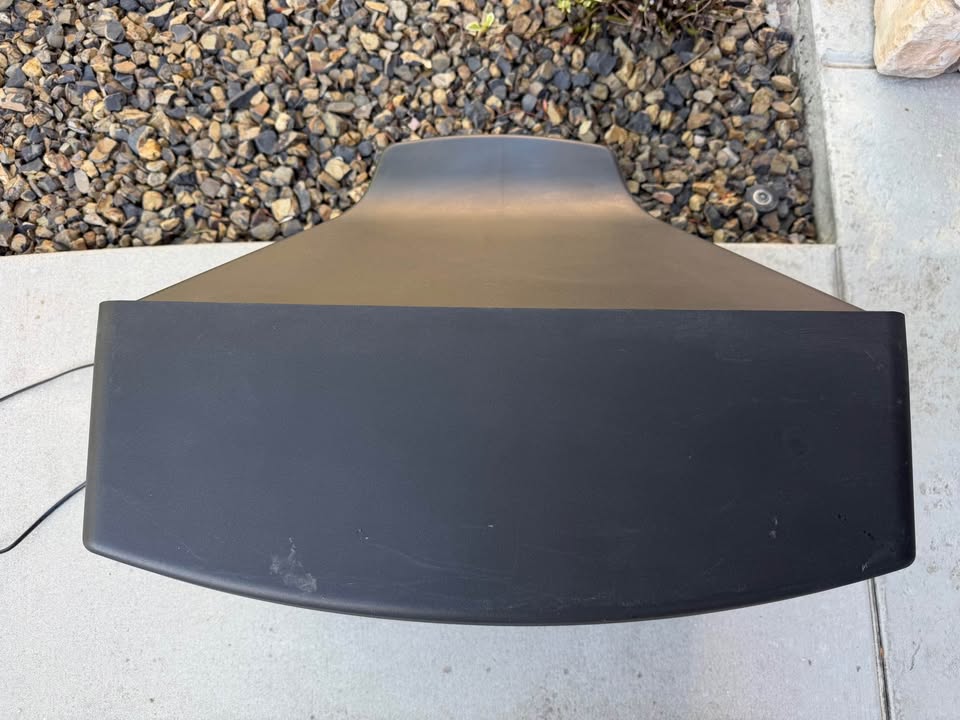

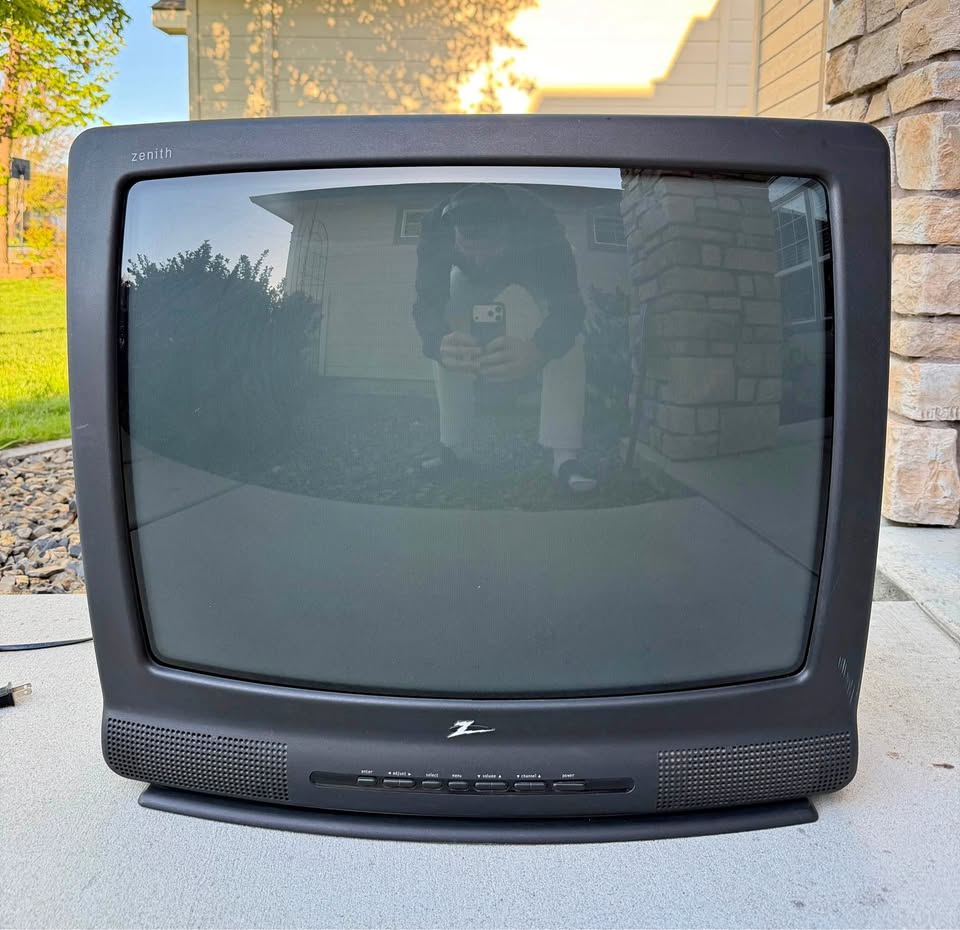

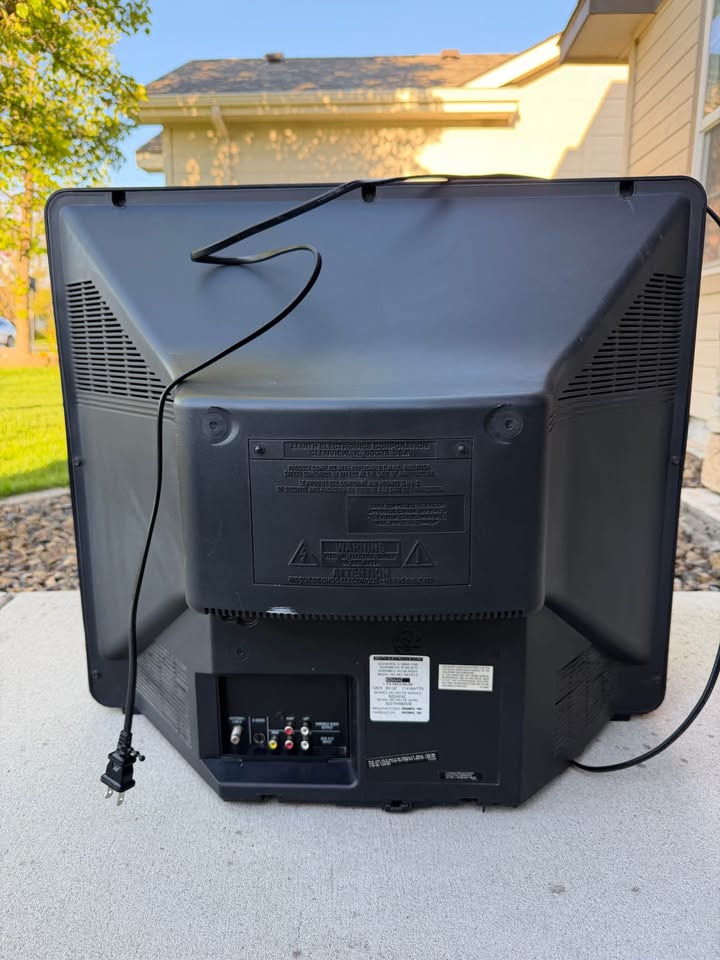

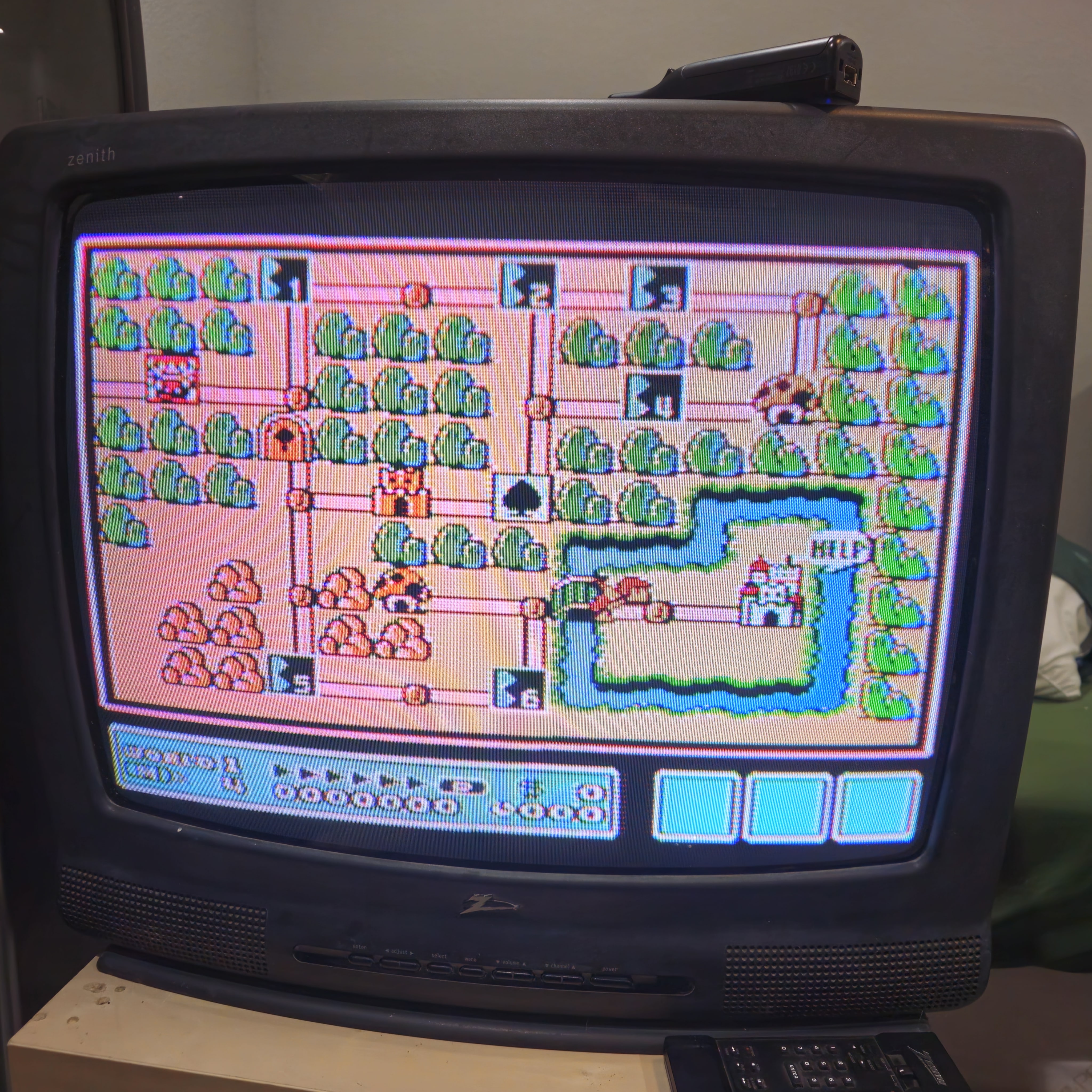

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | B25A24Z |
| Series: | B |
| Viewable Size: | 25" |

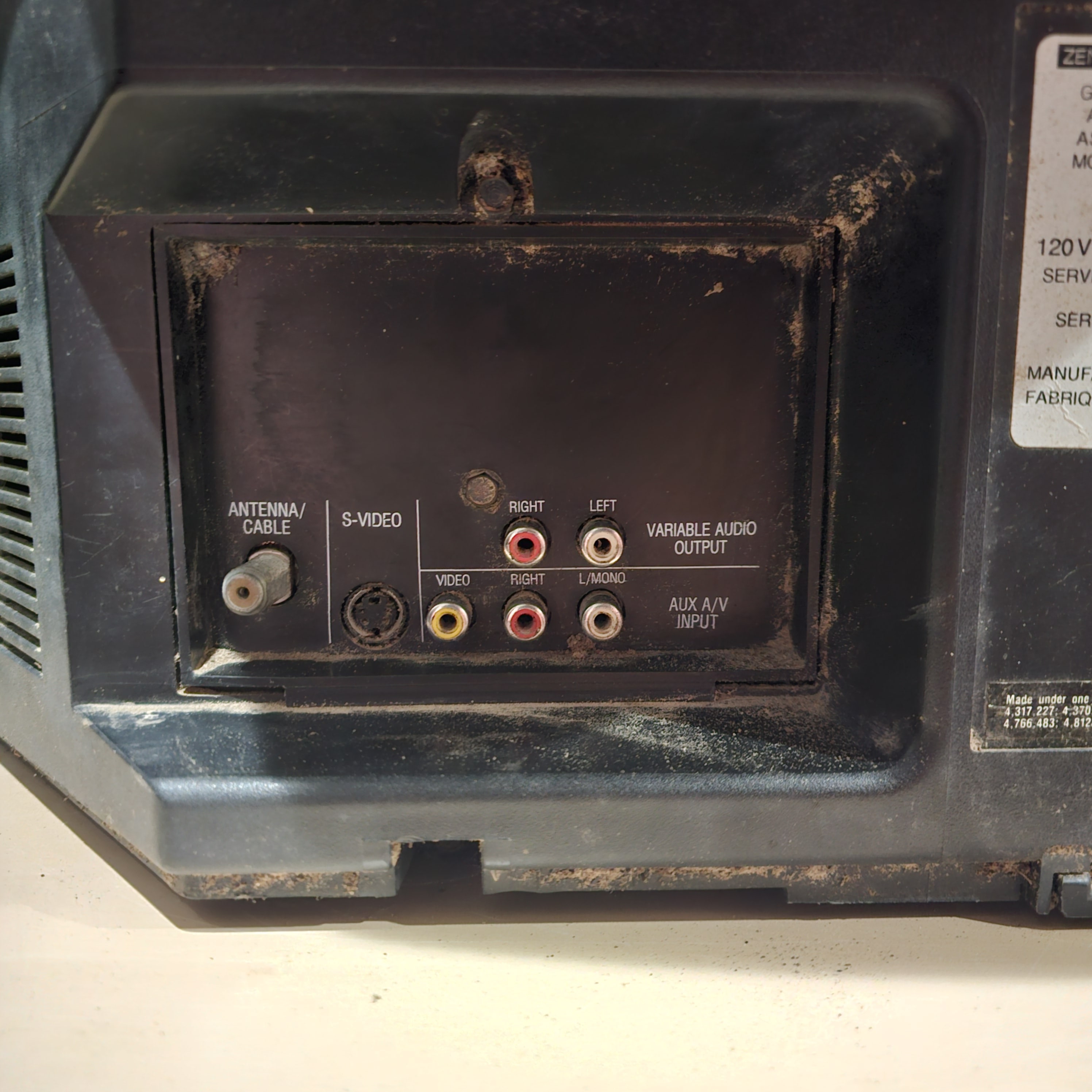

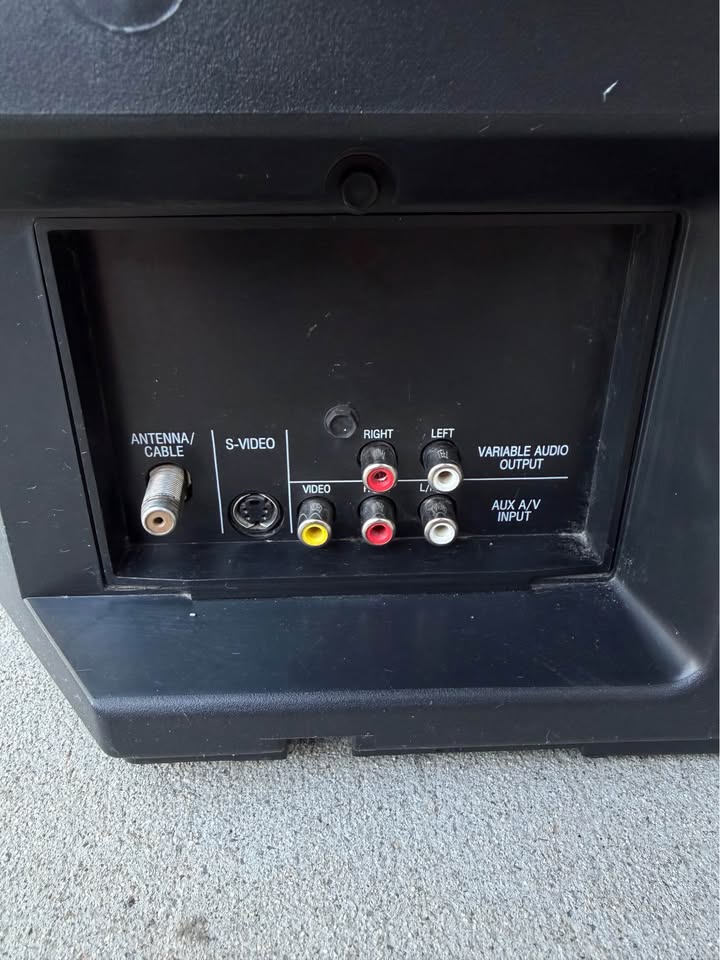

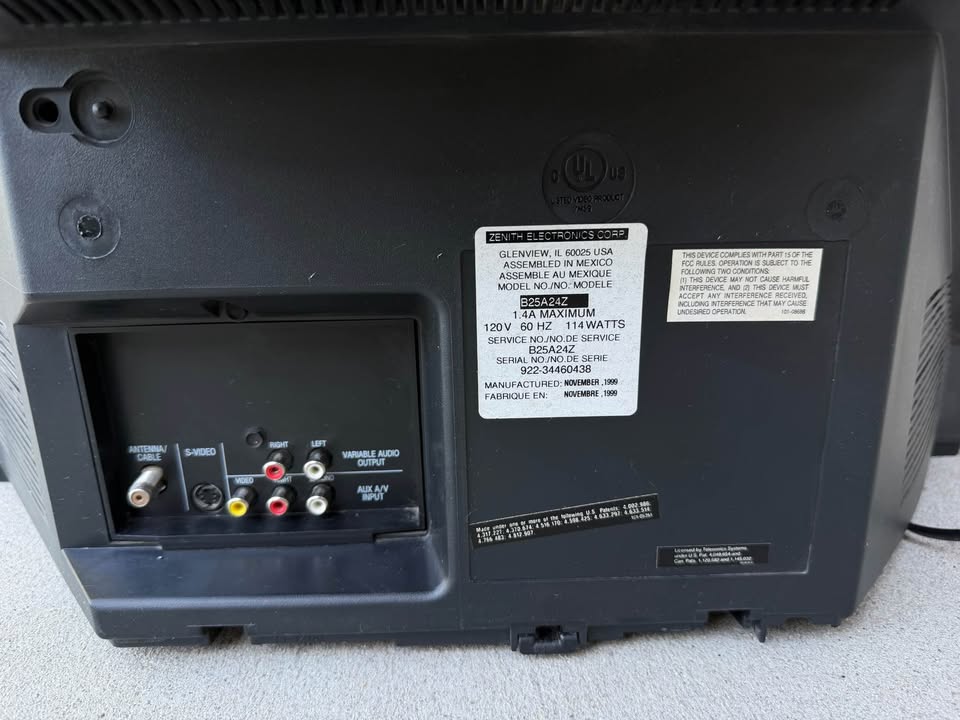

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

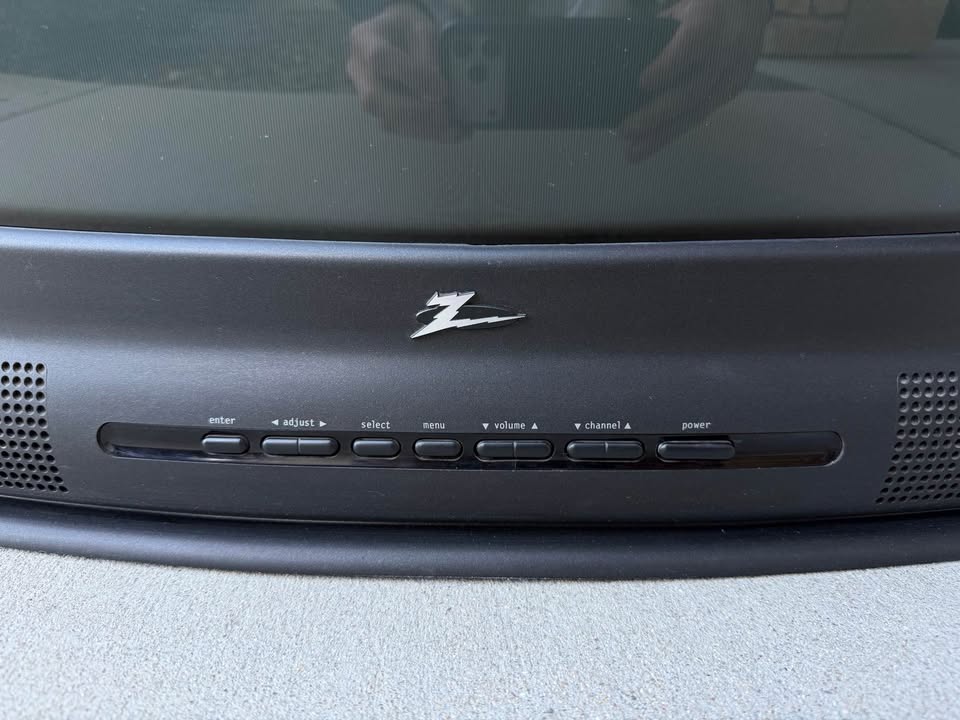

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | TA1268N, Toshiba |
| Focus Type: | Single |
| Tube: | Philips , A63AFW38X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 095-04456-05 |
| Speakers: | Stereo |
| Remote: | MBR3447Z |
| Chassis: | CA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
