Summary

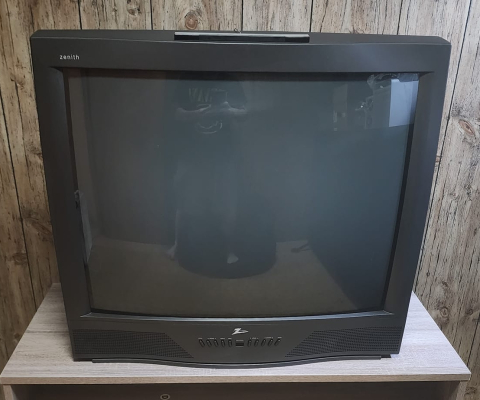

32" color TV from Zenith. Features RF, composite, and S-Video inputs. Made In Mexico in 1999. One of the very last sets Zenith made before bankruptcy and LG completely taking over their manufacturing operations.
Literature
- [User Manual]()
- Service Manual
Notes
This TV does not have a discrete input select button on the chassis. However, the video input can be toggled using the menu controls on the front panel.

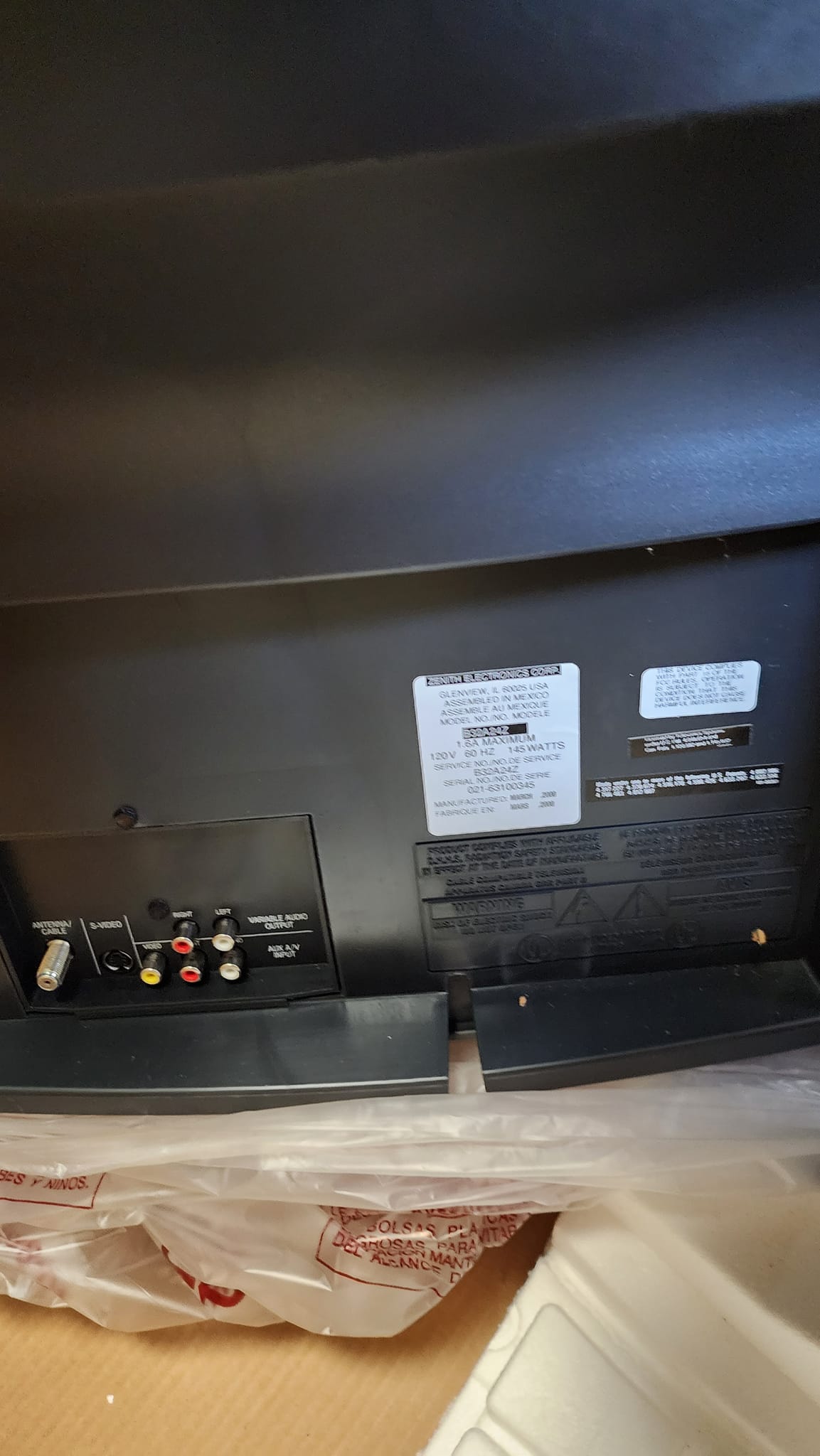

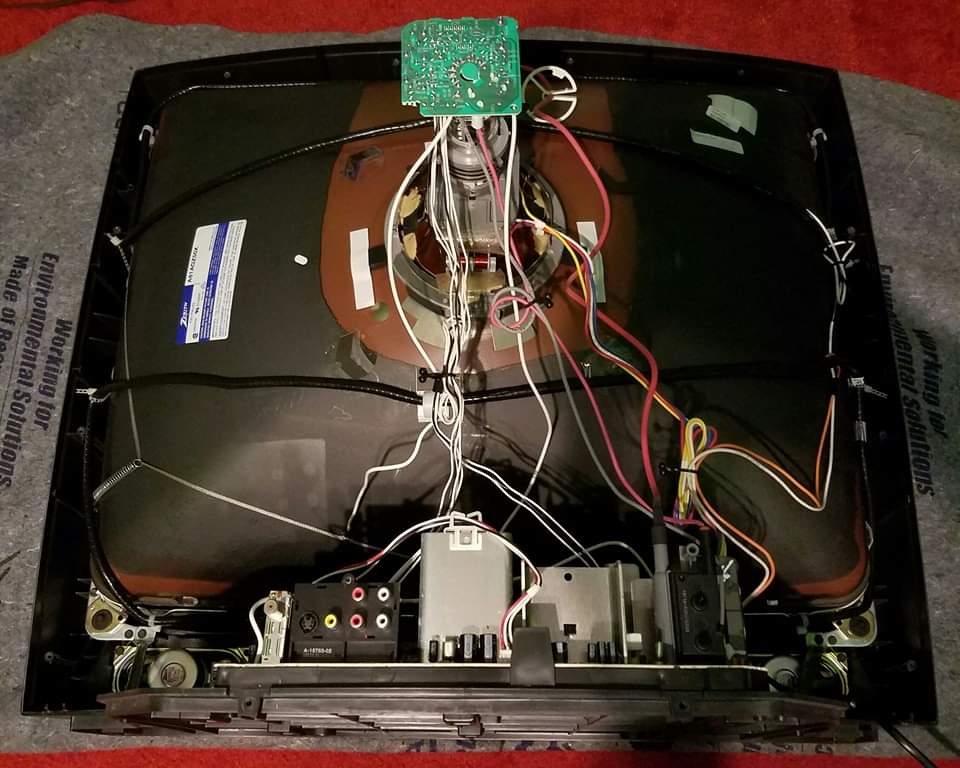

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | B32A24Z |
| Series: | B |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF |
| Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

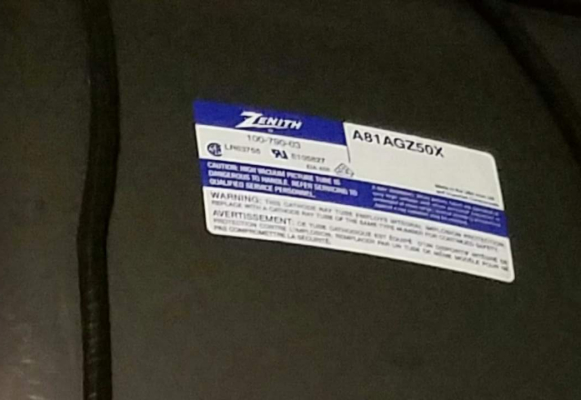

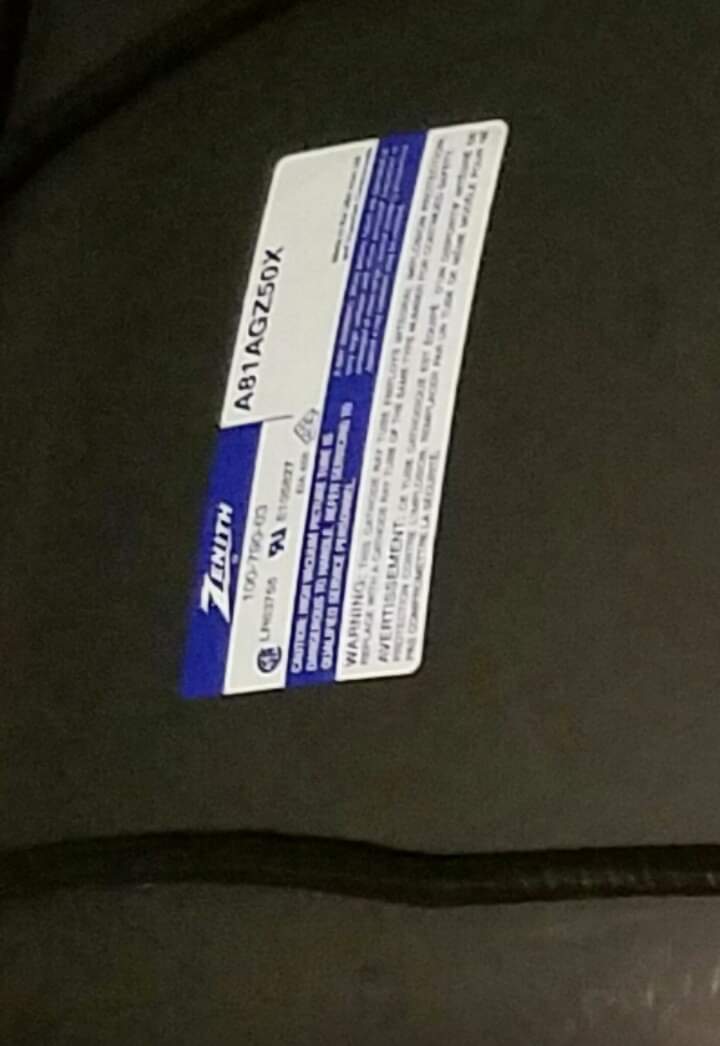

| Tube: | Toshiba , A81AGZ50X |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Stereo |
| Application: | Consumer |
| Launched: | 1999 |
| Country of Manufacture: | Mexico |
| Degaussing: | Automatic on Power-on |
