Summary

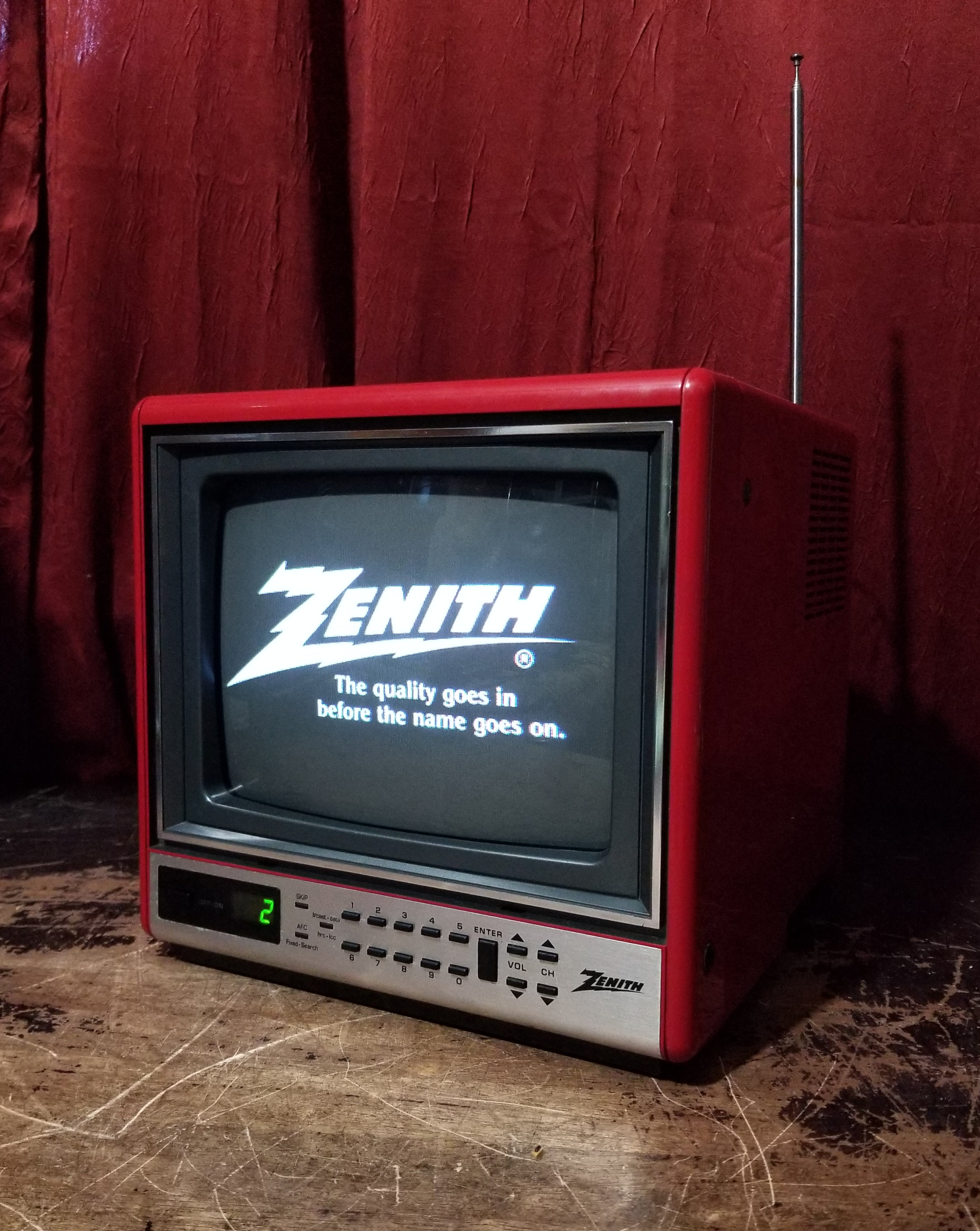

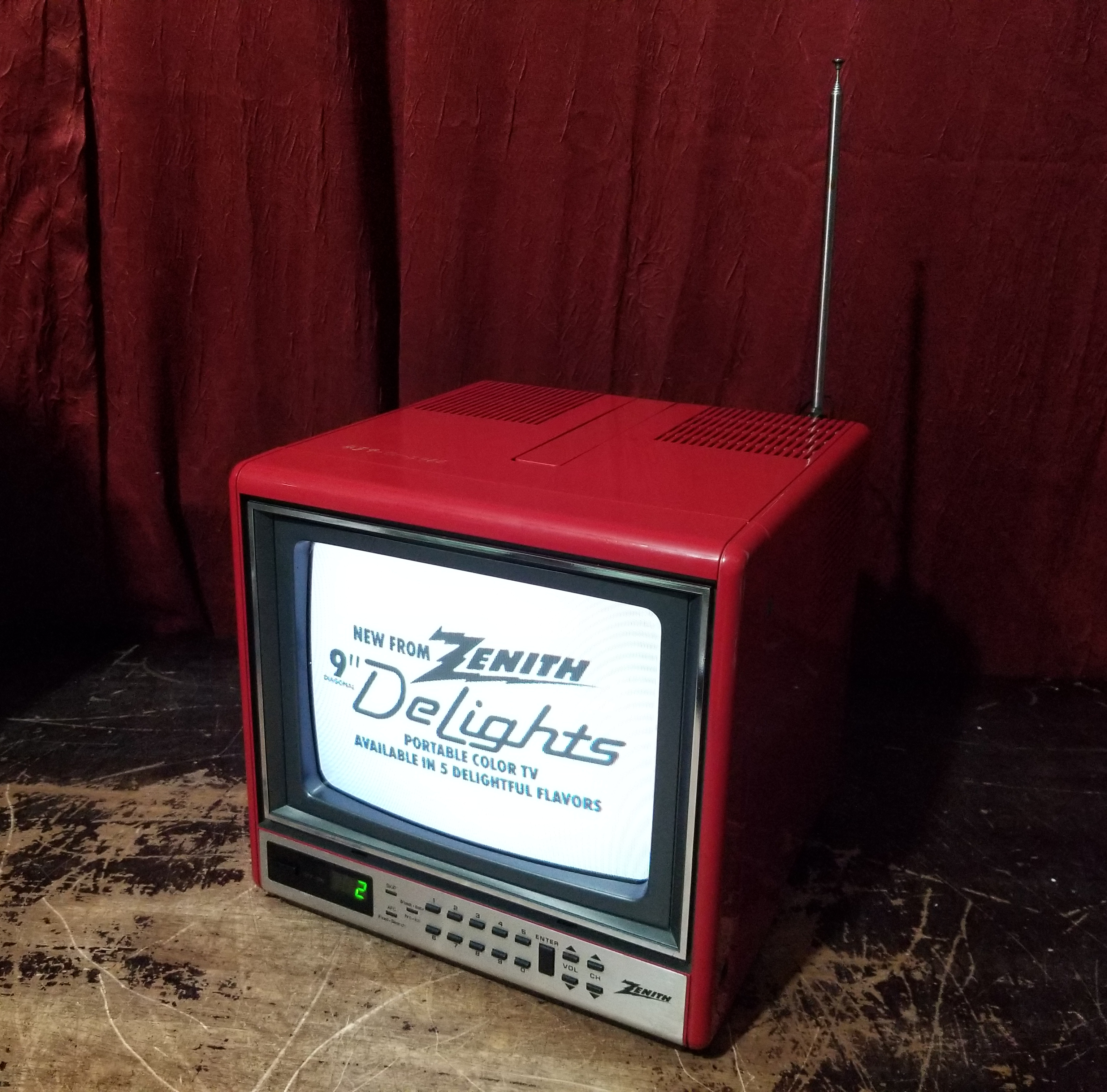

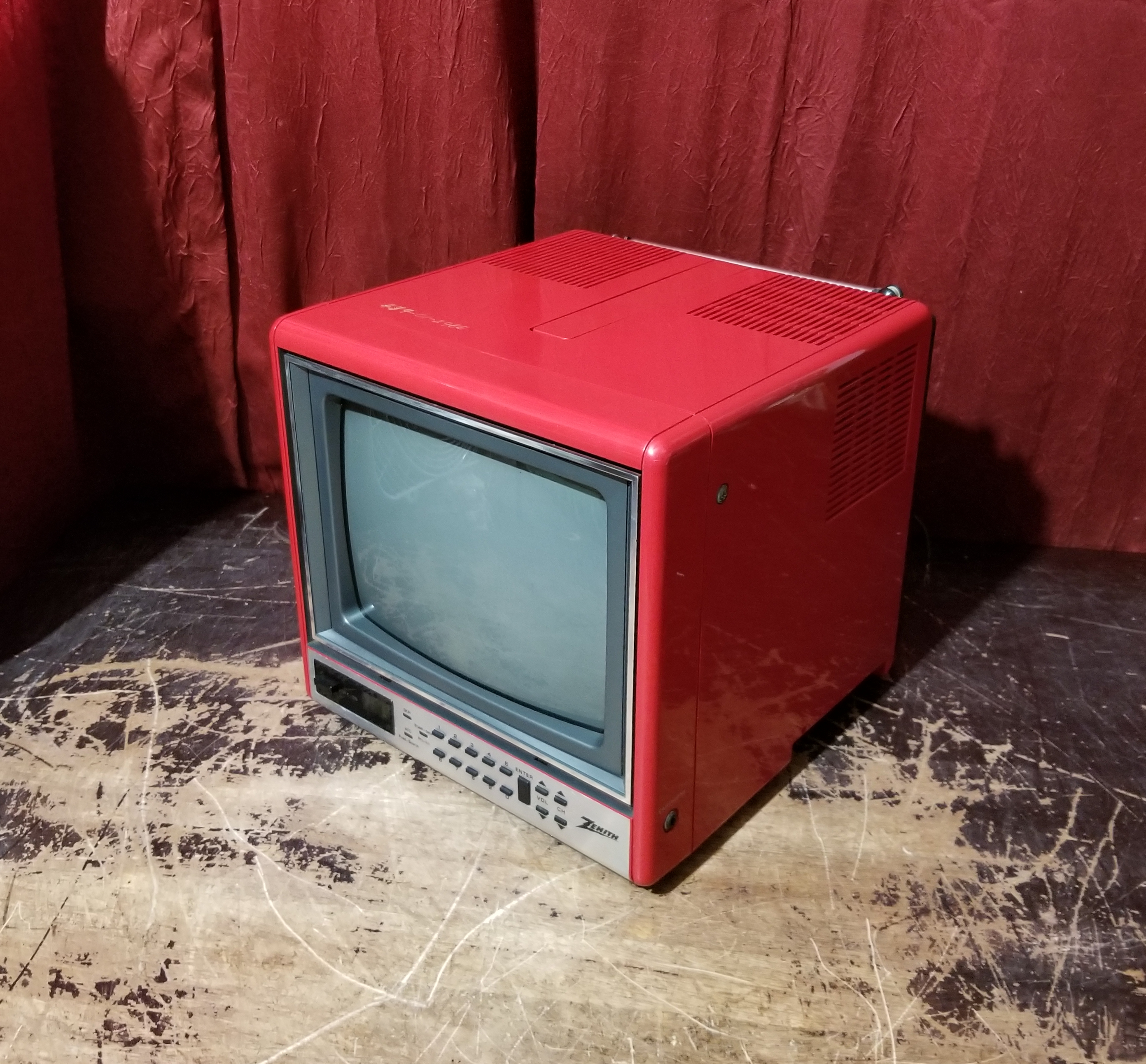

ZENITH DeLights 9" Diagonal Color TV. Easy to carry portable - weighs just 17 lbs. Chromacolor contrast picture tube. Carrying handle. Ultra-compact.
Manuals
The closest Sam's available appears to be for the D0930S, Sam's set 2698.
Media & Promo Materials
Mods & Repair Guides
Repair Notes
After about an hour of use or more, the raster size would get wobbly and scanlines would flicker in unevenly across the screen. Cause yet to be determined.

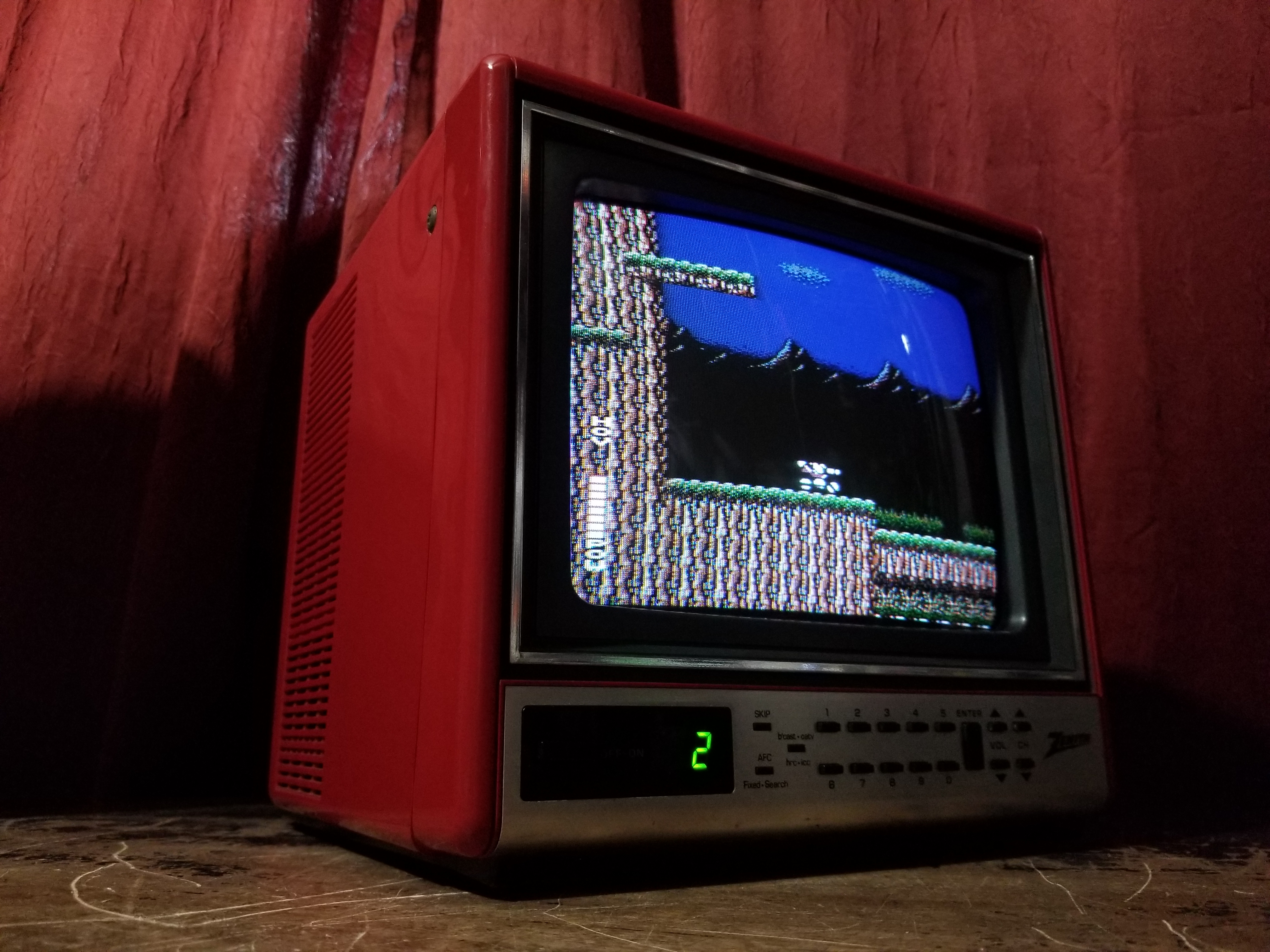

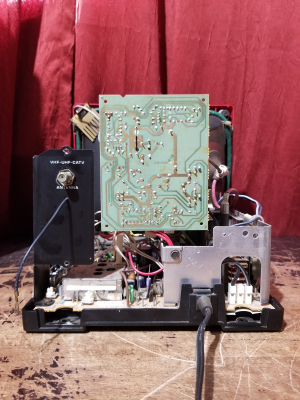

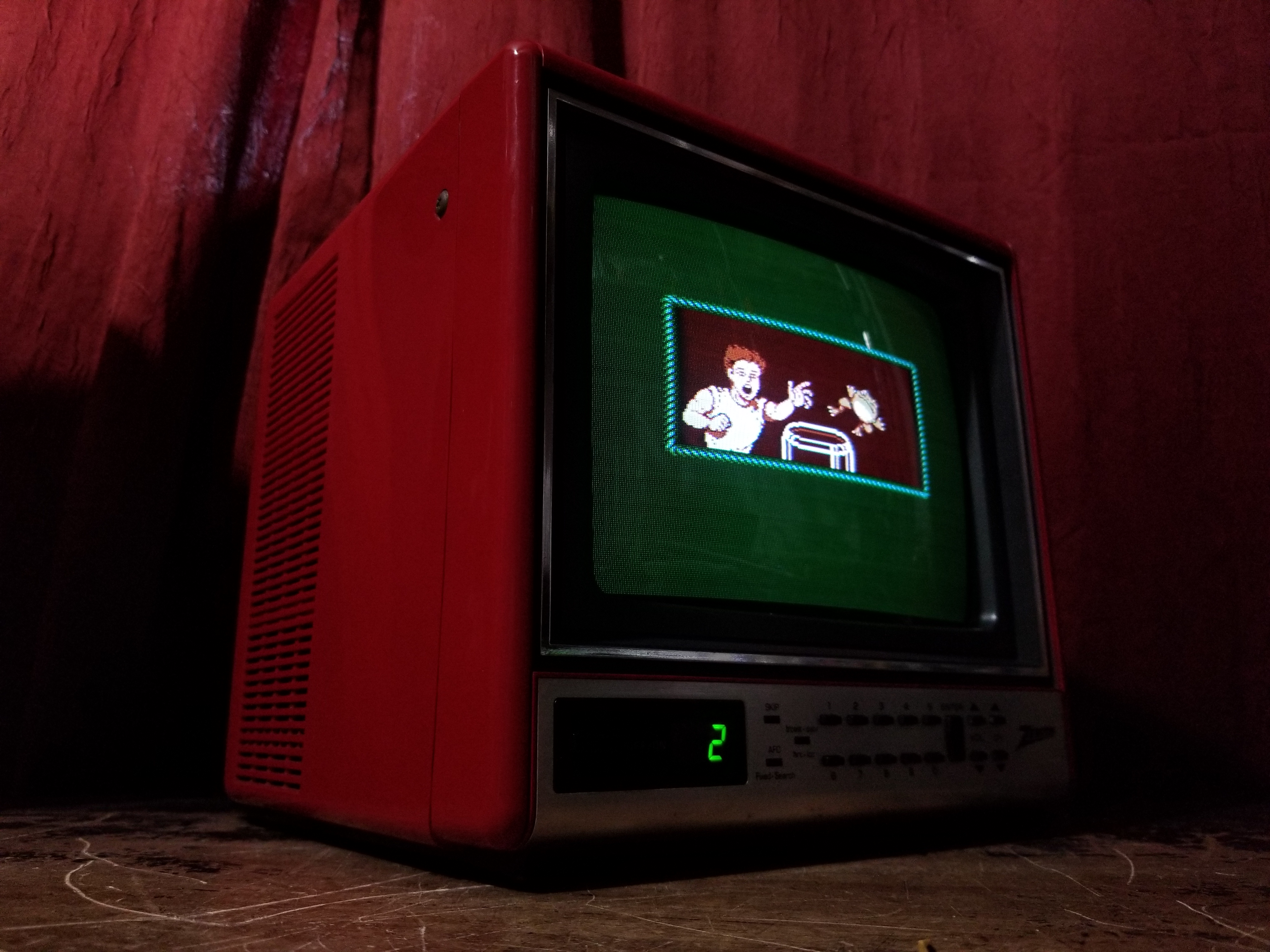

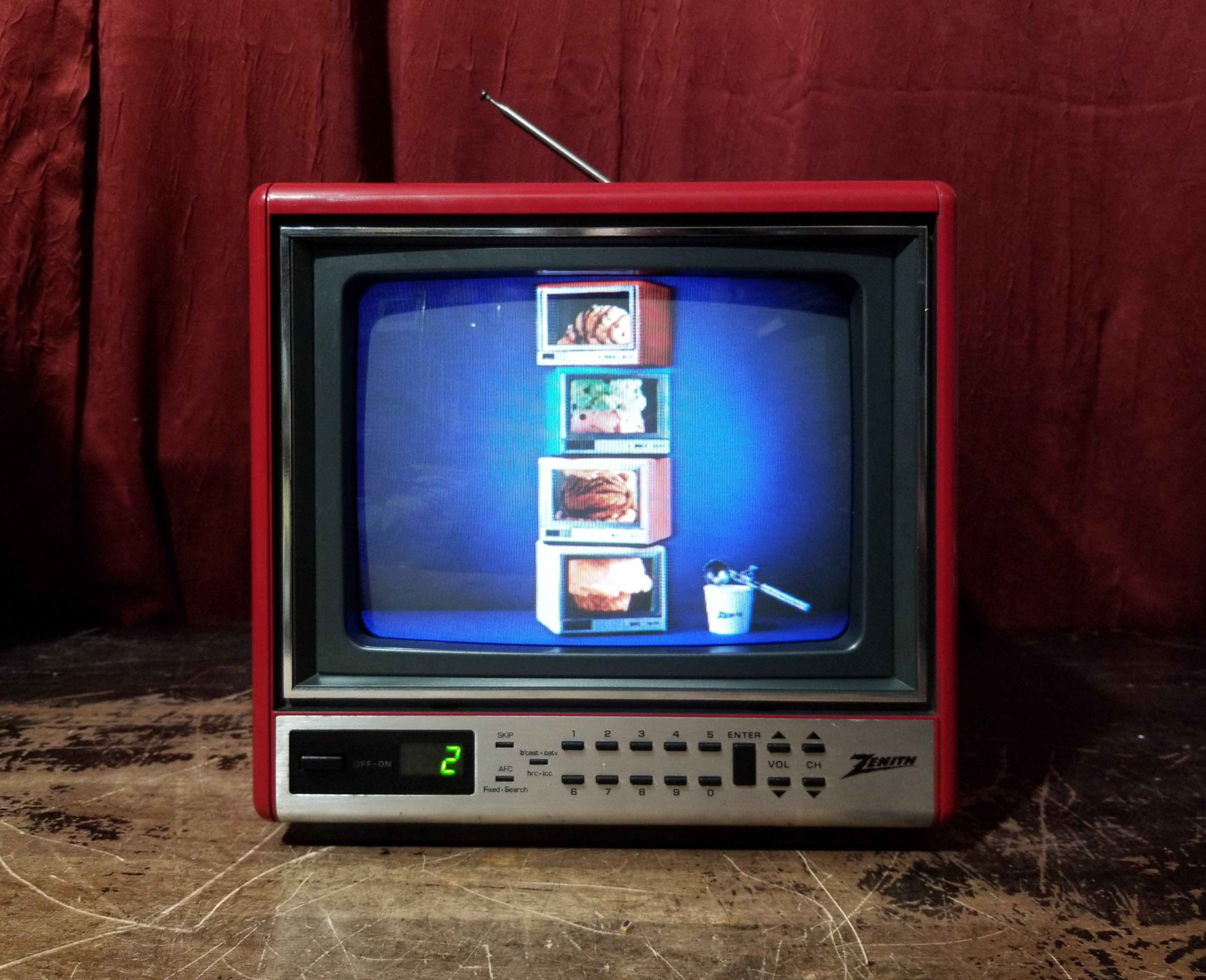

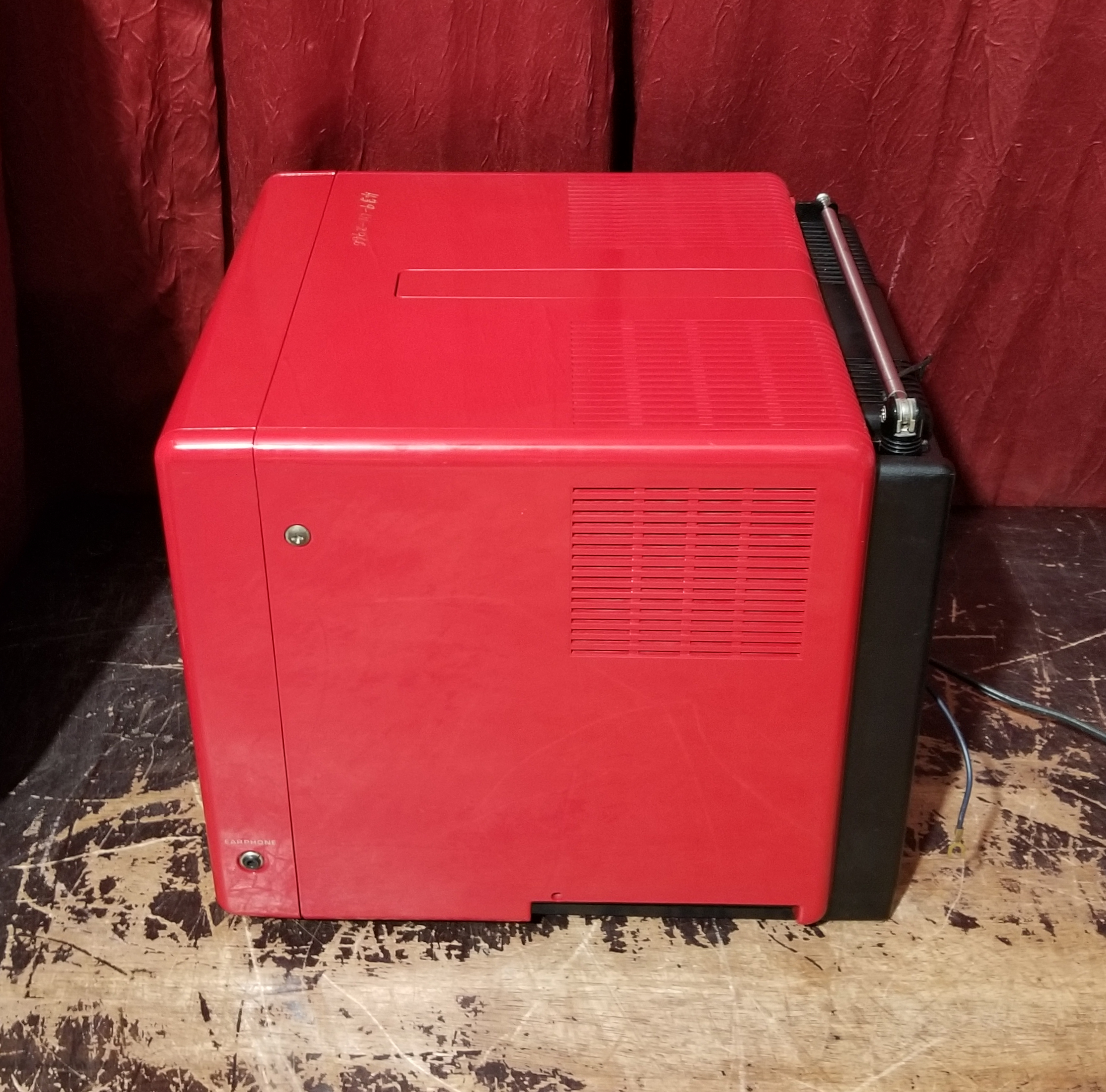

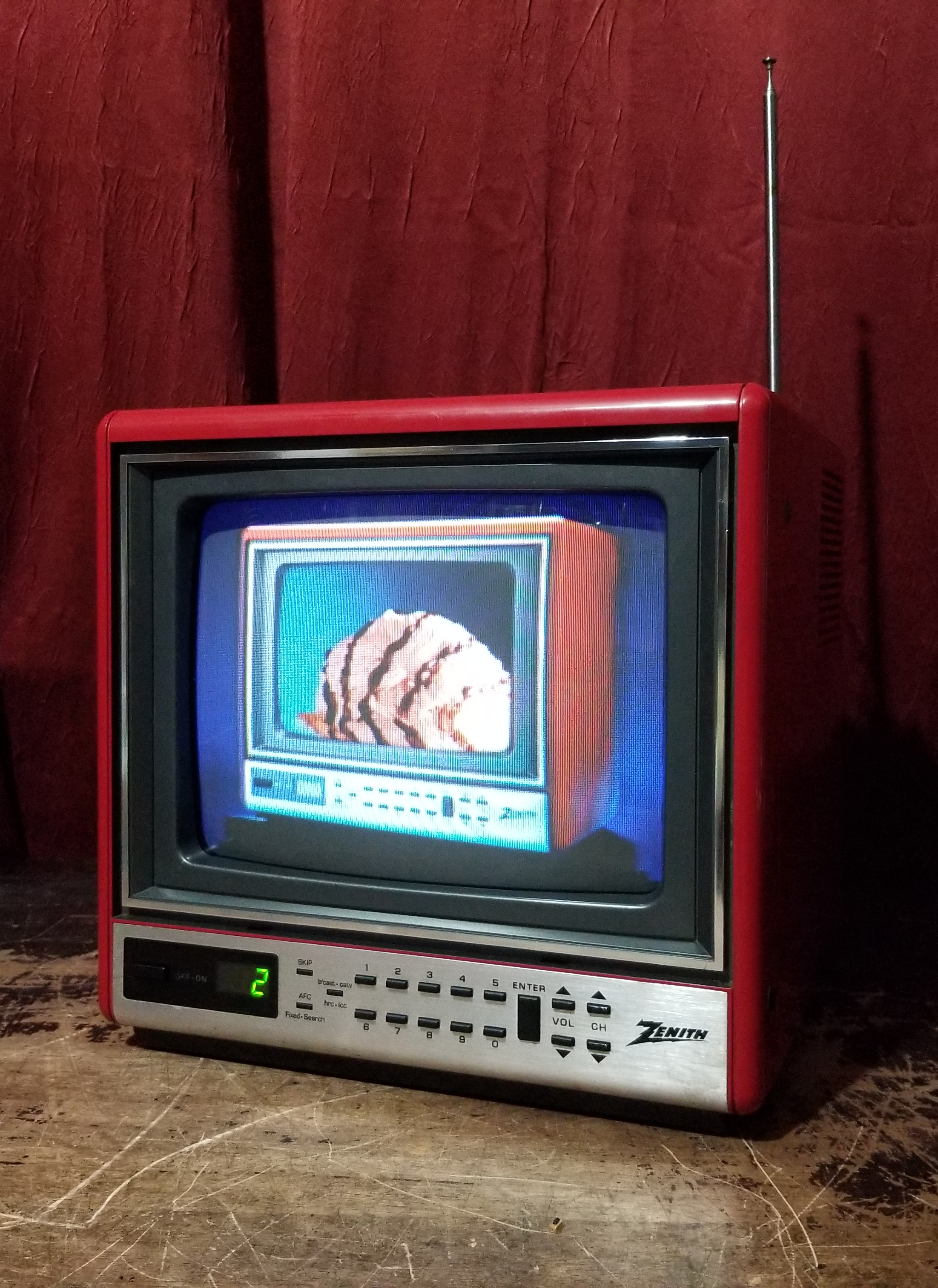

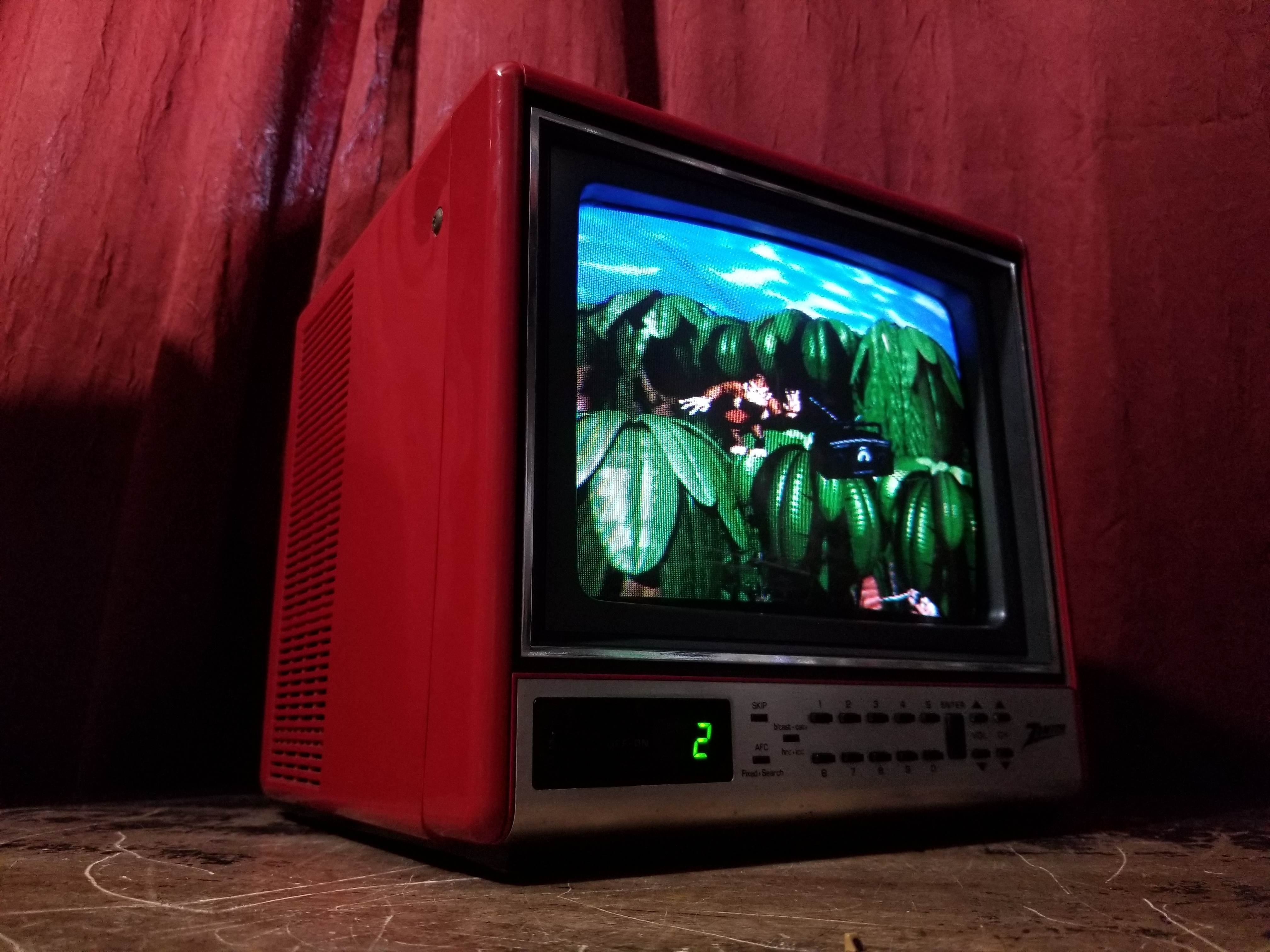

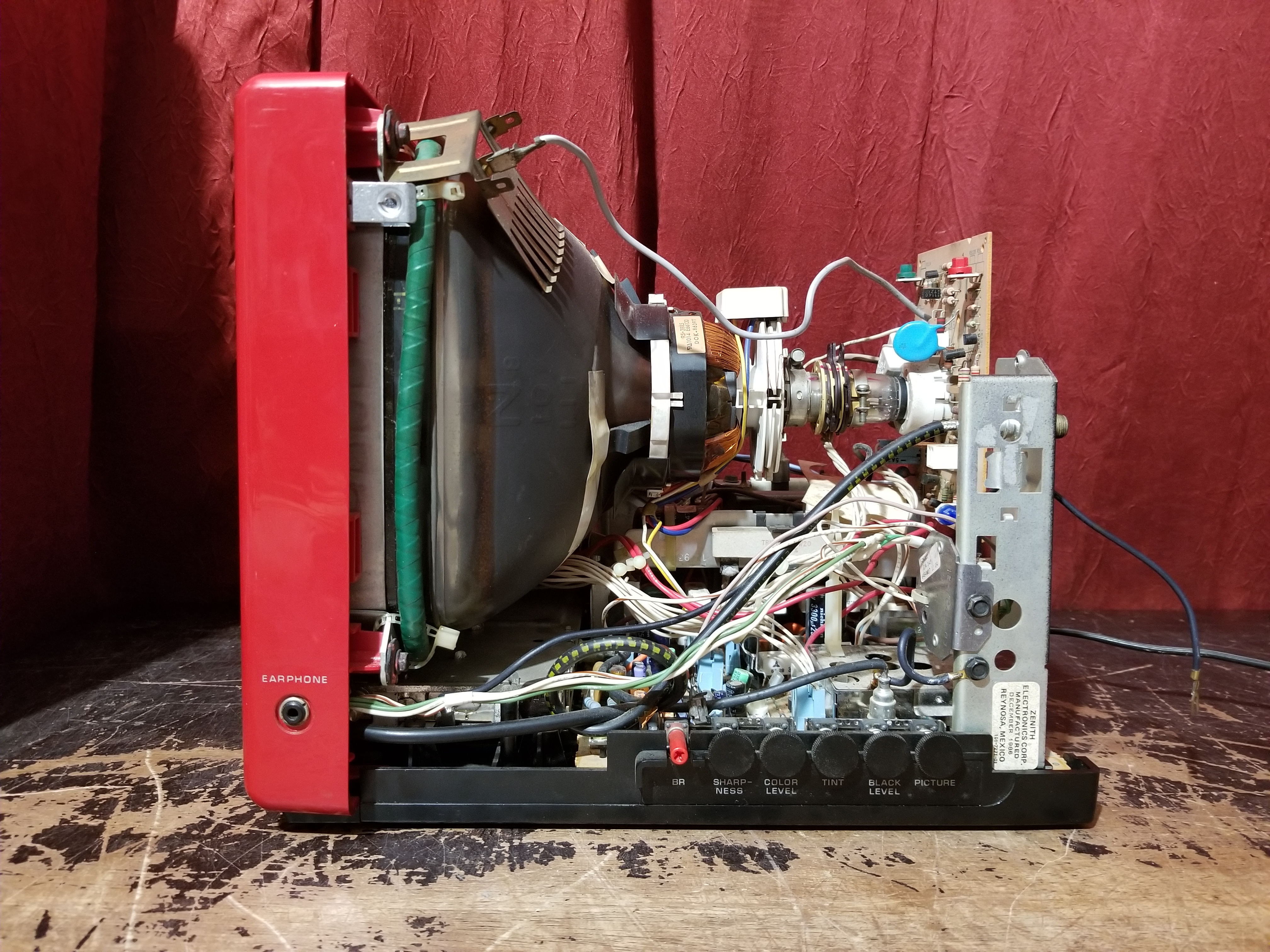

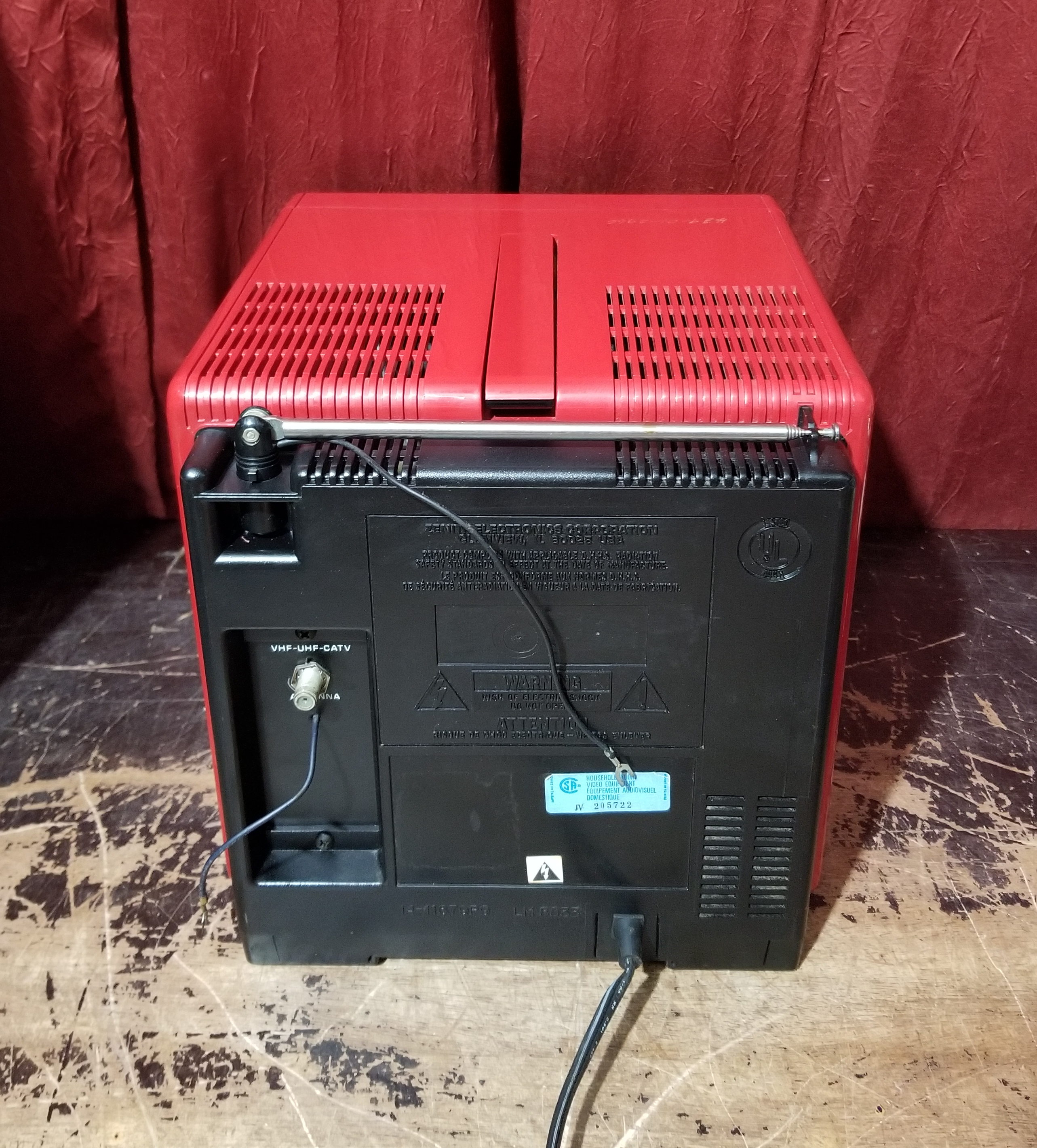

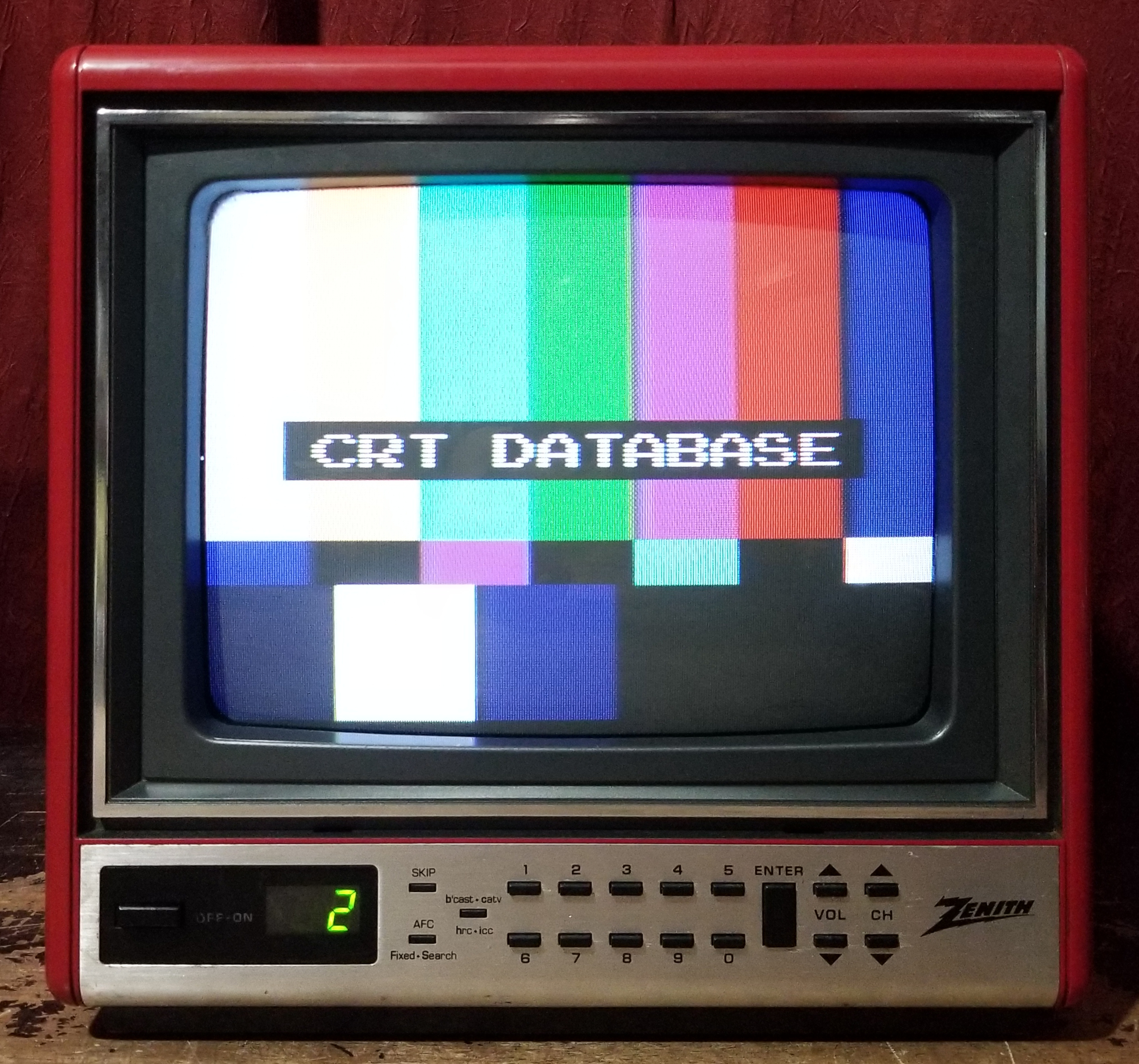

Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | C0920D |
| Series: | DeLights |
| Viewable Size: | 9" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

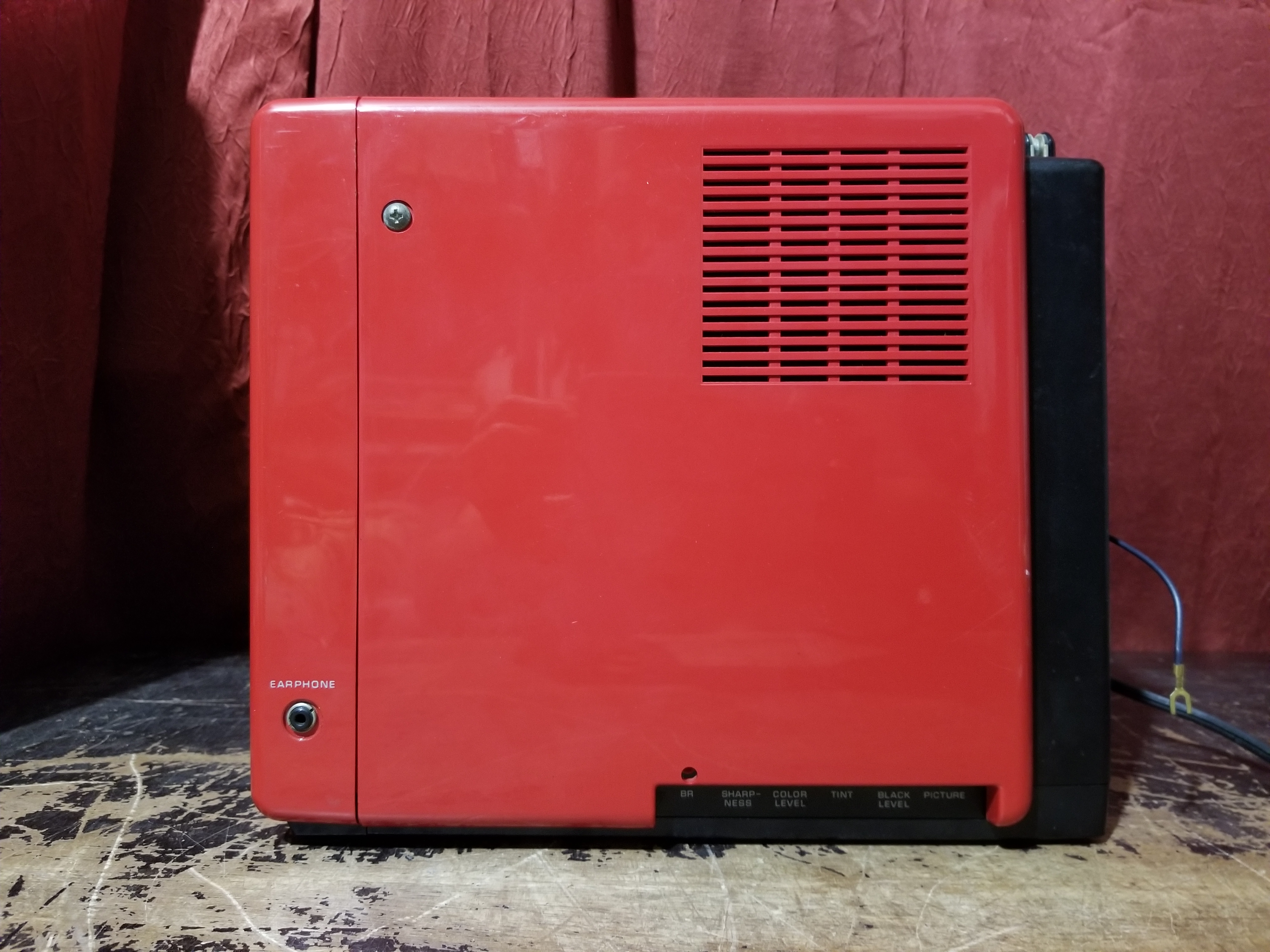

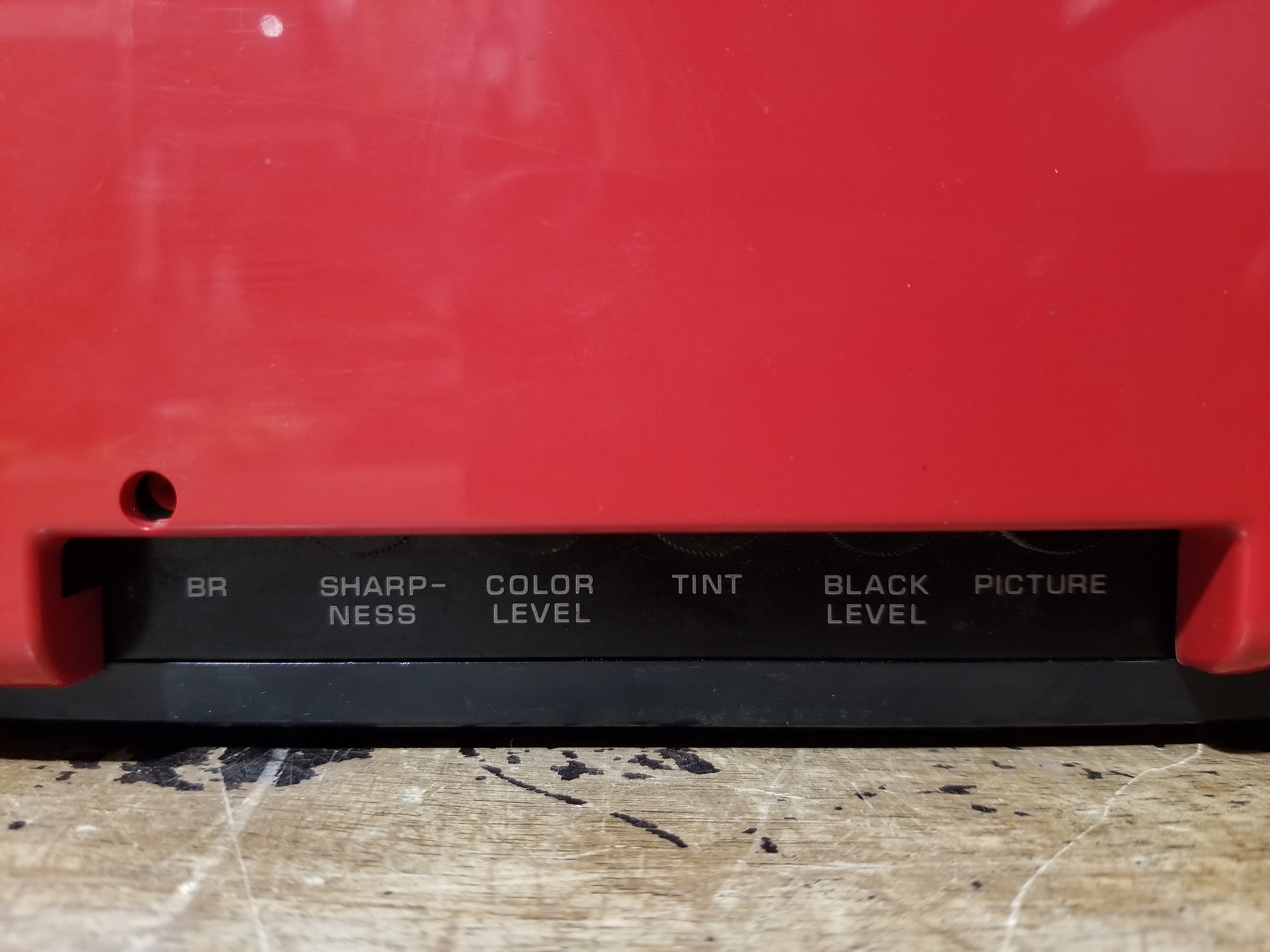

| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Hitachi, 221-473 |
| Comb Filtering: | Notch |
| Focus Type: | Single |

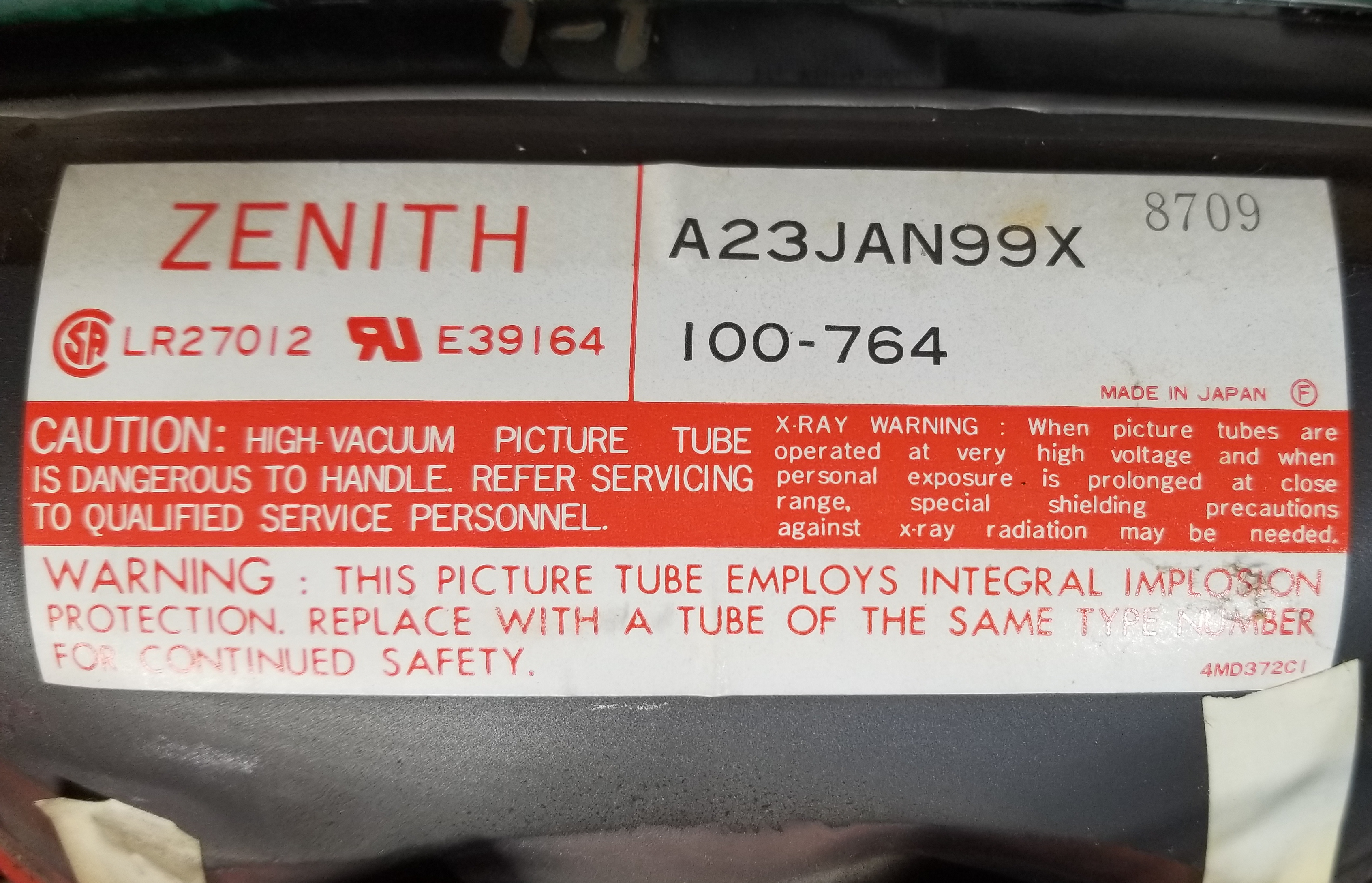

| Tube: | A23JAN99X , Chromacolor Contrast |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

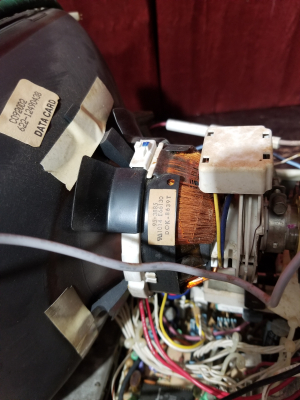

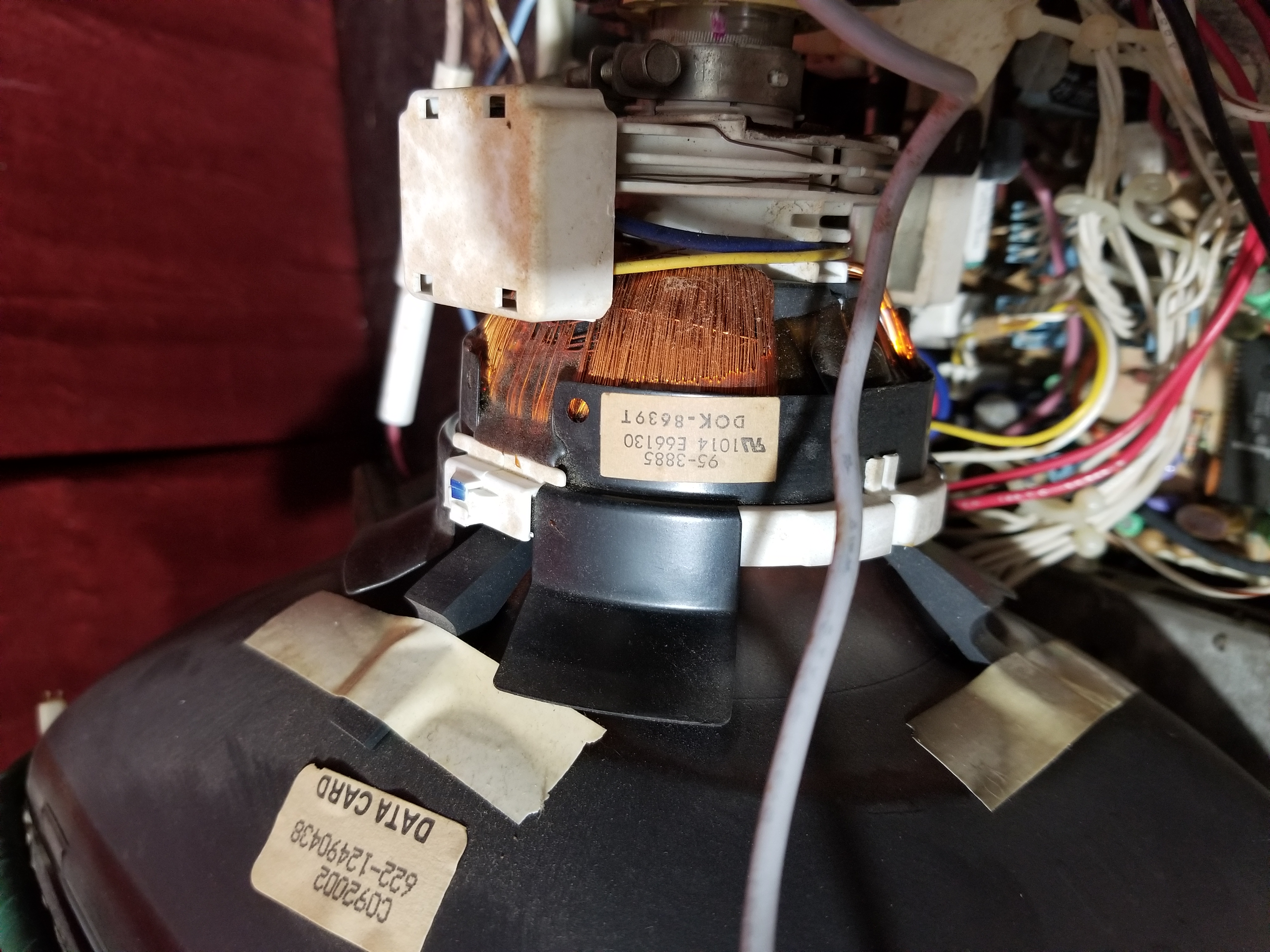

| Yoke: | 95-3885 |
| Yoke Horz. Inductance: | 4.23 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 24.2 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 6.8 ohm |
| Yoke Vert. Resistance: | 10.7 ohm |
| Speakers: | Mono |
| Chassis: | Reliant |
| Weight: | 17 lbs (7.7 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1986 |
| MSRP: | 369 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Mods: | S-Video, Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
