Summary

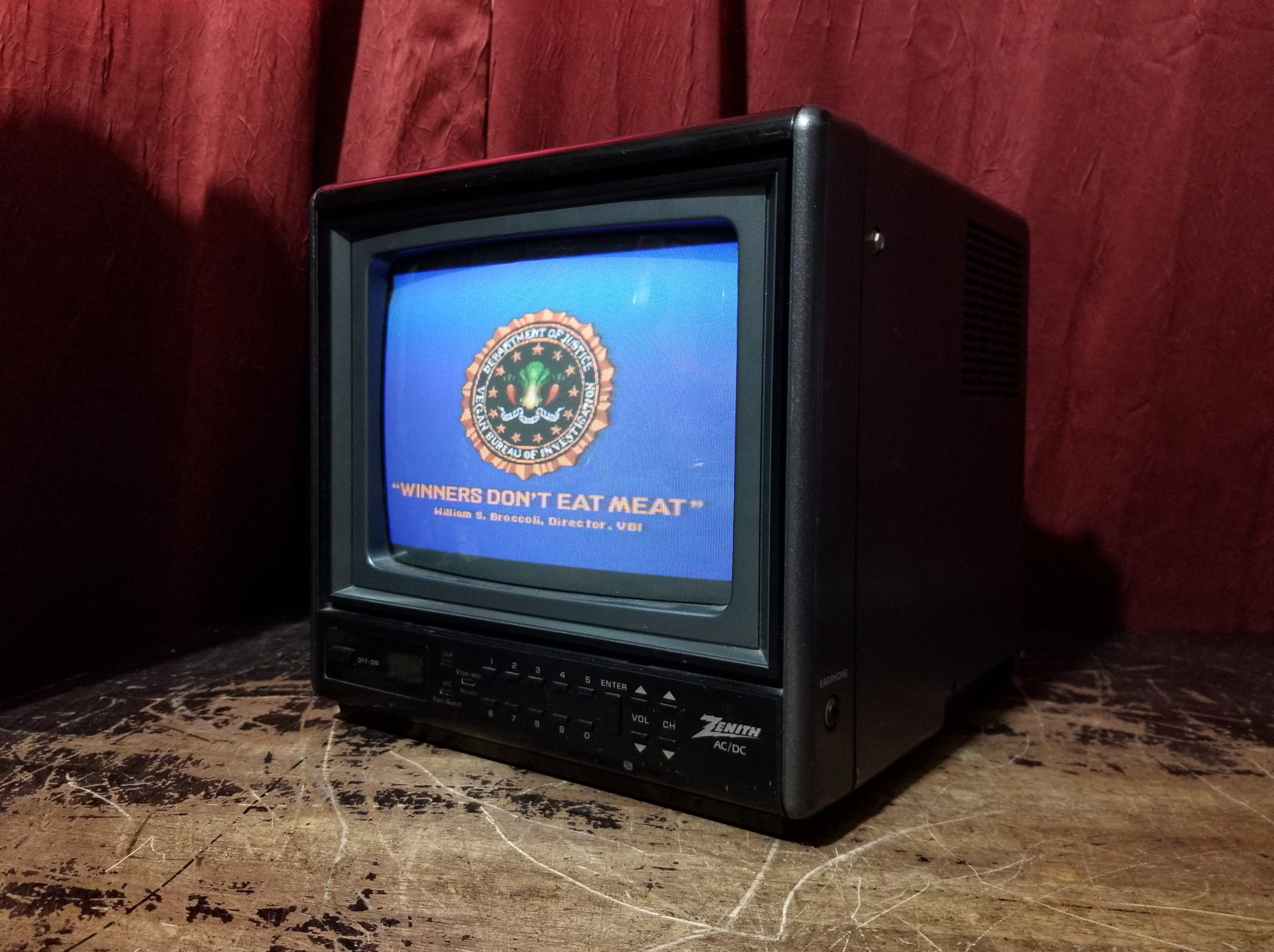

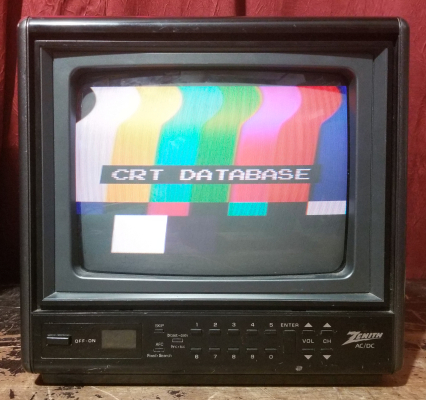

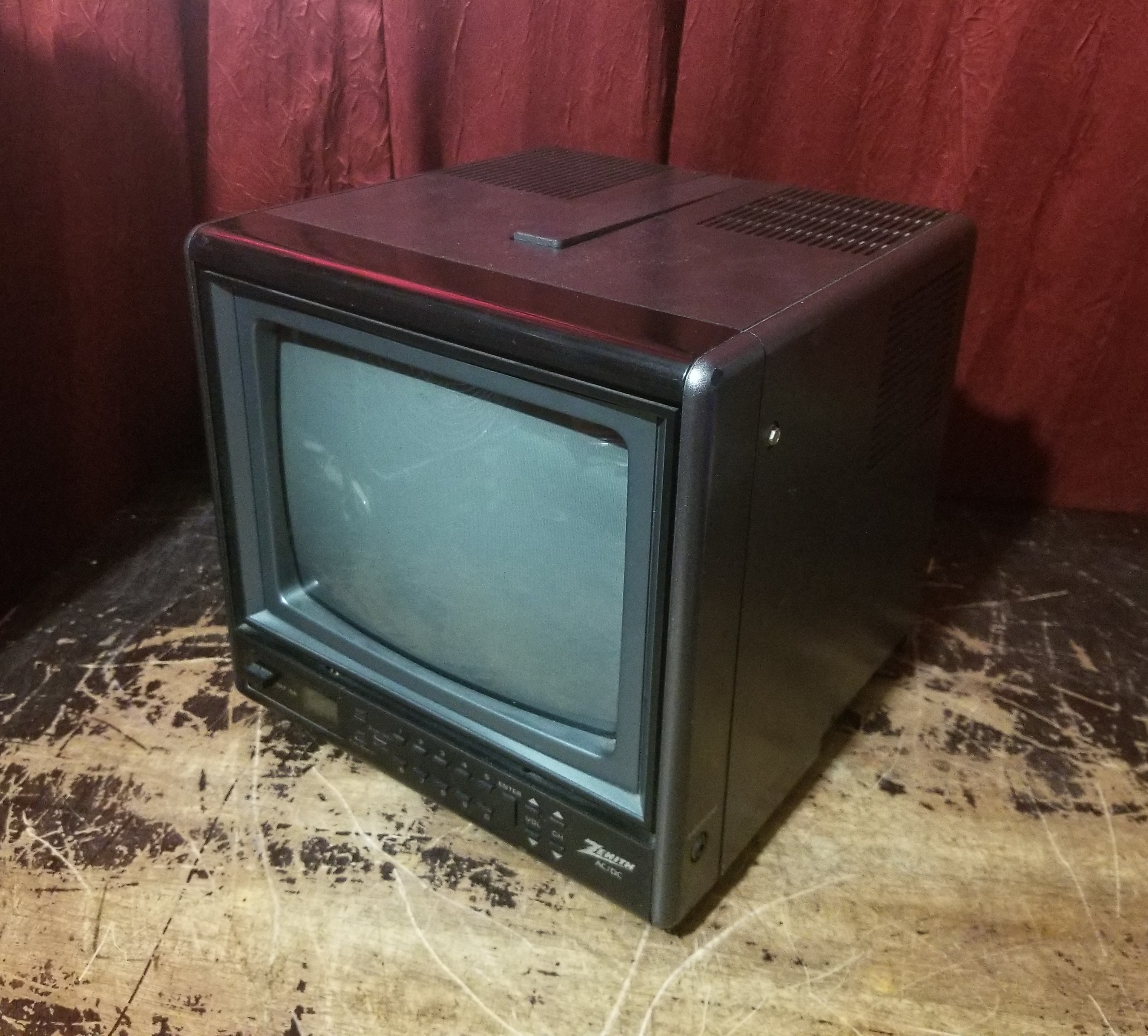

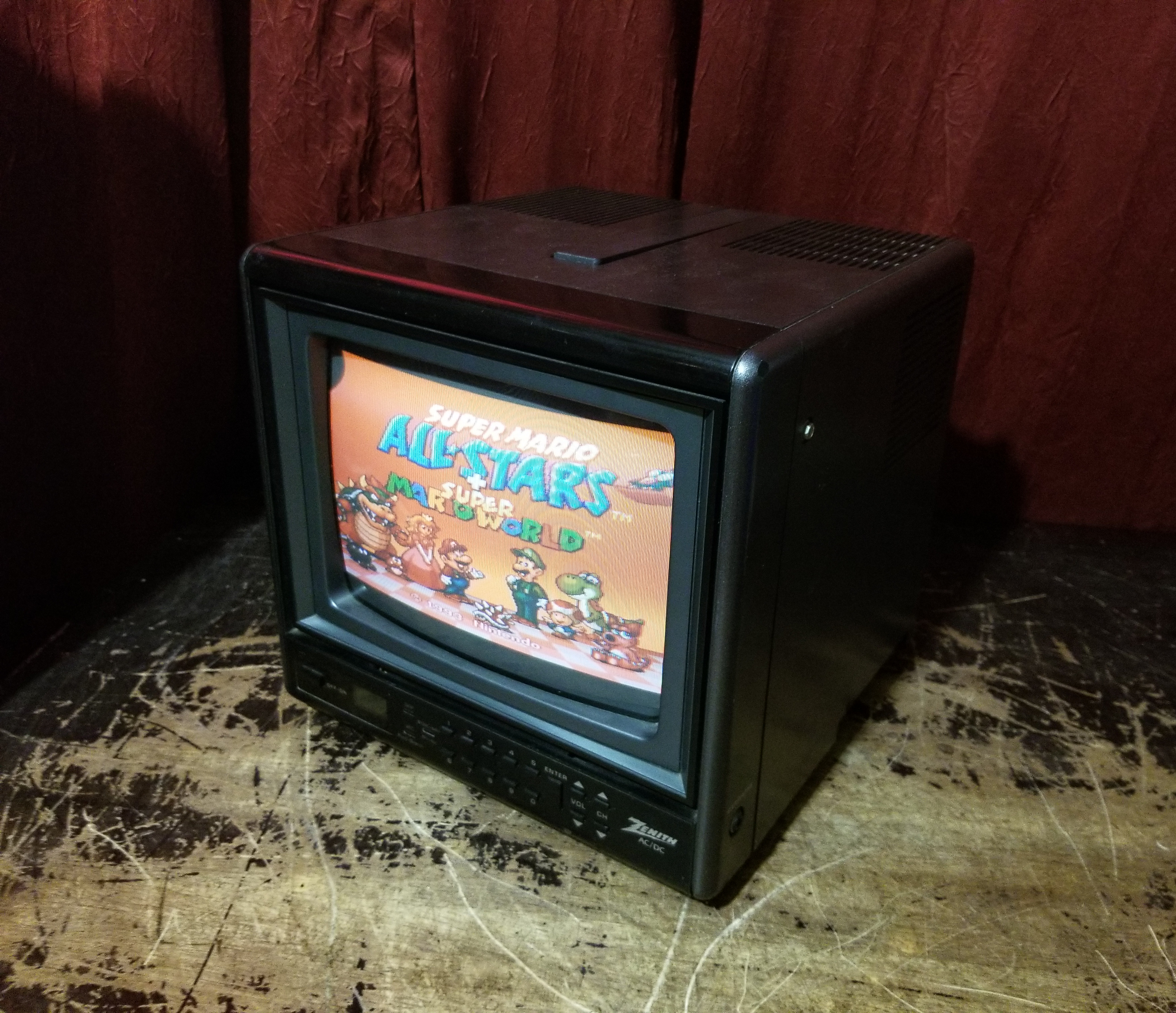

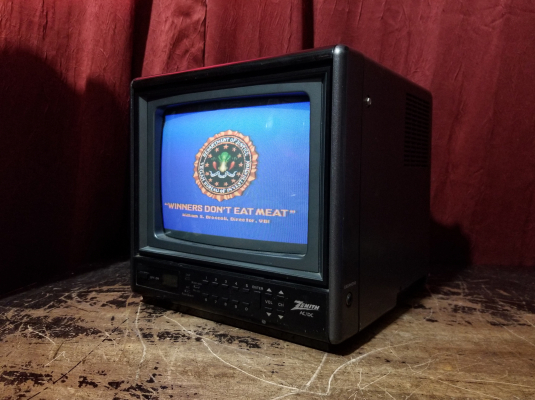

9" Portable Zenith DeLights for home and car. Zenith fun-sized color TV with two-way AC-DC operation. Easy to carry, ultra-compact size plus convenient flush-mounted handle. Handy DC car cord. Licorice DeLight finish.
Manuals
The closest Sam's available appears to be for the D0930S, Sam's set 2698.
Media & Promo Materials
Mods & Repair Guides
Notes

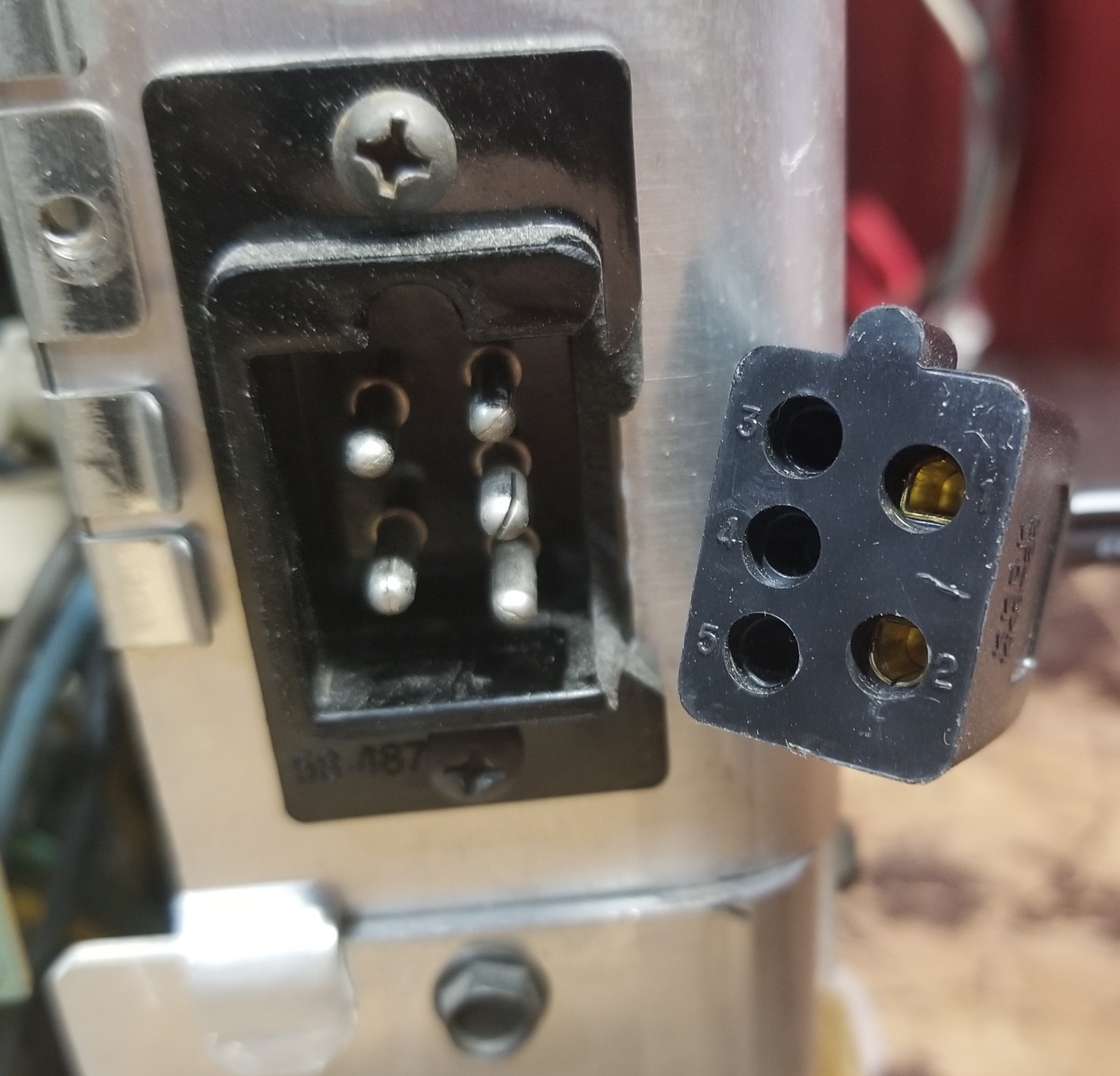

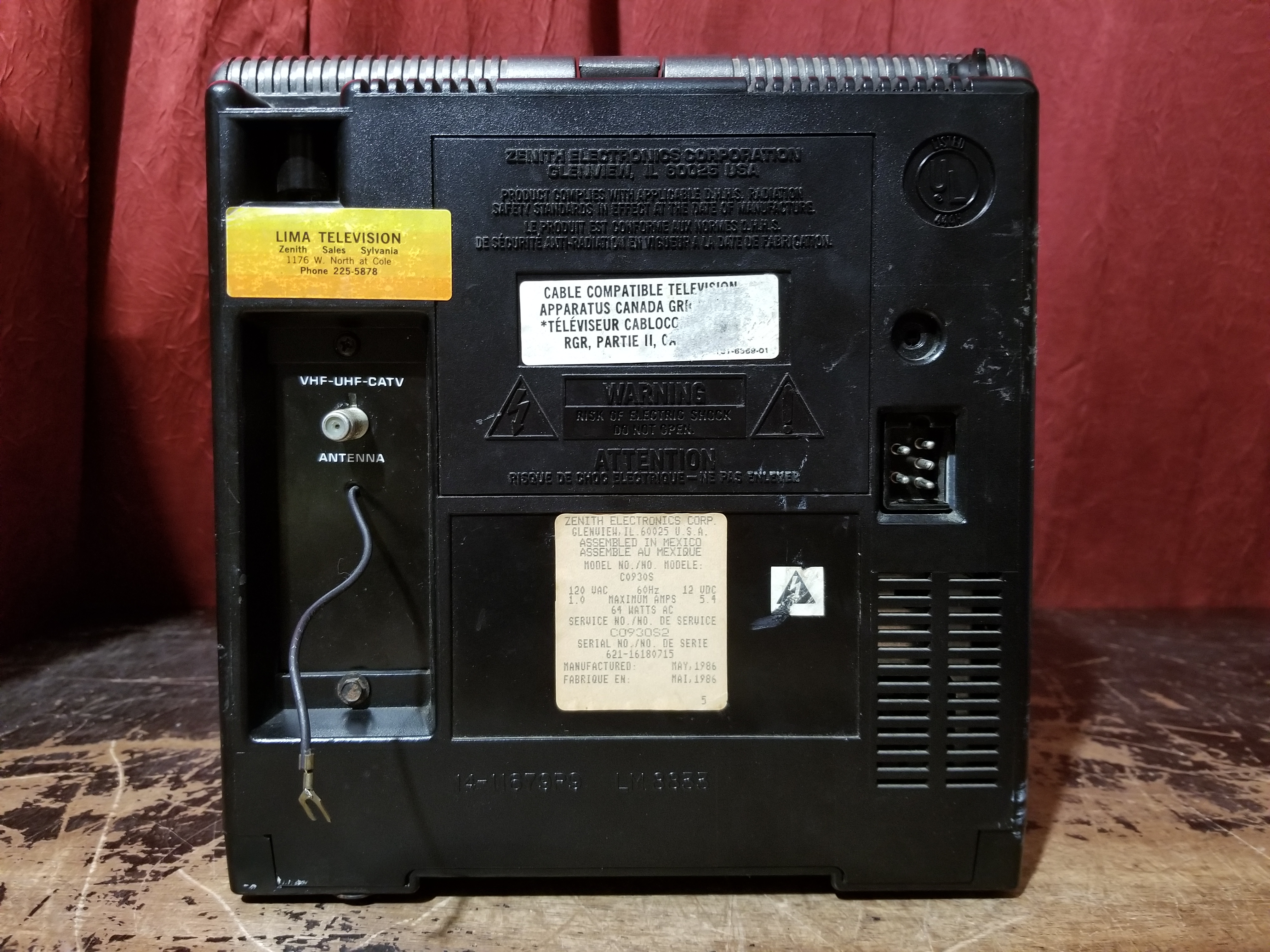

Uses a non-standard power cord. See image in gallery below for which two pins are AC.
Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | Zenith |
| Model: | E0930S |
| Series: | DeLights |
| Viewable Size: | 9" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

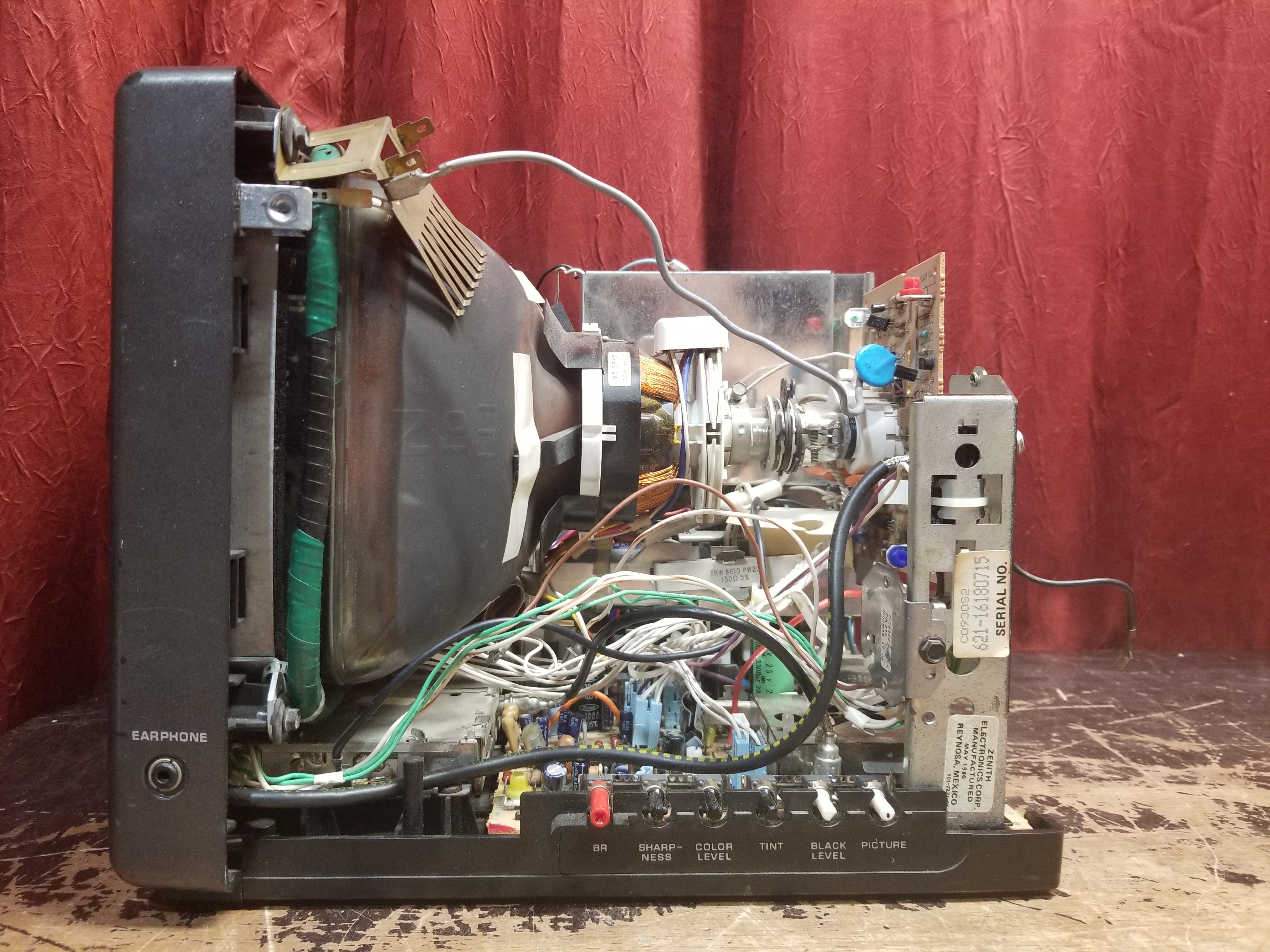

| Adjustments: | Internal Potentiometers, External Potentiometers |

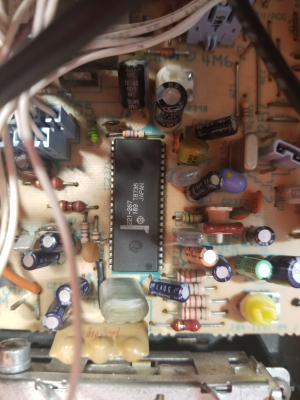

| Jungle IC: | Hitachi, 221-473 |
| Comb Filtering: | Notch |
| Focus Type: | Single |

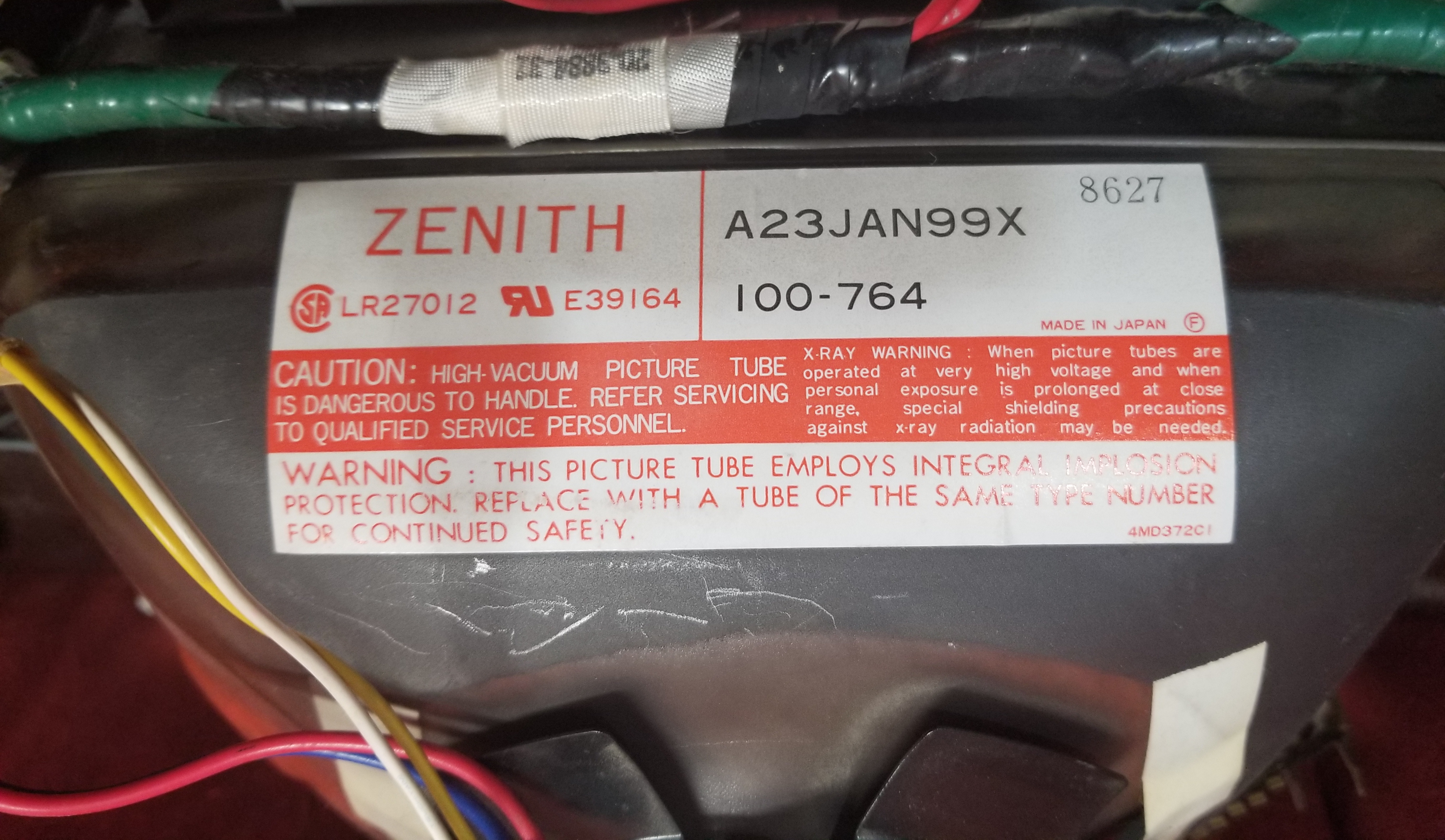

| Tube: | A23JAN99X , Chromacolor Contrast |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark, Detachable Sunshade |

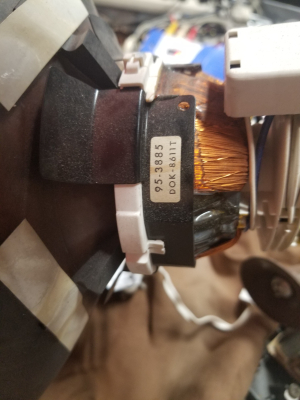

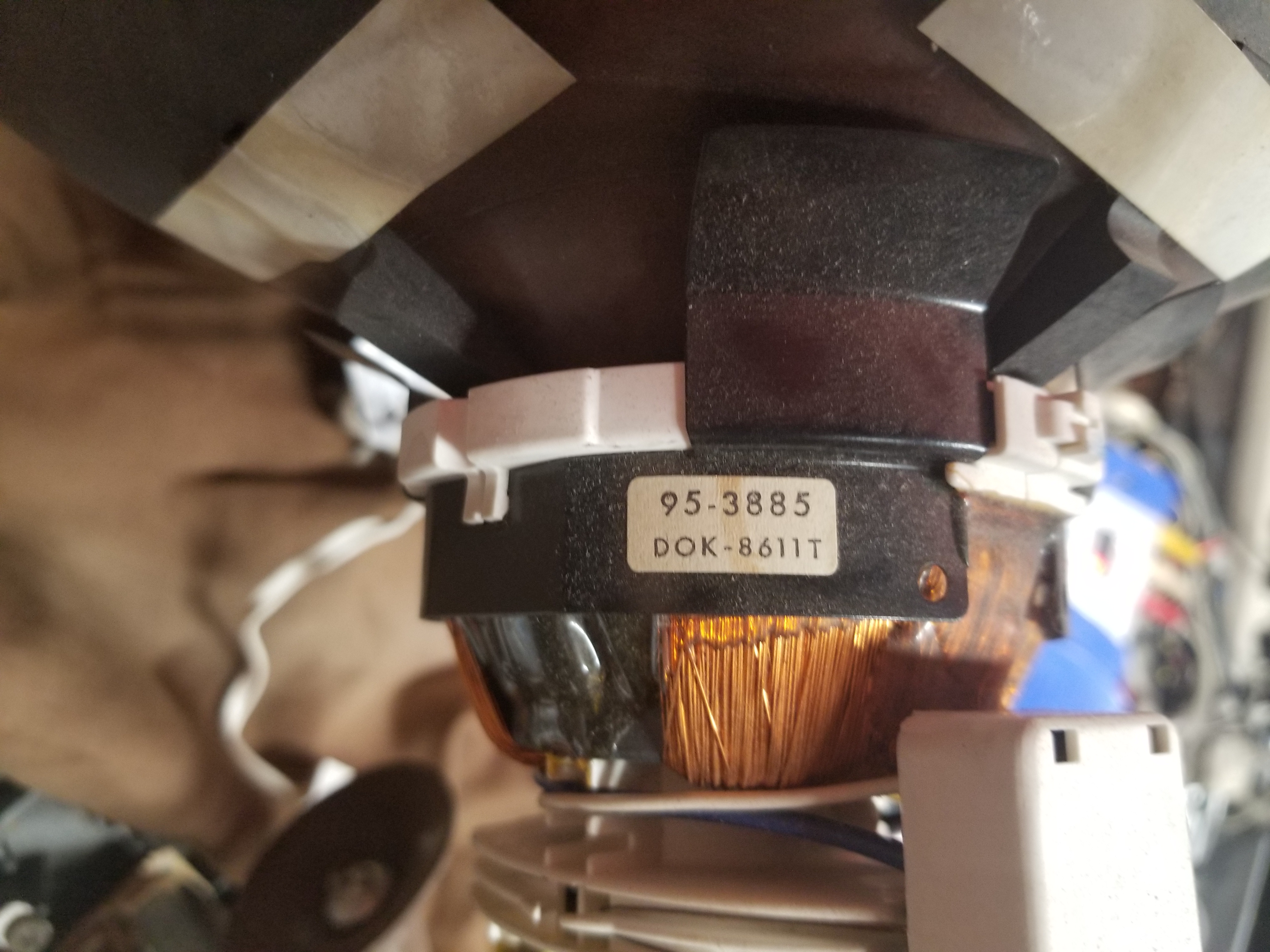

| Yoke: | 95-3885 |
| Yoke Horz. Resistance: | 6.8 ohm |
| Yoke Vert. Resistance: | 10.7 ohm |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 359 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Mods: | S-Video, Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
