Summary

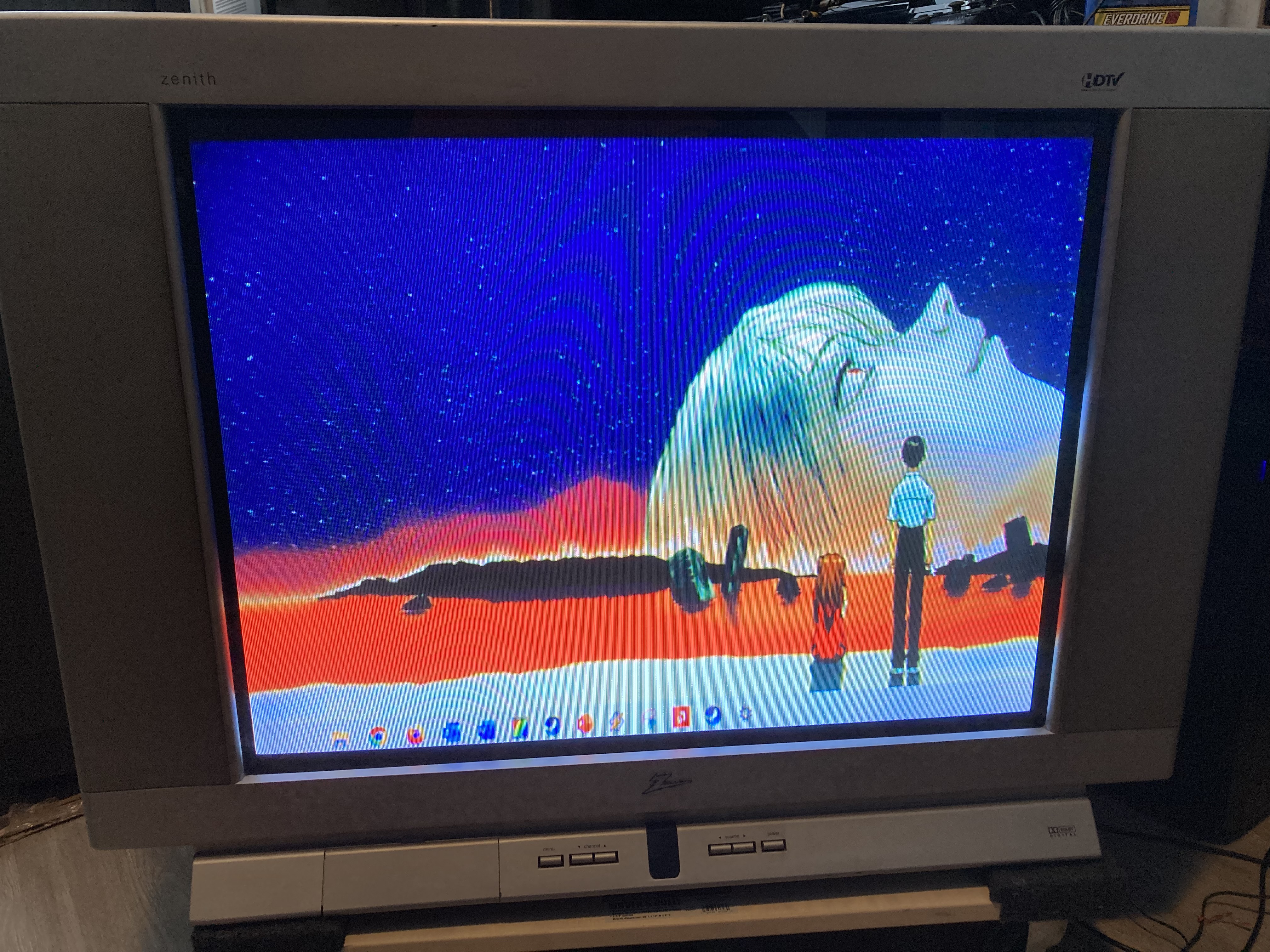

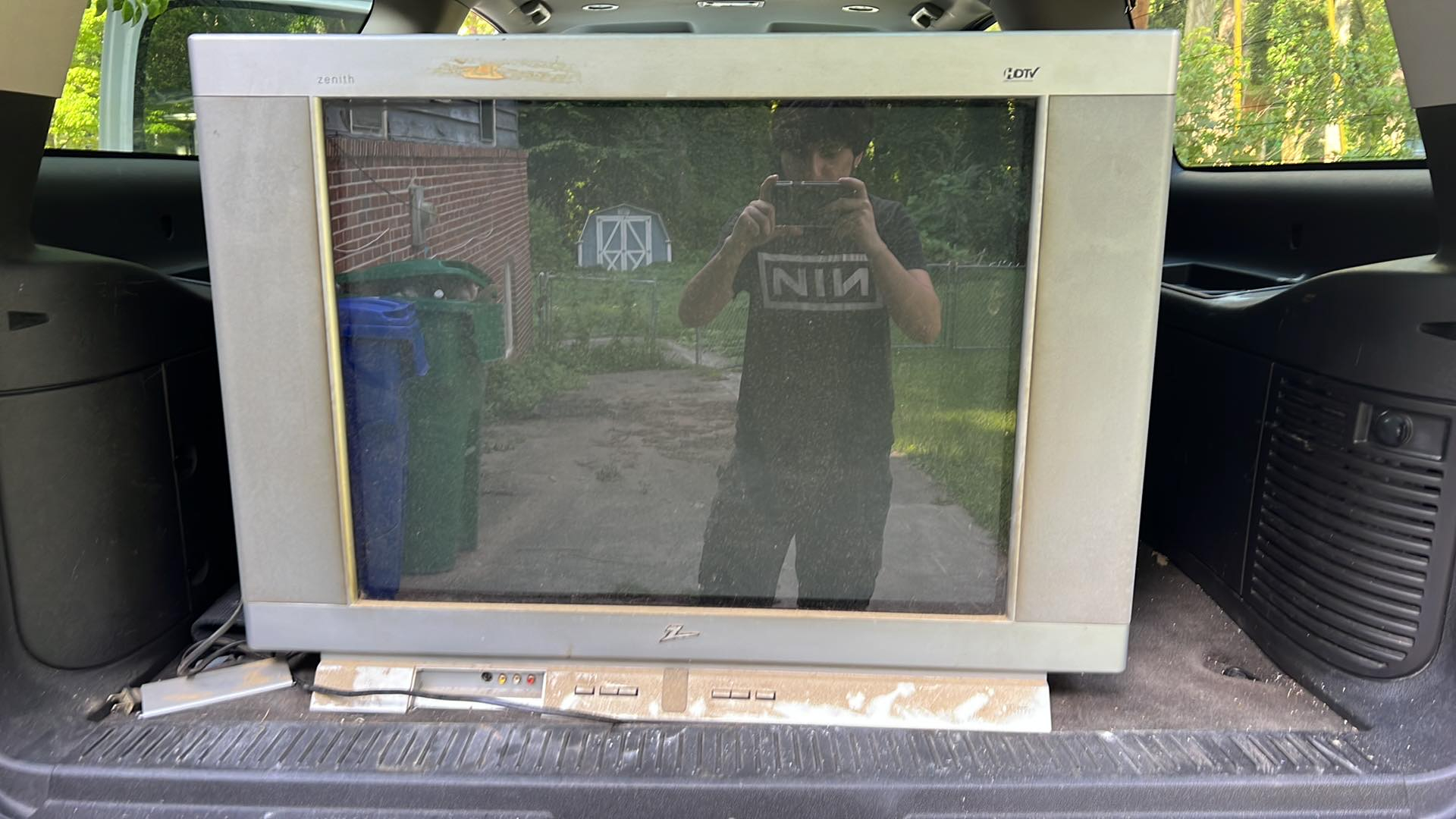

32" flat HD CRT by Zenith from 2002. Made by LG in Mexico. Unlike the V22 models, this set lacks the VGA input, being component at best. Can still receive SD and HDTV broadcasting via it's digital tuner.

Literature

• User Manual
• Service Manual

Notes

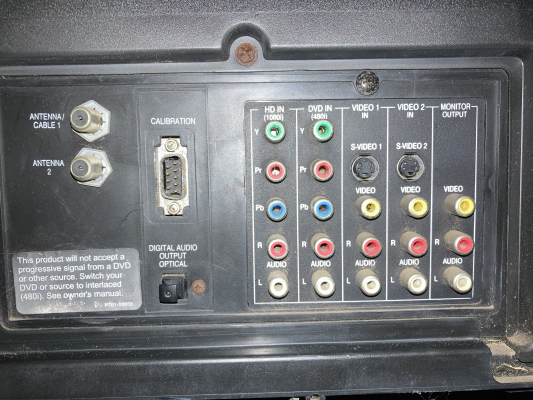

This HD CRT is kind of odd... it will accept 480i and 1080i over the component input, but not 480p. Seriously, I tried. Its a real bummer considering the V22 models support 480p over VGA, but alas.

SD signals are deinterlaced and upconverted to 540p. The processing adds several frames of lag, enough that it breaks playability for 240p/480i games. As for 1080i games, I don't recall feeling any lag. Way snappier. Therefore, if you plan to use this set, I recommend playing in 1080i.

However, that brings us to another oddity about this set: the aspect ratio toggling. For some reason it displayed everything in fullscreen 4:3, even 480i. And if you tried to change the aspect ratio in the menu, the option is grayed out. Maybe it was a glitch or something, but it was very strange.

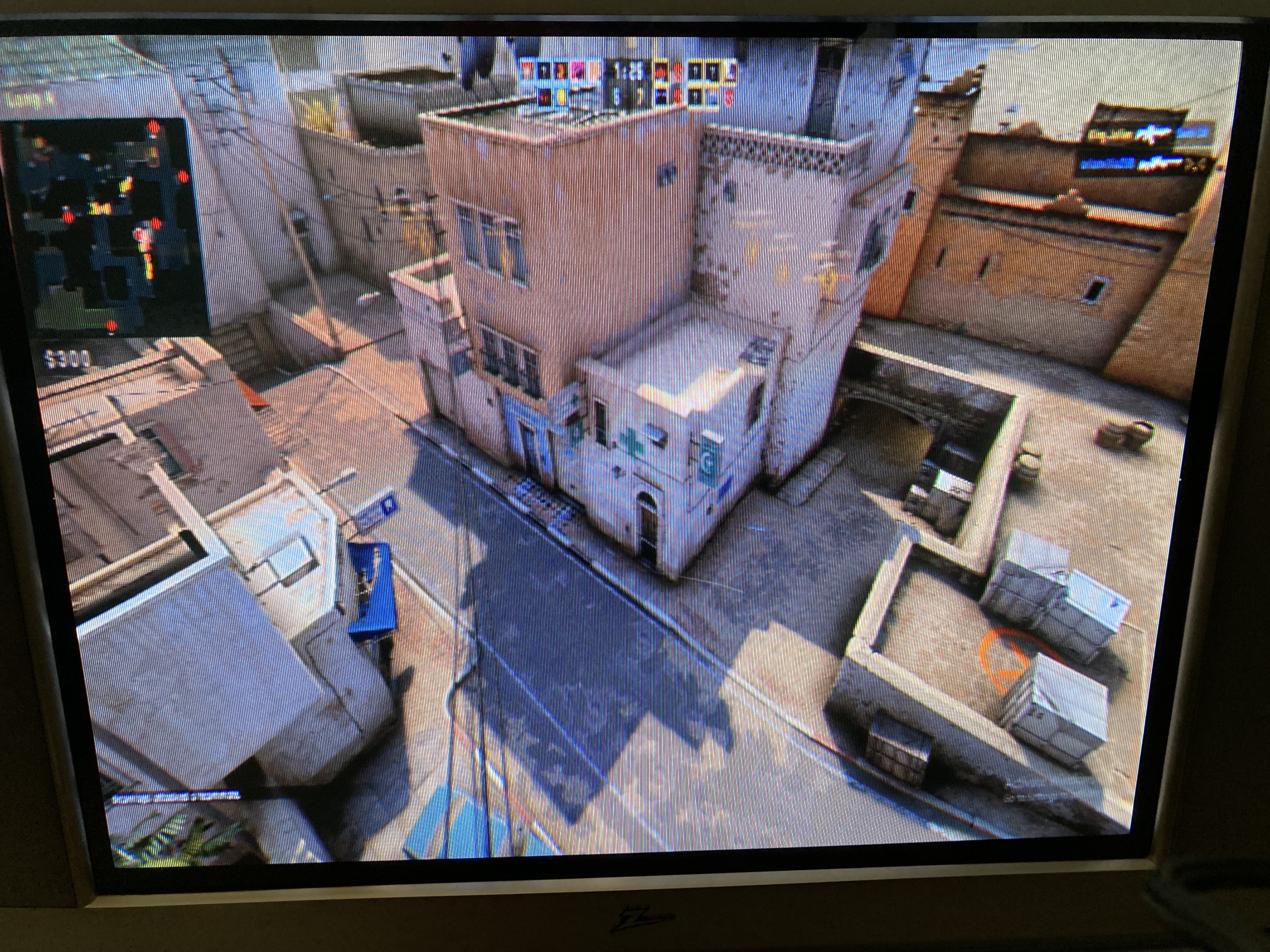

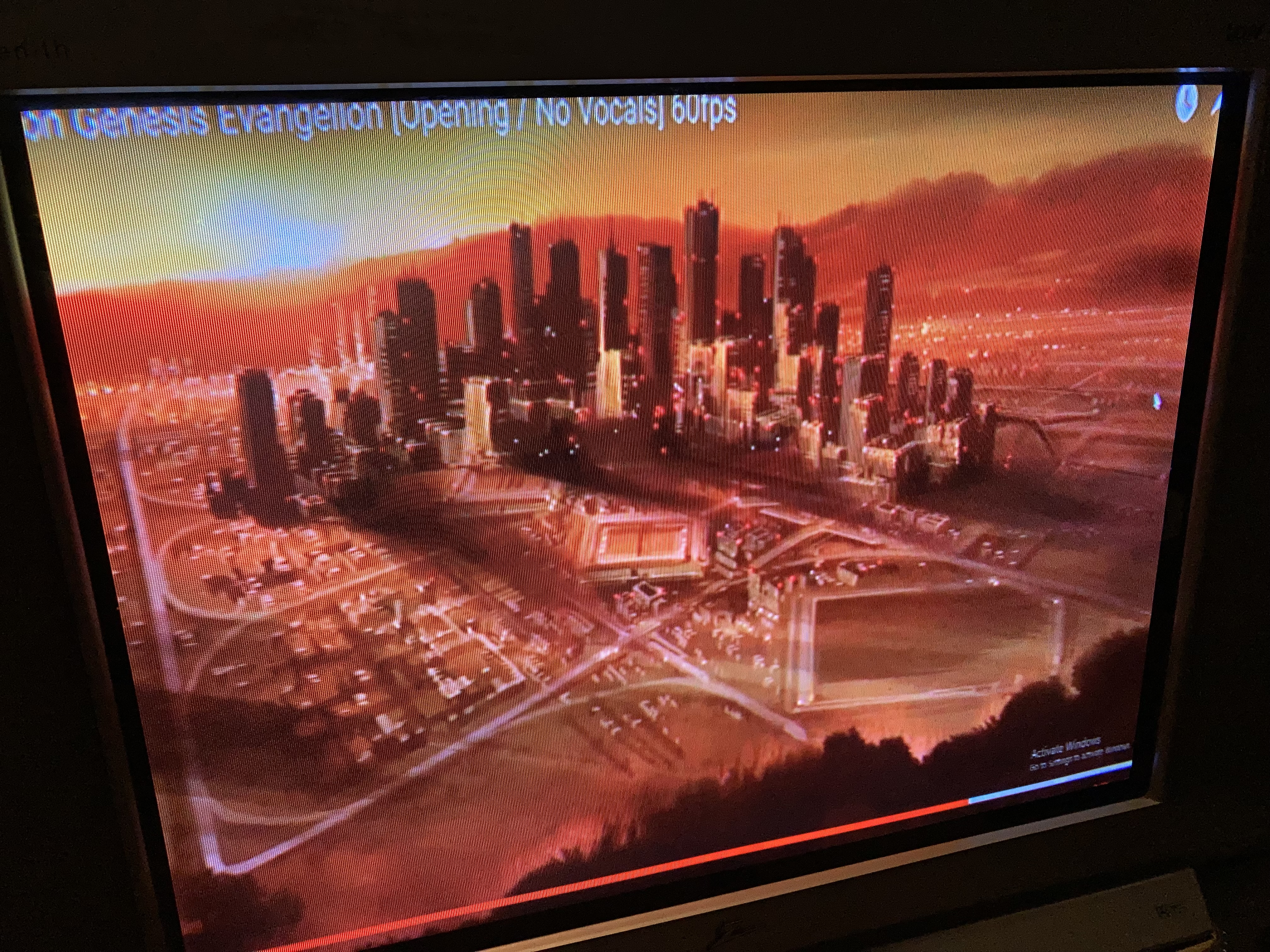

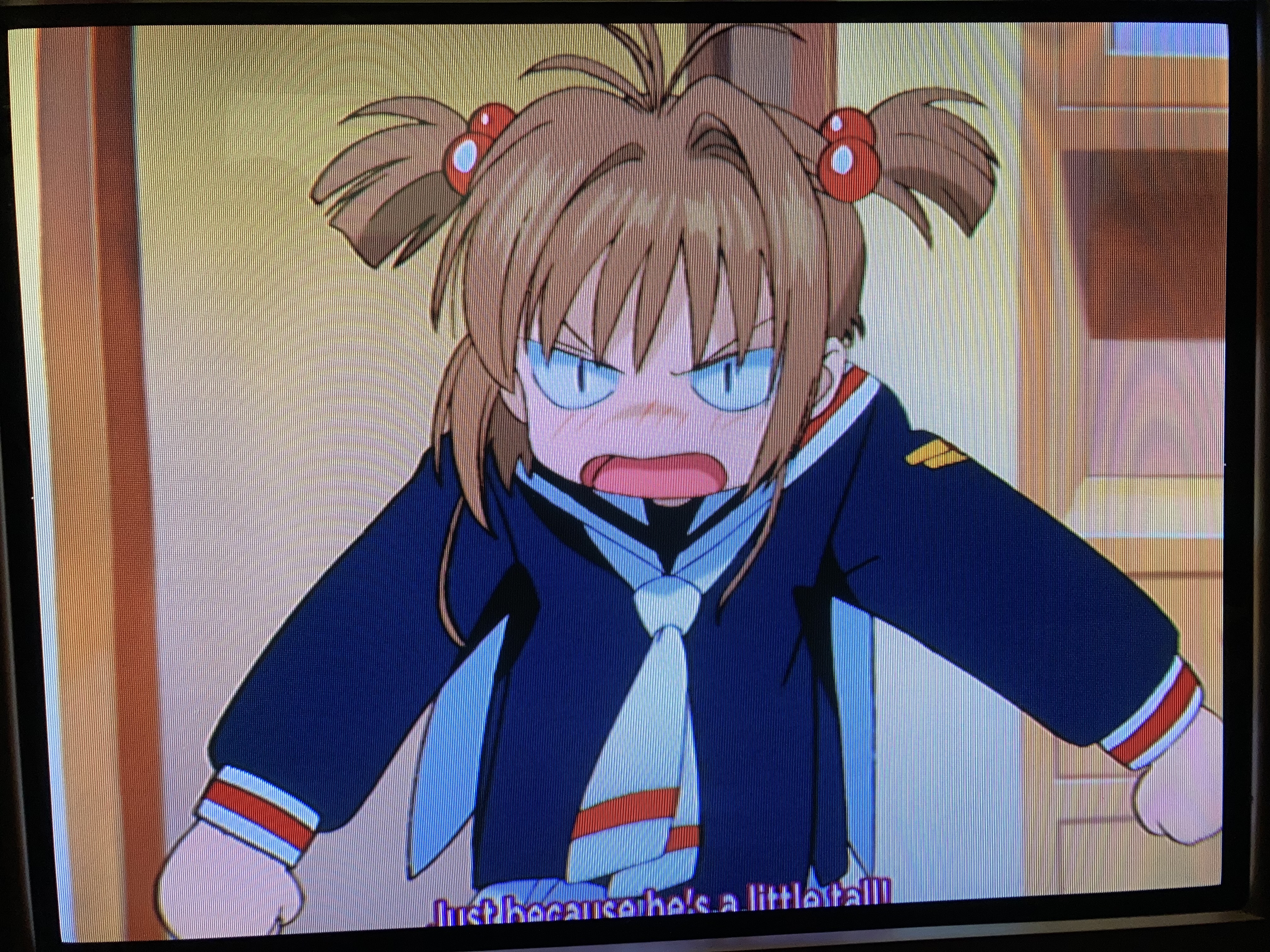

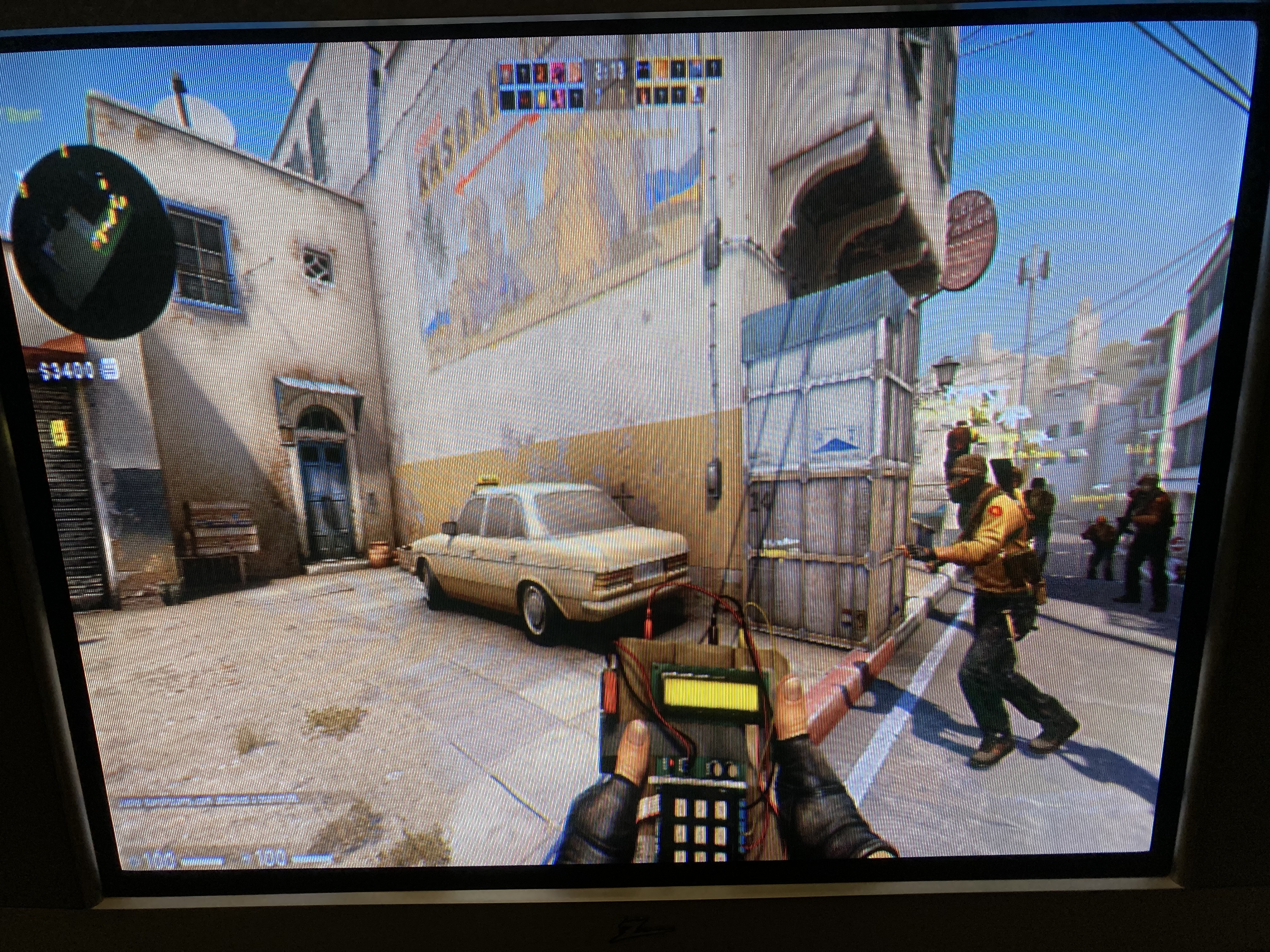

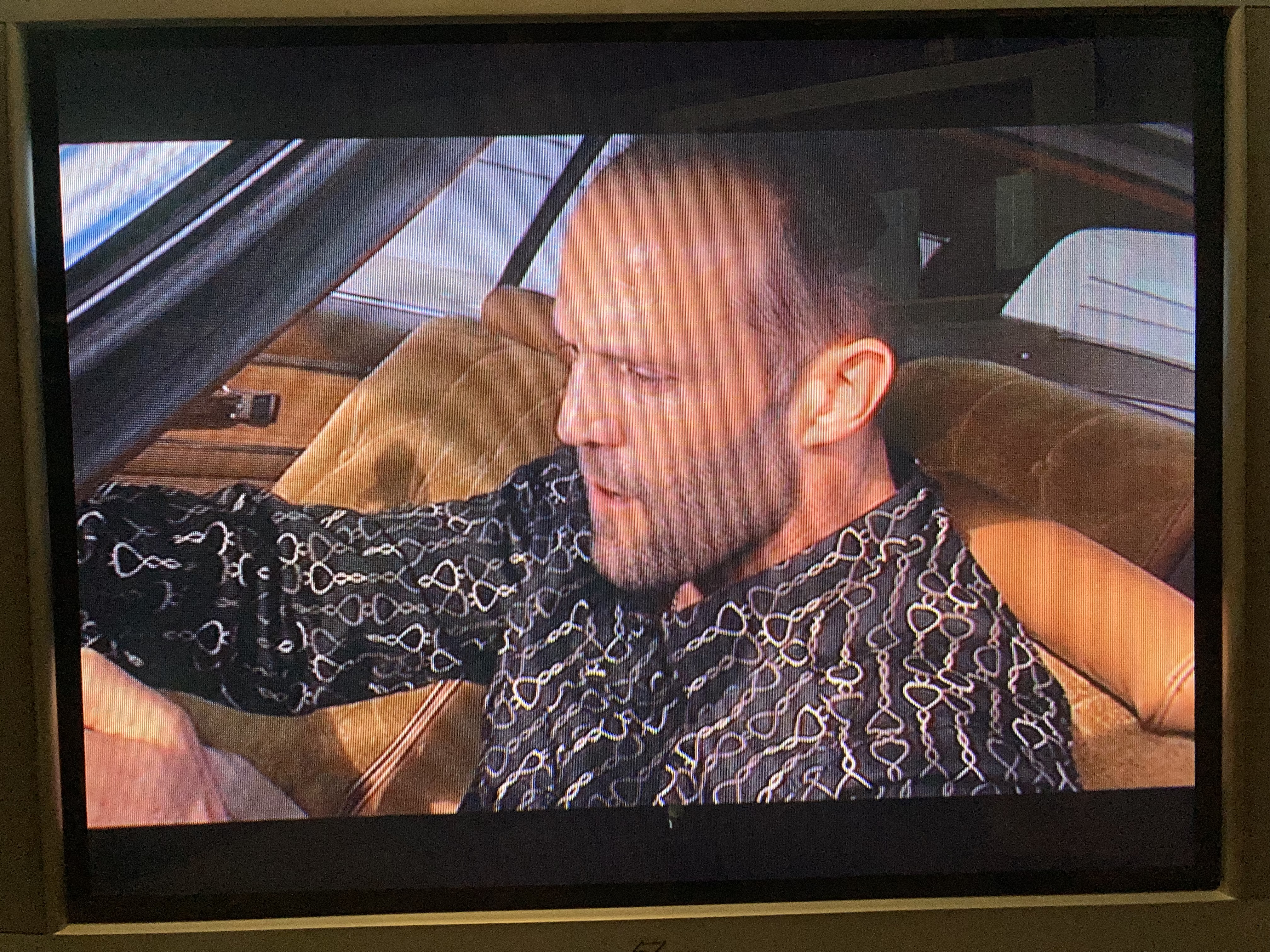

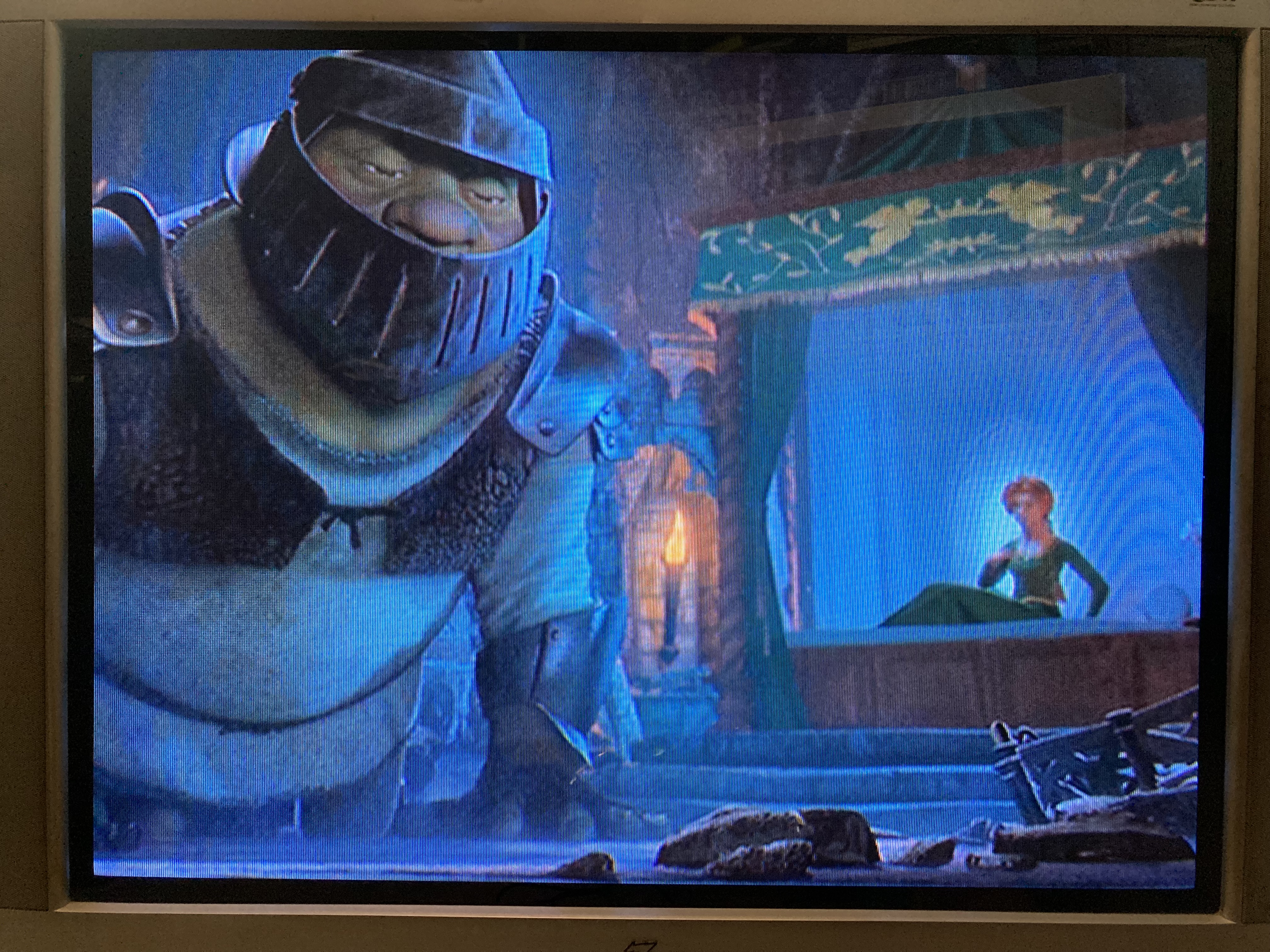

This set also has nasty velocity modulation that you cannot turn off in the menu. However, you can disable it by pulling the jumper that injects it from the yoke inside. (The included pics are of it with the VM still enabled.)

According to the service manual, this set uses either an LG-Philips picture tube or Panasonic model. Pics below are of the latter.

Speakers on my set were worn out and rattled like crazy, but YMMV. There is digital audio output over an optical connection.

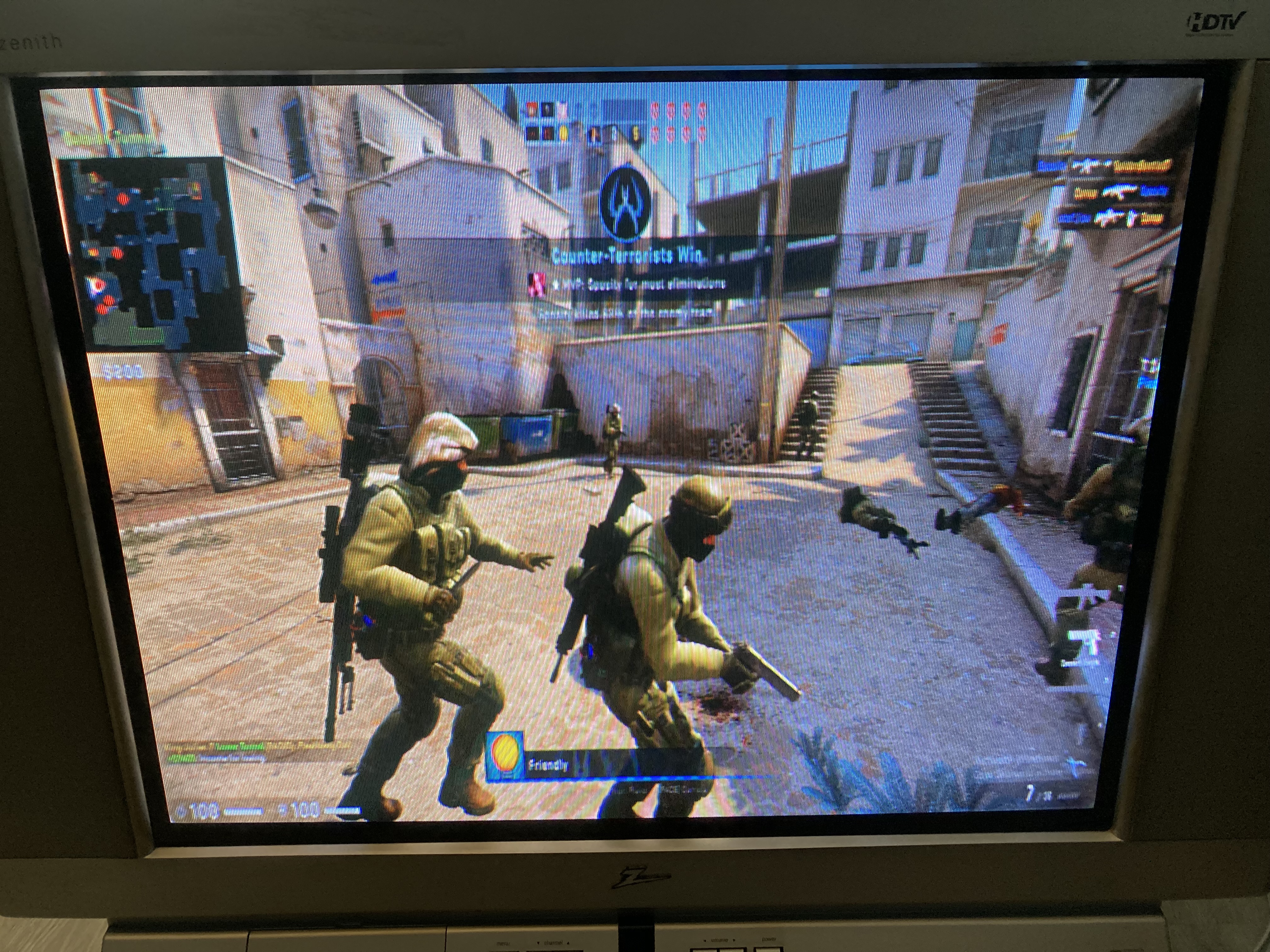

Overall, this set is a mixed bag. The lack of 480p support is a bummer, but at least 1080i works, even if the aspect ratio controls are wack. If you're using a PC, you could convert HDMI to component in 1080i and set up a custom resolution and frame sizing to get it looking just right. (Thats what I did and it looked quite good.)
